Bosch Rexroth A10VO open-circuit hydraulic pump for the Wirtgen asphalt equipment 123238 125573 130391 130392 154412 161467 189604 66343

The A10VO is Bosch Rexroth's workhorse variable pump for medium-pressure, open-circuit hydrostatic drives. It sits in the same product family lineage as the closed-circuit A4VG and the A10VSO, but its defining trait is right in the name: it's built specifically for open-circuit operation, where oil is drawn from a reservoir, pressurized, sent to work, and returned to the tank — rather than circulating in a closed loop between pump and motor.

Why Wirtgen Builds Around This Pump Family

Wirtgen, like most major asphalt and milling equipment manufacturers, doesn't design its own hydraulic pumps — it specifies proven components from established suppliers and integrates them into a machine-specific hydraulic architecture. Bosch Rexroth is one of the dominant suppliers in this space, and the A10VO shows up across construction, agricultural, and material-handling equipment well beyond Wirtgen's lineup.

Pavers: Auger, Conveyor, and Vibration Circuits

On an asphalt paver, material has to move continuously from hopper to auger to screed without stalling the mat being laid. The auger and conveyor drives, along with the screed's vibration or tamper circuit, typically run on open-circuit hydraulics fed by A10VO-class pumps. Because displacement is variable, the operator (or the machine's electronic control system) can match material feed rate to paving speed without constantly adjusting engine RPM.

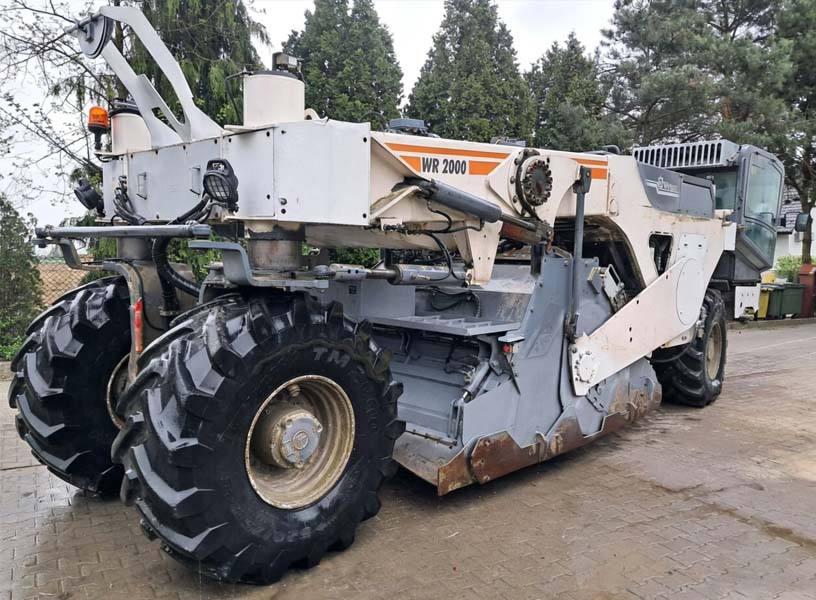

Milling Machines and Compactors

Wirtgen cold milling machines use similar open-circuit architecture for conveyor and water-spray/dust-suppression systems, and some auxiliary drives on compactors follow the same pattern. The common thread is any function that needs proportional, adjustable flow but doesn't require the reversing, closed-loop precision of a primary travel drive.

Installation and Mounting Considerations

The A10VO mounts via an SAE flange directly to the engine's power take-off or a splitter gearbox, often stacked with other pumps on a common through-drive shaft. A few points matter more on asphalt equipment than in a clean industrial setting:

Alignment tolerance — vibration from milling drums and screed tampers accelerates wear on misaligned couplings and spline connections faster than on stationary industrial machinery.

Case drain routing — with two drain ports, technicians can route case drain oil to minimize back-pressure on whichever side of the pump sees the least favorable geometry in the machine's compartment.

Suction line sizing — open-circuit pumps are sensitive to suction starvation; undersized or restrictive suction plumbing is a common, avoidable cause of cavitation on retrofit installs.

Maintenance Best Practices

Sample hydraulic oil on a schedule, not just when a problem appears — ISO cleanliness code trending catches contamination before it becomes pump wear.

Protect breathers and fill points from milling dust and asphalt fines; a compromised breather is one of the cheapest failures to prevent and one of the most expensive to ignore.

Track case drain temperature as a leading indicator of internal wear, since it tends to rise before external symptoms show up.

Verify suction conditions after any hose or filter replacement — a pinched or undersized suction line causes cavitation damage that looks like normal wear until the barrel and piston shoes are inspected.

Match control heads exactly when replacing a pump — swapping control types changes machine behavior even when displacement matches.

For more brands and equipment models, please visit https://www.baolilaihydraulic.com/brand/

Q1: How long should an A10VO last on a paver in continuous use?

A1: Service life depends heavily on contamination control and thermal management rather than a fixed hour figure. Well-maintained pumps on properly filtered, temperature-managed systems commonly run for several thousand hours, while pumps on poorly filtered or overheated systems can show measurable wear in a fraction of that time.

Q2: Why does my A10VO run hotter than it used to, even with no visible leaks?

A2: Rising case drain temperature with no external leak is a classic sign of internal wear increasing leakage across piston-to-bore clearances. It's worth confirming with an oil sample and case drain flow test before assuming the pump itself is the root cause, since cooler faults and low oil levels can produce a similar symptom.

Q3: What is the price and delivery time of the A10VO hydraulic pump for the Wirtgen asphalt equipment?

A3: The specific price and delivery time will depend on the equipment model or specific product model you provide.

Q4: How to purchase an A10VO hydraulic pump for the Wirtgen asphalt equipment?

A4: Visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
