Bosch Rexroth A2FM fixed displacement hydraulic motor for the Bauer Engineering equipment 207602 264478 218599 354269 356616 83454 15840

The A2FM is a fixed-displacement, bent-axis axial piston motor built by Bosch Rexroth for high-pressure hydrostatic drives in open and closed circuits. "Fixed displacement" is the key phrase — unlike a variable motor, the A2FM delivers a constant volume of oil per revolution. That means output speed tracks pump flow directly, and output torque scales with the pressure differential across the motor. There's no swash-plate control, no displacement adjustment, no electronic trim. Just a rugged, direct relationship between hydraulic input and mechanical output.

Why Foundation Equipment Manufacturers Rely on This Motor Type

Foundation engineering machinery — rotary drilling rigs, duty-cycle cranes, trench cutters, piling rigs, and soil-mixing equipment of the type Bauer and similar manufacturers build — puts hydraulic components through conditions few other industries match. Loads are cyclical and severe. Machines idle at a job site for hours, then suddenly demand full torque to break a stuck auger free from dense clay or rock. Winch drives lift and lower multi-ton drilling strings hundreds of times a day. Dust, vibration, and temperature swings are constants, not exceptions.

A fixed-displacement bent-axis motor like the A2FM earns its place in this environment for a few concrete reasons:

1. Predictable, Rugged Torque Delivery

Because displacement doesn't vary, the relationship between pressure and torque stays linear and predictable — valuable when an operator needs to feel exactly how much resistance the tool is meeting downhole. Speed is determined purely by flow and torque purely by pressure, which keeps operation smooth and efficient even under load swings.

2. Compact Power Density in a Tight Envelope

Rig manufacturers fight for space around the mast, the winch drum, and the undercarriage. The bent-axis design gives the A2FM a favorable power-to-size ratio, which is exactly what's needed when a motor has to squeeze into a crowded chassis without sacrificing output.

3. Duty-Cycle Versatility

The A2FM supports both clockwise and counterclockwise rotation, so reversing simply means switching flow direction — a useful trait for winches, swing drives, and mixing augers that cycle constantly. It shows up widely in travel drives, winches, mixers, and swing drives — nearly a checklist of the subsystems on a rotary drilling rig or duty-cycle crane.

4. Durability Under Repeated Shock Loading

A straightforward internal structure with fewer wear points helps the motor withstand long-term high-pressure operation and extends service life in harsh, demanding environments. On a jobsite where downtime means an idle crew and a slipping schedule, that reliability translates directly into cost savings.

Typical Applications on Bauer-Style Foundation Equipment

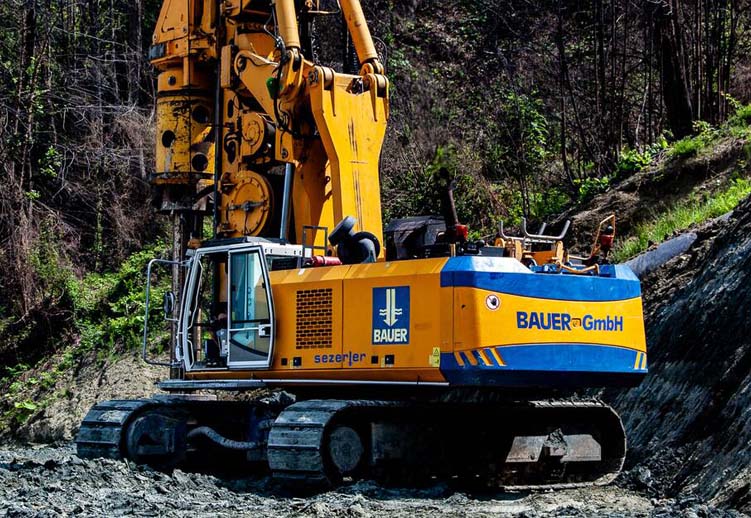

While Bosch Rexroth doesn't manufacture the rigs themselves, the A2FM's specification sheet reads like a parts list for the subsystems found on Bauer's rotary drilling rigs (the BG series), duty-cycle cranes (MC series), and trench-cutter and soil-mixing equipment. Typical placements include:

Kelly Drive and Rotary Head Circuits

Rotary drilling rigs need controllable, high-torque rotation to turn the kelly bar and drilling tool through variable soil and rock conditions. A fixed motor feeding a torque-multiplying gearbox gives a predictable, robust link between hydraulic power and drilling torque.

Winch and Hoist Drives

Kelly winches and main hoist winches lift and lower drill strings, casings, and tools continuously throughout a shift. Bosch Rexroth explicitly lists winch drives in cranes and track drives in excavator crawlers among the application options for its bent-axis fixed motors, and pairing the motor with an optional counterbalance valve allows controlled load lowering — critical when a multi-ton kelly bar is descending into a borehole.

Crawler Travel Drives

Getting a 100-plus-ton drilling rig or duty-cycle crane to a new pile location under its own power depends on rugged travel motors. The A2FM's construction-machinery pedigree covers exactly this kind of use, in excavators, loaders, and similar tracked equipment.

Mixing and Auxiliary Drives

Soil-mixing attachments and slurry systems — a specialty of foundation engineering fleets — need steady, reliable rotary power under fluctuating resistance, another duty cycle the A2FM is built for.

For more brands and equipment models, please visit https://www.baolilaihydraulic.com/brand/

Q1: Can the A2FM run in both directions?

A1: Yes. The motor supports both clockwise and counterclockwise rotation, and reversing is achieved simply by switching the direction of hydraulic flow, which makes it well suited to winch, swing, and mixing drives that cycle direction frequently.

Q2: Why is this motor common on foundation and construction equipment specifically?

A2: Foundation drilling and piling equipment demands rugged, compact, high-torque drives that tolerate repeated shock loading, dusty environments, and long duty cycles without complex electronic controls. The A2FM's combination of high power density, robustness, and adaptability across construction, industrial, and mobile hydraulic applications fits that profile closely, which is why bent-axis fixed motors of this class turn up throughout drilling rigs, cranes, and crawler-mounted machinery.

Q3:What is the price and delivery time of the Rexroth A2FM motor for the Bauer Engineering equipment?

A3: The specific price and delivery time will depend on the equipment model or specific product model you provide.

Q4:How to purchase a Rexroth A2FM motor for the Bauer Engineering equipment?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
