Bosch Rexroth A4VSO axial piston hydraulic pump for Komatsu Mining equipment 65556440 91524740 95601040 95931840 96785040 71126573

The A4VSO is a variable displacement axial piston pump built on a swashplate design, operating in an open hydraulic circuit. Instead of a fixed output, the swashplate angle changes in real time, which lets the pump match flow output to whatever the machine's implement or drive circuit actually demands at that moment.

Why the A4VSO Fits Komatsu Mining Equipment So Well

Komatsu's larger mining excavators, rope shovels' auxiliary systems, and haul-related support equipment rely on hydraulic circuits that demand exactly what the A4VSO is built to deliver: high-pressure capability, load-sensing responsiveness, and mechanical resilience against contamination and thermal cycling.

Matching Duty Cycle to Pump Behavior

Mining duty cycles are brutal on hydraulics. A loader bucket might curl under full load, dump, and reverse direction dozens of times an hour, with pressure spikes hitting the relief valve regularly. The A4VSO's pressure-compensated control senses these spikes and de-stroks the pump automatically, protecting the circuit without operator intervention. This matters on Komatsu platforms where the main pump feeds multiple functions — boom, stick, swing, and travel — often simultaneously.

Retrofit and OEM-Aligned Applications

Because the A4VSO family covers a wide displacement range and mounts using standard SAE flange and spline configurations, it's frequently specified as an OEM-equivalent replacement pump for Komatsu mining machines, particularly in:

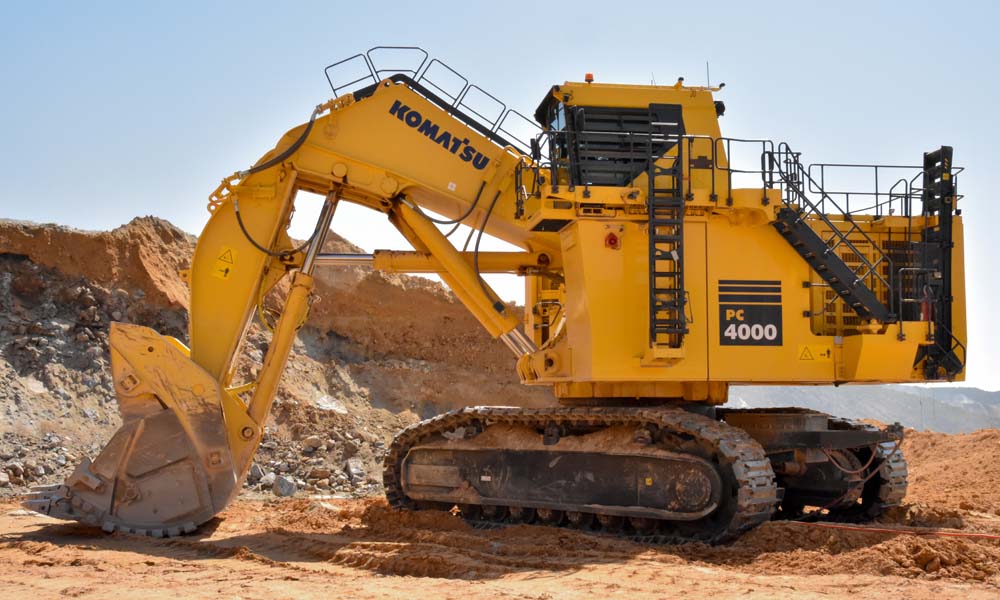

Main hydraulic circuits on large excavators (e.g., PC-series mining excavators)

Auxiliary and cooling fan drive circuits

Implement circuits on wheel loaders and dozers used in mine-site support roles

Drill rig rotary and feed circuits where precise flow control matters more than raw horsepower

Common Failure Modes in Mining Applications

Contamination-Driven Wear

Dust and fine particulate matter are the number one enemy. Even a well-sealed reservoir picks up contamination over thousands of hours, and once particles get past the filter, they score the cylinder bores, valve plate, and swashplate surface. Symptoms include gradually falling flow output and rising case drain temperature.

Cavitation from Restricted Inlet

Mining equipment often runs long suction lines or elevated tank positions relative to the pump. If the inlet is restricted — collapsed hose, clogged suction strainer, or oil that's too cold and viscous — the pump cavitates, and the telltale sign is a sharp, gravelly noise along with pitted piston shoes on teardown.

Control Malfunction Under Thermal Cycling

Mining machines go from cold-start in freezing pre-dawn conditions to full operating temperature within an hour, repeatedly. Seals and control spool clearances that were fine at operating temperature can leak or stick during cold-start, leading to erratic pressure control until the system warms through.

Maintenance Best Practices for Long Service Life

Filter discipline first. Match filtration micron rating to OEM spec and never extend change intervals to save cost — filter elements are inexpensive compared to a pump rebuild.

Monitor case drain flow and temperature. This is the single best early-warning indicator of internal pump wear on any axial piston unit.

Respect warm-up procedures. Idle the system at low load until oil temperature reaches the manufacturer's minimum operating range before working the machine hard, especially in cold climates common at northern mine sites.

Torque and alignment on reinstall. Improper spline engagement or misaligned through-drive mounting is a frequent, avoidable cause of premature bearing failure after a pump swap.

Oil analysis on a schedule. Regular sampling catches rising particle counts or wear metal trends before they become a failure, and it's far cheaper than reactive maintenance on a machine that's already down.

Choosing the Right A4VSO Variant for a Komatsu Machine

Not every A4VSO is interchangeable across every Komatsu model. Frame size, control type, shaft spline, and port configuration all need to match the original circuit design — or be deliberately re-engineered by someone who understands the full hydraulic schematic, not just the pump's part number. When sourcing a replacement or rebuild, cross-referencing the original Komatsu part number against the Rexroth catalog equivalent, and confirming control type (load-sensing versus pressure compensator versus electric proportional), prevents a costly mismatch that shows up as poor machine performance rather than an outright failure.

For more brand and equipment models, please visit https://www.baolilaihydraulic.com/brand/

Q1: How do I know if my A4VSO needs a rebuild versus a full replacement?

A1: Case drain flow testing at rated pressure is the standard diagnostic. If the case drain exceeds the manufacturer's acceptable threshold at operating pressure and temperature, internal wear is confirmed, and a shop can typically determine from there whether a rebuild (new pistons, valve plate, swashplate) is sufficient or whether the housing and bearings need replacement too.

Q2: What's the typical service interval before an A4VSO needs inspection in mining use?

A2: There's no single universal number since duty cycle, contamination control, and oil quality all shift the curve significantly, but many mining operations schedule a hydraulic system health check — including case drain testing — around major service intervals (often in the 4,000–6,000 hour range) rather than waiting for a failure symptom to appear.

Q3:What is the price and delivery time of the A4VSO hydraulic pump for the Komatsu Mining equipment？

A3: The specific price and delivery time will depend on the equipment model or specific product model you provide.

Q4:How to purchase an A4VSO  hydraulic pump for Komatsu Mining equipment?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
