Bosch Rexroth A8VO double hydrualic pump for the Terex material handling 5364800054 5364800123 5364800170 5364800192 5364800263 5364800285 5364800286

The A8VO is a variable-displacement axial piston pump built by Bosch Rexroth for open-circuit, multi-circuit mobile hydraulic systems. "Double pump" refers to its core design feature: two independent variable-displacement rotary groups housed in a single casting, each capable of feeding a separate hydraulic circuit off one shared drive shaft and suction port.

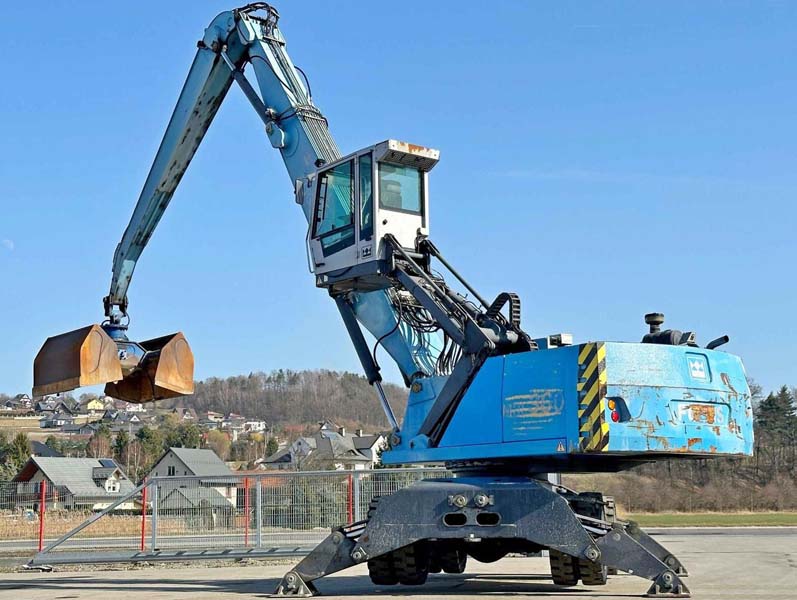

That's not a minor detail — it's the whole reason the A8VO is popular on excavators, cranes, drill rigs, and material handlers in the first place. A machine like a Terex material handler needs to run several functions at once — boom, stick, rotation, grapple or magnet, travel — often simultaneously and under wildly different load conditions. Rather than mounting two separate single pumps (with two shafts, two suction lines, and twice the mounting footprint), the A8VO packages both rotary groups into one compact unit that bolts directly to the diesel engine's flywheel housing.

Why Terex Uses the A8VO in Material Handling Machines

Material handlers live a harder life than a lot of other hydraulic equipment. They cycle constantly, often run elevated cabs and long reach booms that create big swings in load, and frequently work with attachments — grapples, magnets, shears — that demand fast, precise flow changes. A few reasons the A8VO fits that job well:

Two circuits from one compact drive unit. Boom/stick functions can run off one rotary group while swing, travel, or an auxiliary attachment circuit runs off the other, without doubling the mounting hardware on the engine.

Flywheel mounting. Direct mounting to the engine flywheel housing eliminates a separate drive coupling and reduces vibrationrelated wear points.

Power takeoff provision. The A8VO can accommodate an additional gear pump mounted on its rear, which is common on material handlers that need a dedicated circuit for a fan drive, pilot pressure, or a third attachment function.

Stepless flow control. Because displacement adjusts continuously rather than in fixed steps, operators get smooth, proportional control — critical when handling scrap, logs, or demolition debris where a jerky attachment movement risks dropped material or damaged loads.

Maintenance Best Practices for A8VO Pumps in Material Handling Service

Filter early, filter often. Given the ISO 4406 20/18/15 cleanliness requirement, err toward tighter filtration intervals than the OEM minimum, especially in dusty or demolition environments.

Track case drain temperature as a trend, not a single reading. A slow upward creep over weeks is more diagnostic than any single hot reading during peak ambient temperature.

Match hydraulic fluid to duty cycle and climate. The A8VO's seal and parameter restrictions differ across fluid types (mineral oil versus HFB/HFC/HFD or environmentally acceptable fluids), so confirm the fluid on hand matches what the machine is specified for before topping off with whatever's in the shop.

Respect the pressure and speed limits of the frame size fitted. Swapping in a rebuilt pump of the wrong frame size to save time on parts lookup is a common shortcut that causes premature failure.

Don't skip warm-up in cold climates. Cold, viscous oil increases internal drag and can starve the pump momentarily at startup — a habit of a short idle warmup period protects the rotary groups more than people expect.

For more brands and equipment models, please visit https://www.baolilaihydraulic.com/brand/

Q1: Is the A8VO used on equipment other than Terex material handlers?

A1: Yes. It's common across excavators, mobile cranes, drilling rigs, and other multi-circuit mobile machinery from a range of manufacturers, since the underlying design solves a problem — running two independent circuits off one compact drive unit — that isn't unique to material handling.

Q2: How do I know which frame size my Terex machine uses?

A2: Check the machine's OEM parts catalog or the data plate on the existing pump rather than assuming based on machine size. Frame size matches the specific engine output and circuit layout of that model, and mismatched replacements are a common source of premature failure.

Q3: What is the price and delivery time of the A8vo hydraulic pump for the Terex material handling?

A3: The specific price and delivery time will depend on the equipment model or specific product model you provide.

Q4: How to purchase an A8VO hydraulic pump for Terex material handling?

A4: You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
