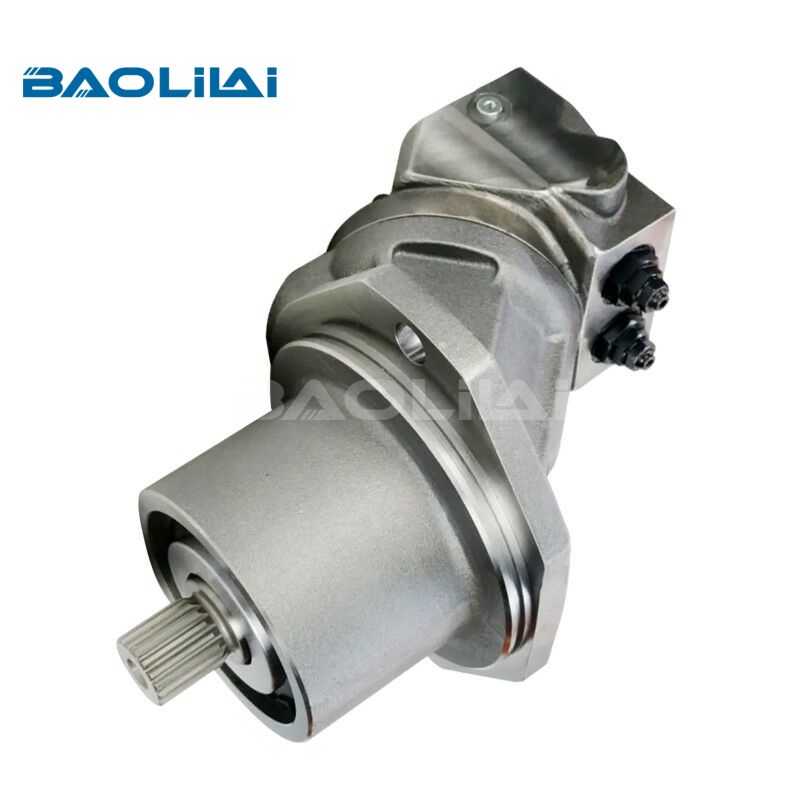

The A2FE is a fixed-displacement, bent-axis axial piston motor from Bosch Rexroth. It is built for high-pressure, high-torque work and is designed as a plug-in unit that mounts directly into a gearbox or drive housing. That makes it a natural fit for winch gearboxes and compact travel or swing drives.

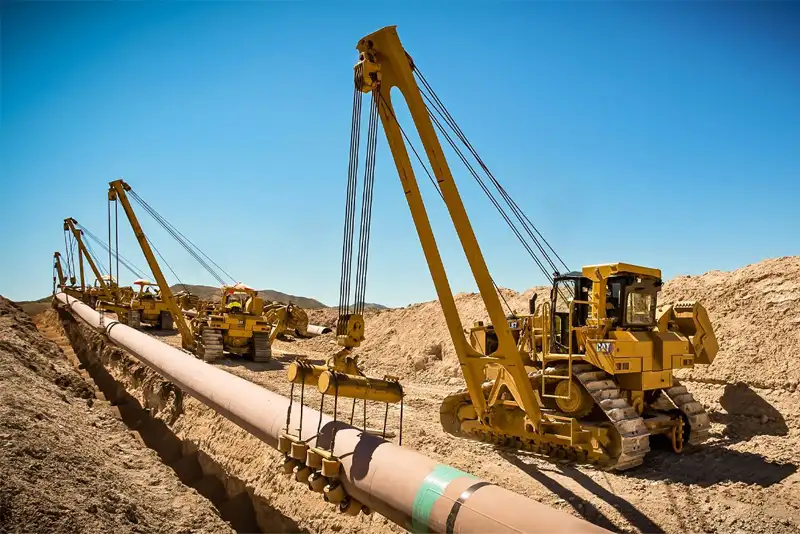

Where an A2FE Fits on a Caterpillar Pipelayer

Caterpillar pipelayers (built on platforms such as the D6, D7, D8, and D9 track-type tractors, plus the larger 583 and 587 series) rely on hydraulics for several functions. A fixed displacement motor like the A2FE can serve in drive systems such as:

Winch and hoist drives

The load line winch and boom hoist are the most punishing applications. The motor must hold a suspended load, creep it up or down without jerking, and handle repeated starts under full pressure. Fixed bent-axis motors excel here because of high starting torque and low internal leakage.

Auxiliary and ancillary drives

Some machines or retrofit packages use fixed motors for fan drives, auxiliary pumps, or custom equipment add-ons on the pipeline spread.

How to Size and Select the Right A2FE

Step 1: Confirm the displacement

A2FE motors come in a range of displacements, commonly from roughly 28 up to 180 cm³/rev across the size range. Displacement sets the relationship between flow, speed, and torque. Use the original motor's nameplate or the winch gearbox data to confirm the required size.

Step 2: Check pressure and torque requirements

Rexroth rates the A2FE for high operating pressure, with nominal and peak pressure values listed in the datasheet. Torque scales with displacement and differential pressure, so confirm that your circuit's relief setting sits safely within the motor's rating.

Step 3: Verify speed limits

Every size has a maximum permissible speed. Pipelayer winches run slowly, so this is rarely a problem, but check it if the motor will drive anything with a high-speed gear ratio.

Step 4: Match mounting and shaft

This is where most mismatches happen. Confirm:

Flange type and pilot diameter

Shaft type (splined or keyed) and spline count

Port type and position (SAE or ISO)

Seal material for your operating temperature

Step 5: Consider the fluid and environment

Cold-climate pipelines call for different seals and oil viscosity than desert work. Mineral oil is standard, but confirm fluid compatibility for any bio-based or fire-resistant fluids.

Maintenance Tips for Long Service Life

Keep the oil clean

Most piston motor failures trace back to contamination. Aim for a clean fluid cleanliness target (for example, ISO 4406 levels recommended by the manufacturer), and change filters on schedule.

Watch case drain flow

Rising case drain flow is an early warning of internal wear. Measuring it during routine service lets you plan a rebuild before a breakdown.

Monitor temperature

Overheating degrades oil and seals. If the winch circuit runs hot, check relief valve settings, cooler performance, and oil level.

Listen and feel

Unusual whine, vibration, or jerky winch motion often signals cavitation, aeration, or worn components. Don't wait for a failure to investigate.
