Rexroth A6VE hydraulic motor for O&K Antriebstechnik Engineering Equipment 327961 395818 414661 830776 831026 872005 874785

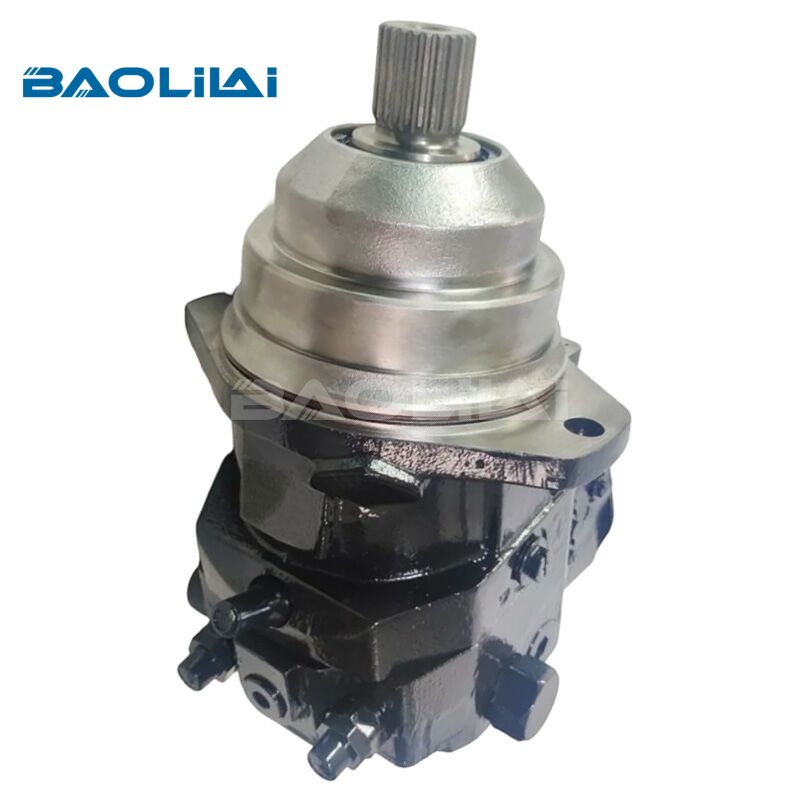

The A6VE is a variable displacement axial piston motor with a bent-axis design, built by Bosch Rexroth for integration directly into mechanical gearboxes rather than as a standalone, flange-mounted unit. Unlike swash-plate motors, the bent-axis architecture tilts the entire rotating group relative to the drive shaft, which allows it to tolerate very high operating pressures and rotational speeds while keeping the unit compact enough to slide straight into a gearbox housing — a feature Rexroth markets as its "plug-in" design.

O&K Antriebstechnik traces its roots back over 140 years to Benno Orenstein and Arthur Koppel, whose original engineering works produced railway and mining equipment in Germany's Ruhr region. Today, operating as part of the Bonfiglioli Group (which acquired the O&K drivetrain business in 2016), O&K Antriebstechnik designs and manufactures final drives — slew drives, travel drives, winch drives, and cutter drives — for some of the most demanding applications in heavy industry: mining excavators, crawler cranes, tunnel boring machines, drilling rigs, and offshore equipment.

How the Rexroth A6VE Integrates with O&K Gearboxes

In practice, the integration follows a consistent pattern across most O&K applications:

1. Mechanical coupling — The A6VE's recessed mounting flange and spline shaft slide directly into the gearbox's input bore, eliminating the external coupling housing that a standalone motor would require.

2. Displacement control matched to duty cycle — For a travel drive, the motor is typically set up with a two-stage or automatic control (HA) so it delivers high torque at low speed for starting and climbing, then swivels toward minimum displacement for higher travel speed on level ground.

3. Pressure and flow sizing — The O&K gearbox's rated input torque and the machine's hydraulic pump output determine which A6VE frame size (and series — 63, 65, or 71) is specified.

4. Counterbalance and flushing valves — Many A6VE variants include an optional integrated or attached counterbalance valve and a flushing/boost-pressure valve, both of which protect the motor and gearbox from overrun conditions (e.g., an excavator traveling downhill) and from thermal buildup in closed-circuit operation.

Common Failure Modes

Field experience with A6VE motors in O&K drives points to a handful of recurring issues:

- Contamination-driven wear — as with any axial piston unit, particle contamination in the hydraulic fluid is the leading cause of premature wear on the piston/cylinder block assembly and valve plate.

- Overheating in closed-circuit systems — inadequate flushing flow or an undersized boost pump can raise case drain temperatures beyond the motor's rated range, accelerating seal degradation.

- Air entrainment after standstill — the A6VE must be filled with hydraulic fluid and properly bled during commissioning and after long shutdowns; failing to do so risks cavitation damage on startup.

- Counterbalance valve misadjustment — on slew and winch applications, an incorrectly set counterbalance valve can allow load-induced overspeed or cause jerky, uncontrolled motion.

Practical Maintenance Tips

- Monitor case drain flow and temperature as an early indicator of internal wear.

- Maintain fluid cleanliness to the ISO 4406 class specified in Rexroth's data sheets; this single practice does more for motor longevity than almost anything else.

- Bleed air from the motor housing after any fluid line disconnection or extended downtime.

- Verify displacement control setpoints (Vg min / Vg max) after any control valve replacement, since factory defaults may not match the original machine calibration.

For more brand and equipment models, please visit https://www.baolilaihydraulic.com/brand/

Q1: What displacement size do I need for my O&K travel or slew drive?

A1: This depends on the gearbox's rated input torque, the machine's hydraulic pump flow, and the target output speed. The gearbox manufacturer's technical data sheet will specify the compatible A6VE frame size and series; matching an incorrectly sized motor to the gearbox risks either underperformance or premature mechanical failure.

Q2: Is the A6VE motor suitable for cold-weather mining operations?

A2: Yes, with the correct seal specification. Standard NBR seals are rated to roughly -25°C, but Rexroth offers a low-temperature NBR shaft seal option rated to -40°C for Arctic or high-altitude mining environments — this must be specified at the time of order.

Q3:What is the price and delivery time of the A6VE hydraulic motor for O&K Antriebstechnik Engineering Equipment？

A3: The specific price and delivery time will depend on the equipment model or specific product model you provide.

Q4:How to purchase an A6VE hydraulic motor for O&K Antriebstechnik Engineering Equipment?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
