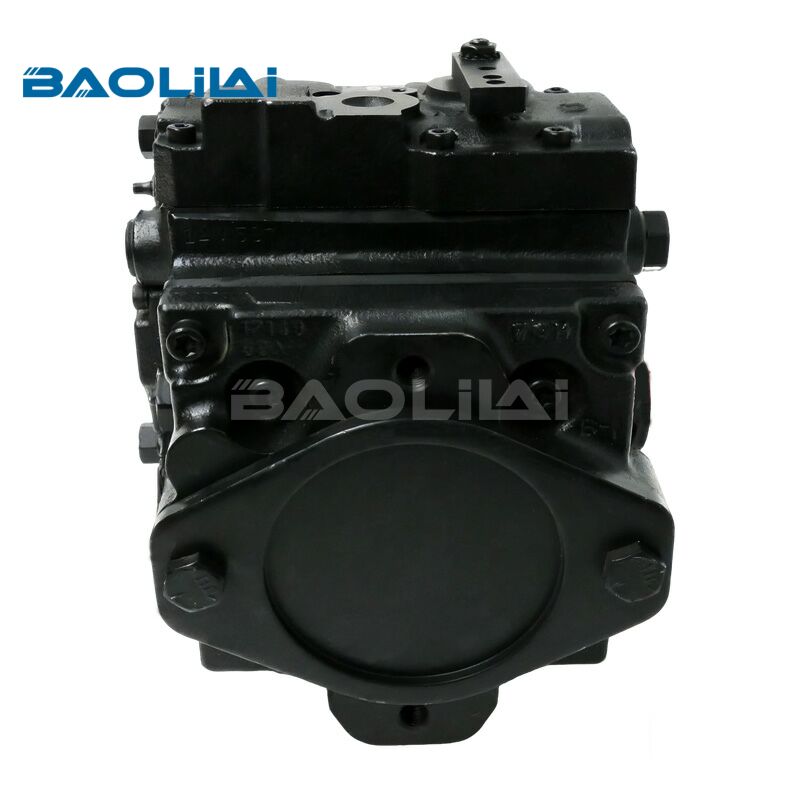

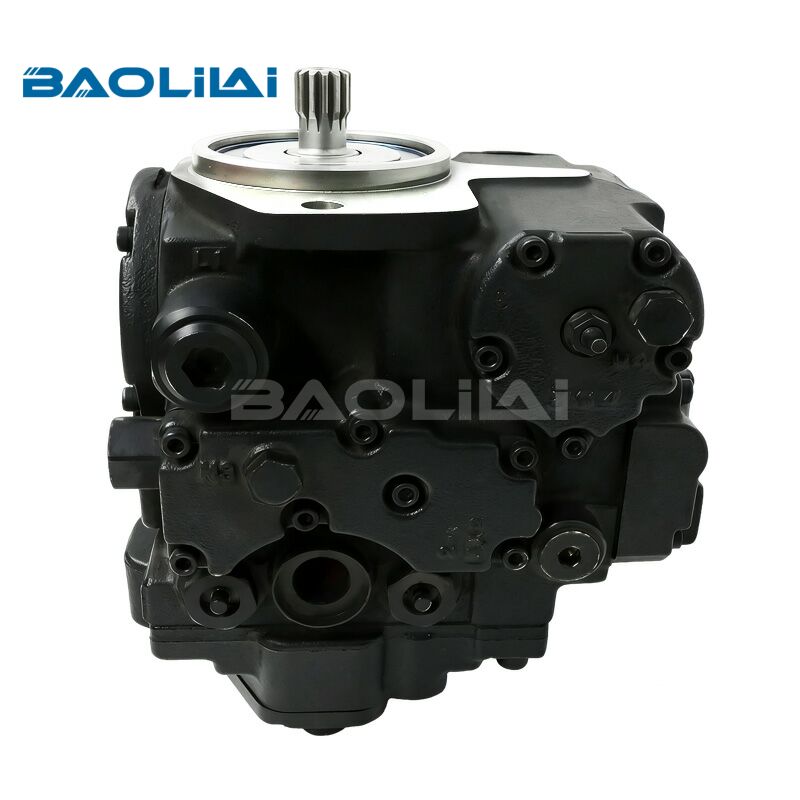

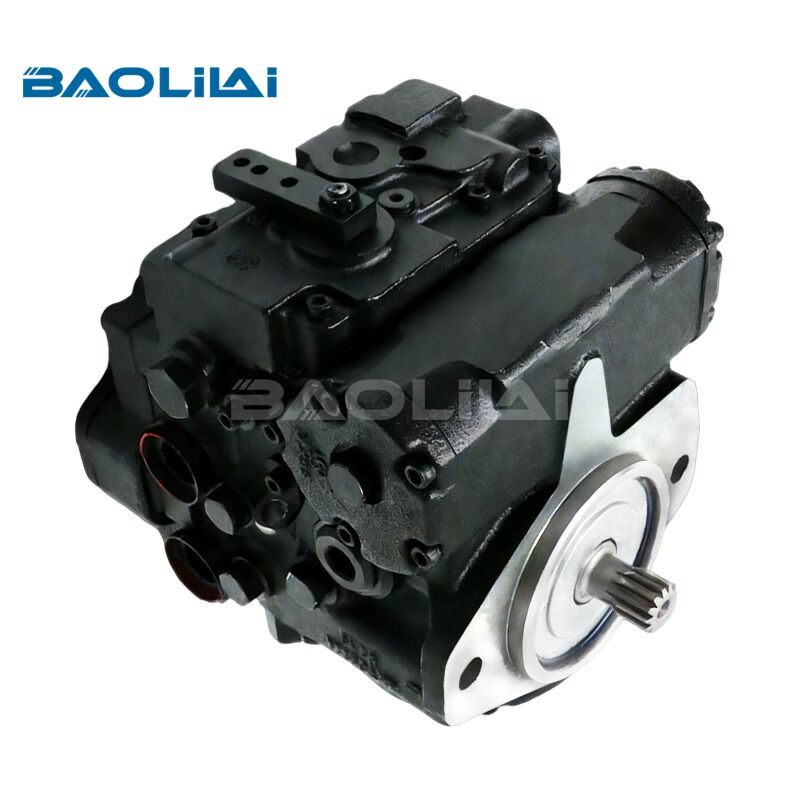

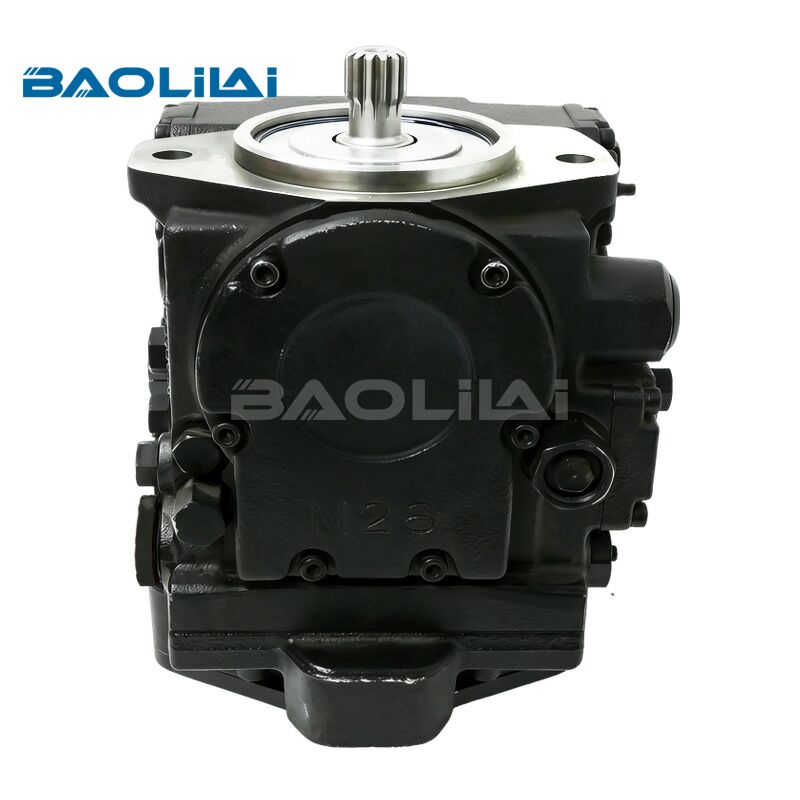

42L28 Closed Circuit Axial Piston Pump
SERIES : 42 series
BRAND : For Sauer Danfoss
Model Size :42L28
Displacement : 28cm3/rev
Speed : 500-3750rpm
Maximum Pressure : 450bar
Nominal Pressure : 400bar
Download PDF
- Product Details
- Product Model
- FAQ
The 42L28 is a high-performance, closed-circuit axial piston pump. In a closed-circuit configuration, the pump's outlet directly supplies a hydraulic motor, and its inlet receives return flow from the same motor, minimizing auxiliary components. It operates on the swashplate principle: as the drive shaft rotates, pistons housed in the cylinder block reciprocate against a tilted swashplate, creating alternating suction and discharge strokes. A crucial feature is its integrated charge pump, a smaller, auxiliary gear pump that replenishes the closed loop, compensates for internal leakage, and maintains case pressure. The 42L28's displacement is 42 cubic centimeters per revolution, with a maximum pressure rating of 28 MPa (approximately 4060 psi). It is designed for demanding mobile and industrial applications like winches, conveyors, and rotary drives, offering high power density, excellent controllability, and efficient operation. Key advantages include compactness, high reliability, and smooth speed and torque control, making it ideal for closed-loop hydrostatic transmission systems.
Specifications
| Pump configuration | Single variable pump | ||||
| Frame size | cm3 | 28 | 32 | 41 | 51 |
| Displacement | [in3] | 28 [1.71] |
31.8 [1.94] |
40.9 [2.50] |
51 [3.11] |
| Weight | kgf [lbf] |
34.5 [76] |
34.5 [76] |
42 [92] |
42 [92] |
| Mass moment of inertia | kg·m2 [lbf·ft2] |
0.0018 [0.0013] |
0.0019 [0.0013] |
0.0036 [0.0027] |
0.0038 [0.0028] |
| Type of front mounting flange (SAE flange size per SAE J744) |
SAE B | ||||
| Port connections | SAE-twin ports,radial | ||||
| System pressure regulation | bar[psi] | 140-415 [2030-6017] |
140-345 [2030-5003] |
140-415 [2030-6017] |
140-345 [2030-5003] |
| Displacement limiters | Option | ||||
| Input shaft options | Splined, Round Straight Key | ||||
| Auxiliary mounting pad (SAE pad per SAE J744) |
SAE A(9 tooth and 11 tooth) SAE B(13 tooth and 15 tooth) |
||||
| Control options | MDC,FNR,NFPH,NFPE,HC-EDC,EDC | ||||
| Filtration configuration | Suction or charge pressure filtration | ||||
| Loop flushing | Option | ||||
| Maximum working pressure | bar[psi] | 400[5800] | 350[5075] | 400[5800] | 350[5075] |
| Maximum pressure | bar[psi] | 450[6525] | 400[5800] | 450[6525] | 400[5800] |
| Minimum speed | min-1（rpm) | 500 | 500 | 500 | 500 |
| Rated speed at maximum displacement | min-1（rpm) | 3400 | 3000 | 3200 | 2900 |
| Maximum speed at maximum displacement | min-1（rpm) | 3750 | 3400 | 3450 | 3400 |

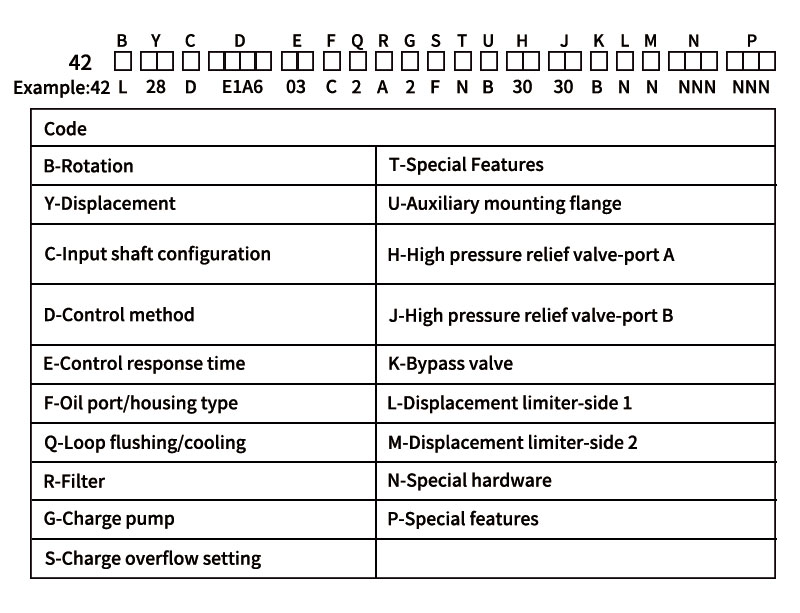

Selection Table
| 42L28 Closed Circuit Axial Piston Pump | ||
| Model No. | Model Code | Model Code |
| 83022667 | 42-L-28-C-ANB5-03-D-N-F-2-H-N-N-21-21-B-A-A-NNN-NNN | 42L28CANB503DNF2HNN2121BAANNNNNN |
| 83016385 | 42-L-28-C-ANJ5-03-A-N-A-2-H-N-N-34-34-B-N-N-NNN-NNN | 42L28CANJ503ANA2HNN3434BNNNNNNNN |
| 83032435 | 42-L-28-C-ANJ5-03-A-N-A-3-H-N-N-34-34-B-N-N-NNN-NNN | 42L28CANJ503ANA3HNN3434BNNNNNNNN |
| 83020099 | 42-L-28-C-ANN3-03-B-3-G-2-F-N-B-34-34-N-A-A-NNN-NNN | 42L28CANN303B3G2FNB3434NAANNNNNN |
| 83054050 | 42-L-28-C-ANN3-03-C-2-A-2-F-N-N-21-21-N-A-N-NNN-NNN | 42L28CANN303C2A2FNN2121NANNNNNNN |
| 83037140 | 42-L-28-C-ANNA-03-B-2-B-3-F-N-N-36-36-B-A-A-NNN-NNN | 42L28CANNA03B2B3FNN3636BAANNNNNN |
| 4282172 | 42-L-28-C-ANNB-03-A-N-A-2-F-N-B-34-34-N-A-A-NNN-NNN | 42L28CANNB03ANA2FNB3434NAANNNNNN |
| 83009922 | 42-L-28-C-ANNB-03-A-N-A-2-F-N-N-34-34-N-A-A-NNN-NNN | 42L28CANNB03ANA2FNN3434NAANNNNNN |
| 83031164 | 42-L-28-C-ANNB-03-C-2-A-2-F-N-N-30-30-B-N-N-NNN-NNN | 42L28CANNB03C2A2FNN3030BNNNNNNNN |
| 4282166 | 42-L-28-C-ANNB-03-C-3-A-2-F-N-A-34-34-N-A-A-NNN-NNN | 42L28CANNB03C3A2FNA3434NAANNNNNN |
| 83022831 | 42-L-28-C-ANNB-03-C-3-A-2-F-N-A-34-34-N-H-H-NNN-NNN | 42L28CANNB03C3A2FNA3434NHHNNNNNN |
| 83005672 | 42-L-28-C-ANNB-03-C-3-A-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L28CANNB03C3A2FNB3434NNNNNNNNN |
| 83015450 | 42-L-28-C-ANNB-03-C-3-A-2-F-N-B-36-36-N-A-A-NNN-NNN | 42L28CANNB03C3A2FNB3636NAANNNNNN |
| 83030428 | 42-L-28-C-ANNB-03-C-3-A-2-F-N-N-34-34-B-A-A-NNN-NNN | 42L28CANNB03C3A2FNN3434BAANNNNNN |
| 83035221 | 42-L-28-C-ANNB-03-C-D-A-2-F-N-N-34-34-N-A-A-NNN-NNN | 42L28CANNB03CDA2FNN3434NAANNNNNN |
| 83003850 | 42-L-28-C-E1A3-00-A-N-A-2-F-N-N-19-19-N-N-N-NNN-NNN | 42L28CE1A300ANA2FNN1919NNNNNNNNN |
| 11013241 | 42-L-28-C-E1A3-00-A-N-A-2-F-N-N-19-19-N-N-N-NNN-NNN | 42L28CE1A300ANA2FNN1919NNNNNNNNN |
| 83003868 | 42-L-28-C-E1A3-00-D-N-F-2-F-N-B-19-19-N-N-N-NNN-NNN | 42L28CE1A300DNF2FNB1919NNNNNNNNN |
| 4282264 | 42-L-28-C-E1A3-00-D-N-F-2-F-N-B-19-19-N-N-N-NNN-NNN | 42L28CE1A300DNF2FNB1919NNNNNNNNN |
| 83036863 | 42-L-28-C-E1A3-02-B-D-C-2-F-N-A-23-23-N-A-A-NNN-NNN | 42L28CE1A302BDC2FNA2323NAANNNNNN |
| 83003896 | 42-L-28-C-E1A3-02-C-3-A-2-F-N-B-28-28-N-A-A-NNN-NNN | 42L28CE1A302C3A2FNB2828NAANNNNNN |
| 11044120 | 42-L-28-C-E1A3-02-C-3-A-2-F-N-B-28-28-N-A-A-NNN-NNN | 42L28CE1A302C3A2FNB2828NAANNNNNN |
| 83009319 | 42-L-28-C-E1A3-03-A-N-A-3-F-N-B-28-28-N-N-N-NNN-NNN | 42L28CE1A303ANA3FNB2828NNNNNNNNN |
| 83009380 | 42-L-28-C-E1A3-03-A-N-N-N-P-N-B-28-28-N-N-N-NNN-NNN | 42L28CE1A303ANNNPNB2828NNNNNNNNN |
| 4282262 | 42-L-28-C-E1A3-03-B-3-B-3-F-N-B-25-25-B-A-A-NNN-NNN | 42L28CE1A303B3B3FNB2525BAANNNNNN |
| 83003867 | 42-L-28-C-E1A3-03-B-3-B-3-F-N-B-25-25-B-A-A-NNN-NNN | 42L28CE1A303B3B3FNB2525BAANNNNNN |
| 83012077 | 42-L-28-C-E1A3-03-B-3-B-3-F-N-N-17-17-N-N-A-NNN-NNN | 42L28CE1A303B3B3FNN1717NNANNNNNN |
| 83023508 | 42-L-28-C-E1A3-03-C-3-A-2-F-N-B-14-14-N-A-A-NNN-NNN | 42L28CE1A303C3A2FNB1414NAANNNNNN |
| 83017801 | 42-L-28-C-E1A4-02-C-3-A-2-F-N-A-14-14-N-A-A-NNN-NNN | 42L28CE1A402C3A2FNA1414NAANNNNNN |
| 83003852 | 42-L-28-C-E1A4-03-B-2-B-2-H-N-N-14-14-N-A-A-NNN-NNN | 42L28CE1A403B2B2HNN1414NAANNNNNN |
| 11027342 | 42-L-28-C-E1A4-03-B-2-B-2-H-N-N-14-14-N-A-A-NNN-NNN | 42L28CE1A403B2B2HNN1414NAANNNNNN |
| 83004008 | 42-L-28-C-E1A4-03-C-2-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L28CE1A403C2A2FNN2525BNNNNNNNN |
| 4282289 | 42-L-28-C-E1A4-03-C-2-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L28CE1A403C2A2FNN2525BNNNNNNNN |
| 83004026 | 42-L-28-C-E1A5-03-A-N-A-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L28CE1A503ANA2FNA2828NNNNNNNNN |
| 11041789 | 42-L-28-C-E1A5-03-A-N-A-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L28CE1A503ANA2FNA2828NNNNNNNNN |
| 83003961 | 42-L-28-C-E1A5-03-A-N-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28CE1A503ANA2FNB2525BNNNNNNNN |
| 4282194 | 42-L-28-C-E1A5-03-A-N-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28CE1A503ANA2FNB2525BNNNNNNNN |
| 83003853 | 42-L-28-C-E1A5-03-A-N-A-2-F-N-B-28-28-B-N-N-NNN-NNN | 42L28CE1A503ANA2FNB2828BNNNNNNNN |
| 11028973 | 42-L-28-C-E1A5-03-A-N-A-2-F-N-B-28-28-B-N-N-NNN-NNN | 42L28CE1A503ANA2FNB2828BNNNNNNNN |
| 83003802 | 42-L-28-C-E1A5-03-B-2-B-2-F-N-A-21-21-N-N-N-NNN-NNN | 42L28CE1A503B2B2FNA2121NNNNNNNNN |
| 11016082 | 42-L-28-C-E1A5-03-B-2-B-2-F-N-A-21-21-N-N-N-NNN-NNN | 42L28CE1A503B2B2FNA2121NNNNNNNNN |
| 83015882 | 42-L-28-C-E1A5-03-B-3-B-2-F-N-N-28-28-N-A-A-NNN-NNN | 42L28CE1A503B3B2FNN2828NAANNNNNN |
| 83003804 | 42-L-28-C-E1A5-03-B-D-G-2-H-N-N-23-23-N-N-N-NNN-NNN | 42L28CE1A503BDG2HNN2323NNNNNNNNN |
| 11031198 | 42-L-28-C-E1A5-03-B-D-G-2-H-N-N-23-23-N-N-N-NNN-NNN | 42L28CE1A503BDG2HNN2323NNNNNNNNN |
| 11031477 | 42-L-28-C-E1A5-03-B-D-G-2-H-N-N-23-23-N-N-N-NNN-NNN | 42L28CE1A503BDG2HNN2323NNNNNNNNN |
| 83003894 | 42-L-28-C-E1A5-03-D-N-F-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L28CE1A503DNF2FNA2828NNNNNNNNN |
| 11044451 | 42-L-28-C-E1A5-03-D-N-F-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L28CE1A503DNF2FNA2828NNNNNNNNN |
| 83016091 | 42-L-28-C-E1A6-00-B-D-X-N-P-N-B-28-28-N-N-N-NNN-NNN | 42L28CE1A600BDXNPNB2828NNNNNNNNN |
| 83024569 | 42-L-28-C-E1A6-01-B-3-B-3-H-N-B-34-34-N-A-A-NNN-NNN | 42L28CE1A601B3B3HNB3434NAANNNNNN |
| 4282147 | 42-L-28-C-E1A6-02-A-N-A-2-F-N-N-34-34-N-N-N-NNN-NNN | 42L28CE1A602ANA2FNN3434NNNNNNNNN |
| 83003903 | 42-L-28-C-E1A6-02-B-2-B-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L28CE1A602B2B2FNA3434NNNNNNNNN |
| 11035053 | 42-L-28-C-E1A6-02-B-2-B-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L28CE1A602B2B2FNA3434NNNNNNNNN |
| 83004407 | 42-L-28-C-E1A6-02-B-2-B-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L28CE1A602B2B2FNB3434NNNNNNNNN |
| 83010475 | 42-L-28-C-E1A6-02-B-2-G-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L28CE1A602B2G2FNA3434NNNNNNNNN |
| 83056718 | 42-L-28-C-E1A6-02-B-3-B-2-F-N-A-17-17-N-N-N-NNN-NNN | 42L28CE1A602B3B2FNA1717NNNNNNNNN |
| 83016111 | 42-L-28-C-E1A6-02-B-D-X-N-P-N-B-28-28-N-N-N-NNN-NNN | 42L28CE1A602BDXNPNB2828NNNNNNNNN |
| 83008255 | 42-L-28-C-E1A6-02-D-N-F-3-F-N-N-30-30-N-N-N-NNN-NNN | 42L28CE1A602DNF3FNN3030NNNNNNNNN |
| 600509 | 42-L-28-C-E1A6-03-B-2-G-2-F-N-N-34-34-B-N-N-NNN-NNN | 42L28CE1A603B2G2FNN3434BNNNNNNNN |
| 83018996 | 42-L-28-C-E1A6-03-B-D-B-2-F-N-N-34-34-N-A-A-NNN-NNN | 42L28CE1A603BDB2FNN3434NAANNNNNN |
| 700626 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-A-14-14-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNA1414BNNNNNNNN |
| 83048475 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-A-25-25-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNA2525BNNNNNNNN |
| 83048474 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNB2525BNNNNNNNN |
| 11075283 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN2525BNNNNNNNN |
| 4282124 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN2525BNNNNNNNN |
| 83004033 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN2525BNNNNNNNN |
| 11019674 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN2525BNNNNNNNN |
| 11075279 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-30-30-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN3030BNNNNNNNN |
| 83003811 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-30-30-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN3030BNNNNNNNN |
| 4282108 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-30-30-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN3030BNNNNNNNN |
| 4282210 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-30-30-B-N-N-NNN-NNN | 42L28CE1A603C2A2FNN3030BNNNNNNNN |
| 83050012 | 42-L-28-C-E1A6-03-C-2-A-2-F-N-N-30-30-N-N-N-NNN-NNN | 42L28CE1A603C2A2FNN3030NNNNNNNNN |
| 83068629 | 42-L-28-C-E1A7-00-D-N-F-3-F-N-A-14-14-N-H-N-NNN-NNN | 42L28CE1A700DNF3FNA1414NHNNNNNNN |
| 83035299 | 42-L-28-C-E1A7-00-D-N-F-3-F-N-A-21-21-N-H-H-NNN-NNN | 42L28CE1A700DNF3FNA2121NHHNNNNNN |
| 83045257 | 42-L-28-C-E1A7-00-D-N-F-3-F-N-A-34-34-N-H-H-NNN-NNN | 42L28CE1A700DNF3FNA3434NHHNNNNNN |
| 83021377 | 42-L-28-C-E1A7-00-D-N-F-3-F-N-A-38-38-N-H-H-NNN-NNN | 42L28CE1A700DNF3FNA3838NHHNNNNNN |
| 83021470 | 42-L-28-C-E1A7-02-D-N-F-2-F-N-B-28-28-B-N-N-NNN-NNN | 42L28CE1A702DNF2FNB2828BNNNNNNNN |
| 83021471 | 42-L-28-C-E1A7-02-D-N-F-2-F-N-N-28-28-B-N-N-NNN-NNN | 42L28CE1A702DNF2FNN2828BNNNNNNNN |
| 83052649 | 42-L-28-C-E1A7-03-A-N-A-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L28CE1A703ANA2FNA3434NNNNNNNNN |
| 83029391 | 42-L-28-C-E1A7-03-A-N-N-A-G-N-Z-NN-NN-N-N-N-NNN-NNN | 42L28CE1A703ANNAGNZNNNNNNNNNNNNN |
| 83059042 | 42-L-28-C-E1B3-03-B-3-B-2-H-N-N-25-25-N-A-A-NNN-NBN | 42L28CE1B303B3B2HNN2525NAANNNNBN |
| 83038763 | 42-L-28-C-E1B3-03-B-3-B-2-H-N-N-25-25-N-A-A-NNN-NNN | 42L28CE1B303B3B2HNN2525NAANNNNNN |
| 83042060 | 42-L-28-C-E1B6-01-A-N-A-2-H-N-B-23-23-N-A-A-NNN-NNN | 42L28CE1B601ANA2HNB2323NAANNNNNN |
| 83003814 | 42-L-28-C-E1B6-01-A-N-N-N-H-N-B-23-23-N-A-A-NNN-NNN | 42L28CE1B601ANNNHNB2323NAANNNNNN |
| 4282228 | 42-L-28-C-E1B6-01-A-N-N-N-H-N-B-23-23-N-A-A-NNN-NNN | 42L28CE1B601ANNNHNB2323NAANNNNNN |
| 83039428 | 42-L-28-C-E1B6-01-B-3-B-3-H-N-B-23-23-N-A-A-NNN-NNN | 42L28CE1B601B3B3HNB2323NAANNNNNN |
| 83035817 | 42-L-28-C-E1B6-03-B-3-B-2-H-N-N-25-25-N-A-A-NNN-NNN | 42L28CE1B603B3B2HNN2525NAANNNNNN |
| 83031249 | 42-L-28-C-E1B6-03-B-D-B-2-F-N-N-34-34-N-A-A-NNN-NNN | 42L28CE1B603BDB2FNN3434NAANNNNNN |
| 83003909 | 42-L-28-C-E1B6-03-B-D-G-2-H-N-B-34-34-N-A-A-NNN-NNN | 42L28CE1B603BDG2HNB3434NAANNNNNN |
| 11025823 | 42-L-28-C-E1B6-03-B-D-G-2-H-N-B-34-34-N-A-A-NNN-NNN | 42L28CE1B603BDG2HNB3434NAANNNNNN |
| 83016109 | 42-L-28-C-E2C8-00-B-D-X-N-P-N-B-28-28-N-N-N-NNN-NNN | 42L28CE2C800BDXNPNB2828NNNNNNNNN |
| 83028152 | 42-L-28-C-E2C8-03-B-3-X-A-F-N-Z-41-NN-N-N-N-NNN-NNN | 42L28CE2C803B3XAFNZ41NNNNNNNNNNN |
| 83058113 | 42-L-28-C-E2C8-03-D-N-F-2-F-N-N-21-21-B-N-N-NNN-NNN | 42L28CE2C803DNF2FNN2121BNNNNNNNN |
| 83030519 | 42-L-28-C-E2D8-00-A-N-N-A-H-N-Z-23-23-N-A-A-NNN-NNN | 42L28CE2D800ANNAHNZ2323NAANNNNNN |
| 83030518 | 42-L-28-C-E2D8-00-A-N-N-N-H-N-B-23-23-N-A-A-NNN-NNN | 42L28CE2D800ANNNHNB2323NAANNNNNN |
| 83061444 | 42-L-28-C-E2D8-02-B-D-B-2-H-N-A-32-32-N-A-A-NNN-NNN | 42L28CE2D802BDB2HNA3232NAANNNNNN |
| 83013445 | 42-L-28-C-E2D8-02-D-N-F-2-H-N-A-32-32-B-N-N-NNN-NNN | 42L28CE2D802DNF2HNA3232BNNNNNNNN |
| 83015390 | 42-L-28-C-E2D8-03-A-N-A-3-G-N-N-23-23-N-N-N-NNN-NNN | 42L28CE2D803ANA3GNN2323NNNNNNNNN |
| 83049910 | 42-L-28-C-E2D8-03-A-N-N-A-H-N-Z-34-34-N-N-N-NNN-NNN | 42L28CE2D803ANNAHNZ3434NNNNNNNNN |
| 83028940 | 42-L-28-C-E2D8-03-B-3-B-2-F-N-N-17-17-B-N-N-NNN-NNN | 42L28CE2D803B3B2FNN1717BNNNNNNNN |
| 83027977 | 42-L-28-C-E2D8-03-B-3-B-2-F-N-N-28-28-B-N-N-NNN-NNN | 42L28CE2D803B3B2FNN2828BNNNNNNNN |
| 83051440 | 42-L-28-C-E2D8-03-B-3-B-3-H-N-N-25-25-N-N-N-NNN-NNN | 42L28CE2D803B3B3HNN2525NNNNNNNNN |
| 83008557 | 42-L-28-C-E2D8-03-C-2-A-2-F-N-N-30-30-B-N-N-NNN-NNN | 42L28CE2D803C2A2FNN3030BNNNNNNNN |
| 83018000 | 42-L-28-C-E2D8-03-C-2-A-3-F-N-B-23-23-N-N-N-NNN-NNN | 42L28CE2D803C2A3FNB2323NNNNNNNNN |
| 83038625 | 42-L-28-C-E2D8-03-C-3-A-2-F-N-A-28-28-B-A-A-NNN-NNN | 42L28CE2D803C3A2FNA2828BAANNNNNN |
| 83038624 | 42-L-28-C-E2D8-03-C-3-A-2-F-N-N-28-28-B-N-N-NNN-NNN | 42L28CE2D803C3A2FNN2828BNNNNNNNN |
| 83058081 | 42-L-28-C-E2D8-03-C-3-A-3-H-N-N-25-25-N-N-N-NNN-NNN | 42L28CE2D803C3A3HNN2525NNNNNNNNN |
| 83024207 | 42-L-28-C-E2D8-03-D-N-F-2-F-N-N-34-34-B-N-N-NNN-NNN | 42L28CE2D803DNF2FNN3434BNNNNNNNN |
| 83052791 | 42-L-28-C-E2D8-03-D-N-F-3-H-N-A-17-17-B-A-A-NNN-NNN | 42L28CE2D803DNF3HNA1717BAANNNNNN |
| 83041577 | 42-L-28-C-E2D8-03-D-N-F-3-H-N-A-23-23-B-A-A-NNN-NNN | 42L28CE2D803DNF3HNA2323BAANNNNNN |
| 702576 | 42-L-28-C-F6NN-53-U-2-X-N-F-1-A-32-32-N-1-1-NNN-NNN | 42L28CF6NN53U2XNF1A3232N11NNNNNN |
| 83016472 | 42-L-28-C-F7NN-50-V-N-F-2-H-N-A-25-25-N-N-N-NNN-NNN | 42L28CF7NN50VNF2HNA2525NNNNNNNNN |
| 83016473 | 42-L-28-C-F7NN-50-V-N-F-2-H-N-B-25-25-N-N-N-NNN-NNN | 42L28CF7NN50VNF2HNB2525NNNNNNNNN |
| 83016461 | 42-L-28-C-F7NN-50-V-N-F-2-H-N-N-25-25-N-N-N-NNN-NNN | 42L28CF7NN50VNF2HNN2525NNNNNNNNN |
| 4282238 | 42-L-28-C-G2A1-53-V-N-F-2-G-5-N-28-28-N-1-1-NNN-NNN | 42L28CG2A153VNF2G5N2828N11NNNNNN |
| 83025341 | 42-L-28-C-G3AN-53-P-D-G-2-H-5-B-34-34-N-1-1-NNN-NNN | 42L28CG3AN53PDG2H5B3434N11NNNNNN |
| 83016386 | 42-L-28-D-A7J5-03-A-N-A-2-H-N-B-34-34-B-N-N-NNN-NNN | 42L28DA7J503ANA2HNB3434BNNNNNNNN |
| 83032436 | 42-L-28-D-A7J5-03-A-N-A-3-H-N-B-34-34-B-N-N-NNN-NNN | 42L28DA7J503ANA3HNB3434BNNNNNNNN |
| PVM28-771 | 42-L-28-D-ANN3-03-A-N-A-2-F-N-N-30-30-B-N-N-NNN-NNN | 42L28DANN303ANA2FNN3030BNNNNNNNN |
| 83031166 | 42-L-28-D-ANN3-03-C-3-A-2-F-N-N-34-34-B-N-N-NNN-NNN | 42L28DANN303C3A2FNN3434BNNNNNNNN |
| PVM28-744 | 42-L-28-D-ANN5-03-A-N-A-2-G-N-B-38-38-B-N-N-NNN-NNN | 42L28DANN503ANA2GNB3838BNNNNNNNN |
| 83037141 | 42-L-28-D-ANNA-03-B-2-B-3-F-N-B-36-36-B-A-A-NNN-NNN | 42L28DANNA03B2B3FNB3636BAANNNNNN |
| 83009418 | 42-L-28-D-ANNB-02-A-N-A-2-F-N-A-28-28-B-N-N-NNN-NNN | 42L28DANNB02ANA2FNA2828BNNNNNNNN |
| 83038199 | 42-L-28-D-ANNB-03-A-N-A-2-F-N-B-34-34-N-A-A-NNN-NNN | 42L28DANNB03ANA2FNB3434NAANNNNNN |
| 83003847 | 42-L-28-D-E1A3-00-A-N-A-2-F-N-B-19-19-N-N-N-NNN-NNN | 42L28DE1A300ANA2FNB1919NNNNNNNNN |
| 11013240 | 42-L-28-D-E1A3-00-A-N-A-2-F-N-B-19-19-N-N-N-NNN-NNN | 42L28DE1A300ANA2FNB1919NNNNNNNNN |
| 83003816 | 42-L-28-D-E1A3-00-D-N-F-2-F-N-B-19-19-N-N-N-NNN-NNN | 42L28DE1A300DNF2FNB1919NNNNNNNNN |
| 4282265 | 42-L-28-D-E1A3-00-D-N-F-2-F-N-B-19-19-N-N-N-NNN-NNN | 42L28DE1A300DNF2FNB1919NNNNNNNNN |
| 83003949 | 42-L-28-D-E1A3-02-B-D-B-2-F-N-N-34-34-B-N-N-NNN-NNN | 42L28DE1A302BDB2FNN3434BNNNNNNNN |
| 4282286 | 42-L-28-D-E1A3-02-B-D-B-2-F-N-N-34-34-B-N-N-NNN-NNN | 42L28DE1A302BDB2FNN3434BNNNNNNNN |
| 83012078 | 42-L-28-D-E1A3-03-B-3-B-3-F-N-B-17-17-N-A-N-NNN-NNN | 42L28DE1A303B3B3FNB1717NANNNNNNN |
| 83004022 | 42-L-28-D-E1A3-03-B-D-G-2-G-N-A-21-21-N-N-N-NNN-NNN | 42L28DE1A303BDG2GNA2121NNNNNNNNN |
| 11049763 | 42-L-28-D-E1A3-03-B-D-G-2-G-N-A-21-21-N-N-N-NNN-NNN | 42L28DE1A303BDG2GNA2121NNNNNNNNN |
| 83004009 | 42-L-28-D-E1A4-03-C-2-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28DE1A403C2A2FNB2525BNNNNNNNN |
| 4282288 | 42-L-28-D-E1A4-03-C-2-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28DE1A403C2A2FNB2525BNNNNNNNN |
| PVM28-507ED | 42-L-28-D-E1A5-00-A-N-A-2-F-N-B-30-30-N-N-N-NNN-NNN | 42L28DE1A500ANA2FNB3030NNNNNNNNN |
| 83003958 | 42-L-28-D-E1A5-02-D-N-F-2-H-N-B-30-30-B-N-N-NNN-NNN | 42L28DE1A502DNF2HNB3030BNNNNNNNN |
| 4282279 | 42-L-28-D-E1A5-02-D-N-F-2-H-N-B-30-30-B-N-N-NNN-NNN | 42L28DE1A502DNF2HNB3030BNNNNNNNN |
| 83003950 | 42-L-28-D-E1A5-03-B-2-B-2-H-N-B-34-34-B-A-A-NNN-NNN | 42L28DE1A503B2B2HNB3434BAANNNNNN |
| 4282284 | 42-L-28-D-E1A5-03-B-2-B-2-H-N-B-34-34-B-A-A-NNN-NNN | 42L28DE1A503B2B2HNB3434BAANNNNNN |
| 4282209 | 42-L-28-D-E1A6-01-C-2-A-2-F-N-B-21-21-B-N-N-NNN-NNN | 42L28DE1A601C2A2FNB2121BNNNNNNNN |
| 4282291 | 42-L-28-D-E1A6-02-A-N-A-2-H-N-A-28-28-N-N-N-NNN-NNN | 42L28DE1A602ANA2HNA2828NNNNNNNNN |
| 702383 | 42-L-28-D-E1A6-02-B-2-B-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L28DE1A602B2B2FNA3434NNNNNNNNN |
| 83003904 | 42-L-28-D-E1A6-02-B-2-B-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L28DE1A602B2B2FNB3434NNNNNNNNN |
| 11034920 | 42-L-28-D-E1A6-02-B-2-B-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L28DE1A602B2B2FNB3434NNNNNNNNN |
| 700617 | 42-L-28-D-E1A6-02-B-2-B-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L28DE1A602B2B2FNB3434NNNNNNNNN |
| 83003855 | 42-L-28-D-E1A6-02-B-3-G-2-H-N-A-34-34-B-A-A-NNN-NNN | 42L28DE1A602B3G2HNA3434BAANNNNNN |
| 11036163 | 42-L-28-D-E1A6-02-B-3-G-2-H-N-A-34-34-B-A-A-NNN-NNN | 42L28DE1A602B3G2HNA3434BAANNNNNN |
| 700805 | 42-L-28-D-E1A6-02-B-3-G-2-H-N-A-34-34-B-N-N-NNN-NNN | 42L28DE1A602B3G2HNA3434BNNNNNNNN |
| 4282064 | 42-L-28-D-E1A6-02-B-3-G-2-H-N-B-25-25-N-N-N-NNN-NNN | 42L28DE1A602B3G2HNB2525NNNNNNNNN |
| 83003864 | 42-L-28-D-E1A6-02-C-3-N-N-H-N-B-25-25-N-N-N-NNN-NNN | 42L28DE1A602C3NNHNB2525NNNNNNNNN |
| 4282163 | 42-L-28-D-E1A6-02-C-3-N-N-H-N-B-25-25-N-N-N-NNN-NNN | 42L28DE1A602C3NNHNB2525NNNNNNNNN |
| 83006753 | 42-L-28-D-E1A6-03-B-D-B-2-H-N-V-34-34-N-A-A-NNN-NNN | 42L28DE1A603BDB2HNV3434NAANNNNNN |
| 700970 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-A-14-14-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNA1414BNNNNNNNN |
| 700446 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-A-30-30-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNA3030BNNNNNNNN |
| 83014323 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-A-30-30-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNA3030BNNNNNNNN |
| 83036644 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-17-17-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB1717BNNNNNNNN |
| 702511 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-17-17-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB1717BNNNNNNNN |
| 11075282 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB2525BNNNNNNNN |
| 4282123 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB2525BNNNNNNNN |
| 83004034 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB2525BNNNNNNNN |
| 11019673 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB2525BNNNNNNNN |
| 11075278 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-30-30-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB3030BNNNNNNNN |
| 83003810 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-30-30-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB3030BNNNNNNNN |
| 4282106 | 42-L-28-D-E1A6-03-C-2-A-2-F-N-B-30-30-B-N-N-NNN-NNN | 42L28DE1A603C2A2FNB3030BNNNNNNNN |
| 83034316 | 42-L-28-D-E1A6-03-C-3-A-2-G-N-A-30-30-N-N-N-NNN-NNN | 42L28DE1A603C3A2GNA3030NNNNNNNNN |
| 4282200 | 42-L-28-D-E1A7-00-A-N-N-A-H-N-Z-28-28-N-N-N-NNN-NNN | 42L28DE1A700ANNAHNZ2828NNNNNNNNN |
| 83011710 | 42-L-28-D-E1A7-00-B-D-B-2-G-N-N-28-28-N-N-N-NNN-NNN | 42L28DE1A700BDB2GNN2828NNNNNNNNN |
| 83024780 | 42-L-28-D-E1A7-00-B-D-B-2-G-N-V-28-28-N-N-N-NNN-NNN | 42L28DE1A700BDB2GNV2828NNNNNNNNN |
| 83004032 | 42-L-28-D-E1B6-03-B-D-G-2-F-N-A-17-17-N-N-N-NNN-NNN | 42L28DE1B603BDG2FNA1717NNNNNNNNN |
| 11029190 | 42-L-28-D-E1B6-03-B-D-G-2-F-N-A-17-17-N-N-N-NNN-NNN | 42L28DE1B603BDG2FNA1717NNNNNNNNN |
| 83028033 | 42-L-28-D-E2C8-03-A-N-A-3-F-N-V-30-30-B-A-A-NNN-NNN | 42L28DE2C803ANA3FNV3030BAANNNNNN |
| 83028034 | 42-L-28-D-E2C8-03-A-N-N-N-P-N-V-30-30-B-A-A-NNN-NNN | 42L28DE2C803ANNNPNV3030BAANNNNNN |
| 83008556 | 42-L-28-D-E2D8-02-A-N-A-2-H-N-A-28-28-N-N-N-NNN-NNN | 42L28DE2D802ANA2HNA2828NNNNNNNNN |
| 83009117 | 42-L-28-D-E2D8-02-A-N-A-2-H-N-A-32-32-N-N-N-NNN-NNN | 42L28DE2D802ANA2HNA3232NNNNNNNNN |
| 83021086 | 42-L-28-D-E2D8-02-A-N-A-2-H-N-A-38-38-N-N-N-NNN-NNN | 42L28DE2D802ANA2HNA3838NNNNNNNNN |
| 83008959 | 42-L-28-D-E2D8-02-A-N-A-2-H-N-B-30-30-B-N-N-NNN-NNN | 42L28DE2D802ANA2HNB3030BNNNNNNNN |
| 83046877 | 42-L-28-D-E2D8-02-A-N-A-3-H-N-B-32-32-B-N-N-NNN-NNN | 42L28DE2D802ANA3HNB3232BNNNNNNNN |
| 83008688 | 42-L-28-D-E2D8-02-B-3-G-2-H-N-A-25-25-N-A-A-NNN-NNN | 42L28DE2D802B3G2HNA2525NAANNNNNN |
| 83008687 | 42-L-28-D-E2D8-02-B-3-G-2-H-N-V-25-25-N-A-A-NNN-NNN | 42L28DE2D802B3G2HNV2525NAANNNNNN |
| 83013446 | 42-L-28-D-E2D8-02-D-N-F-2-H-N-B-32-32-B-N-N-NNN-NNN | 42L28DE2D802DNF2HNB3232BNNNNNNNN |
| 83028941 | 42-L-28-D-E2D8-03-B-3-B-2-F-N-B-17-17-B-N-N-NNN-NNN | 42L28DE2D803B3B2FNB1717BNNNNNNNN |
| 83027976 | 42-L-28-D-E2D8-03-B-3-B-2-F-N-B-28-28-B-N-N-NNN-NNN | 42L28DE2D803B3B2FNB2828BNNNNNNNN |
| 83008555 | 42-L-28-D-E2D8-03-C-2-A-2-F-N-B-30-30-B-N-N-NNN-NNN | 42L28DE2D803C2A2FNB3030BNNNNNNNN |
| 83013800 | 42-L-28-D-E2D8-03-C-2-A-3-H-N-B-32-32-N-N-N-NNN-NNN | 42L28DE2D803C2A3HNB3232NNNNNNNNN |
| 83024206 | 42-L-28-D-E2D8-03-D-N-F-2-F-N-B-34-34-B-N-N-NNN-NNN | 42L28DE2D803DNF2FNB3434BNNNNNNNN |
| 83052790 | 42-L-28-D-E2D8-03-D-N-F-3-H-N-B-17-17-B-A-A-NNN-NNN | 42L28DE2D803DNF3HNB1717BAANNNNNN |
| 83041576 | 42-L-28-D-E2D8-03-D-N-F-3-H-N-B-23-23-B-A-A-NNN-NNN | 42L28DE2D803DNF3HNB2323BAANNNNNN |
| 83036403 | 42-L-28-D-G3AN-50-P-2-B-2-F-5-A-25-25-N-1-1-NNN-NNN | 42L28DG3AN50P2B2F5A2525N11NNNNNN |
| PVM28-765 | 42-L-28-D-G3AN-52-P-D-B-3-H-5-N-34-34-N-1-1-NNN-NNN | 42L28DG3AN52PDB3H5N3434N11NNNNNN |
| PVM28-753 | 42-L-28-D-G3AN-52-P-D-G-2-F-1-A-38-38-B-0-0-NNN-NNN | 42L28DG3AN52PDG2F1A3838B00NNNNNN |
| 4282119 | 42-L-28-D-G3AN-52-P-D-G-2-F-1-A-38-38-B-0-0-NNN-NNN | 42L28DG3AN52PDG2F1A3838B00NNNNNN |
| 4282061 | 42-L-28-D-G3AN-52-T-N-M-N-F-1-A-34-34-N-0-0-NNN-NNN | 42L28DG3AN52TNMNF1A3434N00NNNNNN |
| 4282253 | 42-L-28-D-LNN3-11-C-3-A-2-F-N-A-34-34-B-N-N-NNN-NNN | 42L28DLNN311C3A2FNA3434BNNNNNNNN |
| 4282252 | 42-L-28-D-LNN3-11-C-3-A-2-F-N-B-34-34-B-N-N-NNN-NNN | 42L28DLNN311C3A2FNB3434BNNNNNNNN |
| 83008414 | 42-L-28-G-ANNB-03-C-3-A-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L28GANNB03C3A2FNB3434NNNNNNNNN |
| 83035220 | 42-L-28-G-ANNB-03-C-D-A-2-F-N-B-34-34-N-A-A-NNN-NNN | 42L28GANNB03CDA2FNB3434NAANNNNNN |
| 83054353 | 42-L-28-G-E1A3-02-A-N-A-2-F-N-N-21-21-N-A-A-NNN-NNN | 42L28GE1A302ANA2FNN2121NAANNNNNN |
| 83003962 | 42-L-28-G-E1A5-03-A-N-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28GE1A503ANA2FNB2525BNNNNNNNN |
| 4282193 | 42-L-28-G-E1A5-03-A-N-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L28GE1A503ANA2FNB2525BNNNNNNNN |
| 83003856 | 42-L-28-G-E1A5-03-A-N-A-2-F-N-B-28-28-B-N-N-NNN-NNN | 42L28GE1A503ANA2FNB2828BNNNNNNNN |
| 11036921 | 42-L-28-G-E1A5-03-A-N-A-2-F-N-B-28-28-B-N-N-NNN-NNN | 42L28GE1A503ANA2FNB2828BNNNNNNNN |
| 83024514 | 42-L-28-G-G3AN-50-P-D-B-3-G-5-N-34-34-N-1-1-NNN-BNN | 42L28GG3AN50PDB3G5N3434N11NNNBNN |
| 4282173 | 42-L-28-G-G3AN-52-T-N-M-N-F-5-A-34-34-N-1-1-NNN-NNN | 42L28GG3AN52TNMNF5A3434N11NNNNNN |
Q1:How does the 42L28 Axial Piston Pump generate flow?
A1: The 42L28 Axial Piston Pump operates on the swashplate principle. As the drive shaft rotates, pistons reciprocate against a tilted swashplate, creating alternating suction and discharge strokes within the cylinder block.
Q2:What are typical applications for the 42L28 Axial Piston Pump?
A2:Typical applications for the 42L28 Axial Piston Pump include demanding mobile and industrial equipment such as winches, conveyors, and rotary drives, where its high power density and efficient closed-circuit design are advantageous.
Q3:How to purchase a 42L28 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the 42L28 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
