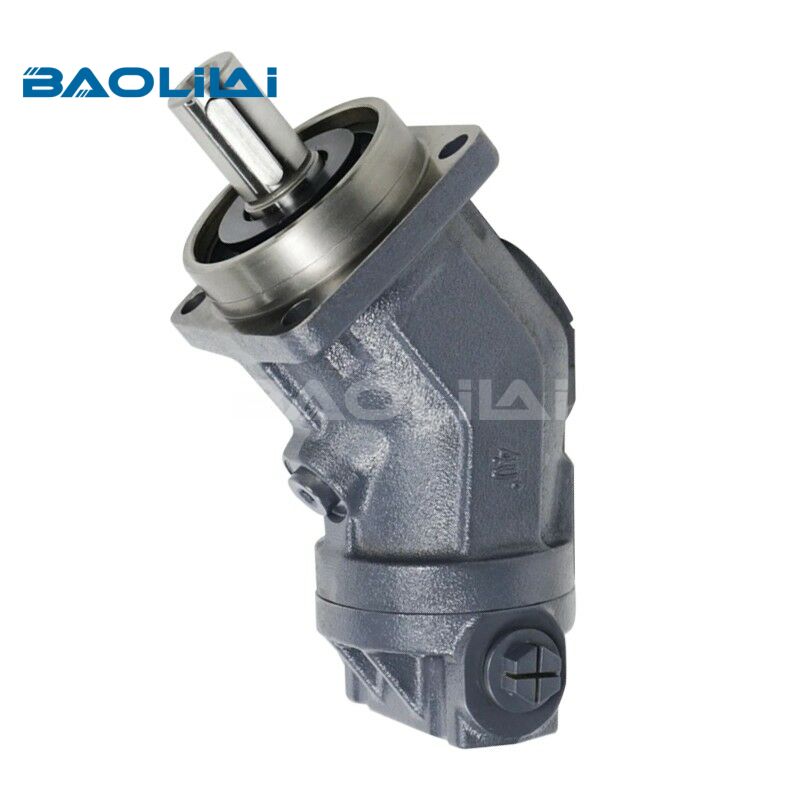

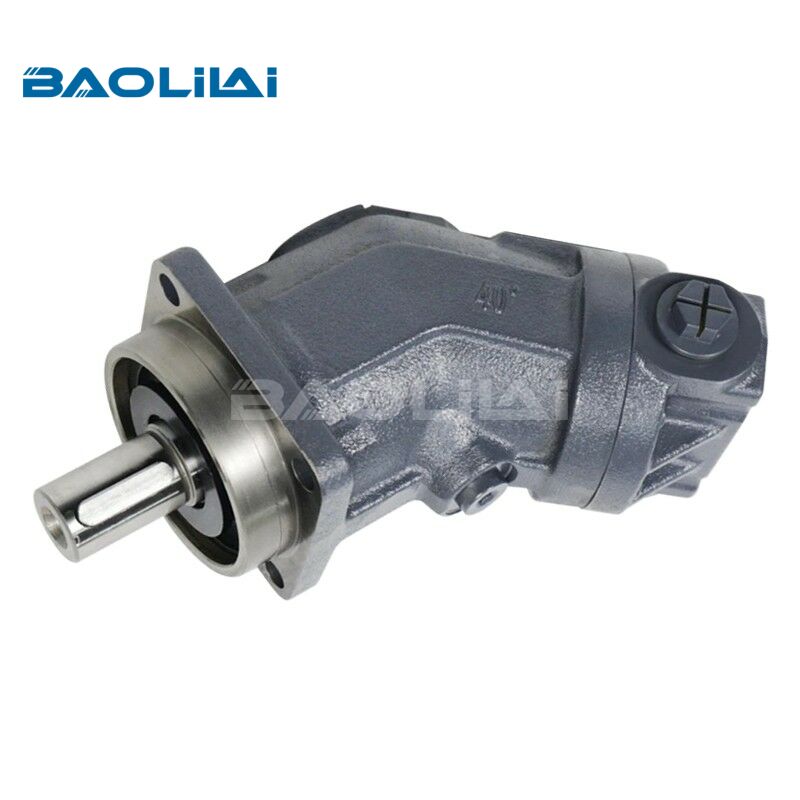

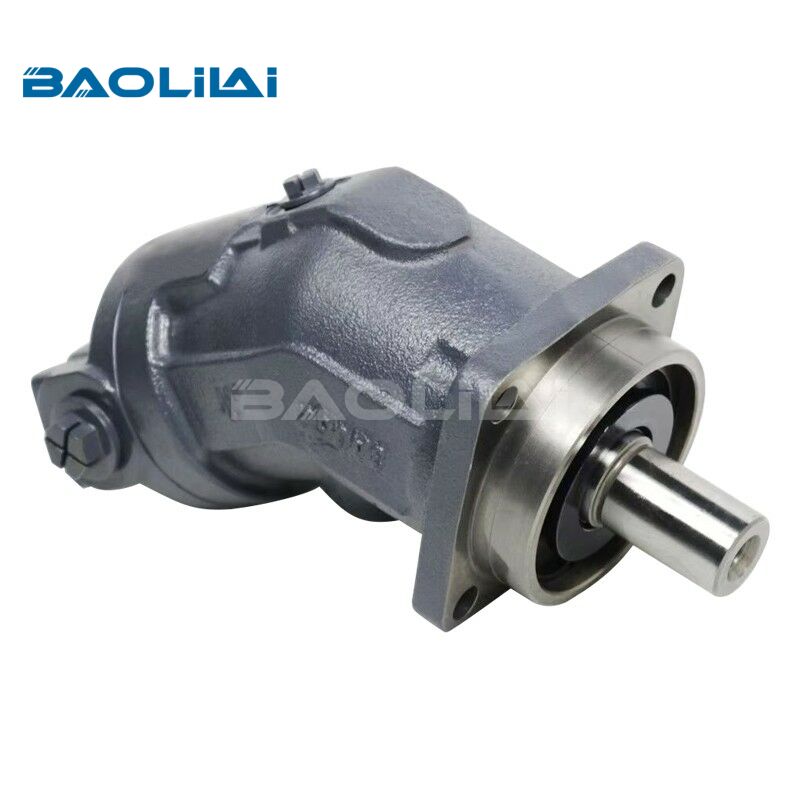

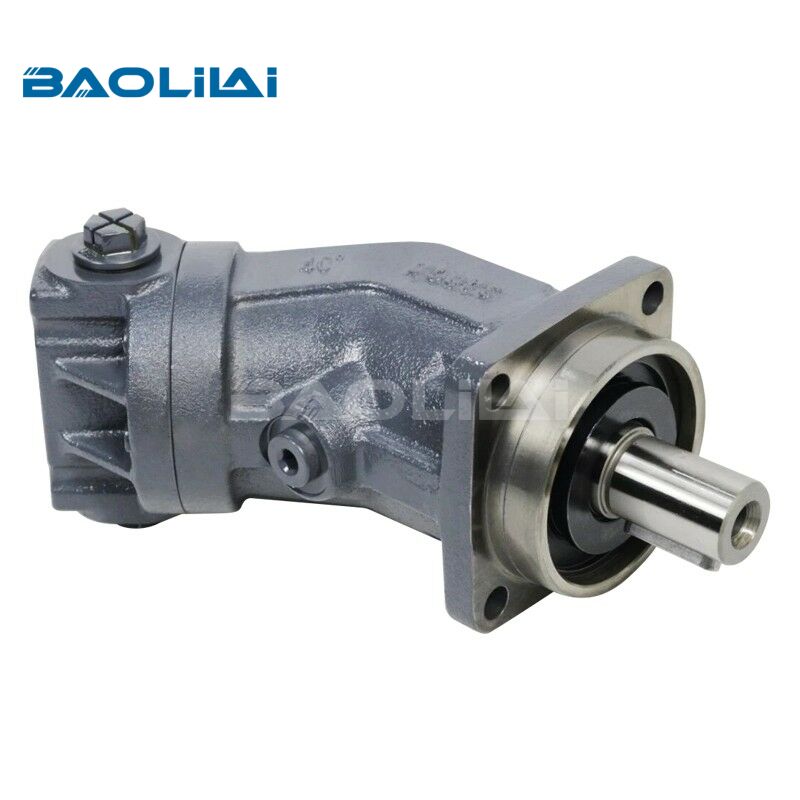

A2FM12 axial piston hydraulic motor

The A2FM12 is a fixed-displacement axial piston motor renowned for its robust performance and adaptability in demanding hydraulic systems. As part of the A2FM series, it combines high power density with reliability, making it a preferred choice for mobile and industrial applications where space and efficiency are critical .

This motor operates on a 40° bent-axis principle, where a tapered piston rotary group converts hydraulic energy into mechanical rotation. The design ensures smooth torque transmission and exceptional starting performance, even under heavy loads . The output speed correlates directly with the input flow rate from the pump, while the torque increases with the pressure differential between the high- and low-pressure sides . Key components, such as the one-piece pistons with integrated piston rings, optimize sealing and reduce internal leakage, enhancing both durability and efficiency .

The A2FM12 is widely used in construction machinery (e.g., excavators, compactors), industrial equipment (conveyors, mixers), agricultural machinery, and mining systems . Its compact dimensions and compatibility with international standards (e.g., ISO, DIN) allow seamless integration into existing hydraulic circuits .

Specifications

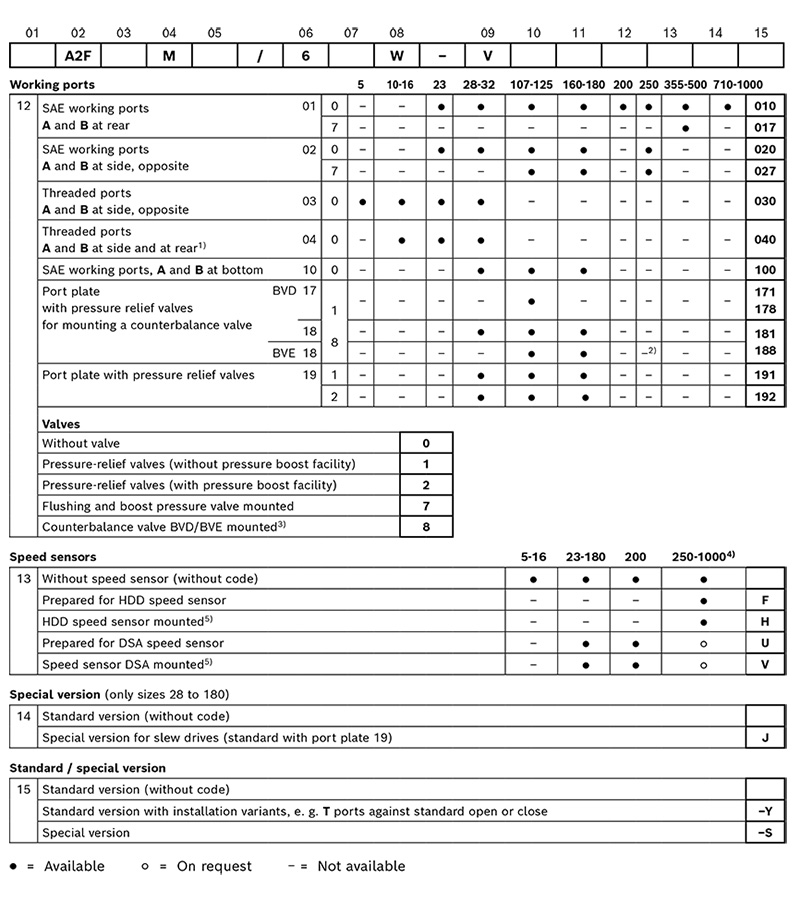

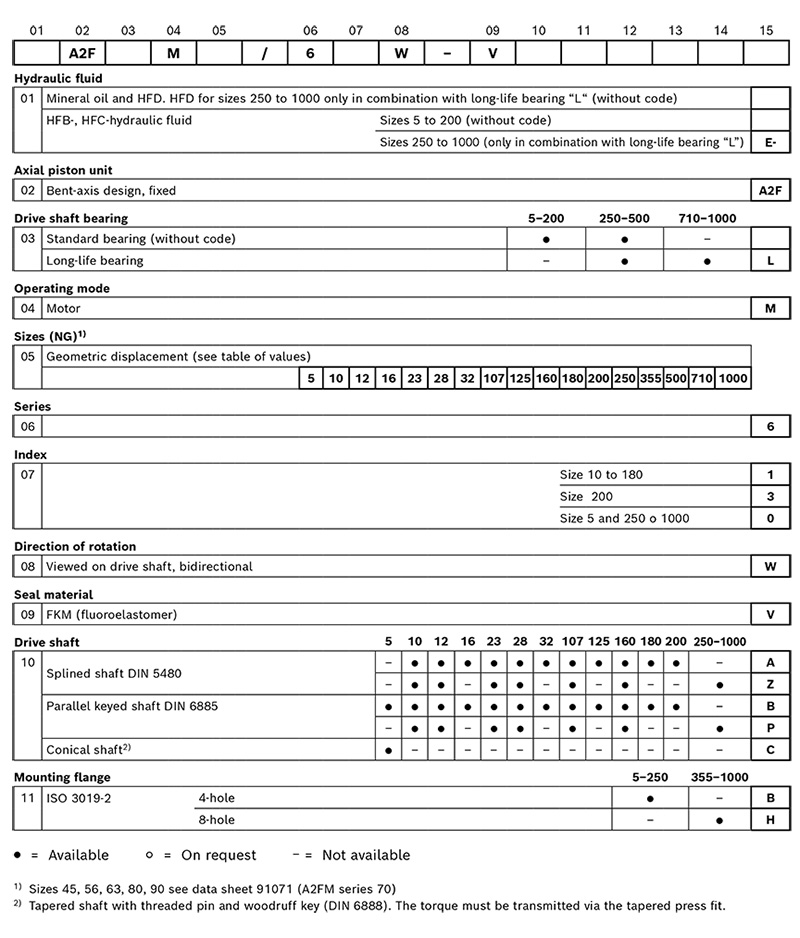

Selection Table

Q1: What type of hydraulic motor is the A2FM10 series, and what is its nominal displacement?

A1:The A2FM10 is an axial piston fixed-displacement motor. It has a nominal geometric displacement of 10.3 cm³/rev​ .

Q2: What is a key design feature of the A2FM10 motor that contributes to its compactness and high power density?

A2: A key design feature is its inclined-axis (bent-axis) design​ . This configuration, with pistons arranged at an angle to the drive shaft, allows for a compact structure and delivers high torque and power output relative to its size .

Q3: What are the maximum continuous and peak operating pressures for the A2FM10 motor?

A3: The A2FM10 motor is built for high-pressure applications, with a maximum continuous operating pressure of 400 bar and a peak pressure of 450 bar .

Q4:How to purchase an A2FM12 hydraulic pump?

A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
