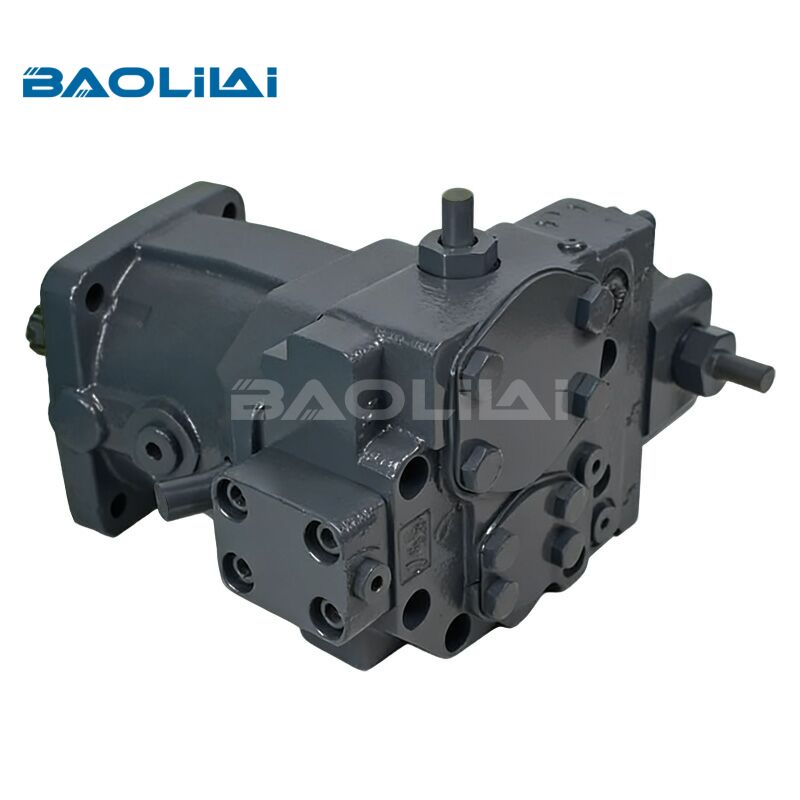

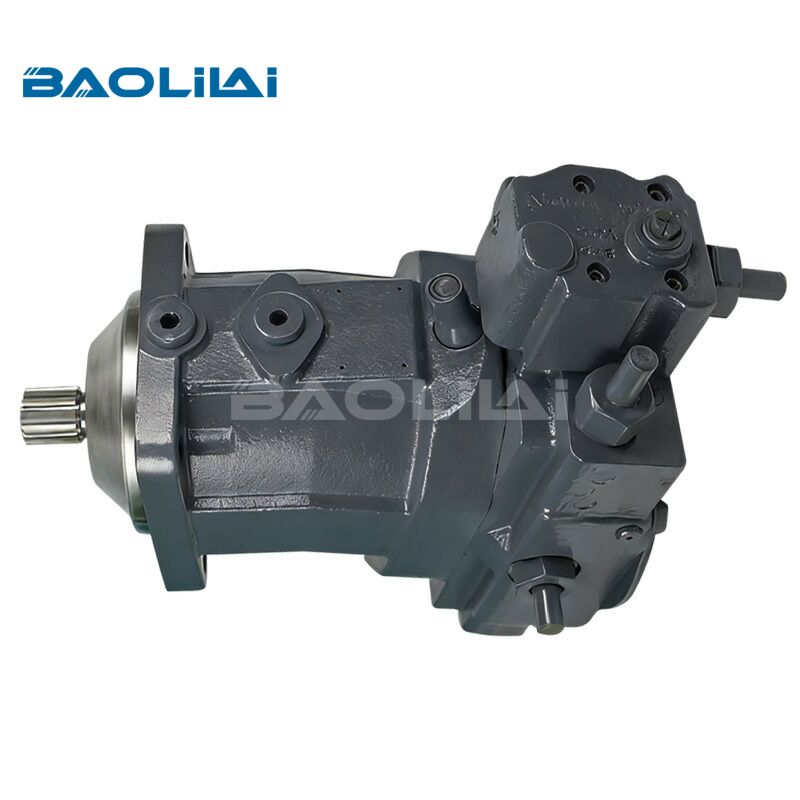

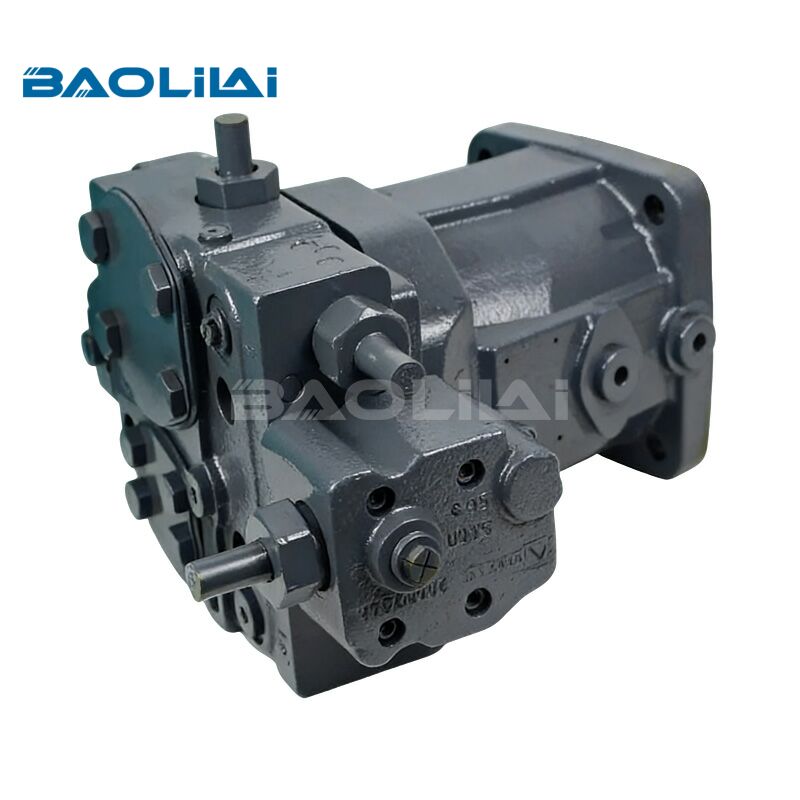

A7VO160 Variable Displacement Axial Piston Pump
SERIES : A7VO
BRAND : For Rexroth
Model Size :A7VO160
Displacement : 160cm3/rev
Speed : 1900rpm
Maximum Pressure : 400bar
Nominal Pressure : 350bar
Download PDF
- Product Details
- Product Model
- FAQ
The A7VO160 is a variable displacement axial piston pump designed for open hydraulic circuits. It features a swashplate design where the piston stroke (and thus displacement) is adjusted by changing the swashplate angle via a control mechanism. This allows for continuous, stepless variation of flow output proportional to drive speed, enabling precise control and high efficiency. Typical applications include industrial machinery, presses, and marine equipment. Its robust construction ensures reliable operation under high pressure. The "160" in its name indicates a nominal displacement of 160 cm³/rev. It often incorporates controls like pressure compensation (HD type) or load sensing (LR/EP type) for automated power management.
Specifications
| Size | NG | 28 | 55 | 80 | 107 | 160 | |||
| Displacement geometric, per revolution | Vg | cm3 | 28.1 | 54.8 | 80 | 107 | 160 | ||
| Speed maximum | at Vg max | nnom | rpm | 3150 | 2500 | 2240 | 2150 | 1900 | |
| at Vg<0.74⋅Vg max | nmax1 | rpm | 4250 | 3400 | 3000 | 2900 | 2560 | ||
| Speed maximum | nmax2 | rpm | 4750 | 3750 | 3350 | 3200 | 2850 | ||
| Flow at nnom and Vg max | qv | L/min | 89 | 137 | 179 | 230 | 304 | ||
| Power at nnom, Vg max and Δp=350 bar | P | kW | 52 | 80 | 105 | 134 | 177 | ||
| Torque at Vg max and Δp=350 bar | T | Nm | 156 | 305 | 446 | 596 | 891 | ||
| Rotary stiffness | Vgmax to Vg/2 | cmin | Nm/rad | 5548 | 10594 | 15911 | 21469 | 36073 | |
| Vg/2 to 0(interpolated) | cmax | Nm/rad | 16541 | 32103 | 48971 | 67666 | 104622 | ||
| Moment of inertia for rotary group | JGR | kgm2 | 0.0042 | 0.0042 | 0.0080 | 0.0127 | 0.0253 | ||
| Maximum angular acceleration | α | rad/s2 | 35900 | 31600 | 24200 | 19200 | 15300 | ||
| Case volume | V | L | 0.5 | 0.75 | 1.2 | 1.5 | 2.4 | ||
| Mass (approx.) | m | kg | 17 | 25 | 40 | 49 | 71 | ||

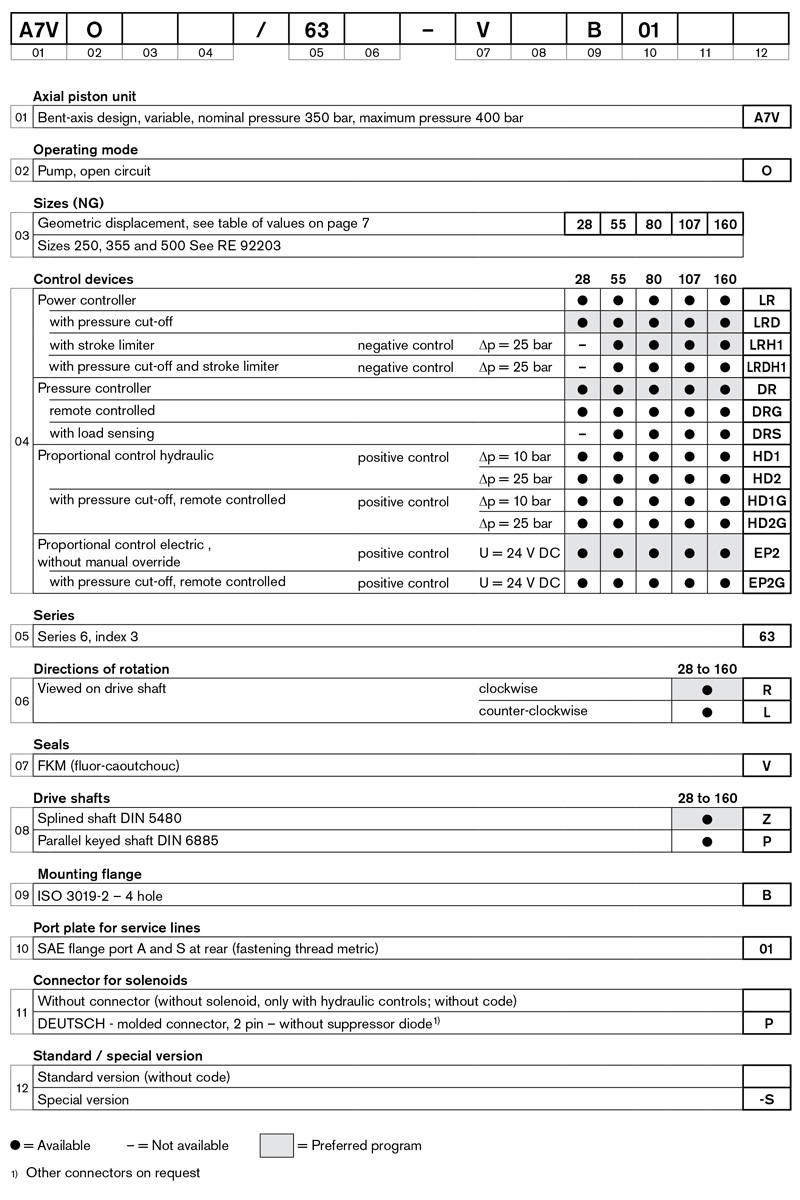

Selection Table
| A7VO160 hydraulic pump | |
| Model No. | Model Code |
| R987217976 | A7VO160LRU/63LNZB01 |
| R909429977 | A7VO160DR/61L-PPB01 |
| R909428489 | A7VO160DR/61L-PZB01 |
| R909438842 | A7VO160DR/61L-VZB01 |
| R909428042 | A7VO160DR/61R-PPB01 |
| R909433344 | A7VO160DR/61R-PZB01 |
| R909446187 | A7VO160DR/61R-VPB01 |
| R902016931 | A7VO160DR/63L-NPB01 |
| R902222405 | A7VO160DR/63L-NPB01 |
| R902052126 | A7VO160DR/63L-NSB01 |
| R909610409 | A7VO160DR/63L-NZB01 |
| R902218517 | A7VO160DR/63L-NZB01 |
| R902065764 | A7VO160DR/63L-VZB01 |
| R902004046 | A7VO160DR/63R-NPB01 |
| R902227536 | A7VO160DR/63R-NPB01 |
| R902229124 | A7VO160DR/63R-NPB01 |
| R902222028 | A7VO160DR/63R-NPB01 |
| R902218518 | A7VO160DR/63R-NPB01 |
| R902205998 | A7VO160DR/63R-NPB01 |
| R902217994 | A7VO160DR/63R-NPB01 |
| R902223136 | A7VO160DR/63R-NPB01 |
| R902092781 | A7VO160DR/63R-NPB01-E |
| R902092906 | A7VO160DR/63R-NPB01-E |
| R902052136 | A7VO160DR/63R-NSB01 |
| R909610404 | A7VO160DR/63R-NZB01 |
| R902222006 | A7VO160DR/63R-NZB01 |
| R902092627 | A7VO160DR/63R-NZB01-E |
| R902082266 | A7VO160DR/63R-NZB01-S |
| R902045251 | A7VO160DR/63R-VPB01 |
| R902233781 | A7VO160DR/63R-VPB01 |
| R902226016 | A7VO160DR/63R-VPB01 |
| R902251670 | A7VO160DR/63R-VPB01 |
| R902231097 | A7VO160DR/63R-VPB01 |
| R902233015 | A7VO160DR/63R-VPB01 |
| R902139643 | A7VO160DR/63R-VPB01-E |
| R902021824 | A7VO160DR/63R-VZB01 |
| R909448742 | A7VO160DRG/61L-PZB01 |
| R909437137 | A7VO160DRG/61R-PPB01 |
| R909448748 | A7VO160DRG/61R-VPB01 |
| R902170448 | A7VO160DRG/63L-NPB01 |
| R902060118 | A7VO160DRG/63L-NSB01 |
| R909611227 | A7VO160DRG/63L-NZB01 |
| R902090212 | A7VO160DRG/63L-VSB01 |
| R902235014 | A7VO160DRG/63L-VSB01 |
| R902245593 | A7VO160DRG/63L-VSB01 |
| R902014215 | A7VO160DRG/63R-NPB01 |
| R902243059 | A7VO160DRG/63R-NPB01 |
| R902233370 | A7VO160DRG/63R-NPB01 |
| R909611220 | A7VO160DRG/63R-NZB01 |
| R902011968 | A7VO160DRG/63R-VPB01 |
| R902011941 | A7VO160DRG/63R-VZB01 |
| R902235463 | A7VO160DRG/63R-VZB01 |
| R909447046 | A7VO160DRM/61L-PPB01 |
| R909446349 | A7VO160DRM/61R-PPB01 |
| R909610454 | A7VO160DRS/61R-PPB01 |
| R909428482 | A7VO160DRS/61R-PZB01 |
| R902033277 | A7VO160DRS/63R-NPB01 |
| R902011873 | A7VO160DRS/63R-NZB01 |
| R909604856 | A7VO160DRX/61R-PPB01-S |
| R909446495 | A7VO160EP/61L-PPB01 |
| R909441410 | A7VO160EP/61L-PZB01 |
| R909438607 | A7VO160EP/61R-PPB01 |
| R909448544 | A7VO160EP/61R-PZB01 |
| R902050915 | A7VO160EP/63L-NPB01 |
| R902239927 | A7VO160EP/63L-NPB01P |
| R902052132 | A7VO160EP/63L-NSB01 |
| R902239593 | A7VO160EP/63L-NSB01 |
| R902227856 | A7VO160EP/63L-NSB01 |
| R902239592 | A7VO160EP/63L-NSB01 |
| R909610411 | A7VO160EP/63L-NZB01 |
| R902000354 | A7VO160EP/63R-NPB01 |
| R902222247 | A7VO160EP/63R-NPB01 |
| R902218520 | A7VO160EP/63R-NPB01 |
| R902226098 | A7VO160EP/63R-NPB01 |
| R902191897 | A7VO160EP/63R-NPB01 |
| R902227918 | A7VO160EP/63R-NPB01 |
| R902222084 | A7VO160EP/63R-NPB01H |
| R902229430 | A7VO160EP/63R-NPB01P |
| R902094652 | A7VO160EP/63R-NPB01-S |
| R902070540 | A7VO160EP/63R-NPB01-S |
| R902191881 | A7VO160EP/63R-NPB01-S |
| R902231259 | A7VO160EP/63R-NPB01-S |
| R902218521 | A7VO160EP/63R-NPB01-S |
| R902052142 | A7VO160EP/63R-NSB01 |
| R909610406 | A7VO160EP/63R-NZB01 |
| R902208992 | A7VO160EP/63R-NZB01P |
| R902082446 | A7VO160EP/63R-VPB01 |
| R902250892 | A7VO160EP2/63R-VPB01P |
| R902255569 | A7VO160EP2/63R-VPB01P |
| R902237110 | A7VO160EP2G/63R-NZB01P |
| R909433356 | A7VO160EPD/61L-PZB01 |
| R909428048 | A7VO160EPD/61R-DPB01 |
| R909428046 | A7VO160EPD/61R-PPB01 |
| R909433355 | A7VO160EPD/61R-PZB01 |
| R909605057 | A7VO160EPG/61R-PPB01 |
| R902060478 | A7VO160EPG/63L-NPB01 |
| R902043943 | A7VO160EPG/63L-NZB01 |
| R902031741 | A7VO160EPG/63R-NPB01 |
| R902047469 | A7VO160EPG/63R-NZB01 |
| R902050749 | A7VO160EPG/63R-VZB01 |
| R909610944 | A7VO160HD1/61L-NZB01 |
| R909441113 | A7VO160HD1/61L-PZB01 |
| R909446590 | A7VO160HD1/61R-PPB01 |
| R909441111 | A7VO160HD1/61R-PZB01 |
| R902050913 | A7VO160HD1/63L-NPB01 |
| R902052130 | A7VO160HD1/63L-NSB01 |
| R909610410 | A7VO160HD1/63L-NZB01 |
| R902243357 | A7VO160HD1/63L-VZB01 |
| R902011682 | A7VO160HD1/63R-NPB01 |
| R902218522 | A7VO160HD1/63R-NPB01 |
| R902257737 | A7VO160HD1/63R-NPB01 |
| R902052140 | A7VO160HD1/63R-NSB01 |
| R909610405 | A7VO160HD1/63R-NZB01 |
| R902208818 | A7VO160HD1/63R-NZB01 |
| R909428064 | A7VO160HD1D/61L-DZB01 |
| R909437512 | A7VO160HD1D/61L-DZB01-S |
| R909605615 | A7VO160HD1D/61L-PPB01 |
| R909428062 | A7VO160HD1D/61L-PZB01 |
| R909447090 | A7VO160HD1D/61R-PPB01 |
| R909428913 | A7VO160HD1D/61R-PZB01 |
| R909438908 | A7VO160HD1G/61L-PZB01 |
| R902016673 | A7VO160HD1G/63L-NZB01 |
| R902006801 | A7VO160HD1G/63R-NPB01 |
| R902227705 | A7VO160HD1G/63R-NPB01 |
| R902075322 | A7VO160HD1G/63R-NZB01 |
| R909438253 | A7VO160HD2/61R-PPB01 |
| R902000180 | A7VO160HD2/63L-NZB01 |
| R902170573 | A7VO160HD2/63L-NZB01 |
| R902251851 | A7VO160HD2/63L-VPB01 |
| R902024986 | A7VO160HD2/63R-NPB01 |
| R902217623 | A7VO160HD2/63R-NPB01 |
| R902092731 | A7VO160HD2/63R-NPB01-E |
| R902009567 | A7VO160HD2/63R-NZB01 |
| R902057415 | A7VO160HD2/63R-VZB01 |
| R909433393 | A7VO160HD2D/61R-PPB01 |
| R902027090 | A7VO160HD2G/63L-NZB01 |
| R902110285 | A7VO160HD2G/63R-NZB01 |
| R909611233 | A7VO160LG1E/63L-NPB01 |
| R902000264 | A7VO160LG2H5/63L-NZB01 |
| R909446006 | A7VO160LGE/61L-MPB01 |
| R909429976 | A7VO160LR/61L-PPB01 |
| R909428484 | A7VO160LR/61L-PZB01 |
| R909428493 | A7VO160LR/61R-PPB01 |
| R909433342 | A7VO160LR/61R-PZB01 |
| R902006697 | A7VO160LR/63L-NPB01 |
| R902223315 | A7VO160LR/63L-NPB01 |
| R902052124 | A7VO160LR/63L-NSB01 |
| R909610407 | A7VO160LR/63L-NZB01 |
| R902000223 | A7VO160LR/63L-VZB01 |
| R902006929 | A7VO160LR/63R-NPB01 |
| R902052134 | A7VO160LR/63R-NSB01 |
| R909610402 | A7VO160LR/63R-NZB01 |
| R902124202 | A7VO160LR/63R-NZB01-E |
| R902253560 | A7VO160LR/63R-VPB01 |
| R909442495 | A7VO160LRC/61L-PZBO1 |
| R909441711 | A7VO160LRCH6/61L-PZB01 |
| R909448741 | A7VO160LRD/61L-DPB01 |
| R909446330 | A7VO160LRD/61L-NZB01 |
| R909429978 | A7VO160LRD/61L-PPB01 |
| R909428486 | A7VO160LRD/61L-PZB01 |
| R909446532 | A7VO160LRD/61L-WPB01 |
| R909434653 | A7VO160LRD/61R-DPB01 |
| R909428491 | A7VO160LRD/61R-PPB01 |
| R909433343 | A7VO160LRD/61R-PZB01 |
| R902038926 | A7VO160LRD/63L-NPB01 |
| R902245921 | A7VO160LRD/63L-NPB01 |
| R902208739 | A7VO160LRD/63L-NPB01 |
| R902226470 | A7VO160LRD/63L-NPB01 |
| R902222239 | A7VO160LRD/63L-NPB01 |
| R902052128 | A7VO160LRD/63L-NSB01 |
| R909610562 | A7VO160LRD/63L-NZB01 |
| R902237301 | A7VO160LRD/63L-NZB01 |
| R902229305 | A7VO160LRD/63L-NZB01 |
| R902235062 | A7VO160LRD/63L-NZB01 |
| R902257753 | A7VO160LRD/63L-VPB01 |
| R902247094 | A7VO160LRD/63R-NPB01 |
| R902000134 | A7VO160LRD/63R-NPB01 |
| R902216693 | A7VO160LRD/63R-NPB01 |
| R902245919 | A7VO160LRD/63R-NPB01 |
| R902237314 | A7VO160LRD/63R-NPB01 |
| R902251863 | A7VO160LRD/63R-NPB01 |
| R902245970 | A7VO160LRD/63R-NPB01 |
| R902233170 | A7VO160LRD/63R-NPB01 |
| R902229414 | A7VO160LRD/63R-NPB01 |
| R902233166 | A7VO160LRD/63R-NPB01 |
| R902249567 | A7VO160LRD/63R-NPB01 |
| R902245926 | A7VO160LRD/63R-NPB01 |
| R902233169 | A7VO160LRD/63R-NPB01 |
| R902233097 | A7VO160LRD/63R-NPB01 |
| R902229204 | A7VO160LRD/63R-NPB01 |
| R902229093 | A7VO160LRD/63R-NPB01 |
| R902233168 | A7VO160LRD/63R-NPB01 |
| R902226459 | A7VO160LRD/63R-NPB01 |
| R902218523 | A7VO160LRD/63R-NPB01 |
| R902092907 | A7VO160LRD/63R-NPB01-E |
| R902052138 | A7VO160LRD/63R-NSB01 |
| R909610561 | A7VO160LRD/63R-NZB01 |
| R902197897 | A7VO160LRD/63R-NZB01 |
| R902222449 | A7VO160LRD/63R-NZB01 |
| R902065993 | A7VO160LRD/63R-VPB01 |
| R902255571 | A7VO160LRD/63R-VPB01 |
| R902257797 | A7VO160LRD/63R-VPB01 |
| R902255570 | A7VO160LRD/63R-VPB01 |
| R902016696 | A7VO160LRDG/63L-NPB01 |
| R902000470 | A7VO160LRDG/63R-NPB01 |
| R902054822 | A7VO160LRDG/63R-NZB01 |
| R902045068 | A7VO160LRDGH1/63R-NPB01 |
| R902130737 | A7VO160LRDGH2/63R-NPB01 |
| R909428172 | A7VO160LRDH1/61L-PZB01 |
| R909605094 | A7VO160LRDH1/61R-PZB01 |
| R902042356 | A7VO160LRDH1/63L-NPB01 |
| R902004003 | A7VO160LRDH1/63L-NZB01 |
| R902231186 | A7VO160LRDH1/63L-NZB01 |
| R902027462 | A7VO160LRDH1/63R-NPB01 |
| R902226198 | A7VO160LRDH1/63R-NPB01 |
| R902222461 | A7VO160LRDH1/63R-NPB01 |
| R902243450 | A7VO160LRDH1/63R-NPB01 |
| R902257756 | A7VO160LRDH1/63R-NPB01 |
| R902233192 | A7VO160LRDH1/63R-NPB01 |
| R902216692 | A7VO160LRDH1/63R-NPB01 |
| R902011596 | A7VO160LRDH1/63R-NZB01 |
| R902229105 | A7VO160LRDH1/63R-NZB01 |
| R902207301 | A7VO160LRDH1/63R-NZB01 |
| R902250955 | A7VO160LRDH1/63R-NZB01 |
| R902257796 | A7VO160LRDH1/63R-NZB01 |
| R902241631 | A7VO160LRDH1/63R-NZB01 |
| R902229142 | A7VO160LRDH1/63R-NZB01 |
| R902216690 | A7VO160LRDH1/63R-NZB01 |
| R902222207 | A7VO160LRDH1/63R-NZB01 |
| R902223195 | A7VO160LRDH1/63R-NZB01 |
| R902208689 | A7VO160LRDH1/63R-NZB01 |
| R902243219 | A7VO160LRDH1/63R-VPB01 |
| R902215157 | A7VO160LRDH1/63R-VZB01 |
| R909437153 | A7VO160LRDH2/61L-PZB01 |
| R909437155 | A7VO160LRDH2/61R-PPB01 |
| R902035330 | A7VO160LRDH2/63L-NZB01 |
| R902255765 | A7VO160LRDH2/63L-VPB01 |
| R902068854 | A7VO160LRDH2/63R-NPB01 |
| R902057233 | A7VO160LRDH5/63R-NZB01 |
| R902016628 | A7VO160LRDH6/63L-NZB01 |
| R902233274 | A7VO160LRDH6/63L-NZB01 |
| R909434621 | A7VO160LRDM/61R-PZB01 |
| R909428487 | A7VO160LRDS/61L-PZB01 |
| R909447051 | A7VO160LRDS/61R-PPB01 |
| R909428044 | A7VO160LRDS/61R-PZB01 |
| R902021568 | A7VO160LRDS/63L-NPB01-S |
| R902057229 | A7VO160LRDS/63L-NZB01 |
| R902078815 | A7VO160LRDS/63R-NZB01 |
| R909446562 | A7VO160LRDU/61L-PPB01 |
| R909446408 | A7VO160LRDU/61R-PPB01 |
| R909447273 | A7VO160LRDU/61R-PZB01 |
| R902033163 | A7VO160LRDU/63L-NZB01 |
| R902030867 | A7VO160LRDU/63R-NPB01 |
| R902077116 | A7VO160LRDU/63R-NZB01 |
| R909428068 | A7VO160LRE/61L-MPB01-S |
| R909442279 | A7VO160LRG/61L-PZB01 |
| R909446325 | A7VO160LRG/61R-PPB01 |
| R909437343 | A7VO160LRG/61R-PZB01 |
| R902014365 | A7VO160LRG/63L-NZB01 |
| R902040451 | A7VO160LRG/63L-VPB01 |
| R902170550 | A7VO160LRG/63L-VPB01 |
| R902024558 | A7VO160LRG/63R-NPB01 |
| R902011651 | A7VO160LRG/63R-NZB01 |
| R902072503 | A7VO160LRG/63R-VPB01 |
| R902035345 | A7VO160LRGH1/63L-VPB01 |
| R902028584 | A7VO160LRGH1/63R-NPB01 |
| R902014435 | A7VO160LRGH1/63R-NZB01 |
| R902072534 | A7VO160LRGH2/63R-NPB01 |
| R909603650 | A7VO160LRH1/61L-PPB01 |
| R909433772 | A7VO160LRH1/61L-PZB01 |
| R909437959 | A7VO160LRH1/61R-DPB01-S |
| R909434620 | A7VO160LRH1/61R-PPB01 |
| R909434211 | A7VO160LRH1/61R-PZB01 |
| R902014074 | A7VO160LRH1/63L-NPB01 |
| R902218500 | A7VO160LRH1/63L-NPB01 |
| R902229381 | A7VO160LRH1/63L-NPB01 |
| R909610408 | A7VO160LRH1/63L-NZB01 |
| R902253503 | A7VO160LRH1/63R-NPB01 |
| R902000178 | A7VO160LRH1/63R-NPB01 |
| R902216688 | A7VO160LRH1/63R-NPB01 |
| R902239874 | A7VO160LRH1/63R-NPB01 |
| R902229308 | A7VO160LRH1/63R-NPB01 |
| R902216689 | A7VO160LRH1/63R-NPB01 |
| R902226058 | A7VO160LRH1/63R-NPB01 |
| R902223449 | A7VO160LRH1/63R-NPB01 |
| R902270601 | A7VO160LRH1/63R-NPB01 |
| R909610403 | A7VO160LRH1/63R-NZB01 |
| R902215235 | A7VO160LRH1/63R-NZB01 |
| R902255766 | A7VO160LRH1/63R-NZB01 |
| R902235398 | A7VO160LRH1/63R-NZB01 |
| R902231177 | A7VO160LRH1/63R-NZB01 |
| R902216687 | A7VO160LRH1/63R-NZB01 |
| R902216686 | A7VO160LRH1/63R-NZB01 |
| R992001587 | A7VO160LRH1/63R-NZB01 |
| R902235065 | A7VO160LRH1/63R-VPB01 |
| R902235437 | A7VO160LRH1/63R-VPB01 |
| R902223220 | A7VO160LRH1/63R-VZB01 |
| R909610455 | A7VO160LRH2/61R-PPB01 |
| R909434183 | A7VO160LRH2/61R-PPB01-S |
| R902009658 | A7VO160LRH2/63L-NZB01 |
| R909437301 | A7VO160LRH5/61L-PZB01-S |
| R909434623 | A7VO160LRH5/61R-PPB01 |
| R909434654 | A7VO160LRM/61L-PZB01 |
| R909429979 | A7VO160LRM/61R-PZB01 |
| R909428060 | A7VO160LRS/61L-DZB01-S |
| R909434828 | A7VO160LRS/61R-DZB01-S |
| R902126766 | A7VO160LRU/63L-NZB01 |
| R902033198 | A7VO160LRU/63R-NPB01 |
| R902086529 | A7VO160LRU/63R-NZB01 |
| R902277003 | A7VO160EP2/63R-VPB01P |
| R992001748 | A7VO160LRH1/63R-NPB01 |
| R902092614 | AA7VO160LG2D/63L-NSD01-ES |
| R902047235 | AA7VO160LG2D/63L-NSD01-S |
| R900061939 | A7VO160DR/63L-NZB01 |
| R900034085 | A7VO160DR/63R-VZB01 |
| R900030043 | A7VO160EP/63R-NZB01 |
| R900050880 | A7VO160HD2/63R-NZB01 |
| R900053353 | A7VO160LR/63L-NPB01(37-1450) |
| R900082694 | A7VO160LR/63L-NPB01(55-1450) |
| R900214989 | A7VO160LR/63R-NPB01 |
| R900030004 | A7VO160LR/63R-NZB01 |
| R987219935 | A7VO160LR/63R-NZB01KW221450G |
| R900203795 | A7VO160LRDH1/63R-NZB01 |
Q1:In which type of hydraulic circuit is the A7VO160 pump primarily used?
A1:The A7VO160 variable displacement axial piston pump is specifically designed for use in open hydraulic circuits.
Q2:What are some typical applications for the A7VO160 axial piston pump?
A2:Typical applications for the A7VO160 pump include various types of industrial machinery, presses, and marine equipment.
Q3:How to purchase an A7VO160 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the A7VO160 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
