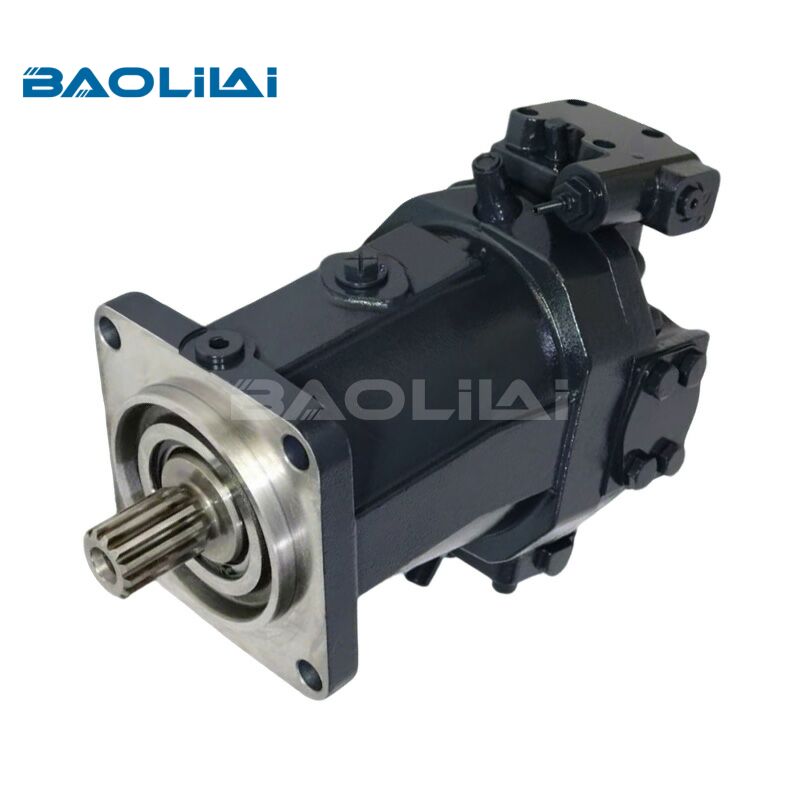

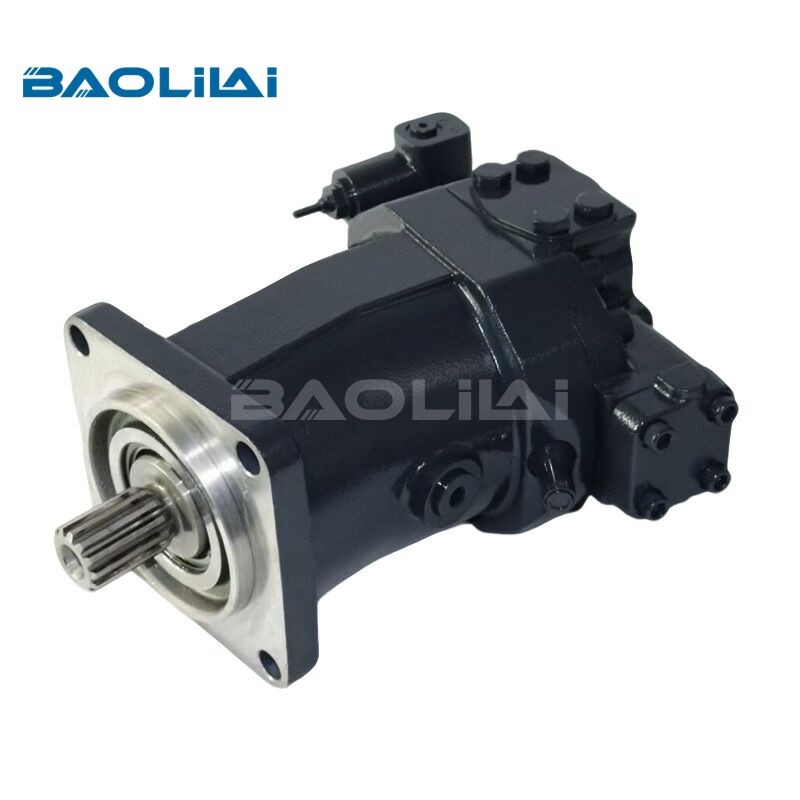

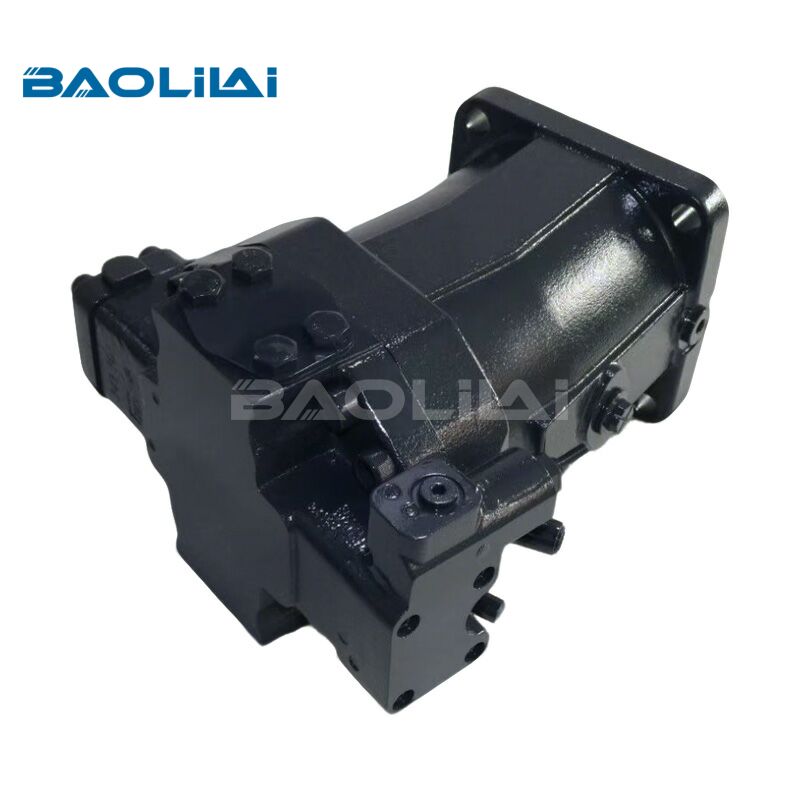

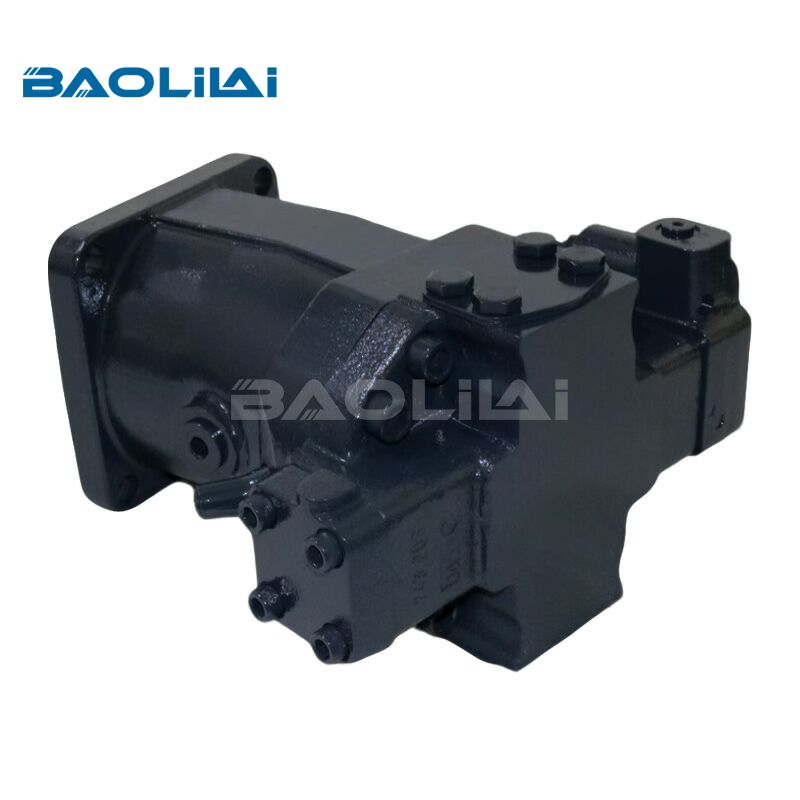

AA6VM355 axial piston variable hydraulic motor
SERIES : AA6VM
BRAND : For Bosch Rexroth
Model Size :AA6VM355
Displacement : 355cm3/rev
Speed : 2240rpm
Maximum Pressure : 400bar
Nominal Pressure : 350bar
Download PDF
- Product Details
- Product Model
- FAQ
The AA6VM355 is a variable-displacement axial piston hydraulic motor manufactured by Bosch Rexroth. It is a high-power component designed for demanding mobile and industrial applications. Its key characteristics include:
- Axial Piston Design: Multiple pistons are arranged parallel to the drive shaft. They reciprocate against a tilted swashplate, converting hydraulic pressure into smooth rotary motion.
- Variable Displacement: The angle of the swashplate can be hydraulically adjusted. Changing this angle varies the motor's displacement per revolution, allowing for precise control of output torque and speed.
- High Performance: It operates at very high continuous pressures (typically up to 400 bar or more), providing high power density and torque output in a compact package.
- Typical Applications: Used in heavy-duty machinery such as excavator travel drives, winches, crushers, conveyors, and drilling equipment where variable speed and high starting torque are required.
- Control Versatility: It is designed to integrate with advanced control systems (e.g., electro-hydraulic proportional controls) for features like load-sensing, pressure cut-off, and precise speed regulation.
In summary, the AA6VM355 is a high-performance, controllable motor ideal for applications requiring efficient, variable power transmission from a hydraulic system.
Specifications
| Size | NG | 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | |
| Displacement | Vg max | in3 | 1.71 | 3.34 | 4.88 | 6.53 | 8.54 | 9.76 | 12.20 | 15.25 | 21.66 | 30.51 | |
| cm3 | 28.1 | 54.8 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | ||
| Vg0 | in3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| cm3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Max. speed (while adhering to max. permissible flow |
nmax at Vg max | rpm | 5550 | 4450 | 3900 | 3550 | 3250 | 3100 | 2900 | 2700 | 2240 | 2000 | 1600 |
| nmax at Vg<Vgx | rpm | 8750 | 7000 | 6150 | 5600 | 5150 | 4900 | 4600 | 3600 | 2950 | 2650 | 2100 | |
| Vgx=0.63 x Vg max | in3 | 1.10 | 2.14 | 3.11 | 4.15 | 5.37 | 6.16 | 7.69 | 11.47 | 16.48 | 23.00 | 46.50 | |
| cm3 | 18 | 35 | 51 | 68 | 88 | 101 | 126 | 188 | 270 | 377 | 762 | ||
| nmax 0 at Vg0 | rpm | 10450 | 8350 | 7350 | 6300 | 5750 | 5500 | 5100 | 3600 | 2950 | 2650 | 2100 | |
| Max. flow | qv max | gpm | 41 | 64 | 82 | 100 | 120 | 131 | 153 | 178 | 210 | 264 | 423 |
| l/min | 156 | 244 | 312 | 380 | 455 | 496 | 580 | 675 | 795 | 1000 | 1600 | ||
| Max.torque | Tmax at Vg max | lb-ft | 132 | 257 | 375 | 502 | 657 | 752 | 939 | 1026 | 1459 | 2054 | 4109 |
| Nm | 179 | 349 | 509 | 681 | 891 | 1019 | 1273 | 1391 | 1978 | 2785 | 5571 | ||
| Rotary stiffness Vg max to Vg/2 Vg/2 to 0(interpolated) |
cmin | lb-ft/rad | 4182 | 7671 | 11432 | 15489 | 25003 | 26036 | 32305 | 43885 | 55170 | 84820 | 207255 |
| Nm/rad | 5670 | 1040 | 15500 | 21000 | 33900 | 35300 | 43800 | 59500 | 74800 | 115000 | 281000 | ||
| cmax | lb-ft/rad | 13350 | 2360 | 235329 | 48089 | 89 68888 | 77444 | 95883 | 133499 | 9 193241 | 288387 | 604801 | |
| Nm/rad | 18100 | 32000 | 47900 | 65200 | 93400 | 00 105000 | 13000 | )181000 | 262000 | 391000 | 820000 | ||
| Moment of inertia for rotary group |
JTW | lb-ft2 | 0.033 | 0.100 | 0.190 | 0.301 | 0.491 | 0.600 | 0.838 | 1.448 | 2.420 | 4.224 | 13.05 |
| kgm2 | 0.001 | 0.004 | 0.008 | 0.0127 | 0.0207 | 0.025 | 0.035 | 0.061 | 0.102 | 0.178 | 0.550 | ||
| Angular acceleration maximum |
a | rad/s2 | 47000 | 31500 | 24000 | 19000 | 1 11000 | 11000 | 11000 | 10000 | 8300 | 5500 | 4000 |
| Filling capacity | V | Gal | 0.13 | 0.2 | 0.32 | 0.4 | 0.48 | 0.63 | 0.71 | 0.79 | 1.32 | 1.85 | 4.23 |
| L | 0.5 | 0.75 | 1.2 | 1.5 | 1.8 | 2.4 | 2.7 | 3.0 | 5.0 | 7.0 | 16.0 | ||
| Mass(approx.) | m | lbs | 35 | 57 | 75 | 104 | 132 | 141 | 176 | 220 | 375 | 463 | 948 |
| kg | 16 | 26 | 34 | 47 | 60 | 64 | 80 | 100 | 170 | 210 | 430 | ||

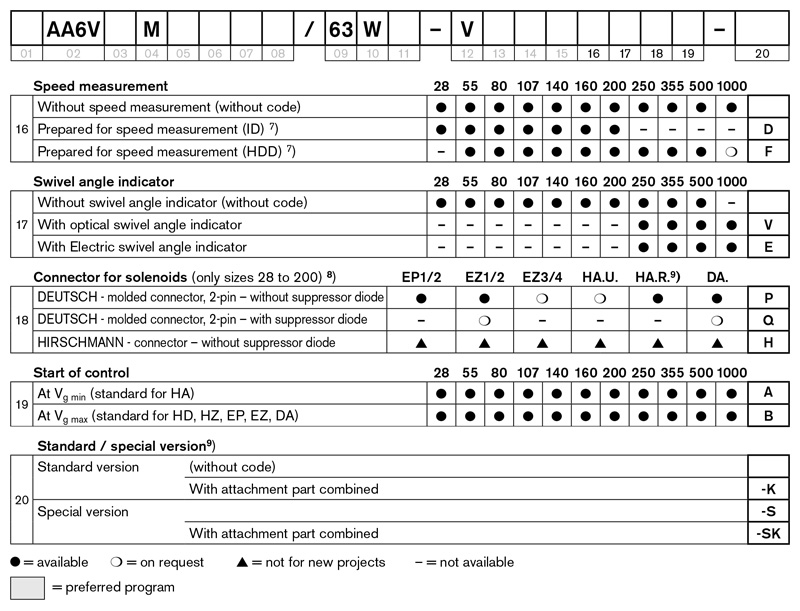

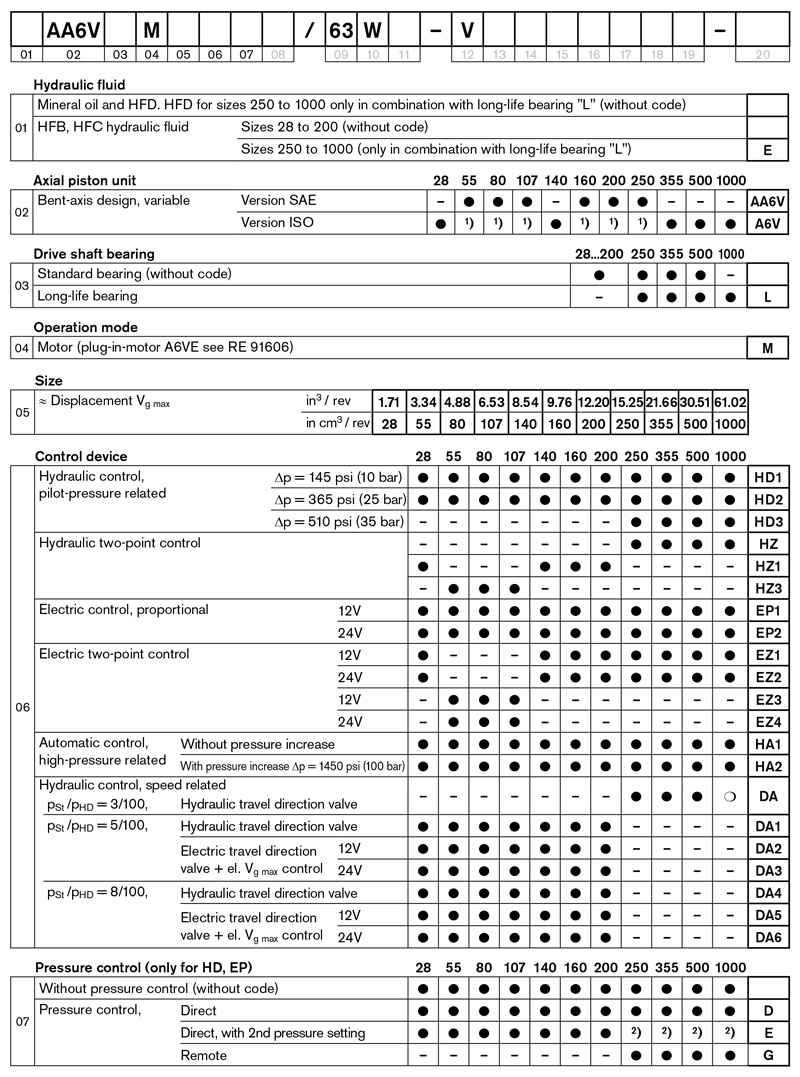

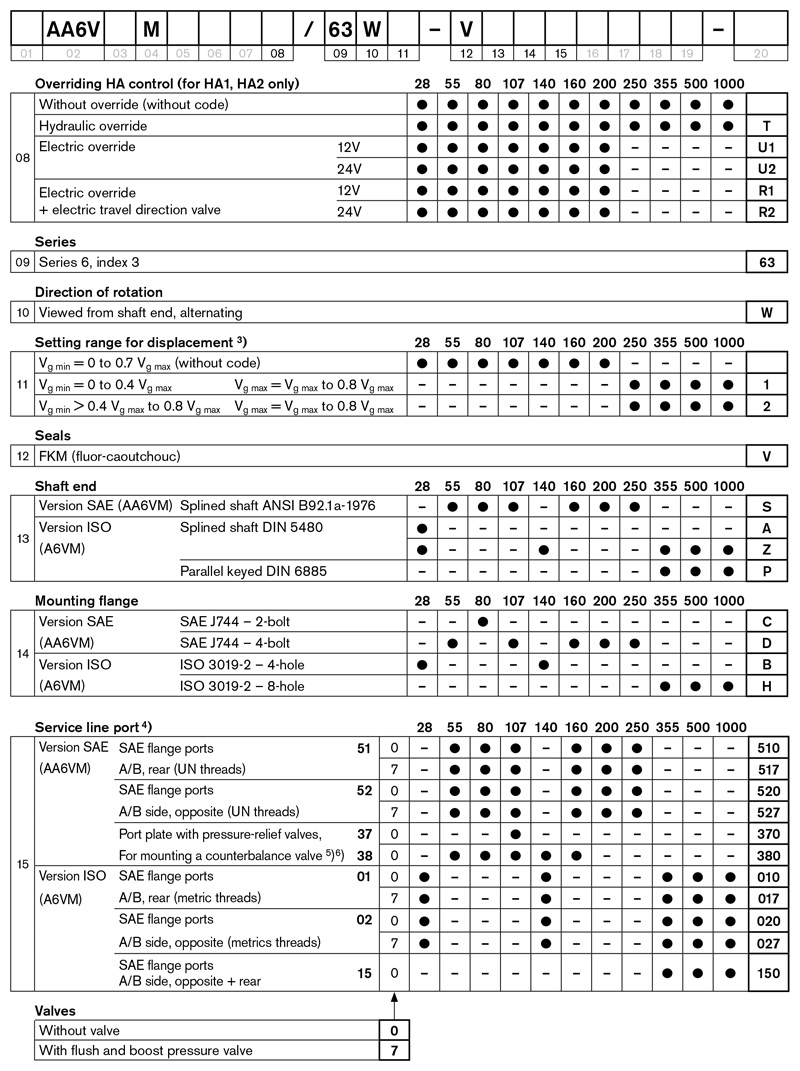

Selection Table
| AA6VM355 axial piston hydraulic motor | ||
| Model No. | Model Code | Model Code |
| R910970724 | A A6V M 355 DA /63W2-PZH020 B-SO 28 | AA6VM355DA/63W2-PZH020B-SO28 |
| R902500433 | A A6V M 355 EP1 /63W1-VZH020 B | AA6VM355EP1/63W1-VZH020B |
| R910939580 | A A6V M 355 EP1G /63W1-PZH027 B | AA6VM355EP1G/63W1-PZH027B |
| R910915573 | A A6V M 355 EP2 /61W-PPH020B | AA6VM355EP2/61W-PPH020B |
| R910927866 | A A6V M 355 EP2 /61W-PZH020B | AA6VM355EP2/61W-PZH020B |
| R910928169 | A A6V M 355 EP2 /61W-PZH027B | AA6VM355EP2/61W-PZH027B |
| R910928634 | A A6V M 355 EP2 /61W-VPH020B | AA6VM355EP2/61W-VPH020B |
| R910974631 | A A6V M 355 EP2 /63W1-PPH020 B | AA6VM355EP2/63W1-PPH020B |
| R910971599 | A A6V M 355 EP2 /63W1-PZH027 B | AA6VM355EP2/63W1-PZH027B |
| R902436157 | A A6V M 355 EP2 /63W1-VPH020 B | AA6VM355EP2/63W1-VPH020B |
| R902561071 | A A6V M 355 EP2 /63W1-VPH020F B-SO154 | AA6VM355EP2/63W1-VPH020FB-SO154 |
| R902495800 | A A6V M 355 EP2 /63W1-VZH010 EB-SO228 | AA6VM355EP2/63W1-VZH010EB-SO228 |
| R902567277 | A A6V M 355 EP2 /63W1-VZH010 EB-SO273 | AA6VM355EP2/63W1-VZH010EB-SO273 |
| R902491409 | A A6V M 355 EP2 /63W1-VZH010FEB | AA6VM355EP2/63W1-VZH010FEB |
| R902483159 | A A6V M 355 EP2 /63W1-VZH017F B | AA6VM355EP2/63W1-VZH017FB |
| R902403935 | A A6V M 355 EP2 /63W1-VZH020 B | AA6VM355EP2/63W1-VZH020B |
| R902574111 | A A6V M 355 EP2 /63W1-VZH020 B-SO264 | AA6VM355EP2/63W1-VZH020B-SO264 |
| R902444195 | A A6V M 355 EP2 /63W1-VZH020 EB-SO 41 | AA6VM355EP2/63W1-VZH020EB-SO41 |
| R902448279 | A A6V M 355 EP2 /63W1-VZH020 VB-SO 41 | AA6VM355EP2/63W1-VZH020VB-SO41 |
| R902534613 | A A6V M 355 EP2 /63W1-VZH020 VB-SO241 | AA6VM355EP2/63W1-VZH020VB-SO241 |
| R902418948 | A A6V M 355 EP2 /63W1-VZH020D B | AA6VM355EP2/63W1-VZH020DB |
| R902407579 | A A6V M 355 EP2 /63W1-VZH027 B | AA6VM355EP2/63W1-VZH027B |
| R902406632 | A A6V M 355 EP2 /63W1-VZH027 BE | AA6VM355EP2/63W1-VZH027BE |
| R910986415 | A A6V M 355 EP2 /63W2-PPH010 VB | AA6VM355EP2/63W2-PPH010VB |
| R902412907 | A A6V M 355 EP2 /63W2-VPH010 A | AA6VM355EP2/63W2-VPH010A |
| R902411963 | A A6V M 355 EP2 /63W2-VPH010 B | AA6VM355EP2/63W2-VPH010B |
| R902412977 | A A6V M 355 EP2 /63W2-VPH010D A | AA6VM355EP2/63W2-VPH010DA |
| R902411967 | A A6V M 355 EP2 /63W2-VPH010D B | AA6VM355EP2/63W2-VPH010DB |
| R902534183 | A A6V M 355 EP2 /63W2-VZH010 A | AA6VM355EP2/63W2-VZH010A |
| R902545006 | A A6V M 355 EP2 /63W2-VZH010 B | AA6VM355EP2/63W2-VZH010B |
| R902510068 | A A6V M 355 EP2 /63W2-VZH017 B | AA6VM355EP2/63W2-VZH017B |
| R902545471 | A A6V M 355 EP2 /63W2-VZH027 B | AA6VM355EP2/63W2-VZH027B |
| R902570527 | A A6V M 355 EP2 /63W2-VZH027 BESO138 | AA6VM355EP2/63W2-VZH027BESO138 |
| R902570526 | A A6V M 355 EP2 /63W2-VZH027 BESO138 | AA6VM355EP2/63W2-VZH027BESO138 |
| R902570996 | A A6V M 355 EP2 /63W2-VZH027 BESO138 | AA6VM355EP2/63W2-VZH027BESO138 |
| R902417601 | A A6V M 355 EP2 /63W2-VZH027DVB | AA6VM355EP2/63W2-VZH027DVB |
| R902570995 | A A6V M 355 EP2 /63W2-VZH027F BESO138 | AA6VM355EP2/63W2-VZH027FBESO138 |
| R902567949 | A A6V M 355 EP2 /63W2-VZH027F B-SO258 | AA6VM355EP2/63W2-VZH027FB-SO258 |
| R902518402 | A A6V M 355 EP2D /63W1-VPH027FEB | AA6VM355EP2D/63W1-VPH027FEB |
| R902512823 | A A6V M 355 EP2D /63W1-VZH010 B | AA6VM355EP2D/63W1-VZH010B |
| R902564784 | A A6V M 355 EP2D /63W1-VZH010 EB | AA6VM355EP2D/63W1-VZH010EB |
| R902428579 | A A6V M 355 EP2D /63W1-VZH017D B-SO 10 | AA6VM355EP2D/63W1-VZH017DB-SO10 |
| R902422725 | A A6V M 355 EP2D /63W1-VZH020 B | AA6VM355EP2D/63W1-VZH020B |
| R902423391 | A A6V M 355 EP2D /63W1-VZH020 B-SO 41 | AA6VM355EP2D/63W1-VZH020B-SO41 |
| R902418950 | A A6V M 355 EP2D /63W1-VZH020D B | AA6VM355EP2D/63W1-VZH020DB |
| R902428992 | A A6V M 355 EP2D /63W1-VZH027D B-SO 10 | AA6VM355EP2D/63W1-VZH027DB-SO10 |
| R902539205 | A A6V M 355 EP2D /63W2-VZH010 B | AA6VM355EP2D/63W2-VZH010B |
| R902421884 | A A6V M 355 EP2D /63W2-VZH017 B-SO147 | AA6VM355EP2D/63W2-VZH017B-SO147 |
| R902492173 | A A6V M 355 EP2D /63W2-VZH020 B | AA6VM355EP2D/63W2-VZH020B |
| R902515962 | A A6V M 355 EP2D /63W2-VZH027F B | AA6VM355EP2D/63W2-VZH027FB |
| R902570147 | A A6V M 355 EP2D /63W2-VZH027F B-SO237 | AA6VM355EP2D/63W2-VZH027FB-SO237 |
| R902456336 | A A6V M 355 EP2D /63W2-VZH157 B-SO147 | AA6VM355EP2D/63W2-VZH157B-SO147 |
| R902431839 | A A6V M 355 EP2D /63W2-VZH157 B-SO147 | AA6VM355EP2D/63W2-VZH157B-SO147 |
| R910968202 | A A6V M 355 EP2G /63W2-PZH010 B | AA6VM355EP2G/63W2-PZH010B |
| R902535227 | A A6V M 355 EP2G /63W2-VZH027F B | AA6VM355EP2G/63W2-VZH027FB |
| R902404952 | A A6V M 355 EZ1 /63W1-VZH017 A | AA6VM355EZ1/63W1-VZH017A |
| R902471604 | A A6V M 355 EZ1 /63W1-VZH020 BE | AA6VM355EZ1/63W1-VZH020BE |
| R902470192 | A A6V M 355 EZ2 /63W1-VZH010 B | AA6VM355EZ2/63W1-VZH010B |
| R910975024 | A A6V M 355 EZ2 /63W1-VZH017 B | AA6VM355EZ2/63W1-VZH017B |
| R910974778 | A A6V M 355 EZ2 /63W1-VZH027 B | AA6VM355EZ2/63W1-VZH027B |
| R910969823 | A A6V M 355 EZ2 /63W1-VZH027 VA | AA6VM355EZ2/63W1-VZH027VA |
| R910998318 | A A6V M 355 EZ2 /63W2-PZH017 B | AA6VM355EZ2/63W2-PZH017B |
| R910964838 | A A6V M 355 EZ2 /63W2-PZH027 EB | AA6VM355EZ2/63W2-PZH027EB |
| R902409368 | A A6V M 355 EZ2 /63W2-VZH010 B | AA6VM355EZ2/63W2-VZH010B |
| R910995741 | A A6V M 355 EZ2 /63W2-VZH010 VB | AA6VM355EZ2/63W2-VZH010VB |
| R902531227 | A A6V M 355 EZ2 /63W2-VZH010F B | AA6VM355EZ2/63W2-VZH010FB |
| R902494273 | A A6V M 355 EZ2 /63W2-VZH017FEA-SO229 | AA6VM355EZ2/63W2-VZH017FEA-SO229 |
| R902404275 | A A6V M 355 EZ2 /63W2-VZH020 B | AA6VM355EZ2/63W2-VZH020B |
| R910994282 | A A6V M 355 EZ2 /63W2-VZH020 VB | AA6VM355EZ2/63W2-VZH020VB |
| R902451222 | A A6V M 355 EZ2 /63W2-VZH020D B-SO154 | AA6VM355EZ2/63W2-VZH020DB-SO154 |
| R902418447 | A A6V M 355 EZ2 /63W2-VZH027 B | AA6VM355EZ2/63W2-VZH027B |
| R902478469 | A A6V M 355 EZ2 /63W2-VZH027 EA | AA6VM355EZ2/63W2-VZH027EA |
| R902418478 | A A6V M 355 EZ2 /63W2-VZH027D B-SO154 | AA6VM355EZ2/63W2-VZH027DB-SO154 |
| R902531236 | A A6V M 355 EZ2 /63W2-VZH157 B | AA6VM355EZ2/63W2-VZH157B |
| R910925086 | A A6V M 355 FR1 /61L-VPH010B -SO 63 | AA6VM355FR1/61L-VPH010B-SO63 |
| R910934197 | A A6V M 355 FR1 /61L-VPH010B -SO 64 | AA6VM355FR1/61L-VPH010B-SO64 |
| R910942004 | A A6V M 355 FR1 /63L1-VPH010 B-SO 63 | AA6VM355FR1/63L1-VPH010B-SO63 |
| R910944651 | A A6V M 355 FR1 /63L1-VPH010 B-SO 77 | AA6VM355FR1/63L1-VPH010B-SO77 |
| R910921682 | A A6V M 355 HA1 /61W-PZH027A | AA6VM355HA1/61W-PZH027A |
| R910965225 | A A6V M 355 HA1 /63W1-PZH017 VA | AA6VM355HA1/63W1-PZH017VA |
| R910940034 | A A6V M 355 HA1 /63W1-PZH027 A | AA6VM355HA1/63W1-PZH027A |
| R902561483 | A A6V M 355 HA1 /63W1-VPH020 A | AA6VM355HA1/63W1-VPH020A |
| R902563800 | A A6V M 355 HA1 /63W1-VZH020 A | AA6VM355HA1/63W1-VZH020A |
| R902576820 | A A6V M 355 HA1 /63W1-VZH027F A-SO158 | AA6VM355HA1/63W1-VZH027FA-SO158 |
| R910989114 | A A6V M 355 HA1 /63W2-PZH017 A | AA6VM355HA1/63W2-PZH017A |
| R902445335 | A A6V M 355 HA1 /63W2-VPH027 AE | AA6VM355HA1/63W2-VPH027AE |
| R902443906 | A A6V M 355 HA1 /63W2-VZH017 A | AA6VM355HA1/63W2-VZH017A |
| R902552086 | A A6V M 355 HA1 /63W2-VZH020 A | AA6VM355HA1/63W2-VZH020A |
| R910997527 | A A6V M 355 HA1 /63W2-VZH027 A | AA6VM355HA1/63W2-VZH027A |
| R902406426 | A A6V M 355 HA1 /63W2-VZH027 AE | AA6VM355HA1/63W2-VZH027AE |
| R902411302 | A A6V M 355 HA1 /63W2-VZH027 A-SO126 | AA6VM355HA1/63W2-VZH027A-SO126 |
| R902413700 | A A6V M 355 HA1 /63W2-VZH027 A-SO126 | AA6VM355HA1/63W2-VZH027A-SO126 |
| R902548468 | A A6V M 355 HA1 /63W2-VZH027 A-SO158 | AA6VM355HA1/63W2-VZH027A-SO158 |
| R902415552 | A A6V M 355 HA1 /63W2-VZH027 A-SO164 | AA6VM355HA1/63W2-VZH027A-SO164 |
| R902420039 | A A6V M 355 HA1 /63W2-VZH027D A-SO154 | AA6VM355HA1/63W2-VZH027DA-SO154 |
| R902432726 | A A6V M 355 HA1 /63W2-VZH027D A-SO164 | AA6VM355HA1/63W2-VZH027DA-SO164 |
| R902427131 | A A6V M 355 HA1 /63W2-VZH027D A-SO167 | AA6VM355HA1/63W2-VZH027DA-SO167 |
| R902561944 | A A6V M 355 HA1 /63W2-VZH027F A-SO271 | AA6VM355HA1/63W2-VZH027FA-SO271 |
| R902549170 | A A6V M 355 HA1 /63W2-VZH157 A-SO158 | AA6VM355HA1/63W2-VZH157A-SO158 |
| R902549174 | A A6V M 355 HA1 /63W2-VZH157D A-SO167 | AA6VM355HA1/63W2-VZH157DA-SO167 |
| R902575333 | A A6V M 355 HA1 /63W2-VZH157F A-SO158 | AA6VM355HA1/63W2-VZH157FA-SO158 |
| R910997599 | A A6V M 355 HA1T /63W1-PZH020 A | AA6VM355HA1T/63W1-PZH020A |
| R902417419 | A A6V M 355 HA1T /63W1-VZH017 A | AA6VM355HA1T/63W1-VZH017A |
| R902420510 | A A6V M 355 HA1T /63W1-VZH017 A-SO 10 | AA6VM355HA1T/63W1-VZH017A-SO10 |
| R902563608 | A A6V M 355 HA1T /63W1-VZH017F A | AA6VM355HA1T/63W1-VZH017FA |
| R902567203 | A A6V M 355 HA1T /63W1-VZH017F A-SO237 | AA6VM355HA1T/63W1-VZH017FA-SO237 |
| R910971846 | A A6V M 355 HA1T /63W1-VZH020 A | AA6VM355HA1T/63W1-VZH020A |
| R902501275 | A A6V M 355 HA1T /63W1-VZH020 AE | AA6VM355HA1T/63W1-VZH020AE |
| R902407159 | A A6V M 355 HA1T /63W1-VZH027 A | AA6VM355HA1T/63W1-VZH027A |
| R902424276 | A A6V M 355 HA1T /63W1-VZH027D A-SO156 | AA6VM355HA1T/63W1-VZH027DA-SO156 |
| R902576469 | A A6V M 355 HA1T /63W1-VZH150 A | AA6VM355HA1T/63W1-VZH150A |
| R910990648 | A A6V M 355 HA1T /63W2-PZH020 A | AA6VM355HA1T/63W2-PZH020A |
| R902546733 | A A6V M 355 HA1T /63W2-VZH010 A | AA6VM355HA1T/63W2-VZH010A |
| R910971847 | A A6V M 355 HA1T /63W2-VZH020 A | AA6VM355HA1T/63W2-VZH020A |
| R902452750 | A A6V M 355 HA1T /63W2-VZH027 A | AA6VM355HA1T/63W2-VZH027A |
| R902531143 | A A6V M 355 HA1T /63W2-VZH027 AESO138 | AA6VM355HA1T/63W2-VZH027AESO138 |
| R902531141 | A A6V M 355 HA1T /63W2-VZH027 AESO138 | AA6VM355HA1T/63W2-VZH027AESO138 |
| R902576847 | A A6V M 355 HA1T /63W2-VZH027 AESO256 | AA6VM355HA1T/63W2-VZH027AESO256 |
| R902410751 | A A6V M 355 HA1T /63W2-VZH027 A-SO151 | AA6VM355HA1T/63W2-VZH027A-SO151 |
| R902410810 | A A6V M 355 HA1T /63W2-VZH027 A-SO156 | AA6VM355HA1T/63W2-VZH027A-SO156 |
| R902427038 | A A6V M 355 HA1T /63W2-VZH027 A-SO158 | AA6VM355HA1T/63W2-VZH027A-SO158 |
| R902427041 | A A6V M 355 HA1T /63W2-VZH027D A-SO167 | AA6VM355HA1T/63W2-VZH027DA-SO167 |
| R902552061 | A A6V M 355 HA1T /63W2-VZH157 AESO256 | AA6VM355HA1T/63W2-VZH157AESO256 |
| R902552064 | A A6V M 355 HA1T /63W2-VZH157 AESO256 | AA6VM355HA1T/63W2-VZH157AESO256 |
| R910922186 | A A6V M 355 HA2 /61W-PZH010A | AA6VM355HA2/61W-PZH010A |
| R902428064 | A A6V M 355 HA2 /63W1-VZH017 A | AA6VM355HA2/63W1-VZH017A |
| R902514005 | A A6V M 355 HA2 /63W1-VZH027 A | AA6VM355HA2/63W1-VZH027A |
| R902512662 | A A6V M 355 HA2 /63W1-VZH027F A | AA6VM355HA2/63W1-VZH027FA |
| R910963382 | A A6V M 355 HA2 /63W2-PZH010 A | AA6VM355HA2/63W2-PZH010A |
| R902424580 | A A6V M 355 HA2 /63W2-VZH010 A | AA6VM355HA2/63W2-VZH010A |
| R902403290 | A A6V M 355 HA2 /63W2-VZH017 A | AA6VM355HA2/63W2-VZH017A |
| R902435089 | A A6V M 355 HA2 /63W2-VZH020 A | AA6VM355HA2/63W2-VZH020A |
| R902515244 | A A6V M 355 HA2 /63W2-VZH027 A | AA6VM355HA2/63W2-VZH027A |
| R902446184 | A A6V M 355 HA2 /63W2-VZH027 A-SO164 | AA6VM355HA2/63W2-VZH027A-SO164 |
| R902551455 | A A6V M 355 HA2 /63W2-VZH027 A-SO237 | AA6VM355HA2/63W2-VZH027A-SO237 |
| R902472980 | A A6V M 355 HA2 /63W2-VZH027F A-SO164 | AA6VM355HA2/63W2-VZH027FA-SO164 |
| R902554784 | A A6V M 355 HA2 /63W2-VZH027F A-SO259 | AA6VM355HA2/63W2-VZH027FA-SO259 |
| R902424323 | A A6V M 355 HA2T /63W1-VZH020 A | AA6VM355HA2T/63W1-VZH020A |
| R902406899 | A A6V M 355 HA2T /63W1-VZH020 AE | AA6VM355HA2T/63W1-VZH020AE |
| R902424999 | A A6V M 355 HA2T /63W1-VZH027 A | AA6VM355HA2T/63W1-VZH027A |
| R902464996 | A A6V M 355 HA2T /63W2-VZH020 AE | AA6VM355HA2T/63W2-VZH020AE |
| R910915703 | A A6V M 355 HD1 /61W-PPH020B | AA6VM355HD1/61W-PPH020B |
| R910922911 | A A6V M 355 HD1 /61W-PPH027B | AA6VM355HD1/61W-PPH027B |
| R910926608 | A A6V M 355 HD1 /61W-PZH020B | AA6VM355HD1/61W-PZH020B |
| R910917282 | A A6V M 355 HD1 /61W-PZH027B | AA6VM355HD1/61W-PZH027B |
| R910964474 | A A6V M 355 HD1 /63W1-PZH020 B | AA6VM355HD1/63W1-PZH020B |
| R910940032 | A A6V M 355 HD1 /63W1-PZH027 B | AA6VM355HD1/63W1-PZH027B |
| R902487694 | A A6V M 355 HD1 /63W1-VPH027 B | AA6VM355HD1/63W1-VPH027B |
| R902435522 | A A6V M 355 HD1 /63W1-VZH010 B | AA6VM355HD1/63W1-VZH010B |
| R910976228 | A A6V M 355 HD1 /63W1-VZH020 A | AA6VM355HD1/63W1-VZH020A |
| R902427661 | A A6V M 355 HD1 /63W1-VZH020 B | AA6VM355HD1/63W1-VZH020B |
| R902437420 | A A6V M 355 HD1 /63W1-VZH027 A | AA6VM355HD1/63W1-VZH027A |
| R902476664 | A A6V M 355 HD1 /63W1-VZH027 B | AA6VM355HD1/63W1-VZH027B |
| R910965002 | A A6V M 355 HD1 /63W2-PPH020 B | AA6VM355HD1/63W2-PPH020B |
| R910945014 | A A6V M 355 HD1 /63W2-PZH020 B | AA6VM355HD1/63W2-PZH020B |
| R910983202 | A A6V M 355 HD1 /63W2-PZH027 B | AA6VM355HD1/63W2-PZH027B |
| R902413912 | A A6V M 355 HD1 /63W2-VPH020 B | AA6VM355HD1/63W2-VPH020B |
| R902489431 | A A6V M 355 HD1 /63W2-VZH020 A | AA6VM355HD1/63W2-VZH020A |
| R902548798 | A A6V M 355 HD1 /63W2-VZH020 AC | AA6VM355HD1/63W2-VZH020AC |
| R910984881 | A A6V M 355 HD1 /63W2-VZH020 B | AA6VM355HD1/63W2-VZH020B |
| R910964736 | A A6V M 355 HD1D /63W1-PZH010 EB | AA6VM355HD1D/63W1-PZH010EB |
| R910964465 | A A6V M 355 HD1D /63W1-PZH020 B | AA6VM355HD1D/63W1-PZH020B |
| R902408922 | A A6V M 355 HD1D /63W1-VPH020 A | AA6VM355HD1D/63W1-VPH020A |
| R902497351 | A A6V M 355 HD1D /63W1-VZH010 VB | AA6VM355HD1D/63W1-VZH010VB |
| R902409322 | A A6V M 355 HD1D /63W1-VZH020 A | AA6VM355HD1D/63W1-VZH020A |
| R902410590 | A A6V M 355 HD1D /63W1-VZH020 B | AA6VM355HD1D/63W1-VZH020B |
| R902477375 | A A6V M 355 HD1D /63W1-VZH027 B-SO217 | AA6VM355HD1D/63W1-VZH027B-SO217 |
| R902436407 | A A6V M 355 HD1D /63W1-VZH150 B | AA6VM355HD1D/63W1-VZH150B |
| R910964180 | A A6V M 355 HD1D /63W2-PZH020 B | AA6VM355HD1D/63W2-PZH020B |
| R910965921 | A A6V M 355 HD1D /63W2-PZH027 B | AA6VM355HD1D/63W2-PZH027B |
| R902414706 | A A6V M 355 HD1D /63W2-VZH017 B-SO132 | AA6VM355HD1D/63W2-VZH017B-SO132 |
| R902407162 | A A6V M 355 HD1D /63W2-VZH027 B | AA6VM355HD1D/63W2-VZH027B |
| R902569903 | A A6V M 355 HD1D /63W2-VZH027 B-SO237 | AA6VM355HD1D/63W2-VZH027B-SO237 |
| R910979441 | A A6V M 355 HD1G /63W1-PZH020 B | AA6VM355HD1G/63W1-PZH020B |
| R910936914 | A A6V M 355 HD2 /61W-PZH010B | AA6VM355HD2/61W-PZH010B |
| R910926037 | A A6V M 355 HD2 /61W-PZH020B | AA6VM355HD2/61W-PZH020B |
| R910919950 | A A6V M 355 HD2 /61W-VZH010B | AA6VM355HD2/61W-VZH010B |
| R910930704 | A A6V M 355 HD2 /61W-VZH020B | AA6VM355HD2/61W-VZH020B |
| R910921102 | A A6V M 355 HD2 /61W-VZH020B -SO 27 | AA6VM355HD2/61W-VZH020B-SO27 |
| R910996236 | A A6V M 355 HD2 /63W1-PPH017 B | AA6VM355HD2/63W1-PPH017B |
| R910940028 | A A6V M 355 HD2 /63W1-PZH010 B | AA6VM355HD2/63W1-PZH010B |
| R910961555 | A A6V M 355 HD2 /63W1-PZH010 B-SO 55 | AA6VM355HD2/63W1-PZH010B-SO55 |
| R910940030 | A A6V M 355 HD2 /63W1-PZH020 B | AA6VM355HD2/63W1-PZH020B |
| R902511122 | A A6V M 355 HD2 /63W1-PZH020 B-SO206 | AA6VM355HD2/63W1-PZH020B-SO206 |
| R910967022 | A A6V M 355 HD2 /63W1-PZH020 VB | AA6VM355HD2/63W1-PZH020VB |
| R902531193 | A A6V M 355 HD2 /63W1-PZH027FVB-SO206 | AA6VM355HD2/63W1-PZH027FVB-SO206 |
| R902435269 | A A6V M 355 HD2 /63W1-VZH010 B | AA6VM355HD2/63W1-VZH010B |
| R902471055 | A A6V M 355 HD2 /63W1-VZH010 VB | AA6VM355HD2/63W1-VZH010VB |
| R902572540 | A A6V M 355 HD2 /63W1-VZH010 VB-SO264 | AA6VM355HD2/63W1-VZH010VB-SO264 |
| R902488501 | A A6V M 355 HD2 /63W1-VZH010FVB-SO154 | AA6VM355HD2/63W1-VZH010FVB-SO154 |
| R902479130 | A A6V M 355 HD2 /63W1-VZH010FVB-SO154 | AA6VM355HD2/63W1-VZH010FVB-SO154 |
| R902413026 | A A6V M 355 HD2 /63W1-VZH020 B | AA6VM355HD2/63W1-VZH020B |
| R910941147 | A A6V M 355 HD2 /63W1-VZH020 B-SO 27 | AA6VM355HD2/63W1-VZH020B-SO27 |
| R902494317 | A A6V M 355 HD2 /63W1-VZH027 B-SO158 | AA6VM355HD2/63W1-VZH027B-SO158 |
| R910961289 | A A6V M 355 HD2 /63W2-PZH010 B | AA6VM355HD2/63W2-PZH010B |
| R910961554 | A A6V M 355 HD2 /63W2-PZH010 B-SO 55 | AA6VM355HD2/63W2-PZH010B-SO55 |
| R902450435 | A A6V M 355 HD2 /63W2-VZH010 B | AA6VM355HD2/63W2-VZH010B |
| R902450726 | A A6V M 355 HD2 /63W2-VZH010 VB | AA6VM355HD2/63W2-VZH010VB |
| R902414936 | A A6V M 355 HD2 /63W2-VZH020 B | AA6VM355HD2/63W2-VZH020B |
| R902501366 | A A6V M 355 HD2 /63W2-VZH020 BE | AA6VM355HD2/63W2-VZH020BE |
| R910961642 | A A6V M 355 HD2 /63W2-VZH020 B-SO 27 | AA6VM355HD2/63W2-VZH020B-SO27 |
| R902562215 | A A6V M 355 HD2 /63W2-VZH020 B-SO264 | AA6VM355HD2/63W2-VZH020B-SO264 |
| R902470478 | A A6V M 355 HD2 /63W2-VZH020 VB | AA6VM355HD2/63W2-VZH020VB |
| R902486325 | A A6V M 355 HD2 /63W2-VZH020F B | AA6VM355HD2/63W2-VZH020FB |
| R910961852 | A A6V M 355 HD2 /63W2-VZH027 B | AA6VM355HD2/63W2-VZH027B |
| R910947848 | A A6V M 355 HD2D /63W1-PPH010 B | AA6VM355HD2D/63W1-PPH010B |
| R910993502 | A A6V M 355 HD2D /63W1-PPH020 B | AA6VM355HD2D/63W1-PPH020B |
| R902418623 | A A6V M 355 HD2D /63W1-VZH020 B | AA6VM355HD2D/63W1-VZH020B |
| R902555923 | A A6V M 355 HD2D /63W1-VZH020 EB | AA6VM355HD2D/63W1-VZH020EB |
| R902459201 | A A6V M 355 HD2D /63W1-VZH027 B-SO158 | AA6VM355HD2D/63W1-VZH027B-SO158 |
| R902459204 | A A6V M 355 HD2D /63W1-VZH027D B-SO167 | AA6VM355HD2D/63W1-VZH027DB-SO167 |
| R910993503 | A A6V M 355 HD2D /63W2-PPH020 B | AA6VM355HD2D/63W2-PPH020B |
| R910984977 | A A6V M 355 HD2D /63W2-PZH020 B | AA6VM355HD2D/63W2-PZH020B |
| R902485246 | A A6V M 355 HD2D /63W2-VPH020 B | AA6VM355HD2D/63W2-VPH020B |
| R902478405 | A A6V M 355 HD2D /63W2-VZH010 B | AA6VM355HD2D/63W2-VZH010B |
| R902542144 | A A6V M 355 HD2D /63W2-VZH010 B-SO 55 | AA6VM355HD2D/63W2-VZH010B-SO55 |
| R902534146 | A A6V M 355 HD2D /63W2-VZH010 EB-SO228 | AA6VM355HD2D/63W2-VZH010EB-SO228 |
| R902407602 | A A6V M 355 HD2D /63W2-VZH020 B | AA6VM355HD2D/63W2-VZH020B |
| R902554225 | A A6V M 355 HD2D /63W2-VZH020 B | AA6VM355HD2D/63W2-VZH020B |
| R902563801 | A A6V M 355 HD2D /63W2-VZH027 B | AA6VM355HD2D/63W2-VZH027B |
| R902555929 | A A6V M 355 HD2D /63W2-VZH027 B-SO129 | AA6VM355HD2D/63W2-VZH027B-SO129 |
| R902433553 | A A6V M 355 HD2D /63W2-VZH027 B-SO158 | AA6VM355HD2D/63W2-VZH027B-SO158 |
| R902459157 | A A6V M 355 HD2D /63W2-VZH027D B-SO167 | AA6VM355HD2D/63W2-VZH027DB-SO167 |
| R902468917 | A A6V M 355 HD2D /63W2-VZH157D B-SO167 | AA6VM355HD2D/63W2-VZH157DB-SO167 |
| R902567955 | A A6V M 355 HD2D /63W2-VZH157F B-SO158 | AA6VM355HD2D/63W2-VZH157FB-SO158 |
| R902444707 | A A6V M 355 HD3 /63W2-VZH010 A | AA6VM355HD3/63W2-VZH010A |
| R902482099 | A A6V M 355 HD3 /63W2-VZH010 AESO129 | AA6VM355HD3/63W2-VZH010AESO129 |
| R902555248 | A A6V M 355 HD3 /63W2-VZH010 B | AA6VM355HD3/63W2-VZH010B |
| R902460641 | A A6V M 355 HD3 /63W2-VZH020 A | AA6VM355HD3/63W2-VZH020A |
| R902482101 | A A6V M 355 HD3 /63W2-VZH020 AESO129 | AA6VM355HD3/63W2-VZH020AESO129 |
| R902463989 | A A6V M 355 HD3 /63W2-VZH150 A | AA6VM355HD3/63W2-VZH150A |
| R902479085 | A A6V M 355 HD3 /63W2-VZH150 AESO129 | AA6VM355HD3/63W2-VZH150AESO129 |
| R910924924 | A A6V M 355 HZ /61W-PZH020B | AA6VM355HZ/61W-PZH020B |
| R910944638 | A A6V M 355 HZ /63W1-PZH010 B | AA6VM355HZ/63W1-PZH010B |
| R910965417 | A A6V M 355 HZ /63W1-PZH020 A | AA6VM355HZ/63W1-PZH020A |
| R910943607 | A A6V M 355 HZ /63W1-PZH020 B | AA6VM355HZ/63W1-PZH020B |
| R902549554 | A A6V M 355 HZ /63W1-VZH017 B | AA6VM355HZ/63W1-VZH017B |
| R902411348 | A A6V M 355 HZ /63W1-VZH020 A | AA6VM355HZ/63W1-VZH020A |
| R902448041 | A A6V M 355 HZ /63W1-VZH020 B | AA6VM355HZ/63W1-VZH020B |
| R910974638 | A A6V M 355 HZ /63W2-PZH017 B-SO 95 | AA6VM355HZ/63W2-PZH017B-SO95 |
| R910943374 | A A6V M 355 HZ /63W2-PZH020 B | AA6VM355HZ/63W2-PZH020B |
| R910991483 | A A6V M 355 HZ /63W2-PZH027 B | AA6VM355HZ/63W2-PZH027B |
| R910984888 | A A6V M 355 HZ /63W2-VZH010 B | AA6VM355HZ/63W2-VZH010B |
| R910990106 | A A6V M 355 HZ /63W2-VZH010 B-SO119 | AA6VM355HZ/63W2-VZH010B-SO119 |
| R902478292 | A A6V M 355 HZ /63W2-VZH010 B-SO219 | AA6VM355HZ/63W2-VZH010B-SO219 |
| R902573571 | A A6V M 355 HZ /63W2-VZH010F B | AA6VM355HZ/63W2-VZH010FB |
| R902518351 | A A6V M 355 HZ /63W2-VZH010FEB-SO234 | AA6VM355HZ/63W2-VZH010FEB-SO234 |
| R902530752 | A A6V M 355 HZ /63W2-VZH017 B | AA6VM355HZ/63W2-VZH017B |
| R910997695 | A A6V M 355 HZ /63W2-VZH017 B-SO132 | AA6VM355HZ/63W2-VZH017B-SO132 |
| R902418663 | A A6V M 355 HZ /63W2-VZH020 B | AA6VM355HZ/63W2-VZH020B |
| R902534460 | A A6V M 355 HZ /63W2-VZH020 B-SO108 | AA6VM355HZ/63W2-VZH020B-SO108 |
| R902470891 | A A6V M 355 HZ /63W2-VZH027 B | AA6VM355HZ/63W2-VZH027B |
| R902418514 | A A6V M 355 HZ /63W2-VZH027D B-SO154 | AA6VM355HZ/63W2-VZH027DB-SO154 |
| R902472928 | A A6V M 355 HZ /63W2-VZH027F B | AA6VM355HZ/63W2-VZH027FB |
| R902576813 | A A6V M 355 HZ /63W2-VZH027H B | AA6VM355HZ/63W2-VZH027HB |
| R902413555 | A AA6V M 355 HD1D /63W1-V H017 B-SO161 | AAA6VM355HD1D/63W1-VH017B-SO161 |
| R902417680 | A AA6V M 355 HD1D /63W1-V H017 B-SO165 | AAA6VM355HD1D/63W1-VH017B-SO165 |
| R902418332 | A AA6V M 355 HD1D /63W1-V H017 B-SO168 | AAA6VM355HD1D/63W1-VH017B-SO168 |
Q1: What is a key performance advantage of the AA6VM355 hydraulic motor?
A1:A key performance advantage of the AA6VM355 hydraulic motor is its capability to operate at very high continuous pressures (e.g., 400 bar), delivering high power density and torque in a compact design.
Q2: In what kind of machinery is the AA6VM355 hydraulic motor commonly applied?
A2: The AA6VM355 hydraulic motor is commonly applied in heavy-duty mobile and industrial machinery, such as excavator travel drives, winches, crushers, and drilling rigs.
Q3: What is the price and delivery time of the AA6VM355 hydraulic motor?
A3: The specific price and delivery time will be provided based on the specific model you provide.
Q4:How to purchase an AA6VM355 hydraulic motor?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
