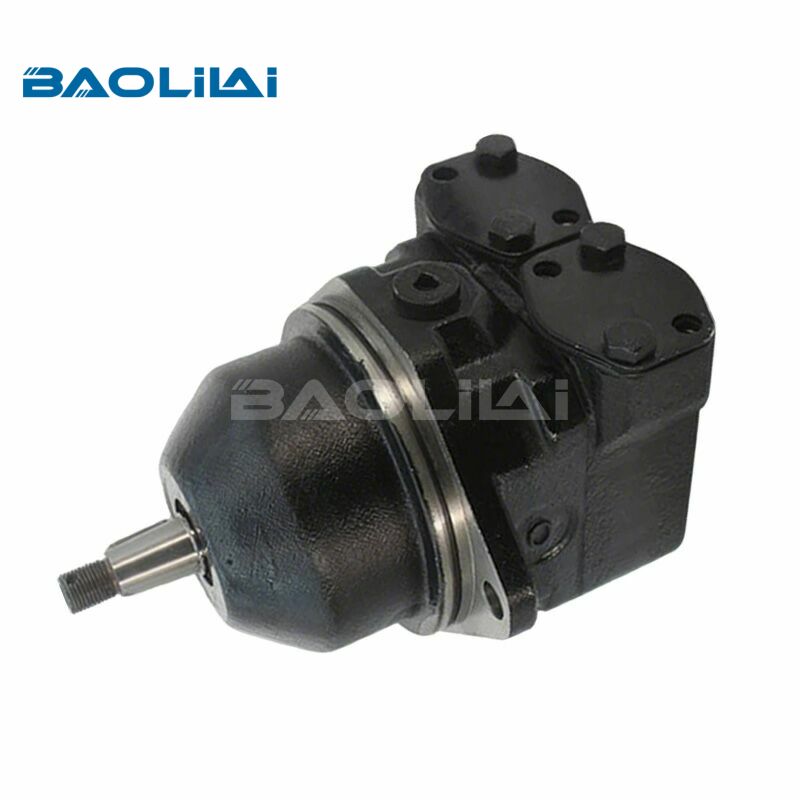

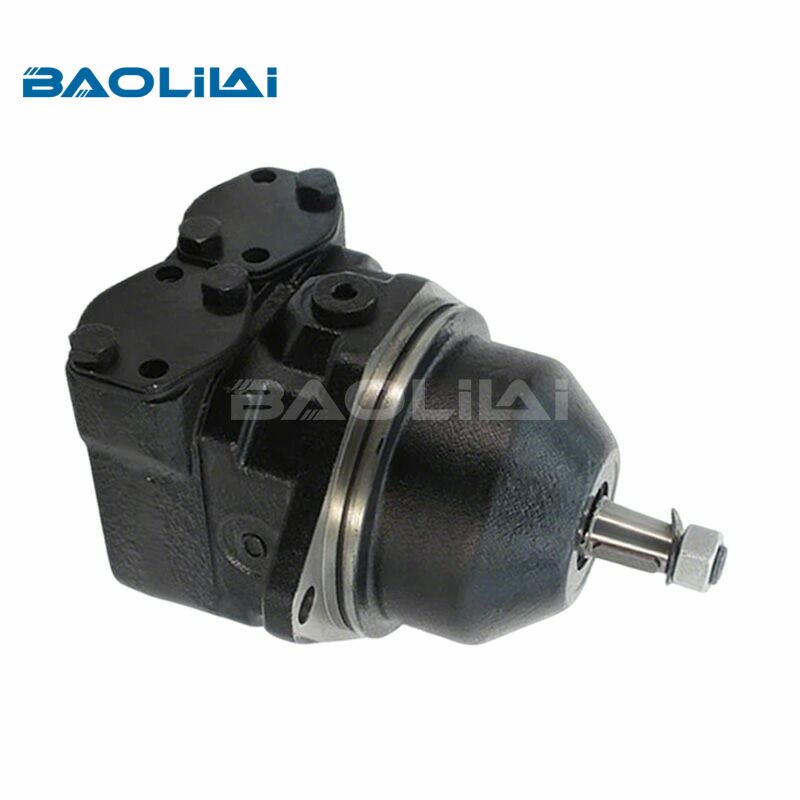

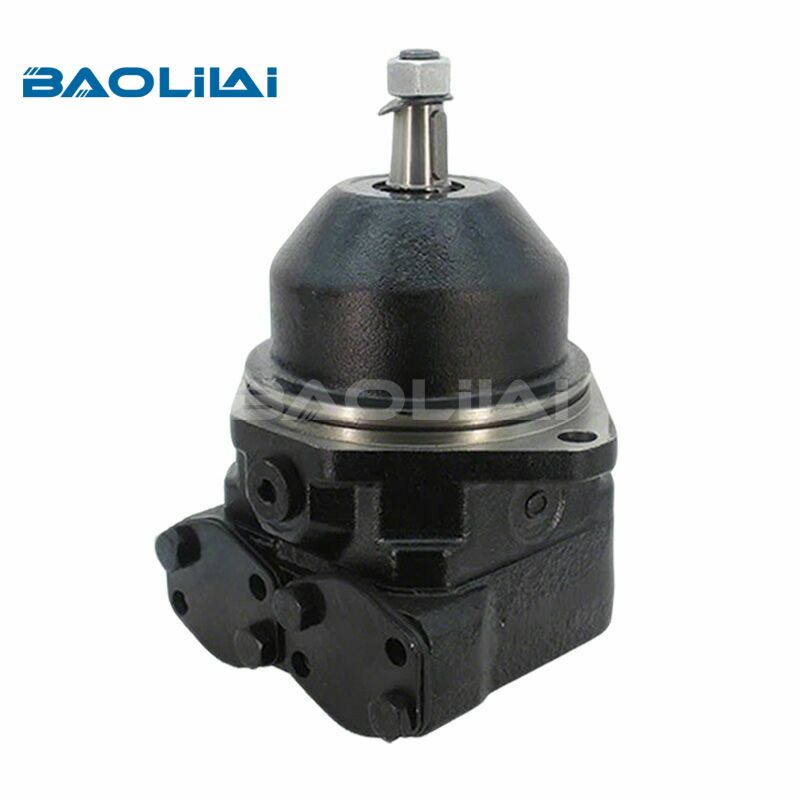

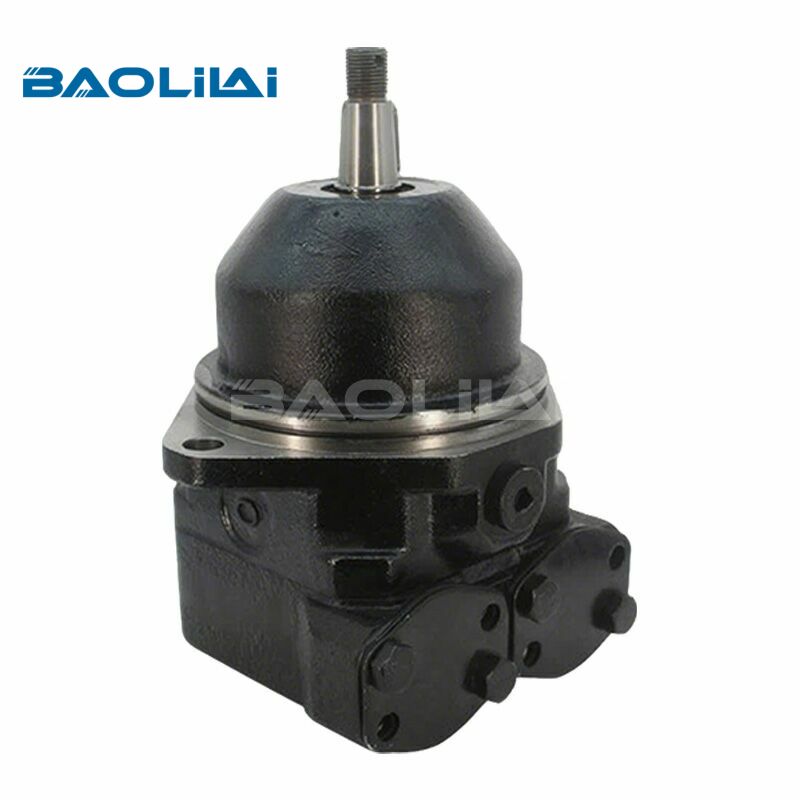

Bosch Rexroth A10FE Fixed-Displacement Axial Piston Hydraulic Motor

The fixed-displacement architecture of the A10FE effectively reduces system complexity and control logic requirements. Consequently, the A10FE is an ideal choice—and a highly reliable solution—for applications demanding stable, predictable speed or torque, particularly in scenarios where operational stability takes precedence over variable output capabilities.

Robust Bent-Axis Design: The Foundation of High Power Density

Unlike conventional swashplate configurations, the A10FE employs a robust bent-axis design. In this design, the cylinder block is positioned at a fixed angle relative to the drive shaft. When pressurized fluid acts upon the pistons housed within the angled cylinder block, the resulting linear force is directly converted into smooth, high-torque rotational motion at the drive shaft. This fundamental geometric structure offers several key advantages:

• Enhanced Starting and Running Torque:Direct force transmission delivers exceptional starting torque, enabling the motor to overcome initial inertia and maintain stable power output under load, thereby minimizing the risk of stalling.

• Superior Volumetric and Mechanical Efficiency:The design minimizes internal sliding friction and optimizes fluid flow paths. This reduces energy losses—typically dissipated as heat—ensuring that a greater proportion of hydraulic power is converted into usable mechanical work across the entire pressure range.

• Outstanding Power Density:The unit achieves an exceptional ratio of power output to physical size and weight. This compact yet rugged construction offers a decisive advantage in mobile equipment, marine applications, and industrial machinery where space and weight constraints are critical factors.

Engineered for Longevity: Uncompromising Durability and Service Life

The A10FE is designed with a focus not only on performance but also on longevity; its integrated features directly address and mitigate the primary failure modes commonly associated with hydraulic motors.

• Heavy-Duty Bearing System:A meticulously engineered bearing configuration is designed to absorb substantial radial and axial loads generated by pulleys, gears, or direct-coupled drive mechanisms. This ensures stable shaft alignment, minimizes vibration, and significantly extends bearing service life.

• Optimized Port Plate Design:The precision-engineered port plate—central to the motor's efficiency—manages the critical transition between high and low-pressure zones. Its optimized design minimizes internal leakage (slippage) and reduces wear, thereby maintaining high efficiency and stable performance over extended maintenance intervals. • Robust and Durable—Built for Harsh Environments: Constructed from premium materials and manufactured to exacting tolerances, the A10FE is engineered to withstand the diverse challenges encountered in real-world operations—including pressure spikes, vibration, and the inevitable particulate contamination found in hydraulic fluids.

Field-Proven: Typical Applications for the A10FE Motor

The A10FE motor combines compact power, smooth operation, and exceptional reliability, making it the preferred drive component across a wide range of industries. It excels in any application requiring a continuous, reliable source of rotational power.

Conveying and Material Handling Systems

In automated logistics and manufacturing environments—where uptime directly translates to profitability—the A10FE delivers consistent, unwavering stability.

• Roller and Belt Conveyors: Provides stable, constant power for the movement of packages, totes, and pallets within distribution centers and assembly lines.

• Rotary Indexing Tables and Platforms: Enables precise, smooth positioning for machining, assembly, or sorting operations, ensuring accurate start-and-stop cycles.

• Feeding and Processing Mechanisms: Drives screw conveyors, rollers, or other feeding systems to achieve precise, jerk-free motion—a critical factor for maintaining product quality consistency in packaging or food processing applications.

Auxiliary Fan, Pump, and Generator Drives

Its capability for continuous, fixed-speed operation makes it an ideal choice for auxiliary power systems.

• Hydraulic Cooling Fan Drives: A standard feature on both on-highway and off-highway equipment; reliably drives cooling fans for engine radiators and hydraulic oil coolers, with fan speed regulated according to system flow.

• Charge Pump and Hydraulic Power Unit (HPU) Drives: Serves as the prime mover for auxiliary pumps within large-scale circulation or lubrication systems.

• Portable Generator Sets: Provides a compact and reliable drive solution for alternators in mobile or industrial power generation applications.

Mobile, Marine, and Industrial Machinery Functions

Beyond auxiliary roles, the A10FE serves as the core drive unit for critical machinery functions.

• Winch, Crane, and Reel Drives: Delivers the high starting torque required for marine deck machinery, industrial cranes, and rescue equipment, facilitating initial reel startup and controlled load handling. • Mixers, Agitators, and Drum Rotation Mechanisms: Providing constant—and process-critical—rotational speeds for mixing drums, slurry tanks, or concrete mixers; in these applications, fluctuations in rotational speed directly impact product uniformity.

Technical Integration: Selection and System Design Guide

Proper selection and integration are crucial for unlocking the full potential of the A10FE series, extending its service life, and achieving an optimal return on investment. System designers must approach this as a comprehensive, holistic engineering endeavor.

Matching Motor Displacement to Application Requirements

Selecting the appropriate A10FE motor model begins with an assessment of its core performance parameters. This product series offers a range of displacement sizes (e.g., 28, 45, 63, etc., measured in cm³/rev).
• Determine Output Speed ​​(RPM): Rotational speed is a function determined jointly by the system flow rate (Q) and the motor displacement. Use the following formula for calculation: RPM = (Q × 1000) / Displacement* (where Q is in L/min and displacement is in cm³/rev).

• Calculate Output Torque: Torque is determined jointly by the system operating pressure (Δp) and the motor displacement. The basic calculation formula is: Torque (Nm) = (Δp × Displacement) / (20 × π) (where Δp is in bar).

• Consult Performance Data Sheets: It is essential to cross-reference your calculated results against the official performance curves published by Bosch Rexroth. These charts clearly define the permissible operating ranges for continuous and peak-load conditions, visually illustrate the high-efficiency operating zones (efficiency islands), and detail the pressure and speed limits critical to ensuring reliable equipment operation.

Ensuring Optimal System Compatibility and Longevity

Motor reliability depends significantly on the overall hydraulic system environment in which it operates. Key integration requirements include:
• Filtration System: The system must be equipped with high-efficiency filtration devices (typically required to meet ISO 4406 cleanliness code 18/16/13 or higher) to protect precision-fitted piston/cylinder assemblies and valve plate interfaces from abrasive wear. This is undoubtedly the most critical and decisive factor in implementing predictive maintenance and extending equipment service life.

• Operating Medium and Temperature: This series of motors is compatible with standard mineral-based hydraulic oils. Maintaining the operating fluid temperature between 30°C and 70°C ensures that the hydraulic oil retains its optimal viscosity, thereby providing adequate lubrication and sealing performance; this helps prevent premature equipment failure caused by excessively low oil viscosity (leading to leakage) or excessively high viscosity (leading to cavitation).

• Case Drain Line Management: The motor's case drain port (used to discharge internal leakage fluid) must be directly plumbed to the hydraulic reservoir, and the back pressure within this return line must be kept extremely low (typically required to be less than 0.5 bar). Establishing this low-pressure return path is critical; its function is to promptly evacuate internal leakage fluid, dissipate heat from the motor, and prevent catastrophic failure of the shaft seal assembly caused by excessive pressure accumulation within the motor casing.

For more information on the A10FE hydraulic motor, please visit https://www.baolilaihydraulic.com/.

Specifications

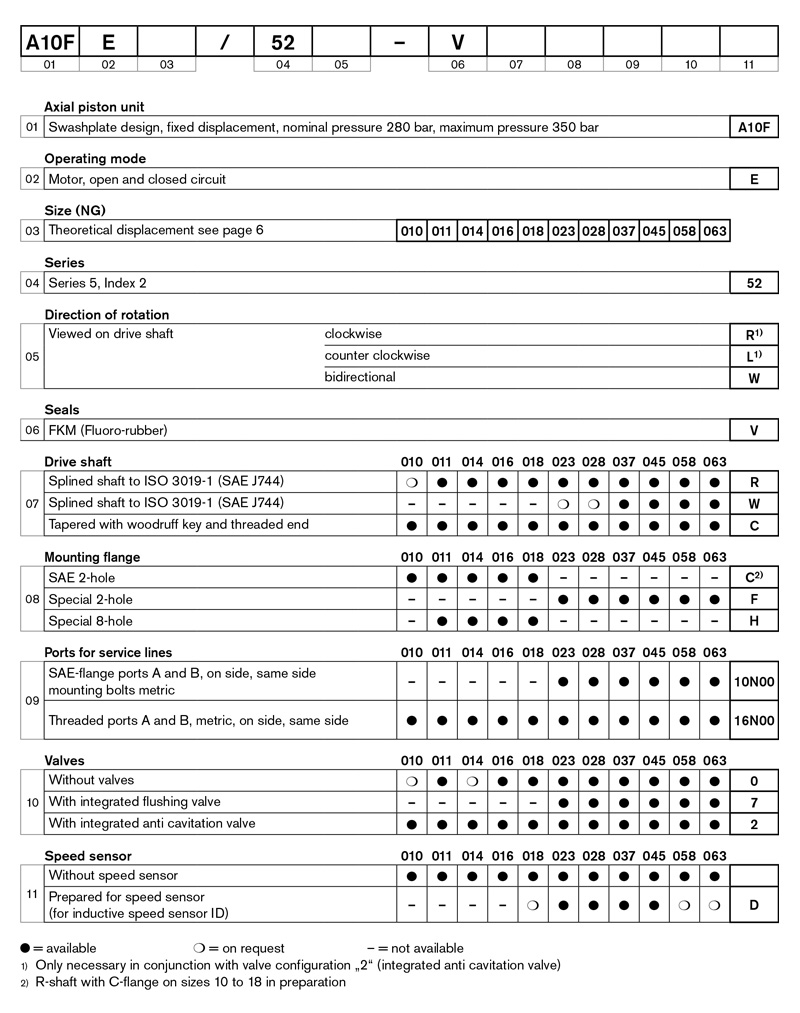

Selection Table

Q1: What is the critical role of the case drain line, and can it be blocked?

A1:The case drain line is essential. It allows a small, continuous flow of oil from the motor's casing back to the tank. This flow flushes out heat and internal leakage, prevents pressure buildup that would destroy shaft seals, and lubricates the motor's internals. It must never​ be blocked or subjected to significant backpressure.

Q2: How does the bent-axis design of the A10FE benefit efficiency compared to other types?

A2: The bent-axis design minimizes the sliding friction of the pistons against a swashplate. Instead, forces are transferred more axially through ball-and-socket joints. This reduces wear and mechanical losses, resulting in higher mechanical efficiency, particularly at high pressures and low speeds, and contributes to a longer service life.

Q3: What is the price and delivery time of the A10FE hydraulic motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.
