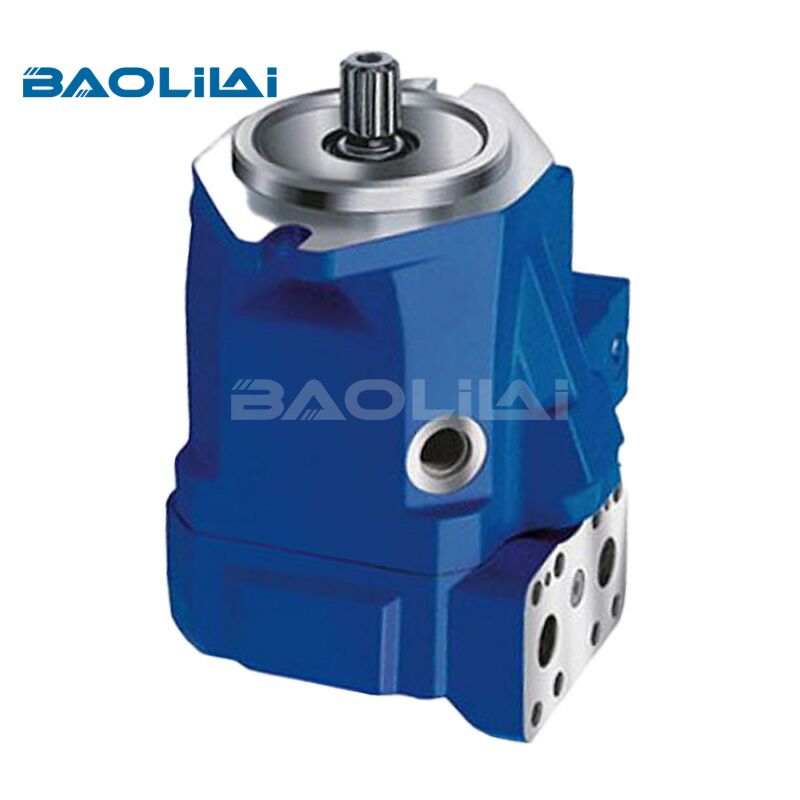

Bosch Rexroth A10VM axial piston variable hydraulic motor

The A10VM is a variable displacement axial piston motor built on Rexroth's A10 rotary group platform, part of the company's mobile hydraulics catalog. It's a swashplate-design motor, meaning displacement is changed by altering the angle of an internal swashplate rather than by any external gearing, which is what lets the same physical unit deliver a range of speed and torque outputs from a single fixed hydraulic input flow.

It's classified as a medium-pressure motor with two-point control, suitable for both open and closed hydraulic circuits. In practical terms, that means it can be run in a simple "high displacement / low displacement" mode (two-point control) rather than needing continuous proportional adjustment, which keeps the control system simpler and cheaper for many mobile applications.

Key baseline specs across the standard size range:

Displacement sizes: 28, 45, 63, and 85 cc/rev

Nominal pressure: 280 bar

Maximum pressure: 350 bar

Design: Bent-axis-free, swashplate-type variable motor

Control: Two-point (high/low) displacement control, hydraulically actuated

Series: Series 52 (the current production generation)

How the A10VM Works

Understanding the internals makes it much easier to diagnose problems later, so it's worth a quick walkthrough.

The Rotary Group

At the heart of the A10VM is the rotary group: a cylinder barrel packed with pistons arranged in a circle, all bearing against a swashplate. Pressurized hydraulic fluid enters the cylinder bores and pushes the pistons out against the swashplate. Because the swashplate sits at an angle relative to the shaft, that piston force translates into a rotating torque on the output shaft.

Variable Displacement via Swashplate Angle

This is the part that distinguishes a variable motor from a fixed one. In a fixed-displacement motor, the swashplate angle is set at the factory and never changes — output speed is purely a function of input flow. In the A10VM, an actuator (typically hydraulically piloted) swings the swashplate between two positions:

Maximum angle (Vg max): Maximum displacement, which delivers high torque at low speed — useful for starting under load, climbing, or high-resistance conditions.

Minimum angle (Vg min): Minimum displacement, which delivers high speed at lower torque — useful once the load is moving and you want travel speed rather than brute force.

This two-point switching is typically triggered automatically as system pressure rises or falls, or it can be solenoid-controlled from the operator's cab. Either way, it lets one motor cover a job that would otherwise need a motor plus a mechanical gearbox with multiple ratios.

Open vs. Closed Circuit Operation

The A10VM is built to work in both configurations:

In an open circuit, fluid is drawn from a reservoir, sent through the motor, and returned to the tank — common in simpler mobile systems.

In a closed circuit, fluid recirculates directly between a variable pump and the motor without returning to the tank in between, which is typical of hydrostatic drivetrains like travel drives on excavators or drum drives on concrete mixers.

Where the A10VM Is Actually Used

The theory is only half the story — the reason this motor shows up so often comes down to how well it matches real equipment needs.

Example 1: Winch Drives

A construction winch needs enormous torque to start hauling a load from a dead stop, but once the load is moving, high torque isn't needed — speed is. An A10VM set up in Vg max gives the low-speed, high-torque pull needed to break the load free, then automatically (or manually) shifts to Vg min once pressure drops, spinning faster to reel in cable more quickly. This two-speed behavior is a textbook case for two-point control.

Example 2: Concrete Mixer Drum Drives

Rotating a fully loaded concrete drum from standstill demands high starting torque, especially with wet, heavy mix sloshing inside. Once the drum is turning steadily, the load smooths out, and speed becomes more valuable than torque for mixing efficiency. The A10VM's displacement shift handles this transition without the operator needing to manage a mechanical gear change.

Example 3: Track Drive / Travel Motors

On excavators, skid steers, and other tracked machinery, the A10VM (or its close relatives in the A6VM/A10VE families) is frequently paired with a variable pump in a closed hydrostatic loop. Low range gives the crawling torque needed to climb slopes or push through resistance; high range gives faster travel speed on flat, open ground.

Example 4: Conveyor and Auger Drives in Agricultural Equipment

Combines and grain carts often use A10VM-type motors to drive augers and conveyors, where startup torque under a full load of grain is the critical demand, followed by steady-state running at a more efficient speed.

For more information on the A10VM hydraulic motor, please visit https://www.baolilaihydraulic.com/.

Specifications

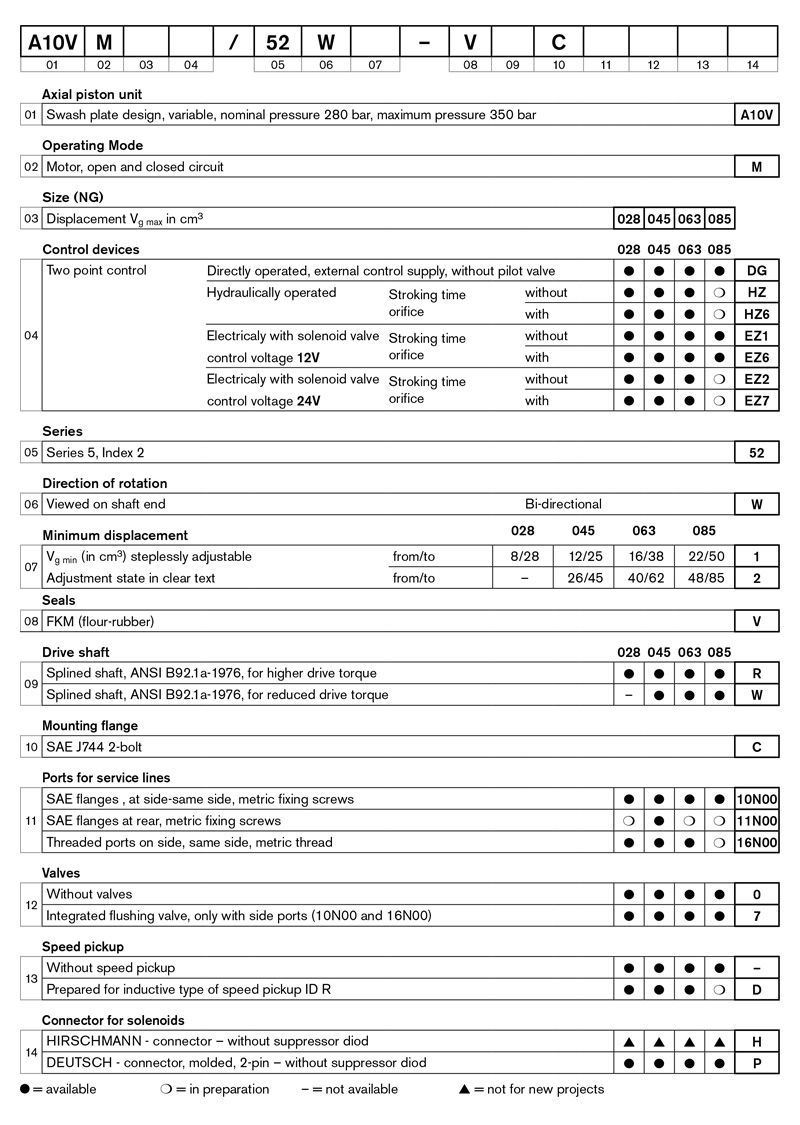

Selection Table

Q1: Can the A10VM run in both open and closed circuits?

A1: Yes. It's designed to support both configurations, which is part of why it shows up in such a wide range of equipment types, from simple open-circuit winch systems to closed-loop hydrostatic travel drives.

Q2: What causes displacement shifting to become sluggish or unreliable?

A2: In the large majority of field cases, it comes down to the pilot/control circuit — contamination in the control orifice, a weak or fatigued control spring, or a sticking control piston — rather than a fault in the main rotary group.
