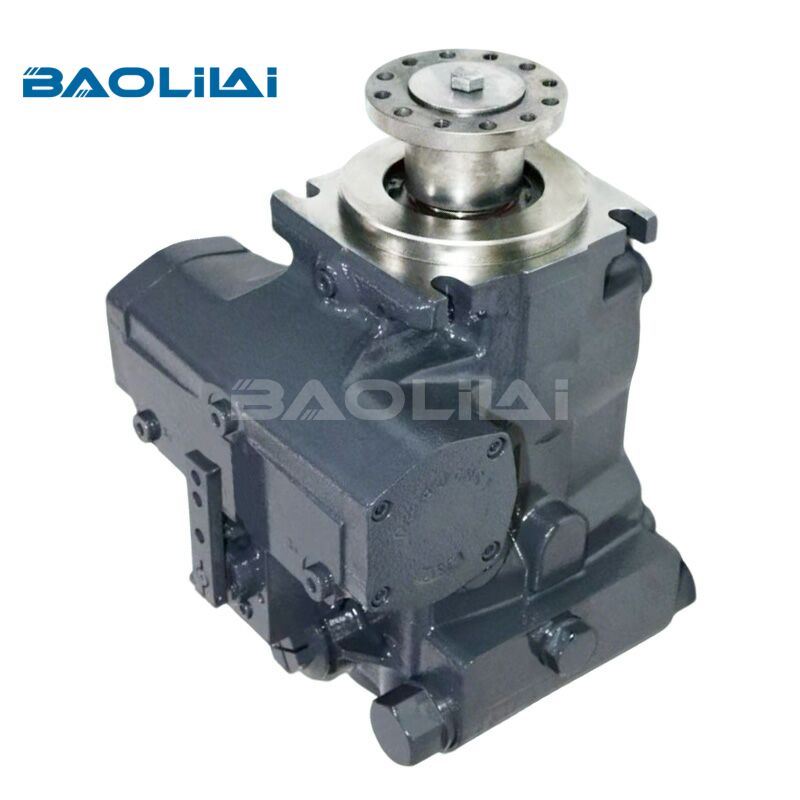

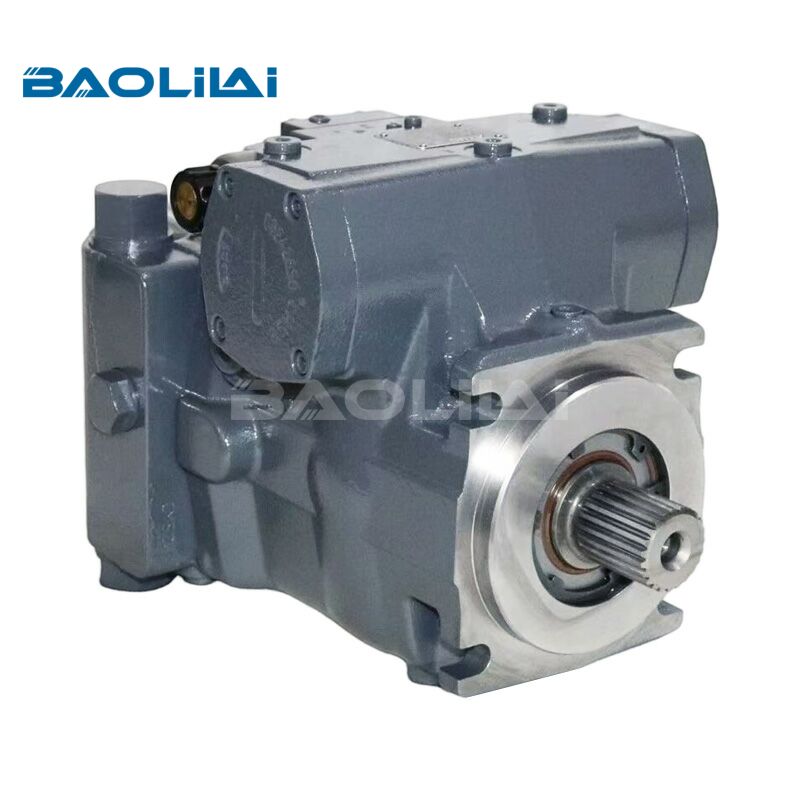

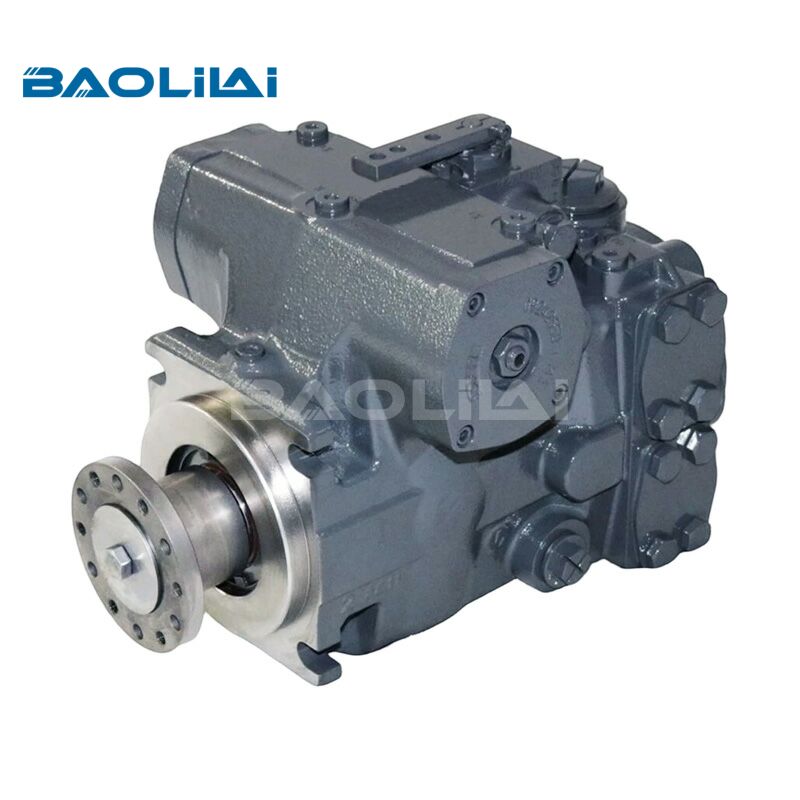

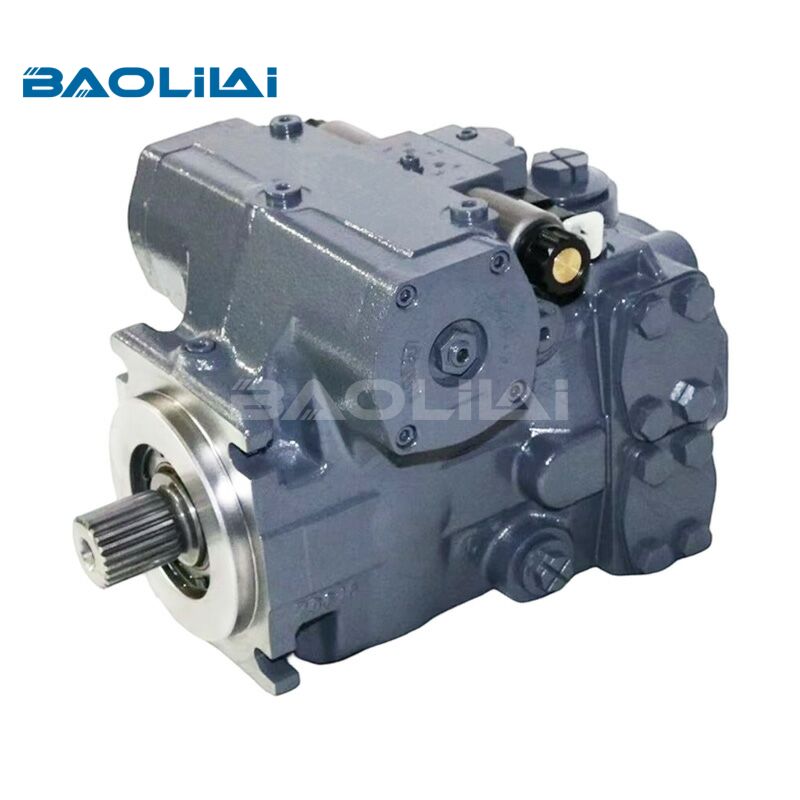

Bosch Rexroth A4VTG090 axial piston hydraulic pump

At its most fundamental level, the Bosch Rexroth A4VTG090 axial piston pump is a masterclass in energy conversion. It acts as a dynamic transducer, transforming rotational mechanical power—most commonly sourced from a diesel engine or high-torque electric motor—into finely modulated hydraulic power. The "090" in its nomenclature is a direct reference to its nominal displacement of 90 cubic centimeters per revolution. This specification situates it as a versatile, mid-range workhorse engineered to deliver substantial flow and pressure, making it an ideal power source for medium-to-heavy-duty mobile and industrial machinery.

The A4VTG090’s intelligence stems from its variable displacement, swashplate-driven design. The core mechanism consists of a rotating cylinder block containing multiple pistons. These pistons bear against a tilted swashplate. The angle of this swashplate is not fixed; it is dynamically controlled. This angle directly dictates the pistons' stroke length within their bores. A greater swashplate angle results in a longer stroke, drawing in and expelling more fluid per revolution (high displacement). Conversely, a reduced angle minimizes the stroke and fluid volume (low displacement). This ability to modulate the swashplate angle while the input shaft rotates at a constant speed is the pivotal innovation, allowing for on-the-fly, infinitely variable control of hydraulic output without wasting energy.

Defining Specifications: A Data-Driven Profile

• Displacement: 90 cm³/rev (nominal) – The fundamental measure of its potential fluid delivery per shaft rotation.

• Pressure Regime:

◦ Continuous Operating Pressure: 350 bar (5,076 psi) – The standard, sustainable working pressure for reliable long-term operation.

◦ Peak Pressure: 400 bar (5,802 psi) – The maximum permissible intermittent pressure for high-force demands, safeguarding against pressure spikes.

• Speed Capacity: Up to 2650 rpm (model-dependent) – Defines the operational envelope for input shaft speed, influencing maximum possible flow output.

• Intelligent Control Portfolio: The pump’s versatility is unlocked through integrated control options:

◦ DA Control (Pressure Cut-Off): For simple, efficient pressure limitation.

◦ LR Control (Load-Sensing): For sophisticated, energy-efficient flow matching to system demand.

◦ LRC Control (Torque Limitation): For protecting the prime mover by limiting the pump’s power draw.

Operational Advantages: Why the A4VTG090 is Specified

1. Demand-Driven Efficiency via Variable Displacement
Unlike fixed-displacement pumps that produce constant flow (often diverted over a relief valve, generating wasted heat), the A4VTG090 adjusts its output volumetrically to match the exact, real-time need of the hydraulic system. This load-sensing capability dramatically reduces energy consumption, lowers operating temperatures, and extends component life. In mobile applications, this equates directly to reduced fuel consumption and emissions.

2. Durability Engineered for Severe Service
Constructed with hardened alloy steels, precision-ground surfaces, and robust bearings, the pump is built to withstand the high-cycle, high-shock, and contaminated environments typical of construction, agriculture, and forestry. Its design philosophy prioritizes mean time between failures (MTBF) and predictable service intervals.

3. System Integration Through Control Versatility
The pump serves as the intelligent core of the hydraulic circuit. By selecting the appropriate integrated control (DA, LR, LRC, or combinations), engineers can tailor the pump’s response to pressure, flow, or power parameters, enabling seamless and automated interaction with valves, actuators, and machine controllers.

4. High Power Density in a Compact Footprint
The A4VTG090 delivers a significant power-to-size ratio. This allows machine designers to package substantial hydraulic power in confined spaces, a critical advantage in modern, compact equipment design where every cubic inch matters.

Application Landscape: Ideal Use Cases

The A4VTG090 is the hydraulic power source of choice for applications demanding a blend of robust power, intelligent control, and reliability.

• Mobile Off-Highway Equipment: The quintessential application. It provides the responsive, efficient power for excavators, wheel loaders, telescopic handlers, and forestry cranes, where its load-sensing ability enables smooth, precise, and fuel-efficient operation.

• Industrial Machinery: Where precision and repeatability are key, such as in plastic injection molding machines, hydraulic presses, and material test stands. The pump’s precise pressure and flow regulation ensure consistent process quality.

• Specialized Material Handling: Powering large container handlers, port equipment, and heavy-duty forklifts that undergo rapid and severe load cycles, benefiting from the pump’s durability and responsive control.

Illustrative Case: An Excavator's Hydraulic Heart
Consider a 20-ton excavator utilizing an A4VTG090 with LR (load-sensing) control. During a delicate grading operation, the operator makes fine joystick movements. The pump’s control system detects minimal flow demand, instantly reducing the swashplate angle to a minimal displacement, providing just enough oil for smooth, precise cylinder movement with minimal engine load. The moment the operator commands a full-force digging motion, the system pressure drop signals the pump to instantly swing to maximum displacement, delivering full hydraulic power to the cylinders without hesitation or wasteful overflow. This dynamic adaptation is the core of both performance and efficiency.

Expert Guidance: Ensuring Peak Performance and Longevity

Critical Installation Imperatives

1. Shaft Alignment & Coupling: Laser-precise alignment between the pump’s drive shaft and the prime mover is non-negotiable. Misalignment induces damaging sideload forces, leading to premature seal failure and bearing wear. Use flexible couplings designed to accommodate specified radial and angular misalignment tolerances.
2. Hydraulic Reservoir & Filtration Design: The pump’s lifespan is directly tied to fluid cleanliness. Implement a reservoir with adequate dwell time for de-aeration and cooling, and pair it with a high-pressure filter rated for a Beta₅ ≥ 200 (or cleaner) performance level (e.g., capturing particles as small as 10 microns absolute) in the pump’s outlet or case drain line. This protects critical sliding interfaces.
3. Initial Commissioning & Priming: Before the first start-up, the pump must be positively primed with clean, filtered fluid. A "dry start" can cause instantaneous scoring of the valve plate and piston slippers, leading to catastrophic failure. Follow the manufacturer’s filling and venting procedures meticulously.

A Proactive Maintenance Philosophy

• Fluid Condition as a Prognostic Tool: Move beyond scheduled changes. Implement a regular oil analysis program to track particle counts (ISO 4406), viscosity, acid number, and water content. This data provides an early warning system for component wear, ingress contamination, or fluid breakdown, enabling predictive maintenance.

• Performance and Auditory Monitoring: Establish baseline performance metrics (e.g., cycle times, steady-state pressure). Deviations are symptoms. Similarly, new or escalating noises (whining, cavitation rattle) are direct communications from the pump indicating issues like aeration, cavitation, or internal wear.

• Seal and External Integrity Checks: Routine visual inspections for external leakage at shaft seals, port connections, and housing gaskets are essential. Small leaks often precede major failures and contribute to environmental, safety, and operational hazards.

For more information on the A4VTG90 hydraulic pump, please visit https://www.baolilaihydraulic.com/.

Specifications

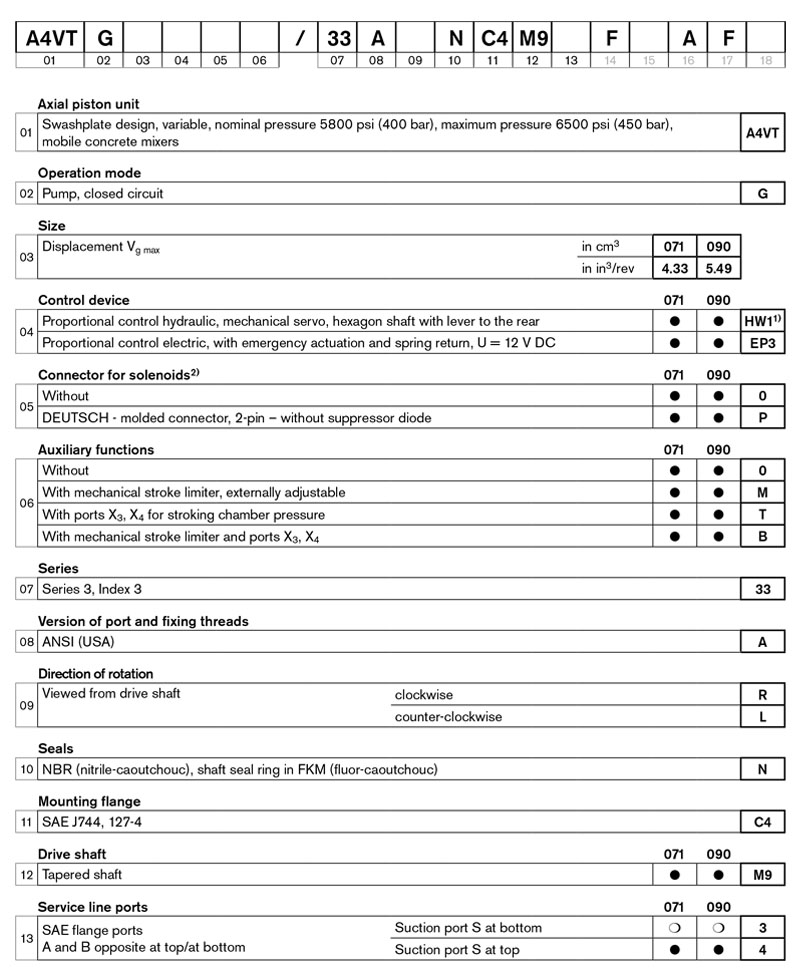

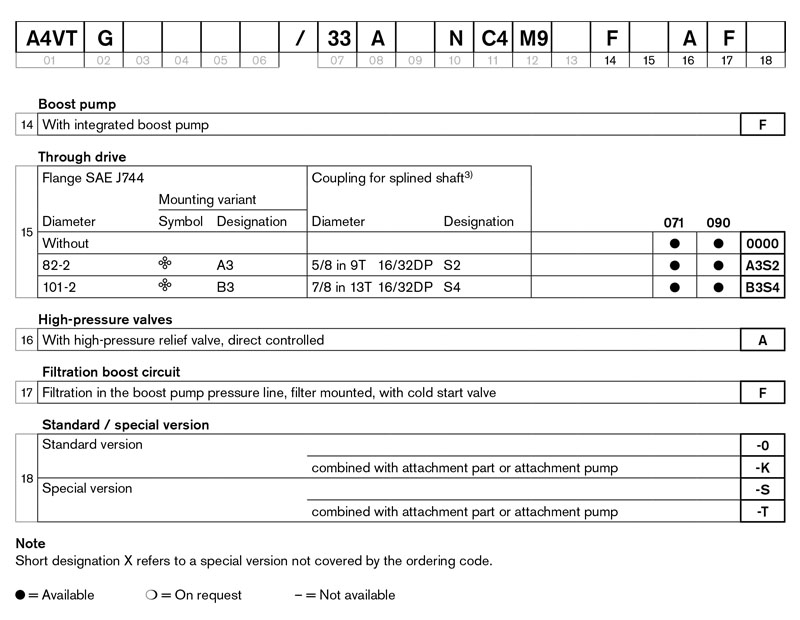

Selection Table

Q1: What is the primary difference between pressure cut-off (DA) and load-sensing (LR) control on this pump?

A1:A pressure cut-off control simply reduces pump displacement to near zero once a set system pressure is reached, holding pressure with minimal energy. Load-sensing control is more sophisticated; it constantly adjusts displacement to maintain a constant pressure differentialbetween the pump outlet and the highest load in the system, providing exactly the flow demanded. LR is for efficiency in multi-function systems, while DA is a simpler, cost-effective solution for systems with a single primary function.

Q2:What is the typical expected service life of this pump?

A2: Service life is not a fixed number; it's a function of application. Under optimal conditions—clean fluid, within rated pressure/ speed/temperature limits, and with proper maintenance—these pumps can reliably operate for tens of thousands of hours. Severe duty cycles, contamination, or operating beyond limits can drastically reduce this.

Q3:How to purchase an A4TVG090 hydraulic pump?

A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.

Q4:What is the price and delivery time of the A4VTG090 hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
