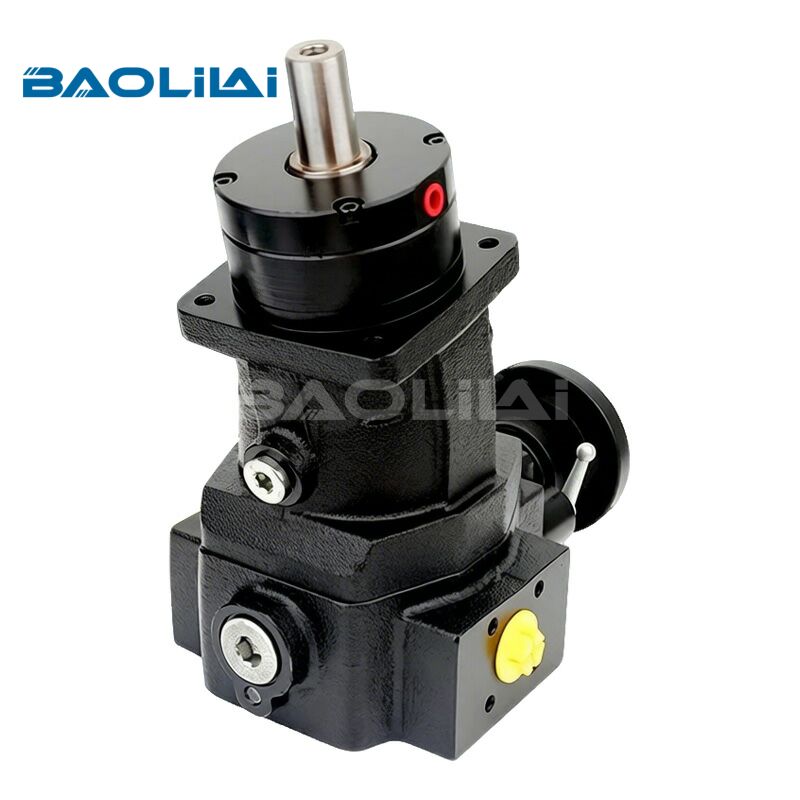

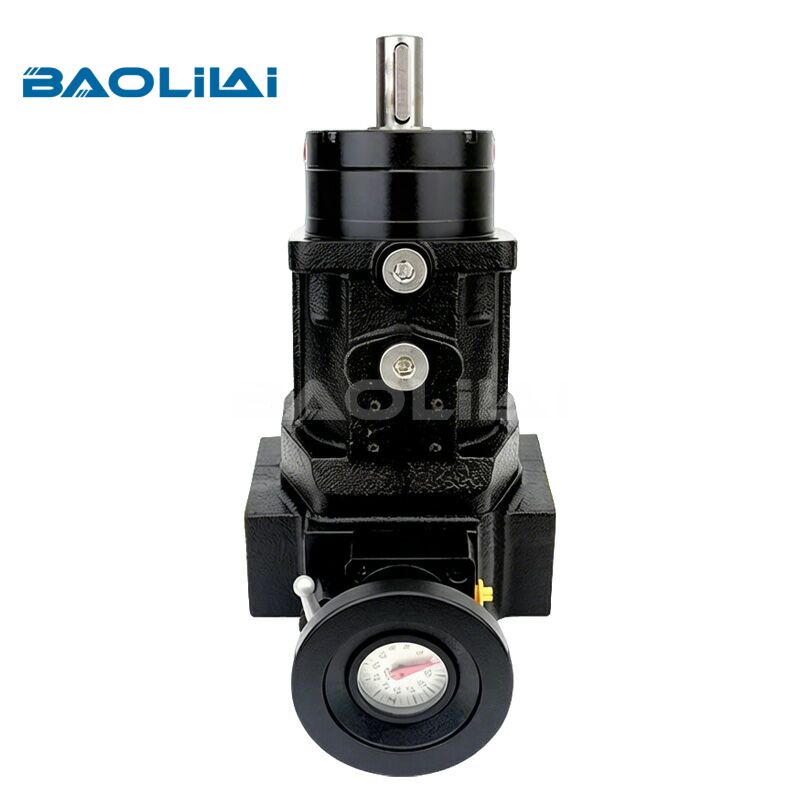

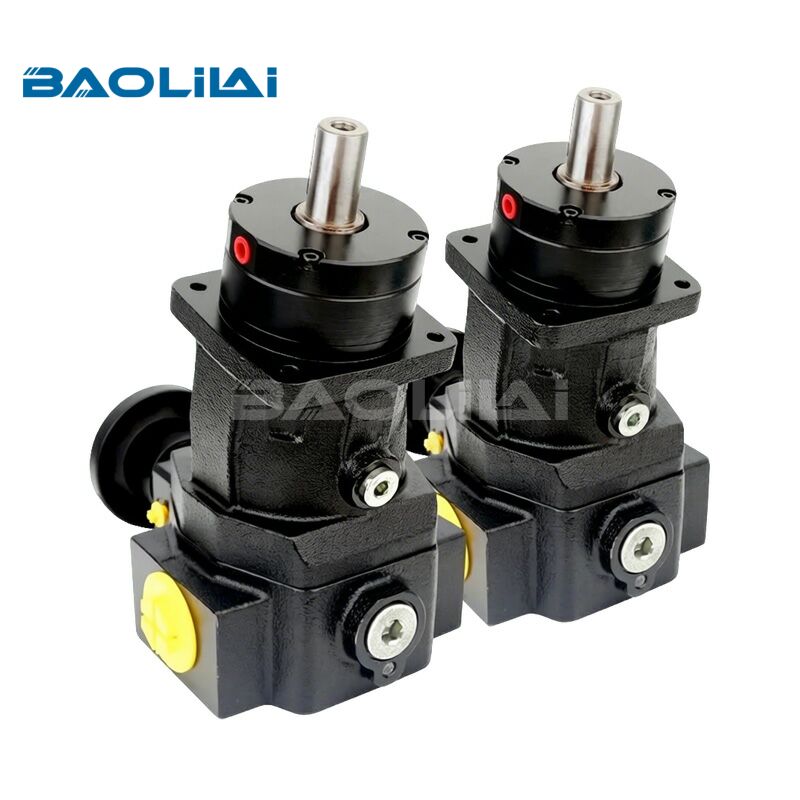

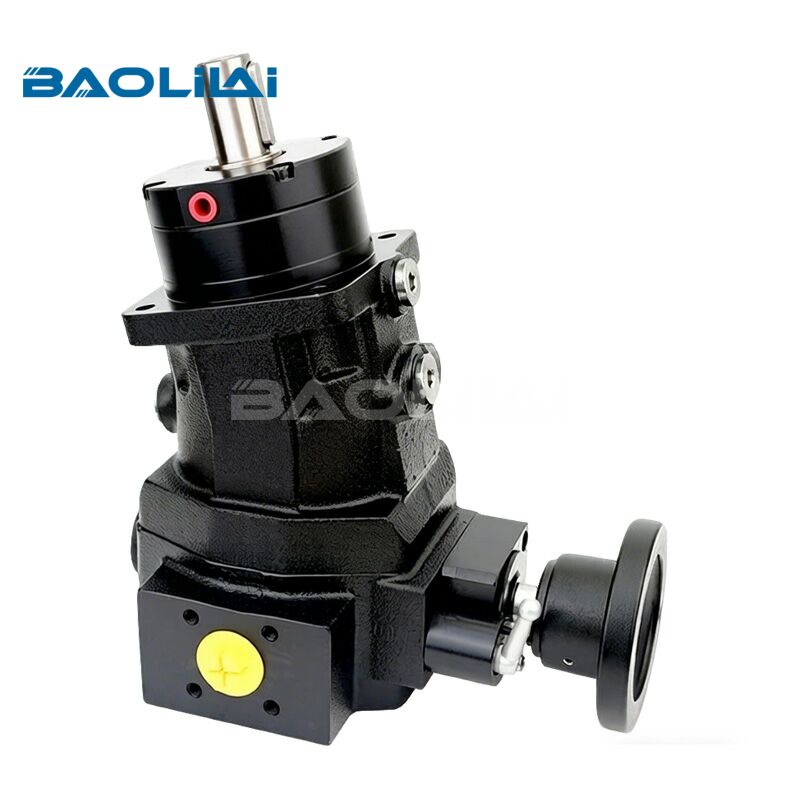

Bosch Rexroth A7VK axial piston hydraulic pump

The A7VK is a variable-displacement, bent-axis design axial piston pump from Rexroth's series 10 lineup, built for open and closed circuit hydrostatic drives. It's manufactured in a single frame size — size 28 (frame size 6) — which places it in a fairly narrow displacement niche compared to broader families like the A4VG or A7VO.

Control Options

Like most Rexroth variable pumps, the A7VK is available with a range of displacement control types, which is really where the engineering decisions happen. Depending on the application, you'll typically see:

Manual/mechanical control for simple, operator-adjusted flow

Hydraulic control for remote or pilot-operated displacement changes

Electric proportional control for closed-loop, PLC-integrated systems

Pressure and power (torque) limiting controls, which protect the prime mover and downstream components from overload

The right control choice depends heavily on whether the A7VK is running in an open circuit (drawing from and returning to a reservoir) or closed circuit (recirculating fluid directly between pump and motor, as in most hydrostatic transmissions).

Typical Applications

The A7VK shows up wherever a compact, rugged, variable-displacement pump needs to drive a hydrostatic circuit under demanding duty cycles. Common examples include:

Example 1: Mixer and Agitator Drives

Concrete mixer trucks and industrial mixers often use bent-axis pumps like the A7VK to drive the drum hydraulically. The compact package fits in tight chassis space, and the pump's tolerance for shock loading suits the variable torque demands of agitating heavy, viscous material.

Example 2: Winch and Hoist Systems

Winches on marine deck equipment, offshore cranes, and heavy mobile equipment benefit from the A7VK's rigidity under high pressure and its ability to modulate flow smoothly for controlled lifting and lowering speeds.

Example 3: Mill and Extrusion Machinery

Rolling mills, extruders, and other stationary industrial drives that need a closed-circuit hydrostatic transmission — with precise speed control and the ability to handle sudden load spikes from material jams or process upsets — are classic A7VK territory.

Example 4: Mobile Hydrostatic Transmissions

Some mobile equipment platforms use the A7VK (or its A2VK sibling) as the drive pump in a hydrostatic transmission, pairing it with a bent-axis or swashplate motor to eliminate mechanical gearboxes in favor of infinitely variable hydraulic speed control.

Maintenance and Troubleshooting Considerations

Axial piston pumps of this type are generally reliable when properly maintained, but a few failure patterns show up repeatedly in the field:

Fluid Cleanliness

Bent-axis pumps have tight tolerances between pistons, bores, and the swivel housing bearings. Contaminated fluid is, by a wide margin, the leading cause of premature wear in units like the A7VK. Following Rexroth's specified ISO cleanliness codes for the fluid and filtration system isn't optional if you want to hit expected service life.

Case Drain Monitoring

As with most axial piston pumps, monitoring case drain flow is one of the best early-warning indicators of internal wear (worn pistons, scored cylinder blocks, or degraded bearings). A gradual increase in case drain flow over time, especially under constant operating pressure, is a strong signal that a rebuild is approaching.

Control Linkage and Solenoid Checks

On units with hydraulic or electric proportional control, sluggish or erratic displacement response is often a control-side issue (contaminated pilot fluid, a sticking spool, a failing solenoid) rather than a rotating-group problem. It's worth isolating and testing the control before assuming the pump itself needs teardown.

Shaft Seal and Housing Integrity

Bent-axis pumps put unique loads on the input shaft and universal joint components. Persistent shaft seal leaks, unusual noise at the joint, or vibration under load are worth investigating promptly, since they can point to bearing wear inside the swivel housing.

Ordering and Replacement Notes

When sourcing an A7VK — new, remanufactured, or as a direct replacement — a few things matter more than they might seem to:

Match the full type code, not just "A7VK." The complete Rexroth material number encodes displacement, control type, rotation direction, shaft type, porting, and seal material — all of which need to match the original for a drop-in replacement.

Confirm open vs. closed circuit configuration. A7VKO and A7VKG variants are not interchangeable without accounting for porting and control differences.

Verify rotation direction and shaft coupling. Getting this wrong on installation is one of the most common (and most avoidable) field errors.

Buy from an authorized Rexroth distributor or a reputable rebuild shop with documented sourcing, especially for critical or safety-related applications, to avoid counterfeit or mismatched components.

For more information on the A7VK hydraulic pump, please visit https://www.baolilaihydraulic.com/product/.

Specifications

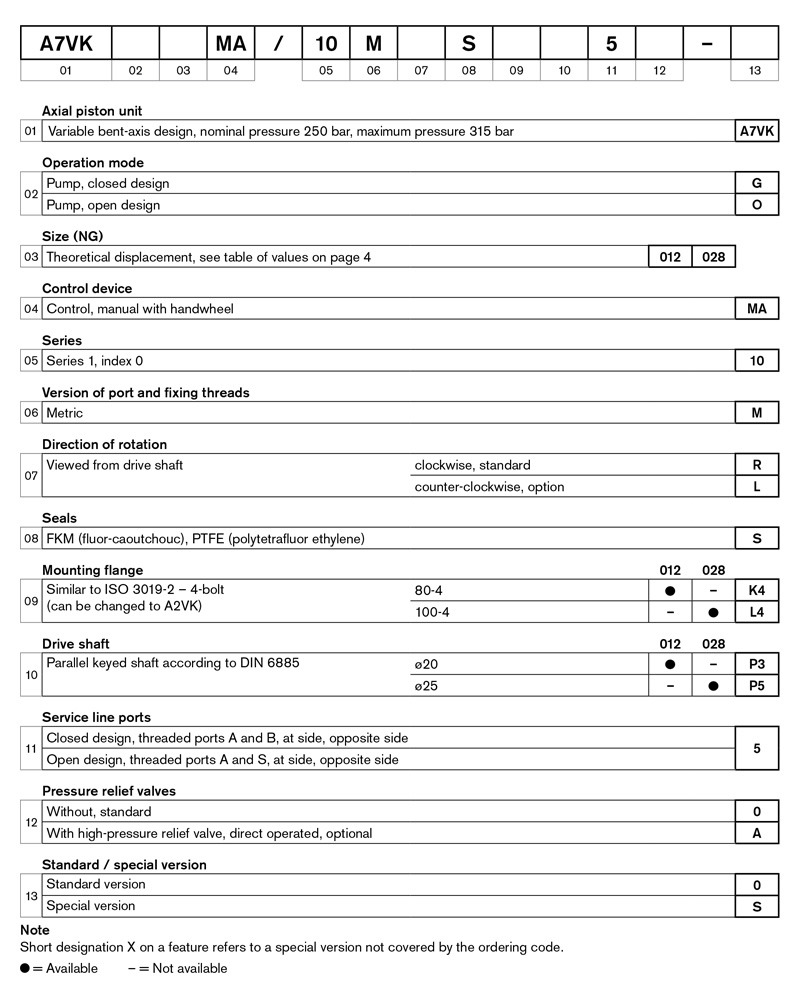

Selection Table

Q1: Is the A7VK an open circuit or closed circuit pump?

A1: It can be configured for either. The base A7VK designation covers the general bent-axis variable pump platform, while A7VKO typically denotes the open-circuit variant and A7VKG the closed-circuit variant, each with matching porting and control hardware.

Q2: How is the A7VK different from a swashplate pump like the A10VSO?

A2: The A7VK uses a bent-axis rotating group, where the entire cylinder block swivels to vary displacement, while the A10VSO uses a swashplate that tilts while the cylinder block stays fixed relative to the shaft. Bent-axis designs like the A7VK tend to be more compact and better suited to shock loads for a given displacement.

Q3:How to purchase an A7VK hydraulic pump?

A3: You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the A7VK hydraulic pump?

A4: The specific price and delivery time will be provided based on the model you specify.
