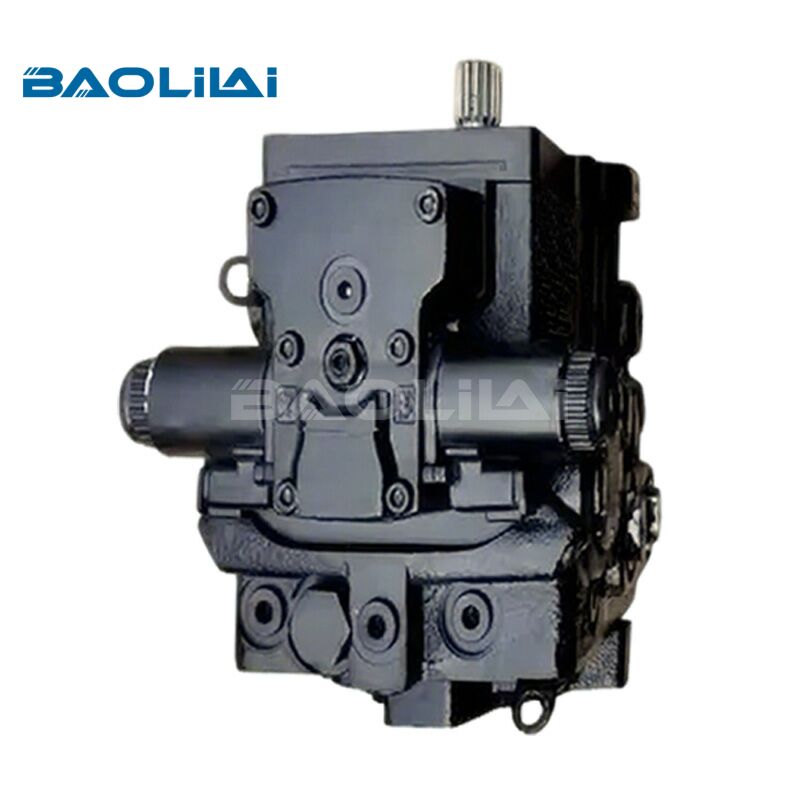

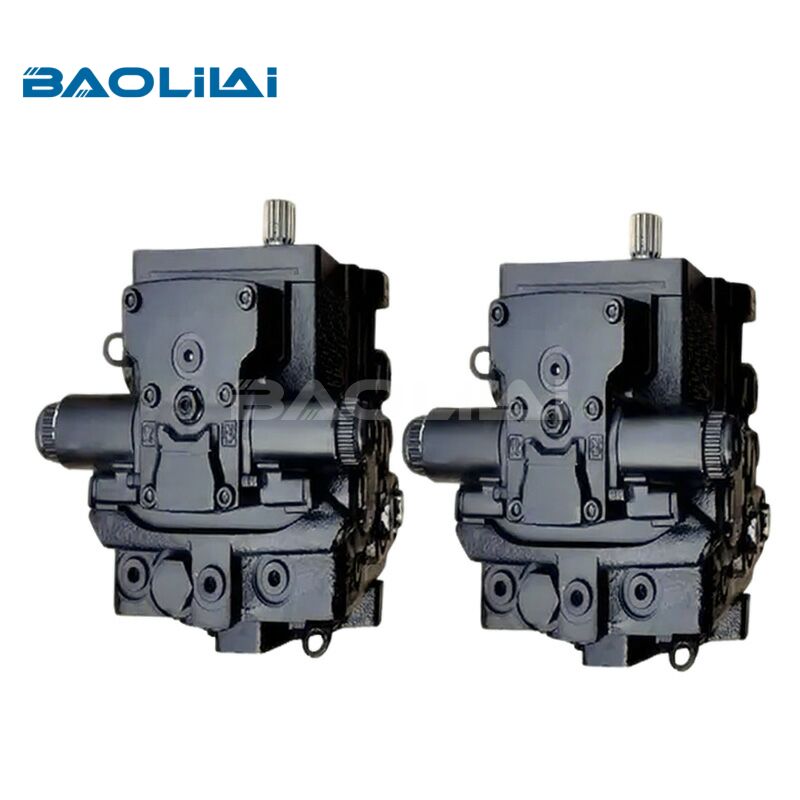

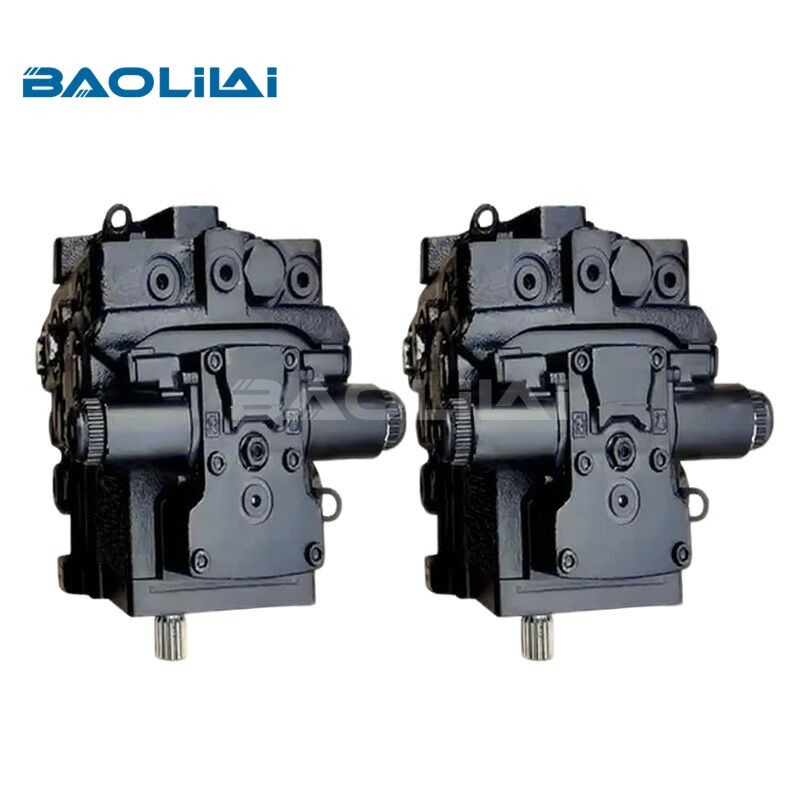

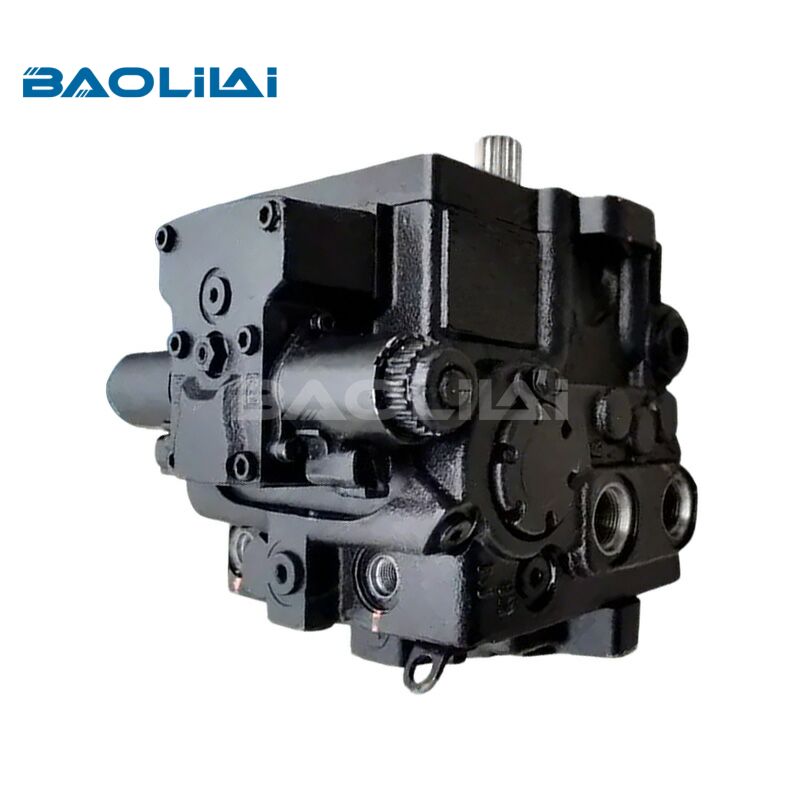

Danfoss MP1 variable displacement axial piston hydrualic pump

The MP1 is a variable displacement axial piston pump built for closed-circuit hydrostatic drive systems. It's part of Danfoss Power Solutions' mobile piston pump lineup, and it's positioned as the successor to the older Series 90 and PVG-adjacent product families in the small-to-medium power range — the pumps that live inside skid steers, compact track loaders, pavers, rollers, mowers, aerial lifts, and similar off-highway equipment.

Control Options: Matching the Pump to the Machine

One of the MP1's biggest selling points is modularity — the same core pump can be configured with different displacement controls depending on how the OEM wants the operator to interact with the machine.

Electrical Displacement Control (EDC)

EDC uses a pair of proportional solenoids acting on a three-position, four-way spool. Operator input — a joystick or pedal signal — proportionally shifts the spool, which ports pressure to either side of the servo piston and rotates the swashplate. Because displacement tracks the electrical input directly, vehicle speed is essentially a function of the command signal, independent of engine load (aside from normal efficiency losses). This is the control of choice for machines with electronic joystick controls and drive-by-wire style operation.

Mechanical Displacement Control (MDC)

MDC ties the swashplate directly to a mechanical linkage — a lever, cable, or rod connected to a foot pedal or hand control. It's simpler and cheaper than EDC, with no electronics in the loop, which makes it a common choice on cost-sensitive or electronics-light machines like smaller mowers and utility equipment.

Hydraulic Displacement Control (HDC)

HDC uses a hydraulic pilot signal instead of an electrical one to shift the servo spool. It's often specified where a machine's control system is already hydraulic-pilot based, or where electrical noise and reliability in harsh environments make a hydraulic signal path more attractive.

Forward-Neutral-Reverse (FNR) and Other Variants

FNR is a simplified three-position electric control for machines that only need forward, neutral, and reverse — no proportional speed modulation through the pump itself, with speed instead managed elsewhere in the drivetrain. Non-feedback proportional electric (NFPE) and non-feedback proportional hydraulic (NFPH) variants exist too, dropping the position feedback loop found in EDC/HDC for simpler, lower-cost applications where tight positional accuracy isn't critical.

Typical Applications

The MP1 shows up across a wide slice of the compact and medium off-highway equipment world:

Road construction — asphalt pavers, rollers, and trenchers, where the pump has to handle harsh duty cycles and dirty environments without losing precision

Material handling — aerial lifts, dumpers, and piggyback forklifts, where smooth, controllable travel speed matters for operator confidence

Turf care — commercial and consumer-grade mowers using hydrostatic drive for zero-turn or all-wheel propulsion

Specialty equipment — sweepers, harvesters, directional drills, and surface preparation machines that need compact, application-tunable hydrostatic drive

Installation and Maintenance Considerations

A few things matter more with the MP1 than with a typical open-circuit gear pump, and they're worth calling out for anyone specifying or servicing one.

Case must stay filled. The housing needs to remain full of hydraulic fluid at all times — running it dry, even briefly, accelerates wear on the internal bearings and piston shoes.

Vertical shaft installations are supported, but multiple-pump stacking should be arranged with the highest power flow toward the input source; Danfoss recommends confirming any deviation from that layout with their engineering support.

Charge pressure settings must match the flushing valve. When an external loop flushing shuttle valve is used, its setting has to align with the pump's charge relief setting, or flushing performance and charge pressure stability suffer.

Cold starts and intermittent overloads are tightly bounded. Danfoss defines cold start as under 3 minutes at pressures below 50 bar and speeds under 1,000 rpm, and intermittent duty as under 1 minute per incident, not exceeding 2% of the duty cycle over the pump's load life. Running outside those windows regularly will shorten pump life even if nothing fails immediately.

Filtration discipline matters. Like any piston pump, the MP1's tight internal clearances make it far more sensitive to fluid contamination than gear or vane pumps. Most premature failures trace back to dirty oil, not a design flaw.

For more information on the MP1 hydraulic pump, please visit https://www.baolilaihydraulic.com/product/.

Specifications

MP1 operating parameters

MP1 fluid specifications

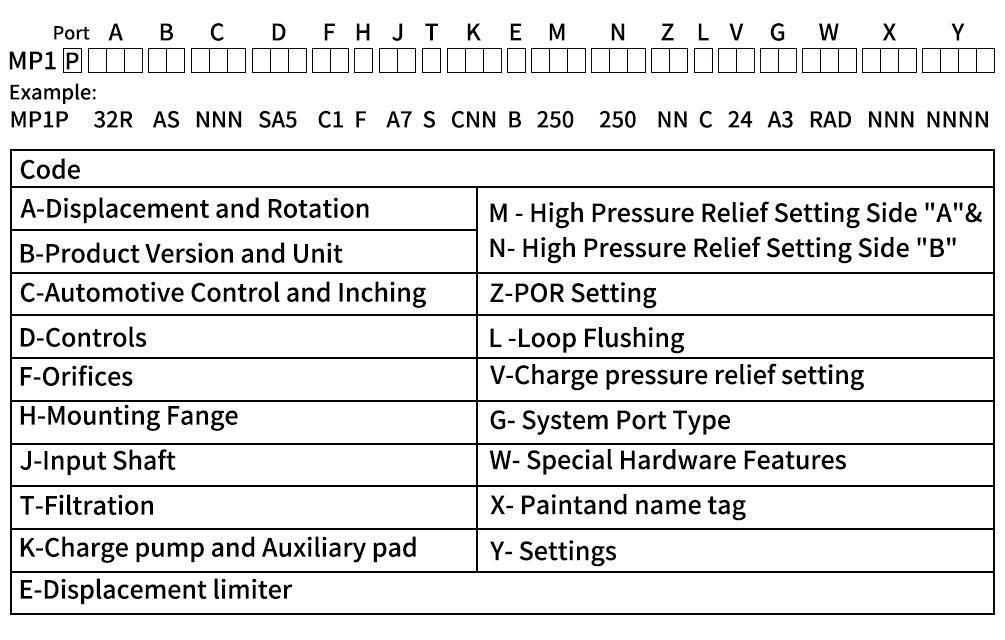

Selection Table

Q1: Can the MP1 be used for anything other than propel/drive systems?

A1: It's specifically designed for closed-circuit hydrostatic applications, which in practice means propulsion — travel drives on mobile equipment. Implement functions (lift, tilt, auxiliary) typically run on separate open-circuit pumps on the same machine.

Q2: How do I know if my MP1 needs an overhaul or a full replacement?

A2: That comes down to a cost comparison after diagnosis — case drain flow testing will tell you whether the pump is still within acceptable volumetric efficiency. If wear is isolated (control valve, seals, check valves) a rebuild is often cheaper. If the pistons, cylinder block, or swashplate bearing surfaces are heavily worn, replacement is usually more economical than parts and labor for a full internal rebuild.

Q3: How to purchase an MP1 hydraulic pump?

A3: You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4: What is the price and delivery time of the MP1 hydraulic pump?

A4: The specific price and delivery time will be provided based on the specific model you provide.
