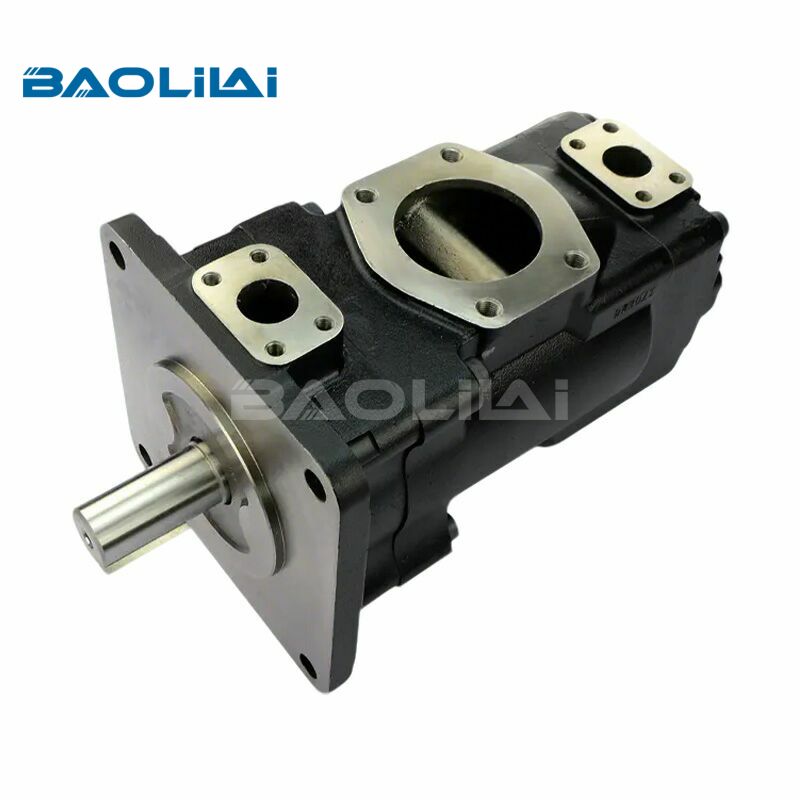

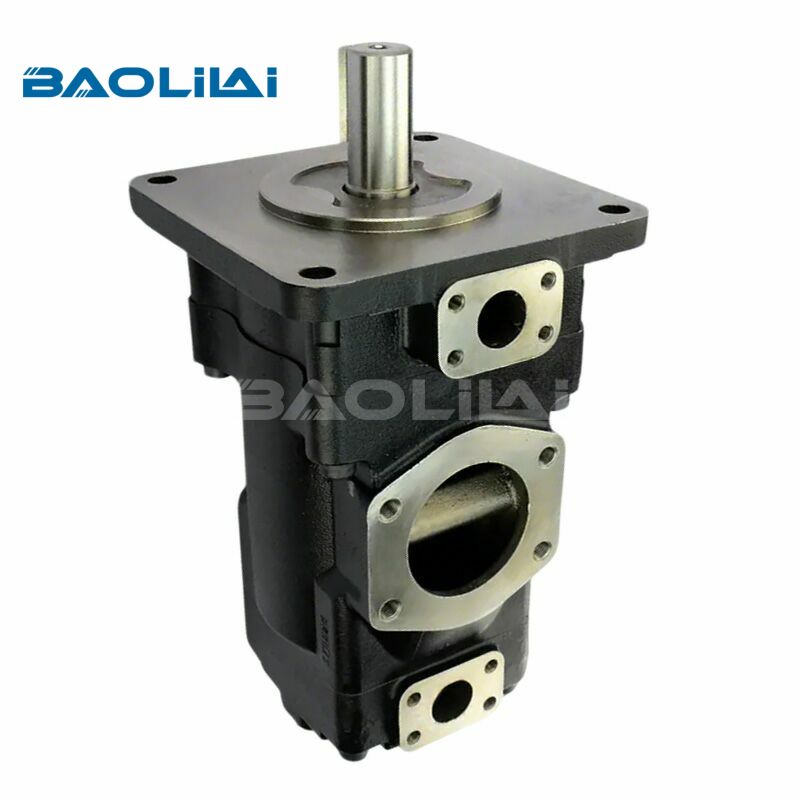

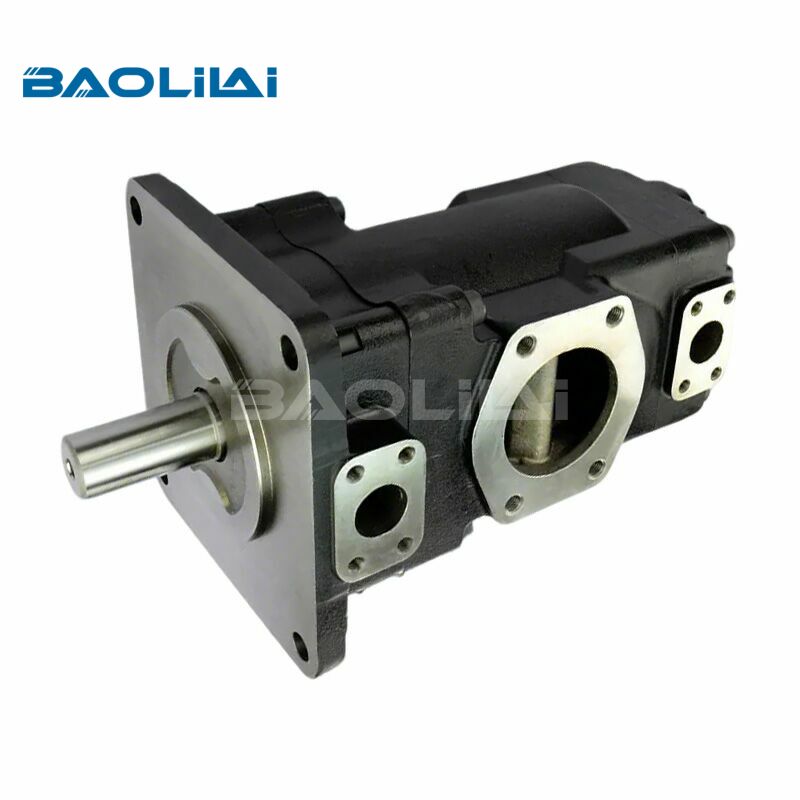

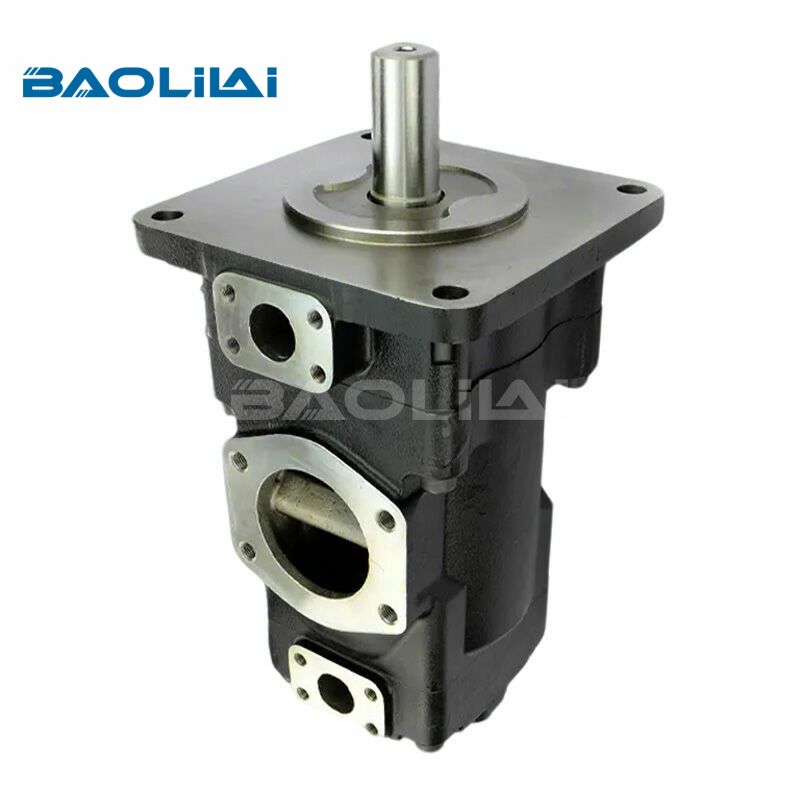

Denison T6EE T6EES fixed displacement vane pump

The T6EE and T6EES are fixed displacement, cartridge-style vane pumps originally engineered by Denison Hydraulics (now part of Parker Hannifin's Denison product line). They belong to the broader T6 series, which also includes double and combination pump configurations (T6C, T6D, T6DR, etc.) built around the same cartridge philosophy.

"Fixed displacement" means the pump delivers a constant volume of fluid per revolution of the shaft, regardless of system pressure — unlike a variable displacement pump, which can adjust flow output on the fly. This makes the T6EE/T6EES ideal for applications where a steady, predictable flow rate is more valuable than flow modulation.

How the Vane Pump Cartridge Works

Understanding the internal mechanics helps explain both the pump's reliability and its failure modes.

The Cartridge Concept

Denison's T6 series is built around a replaceable cartridge kit — the rotor, vane ring (cam ring), vanes, and side plates are assembled as a self-contained unit that slides into the pump housing. This is one of the design's signature advantages: when the internal components wear out, a technician can rebuild the pump by swapping the cartridge rather than replacing the entire unit or line-boring a housing.

The Vane-and-Ring Mechanism

1. A slotted rotor is keyed to the drive shaft and spins inside an elliptical or cam-shaped ring.

2. Rectangular vanes sit in the rotor slots and are thrown outward by centrifugal force (and, at startup, often assisted by intra-vane pressure or springs) to maintain contact with the ring's inner surface.

3. As the rotor turns, the vanes slide in and out of their slots, and the varying space between rotor and ring creates expanding and contracting chambers.

4. Expanding chambers draw fluid in from the inlet port; contracting chambers push fluid out through the outlet port.

5. Because the ring geometry typically has two lobes, each vane completes two pumping cycles per revolution — a balanced design that cancels out radial shaft loads and significantly extends bearing life compared to unbalanced vane or piston designs.

Key Specifications and Performance Characteristics

When specifying a T6EE/T6EES pump, several parameters matter:

Displacement and Flow

Displacement is expressed in cubic inches per revolution (in³/rev) or cc/rev, and the T6 series spans a wide range of displacement sizes (often denoted by a numeric code in the model number, such as 6, 8, 10, 14, 17, 22, 28, 35, 42, 44, 52, 66, 74, 86, etc., depending on catalog).

Flow rate = displacement × shaft speed (RPM), adjusted for volumetric efficiency.

Pressure Ratings

Continuous operating pressures for T6EE/T6EES pumps commonly range up into the 2,000–2,500 psi class range, with intermittent peak ratings higher, though exact figures depend on the specific displacement size and cartridge revision — always confirm against the current Parker Denison catalog for the exact part number in hand.

Speed Range

Minimum and maximum shaft speeds are specified to avoid cavitation at the low end and excessive wear/noise at the high end. Running below the minimum rated speed starves the vanes of proper centrifugal loading and inlet fill; running above the maximum accelerates wear and increases noise.

Shaft and Mounting Options

Available in multiple shaft styles (keyed, splined) and mounting flanges (SAE 2-bolt, 4-bolt) to fit different motor and coupling arrangements.

Rotation is specified as clockwise (CW) or counterclockwise (CCW) as viewed from the shaft end — this must match the drive motor's rotation, since vane pumps are generally not reversible without a different cartridge orientation.

Noise and Efficiency

The balanced vane design is prized for relatively quiet operation compared to gear pumps at similar pressure, and for good volumetric efficiency across its rated pressure range.

Installation and Maintenance Best Practices

Fluid Cleanliness and Filtration

Vane pumps are more sensitive to contamination than gear pumps because the vane-to-ring contact tolerances are tight. Maintaining fluid cleanliness per the manufacturer's recommended ISO cleanliness code is the single biggest factor in achieving expected cartridge life.

Correct Inlet Conditions

Avoid excessive inlet vacuum; oversized or overly long suction lines, clogged strainers, or cold, high-viscosity fluid at startup can starve the pump and cause cavitation, which shows up as a loud, gravel-like noise and accelerates vane and ring wear.

Keep inlet piping short, adequately sized, and free of unnecessary elbows.

Shaft Alignment and Coupling

Misalignment between the pump shaft and drive motor imposes side loads that the bearings weren't designed for. Use flexible couplings and verify alignment during installation.

Cartridge Rebuild Cycle

Because the cartridge is a replaceable wear item, many maintenance programs schedule a cartridge inspection/rebuild at set operating-hour intervals rather than waiting for failure — a proactive approach that avoids unplanned downtime.

For more information on the T6EE/T6EES hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

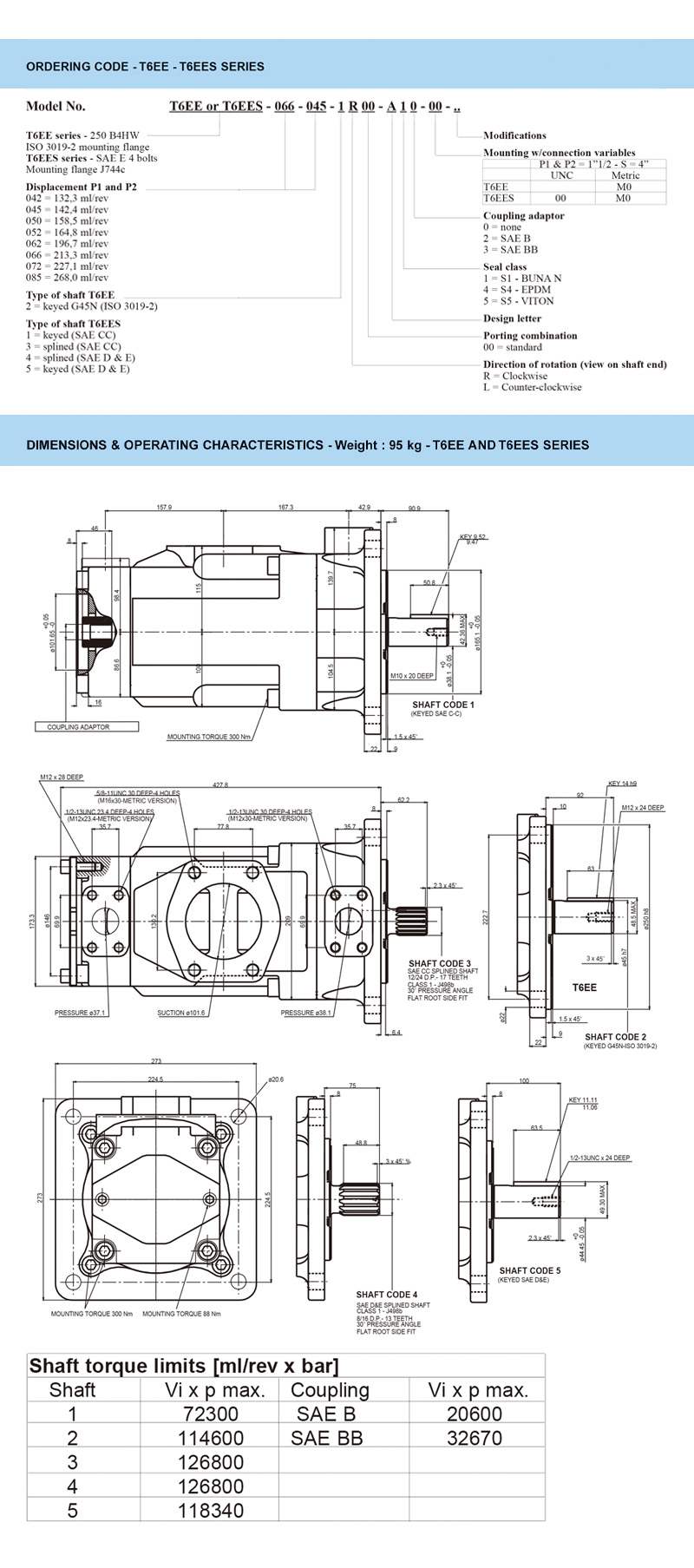

Selection Table

Q1: How do I know when the cartridge needs to be rebuilt?

A1: Common indicators include declining flow output (slower cycle times), increased noise, rising case drain temperature, or visible wear/scoring on the ring and vanes upon inspection. Many facilities pair these symptoms with scheduled hour-based inspections rather than waiting for a full failure.

Q2: What fluid types are compatible with the T6EE/T6EES?

A2: Standard mineral-based hydraulic oils are typical; certain seal and cartridge material options extend compatibility to fire-resistant fluids. Always check the specific pump's seal material code against the fluid being used, since incompatible seals will degrade quickly.

Q3:How to purchase a T6EE/T6EES hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6EE/T6EES hydraulic pump?

A4: The specific price and delivery time will be provided based on the model you specify.
