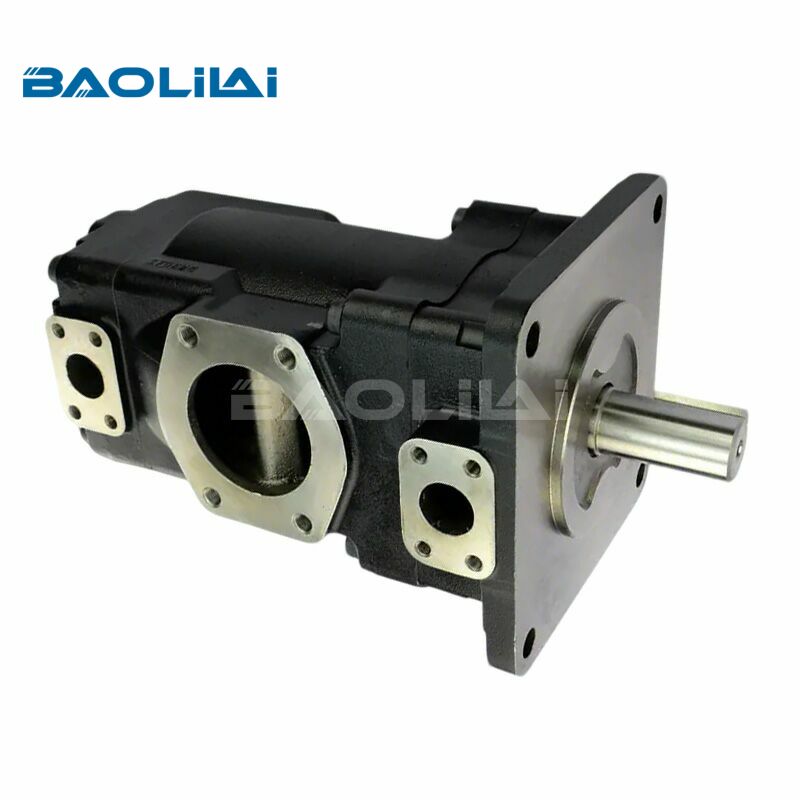

Denison T7EE T7EES fixed displacement industrial hydraulic pump

The T7EE and T7EES are fixed-displacement vane pumps from the Denison T7 series, originally developed by Denison Hydraulics and now manufactured under Parker Hannifin's Pump & Motor Division Europe (Vierzon, France), which acquired the Denison vane pump technology. "EE" refers to the frame size within the T7 range — one of the larger cartridge sizes in the lineup, sitting above the T7B and T7E/D frames.

Design Features That Set the T7 Series Apart

Double Lip Vane Design

The T7 series uses a double-lip vane design that improves sealing against the cam ring under varying pressure conditions. This translates directly into better resistance to particle contamination and a longer service life compared to simpler single-lip vane designs, which matters in industrial environments where filtration isn't always perfect.

Cartridge-Based Serviceability

One of the most practical advantages of the T7EE/T7EES design is that the entire pumping mechanism — rotor, vanes, cam ring, and pressure plates — is built as a self-contained cartridge that can be replaced as a unit. Instead of rebuilding a worn pump component by component, a technician can swap the cartridge kit in the field and get the pump back to like-new performance without machining or precision fitting.

Noise and Heat Management

Vane pumps are inherently quieter than most gear or piston pumps at comparable pressures, and the T7 series is specifically tuned for low-noise operation. Combined with high volumetric and mechanical efficiency, this keeps operating temperatures down — a meaningful factor in enclosed power units where heat rejection is limited.

Through-Shaft Capability

Both T7EE and T7EES pumps support through-shaft mounting, meaning a second pump (vane, gear, or piston) can be mounted in tandem off the back of the primary unit. This is a common way to build compact multi-circuit power packs without needing a separate motor for each pump.

Common Applications

Machine Tools and Presses

The ability to combine high-pressure/low-flow and low-pressure/high-flow cartridges in one double or triple pump makes the T7EE/T7EES a natural fit for hydraulic presses and machine tools, where rapid approach speed followed by high-pressure clamping or forming is the typical duty cycle.

Plastics and Injection Molding Equipment

Injection molding machines rely on exactly this kind of dual-flow behavior — fast mold closing followed by high-pressure injection — which is why T7-series pumps show up frequently in both OEM and retrofit molding machine hydraulics.

Industrial Power Units

Standalone hydraulic power units for lifts, clamps, and general factory automation commonly specify the T7EE or T7EES because of its broad displacement range and the flexibility of ISO or SAE mounting.

Marine and Mobile Hydraulic Systems

Through-axis versions of the T7EE/T7EES are used in marine deck machinery and mobile equipment where a compact footprint and the ability to drive multiple hydraulic functions from one shaft line are valuable.

Maintenance and Troubleshooting Basics

Fluid Cleanliness Is Non-Negotiable

Denison specifies fluid cleanliness targets around NAS 1638 Class 8 or ISO 18/14 for these pumps. Vane pumps are more tolerant of contamination than piston pumps, but the tight clearances between vane tips and the cam ring still wear rapidly in dirty oil — contamination is the single most common cause of premature cartridge failure.

Watch Inlet Conditions

Like most vane pumps, the T7EE/T7EES is sensitive to inlet starvation. A minimum differential pressure at the inlet (commonly cited around 1.5 bar / 22 psi over vapor pressure) needs to be maintained to avoid cavitation, which shows up as a distinctive whining noise and, over time, pitted vanes and cam ring surfaces.

Cartridge Kits Simplify Rebuilds

Because the wear components are packaged as a cartridge, a rebuild typically means ordering the correct cartridge kit (matched to displacement, rotation, and seal material) rather than sourcing individual vanes, rotors, and rings separately.

Common Failure Symptoms

Rising noise level — usually early-stage cavitation or worn vanes.

Declining flow at rated pressure — internal leakage from a worn cartridge.

Overheating — often inlet restriction, wrong fluid viscosity, or a cartridge nearing end of life.

External leakage at the shaft — worn shaft seal, often accelerated by misalignment with the driving motor.

For more information on the T7EE/T7EES hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

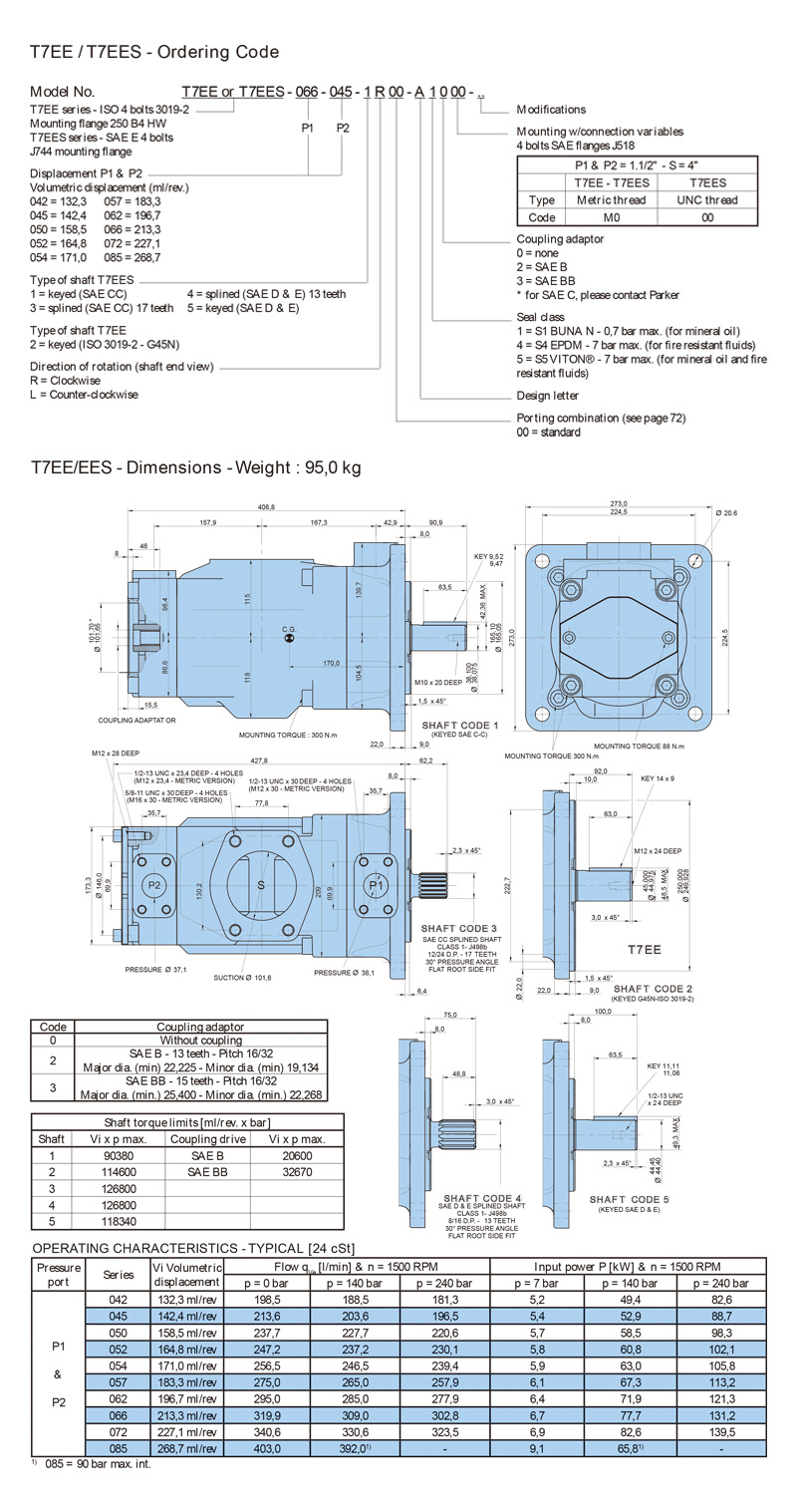

Selection Table

Q1: What does "fixed displacement" mean for the T7EE/T7EES?

A1: It means the pump delivers a constant flow output per revolution of the shaft, set by the cartridge's physical displacement, rather than a variable-displacement pump that can adjust output flow on the fly via a control mechanism. Flow can still be changed by varying motor speed, but not by internal adjustment.

Q2: How long do T7EE/T7EES cartridges typically last?

A2: Service life depends heavily on fluid cleanliness and operating pressure, but with proper filtration (NAS 1638 Class 8 or better) and correctly maintained inlet conditions, cartridges commonly run for years of continuous industrial duty before a rebuild is needed.

Q3:How to purchase a T7EE/T7EES hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7EE/T7EES hydraulic pump?

A4: The specific price and delivery time will be provided based on the model you specify.
