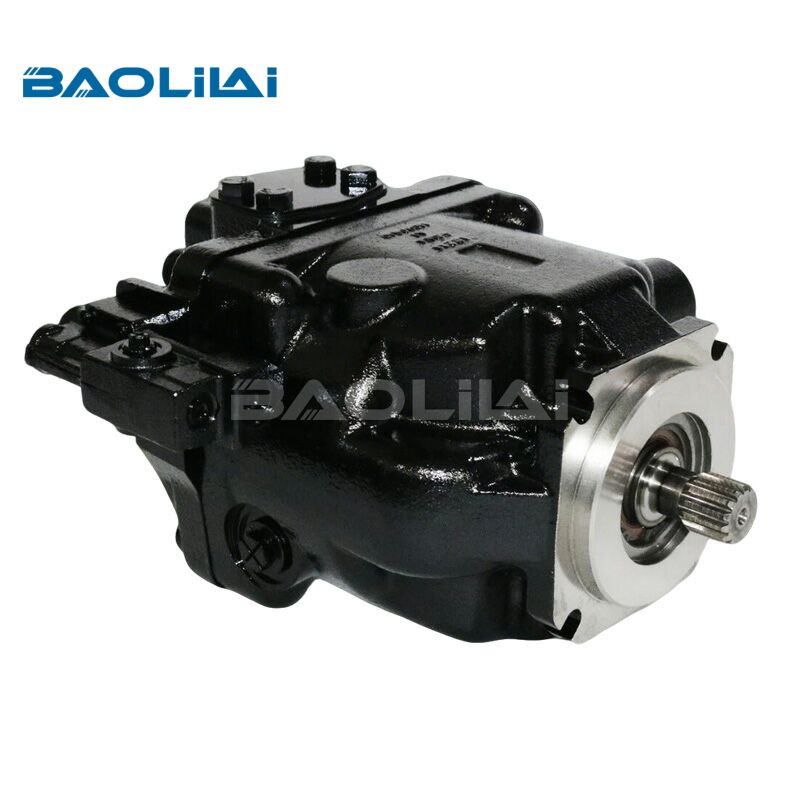

ERL130 axial piston hydraulic pump
SERIES : 45 series ER
BRAND : For Sauer Danfoss
Model Size :ERL130
Displacement : 130cm3/rev
Speed : 500-2600rpm
Maximum Pressure : 400bar
Nominal Pressure : 310bar
Download PDF
- Product Details
- Product Model
- FAQ
The ERL130 is a variable displacement axial piston pump designed for open circuit applications, belonging to the Series 45 hydraulic pumps . It features a displacement of 130 cm³/rev and is engineered for robust performance, with a continuous working pressure of around 310 bar (4500 psi) and a maximum pressure reaching up to 400 bar (5800 psi) . The pump operates effectively within a speed range of 500 to 2600 rpm, with a recommended continuous operating speed of 2200 rpm, delivering a theoretical flow of approximately 286 l/min (75.6 US gal/min) at its rated speed . Its construction includes a cast iron housing and key features like a cradle-type swashplate set in polymer-coated journal bearings and nine reciprocating pistons that work in conjunction with a bi-metal valve plate to ensure high volumetric efficiency and low noise levels .
This hydraulic pump model is built for durability and reliability in demanding mobile equipment applications. It supports various advanced control options, such as load sensing (LS) and pressure compensation (PC), allowing its operation to be precisely tailored to system demands, which contributes to optimized performance and energy efficiency . The ERL130 is commonly used in a wide range of heavy-duty machinery, including construction equipment like wheel loaders, forklifts, and excavators . Its design incorporates heavy-duty tapered roller bearings to support the input shaft and handle significant external loads, ensuring a long service life in challenging working environments .
Specifications
| E frame | |||||
| Unit | 100B | 130B | 147C | ||
| Maximum Displacement | cm3 [in3] | 100 [6.1] | 130 [7.93] | 147 [8.97] | |
| Working Input speed | Minimum | min−1 [rpm] | 500 | 500 | 500 |
| Continuous | 2450 | 2200 | 2100 | ||
| Maximum | 2880 | 2600 | 2475 | ||
| Working Pressure | Continuous | bar [psi] | 310 [4500] | 310 [4500] | 260 [3770] |
| Maximum | 400 [5800] | 400 [5800] | 350 [5075] | ||
| Flow at rated speed (theoretical) | l/min | 245 | 286 | 309 | |
| US gal/min | 64.7 | 75.6 | 81.6 | ||
| Input torque at maximum displacement (theoretical) at 49∘C (120∘F) | Nm/bar | 1.592 | 2.07 | 2.341 | |
| lbf·in/1000 psi | 972 | 1263.6 | 1428.8 | ||
| Mass moment of inertia of internal rotating components | kg·m2 | 0.0128 | 0.0128 | 0.0128 | |
| slug·ft2 | 0.00944 | 0.00944 | 0.00944 | ||
| Weight | Axial ports | kg [lb] | 52.0 [115.0] | ||
| Radial ports | 56.0 [123.3] | ||||
| External Shaft Loads | External moment (Me) | N·m [lbf·in] | 455 [4027] | 360 [3186] | 396 [3505] |
| Thrust in (Tin), out (Tout) | N [lbf] | 2846 [640] | 1735 [390] | 2113 [475] | |
| Mounting flange load moments | Vibratory (continuous) | N·m [lbf·in] | 1920 [17000] | ||
| Shock (maximum) | 6779 [60000] | ||||
Selection Table
| ERL130 Series Some Models | ||
| Model No. | Model Code | Model Code |
| 83010286 | ER-L-130B-AF-19-20-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL130BAF1920NNN3S4NLA1NNNNNNNNNN |
| 83031574 | ER-L-130B-AG-15-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BAG1520NNN3S4CPA1NNNNNNNNNN |
| 83065764 | ER-L-130B-AK-28-20-NN-F-3-S1CP-A1N-AAA-NNN-NNN | ERL130BAK2820NNF3S1CPA1NAAANNNNNN |
| 83067490 | ER-L-130B-AT-18-25-NN-E-3-S1NL-A1N-NNN-NNN-NNN | ERL130BAT1825NNE3S1NLA1NNNNNNNNNN |
| 83057939 | ER-L-130B-AT-28-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BAT2820NNN3S1NPA1NNNNNNNNNN |
| 83012166 | ER-L-130B-BB-31-17-NN-N-3-S1TP-A1N-NNN-NNN-NNN | ERL130BBB3117NNN3S1TPA1NNNNNNNNNN |
| 7000555 | ER-L-130B-BB-31-20-NN-N-3-S4NP-A1N-AAA-NNN-NNN | ERL130BBB3120NNN3S4NPA1NAAANNNNNN |
| 83017159 | ER-L-130B-BC-31-NN-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL130BBC31NNNNN3K5NPA1NAAANNNNNN |
| 83037574 | ER-L-130B-BC-31-NN-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL130BBC31NNNNN3K5NPA1NAAANNNNNN |
| 83024489 | ER-L-130B-BC-31-NN-NN-N-3-S1LP-A1N-AAA-NNN-NNN | ERL130BBC31NNNNN3S1LPA1NAAANNNNNN |
| 80006237 | ER-L-130B-BC-31-NN-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BBC31NNNNN3S1NLA1NNNNNNNNNN |
| 83024491 | ER-L-130B-BC-31-NN-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BBC31NNNNN3S1NPA1NAAANNNNNN |
| 83001273 | ER-L-130B-BC-31-NN-NN-N-3-S4NL-A1N-AAA-NNN-NNN | ERL130BBC31NNNNN3S4NLA1NAAANNNNNN |
| 83044780 | ER-L-130B-BP-31-15-NN-E-3-S2CP-A1N-NNN-NNN-NNN | ERL130BBP3115NNE3S2CPA1NNNNNNNNNN |
| 83034719 | ER-L-130B-BP-31-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BBP3120NNN3S1APA1NAAANNNNNN |
| 83037643 | ER-L-130B-BP-31-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BBP3120NNN3S1APA1NAAANNNNNN |
| 83020277 | ER-L-130B-BP-31-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BBP3120NNN3S1NPA1NAAANNNNNN |
| 83037641 | ER-L-130B-BP-31-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BBP3120NNN3S1NPA1NAAANNNNNN |
| 83009060 | ER-L-130B-BP-31-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BBP3120NNN3S1NPA1NNNNNNNNNN |
| 80003634 | ER-L-130B-BS-28-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BBS2820NNN3S2NPA1NNNNNNNNNN |
| 83002593 | ER-L-130B-BS-28-24-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BBS2824NNN3S1BPA1NNNNNNNNNN |
| 83009167 | ER-L-130B-BS-29-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BBS2920NNN3S1BPA1NAAANNNNNN |
| 83037546 | ER-L-130B-BS-29-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BBS2920NNN3S1BPA1NAAANNNNNN |
| 83039968 | ER-L-130B-BS-29-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BBS2920NNN3S1NPA1NAAANNNNNN |
| 11110483 | ER-L-130B-BS-29-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL130BBS2920NNN3S2RPA1NAAANNNNNN |
| 83040860 | ER-L-130B-BS-29-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL130BBS2920NNN3S2RPA1NAAANNNNNN |
| 83022816 | ER-L-130B-BS-29-20-NN-N-3-S4NP-A1N-NNN-NNN-NNN | ERL130BBS2920NNN3S4NPA1NNNNNNNNNN |
| 83001610 | ER-L-130B-BS-29-26-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BBS2926NNN3S1NPA1NNNNNNNNNN |
| 80005755 | ER-L-130B-BS-30-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL130BBS3020NNN3K5BPA1NAAANNNNNN |
| 80003838 | ER-L-130B-BS-30-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3K5NPA1NNNNNNNNNN |
| 83005277 | ER-L-130B-BS-30-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S1APA1NNNNNNNNNN |
| 83037536 | ER-L-130B-BS-30-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S1APA1NNNNNNNNNN |
| 80006047 | ER-L-130B-BS-30-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S1BPA1NNNNNNNNNN |
| 83047160 | ER-L-130B-BS-30-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S1BPA1NNNNNNNNNN |
| 83008380 | ER-L-130B-BS-30-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S1CPA1NNNNNNNNNN |
| 83037542 | ER-L-130B-BS-30-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S1CPA1NNNNNNNNNN |
| 80001651 | ER-L-130B-BS-30-20-NN-N-3-S2AP-A1N-AAA-NNN-NNN | ERL130BBS3020NNN3S2APA1NAAANNNNNN |
| 83044710 | ER-L-130B-BS-30-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S4CPA1NNNNNNNNNN |
| 83064495 | ER-L-130B-BS-30-20-NN-N-3-S4RP-A1N-NNN-NNN-NNN | ERL130BBS3020NNN3S4RPA1NNNNNNNNNN |
| 83014478 | ER-L-130B-BS-30-24-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL130BBS3024NNN3S4CPA1NAAANNNNNN |
| 80004416 | ER-L-130B-BS-31-10-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BBS3110NNN3S1CPA1NAAANNNNNN |
| 83028394 | ER-L-130B-BS-31-18-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL130BBS3118NNN3K5NLA1NAAANNNNNN |
| 83046683 | ER-L-130B-BS-31-20-NN-F-3-S4CP-A1N-AAA-NNN-NNN | ERL130BBS3120NNF3S4CPA1NAAANNNNNN |
| 702128 | ER-L-130B-BS-31-20-NN-N-3-K5AP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3K5APA1NAAANNNNNN |
| 11175115 | ER-L-130B-BS-31-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3K5BPA1NAAANNNNNN |
| 83007993 | ER-L-130B-BS-31-20-NN-N-3-K5CP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3K5CPA1NNNNNNNNNN |
| 83035310 | ER-L-130B-BS-31-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S1APA1NAAANNNNNN |
| 80006213 | ER-L-130B-BS-31-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S1APA1NNNNNNNNNN |
| 83037495 | ER-L-130B-BS-31-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S1APA1NNNNNNNNNN |
| 80006211 | ER-L-130B-BS-31-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S1BPA1NNNNNNNNNN |
| 83037494 | ER-L-130B-BS-31-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S1BPA1NNNNNNNNNN |
| 83002192 | ER-L-130B-BS-31-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S1CPA1NAAANNNNNN |
| 83037520 | ER-L-130B-BS-31-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S1CPA1NAAANNNNNN |
| 83030094 | ER-L-130B-BS-31-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S1NLA1NAAANNNNNN |
| 83002823 | ER-L-130B-BS-31-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S1NPA1NAAANNNNNN |
| 83037525 | ER-L-130B-BS-31-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S1NPA1NAAANNNNNN |
| 80006469 | ER-L-130B-BS-31-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S1NPA1NNNNNNNNNN |
| 83037496 | ER-L-130B-BS-31-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S1NPA1NNNNNNNNNN |
| 83005823 | ER-L-130B-BS-31-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S1RPA1NAAANNNNNN |
| 80005728 | ER-L-130B-BS-31-20-NN-N-3-S2AP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S2APA1NNNNNNNNNN |
| 83042754 | ER-L-130B-BS-31-20-NN-N-3-S2AP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S2APA1NNNNNNNNNN |
| 7000652 | ER-L-130B-BS-31-20-NN-N-3-S2CP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S2CPA1NAAANNNNNN |
| 83015623 | ER-L-130B-BS-31-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S2CPA1NNNNNNNNNN |
| 83046801 | ER-L-130B-BS-31-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S2NLA1NAAANNNNNN |
| 7000620 | ER-L-130B-BS-31-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S2NLA1NNNNNNNNNN |
| 83037465 | ER-L-130B-BS-31-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S2NLA1NNNNNNNNNN |
| 80003271 | ER-L-130B-BS-31-20-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S2NPA1NAAANNNNNN |
| 83052317 | ER-L-130B-BS-31-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S2NPA1NNNNNNNNNN |
| 80003299 | ER-L-130B-BS-31-20-NN-N-3-S2WP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S2WPA1NAAANNNNNN |
| 83052678 | ER-L-130B-BS-31-20-NN-N-3-S2WP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S2WPA1NNNNNNNNNN |
| 83001707 | ER-L-130B-BS-31-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S4APA1NAAANNNNNN |
| 83047159 | ER-L-130B-BS-31-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S4APA1NAAANNNNNN |
| 83047725 | ER-L-130B-BS-31-20-NN-N-3-S4AP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S4APA1NNNNNNNNNN |
| 83001708 | ER-L-130B-BS-31-20-NN-N-3-S4BP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S4BPA1NAAANNNNNN |
| 83006831 | ER-L-130B-BS-31-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S4BPA1NNNNNNNNNN |
| 83037539 | ER-L-130B-BS-31-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S4BPA1NNNNNNNNNN |
| 83001710 | ER-L-130B-BS-31-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S4CPA1NAAANNNNNN |
| 83038555 | ER-L-130B-BS-31-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S4CPA1NAAANNNNNN |
| 80005392 | ER-L-130B-BS-31-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S4CPA1NNNNNNNNNN |
| 83037478 | ER-L-130B-BS-31-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S4CPA1NNNNNNNNNN |
| 7000553 | ER-L-130B-BS-31-20-NN-N-3-S4NP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S4NPA1NAAANNNNNN |
| 83037459 | ER-L-130B-BS-31-20-NN-N-3-S4NP-A1N-AAA-NNN-NNN | ERL130BBS3120NNN3S4NPA1NAAANNNNNN |
| 80005393 | ER-L-130B-BS-31-20-NN-N-3-S4NP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S4NPA1NNNNNNNNNN |
| 83064964 | ER-L-130B-BS-31-20-NN-N-3-S4VP-A1N-NNN-NNN-NNN | ERL130BBS3120NNN3S4VPA1NNNNNNNNNN |
| 83010397 | ER-L-130B-BS-31-24-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BBS3124NNN3S1CPA1NNNNNNNNNN |
| 83002754 | ER-L-130B-BS-31-25-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BBS3125NNN3S1NPA1NNNNNNNNNN |
| 83037523 | ER-L-130B-BS-31-25-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BBS3125NNN3S1NPA1NNNNNNNNNN |
| 83012926 | ER-L-130B-BS-31-25-NN-N-3-S4WP-A1N-NNN-NNN-NNN | ERL130BBS3125NNN3S4WPA1NNNNNNNNNN |
| 83037559 | ER-L-130B-BS-31-25-NN-N-3-S4WP-A1N-NNN-NNN-NNN | ERL130BBS3125NNN3S4WPA1NNNNNNNNNN |
| 83053604 | ER-L-130B-BS-31-28-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BBS3128NNN3S1NLA1NAAANNNNNN |
| 83005976 | ER-L-130B-BS-31-30-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL130BBS3130NNN3K5NPA1NAAANNNNNN |
| 83038322 | ER-L-130B-CK-24-20-NN-E-3-S1BP-A1N-AAA-NNN-NNN | ERL130BCK2420NNE3S1BPA1NAAANNNNNN |
| 83034335 | ER-L-130B-DK-31-20-NN-F-3-S1NL-A1N-NNN-NNN-NNN | ERL130BDK3120NNF3S1NLA1NNNNNNNNNN |
| 83040846 | ER-L-130B-DK-31-20-NN-F-3-S1NL-A1N-NNN-NNN-NNN | ERL130BDK3120NNF3S1NLA1NNNNNNNNNN |
| 83041663 | ER-L-130B-FA-24-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BFA2420NNN3S1NLA1NAAANNNNNN |
| 83037821 | ER-L-130B-FF-25-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BFF2520NNN3S1BPA1NNNNNNNNNN |
| 83036200 | ER-L-130B-FF-25-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL130BFF2520NNN3S1RPA1NNNNNNNNNN |
| 83036199 | ER-L-130B-FF-25-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BFF2520NNN3S4CPA1NNNNNNNNNN |
| 83049828 | ER-L-130B-FG-28-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BFG2820NNN3S1BPA1NNNNNNNNNN |
| 83042888 | ER-L-130B-FN-31-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BFN3120NNN3S1BPA1NNNNNNNNNN |
| 83058378 | ER-L-130B-LB-14-20-NN-F-3-S1BP-A1N-AAA-NNN-NNN | ERL130BLB1420NNF3S1BPA1NAAANNNNNN |
| 11114205 | ER-L-130B-LB-17-15-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BLB1715NNN3S1APA1NAAANNNNNN |
| 83037730 | ER-L-130B-LB-17-15-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BLB1715NNN3S1APA1NAAANNNNNN |
| 11105767 | ER-L-130B-LB-17-15-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BLB1715NNN3S1RPA1NAAANNNNNN |
| 83040858 | ER-L-130B-LB-17-15-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BLB1715NNN3S1RPA1NAAANNNNNN |
| 83032274 | ER-L-130B-LB-18-17-NN-F-3-S2AP-A1N-AAA-NNN-NNN | ERL130BLB1817NNF3S2APA1NAAANNNNNN |
| 7000568 | ER-L-130B-LB-21-11-NN-N-3-S4NL-A1N-AAA-NNN-NNN | ERL130BLB2111NNN3S4NLA1NAAANNNNNN |
| 7000610 | ER-L-130B-LB-21-14-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL130BLB2114NNN3S4BPA1NNNNNNNNNN |
| 7000535 | ER-L-130B-LB-21-20-NN-N-3-S2CP-A1N-AAA-NNN-NNN | ERL130BLB2120NNN3S2CPA1NAAANNNNNN |
| 7000643 | ER-L-130B-LB-24-20-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL130BLB2420NNN3K5NLA1NAAANNNNNN |
| 7000641 | ER-L-130B-LB-24-23-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLB2423NNN3S1NLA1NNNNNNNNNN |
| 7000640 | ER-L-130B-LB-25-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BLB2520NNN3K5NPA1NNNNNNNNNN |
| 7000598 | ER-L-130B-LB-25-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLB2520NNN3S1NPA1NNNNNNNNNN |
| 83014431 | ER-L-130B-LB-25-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL130BLB2520NNN3S4BPA1NNNNNNNNNN |
| 7000597 | ER-L-130B-LB-25-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLB2520NNN3S4CPA1NNNNNNNNNN |
| 83013572 | ER-L-130B-LB-25-20-NN-N-3-S4NL-A1N-AAA-NNN-NNN | ERL130BLB2520NNN3S4NLA1NAAANNNNNN |
| 83031228 | ER-L-130B-LB-26-20-NN-F-3-S2BP-A1N-NNN-NNN-NNN | ERL130BLB2620NNF3S2BPA1NNNNNNNNNN |
| 83031241 | ER-L-130B-LB-26-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL130BLB2620NNN3S2BPA1NNNNNNNNNN |
| 83022294 | ER-L-130B-LB-26-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLB2620NNN3S2NPA1NNNNNNNNNN |
| 83058316 | ER-L-130B-LS-10-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS1020NNN3S1NLA1NNNNNNNNNN |
| 83014410 | ER-L-130B-LS-14-20-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL130BLS1420NNN3K5NLA1NAAANNNNNN |
| 83014679 | ER-L-130B-LS-14-28-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BLS1428NNN3S1NLA1NAAANNNNNN |
| 83064753 | ER-L-130B-LS-14-30-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS1430NNN3S1APA1NNNNNNNNNN |
| 83020084 | ER-L-130B-LS-15-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL130BLS1520NNN3S2BPA1NNNNNNNNNN |
| 83081074 | ER-L-130B-LS-16-15-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS1615NNN3S1CPA1NAAANNNNNN |
| 83037077 | ER-L-130B-LS-16-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS1620NNN3S1CPA1NNNNNNNNNN |
| 83038023 | ER-L-130B-LS-16-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS1620NNN3S1CPA1NNNNNNNNNN |
| 83005420 | ER-L-130B-LS-17-17-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS1717NNN3S1NLA1NNNNNNNNNN |
| 83001453 | ER-L-130B-LS-17-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS1720NNN3S1NPA1NNNNNNNNNN |
| 83011749 | ER-L-130B-LS-17-30-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BLS1730NNN3K5NPA1NNNNNNNNNN |
| 7000647 | ER-L-130B-LS-18-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BLS1820NNN3K5NPA1NNNNNNNNNN |
| 83041361 | ER-L-130B-LS-18-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS1820NNN3S1CPA1NAAANNNNNN |
| 7000653 | ER-L-130B-LS-18-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS1820NNN3S1CPA1NNNNNNNNNN |
| 83001383 | ER-L-130B-LS-18-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS1820NNN3S1NPA1NNNNNNNNNN |
| 83009463 | ER-L-130B-LS-18-20-NN-N-3-S2AP-A1N-NNN-NNN-NNN | ERL130BLS1820NNN3S2APA1NNNNNNNNNN |
| 7000677 | ER-L-130B-LS-18-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL130BLS1820NNN3S2RPA1NAAANNNNNN |
| 83031015 | ER-L-130B-LS-18-32-NN-N-3-K5RP-A1N-NNN-NNN-NNN | ERL130BLS1832NNN3K5RPA1NNNNNNNNNN |
| 83058935 | ER-L-130B-LS-19-20-NN-E-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS1920NNE3S1NLA1NNNNNNNNNN |
| 7000533 | ER-L-130B-LS-19-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS1920NNN3S1NLA1NNNNNNNNNN |
| 80002598 | ER-L-130B-LS-19-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS1920NNN3S4CPA1NNNNNNNNNN |
| 83047158 | ER-L-130B-LS-19-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS1920NNN3S4CPA1NNNNNNNNNN |
| 7000546 | ER-L-130B-LS-19-20-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL130BLS1920NNN3S4NLA1NNNNNNNNNN |
| 83051419 | ER-L-130B-LS-20-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL130BLS2020NNN3K5CPA1NAAANNNNNN |
| 83052852 | ER-L-130B-LS-20-20-NN-N-3-K5WP-A1N-AAA-NNN-NNN | ERL130BLS2020NNN3K5WPA1NAAANNNNNN |
| 83008743 | ER-L-130B-LS-20-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BLS2020NNN3S1BPA1NNNNNNNNNN |
| 83011077 | ER-L-130B-LS-20-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS2020NNN3S1CPA1NNNNNNNNNN |
| 83001399 | ER-L-130B-LS-20-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2020NNN3S1NPA1NAAANNNNNN |
| 83012835 | ER-L-130B-LS-20-20-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL130BLS2020NNN3S1VPA1NNNNNNNNNN |
| 83052853 | ER-L-130B-LS-20-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL130BLS2020NNN3S2RPA1NAAANNNNNN |
| 83064464 | ER-L-130B-LS-20-21-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2021NNN3S1NPA1NAAANNNNNN |
| 80005830 | ER-L-130B-LS-20-25-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BLS2025NNN3S2NLA1NNNNNNNNNN |
| 83040011 | ER-L-130B-LS-20-28-NN-N-3-K5RP-A1N-NNN-NNN-NNN | ERL130BLS2028NNN3K5RPA1NNNNNNNNNN |
| 7000681 | ER-L-130B-LS-20-30-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2030NNN3S1NPA1NAAANNNNNN |
| 701538 | ER-L-130B-LS-21-10-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL130BLS2110NNN3S1RPA1NNNNNNNNNN |
| 83080108 | ER-L-130B-LS-21-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL130BLS2120NNN3K5CPA1NAAANNNNNN |
| 83023364 | ER-L-130B-LS-21-20-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL130BLS2120NNN3K5NLA1NAAANNNNNN |
| 83039813 | ER-L-130B-LS-21-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S1BPA1NNNNNNNNNN |
| 83036224 | ER-L-130B-LS-21-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS2120NNN3S1CPA1NAAANNNNNN |
| 83013746 | ER-L-130B-LS-21-20-NN-N-3-S1NL-A1N-NNN-NNN-NNJ | ERL130BLS2120NNN3S1NLA1NNNNNNNNNJ |
| 7000593 | ER-L-130B-LS-21-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S1NLA1NNNNNNNNNN |
| 83001374 | ER-L-130B-LS-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S1NPA1NNNNNNNNNN |
| 83036223 | ER-L-130B-LS-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BLS2120NNN3S1RPA1NAAANNNNNN |
| 83060821 | ER-L-130B-LS-21-20-NN-N-3-S1VP-A1N-AAA-NNN-NNN | ERL130BLS2120NNN3S1VPA1NAAANNNNNN |
| 83040580 | ER-L-130B-LS-21-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S2NLA1NNNNNNNNNN |
| 83040593 | ER-L-130B-LS-21-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S2NLA1NNNNNNNNNN |
| 7000501 | ER-L-130B-LS-21-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S2NPA1NNNNNNNNNN |
| 83037616 | ER-L-130B-LS-21-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S2NPA1NNNNNNNNNN |
| 11000916 | ER-L-130B-LS-21-20-NN-N-3-S2RP-A1N-NNN-NNN-NNN | ERL130BLS2120NNN3S2RPA1NNNNNNNNNN |
| 83010865 | ER-L-130B-LS-21-25-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BLS2125NNN3S1APA1NAAANNNNNN |
| 80005693 | ER-L-130B-LS-21-25-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS2125NNN3S1APA1NNNNNNNNNN |
| 7000615 | ER-L-130B-LS-21-25-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS2125NNN3S1CPA1NNNNNNNNNN |
| 83055739 | ER-L-130B-LS-21-25-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BLS2125NNN3S1NLA1NAAANNNNNN |
| 83001372 | ER-L-130B-LS-21-25-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2125NNN3S1NLA1NNNNNNNNNN |
| 83001351 | ER-L-130B-LS-21-25-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2125NNN3S1NPA1NNNNNNNNNN |
| 83037497 | ER-L-130B-LS-21-25-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2125NNN3S1NPA1NNNNNNNNNN |
| 83019609 | ER-L-130B-LS-21-25-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL130BLS2125NNN3S1RPA1NNNNNNNNNN |
| 7000575 | ER-L-130B-LS-21-25-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLS2125NNN3S2NPA1NNNNNNNNNN |
| 7000662 | ER-L-130B-LS-21-30-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS2130NNN3S1CPA1NNNNNNNNNN |
| 7000663 | ER-L-130B-LS-21-30-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2130NNN3S1NPA1NNNNNNNNNN |
| 701991 | ER-L-130B-LS-21-30-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL130BLS2130NNN3S2NPA1NAAANNNNNN |
| 7000559 | ER-L-130B-LS-21-31-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2131NNN3S1NPA1NNNNNNNNNN |
| 83037460 | ER-L-130B-LS-21-31-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2131NNN3S1NPA1NNNNNNNNNN |
| 83050181 | ER-L-130B-LS-22-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BLS2220NNN3S1BPA1NAAANNNNNN |
| 83064110 | ER-L-130B-LS-22-20-NN-N-3-S1N1-A1N-NNN-NNN-NNN | ERL130BLS2220NNN3S1N1A1NNNNNNNNNN |
| 11089036 | ER-L-130B-LS-22-20-NN-N-3-S4RP-A1N-AAA-NNN-NNN | ERL130BLS2220NNN3S4RPA1NAAANNNNNN |
| 83040865 | ER-L-130B-LS-22-20-NN-N-3-S4RP-A1N-AAA-NNN-NNN | ERL130BLS2220NNN3S4RPA1NAAANNNNNN |
| 83011282 | ER-L-130B-LS-22-22-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2222NNN3S1NPA1NNNNNNNNNN |
| 83008566 | ER-L-130B-LS-22-28-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS2228NNN3S1APA1NNNNNNNNNN |
| 83037543 | ER-L-130B-LS-22-28-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS2228NNN3S1APA1NNNNNNNNNN |
| 83024628 | ER-L-130B-LS-23-10-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS2310NNN3S1CPA1NNNNNNNNNN |
| 11057868 | ER-L-130B-LS-23-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BLS2320NNN3S1APA1NAAANNNNNN |
| 83029628 | ER-L-130B-LS-23-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BLS2320NNN3S1APA1NAAANNNNNN |
| 83037713 | ER-L-130B-LS-23-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BLS2320NNN3S1APA1NAAANNNNNN |
| 83009146 | ER-L-130B-LS-23-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BLS2320NNN3S1NLA1NAAANNNNNN |
| 83037769 | ER-L-130B-LS-23-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BLS2320NNN3S1NLA1NAAANNNNNN |
| 83031924 | ER-L-130B-LS-23-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2320NNN3S1NPA1NNNNNNNNNN |
| 83022931 | ER-L-130B-LS-23-21-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2321NNN3S1NPA1NAAANNNNNN |
| 83024108 | ER-L-130B-LS-23-34-NN-N-3-K5CP-A1N-NNN-NNN-NNN | ERL130BLS2334NNN3K5CPA1NNNNNNNNNN |
| 83057420 | ER-L-130B-LS-24-15-NN-F-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2415NNF3S1NLA1NNNNNNNNNN |
| 83057445 | ER-L-130B-LS-24-15-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2415NNN3S1NLA1NNNNNNNNNN |
| 83001486 | ER-L-130B-LS-24-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2420NNN3S1NPA1NNNNNNNNNN |
| 83037516 | ER-L-130B-LS-24-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2420NNN3S1NPA1NNNNNNNNNN |
| 11067917 | ER-L-130B-LS-24-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL130BLS2420NNN3S4CPA1NAAANNNNNN |
| 83037716 | ER-L-130B-LS-24-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL130BLS2420NNN3S4CPA1NAAANNNNNN |
| 83053820 | ER-L-130B-LS-24-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS2420NNN3S4CPA1NNNNNNNNNN |
| 7000639 | ER-L-130B-LS-24-20-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL130BLS2420NNN3S4NLA1NNNNNNNNNN |
| 83016782 | ER-L-130B-LS-24-24-NN-N-3-S4AP-A1N-NNN-NNN-NNN | ERL130BLS2424NNN3S4APA1NNNNNNNNNN |
| 83014010 | ER-L-130B-LS-24-28-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS2428NNN3S1CPA1NNNNNNNNNN |
| 83037563 | ER-L-130B-LS-24-28-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS2428NNN3S1CPA1NNNNNNNNNN |
| 83051658 | ER-L-130B-LS-25-13-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL130BLS2513NNN3S1VPA1NNNNNNNNNN |
| 83048287 | ER-L-130B-LS-25-20-NN-N-3-K5AP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3K5APA1NNNNNNNNNN |
| 83068799 | ER-L-130B-LS-25-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3K5BPA1NAAANNNNNN |
| 7000517 | ER-L-130B-LS-25-20-NN-N-3-K5BP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3K5BPA1NNNNNNNNNN |
| 83025808 | ER-L-130B-LS-25-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3K5CPA1NAAANNNNNN |
| 83040784 | ER-L-130B-LS-25-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3K5CPA1NAAANNNNNN |
| 83013229 | ER-L-130B-LS-25-20-NN-N-3-K5CP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3K5CPA1NNNNNNNNNN |
| 7000520 | ER-L-130B-LS-25-20-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3K5NLA1NAAANNNNNN |
| 83019653 | ER-L-130B-LS-25-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3K5NPA1NAAANNNNNN |
| 7000631 | ER-L-130B-LS-25-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3K5NPA1NNNNNNNNNN |
| 11001152 | ER-L-130B-LS-25-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3K5NPA1NNNNNNNNNN |
| 83037629 | ER-L-130B-LS-25-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3K5NPA1NNNNNNNNNN |
| 11001165 | ER-L-130B-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3K5RPA1NAAANNNNNN |
| 83092475 | ER-L-130B-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3K5RPA1NAAANNNNNN |
| 83012165 | ER-L-130B-LS-25-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1APA1NAAANNNNNN |
| 83011570 | ER-L-130B-LS-25-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1APA1NNNNNNNNNN |
| 80001765 | ER-L-130B-LS-25-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1BPA1NAAANNNNNN |
| 80003135 | ER-L-130B-LS-25-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1BPA1NNNNNNNNNN |
| 83037486 | ER-L-130B-LS-25-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1BPA1NNNNNNNNNN |
| 80006356 | ER-L-130B-LS-25-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1CPA1NAAANNNNNN |
| 83059353 | ER-L-130B-LS-25-20-NN-N-3-S1N1-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1N1A1NNNNNNNNNN |
| 701350 | ER-L-130B-LS-25-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1NLA1NAAANNNNNN |
| 83002848 | ER-L-130B-LS-25-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1NLA1NAAANNNNNN |
| 83008011 | ER-L-130B-LS-25-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1NLA1NNNNNNNNNN |
| 701579 | ER-L-130B-LS-25-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1NPA1NAAANNNNNN |
| 83008962 | ER-L-130B-LS-25-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1NPA1NAAANNNNNN |
| 7000522 | ER-L-130B-LS-25-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1NPA1NNNNNNNNNN |
| 83037454 | ER-L-130B-LS-25-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1NPA1NNNNNNNNNN |
| 11084611 | ER-L-130B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1RPA1NAAANNNNNN |
| 83023413 | ER-L-130B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1RPA1NAAANNNNNN |
| 83040857 | ER-L-130B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S1RPA1NAAANNNNNN |
| 83063325 | ER-L-130B-LS-25-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S1RPA1NNNNNNNNNN |
| 11000773 | ER-L-130B-LS-25-20-NN-N-3-S2AP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S2APA1NAAANNNNNN |
| 83010212 | ER-L-130B-LS-25-20-NN-N-3-S2AP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S2APA1NAAANNNNNN |
| 83008548 | ER-L-130B-LS-25-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S2BPA1NAAANNNNNN |
| 83037766 | ER-L-130B-LS-25-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S2BPA1NAAANNNNNN |
| 83003063 | ER-L-130B-LS-25-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S2CPA1NNNNNNNNNN |
| 7000506 | ER-L-130B-LS-25-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S2NLA1NAAANNNNNN |
| 7000500 | ER-L-130B-LS-25-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S2NLA1NNNNNNNNNN |
| 702510 | ER-L-130B-LS-25-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S2NPA1NNNNNNNNNN |
| 83053819 | ER-L-130B-LS-25-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S2NPA1NNNNNNNNNN |
| 7000507 | ER-L-130B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S2RPA1NAAANNNNNN |
| 83040849 | ER-L-130B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S2RPA1NAAANNNNNN |
| 83003007 | ER-L-130B-LS-25-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S4BPA1NNNNNNNNNN |
| 83037667 | ER-L-130B-LS-25-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S4BPA1NNNNNNNNNN |
| 701947 | ER-L-130B-LS-25-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S4CPA1NNNNNNNNNN |
| 83056558 | ER-L-130B-LS-25-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S4CPA1NNNNNNNNNN |
| 11089035 | ER-L-130B-LS-25-20-NN-N-3-S4RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S4RPA1NAAANNNNNN |
| 83028380 | ER-L-130B-LS-25-20-NN-N-3-S4RP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S4RPA1NAAANNNNNN |
| 700479 | ER-L-130B-LS-25-20-NN-N-3-S4RP-A1N-NNN-NNN-NNN | ERL130BLS2520NNN3S4RPA1NNNNNNNNNN |
| 701646 | ER-L-130B-LS-25-20-NN-N-3-S4WP-A1N-AAA-NNN-NNN | ERL130BLS2520NNN3S4WPA1NAAANNNNNN |
| 83043233 | ER-L-130B-LS-25-22-NN-E-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS2522NNE3S1APA1NNNNNNNNNN |
| 83010694 | ER-L-130B-LS-25-25-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BLS2525NNN3S1BPA1NNNNNNNNNN |
| 83037549 | ER-L-130B-LS-25-25-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BLS2525NNN3S1BPA1NNNNNNNNNN |
| 83068618 | ER-L-130B-LS-25-25-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BLS2525NNN3S1CPA1NNNNNNNNNN |
| 83068617 | ER-L-130B-LS-25-25-NN-N-3-S1N1-A1N-NNN-NNN-NNN | ERL130BLS2525NNN3S1N1A1NNNNNNNNNN |
| 83068619 | ER-L-130B-LS-25-25-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2525NNN3S1NLA1NNNNNNNNNN |
| 83005375 | ER-L-130B-LS-26-12-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL130BLS2612NNN3K5NPA1NAAANNNNNN |
| 7000682 | ER-L-130B-LS-26-14-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS2614NNN3S1CPA1NAAANNNNNN |
| 83037664 | ER-L-130B-LS-26-14-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS2614NNN3S1CPA1NAAANNNNNN |
| 7000607 | ER-L-130B-LS-26-20-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL130BLS2620NNN3K5NLA1NNNNNNNNNN |
| 83057894 | ER-L-130B-LS-26-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BLS2620NNN3S1BPA1NNNNNNNNNN |
| 83018368 | ER-L-130B-LS-26-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S1CPA1NAAANNNNNN |
| 83031696 | ER-L-130B-LS-26-20-NN-N-3-S1N1-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S1N1A1NAAANNNNNN |
| 83037611 | ER-L-130B-LS-26-20-NN-N-3-S1N1-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S1N1A1NAAANNNNNN |
| 83031214 | ER-L-130B-LS-26-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S1NLA1NAAANNNNNN |
| 83001485 | ER-L-130B-LS-26-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S1NPA1NAAANNNNNN |
| 11178624 | ER-L-130B-LS-26-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S1RPA1NAAANNNNNN |
| 80003513 | ER-L-130B-LS-26-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL130BLS2620NNN3S2BPA1NNNNNNNNNN |
| 83047157 | ER-L-130B-LS-26-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL130BLS2620NNN3S2BPA1NNNNNNNNNN |
| 83004337 | ER-L-130B-LS-26-20-NN-N-3-S2CP-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S2CPA1NAAANNNNNN |
| 83037960 | ER-L-130B-LS-26-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BLS2620NNN3S2CPA1NNNNNNNNNN |
| 83002298 | ER-L-130B-LS-26-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS2620NNN3S4CPA1NNNNNNNNNN |
| 83037763 | ER-L-130B-LS-26-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS2620NNN3S4CPA1NNNNNNNNNN |
| 80006225 | ER-L-130B-LS-26-20-NN-N-3-S4NL-A1N-AAA-NNN-NNN | ERL130BLS2620NNN3S4NLA1NAAANNNNNN |
| 83021747 | ER-L-130B-LS-26-23-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BLS2623NNN3S2NLA1NNNNNNNNNN |
| 83037582 | ER-L-130B-LS-26-23-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BLS2623NNN3S2NLA1NNNNNNNNNN |
| 80005451 | ER-L-130B-LS-26-24-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS2624NNN3S1APA1NNNNNNNNNN |
| 83047156 | ER-L-130B-LS-26-24-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BLS2624NNN3S1APA1NNNNNNNNNN |
| 83015657 | ER-L-130B-LS-27-20-NN-N-3-S4U6-A1N-NNN-NNN-NNN | ERL130BLS2720NNN3S4U6A1NNNNNNNNNN |
| 83006412 | ER-L-130B-LS-27-22-NN-N-3-S1D6-A1N-NNN-NNN-CNP | ERL130BLS2722NNN3S1D6A1NNNNNNNCNP |
| 83016379 | ER-L-130B-LS-28-15-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2815NNN3S1NPA1NAAANNNNNN |
| 80006448 | ER-L-130B-LS-28-20-NN-N-3-K5AP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3K5APA1NNNNNNNNNN |
| 83002607 | ER-L-130B-LS-28-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3K5NPA1NNNNNNNNNN |
| 83009132 | ER-L-130B-LS-28-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S1BPA1NAAANNNNNN |
| 83044628 | ER-L-130B-LS-28-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S1BPA1NAAANNNNNN |
| 83044734 | ER-L-130B-LS-28-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S1CPA1NAAANNNNNN |
| 701144 | ER-L-130B-LS-28-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S1NLA1NNNNNNNNNN |
| 83021335 | ER-L-130B-LS-28-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S1NLA1NNNNNNNNNN |
| 83008234 | ER-L-130B-LS-28-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S1NPA1NAAANNNNNN |
| 80006045 | ER-L-130B-LS-28-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S1NPA1NNNNNNNNNN |
| 83037493 | ER-L-130B-LS-28-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S1NPA1NNNNNNNNNN |
| 83040725 | ER-L-130B-LS-28-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S1RPA1NNNNNNNNNN |
| 702001 | ER-L-130B-LS-28-20-NN-N-3-S2CP-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S2CPA1NAAANNNNNN |
| 83015622 | ER-L-130B-LS-28-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S2CPA1NNNNNNNNNN |
| 7000519 | ER-L-130B-LS-28-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S2NLA1NAAANNNNNN |
| 80003677 | ER-L-130B-LS-28-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S2NPA1NNNNNNNNNN |
| 83037752 | ER-L-130B-LS-28-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S2NPA1NNNNNNNNNN |
| 83002787 | ER-L-130B-LS-28-20-NN-N-3-S4AP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S4APA1NNNNNNNNNN |
| 83037524 | ER-L-130B-LS-28-20-NN-N-3-S4AP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S4APA1NNNNNNNNNN |
| 83029560 | ER-L-130B-LS-28-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S4CPA1NAAANNNNNN |
| 83006504 | ER-L-130B-LS-28-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S4CPA1NNNNNNNNNN |
| 83037538 | ER-L-130B-LS-28-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S4CPA1NNNNNNNNNN |
| 702288 | ER-L-130B-LS-28-20-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL130BLS2820NNN3S4NLA1NNNNNNNNNN |
| 83025440 | ER-L-130B-LS-28-20-NN-N-3-S4NP-A1N-AAA-NNN-NNN | ERL130BLS2820NNN3S4NPA1NAAANNNNNN |
| 83046830 | ER-L-130B-LS-28-21-NN-N-3-S2NP-A1N-NNN-NNN-CNP | ERL130BLS2821NNN3S2NPA1NNNNNNNCNP |
| 83033108 | ER-L-130B-LS-28-23-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BLS2823NNN3S1BPA1NAAANNNNNN |
| 83092662 | ER-L-130B-LS-28-24-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BLS2824NNN3S1BPA1NAAANNNNNN |
| 80003997 | ER-L-130B-LS-28-25-NN-N-3-S4BP-A1N-AAA-NNN-NNN | ERL130BLS2825NNN3S4BPA1NAAANNNNNN |
| 83037488 | ER-L-130B-LS-28-25-NN-N-3-S4BP-A1N-AAA-NNN-NNN | ERL130BLS2825NNN3S4BPA1NAAANNNNNN |
| 7000674 | ER-L-130B-LS-28-28-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL130BLS2828NNN3S2BPA1NAAANNNNNN |
| 83066911 | ER-L-130B-LS-28-34-NN-F-3-S1CP-A1N-AAA-NNN-NNN | ERL130BLS2834NNF3S1CPA1NAAANNNNNN |
| 7000603 | ER-L-130B-LS-30-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL130BLS3020NNN3S2BPA1NAAANNNNNN |
| 83061236 | ER-L-130B-PC-10-NN-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BPC10NNNNN3K5NPA1NNNNNNNNNN |
| 83008524 | ER-L-130B-PC-10-NN-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BPC10NNNNN3S1CPA1NNNNNNNNNN |
| 7000626 | ER-L-130B-PC-10-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BPC10NNNNN3S1NPA1NNNNNNNNNN |
| 83051083 | ER-L-130B-PC-10-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BPC10NNNNN3S1NPA1NNNNNNNNNN |
| 11002269 | ER-L-130B-PC-13-NN-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL130BPC13NNNNN3K5NLA1NNNNNNNNNN |
| 7000545 | ER-L-130B-PC-14-NN-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BPC14NNNNN3K5NPA1NNNNNNNNNN |
| 7000557 | ER-L-130B-PC-16-NN-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL130BPC16NNNNN3K5NPA1NNNNNNNNNN |
| 83013607 | ER-L-130B-PC-17-NN-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BPC17NNNNN3S1NLA1NAAANNNNNN |
| 83013532 | ER-L-130B-PC-17-NN-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BPC17NNNNN3S1NLA1NNNNNNNNNN |
| 83013459 | ER-L-130B-PC-17-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BPC17NNNNN3S1NPA1NNNNNNNNNN |
| 83013266 | ER-L-130B-PC-18-NN-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BPC18NNNNN3S1BPA1NNNNNNNNNN |
| 83023864 | ER-L-130B-PC-20-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BPC20NNNNN3S1NPA1NNNNNNNNNN |
| 83024662 | ER-L-130B-PC-20-NN-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BPC20NNNNN3S1RPA1NAAANNNNNN |
| 83004554 | ER-L-130B-PC-20-NN-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL130BPC20NNNNN3S2NPA1NAAANNNNNN |
| 83059457 | ER-L-130B-PC-20-NN-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL130BPC20NNNNN3S2NPA1NAAANNNNNN |
| 83051109 | ER-L-130B-PC-20-NN-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BPC20NNNNN3S4CPA1NNNNNNNNNN |
| 83001934 | ER-L-130B-PC-21-NN-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL130BPC21NNNNN3K5NLA1NAAANNNNNN |
| 83001749 | ER-L-130B-PC-21-NN-NN-N-3-K5WP-A1N-NNN-NNN-NNN | ERL130BPC21NNNNN3K5WPA1NNNNNNNNNN |
| 7000686 | ER-L-130B-PC-21-NN-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BPC21NNNNN3S1CPA1NAAANNNNNN |
| 7000621 | ER-L-130B-PC-21-NN-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BPC21NNNNN3S2CPA1NNNNNNNNNN |
| 83001751 | ER-L-130B-PC-21-NN-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BPC21NNNNN3S2NLA1NNNNNNNNNN |
| 83050063 | ER-L-130B-PC-22-NN-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BPC22NNNNN3S1BPA1NAAANNNNNN |
| 7000687 | ER-L-130B-PC-25-NN-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL130BPC25NNNNN3K5CPA1NAAANNNNNN |
| 83054404 | ER-L-130B-PC-25-NN-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL130BPC25NNNNN3K5NLA1NNNNNNNNNN |
| 7000552 | ER-L-130B-PC-25-NN-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL130BPC25NNNNN3S1BPA1NAAANNNNNN |
| 7000608 | ER-L-130B-PC-25-NN-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BPC25NNNNN3S1NPA1NAAANNNNNN |
| 83037463 | ER-L-130B-PC-25-NN-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BPC25NNNNN3S1NPA1NAAANNNNNN |
| 83011634 | ER-L-130B-PC-25-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BPC25NNNNN3S1NPA1NNNNNNNNNN |
| 701931 | ER-L-130B-PC-25-NN-NN-N-3-S2AP-A1N-AAA-NNN-NNN | ERL130BPC25NNNNN3S2APA1NAAANNNNNN |
| 7000502 | ER-L-130B-PC-25-NN-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL130BPC25NNNNN3S2NLA1NAAANNNNNN |
| 83013357 | ER-L-130B-PC-25-NN-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL130BPC25NNNNN3S4APA1NAAANNNNNN |
| 83034473 | ER-L-130B-PC-28-NN-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL130BPC28NNNNN3S1CPA1NAAANNNNNN |
| 83057382 | ER-L-130B-PC-28-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BPC28NNNNN3S1NPA1NNNNNNNNNN |
| 83008920 | ER-L-130B-RP-10-20-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL130BRP1020NNN3K5NLA1NAAANNNNNN |
| 83035028 | ER-L-130B-RP-17-12-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL130BRP1712NNN3S1NLA1NNNNNNNNNN |
| 83001426 | ER-L-130B-RP-17-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL130BRP1720NNN3S1NPA1NAAANNNNNN |
| 80006626 | ER-L-130B-RP-17-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BRP1720NNN3S4CPA1NNNNNNNNNN |
| 80005259 | ER-L-130B-RP-18-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BRP1820NNN3S2CPA1NNNNNNNNNN |
| 80004097 | ER-L-130B-RP-18-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BRP1820NNN3S2NLA1NNNNNNNNNN |
| 80002394 | ER-L-130B-RP-19-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BRP1920NNN3S2CPA1NNNNNNNNNN |
| 83050789 | ER-L-130B-RP-20-20-NN-E-3-S1NP-A1N-AAA-NNN-NNN | ERL130BRP2020NNE3S1NPA1NAAANNNNNN |
| 83001028 | ER-L-130B-RP-21-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BRP2120NNN3S1BPA1NNNNNNNNNN |
| 83011137 | ER-L-130B-RP-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BRP2120NNN3S1NPA1NNNNNNNNNN |
| 83011886 | ER-L-130B-RP-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BRP2120NNN3S1NPA1NNNNNNNNNN |
| 83037554 | ER-L-130B-RP-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BRP2120NNN3S1NPA1NNNNNNNNNN |
| 83037557 | ER-L-130B-RP-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL130BRP2120NNN3S1NPA1NNNNNNNNNN |
| 83032579 | ER-L-130B-RP-21-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL130BRP2120NNN3S2CPA1NNNNNNNNNN |
| 83052442 | ER-L-130B-RP-21-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL130BRP2120NNN3S4CPA1NNNNNNNNNN |
| 80003684 | ER-L-130B-RP-23-20-NN-N-3-S2AP-A1N-NNN-NNN-NNN | ERL130BRP2320NNN3S2APA1NNNNNNNNNN |
| 80003685 | ER-L-130B-RP-23-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL130BRP2320NNN3S2BPA1NNNNNNNNNN |
| 702631 | ER-L-130B-RP-23-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL130BRP2320NNN3S2NLA1NNNNNNNNNN |
| 83002956 | ER-L-130B-RP-25-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL130BRP2520NNN3S1APA1NAAANNNNNN |
| 80006231 | ER-L-130B-RP-25-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL130BRP2520NNN3S1APA1NNNNNNNNNN |
| 83021108 | ER-L-130B-RP-25-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL130BRP2520NNN3S1BPA1NNNNNNNNNN |
| 83002636 | ER-L-130B-RP-25-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL130BRP2520NNN3S1NLA1NAAANNNNNN |
| 83004674 | ER-L-130B-RP-28-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BRP2820NNN3S1CPA1NNNNNNNNNN |
| 83037762 | ER-L-130B-RP-28-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL130BRP2820NNN3S1CPA1NNNNNNNNNN |
| 83041344 | ER-L-130B-RP-28-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BRP2820NNN3S1RPA1NAAANNNNNN |
| 11160536 | ER-L-130B-RP-28-NN-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL130BRP28NNNNN3S1RPA1NAAANNNNNN |
| 83079835 | ER-L-130B-TF-28-20-NN-N-C-S1NL-A1R-AAA-ANS-NNN | ERL130BTF2820NNNCS1NLA1RAAAANSNNN |
| 83070480 | ER-L-130B-TG-31-20-NN-N-C-K5NL-A1R-NNN-ANS-NNN | ERL130BTG3120NNNCK5NLA1RNNNANSNNN |
| 83052187 | ER-L-130B-TG-31-20-NN-N-C-S1NL-A1R-NNN-ANS-NNN | ERL130BTG3120NNNCS1NLA1RNNNANSNNN |
| 83054460 | ER-L-130B-TG-31-30-NN-N-C-K5NL-A1R-NNN-ANS-NNN | ERL130BTG3130NNNCK5NLA1RNNNANSNNN |
Q1:In which types of machinery and equipment is the ERL130 pump commonly applied?
A1:The ERL130 pump is commonly used in a wide range of heavy-duty mobile machinery. Typical applications include construction equipment such as excavators, wheel loaders, forklifts, and tractors, as well as various road machinery .
Q2:What control options are available for the ERL130 pump, and what is their primary benefit?
A2:The ERL130 pump supports various advanced control options, such as load sensing (LS) and pressure compensation (PC) . These controls allow the pump's operation to be precisely tailored to the specific flow and pressure demands of the system, which contributes to optimized performance and improved energy efficiency in complex hydraulic systems .
Q3:What are the critical steps to troubleshoot if a new ERL130 pump fails to build pressure?
A3:If a new ERL130 pump fails to build pressure, the issue is often related to the system rather than the pump itself. Key steps for troubleshooting include: first, verifying that the pump's rotation direction is correct (clockwise, as indicated on the pump housing); second, checking the suction line for air leaks or blockations; third, ensuring the hydraulic oil viscosity and temperature are suitable for the operating conditions; and finally, confirming that the system's pressure control settings (e.g., the relief valve) are correctly adjusted .
Q4:How to purchase an ERL130 hydraulic pump?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
