For Denison gold cup series M14 variable hydraulic motor
- Product Details
- Product Model
- FAQ

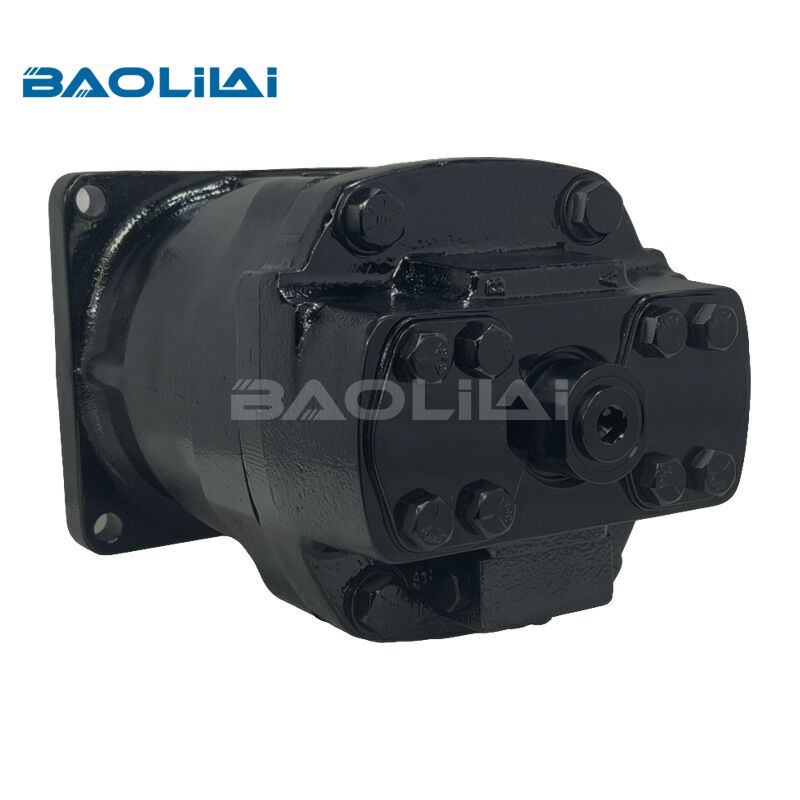

The Denison Gold Cup Series M14 is a robust, high-performance variable hydraulic motor designed for demanding industrial and mobile applications. It is engineered to deliver precise speed and torque control, allowing for variable displacement to match system requirements efficiently. The M14 is renowned for its durability, compact design, and high power density, making it ideal for use in closed-loop hydrostatic transmission circuits, such as in winches, conveyors, and heavy-duty machinery. Key features include excellent low-speed stability, high starting torque, and reliable operation under extreme pressures. Built with high-quality materials, it ensures long service life and minimal energy loss, contributing to overall system efficiency. The motor supports various control options, such as hydraulic, electronic, or manual, for flexible integration. Overall, the Denison Gold Cup Series M14 is a dependable solution for applications requiring variable speed and powerful, consistent hydraulic power in harsh environments.
Specifications
| Series | Terms | M6 | M7 | M8 | M11 | M14 | M24 | P30 | |
| Displacement | Max. displacement | in³/rev | 6.00 | 7.25 | 8.00 | 11.00 | 14.00 | 24.60 | 39.60 |
| cm³/rev | 98.3 | 118.8 | 131.1 | 180.3 | 229.5 | 403.2 | 501.5 | ||
| Pressure | Continuous | psi | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | ||
| Intermittent | psi | 6000 | 6000 | 5000 | 6000 | 6000 | 5500 | 5500 | |
| bar | 420 | 420 | 350 | 420 | 420 | 370 | 370 | ||
| Speed (Motor) | max. @ full stroke | rpm | 3000 | 3000 | 2700 | 2400 | 2400 | 2100 | 1800 |
| Speed (Motor) | max. @ 50% stroke | rpm | 3600 | 3600 | 3000 | 2800 | 2800 | 2100 | 1800 |
| Mounting | Flange - 2 bolt | SAE | 127-2 (C) | 127-2 (C) | 127-2 (C) | - | - | - | - |
| Flange - 4 shaft (opt. 6-7 & 8 ) | SAE | 152-4 (D) | 152-4 (D) | 152-4 (D) | 165-4 (E) | 165-4 (E) | 177-4 (F) | 177-4 (F) | |
| Shaft - keyed | SAE | 32-1 (C) | 32-1 (C) | 32-1 (C) | 44-1 (E) | 44-1 (E) | 50-1 (F) | 50-1 (F) | |
| keyed | SAE | 44-1 (D) | 44-1 (D) | 44-1 (D) | - | - | - | - | |
| Shaft - splined | SAE | 32-4 (C) | 32-4 (C) | 32-4 (C) | 44-4 (E) | 44-4 (E) | 50-4 (F) | 50-4 (F) | |
| splined | SAE | 44-4 (D) | 44-4 (D) | 44-4 (D) | - | - | - | - | |
| Weight (Motor Fixed) | Mass | lbs | 110 | 110 | 110 | 250 | 250 | 510 | 600 |
| kg | 50 | 50 | 50 | 110 | 110 | 230 | 270 | ||
| Weight (Motor Variable) less controls | Mass | lbs | 110 | 110 | 110 | 300 | 300 | 650 | 670 |
| kg | 50 | 50 | 50 | 135 | 135 | 290 | 300 | ||
| Rotating Inertia | lbs-in2 | 92 | 92 | 92 | 290 | 290 | 821 | 977 | |
| Kg.m2 | 0,027 | 0,027 | 0,027 | 0,085 | 0,085 | 0,240 | 0,286 | ||
| Torque (Motor) theo. max. | per 100 psi | lbs-in | 95.5 | 115.4 | 127 | 175 | 222 | 392 | 487 |
| per 100 bar | Nm | 157 | 189 | 208 | 287 | 362 | 623 | 797 | |
| at 5000 psi | lbs-in | 4774 | 5769 | 6366 | 8750 | 11100 | 19576 | 24351 | |
| at 350 bar | Nm | 539,5 | 651,9 | 717 | 990 | 1250 | 2158 | 3752 | |
| Power (Motor) theo. max. at 5000 psi, 350 bar | per 1000 rpm | hp | 7.6 | 9.2 | 10 | 13.8 | 17.6 | 31.1 | 38.6 |
| kW | 5,7 | 6,8 | 7,5 | 10,3 | 13,1 | 23,1 | 28,8 | ||
| at 2000 rpm | hp | 151.5 | 183.1 | 201.5 | 277.8 | 353.5 | 621.3 | 695 | |
| kW | 113,0 | 136,6 | 152 | 207,0 | 263,7 | 463,5 | 518,2 | ||
| Torque (Motor) efficiency | approx.stalled | %theo. | 81 | 81 | 81 | 81 | 81 | 81 | 81 |
| running | %theo. | 93 | 93 | 93 | 93 | 93 | 93 | 93 | |
| Case pressure: max. allowable continuous | psi | 75 | 75 | 75 | 75 | 75 | 75 | ||
| bar | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | |
| Intermittent | psi | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| bar | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | ||
| (Not to exceed 25 psi,1,7 bar above inlet in open circuit units) | |||||||||
Selection Table
| M14 axial piston hydraulic motor | |
| Model No. | Model Code |
| 013441890 | M14F1N1A |
| 013-48794-0 | M14F1N1AM48794 |
| 013-44190-0 | M14F2N1A |
| 013-44190-0 | M14F2N1A0 |
| 013441900 | M14F2N1A0 |
| 023-81807-0 | M14F2N1A1 |
| 023818070 | M14F2N1A1 |
| 013441905 | M14F2N5A0 |
| 023-81807-5 | M14F2N5A1 |
| 023818075 | M14F2N5A1 |
| 013-44191-0 | M14F3N1A |
| 013441910 | M14F3N1A |
| 023-82428-0 | M14F3N1A1 |
| 023824280 | M14F3N1A1 |
| 013441860 | M14G1N1A |
| 013-47290-0 | M14G1N1A02 |
| 013472900 | M14G1N1A02 |
| 013-47669-0 | M14G1N1AM47669 |
| 013-44187-0 | M14G2N1A |
| 013441870 | M14G2N1A |
| 013-44187-0 | M14G2N1A00 |
| 023-00384-0 | M14G2N1A02 |
| 023003840 | M14G2N1A02 |
| 023-09783-0 | M14G2N1A10 |
| 023097830 | M14G2N1A10 |
| 023-00384-5 | M14G2N5A02 |
| 023003845 | M14G2N5A02 |
| 023-09783-5 | M14G2N5A10 |
| 023097835 | M14G2N5A10 |
| 023-09817-5 | M14G2N5A12 |
| 023098175 | M14G2N5A12 |
| 013-44188-0 | M14G3N1A |
| 013441880 | M14G3N1A0 |
| 013-44188-0 | M14G3N1A00 |
| 013-48693-0 | M14G3N1A02 |
| 013486930 | M14G3N1A02 |
| 023-06836-0 | M14G3N1A02M206836 |
| 023-01998-0 | M14G3N1A10 |
| 023019980 | M14G3N1A10 |
| 013441885 | M14G3N5A0 |
| 023-85582-5 | M14G3N5A12 |
| 023855825 | M14G3N5A12 |
| 023885930 | M14G8N1A00 |
| 023-08947-0 | M14G8N1A02 |
| 023089470 | M14G8N1A02 |
| 013441920 | M14H1N1A2A0A |
| 013441950 | M14H1N1A2A0B |
| 023024430 | M14H1N1A2A0B02 |
| 013-44193-0 | M14H2N1A2A0A |
| 013441930 | M14H2N1A2A0A |
| 013-44193-0 | M14H2N1A2A0A00 |
| 023-07140-0 | M14H2N1A2A0A02 |
| 023071400 | M14H2N1A2A0A02 |
| 023-08946-0 | M14H2N1A2A0A02NP |
| 023089460 | M14H2N1A2A0A02NP |
| 013-44196-0 | M14H2N1A2A0B |
| 013441960 | M14H2N1A2A0B |
| 023862140 | M14H2N1A2A5A00 |
| 023881930 | M14H2N1A2M0A10 |
| 023-05880-0 | M14H2N1A5A0A12 |
| 023058800 | M14H2N1A5A0A12 |
| ASP-00030-0 | M14H2N1A6A0A20 |
| 023-06864-0 | M14H2N1A8A0A |
| 023068640 | M14H2N1A8A0A |
| 023-06864-0 | M14H2N1A8A0A00 |
| 023-09019-0 | M14H2N1A9A0B00 |
| 023090190 | M14H2N1A9A0B00 |
| 023-08352-0 | M14H2N1A9A0B02 |
| 023083520 | M14H2N1A9A0B02 |
| 023-81460-0 | M14H2N1A9A5A10 |
| 023814600 | M14H2N1A9A5A10 |
| 013-44194-0 | M14H3N1A2A0A |
| 013441940 | M14H3N1A2A0A |
| 023885340 | M14H3N1A2A0A02 |
| 023885500 | M14H3N1A2A0A02EX |
| 013-44197-0 | M14H3N1A2A0B |
| 013-44197-0 | M14H3N1A2A0B00 |
| 013441970 | M14H3N1A2A0B00 |
| 013-48696-0 | M14H3N1A2A0B02 |
| 013486960 | M14H3N1A2A0B02 |
| 023-09644-0 | M14H3N1A2A5A00 |
| 023096440 | M14H3N1A2A5A00 |
| ASP-00006-0 | M14H3N1A2A5AASP |
| 023-80446-0 | M14H3N1A2M0A00 |
| 023804460 | M14H3N1A2M0A00 |
| 023-06051-0 | M14H3N1A5A0A00 |
| 023060510 | M14H3N1A5A0A00 |
| 023-09207-0 | M14H3N1A8A0A00 |
| 023092070 | M14H3N1A8A0A00 |
| 023-09264-0 | M14H3N1A8A0A02 |
| 023092640 | M14H3N1A8A0A02 |
| 023-09008-0 | M14H3N1A8A0A10 |
| 023090080 | M14H3N1A8A0A10 |
| 023-09987-0 | M14H3N1A9A0A00 |
| 023099870 | M14H3N1A9A0A00 |
| 023875570 | M14H3N1A9A0A02 |
| 023-80719-0 | M14H3N1A9A0A10 |
| 023807190 | M14H3N1A9A0A10 |
| 023-81380-0 | M14H3N1A9A0B10 |
| 023813800 | M14H3N1A9A0B10 |
| 023-09264-0 | M14H3N1D8A0A02 |
| 023-09008-5 | M14H3N5A8A0A10 |
| 023090085 | M14H3N5A8A0A10 |
| 023-81380-5 | M14H3N5A9A0B10 |
| 023813805 | M14H3N5A9A0B10 |
| 023-05789-0 | M14H3R1A6A5A20 |
| 023-84300-0 | M14H8N1A8A5A10 |
| 023843000 | M14H8N1A8A5A10 |
| ASP-14482-0 | M14HINCOMPLETE |
| 023-82415-0 | M14M3N1A00E0 |
| 023824150 | M14M3N1A00E0 |
| 023866420 | M14R2N1A9A6A00C0 |
| 023818480 | M14R3N1A2A0A00E |
| 023-82414-0 | M14R3N1A2M0B10E0 |
| 023824140 | M14R3N1A2M0B10E0 |
| 023877350 | M14V1N1A2A0A |
| 013473950 | M14V1N1A2A0B |
| 013-47395-0 | M14V1N1A2A0B0 |
| 013-47395-0 | M14V1N1A2A0B00 |
| 023-07384-0 | M14V1N1A8A0A00 |
| 023073840 | M14V1N1A8A0A00 |
| 023-01967-0 | M14V2N1A2A0B |
| 023019670 | M14V2N1A2A0B |
| 023876270 | M14V2N1A9A0A00 |
| 023-09988-0 | M14V3N1A2A0A00 |
| 023099880 | M14V3N1A2A0A00 |
| 023-80029-0 | M14V3N1A2A5A00 |
| 023800290 | M14V3N1A2A5A00 |
| 023-82065-0 | M14V3N1A8A0A00 |
| 023820650 | M14V3N1A8A0A00 |
| 023-09984-0 | M14V3N1A8A0A10 |
| 023099840 | M14V3N1A8A0A10 |
| 023-09980-0 | M14V3N1A8A0B00 |
| 023099800 | M14V3N1A8A0B00 |
| 023-09985-0 | M14V3N1A8A0B10 |
| 023099850 | M14V3N1A8A0B10 |
| 023-07374-0 | M14V3N1A9A0A00 |
| 023073740 | M14V3N1A9A0A00 |
| 023-07339-0 | M14V3N1A9A0B00 |
| 023073390 | M14V3N1A9A0B00 |
| 023-84711-0 | M14V8N1A9A8A00 |
| 023847110 | M14V8N1A9A8A00 |
