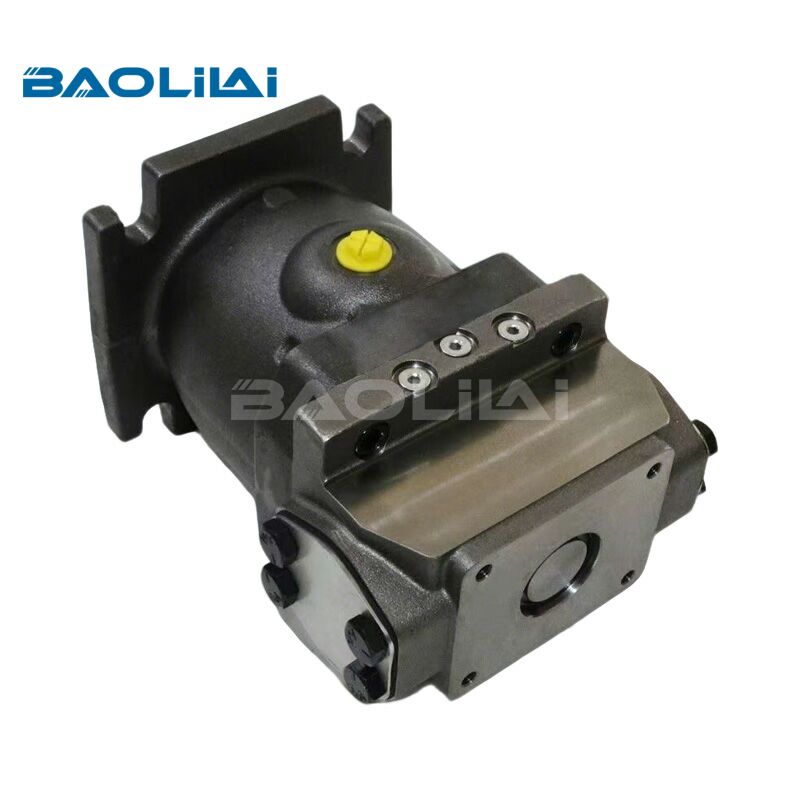

The Denison Gold Cup Series M7 is a high-torque, low-speed hydraulic motor designed for demanding mobile and industrial applications. It belongs to the renowned Gold Cup family, known for robust construction and reliable performance.
This motor features a fixed-displacement axial piston design with a bent-axis configuration. This engineering provides high volumetric and mechanical efficiency across a wide operating range. Key characteristics include excellent starting torque, smooth operation at low speeds, and the ability to handle high continuous pressure. It is built for durability, with high-capacity bearings and optimized fluid dynamics to minimize wear.
Typical specifications involve multiple displacement options, a wide operating speed range, and a high pressure rating (often exceeding 350 bar continuous). Its compact design offers a high power-to-weight ratio. Common applications include heavy-duty winches, augers, drum drives, mixers, and various machinery in construction, agriculture, and material handling.
The M7 is valued for its ruggedness, long service life, and consistent power delivery in critical systems.
Specifications
| Series | Terms | M6 | M7 | M8 | M11 | M14 | M24 | P30 | |
| Displacement | Max. displacement | in³/rev | 6.00 | 7.25 | 8.00 | 11.00 | 14.00 | 24.60 | 39.60 |
| cm³/rev | 98.3 | 118.8 | 131.1 | 180.3 | 229.5 | 403.2 | 501.5 | ||
| Pressure | Continuous | psi | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | ||
| Intermittent | psi | 6000 | 6000 | 5000 | 6000 | 6000 | 5500 | 5500 | |
| bar | 420 | 420 | 350 | 420 | 420 | 370 | 370 | ||
| Speed (Motor) | max. @ full stroke | rpm | 3000 | 3000 | 2700 | 2400 | 2400 | 2100 | 1800 |
| Speed (Motor) | max. @ 50% stroke | rpm | 3600 | 3600 | 3000 | 2800 | 2800 | 2100 | 1800 |
| Mounting | Flange - 2 bolt | SAE | 127-2 (C) | 127-2 (C) | 127-2 (C) | - | - | - | - |
| Flange - 4 shaft (opt. 6-7 & 8 ) | SAE | 152-4 (D) | 152-4 (D) | 152-4 (D) | 165-4 (E) | 165-4 (E) | 177-4 (F) | 177-4 (F) | |
| Shaft - keyed | SAE | 32-1 (C) | 32-1 (C) | 32-1 (C) | 44-1 (E) | 44-1 (E) | 50-1 (F) | 50-1 (F) | |
| keyed | SAE | 44-1 (D) | 44-1 (D) | 44-1 (D) | - | - | - | - | |
| Shaft - splined | SAE | 32-4 (C) | 32-4 (C) | 32-4 (C) | 44-4 (E) | 44-4 (E) | 50-4 (F) | 50-4 (F) | |
| splined | SAE | 44-4 (D) | 44-4 (D) | 44-4 (D) | - | - | - | - | |
| Weight (Motor Fixed) | Mass | lbs | 110 | 110 | 110 | 250 | 250 | 510 | 600 |
| kg | 50 | 50 | 50 | 110 | 110 | 230 | 270 | ||
| Weight (Motor Variable) less controls | Mass | lbs | 110 | 110 | 110 | 300 | 300 | 650 | 670 |
| kg | 50 | 50 | 50 | 135 | 135 | 290 | 300 | ||
| Rotating Inertia | lbs-in2 | 92 | 92 | 92 | 290 | 290 | 821 | 977 | |
| Kg.m2 | 0,027 | 0,027 | 0,027 | 0,085 | 0,085 | 0,240 | 0,286 | ||
| Torque (Motor) theo. max. | per 100 psi | lbs-in | 95.5 | 115.4 | 127 | 175 | 222 | 392 | 487 |
| per 100 bar | Nm | 157 | 189 | 208 | 287 | 362 | 623 | 797 | |
| at 5000 psi | lbs-in | 4774 | 5769 | 6366 | 8750 | 11100 | 19576 | 24351 | |
| at 350 bar | Nm | 539,5 | 651,9 | 717 | 990 | 1250 | 2158 | 3752 | |
| Power (Motor) theo. max. at 5000 psi, 350 bar | per 1000 rpm | hp | 7.6 | 9.2 | 10 | 13.8 | 17.6 | 31.1 | 38.6 |
| kW | 5,7 | 6,8 | 7,5 | 10,3 | 13,1 | 23,1 | 28,8 | ||
| at 2000 rpm | hp | 151.5 | 183.1 | 201.5 | 277.8 | 353.5 | 621.3 | 695 | |
| kW | 113,0 | 136,6 | 152 | 207,0 | 263,7 | 463,5 | 518,2 | ||
| Torque (Motor) efficiency | approx.stalled | %theo. | 81 | 81 | 81 | 81 | 81 | 81 | 81 |
| running | %theo. | 93 | 93 | 93 | 93 | 93 | 93 | 93 | |
| Case pressure: max. allowable continuous | psi | 75 | 75 | 75 | 75 | 75 | 75 | ||
| bar | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | |
| Intermittent | psi | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| bar | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | ||
| (Not to exceed 25 psi,1,7 bar above inlet in open circuit units) | |||||||||
Selection Table
| M7 axial piston hydraulic motor | |
| Model No. | Model Code |
| S23-03761-0 | M7*3N1D |
| 023-03300-0 | M7F2N1D |
| 023033000 | M7F2N1D |
| 023-03300-0 | M7F2N1D00 |
| 023-08597-0 | M7F2N1D00NP |
| 023085970 | M7F2N1D00NP |
| 023-03301-0 | M7F3N1D00 |
| 023033010 | M7F3N1D00 |
| 023-09602-0 | M7F3N1D00NP |
| 023096020 | M7F3N1D00NP |
| 023-08659-0 | M7F3N1D1 |
| 023086590 | M7F3N1D1 |
| 023-08625-0 | M7F3N1D2 |
| 023086250 | M7F3N1D2 |
| 023-03301-5 | M7F3N5D |
| 023033015 | M7F3N5D |
| 023-08603-0 | M7F4N1D |
| 023086030 | M7F4N1D |
| 023-08604-0 | M7F5N1D |
| 023086040 | M7F5N1D |
| 023-08604-0 | M7F5N1D00 |
| 023-08772-0 | M7F5N1D1 |
| 023087720 | M7F5N1D1 |
| 023-03290-0 | M7G2N1D |
| 023032900 | M7G2N1D |
| 023-03290-0 | M7G2N1D00 |
| 023-08186-0 | M7G2N1D00M208186 |
| 023-03292-0 | M7G2N1D02 |
| 023032920 | M7G2N1D02 |
| 023-07219-0 | M7G2N1D02M207219 |
| 023-06603-0 | M7G2N1D20 |
| 023066030 | M7G2N1D20 |
| 023-03291-0 | M7G3N1D |
| 023032910 | M7G3N1D |
| 023-03291-0 | M7G3N1D00 |
| ASK-00047-0 | M7G3N1D00 |
| ASP-00115-0 | M7G3N1D00ASP001150 |
| 023-80014-0 | M7G3N1D00M2 |
| 023-03293-0 | M7G3N1D02 |
| 023032930 | M7G3N1D02 |
| 023-03789-0 | M7G3N1D02M203789 |
| 023868830 | M7G3N1D02NP |
| 023-07574-0 | M7G3N1D20 |
| 023075740 | M7G3N1D20 |
| 023-08593-0 | M7G3N1D32 |
| 023085930 | M7G3N1D32 |
| 023-08605-0 | M7G4N1D |
| 023086050 | M7G4N1D |
| 023-08606-0 | M7G5N1D |
| 023086060 | M7G5N1D |
| 023-08606-0 | M7G5N1D00 |
| 023-81191-0 | M7G5N1D02 |
| 023811910 | M7G5N1D02 |
| 023-81191-5 | M7G5N5D02 |
| 023811915 | M7G5N5D02 |
| 013413570 | M7H1N1A2A0A |
| 013-41357-0 | M7H1N1A2A0A00 |
| 023-02339-0 | M7H1N1A2A0A02 |
| 023023390 | M7H1N1A2A0A02 |
| 013413480 | M7H1N1A2A0B |
| 013-41348-0 | M7H1N1A2A0B00 |
| 013-47986-0 | M7H1N1A2A0B02 |
| 013479860 | M7H1N1A2A0B02 |
| 013-47388-0 | M7H1N1A2A0BM147388 |
| 013-46027-0 | M7H1N1A2A0BM46027 |
| 023074310 | M7H1N1A2A3A |
| 013-47909-0 | M7H1N1A2AOBM147909 |
| 013-48515-0 | M7H1N1A2AOBM148515 |
| 023-05951-0 | M7H1N1A5A0A12 |
| 023059510 | M7H1N1A5A0A12 |
| 013-41358-0 | M7H2N1A2A0A |
| 013413580 | M7H2N1A2A0A |
| 013-41358-0 | M7H2N1A2A0A00 |
| 013-41349-0 | M7H2N1A2A0B |
| 013413490 | M7H2N1A2A0B |
| 013-41349-0 | M7H2N1A2A0B00 |
| 023-00194-0 | M7H2N1A2A0B02 |
| 023001940 | M7H2N1A2A0B02 |
| 023-80403-0 | M7H2N1A9A0A00 |
| 023804030 | M7H2N1A9A0A00 |
| 023-08956-0 | M7H2N1A9A0B00 |
| 023089560 | M7H2N1A9A0B00 |
| 023885445 | M7H2N5A2M5B50 |
| 013-47231-0 | M7H3L1A2A0AM247231 |
| 013-41359-0 | M7H3N1A2A0A |
| 013413590 | M7H3N1A2A0A |
| 013-41359-0 | M7H3N1A2A0A00 |
| 013-48485-0 | M7H3N1A2A0A00M0 |
| 023-00418-0 | M7H3N1A2A0A02 |
| 023004180 | M7H3N1A2A0A02 |
| 013-41350-0 | M7H3N1A2A0B |
| 013413500 | M7H3N1A2A0B |
| 013-41350-0 | M7H3N1A2A0B00 |
| 023-08395-0 | M7H3N1A2A0B02 |
| 023083950 | M7H3N1A2A0B02 |
| 023-09647-0 | M7H3N1A2A5A00 |
| 023096470 | M7H3N1A2A5A00 |
| 023-80151-0 | M7H3N1A2A5B |
| 023801510 | M7H3N1A2A5B |
| 023-80151-0 | M7H3N1A2A5B00 |
| 023-06359-0 | M7H3N1A5A0A10 |
| 023063590 | M7H3N1A5A0A10 |
| 023-06654-0 | M7H3N1A8A0A00 |
| 023066540 | M7H3N1A8A0A00 |
| 023-81017-0 | M7H3N1A8A0A02 |
| 023810170 | M7H3N1A8A0A02 |
| 023-80884-0 | M7H3N1A8A0B00 |
| 023808840 | M7H3N1A8A0B00 |
| 023873980 | M7H3N1A9A0B00 |
| 013-41359-5 | M7H3N5A2A0A |
| 013413595 | M7H3N5A2A0A |
| 013-41359-5 | M7H3N5A2A0A00 |
| 023-84489-0 | M7H4N1A2A0A00 |
| 023844890 | M7H4N1A2A0A00 |
| 023-82878-0 | M7H5N1A2A0A02 |
| 023828780 | M7H5N1A2A0A02 |
| 023-81055-0 | M7H5N1A8A0A00 |
| 023810550 | M7H5N1A8A0A00 |
| 023-82878-5 | M7H5N5A2A0A02 |
| 023828785 | M7H5N5A2A0A02 |
| 023-81674-0 | M7L2N1A2A0A02C0 |
| 023816740 | M7L2N1A2A0A02C0 |
| 023854780 | M7L5N1A9A0A00C0 |
| 023-81665-0 | M7M2N1D00C0 |
| 023816650 | M7M2N1D00C0 |
| 023-82087-0 | M7M3N1D00C0 |
| 023820870 | M7M3N1D00C0 |
| 023-04240-0 | M7V1N1A2A0AM2 |
| 023-05508-0 | M7V1N1A2A0AM205508 |
| 023005270 | M7V1N1A2A0B |
| 023-00527-0 | M7V1N1A2A0B0 |
| 023-00528-0 | M7V2N1A2A0B |
| 023005280 | M7V2N1A2A0B |
| 023-00528-0 | M7V2N1A2A0B0 |
| 023-09423-0 | M7V2N1A2M3A10 |
| 023094230 | M7V2N1A2M3A10 |
| 023-09249-0 | M7V2N1A8A0A00 |
| 023092490 | M7V2N1A8A0A00 |
| 023-09249-5 | M7V2N5A8A0A00 |
| 023092495 | M7V2N5A8A0A00 |
| 023-06243-0 | M7V3L1A2A5M2 |
| 023-08138-0 | M7V3N1A2A0A |
| 023081380 | M7V3N1A2A0A |
| 023-00529-0 | M7V3N1A2A0B |
| 023005290 | M7V3N1A2A0B |
| 023-08884-0 | M7V3N1A2A3A00 |
| 023088840 | M7V3N1A2A3A00 |
| 023-82553-0 | M7V3N1A2A5A00 |
| 023825530 | M7V3N1A2A5A00 |
| 023-81246-0 | M7V3N1A5A0A10 |
| 023812460 | M7V3N1A5A0A10 |
| 023-07487-0 | M7V3N1A8A0A00 |
| 023074870 | M7V3N1A8A0A00 |
| 023-80885-0 | M7V3N1A8A0B |
| 023-80885-0 | M7V3N1A8A0B00 |
| 023808850 | M7V3N1A8A0B00 |
| 023-06437-0 | M7V3N1A8A0B10 |
| 023064370 | M7V3N1A8A0B10 |
| 023-82116-0 | M7V3N1A9A0A00 |
| 023821160 | M7V3N1A9A0A00 |
| 013-48485-5 | M7V3N5A2A0A |
| 013484855 | M7V3N5A2A0A |
| 013-48485-5 | M7V3N5A2A0A0 |
| 023-84665-0 | M7V4N1A2A0A00 |
| 023846650 | M7V4N1A2A0A00 |
| 023-84128-0 | M7V4N1A2A5A00 |
| 023841280 | M7V4N1A2A5A00 |
| 023-80213-0 | M7V5N1A2A0A00 |
| 023802130 | M7V5N1A2A0A00 |
| 023-83068-0 | M7V5N1A2M5A6 |
| 023830680 | M7V5N1A2M5A6 |
| 023817050 | M7V8N1A8A0B10 |
| 023-81705-6 | M7V8N6A8A0B10 |
Q1:In what type of applications is the M7 hydraulic motor commonly used?
A1: The M7 hydraulic motor is commonly deployed in demanding mobile and industrial applications. These typical uses include heavy-duty equipment like winches, augers, drum drives, mixers, and machinery in the construction, agricultural, and material handling sectors.
Q2:What performance characteristic is the M7 motor known for at startup and low speeds?
A2:The M7 hydraulic motor is known for delivering excellent starting torque and maintaining smooth, reliable operation even at very low rotational speeds. This makes it ideal for applications requiring precise control and high power from a standstill.
Q3: What is the price and delivery time of the M7 hydraulic motor?
A3: The specific price and delivery time will be provided based on the specific model you provide.
