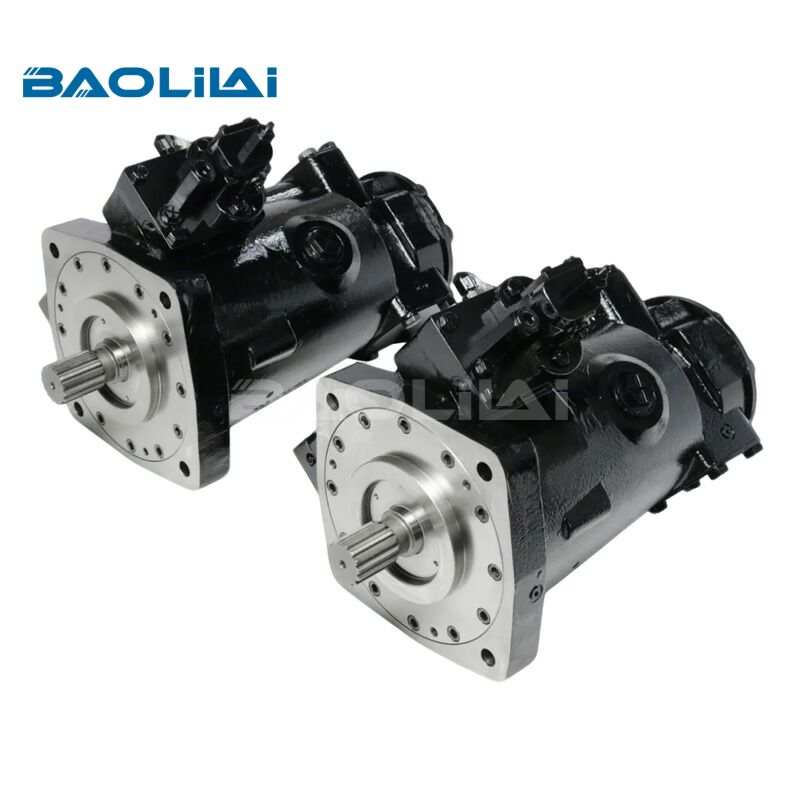

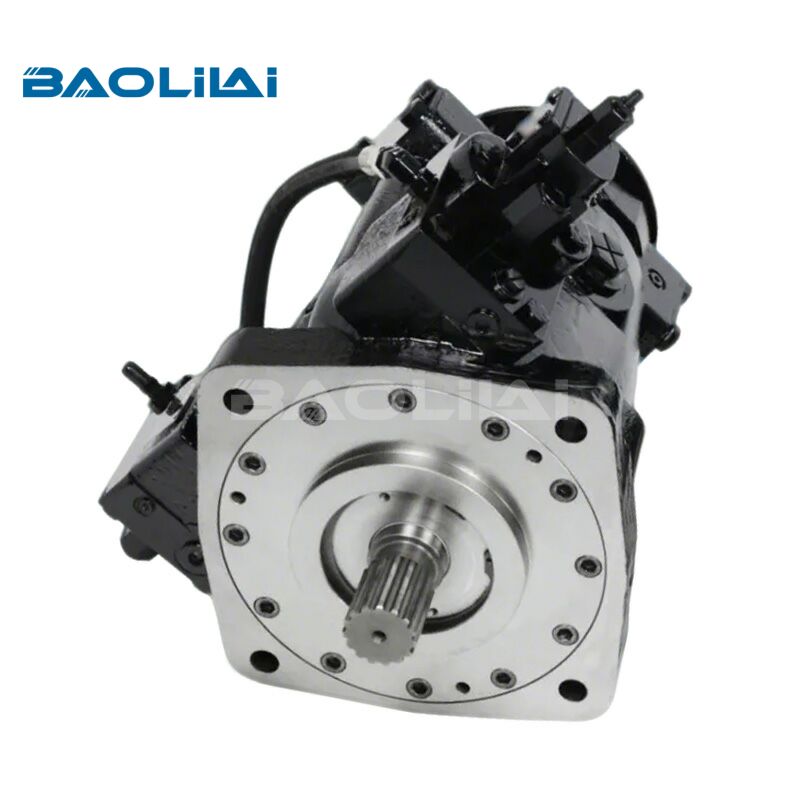

For Denison P8 axial piston variable hydraulic pump
SERIES : Gold cup pump
BRAND : For Denison
Model Size :P8
Displacement : 131.1cm3/rev
Speed : 2100rpm
Maximum Pressure : 420bar
Nominal Pressure : 350bar
Download PDF
- Product Details
- Product Model
- FAQ
The Denison P8 series is a high-performance axial piston variable displacement hydraulic pump, designed for demanding open&close-circuit mobile and industrial applications. It utilizes a swashplate design to enable smooth, precise control of flow and pressure.
Key features include:
- Variable Displacement: Allows output flow to be adjusted from zero to maximum, matching system demand for improved efficiency and reduced heat generation.
- Pressure Compensation: A standard pressure compensator automatically adjusts displacement to maintain a preset system pressure, optimizing power usage.
- Robust Construction: Built with heavy-duty bearings and a hardened cylinder barrel for reliable operation under high continuous pressures (up to 420 bar).
- Control Versatility: Offers multiple control options like pressure compensator, load sensing, and horsepower limiting for sophisticated system integration.
- High Efficiency: Its axial piston design minimizes internal leakage, ensuring high volumetric and overall efficiency across a wide operating range.
Renowned for durability and performance, the P8 is commonly used in construction equipment, material handling, and industrial machinery where responsive, efficient hydraulic power is critical.
Specifications
| Series | Terms | P6 | P7 | P8 | P11 | P14 | P24 | P30 | |
| Displacement | Max. displacement | in³/rev | 6.00 | 7.25 | 8.00 | 11.00 | 14.00 | 24.60 | 39.60 |
| cm³/rev | 98.3 | 118.8 | 131.1 | 180.3 | 229.5 | 403.2 | 501.5 | ||
| Pressure | Continuous | psi | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | ||
| Intermittent | psi | 6000 | 6000 | 5000 | 6000 | 6000 | 5500 | 5500 | |
| bar | 420 | 420 | 350 | 420 | 420 | 370 | 370 | ||
| Speed (Pump) | max. @ full stroke | rpm | 3000 | 3000 | 2700 | 2400 | 2400 | 2100 | 1800 |
| Speed (Motor) | max. @ full stroke | rpm | 3000 | 3000 | 2700 | 2400 | 2400 | 2100 | 1800 |
| Speed (Motor) | max. @ 50% stroke | rpm | 3600 | 3600 | 3000 | 2800 | 2800 | 2100 | 1800 |
| Mounting | Flange - 2 bolt | SAE | 127-2 (C) | 127-2 (C) | 127-2 (C) | - | - | - | - |
| Flange - 4 shaft (opt. 6-7 & 8 ) | SAE | 152-4 (D) | 152-4 (D) | 152-4 (D) | 165-4 (E) | 165-4 (E) | 177-4 (F) | 177-4 (F) | |
| Shaft - keyed | SAE | 32-1 (C) | 32-1 (C) | 32-1 (C) | 44-1 (E) | 44-1 (E) | 50-1 (F) | 50-1 (F) | |
| keyed | SAE | 44-1 (D) | 44-1 (D) | 44-1 (D) | - | - | - | - | |
| Shaft - splined | SAE | 32-4 (C) | 32-4 (C) | 32-4 (C) | 44-4 (E) | 44-4 (E) | 50-4 (F) | 50-4 (F) | |
| splined | SAE | 44-4 (D) | 44-4 (D) | 44-4 (D) | - | - | - | - | |
| Weight (Pump) less controls | Mass | lbs | 175-300 | 175-300 | 175-300 | 325-530 | 325-530 | 750-835 | 750-835 |
| kg | 80-135 | 80-135 | 80-135 | 145-240 | 145-240 | 340-375 | 340-375 | ||
| Weight (Motor Fixed) | Mass | lbs | 110 | 110 | 110 | 250 | 250 | 510 | 600 |
| kg | 50 | 50 | 50 | 110 | 110 | 230 | 270 | ||
| Weight (Motor Variable) less controls | Mass | lbs | 110 | 110 | 110 | 300 | 300 | 650 | 670 |
| kg | 50 | 50 | 50 | 135 | 135 | 290 | 300 | ||
| Rotating Inertia | lbs-in2 | 92 | 92 | 92 | 290 | 290 | 821 | 977 | |
| Kg.m2 | 0,027 | 0,027 | 0,027 | 0,085 | 0,085 | 0,240 | 0,286 | ||
| Torque (Motor) theo. max. | per 100 psi | lbs-in | 95.5 | 115.4 | 127 | 175 | 222 | 392 | 487 |
| per 100 bar | Nm | 157 | 189 | 208 | 287 | 362 | 623 | 797 | |
| at 5000 psi | lbs-in | 4774 | 5769 | 6366 | 8750 | 11100 | 19576 | 24351 | |
| at 350 bar | Nm | 539,5 | 651,9 | 717 | 990 | 1250 | 2158 | 3752 | |
| Power (Motor) theo. max. at 5000 psi, 350 bar | per 1000 rpm | hp | 7.6 | 9.2 | 10 | 13.8 | 17.6 | 31.1 | 38.6 |
| kW | 5,7 | 6,8 | 7,5 | 10,3 | 13,1 | 23,1 | 28,8 | ||
| at 2000 rpm | hp | 151.5 | 183.1 | 201.5 | 277.8 | 353.5 | 621.3 | 695 | |
| kW | 113,0 | 136,6 | 152 | 207,0 | 263,7 | 463,5 | 518,2 | ||
| Torque (Motor) efficiency | approx.stalled | %theo. | 81 | 81 | 81 | 81 | 81 | 81 | 81 |
| running | %theo. | 93 | 93 | 93 | 93 | 93 | 93 | 93 | |
| Case pressure: max. allowable continuous | psi | 75 | 75 | 75 | 75 | 75 | 75 | ||
| bar | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | 5,2 | |
| Intermittent | psi | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| bar | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | 8,6 | ||
| (Not to exceed 25 psi,1,7 bar above inlet in open circuit units) | |||||||||
| Flow (Pump) theo. at max. disp | @ 1500 rpm | gpm | 39 | 47 | 52 | 71 | 91 | 160 | 199 |
| lpm | 148 | 178 | 197 | 269 | 344 | 606 | 753 | ||
| @ 1800 rpm | gpm | 47 | 57 | 62 | 86 | 109 | 192 | 238 | |
| lpm | 178 | 216 | 235 | 326 | 413 | 727 | 901 | ||
| Displacement (Internal aux. pump) | P6,7,8P,S,V | P11,14P,S | P11,14V | P24P | P24S | P30P | P30S | ||
| in³/rev | 1.07 | (2)1.07 | 1.07 | 2.81 | 2.81 | 2.81 | 2.81 | ||
| cm³/rev | 17.5 | (2)17,5 | 17,5 | 46,1 | 46,1 | 46,1 | 46,1 | ||
| Displacement (Internal aux. pump) | @ 1500 rpm | gpm | 6.9 | (2)6.9 | 6.9 | 18.2 | 6.5 | 18.2 | 6.5 |
| lpm | 26,1 | (2)26,1 | 26,1 | 68,9 | 24,6 | 69,1 | 24,6 | ||
| @ 1800 rpm | gpm | 8.3 | (2)8.3 | 8.3 | 21.9 | 7.8 | 21.9 | 7.8 | |
| lpm | 31,4 | (2)31,4 | 31,4 | 82,9 | 29,5 | 82,9 | 29,5 | ||
Selection Table
| P8 axial piston hydraulic pump | |
| Model No. | Model Code |
| 023-82881-0 | P8F2R1D |
| 023-82544-0 | P8F5L1D00 |
| 023-82544-5 | P8F5L5D00 |
| 023-87922-0 | P8L3R1A9A2A00XC0 |
| 023-87921-0 | P8L4R1A9A2A00XC0 |
| 023-07333-0 | P8P1L1A8A2A00 |
| 023-07334-0 | P8P1L1A8A2B00 |
| 023-07503-0 | P8P1R1A102A |
| 023-85091-0 | P8P2L1A9A2B00 |
| 023-08924-0 | P8P2R1A2A2B00 |
| 023-06778-0 | P8P2R1A7D6B00 |
| 023-87824-0 | P8P2R1A7F6B01 |
| 023-86440-0 | P8P2R1A8A2A00 |
| 023-80839-0 | P8P2R1A8A2B00 |
| 023-08089-0 | P8P2R1A8C4B00 |
| 023-08775-0 | P8P2R1A9A2A00 |
| 023-06983-0 | P8P2R1A9A2B00 |
| 023-06983-0 | P8P2R1A9A2B00000 |
| 023-08243-0 | P8P2R1A9C4B00 |
| 023-87873-0 | P8P3L1A102A00 |
| 023-08119-0 | P8P3L1A2H2B00 |
| 023-83987-0 | P8P3L1A4A2B00 |
| 023-86839-0 | P8P3L1A7J6A00 |
| 023-80370-0 | P8P3L1A8A2A00 |
| 023-80370-0 | P8P3L1A8A2A00000 |
| ASP-00122-0 | P8P3L1A8A2A00ASP001220 |
| 023-09740-0 | P8P3L1A9A2A00 |
| 023-07482-0 | P8P3R1A102B |
| 023-08774-0 | P8P3R1A2H2A00 |
| 023-06994-0 | P8P3R1A5A2B00 |
| ASP-00082-0 | P8P3R1A8A2A00000 |
| 023-08092-0 | P8P3R1A8A2B000B0 |
| 023-09270-0 | P8P3R1A8C2B00 |
| 023-08997-0 | P8P3R1A9A2A00 |
| 023-06995-0 | P8P3R1A9A2B00 |
| 023-81764-0 | P8P3R1A9C4B00 |
| 023-81764-5 | P8P3R5A9C4B00 |
| 023-09438-0 | P8P5L1A9A2A00 |
| 023-80438-0 | P8P5L1A9A2B00 |
| 023-87738-0 | P8P5R1A402A00 |
| 023-81913-0 | P8P5R1A9A2A00 |
| 023-07200-0 | P8R2R1A2A2A00XC0 |
| 023-07507-0 | P8R2R1A2H2A00XC0 |
| 023-07951-0 | P8R2R1A9A2A00XC0 |
| 023-81414-0 | P8R2R1A9A2B00XA0 |
| 023-08471-0 | P8R2R1A9A2B00XB0 |
| 023-08759-0 | P8R3R1A2H2A00XC0 |
| 023-09067-0 | P8R3R1A8A2A00XB0 |
| 023-09066-0 | P8R3R1A8A2A00XC0 |
| 023-86454-0 | P8R3R1A9A2B00XA0 |
| 023-85741-0 | P8R8R1A9A2B00XC0 |
| 023-09111-0 | P8S2R1A8A2B000B0 |
| 023-85803-0 | P8S2R1A8A4B010B0 |
| 023-83272-0 | P8S2R1A9A2A000B0 |
| 023-87136-0 | P8S2R1A9A2A000M0 |
| 023-09111-5 | P8S2R5A8A2B000B0 |
| 023-83272-5 | P8S2R5A9A2A000B0 |
| 023-84930-0 | P8S3L1A9A2A000B0 |
| 023-87924-0 | P8S3R1A9A2A000B0 |
| 023-83658-0 | P8V2R1A102B |
| 023-08676-0 | P8V2R1A104A |
| 023-07832-0 | P8V2R1A2A2A |
| 023-07975-0 | P8V2R1A9A2A00 |
| 023-83273-0 | P8V2R1A9A2B00 |
| 023-80188-0 | P8V2R1A9A4A01 |
| 023-07832-4 | P8V2R4A2A2A |
| 023-07835-0 | P8V3L1A102A |
| 023-07835-0 | P8V3L1A102A00000 |
| 023-88403-5 | P8V4R5A4A2A00 |
| 023-86414-0 | P8X2R1A7K6B010B0 |
| 023-83876-0 | P8X2R1A9A2A000B0 |
| 023-81002-0 | P8X2R1A9A2B000A0 |
| 023-82001-0 | P8X3L1A9A2A000A0 |
| 023-87488-0 | P8X3L1A9A2A000C0 |
| 023-80958-0 | P8X3L1A9A2B000B0 |
| 023-82607-0 | P8X3R1A102B000A0 |
| 023-81560-0 | P8X3R1A4A2A000B0 |
| 023-08092-0 | P8X3R1A8A2B000B0 |
| 023-08674-0 | P8X3R1A9A2B000B0 |
| 023-82037-0 | P8X8L1A2N2B060A0 |
| 023-85742-0 | P8X8R1A9A2B000B0 |
Q1: What is the primary application field of the Denison P8 hydraulic pump, and what is its key design feature?
A1: The P11 hydraulic pump is commonly selected for demanding applications such as industrial machinery, marine equipment, and heavy mobile hydraulic systems due to its reliability and high performance.
Q2:What is the primary application field of the Denison P8 hydraulic pump, and what is its key design feature?
A2: The Denison P8 hydraulic pump is primarily designed for demanding mobile and industrial open&close-circuit applications. Its key design feature is an axial piston, swashplate-based mechanism that enables smooth and precise variable displacement.
Q3: What is the price and delivery time of the P8 hydraulic pump?
A3: The specific price and delivery time will be provided based on the specific model you provide.
Q4:How to purchase a P8 hydraulic pump?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
