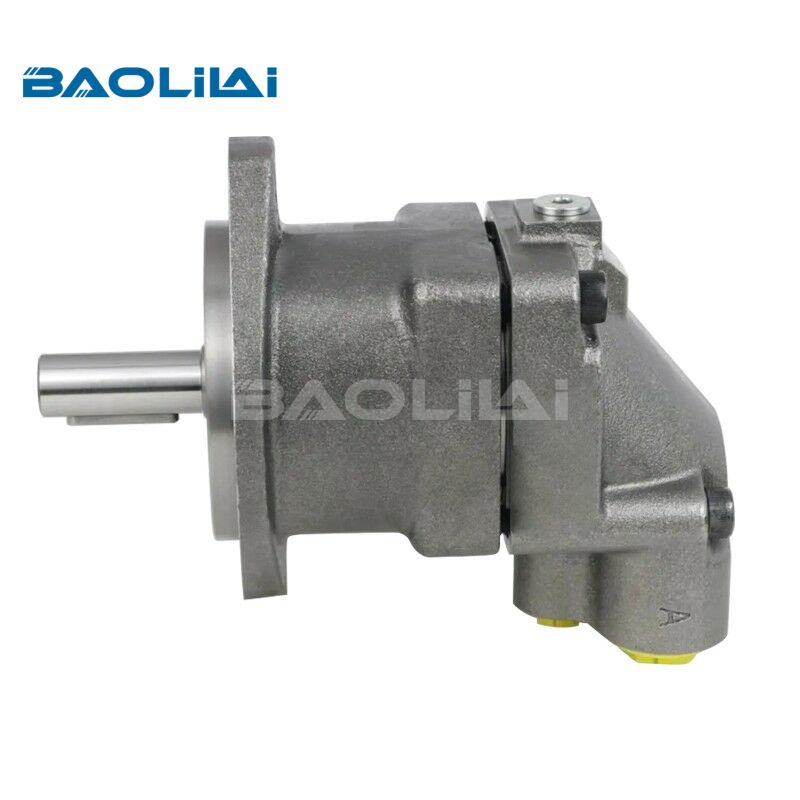

The Parker F11-005 is a high-performance, fixed-displacement vane pump renowned for its quality and reliability in hydraulic systems. It is engineered to deliver consistent, high volumetric efficiency in a compact and robust design. This model operates with remarkably low noise levels, making it suitable for applications where noise reduction is a priority. It is commonly employed in a diverse range of mobile and industrial equipment, including but not limited to material handling vehicles, agricultural machinery, aerial work platforms, and various construction apparatus. Key attributes of the F11-005 include its durable construction for long service life, excellent performance under continuous duty cycles, and the ability to maintain stable flow output across its operating pressure range. As part of Parker Hannifin's extensive portfolio, it benefits from the company's expertise in motion and control technologies, ensuring it meets high standards for quality and integration within complex hydraulic circuits.
Specifications
| Frame size F11 | -5 | -6 | -10 | -12 | -14 | -19 | -150 | -250 | ||
| Displacement | [cm3/rev] | 4.9 | 6 | 9.8 | 12.5 | 14.3 | 19.0 | 150 | 242 | |
| [cu in/rev] | 0.30 | 0.36 | 0.60 | 0.76 | 0.87 | 1.16 | 9.15 | 14.8 | ||
| Operating pressure | max intermittent | [bar] | 420 | |||||||
| [psi] | 6000 | |||||||||
| max continuous | [bar] | 350 | ||||||||
| [psi] | 5000 | |||||||||
| Motor operating speed | max intermittent | [rpm] | 14 000 | 11200 | 11200 | 10300 | 9900 | 8900 | 3500 | 3000 |
| max continuous | 12800 | 10200 | 10200 | 9 400 | 9000 | 8100 | 3200 | 2700 | ||
| min continuous | 50 | |||||||||
| Max pump selfpriming speed | Lor R function; max | [rpm] | 4600 | - | 4200 | 3850 | 3500 | 3500 | 1700 | 1500 |
| Motor input flow | max intermittent | [l/min] | 69 | 67 | 110 | 129 | 142 | 169 | 525 | 726 |
| [gpm] | 18.2 | 17.6 | 29.1 | 34.1 | 37.5 | 44.6 | 138.7 | 191.8 | ||
| max continuous | [l/min] | 63 | 61 | 100 | 118 | 129 | 154 | 480 | 653 | |
| [gpm] | 16.6 | 16 | 26.4 | 31.2 | 34.1 | 40.7 | 126.8 | 172.5 | ||
| Main circuit temp. | max | [°C] | 80 | |||||||
| min | [°C] | -40 | ||||||||
| Mass moment of inertia | (x10-3) | [kg m2] | 0.16 | 0.39 | 0.39 | 0.40 | 0.42 | 1.1 | 40 | 46 |
| (x10-2) | [lbft2] | 0.38 | 0.92 | 0.92 | 0.95 | 1.00 | 2.61 | 94.92 | 109.16 | |
| Weight | [kg] | 5 | 7.5 | 7.5 | 8.3 | 8.3 | 11 | 70 | 77 | |
| [lb] | 11 | 16.5 | 16.5 | 18.8 | 18.8 | 24 | 154 | 170 | ||
Selection Table
| F11-005 hydraulic motor | |
| Model No. | Model Code |
| 3781171 | F11-005-LB-CE-K-000 |
| 3703666 | F11-005-LB-CN-K-000 |
| 3786486 | F11-005-LB-CN-K-331-000-0 |
| 3786486 | F11-005-LB-CN-L-000-0000-00 |
| 3792400 | F11-005-LB-CN-L-227-0000-0X |
| 3795667 | F11-005-LB-CV-D-000-000-0 |
| 3795667 | F11-005-LB-CV-D-000-0000-00 |
| 3798608 | F11-005-LB-CV-K-000-000-0 |
| 3703666 | F11-005-LB-CV-K-000-0000-00 |
| 3704406 | F11-005-LB-CV-K-000-0000-00 |
| 3798608 | F11-005-LB-CV-K-000-0000-00 |
| 3785615 | F11-005-LB-CV-K-201-000-0 |
| 3785615 | F11-005-LB-CV-K-201-0000-00 |
| 3782217 | F11-005-LU-CN-K-000 |
| 3782217 | F11-005-LU-CN-K-000-0000-00 |
| 3786987 | F11-005-LU-CV-D-000-000-0 |
| 3786987 | F11-005-LU-CV-D-000-0000-00 |
| 3720361 | F11-005-LU-CV-K-000-0000-00 |
| 3785211 | F11-005-RB-CE-K-000 |
| 3703667 | F11-005-RB-CN-K-000 |
| 3703667 | F11-005-RB-CN-K-000-0000-00 |
| 3704407 | F11-005-RB-CN-K-000-0000-00 |
| 3789566 | F11-005-RB-CN-K-331-000-0 |
| 3789566 | F11-005-RB-CN-L-000-0000-00 |
| 3795666 | F11-005-RB-CV-D-000-000-0 |
| 3795666 | F11-005-RB-CV-D-000-0000-00 |
| 3707858 | F11-005-RB-CV-K-000-000-0 |
| 3707858 | F11-005-RB-CV-K-000-0000-00 |
| 3720569 | F11-005-RB-CV-K-000-0000-0T |
| 3784567 | F11-005-RB-CV-S-000-000-0 |
| 3784567 | F11-005-RB-CV-S-000-0000-00 |
| 3720992 | F11-005-RB-CV-S-000-0000-0T |
| 3783273 | F11-005-RB-CX-S-305-000-0 |
| 3783273 | F11-005-RB-CX-S-305-0000-00 |
| 3782218 | F11-005-RU-CN-K-000 |
| 3782218 | F11-005-RU-CN-K-000-0000-00 |
| 3780090 | F11-005-RU-CV-D-000-000-0 |
| 3780090 | F11-005-RU-CV-D-000-0000-00 |
| 3787059 | F11-005-RU-CV-K-000-000-0 |
| 3787059 | F11-005-RU-CV-K-000-0000-00 |
Q1: What is the Parker F11-005 hydraulic pump known for in terms of its design and operation?
A1:The F11-005 hydraulic pump is known for its fixed-displacement vane design, which provides reliable and quiet operation.
Q2: In which types of equipment is the F11-005 hydraulic pump commonly used?
A2: The F11-005 hydraulic pump is commonly used in mobile and industrial equipment such as material handling vehicles, agricultural machinery, and construction apparatus.
Q3: What is the price and delivery time of the F11-005 hydraulic pump?
A3: The specific price and delivery time will be provided based on the specific model you provide.
