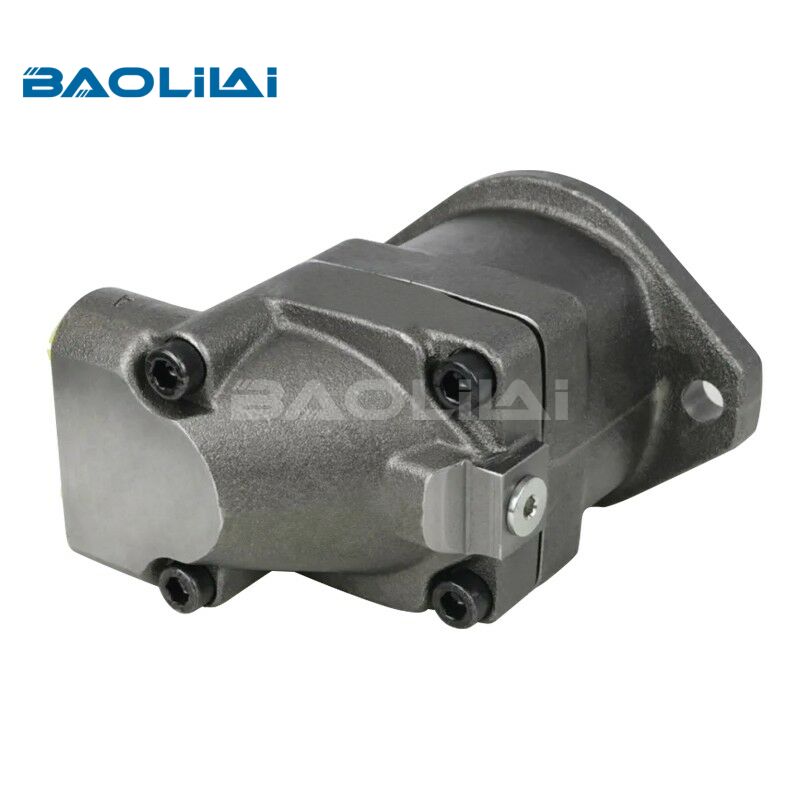

For Parker F11-006 hydraulic motor
- Product Details
- Product Model
- FAQ
The Parker F11-006 is a compact, fixed-displacement hydraulic motor designed for high efficiency and durability in a wide range of mobile and industrial applications. As part of Parker's F11 series, this model features a robust gerotor gear set that provides smooth, low-speed, high-torque operation with minimal pulsation. Its key specifications typically include a displacement of approximately 6 cubic centimeters per revolution (cc/rev), making it suitable for applications requiring precise, powerful rotary motion, such as in winches, conveyors, or fan drives.
Constructed for reliability, it often incorporates needle roller bearings for extended service life and can operate effectively across a broad spectrum of hydraulic fluids, including biodegradable options. The motor is known for its high starting torque and efficiency across various speeds and pressures. Its compact and lightweight design facilitates easy integration into existing hydraulic systems. The F11 series motors, including the -006 variant, are valued for their quiet operation, cost-effectiveness, and ability to perform in demanding environments, providing consistent power in equipment like agricultural machinery, material handlers, and specialized industrial tools.
Specifications
| Frame size F11 | -5 | -6 | -10 | -12 | -14 | -19 | -150 | -250 | ||
| Displacement | [cm3/rev] | 4.9 | 6 | 9.8 | 12.5 | 14.3 | 19.0 | 150 | 242 | |
| [cu in/rev] | 0.30 | 0.36 | 0.60 | 0.76 | 0.87 | 1.16 | 9.15 | 14.8 | ||
| Operating pressure | max intermittent | [bar] | 420 | |||||||
| [psi] | 6000 | |||||||||
| max continuous | [bar] | 350 | ||||||||
| [psi] | 5000 | |||||||||
| Motor operating speed | max intermittent | [rpm] | 14 000 | 11200 | 11200 | 10300 | 9900 | 8900 | 3500 | 3000 |
| max continuous | 12800 | 10200 | 10200 | 9 400 | 9000 | 8100 | 3200 | 2700 | ||
| min continuous | 50 | |||||||||
| Max pump selfpriming speed | Lor R function; max | [rpm] | 4600 | - | 4200 | 3850 | 3500 | 3500 | 1700 | 1500 |
| Motor input flow | max intermittent | [l/min] | 69 | 67 | 110 | 129 | 142 | 169 | 525 | 726 |
| [gpm] | 18.2 | 17.6 | 29.1 | 34.1 | 37.5 | 44.6 | 138.7 | 191.8 | ||
| max continuous | [l/min] | 63 | 61 | 100 | 118 | 129 | 154 | 480 | 653 | |
| [gpm] | 16.6 | 16 | 26.4 | 31.2 | 34.1 | 40.7 | 126.8 | 172.5 | ||
| Main circuit temp. | max | [°C] | 80 | |||||||
| min | [°C] | -40 | ||||||||
| Mass moment of inertia | (x10-3) | [kg m2] | 0.16 | 0.39 | 0.39 | 0.40 | 0.42 | 1.1 | 40 | 46 |
| (x10-2) | [lbft2] | 0.38 | 0.92 | 0.92 | 0.95 | 1.00 | 2.61 | 94.92 | 109.16 | |
| Weight | [kg] | 5 | 7.5 | 7.5 | 8.3 | 8.3 | 11 | 70 | 77 | |
| [lb] | 11 | 16.5 | 16.5 | 18.8 | 18.8 | 24 | 154 | 170 | ||

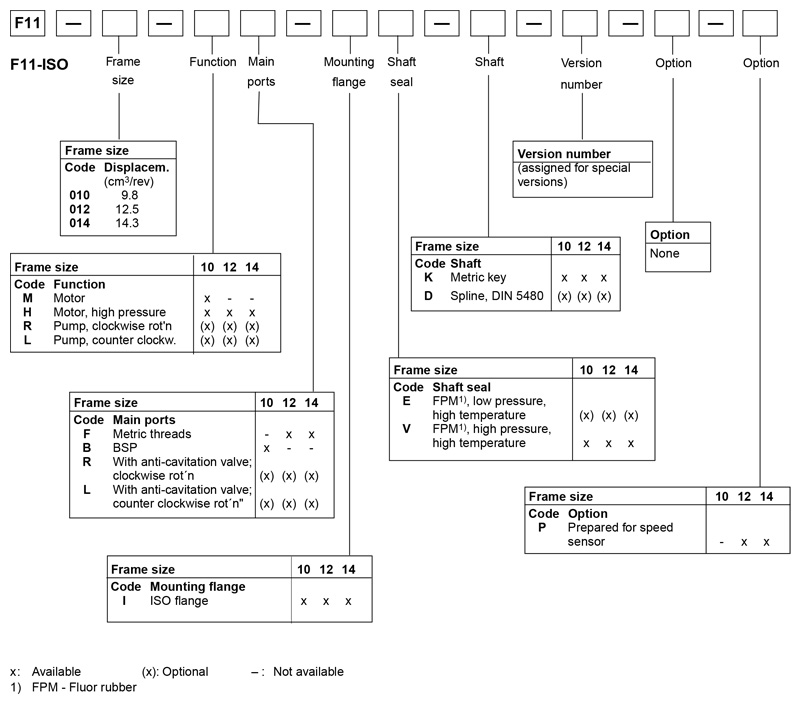

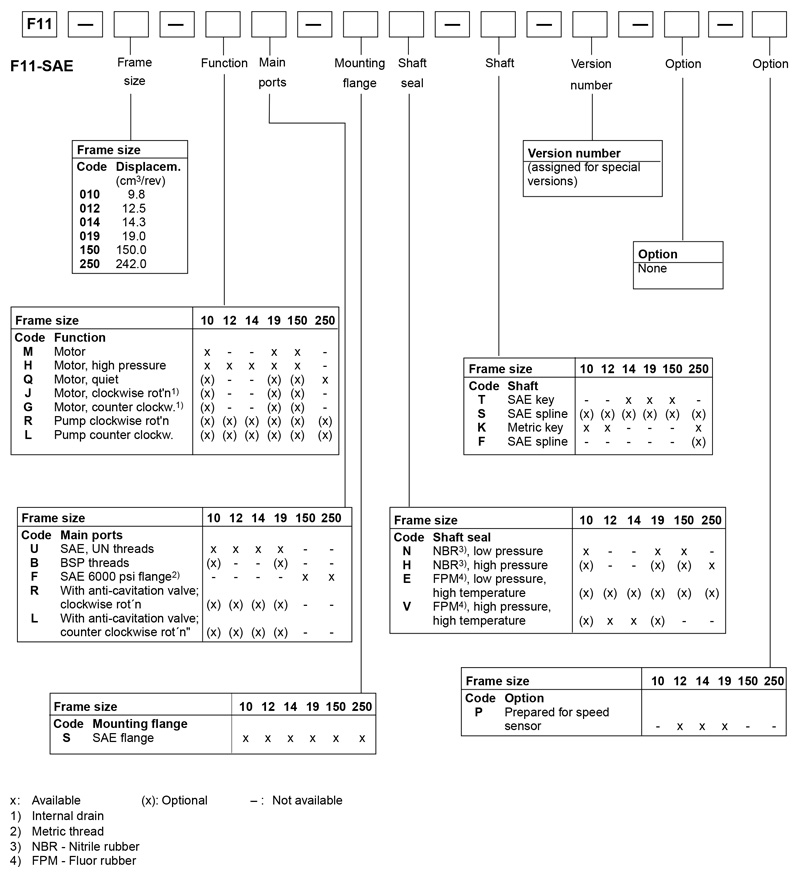

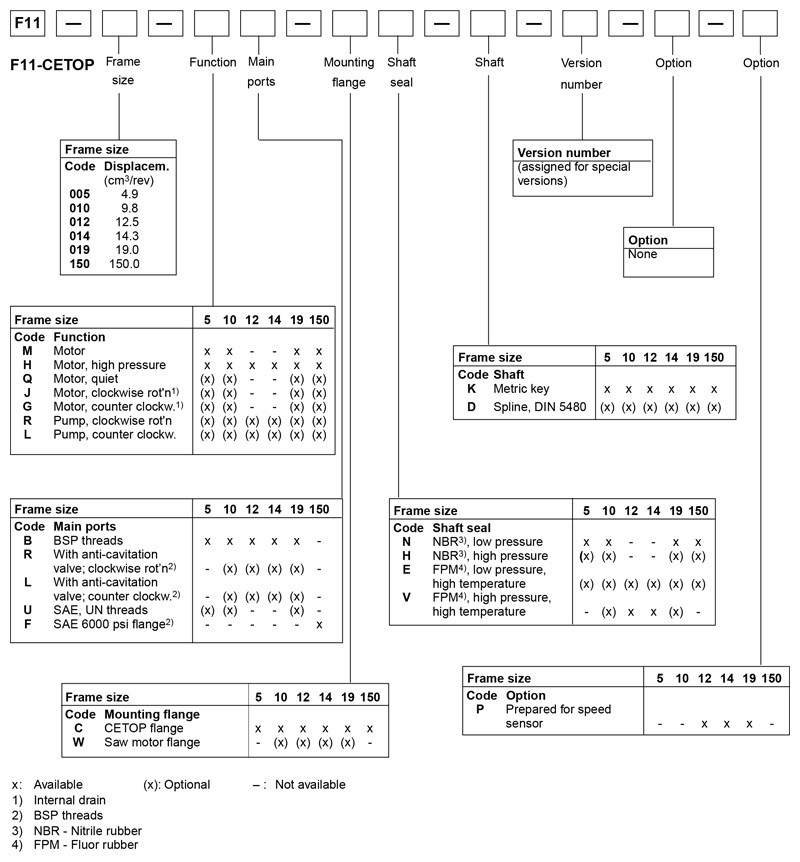

Selection Table
| F11-006 hydraulic motor | |
| Model No. | Model Code |
| 3784821 | F11-006-JB-CV-K-000-0000-0T |
| 3784979 | F11-006-MB-CN-J-000-0000-00 |
| 3721073 | F11-006-MB-CV-D-000-0000-00 |
| 3721019 | F11-006-MB-CV-D-000-0000-P0 |
| 3789184 | F11-006-MB-CV-J-000-0000-00 |
| 3720681 | F11-006-MB-CV-J-000-0000-PT |
| 3788091 | F11-006-MB-CV-K-000-000-0 |
| 3788091 | F11-006-MB-CV-K-000-0000-00 |
| 3784808 | F11-006-MB-CV-K-000-0000-P0 |
| 3720033 | F11-006-MB-CV-K-000-0000-PT |
| 3784798 | F11-006-MB-CV-K-000-0000-PT |
| 3789992 | F11-006-MB-CV-K-000-000-P |
| 3721153 | F11-006-MB-CV-K-000-MUVL-P0 |
| 3721444 | F11-006-MB-CV-K-000-MUVR-00 |
| 3724548 | F11-006-MB-CV-K-000-MUVR-P0 |
| 3795140 | F11-006-MB-CV-K-101-000-0 |
| 3782985 | F11-006-MB-CV-K-209-000-0 |
| 3782985 | F11-006-MB-CV-K-209-0000-0X |
| 3789184 | F11-006-MB-CV-K-349-000-0 |
| 3720466 | F11-006-MB-CV-K-459-0000-0T |
| 3720673 | F11-006-MB-CV-K-459-0000-BT |
| 3789414 | F11-006-MB-IV-J-000-0000-00 |
| 3720062 | F11-006-MB-IV-J-000-0000-BT |
| 3720065 | F11-006-MB-IV-J-000-0000-P0 |
| 3789393 | F11-006-MB-IV-K-000-000-0 |
| 3789393 | F11-006-MB-IV-K-000-0000-00 |
| 3720558 | F11-006-MB-IV-K-000-0000-0T |
| 3789393 | F11-006-MB-IV-K-000-0000-P0 |
| 3720711 | F11-006-MB-IV-K-000-0000-PT |
| 3789993 | F11-006-MB-IV-K-000-0000-PT |
| 3789471 | F11-006-MB-IV-K-000-000-P |
| 3721950 | F11-006-MB-IV-K-000-MUVL-P0 |
| 3724630 | F11-006-MB-IV-K-000-MUVR-P0 |
| 3789993 | F11-006-MB-IV-K-209-000-P |
| 3724847 | F11-006-MB-SV-J-000-MUVR-P0 |
| 3723068 | F11-006-MB-SV-K-000-0000-BT |
| 3784722 | F11-006-MB-SV-S-000-000-0 |
| 3784722 | F11-006-MB-SV-S-000-0000-P0 |
| 3721307 | F11-006-MB-WS-J-000-MUVR-00 |
| 3787870 | F11-006-MB-WS-K-000-000-0 |
| 3787870 | F11-006-MB-WS-K-000-0000-00 |
| 3787870 | F11-006-MB-WS-K-000-0000-P0 |
| 3721054 | F11-006-MB-WS-K-000-MUVL-00 |
| 3721156 | F11-006-MB-WS-K-000-MUVL-B0 |
| 3721069 | F11-006-MB-WS-K-000-MUVR-00 |
| 3721824 | F11-006-MB-WS-K-000-MUVR-B0 |
| 3723773 | F11-006-MB-WS-K-000-MUVR-BT |
| 3721083 | F11-006-MB-XS-K-283-MUVL-BT |
| 3721103 | F11-006-MB-XS-K-283-MUVL-BT |
| 3721098 | F11-006-MB-XS-K-285-MUVR-00 |
| 3721387 | F11-006-MF-XV-K-467-MUVR-BT |
| 3721209 | F11-006-MF-XV-K-467-MUVR-P0 |
| 3720910 | F11-006-MF-XV-K-467-MUVR-PT |
| 3721656 | F11-006-MU-CS-K-000-0000-B0 |
| 3720272 | F11-006-MU-SN-V-000-0000-PT |
| 3784783 | F11-006-MU-SV-K-000-000-0 |
| 3784783 | F11-006-MU-SV-K-000-0000-00 |
| 3722282 | F11-006-MU-SV-K-000-0000-0T |
| 3723278 | F11-006-MU-SV-K-000-0000-P0 |
| 3722282 | F11-006-MU-SV-K-000-0000-PT |
| 3784847 | F11-006-MU-SV-S-000-0000-P0 |
| 3721245 | F11-006-MU-SV-S-000-0000-PT |
| 3789688 | F11-006-MU-SV-V-000-000-0 |
| 3789688 | F11-006-MU-SV-V-000-0000-00 |
| 3784771 | F11-006-MU-WV-K-000-000-0 |
| 3784771 | F11-006-MU-WV-K-000-0000-00 |
Q1: Which types of equipment is the F11-006 motor commonly used?
A1:he F11-006 hydraulic motor is commonly used in equipment like winches, conveyors, fan drives, agricultural machinery, and material handlers.
Q2: What is the primary application advantage of the Parker F11-006 hydraulic motor due to its gerotor design?
A2: The gerotor gear set in the Parker F11-006 hydraulic motor provides smooth, low-speed, high-torque operation with minimal pulsation.
Q3: What is the price and delivery time of the F11-005 hydraulic motor?
A3: The specific price and delivery time will be provided based on the specific model you provide.
Q4:How to purchase an F11-005 hydraulic motor?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
