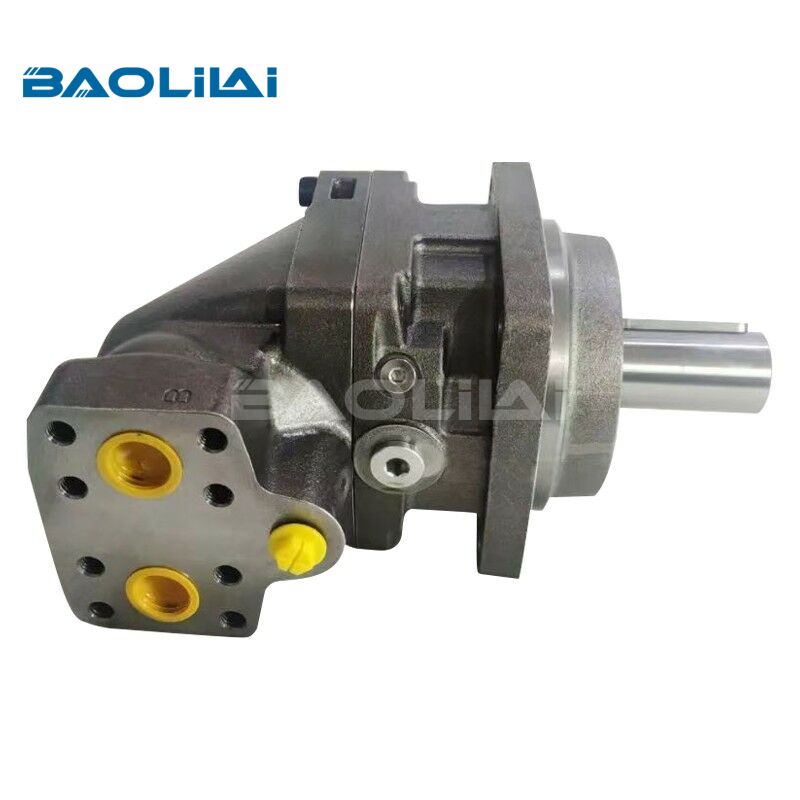

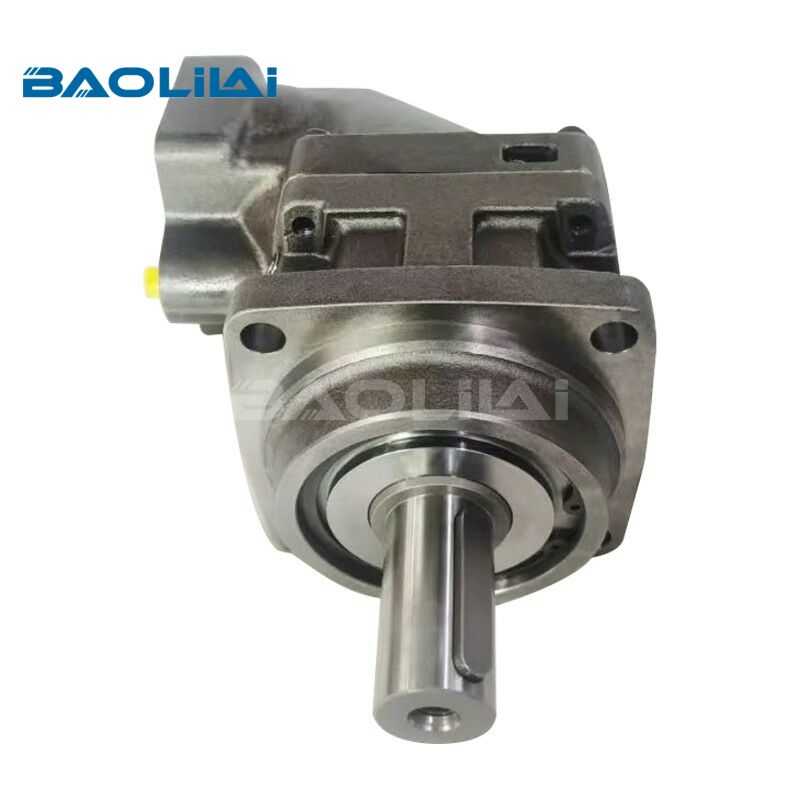

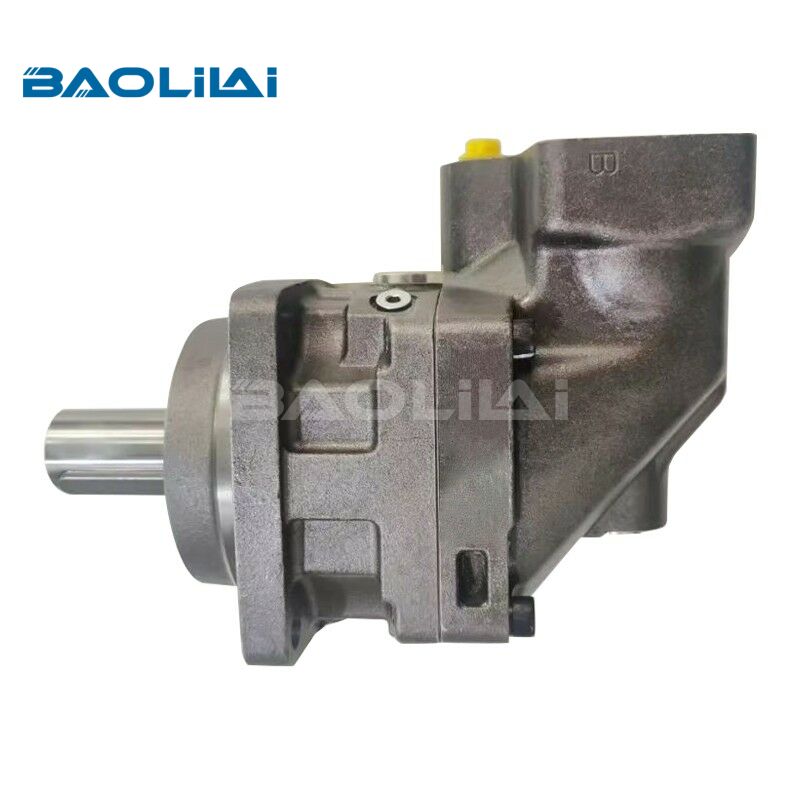

The Parker F12-030, configured as a fixed-displacement axial piston pump, is engineered for reliable hydraulic power in demanding systems. It features a swashplate design with pistons arranged axially around a drive shaft, delivering smooth, pulsation-minimized flow. The 030 designation typically indicates a displacement of 30 cm³/rev (≈1.83 in³/rev). It is built for high-pressure operation, with a continuous pressure rating typically in the range of 250-300 bar (3,600-4,350 psi) and capable of higher peak pressures. Constructed with hardened steel pistons and a robust cast iron or aluminum housing, it ensures durability and longevity. Key attributes include high volumetric and mechanical efficiency, excellent suction characteristics, and stable performance across a wide speed range. It is commonly used in industrial machinery, mobile equipment, and other applications requiring precise, high-power hydraulic actuation. The pump is designed for easy integration into standard hydraulic circuits, often featuring SAE or ISO flange mounting and port connections.
Specifications
| Frame size F12 | -030 | -040 | -060 | -080 | -090 | -110 | -125 | -152 | -162 | -182 | -250 |
| Displacement (cm³/rev) | 30.0 | 40.0 | 59.8 | 80.4 | 93.0 | 110.1 | 125.0 | 149.8 | 163.1 | 179.8 | 242 |
| Operating pressure | |||||||||||
| max intermittent (bar) | 480 | 480 | 480 | 480 | 420 | 480 | 480 | 480 | 480 | 480 | 420 |
| max continuous (bar) | 420 | 420 | 420 | 420 | 350 | 420 | 420 | 420 | 420 | 420 | 350 |
| Motor operating speed [rpm] | |||||||||||
| max intermittent | 7300 | 6700 | 5800 | 5300 | 5000 | 4800 | 4600 | 4000 | 4000 | 4000 | 3000 |
| max continuous | 6700 | 6100 | 5300 | 4800 | 4600 | 4400 | 4200 | 3700 | 3700 | 3700 | 2700 |
| min continuous | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max pump selfpriming speed | |||||||||||
| L or R function: max (rpm) | 3150 | 2870 | 2500 | 2300 | 2250 | 2200 | 2100 | - | - | - | 1500 |
| Motor input flow | |||||||||||
| max intermittent (l/min) | 219 | 268 | 347 | 426 | 465 | 528 | 575 | 608 | 648 | 728 | 726 |
| max continuous (l/min) | 201 | 244 | 317 | 386 | 428 | 484 | 525 | 547 | 583 | 655 | 653 |
| Drain temperature, max (°C) | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 |
| min (°C) | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 |
| Theoretical torque at 100 bar (Nm) | 47.6 | 63.5 | 94.9 | 127.6 | 147.6 | 174.8 | 198.4 | 241 | 257 | 289 | 384.1 |
| Mass moment of inertia | |||||||||||
| (x10-3) (kg m²) | 1.7 | 2.9 | 5 | 8.4 | 8.4 | 11.2 | 11.2 | 21 | 21 | 21 | 46 |
| Weight (kg) | 12 | 16.5 | 21 | 26 | 26 | 36 | 36 | 40 | 40 | 40 | 77 |

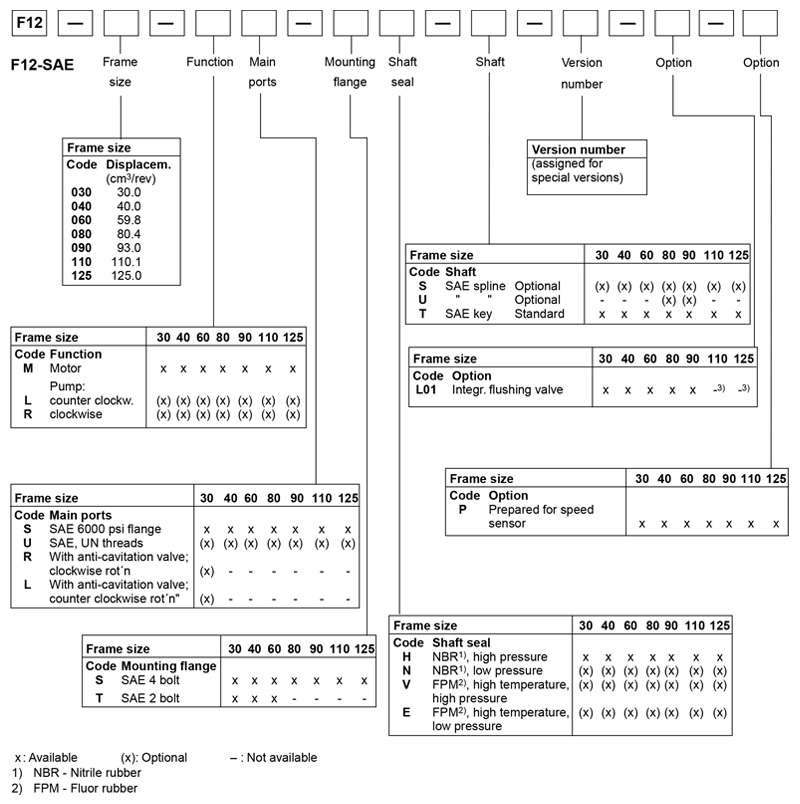

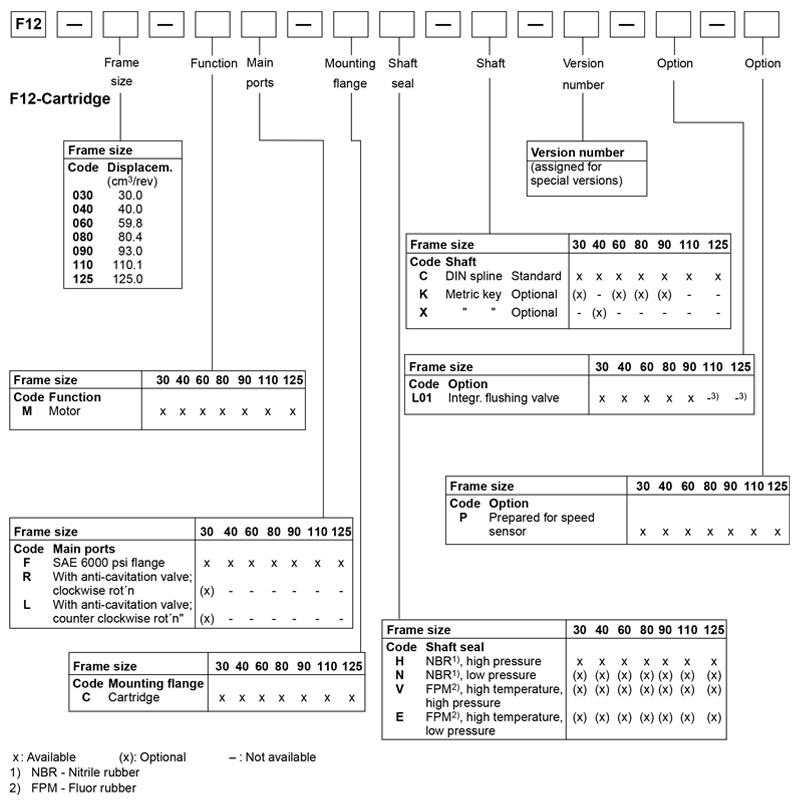

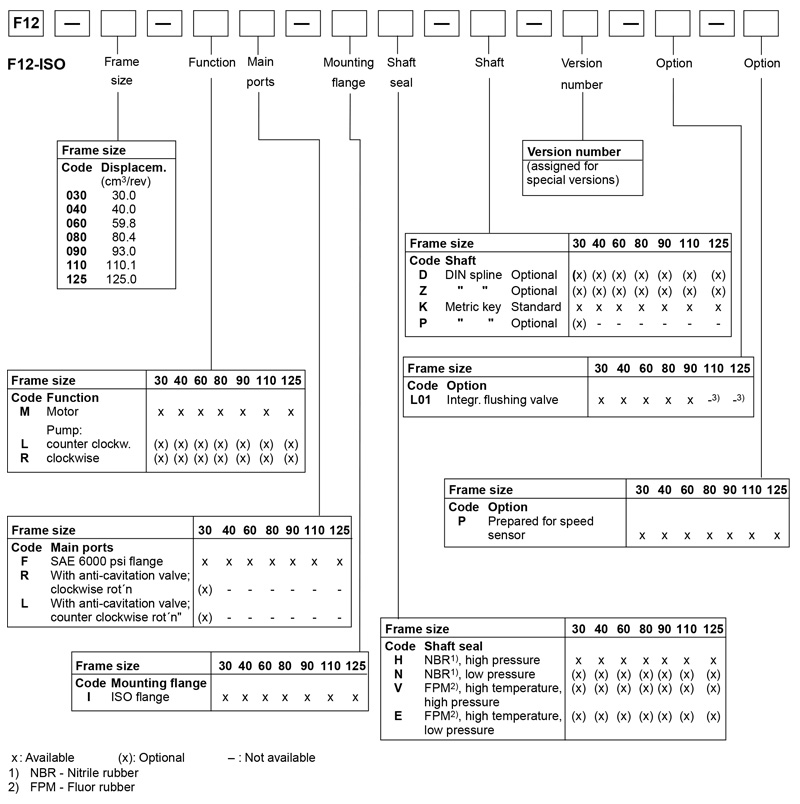

Selection Table
| F12-030 hydraulic pump some models | |
| Model No. | Model Code |
| 3794435 | F12-030-LF-IH-D |
| 3799835 | F12-030-LF-IH-D-000-000-0 |
| F12-030-LF-IH-D-000-000-0 | |
| 3794437 | F12-030-LF-IH-K-000 |
| F12-030-LF-IH-K-000-000-0 | |
| 3787329 | F12-030-LF-IV-D-000-000-0 |
| 3721108 | F12-030-LF-IV-D-000-0000-00 |
| 3787329 | F12-030-LF-IV-D-000-0000-00 |
| 3722658 | F12-030-LF-IV-D-000-0000-P0 |
| 3785844 | F12-030-LF-IV-K-000-000-0 |
| 3799836 | F12-030-LF-IV-K-000-000-0 |
| F12-030-LF-IV-K-000-000-0 | |
| 3799836 | F12-030-LF-IV-K-000-0000-00 |
| 3721545 | F12-030-LF-IV-K-000-0000-P0 |
| 3787147 | F12-030-LF-IV-K-000-L01-P |
| 3787147 | F12-030-LF-IV-K-000-L130-P0 |
| 3789166 | F12-030-LF-IV-P-000-000-0 |
| 3789166 | F12-030-LF-IV-P-000-0000-00 |
| 3782080 | F12-030-LF-IV-Z-000-000-0 |
| F12-030-LF-IV-Z-000-000-0 | |
| 3720425 | F12-030-LF-IV-Z-000-0000-00 |
| 3794439 | F12-030-LS-SH-S-000 |
| F12-030-LS-SH-S-000-000-0 | |
| 3794441 | F12-030-LS-SH-T-000 |
| F12-030-LS-SH-T-000-000-0 | |
| 3799837 | F12-030-LS-SV-S-000-000-0 |
| 3799837 | F12-030-LS-SV-S-000-0000-00 |
| 3721546 | F12-030-LS-SV-S-000-0000-P0 |
| 3799838 | F12-030-LS-SV-T-000-000-0 |
| 3799838 | F12-030-LS-SV-T-000-0000-00 |
| 3721937 | F12-030-LS-SV-T-000-0000-P0 |
| F12-030-LS-TH-P-000-000-0 | |
| F12-030-LS-TH-S-000-000-0 | |
| F12-030-LS-TH-T-000-000-0 | |
| 3785599 | F12-030-LS-TV-P-000-000-0 |
| 3785599 | F12-030-LS-TV-P-000-0000-00 |
| 3721094 | F12-030-LS-TV-P-000-0000-P0 |
| 3780368 | F12-030-LS-TV-S-000-000-0 |
| 3781934 | F12-030-LS-TV-S-000-000-0 |
| F12-030-LS-TV-S-000-000-0 | |
| 3780368 | F12-030-LS-TV-S-000-0000-00 |
| 3720518 | F12-030-LS-TV-S-000-0000-0T |
| 3724110 | F12-030-LS-TV-S-000-0000-P0 |
| 3721547 | F12-030-LS-TV-S-000-0000-PT |
| 3783228 | F12-030-LS-TV-T-000-000-0 |
| 3783228 | F12-030-LS-TV-T-000-0000-00 |
| 3721548 | F12-030-LS-TV-T-000-0000-P0 |
| F12-030-LU-SH-S-000-000-0 | |
| 3785812 | F12-030-LU-SV-S-000-000-0 |
| 3785812 | F12-030-LU-SV-S-000-0000-00 |
| 3783238 | F12-030-LU-TV-S-000-000-0 |
| 3783238 | F12-030-LU-TV-S-000-0000-00 |
| 3782386 | F12-030-RA-IV-K-000-000-0 |
| 3794902 | F12-030-RF-CH-C-000 |
| 3799857 | F12-030-RF-CH-C-000-000-0 |
| 3794436 | F12-030-RF-IH-D-000 |
| 3794438 | F12-030-RF-IH-K-000 |
| 3783248 | F12-030-RF-IN-K-000-000-0 |
| 3783248 | F12-030-RF-IN-K-000-0000-00 |
| 3784892 | F12-030-RF-IN-K-406-000-0 |
| 3785814 | F12-030-RF-IV-D-000-000-0 |
| 3799858 | F12-030-RF-IV-D-000-000-0 |
| 3799858 | F12-030-RF-IV-D-000-0000-00 |
| 3721595 | F12-030-RF-IV-D-000-0000-P0 |
| 3787664 | F12-030-RF-IV-D-100-000-0 |
| 3787664 | F12-030-RF-IV-D-100-0000-00 |
| 3782300 | F12-030-RF-IV-K-000-000-0 |
| 3799859 | F12-030-RF-IV-K-000-000-0 |
| 3799859 | F12-030-RF-IV-K-000-0000-00 |
| 3721596 | F12-030-RF-IV-K-000-0000-P0 |
| 3722181 | F12-030-RF-IV-K-000-0000-PT |
| 3782058 | F12-030-RF-IV-P-000-000-0 |
| 3782058 | F12-030-RF-IV-P-000-0000-00 |
| 3721979 | F12-030-RF-IV-P-000-0000-P0 |
| 3782123 | F12-030-RF-IV-Z-000-000-0 |
| 3721498 | F12-030-RF-IV-Z-000-0000-P0 |
| 3794440 | F12-030-RS-SH-S-000 |
| 3794442 | F12-030-RS-SH-T-000 |
| 3799861 | F12-030-RS-SH-T-000-000-0 |
| 3782651 | F12-030-RS-SV-S-000-000-0 |
| 3799860 | F12-030-RS-SV-S-000-000-0 |
| 3799860 | F12-030-RS-SV-S-000-0000-00 |
| 3720225 | F12-030-RS-SV-S-000-0000-BT |
| 3721599 | F12-030-RS-SV-S-000-0000-P0 |
| 3796113 | F12-030-RS-SV-T-000 |
| 3799862 | F12-030-RS-SV-T-000-000-0 |
| 3799862 | F12-030-RS-SV-T-000-0000-00 |
| 3721601 | F12-030-RS-SV-T-000-0000-P0 |
| 3780475 | F12-030-RS-TV-K-000-000-0 |
| 3781407 | F12-030-RS-TV-S-000-000-0 |
| 3786647 | F12-030-RS-TV-S-000-000-0 |
| 3781407 | F12-030-RS-TV-S-000-0000-00 |
| 3721013 | F12-030-RS-TV-S-000-0000-0T |
| 3721602 | F12-030-RS-TV-S-000-0000-P0 |
| 3721603 | F12-030-RS-TV-S-000-0000-PT |
| 3789151 | F12-030-RS-TV-S-209-000-0 |
| 3789151 | F12-030-RS-TV-S-209-0000-0X |
| 3780112 | F12-030-RS-TV-T-000-0000-00 |
| 3721604 | F12-030-RS-TV-T-000-0000-P0 |
| 3724450 | F12-030-RS-TV-T-000-0000-PT |
| 3780112 | F12-030-RS-TV-T-000-000-0 |
| 3721392 | F12-030-RU-SV-S-000-0000-00 |
| 3721605 | F12-030-RU-SV-S-000-0000-P0 |
| 3788058 | F12-030-RU-SV-T-000-0000-P0 |
| 3788058 | F12-030-RU-SV-T-000-000-P |
| 3785891 | F12-030-RU-TV-S-000-000-0 |
| 3785891 | F12-030-RU-TV-S-000-0000-00 |
| 3785654 | F12-030-RU-TV-T-000-000-0 |
| 3785654 | F12-030-RU-TV-T-000-0000-00 |
Q1: What are the main construction materials and benefits of the F12-030 pump?
A1:The F12-030 pump is constructed with hardened steel pistons and a robust cast iron or aluminum housing, ensuring durability, longevity, and high volumetric/mechanical efficiency.
Q2: In which applications is the Parker F12-030 hydraulic pump commonly used?
A2: The Parker F12-030 pump is commonly used in industrial machinery, mobile equipment, and other systems requiring precise, high-power hydraulic actuation.
Q3: What is the price and delivery time of the F12-030 hydraulic pump?
A3: The specific price and delivery time will be provided based on the specific model you provide.
