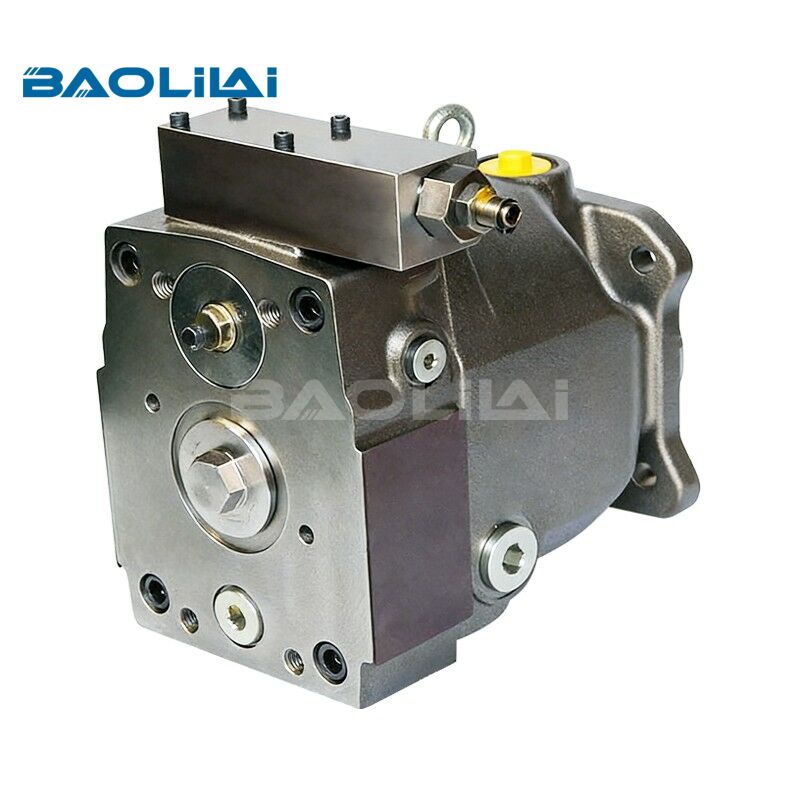

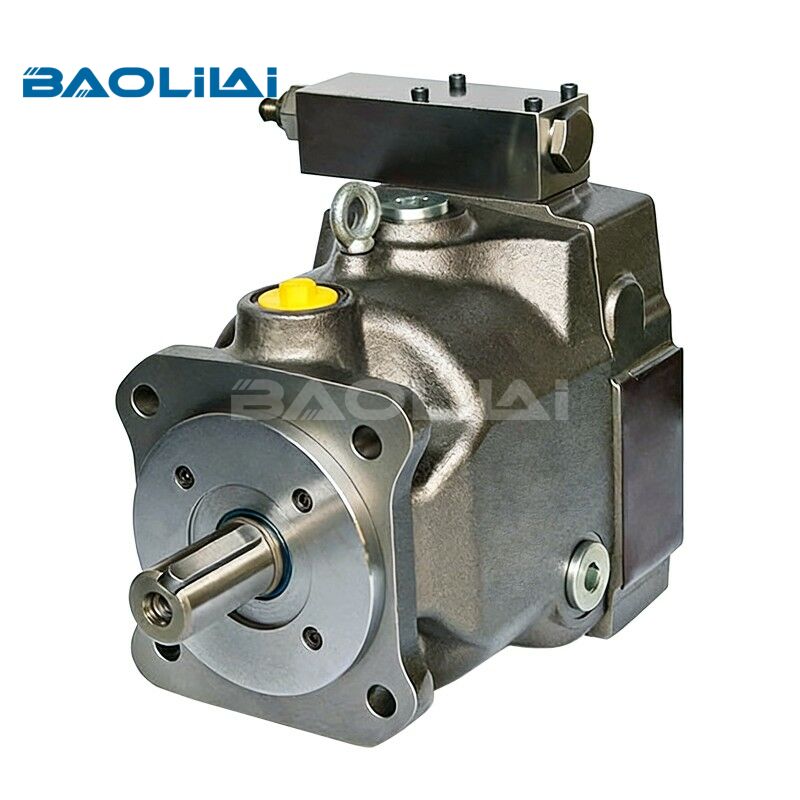

The Parker PV020 is a variable-displacement, axial piston pump designed for open-circuit hydraulic systems. It features a swashplate design where piston movement, driven by a rotating cylinder block, creates flow. The swashplate angle, controlled by integrated pressure compensation, determines displacement. The PV020 offers a nominal displacement of 20 cm³/rev (approximately 1.22 in³/rev) and is built for continuous operation at pressures up to 280 bar (approximately 4060 psi), with peak pressures up to 350 bar (5075 psi). Its key attributes include high volumetric and overall efficiency, low noise levels, and robust construction for demanding industrial and mobile applications. The pump is commonly used for its reliable performance in circuits requiring pressure-compensated flow control.
Specifications
| PV016 | PV020 | PV023 | PV028 | PV032 | PV040 | PV046 | PV063 | PV080 | PV092 | PV140 | PV180 | PV270 | PV360 | ||
| Frame size | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | |
| Max. Displacement | [cm³/rev.] | 16 | 20 | 23 | 28 | 32 | 40 | 46 | 63 | 80 | 92 | 140 | 180 | 270 | 360 |
| Output flow at 1500 rpm | [l/min] | 24 | 30 | 34.5 | 42 | 48 | 60 | 69 | 94.5 | 120 | 138 | 270 | 405 | 405 | 540 |
| Nominal pressure pN | [bar] | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. pressure pmax at 20% working cycle | [bar] | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Case drain pressure, continuous | [bar] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.55 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Case drain pressure, max. peak | [bar] | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Min. Inlet pressure, abs. | [bar] | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. Inlet pressure | [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Input power at 1500 rpm and 350 bar | [kW] | 15.5 | 19.5 | 22.5 | 27.5 | 31 | 39 | 45 | 61.5 | 78 | 89.5 | 136 | 175 | 263 | 350 |
| Max speed at 1 bar, abs, inlet pressure | [rpm] | 3000 | 3000 | 3000 | 3000 | 2800 | 2800 | 2800 | 2800 | 2500 | 2300 | 2400 | 2200 | 1800 | 1750 |
| Moment of inertia | [kgm²] | 0.0017 | 0.0017 | 0.0017 | 0.0017 | 0.0043 | 0.0043 | 0.0043 | 0.018 | 0.018 | 0.018 | 0.030 | 0.030 | 0.098 | 0.103 |
| Weight | [kg] | 19 | 19 | 19 | 19 | 30 | 30 | 30 | 59 | 59 | 59 | 90 | 90 | 172 | 180 |

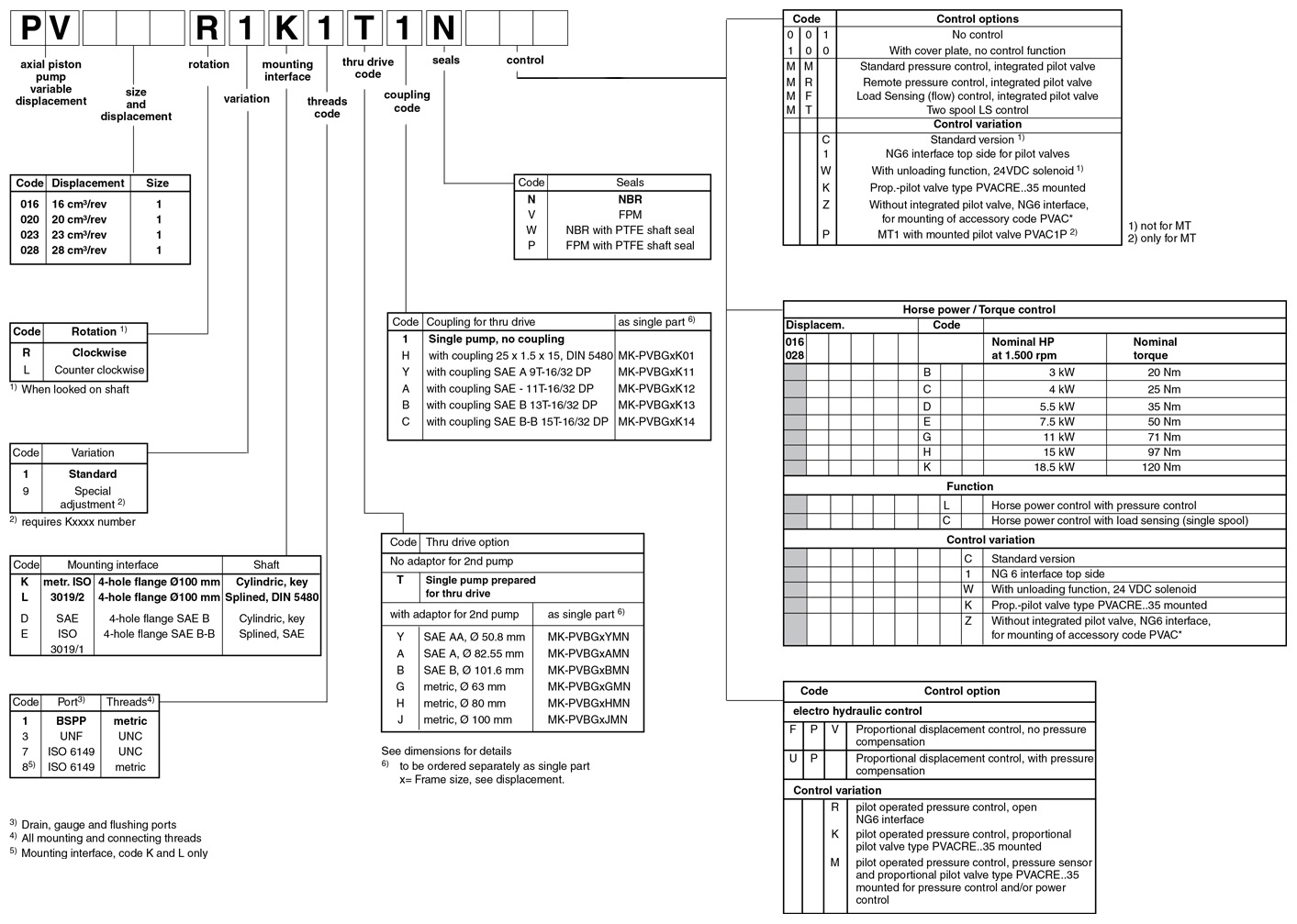

Selection Table
| PV020 axial piston hydraulic pump |
| Model Code |
| PV020L1E1BBNMMK |
| PV020L1E1T1NMFC |
| PV020L1E1T1NMMC |
| PV020L1E1T1NUDK |
| PV020L1E1T1NUPK |
| PV020L1K1JHNMR1 |
| PV020L1K1T1NELZ |
| PV020L1K1T1NFFP |
| PV020L1K1T1NFHS |
| PV020L1K1T1NFWS |
| PV020L1K1T1NMMC |
| PV020L1L1A1N100 |
| PV020L1L1AYNMTP |
| PV020L1L1T1NFFC |
| PV020L1L1T1NFR1 |
| PV020L1L1T1NMFC |
| PV020L1L1T1NMR1 |
| PV020L1L1T1NMRC |
| PV020L9E1T1VMMC |
| PV020R1D1T1NFFC |
| PV020R1D1T1NMFC |
| PV020R1D1T1NMMC |
| PV020R1D1T1NMMC4747 |
| PV020R1D1T1NMRC |
| PV020R1D1T1NMTP |
| PV020R1D1T1VMMC |
| PV020R1D1T1VMMW |
| PV020R1D3AYNMM1 |
| PV020R1D3AYNMR1 |
| PV020R1D3AYNMR14747 |
| PV020R1D3AYNMRC |
| PV020R1D3BBNMMC |
| PV020R1D3BBNMMC4747 |
| PV020R1D3BBNMRC |
| PV020R1D3BCNMMC |
| PV020R1D3BCNMRZ |
| PV020R1D3T1NDL1 |
| PV020R1D3T1NDLC |
| PV020R1D3T1NFPV |
| PV020R1D3T1NFRC |
| PV020R1D3T1NMFC |
| PV020R1D3T1NMMC |
| PV020R1D3T1NMR1 |
| PV020R1D3T1NMR14747 |
| PV020R1D3T1NMRC |
| PV020R1D3T1NMRC4747 |
| PV020R1D3T1NMRZ |
| PV020R1D3T1NUPM |
| PV020R1D3T1VMMC |
| PV020R1E1AYNMFC |
| PV020R1E1AYNMFC4747 |
| PV020R1E1BCNMFC |
| PV020R1E1T1NDL1 |
| PV020R1E1T1NDLC |
| PV020R1E1T1NFFP |
| PV020R1E1T1NFWS |
| PV020R1E1T1NMFC |
| PV020R1E1T1NMFC4747 |
| PV020R1E1T1NMMC |
| PV020R1E1T1NMRC |
| PV020R1E3T1NMMC |
| PV020R1E3T1NMMZ |
| PV020R1E3T1NMR1 |
| PV020R1E3T1NMRW |
| PV020R1E3T1NMRZ |
| PV020R1E3T1VMMC |
| PV020R1K1A1N001 |
| PV020R1K1A1NFHS |
| PV020R1K1A1NFR1 |
| PV020R1K1A1NFRC |
| PV020R1K1A1NMMC |
| PV020R1K1A1NMRC |
| PV020R1K1AYNMFC |
| PV020R1K1AYNMMC |
| PV020R1K1AYNMMC4747 |
| PV020R1K1AYNMMW |
| PV020R1K1AYNMMZ |
| PV020R1K1AYNMR1 |
| PV020R1K1AYNMRC |
| PV020R1K1AYNMRZ |
| PV020R1K1BBNMMC |
| PV020R1K1H1NFDS |
| PV020R1K1H1NFRC |
| PV020R1K1HJVMTP |
| PV020R1K1JHNMF1 |
| PV020R1K1JHNMFC |
| PV020R1K1JHNMMC |
| PV020R1K1JHNMMW |
| PV020R1K1S1NFWS |
| PV020R1K1T1N000 |
| PV020R1K1T1N001 |
| PV020R1K1T1N100 |
| PV020R1K1T1N1004747 |
| PV020R1K1T1NBC1 |
| PV020R1K1T1NBL1 |
| PV020R1K1T1NBLC |
| PV020R1K1T1NCC1 |
| PV020R1K1T1NCCC |
| PV020R1K1T1NCLB |
| PV020R1K1T1NCLC |
| PV020R1K1T1NCLK |
| PV020R1K1T1NCLK4747 |
| PV020R1K1T1NDCC |
| PV020R1K1T1NDL1 |
| PV020R1K1T1NDL14747 |
| PV020R1K1T1NDLC |
| PV020R1K1T1NDLC4747 |
| PV020R1K1T1NDLW |
| PV020R1K1T1NECC |
| PV020R1K1T1NEL1 |
| PV020R1K1T1NELC |
| PV020R1K1T1NELK |
| PV020R1K1T1NELW |
| PV020R1K1T1NELW4747 |
| PV020R1K1T1NFDS |
| PV020R1K1T1NFF1 |
| PV020R1K1T1NFFC |
| PV020R1K1T1NFFD |
| PV020R1K1T1NFFP |
| PV020R1K1T1NFHS |
| PV020R1K1T1NFPD |
| PV020R1K1T1NFPG |
| PV020R1K1T1NFPR |
| PV020R1K1T1NFPS |
| PV020R1K1T1NFPV |
| PV020R1K1T1NFR1 |
| PV020R1K1T1NFRC |
| PV020R1K1T1NFRL |
| PV020R1K1T1NFRZ |
| PV020R1K1T1NFWS |
| PV020R1K1T1NGCB |
| PV020R1K1T1NGCC |
| PV020R1K1T1NGCC4747 |
| PV020R1K1T1NGCW |
| PV020R1K1T1NGL1 |
| PV020R1K1T1NGLA |
| PV020R1K1T1NGLC |
| PV020R1K1T1NHCC |
| PV020R1K1T1NHL1 |
| PV020R1K1T1NHL14747 |
| PV020R1K1T1NHLC |
| PV020R1K1T1NKCC |
| PV020R1K1T1NKLC |
| PV020R1K1T1NMF1 |
| PV020R1K1T1NMF14747 |
| PV020R1K1T1NMFC |
| PV020R1K1T1NMFC4747 |
| PV020R1K1T1NMFK |
| PV020R1K1T1NMFW |
| PV020R1K1T1NMM1 |
| PV020R1K1T1NMM14747 |
| PV020R1K1T1NMMC |
| PV020R1K1T1NMMC4747 |
| PV020R1K1T1NMMK |
| PV020R1K1T1NMMK4747 |
| PV020R1K1T1NMMW |
| PV020R1K1T1NMMW4747 |
| PV020R1K1T1NMMZ |
| PV020R1K1T1NMR1 |
| PV020R1K1T1NMR14747 |
| PV020R1K1T1NMRC |
| PV020R1K1T1NMRC4747 |
| PV020R1K1T1NMRK |
| PV020R1K1T1NMRZ |
| PV020R1K1T1NMRZ4747 |
| PV020R1K1T1NMT1 |
| PV020R1K1T1NMTK |
| PV020R1K1T1NUDM |
| PV020R1K1T1NUDR |
| PV020R1K1T1NUDS |
| PV020R1K1T1NUPD |
| PV020R1K1T1NUPE |
| PV020R1K1T1NUPF |
| PV020R1K1T1NUPG |
| PV020R1K1T1NUPK |
| PV020R1K1T1NUPM |
| PV020R1K1T1NUPP |
| PV020R1K1T1NUPR |
| PV020R1K1T1NUPS |
| PV020R1K1T1VDL1 |
| PV020R1K1T1VDLC |
| PV020R1K1T1VFDS |
| PV020R1K1T1VFPR |
| PV020R1K1T1VFPV |
| PV020R1K1T1VFR1 |
| PV020R1K1T1VMF1 |
| PV020R1K1T1VMFC |
| PV020R1K1T1VMFZ |
| PV020R1K1T1VMM1 |
| PV020R1K1T1VMMC |
| PV020R1K1T1VMMC4747 |
| PV020R1K1T1VMMW |
| PV020R1K1T1VMR1 |
| PV020R1K1T1VMRC |
| PV020R1K1T1VMRC4747 |
| PV020R1K1T1VMTP |
| PV020R1K1T1VUPG |
| PV020R1K1T1VUPR |
| PV020R1K1T1WFDS |
| PV020R1K1T1WFR1 |
| PV020R1K1T1WMM1 |
| PV020R1K1T1WMMC |
| PV020R1K1T1WMMC4747 |
| PV020R1K1T1WMR1 |
| PV020R1K1T1WMRC |
| PV020R1K1T1WUPM |
| PV020R1K1T1WUPS |
| PV020R1K4T1NFHS |
| PV020R1K4T1NFR1 |
| PV020R1K4T1NMMC |
| PV020R1K4T1NMR1 |
| PV020R1K8AYNMR1 |
| PV020R1K8T1N001 |
| PV020R1K8T1NFHS |
| PV020R1K8T1NFWS |
| PV020R1K8T1NMMC |
| PV020R1K8T1NMRZ |
| PV020R1K8T1VMMC |
| PV020R1L1A1N001 |
| PV020R1L1A1NFPG |
| PV020R1L1HJNMFC |
| PV020R1L1JHNMMC |
| PV020R1L1T1NDC1 |
| PV020R1L1T1NELZ |
| PV020R1L1T1NFDS |
| PV020R1L1T1NFF1 |
| PV020R1L1T1NFFP |
| PV020R1L1T1NFPG |
| PV020R1L1T1NFR1 |
| PV020R1L1T1NFRD |
| PV020R1L1T1NFRP |
| PV020R1L1T1NFWS |
| PV020R1L1T1NGLC |
| PV020R1L1T1NMF1 |
| PV020R1L1T1NMFC |
| PV020R1L1T1NMFW |
| PV020R1L1T1NMMC |
| PV020R1L1T1NMMC4747 |
| PV020R1L1T1NMMK |
| PV020R1L1T1NMMK4747 |
| PV020R1L1T1NMMW |
| PV020R1L1T1NMMZ |
| PV020R1L1T1NMR1 |
| PV020R1L1T1NMRC |
| PV020R1L1T1NMRW |
| PV020R1L1T1NMRZ |
| PV020R1L1T1V100 |
| PV020R1L1T1VMFC |
| PV020R1L1T1VMMK |
| PV020R1L1T1VMMK4747 |
| PV020R2K1T1N001 |
| PV020R2K1T1VMMC |
| PV020R4K1T1NUDM |
| PV020R4K1T1NUDM4747 |
| PV020R4K1T1NUDR |
| PV020R4K1T1NUDR4747 |
| PV020R4K1T1NUDS |
| PV020R4K1T1NUDS4747 |
| PV020R9E3BCVMMC |
| PV020R9E3T1VMMC |
| PV020R9K1A1NMMC |
| PV020R9K1A4NFWS |
| PV020R9K1JHN001 |
| PV020R9K1T1N001 |
| PV020R9K1T1NCLC |
| PV020R9K1T1NDLC |
| PV020R9K1T1NELC |
| PV020R9K1T1NFWS |
| PV020R9K1T1NMFC |
| PV020R9K1T1NMMC |
| PV020R9K1T1NMRC |
| PV020R9K1T1VMMC |
Q1:In which type of hydraulic circuit is the PV020 hydraulic pump typically employed?
A1:The PV020 hydraulic pump is typically employed in open-circuit hydraulic systems that require pressure-compensated flow control.
Q2:What are the main performance advantages of the Parker PV020 hydraulic pump?
A2:The main performance advantages of the PV020 hydraulic pump include high volumetric and overall efficiency, low noise levels, and robust construction suitable for demanding applications.
Q3:How to purchase a PV020 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the PV020 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
