For Parker PV046 variable displacement hydraulic pump
SERIES : PV
BRAND : For Rexroth
Model Size :PV046
Displacement : 46cm3/rev
Speed : 2800rpm
Maximum Pressure : 420bar
Nominal Pressure : 350bar
Download PDF
- Product Details
- Product Model
- FAQ
The Parker PV046 is a variable displacement piston pump designed for open-circuit hydraulic systems, offering reliable and efficient performance in mobile and industrial applications. Its core feature is a swashplate design that allows for smooth, stepless variation of displacement (and thus flow output) in response to system demands, controlled via a pressure-compensating mechanism, load-sensing valve, or proportional electro-hydraulic control. This ensures optimal power matching, reducing energy consumption and heat generation.
The PV046 series is known for its robust construction, high volumetric efficiency, and sustained operation at high working pressures. Key characteristics include excellent self-priming capability, low noise levels, and strong contamination tolerance. Its compact, modular design simplifies installation and maintenance. Typical applications include construction machinery, material handling equipment, and agricultural vehicles, where precise and responsive hydraulic power is critical. Overall, the Parker PV046 delivers a durable, high-performance solution for demanding variable flow requirements.
Specifications
| PV016 | PV020 | PV023 | PV028 | PV032 | PV040 | PV046 | PV063 | PV080 | PV092 | PV140 | PV180 | PV270 | PV360 | ||
| Frame size | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | |
| Max. Displacement | [cm³/rev.] | 16 | 20 | 23 | 28 | 32 | 40 | 46 | 63 | 80 | 92 | 140 | 180 | 270 | 360 |
| Output flow at 1500 rpm | [l/min] | 24 | 30 | 34.5 | 42 | 48 | 60 | 69 | 94.5 | 120 | 138 | 270 | 405 | 405 | 540 |
| Nominal pressure pN | [bar] | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. pressure pmax at 20% working cycle | [bar] | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Case drain pressure, continuous | [bar] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.55 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Case drain pressure, max. peak | [bar] | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Min. Inlet pressure, abs. | [bar] | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. Inlet pressure | [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Input power at 1500 rpm and 350 bar | [kW] | 15.5 | 19.5 | 22.5 | 27.5 | 31 | 39 | 45 | 61.5 | 78 | 89.5 | 136 | 175 | 263 | 350 |
| Max speed at 1 bar, abs, inlet pressure | [rpm] | 3000 | 3000 | 3000 | 3000 | 2800 | 2800 | 2800 | 2800 | 2500 | 2300 | 2400 | 2200 | 1800 | 1750 |
| Moment of inertia | [kgm²] | 0.0017 | 0.0017 | 0.0017 | 0.0017 | 0.0043 | 0.0043 | 0.0043 | 0.018 | 0.018 | 0.018 | 0.030 | 0.030 | 0.098 | 0.103 |
| Weight | [kg] | 19 | 19 | 19 | 19 | 30 | 30 | 30 | 59 | 59 | 59 | 90 | 90 | 172 | 180 |

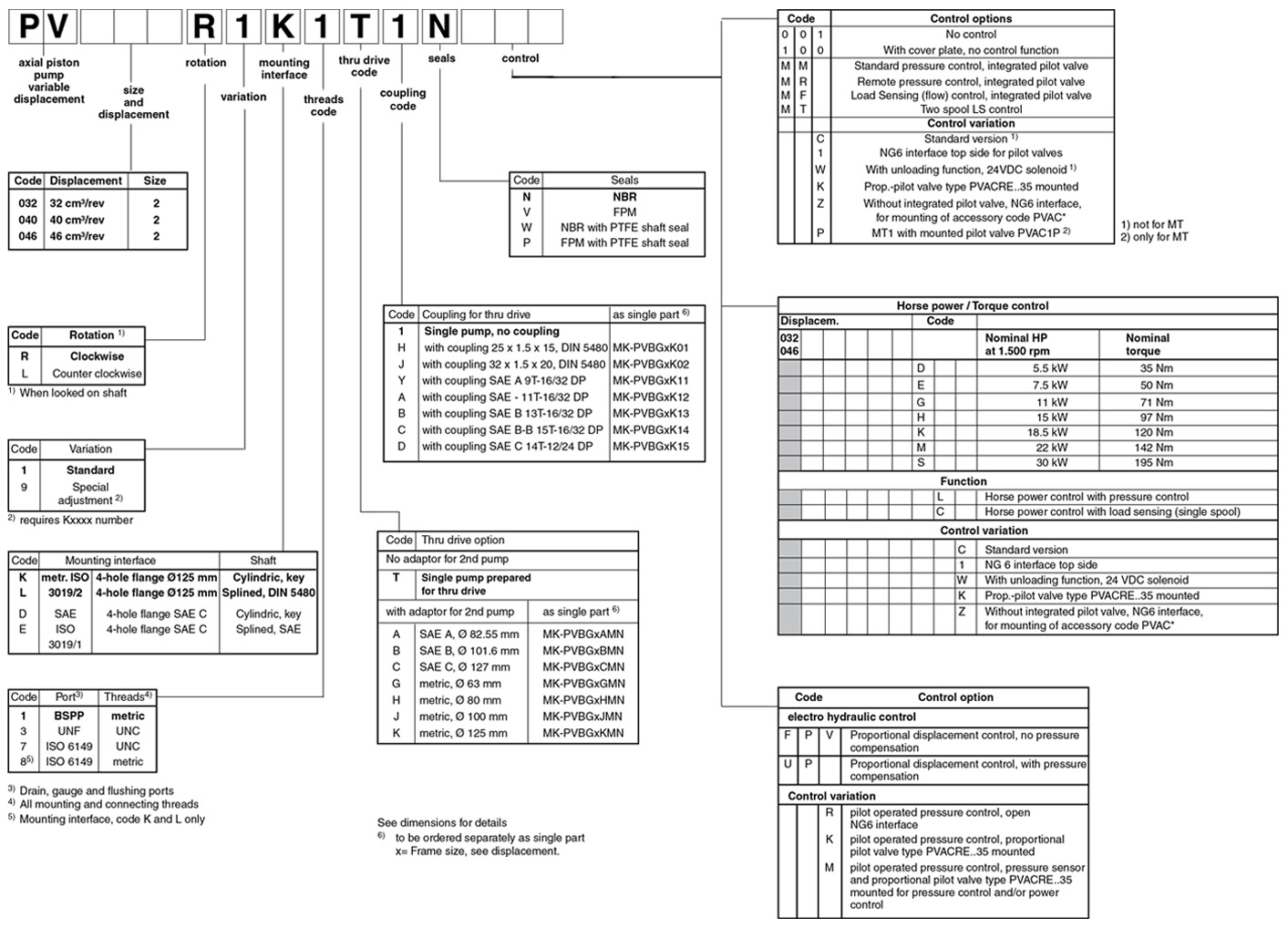

Selection Table
| PV046 axial piston hydraulic pump |
| Model Code |
| PV046L1D1T1NHL1 |
| PV046L1D1T1NMFC |
| PV046L1D3T1N001 |
| PV046L1D3T1NMMC |
| PV046L1D3T1V001 |
| PV046L1D3T1VMMC |
| PV046L1E1AYNMMC |
| PV046L1E1BCN001 |
| PV046L1E1BCNMMC |
| PV046L1E1BCNMMC4747 |
| PV046L1E1T1NMF1 |
| PV046L1E1T1NMFC |
| PV046L1E1T1NMFC4747 |
| PV046L1E1T1NMM1 |
| PV046L1E3AYNMRC |
| PV046L1E3AYNMRC4747 |
| PV046L1E3AYNUPK |
| PV046L1E3AYVMMC |
| PV046L1E3AYVMRC |
| PV046L1E3BBVMMC |
| PV046L1E3T1NMFC |
| PV046L1E3T1NMMC |
| PV046L1E3T1NMRC |
| PV046L1E3T1NMRC4747 |
| PV046L1E3T1VMFC |
| PV046L1E3T1VMMC |
| PV046L1E3T1VMTP |
| PV046L1K1A1NFHS |
| PV046L1K1T1NFWS |
| PV046L1K1T1NMF1 |
| PV046L1K1T1NMFC |
| PV046L1K1T1NMFC4747 |
| PV046L1K1T1NMM1 |
| PV046L1K1T1NMM14747 |
| PV046L1K1T1NMMC |
| PV046L1K1T1NMMC4747 |
| PV046L1K1T1NMRC |
| PV046L1K1T1NMRK |
| PV046L1L1CDNMMC |
| PV046L1L1T1NMFC |
| PV046L1L1T1NMMC |
| PV046L1L1T1NMR1 |
| PV046L1L1T1NMR14747 |
| PV046L1L1T1NMRC |
| PV046L1L1T1NMTP |
| PV046L1L1T1NSLC |
| PV046L4E1T1NUDK |
| PV046L4E1T1NUDK4747 |
| PV046L4E1T1NUDR |
| PV046L4E1T1NUDR4747 |
| PV046R1D1BBNMMC |
| PV046R1D1T1NDCB |
| PV046R1D1T1NELC |
| PV046R1D1T1NFWS |
| PV046R1D1T1NHCC |
| PV046R1D1T1NHCC4747 |
| PV046R1D1T1NMFC |
| PV046R1D1T1NMMC |
| PV046R1D1T1NMR1 |
| PV046R1D1T1VMMC |
| PV046R1D3AYNDLC |
| PV046R1D3AYNMFC |
| PV046R1D3AYNMMC |
| PV046R1D3AYNMR1 |
| PV046R1D3AYNMRW |
| PV046R1D3AYNMRZ |
| PV046R1D3BBNMMC |
| PV046R1D3BBNMR1 |
| PV046R1D3BCNMMW |
| PV046R1D3BCNMRW |
| PV046R1D3C1NFR1 |
| PV046R1D3CDNMMC |
| PV046R1D3CDNMMW |
| PV046R1D3CDNMR1 |
| PV046R1D3CDNMRZ |
| PV046R1D3KJNMRZ |
| PV046R1D3T1EFRC |
| PV046R1D3T1N001 |
| PV046R1D3T1NELC |
| PV046R1D3T1NFFC |
| PV046R1D3T1NFPV |
| PV046R1D3T1NGLC |
| PV046R1D3T1NMF1 |
| PV046R1D3T1NMFC |
| PV046R1D3T1NMLC |
| PV046R1D3T1NMMC |
| PV046R1D3T1NMMC4747 |
| PV046R1D3T1NMMW |
| PV046R1D3T1NMMZ |
| PV046R1D3T1NMMZ4747 |
| PV046R1D3T1NMR1 |
| PV046R1D3T1NMRC |
| PV046R1D3T1NMRC4747 |
| PV046R1D3T1NSCC |
| PV046R1D3T1NUPM |
| PV046R1D3T1NUPR |
| PV046R1D3T1V001 |
| PV046R1D3T1VFRC |
| PV046R1D3T1VMMC |
| PV046R1D3T1VMMW |
| PV046R1D3T1VMMW4747 |
| PV046R1D3T1VMRC |
| PV046R1E1AYNMFC |
| PV046R1E1BBNMMC |
| PV046R1E1BBNMMC4747 |
| PV046R1E1CDNMMC |
| PV046R1E1T1N001 |
| PV046R1E1T1NHZP |
| PV046R1E1T1NMCC |
| PV046R1E1T1NMF1 |
| PV046R1E1T1NMFC |
| PV046R1E1T1NMLC |
| PV046R1E1T1NMMC |
| PV046R1E1T1NMMZ |
| PV046R1E1T1NMR1 |
| PV046R1E1T1NMR14747 |
| PV046R1E1T1NMRC |
| PV046R1E1T1NMRC4747 |
| PV046R1E1T1NSCC |
| PV046R1E1T1NSCC4747 |
| PV046R1E1T1NUDR |
| PV046R1E1T1W001 |
| PV046R1E1T1WMRC |
| PV046R1E1T1WMTK |
| PV046R1E3AYNMRC |
| PV046R1E3BBNMRC |
| PV046R1E3BCNMMW |
| PV046R1E3BCNMMZ |
| PV046R1E3BCNMR1 |
| PV046R1E3C1NGLC |
| PV046R1E3CDNMFC |
| PV046R1E3CDNMMC |
| PV046R1E3T1NGLC |
| PV046R1E3T1NHCC |
| PV046R1E3T1NMFC |
| PV046R1E3T1NMMC |
| PV046R1E3T1NMMC4747 |
| PV046R1E3T1NMMW |
| PV046R1E3T1NMR1 |
| PV046R1E3T1NMRC |
| PV046R1E3T1NMRC4747 |
| PV046R1E3T1NMRK |
| PV046R1E3T1NMRZ |
| PV046R1E3T1NUPM |
| PV046R1E3T1VMCK |
| PV046R1E3T1VMFC |
| PV046R1E3T1VMTP |
| PV046R1E3T1VMTP4747 |
| PV046R1K1A1NELZ |
| PV046R1K1A1NFPV |
| PV046R1K1A1NMMC |
| PV046R1K1A1NMMW |
| PV046R1K1A1NMRC |
| PV046R1K1A1WMMC |
| PV046R1K1A1WMMZ |
| PV046R1K1A1WMR1 |
| PV046R1K1A4NFRC |
| PV046R1K1AYNEL1 |
| PV046R1K1AYNGCC |
| PV046R1K1AYNGL1 |
| PV046R1K1AYNHL1 |
| PV046R1K1AYNHLZ |
| PV046R1K1AYNMFC |
| PV046R1K1AYNMFC4747 |
| PV046R1K1AYNMMC |
| PV046R1K1AYNMR1 |
| PV046R1K1AYNMRC |
| PV046R1K1AYNMRC4747 |
| PV046R1K1AYNMRZ |
| PV046R1K1AYNMTP |
| PV046R1K1AYNSCC |
| PV046R1K1AYNUPK |
| PV046R1K1AYNUPR |
| PV046R1K1AYVFPV |
| PV046R1K1AYVMMC |
| PV046R1K1B1NFDS |
| PV046R1K1B1NMFC |
| PV046R1K1B1NMM1 |
| PV046R1K1B1NMMC |
| PV046R1K1B1NMRC |
| PV046R1K1BBNMFC |
| PV046R1K1BBNMFC4747 |
| PV046R1K1BBNMLK |
| PV046R1K1BBNMLK4747 |
| PV046R1K1BBNMMC |
| PV046R1K1BBNMMC4747 |
| PV046R1K1BBNMMK |
| PV046R1K1BBNMMK4747 |
| PV046R1K1BBNMRC |
| PV046R1K1BBNMRZ |
| PV046R1K1BBVELC |
| PV046R1K1BBVMLC |
| PV046R1K1BBWMMK |
| PV046R1K1BBWMMK4747 |
| PV046R1K1BBWMRC |
| PV046R1K1CDNML1 |
| PV046R1K1CDNMMC |
| PV046R1K1CDWMMC |
| PV046R1K1H1NML1 |
| PV046R1K1HJVMTD |
| PV046R1K1HJVMTK |
| PV046R1K1J1VMR1 |
| PV046R1K1JHNDLC |
| PV046R1K1JHNELZ |
| PV046R1K1JHNMF1 |
| PV046R1K1JHNMFC |
| PV046R1K1JHNMFW |
| PV046R1K1JHNMM1 |
| PV046R1K1JHNMMC |
| PV046R1K1JHNMMW |
| PV046R1K1JHNMMW4747 |
| PV046R1K1JHNMMZ |
| PV046R1K1JHNMRC |
| PV046R1K1JHNMRW |
| PV046R1K1JHNMRZ |
| PV046R1K1JHNUPR |
| PV046R1K1JHVMTK |
| PV046R1K1JHVMTK4747 |
| PV046R1K1JHVUPR |
| PV046R1K1KJNMFC |
| PV046R1K1KJNMFC4747 |
| PV046R1K1KJNMFW |
| PV046R1K1KJNMM1 |
| PV046R1K1KJNMMC |
| PV046R1K1KJNMMC4747 |
| PV046R1K1KJNMMW |
| PV046R1K1KJNMMZ |
| PV046R1K1KJNMR1 |
| PV046R1K1KJNMRC |
| PV046R1K1KJNMRW |
| PV046R1K1KJNMRZ |
| PV046R1K1KJNMRZ4747 |
| PV046R1K1KJNUDR |
| PV046R1K1KJVMFC |
| PV046R1K1KJVMMC |
| PV046R1K1KJVMTK |
| PV046R1K1KJVMTP |
| PV046R1K1KJVMTP4747 |
| PV046R1K1S1NFWS |
| PV046R1K1T1BMRC |
| PV046R1K1T1BMRC4747 |
| PV046R1K1T1EMMC |
| PV046R1K1T1N001 |
| PV046R1K1T1N0014747 |
| PV046R1K1T1N100 |
| PV046R1K1T1NDCC |
| PV046R1K1T1NDL1 |
| PV046R1K1T1NDLC |
| PV046R1K1T1NDLC4747 |
| PV046R1K1T1NDLK |
| PV046R1K1T1NDLW |
| PV046R1K1T1NEC1 |
| PV046R1K1T1NECC |
| PV046R1K1T1NECC4747 |
| PV046R1K1T1NEL1 |
| PV046R1K1T1NEL14747 |
| PV046R1K1T1NELC |
| PV046R1K1T1NELC4747 |
| PV046R1K1T1NELW |
| PV046R1K1T1NELZ |
| PV046R1K1T1NELZ4747 |
| PV046R1K1T1NFDS |
| PV046R1K1T1NFDV |
| PV046R1K1T1NFF1 |
| PV046R1K1T1NFFC |
| PV046R1K1T1NFFP |
| PV046R1K1T1NFHS |
| PV046R1K1T1NFPV |
| PV046R1K1T1NFR1 |
| PV046R1K1T1NFRC |
| PV046R1K1T1NFRZ |
| PV046R1K1T1NFWS |
| PV046R1K1T1NGC1 |
| PV046R1K1T1NGCC |
| PV046R1K1T1NGCC4747 |
| PV046R1K1T1NGL1 |
| PV046R1K1T1NGL14747 |
| PV046R1K1T1NGLB |
| PV046R1K1T1NGLB4747 |
| PV046R1K1T1NGLC |
| PV046R1K1T1NGLC4747 |
| PV046R1K1T1NGLW |
| PV046R1K1T1NGLW4747 |
| PV046R1K1T1NHC1 |
| PV046R1K1T1NHC14747 |
| PV046R1K1T1NHCC |
| PV046R1K1T1NHCC4747 |
| PV046R1K1T1NHCZ |
| PV046R1K1T1NHCZ4747 |
| PV046R1K1T1NHL1 |
| PV046R1K1T1NHL14747 |
| PV046R1K1T1NHLB |
| PV046R1K1T1NHLC |
| PV046R1K1T1NHLW |
| PV046R1K1T1NHLZ |
| PV046R1K1T1NHLZ4747 |
| PV046R1K1T1NKC1 |
| PV046R1K1T1NKCC |
| PV046R1K1T1NKL1 |
| PV046R1K1T1NKL14747 |
| PV046R1K1T1NKLC |
| PV046R1K1T1NKLC4747 |
| PV046R1K1T1NKLW |
| PV046R1K1T1NKLW4747 |
| PV046R1K1T1NKLZ |
| PV046R1K1T1NKLZ4747 |
| PV046R1K1T1NMCC |
| PV046R1K1T1NMCK |
| PV046R1K1T1NMCW |
| PV046R1K1T1NMF1 |
| PV046R1K1T1NMF14747 |
| PV046R1K1T1NMFB |
| PV046R1K1T1NMFB4747 |
| PV046R1K1T1NMFC |
| PV046R1K1T1NMFC4747 |
| PV046R1K1T1NMFK |
| PV046R1K1T1NMFW |
| PV046R1K1T1NMFW4747 |
| PV046R1K1T1NMFZ |
| PV046R1K1T1NML1 |
| PV046R1K1T1NML14747 |
| PV046R1K1T1NMLB |
| PV046R1K1T1NMLB4747 |
| PV046R1K1T1NMLC |
| PV046R1K1T1NMLC4747 |
| PV046R1K1T1NMLK |
| PV046R1K1T1NMLW |
| PV046R1K1T1NMLW4747 |
| PV046R1K1T1NMLZ |
| PV046R1K1T1NMM1 |
| PV046R1K1T1NMM14747 |
| PV046R1K1T1NMMC |
| PV046R1K1T1NMMC4747 |
| PV046R1K1T1NMMK |
| PV046R1K1T1NMMW |
| PV046R1K1T1NMMW4747 |
| PV046R1K1T1NMMZ |
| PV046R1K1T1NMMZ4747 |
| PV046R1K1T1NMR1 |
| PV046R1K1T1NMR14747 |
| PV046R1K1T1NMRC |
| PV046R1K1T1NMRC4747 |
| PV046R1K1T1NMRD |
| PV046R1K1T1NMRK |
| PV046R1K1T1NMRK4747 |
| PV046R1K1T1NMRW |
| PV046R1K1T1NMRZ |
| PV046R1K1T1NMT3 |
| PV046R1K1T1NMTK |
| PV046R1K1T1NMTP |
| PV046R1K1T1NMTP4747 |
| PV046R1K1T1NSCC |
| PV046R1K1T1NSCC4747 |
| PV046R1K1T1NSLC |
| PV046R1K1T1NSLK |
| PV046R1K1T1NSLW |
| PV046R1K1T1NSLZ |
| PV046R1K1T1NUDK |
| PV046R1K1T1NUDM |
| PV046R1K1T1NUPD |
| PV046R1K1T1NUPG |
| PV046R1K1T1NUPR |
| PV046R1K1T1V001 |
| PV046R1K1T1V100 |
| PV046R1K1T1VFDS |
| PV046R1K1T1VGLC |
| PV046R1K1T1VHCC |
| PV046R1K1T1VHL1 |
| PV046R1K1T1VHL14747 |
| PV046R1K1T1VKLC |
| PV046R1K1T1VMF1 |
| PV046R1K1T1VMFC |
| PV046R1K1T1VMFK |
| PV046R1K1T1VMFK4747 |
| PV046R1K1T1VMLC |
| PV046R1K1T1VMM1 |
| PV046R1K1T1VMM14747 |
| PV046R1K1T1VMMC |
| PV046R1K1T1VMMC4747 |
| PV046R1K1T1VMMW |
| PV046R1K1T1VMR1 |
| PV046R1K1T1VMRC |
| PV046R1K1T1VMRZ |
| PV046R1K1T1VMT1 |
| PV046R1K1T1VMTD |
| PV046R1K1T1VMTK |
| PV046R1K1T1VMTK4747 |
| PV046R1K1T1VMTP |
| PV046R1K1T1VMTP4747 |
| PV046R1K1T1VMTZ |
| PV046R1K1T1VMTZ4747 |
| PV046R1K1T1VUPD |
| PV046R1K1T1WDLC |
| PV046R1K1T1WELC |
| PV046R1K1T1WFDS |
| PV046R1K1T1WFR1 |
| PV046R1K1T1WGLC |
| PV046R1K1T1WGLC4747 |
| PV046R1K1T1WMF1 |
| PV046R1K1T1WMFC |
| PV046R1K1T1WMFC4747 |
| PV046R1K1T1WMFW |
| PV046R1K1T1WMLZ |
| PV046R1K1T1WMM1 |
| PV046R1K1T1WMMC |
| PV046R1K1T1WMMC4747 |
| PV046R1K1T1WMMW |
| PV046R1K1T1WMMW4747 |
| PV046R1K1T1WMR1 |
| PV046R1K1T1WMRC |
| PV046R1K1T1WMRC4747 |
| PV046R1K1T1WMRK |
| PV046R1K1T1WMTK |
| PV046R1K1T1WSCC |
| PV046R1K1T1WSCC4747 |
| PV046R1K4T1NFHS |
| PV046R1K4T1NFR1 |
| PV046R1K4T1NMMC |
| PV046R1K4T1NMR1 |
| PV046R1K8BCNMFC |
| PV046R1K8T1N001 |
| PV046R1K8T1NFWS |
| PV046R1K8T1NMMC |
| PV046R1K8T1NMRC |
| PV046R1K8T1VMMC |
| PV046R1L1AYNMLC |
| PV046R1L1AYNUPM |
| PV046R1L1AYNUPR |
| PV046R1L1AYVGCC |
| PV046R1L1AYVMTK |
| PV046R1L1AYVMTP |
| PV046R1L1JHNMMW |
| PV046R1L1JHNMMZ |
| PV046R1L1JHNMR1 |
| PV046R1L1JHVMTP |
| PV046R1L1JHVMTP4747 |
| PV046R1L1KJNMMC |
| PV046R1L1T1N001 |
| PV046R1L1T1N0014747 |
| PV046R1L1T1N100 |
| PV046R1L1T1NELC |
| PV046R1L1T1NELC4747 |
| PV046R1L1T1NGCC |
| PV046R1L1T1NGLW |
| PV046R1L1T1NGLW4747 |
| PV046R1L1T1NHC1 |
| PV046R1L1T1NHCC |
| PV046R1L1T1NHL1 |
| PV046R1L1T1NHLC |
| PV046R1L1T1NHLW |
| PV046R1L1T1NHLW4747 |
| PV046R1L1T1NKL1 |
| PV046R1L1T1NMCC |
| PV046R1L1T1NMF1 |
| PV046R1L1T1NMFB |
| PV046R1L1T1NMFB4747 |
| PV046R1L1T1NMFC |
| PV046R1L1T1NMFC4747 |
| PV046R1L1T1NMFK |
| PV046R1L1T1NMFW |
| PV046R1L1T1NML1 |
| PV046R1L1T1NMM1 |
| PV046R1L1T1NMMC |
| PV046R1L1T1NMMC4747 |
| PV046R1L1T1NMMK |
| PV046R1L1T1NMMK4747 |
| PV046R1L1T1NMMW |
| PV046R1L1T1NMMW4747 |
| PV046R1L1T1NMMZ |
| PV046R1L1T1NMR1 |
| PV046R1L1T1NMR14747 |
| PV046R1L1T1NMRC |
| PV046R1L1T1NMRC4747 |
| PV046R1L1T1NMRW |
| PV046R1L1T1NMRZ |
| PV046R1L1T1NMRZ4747 |
| PV046R1L1T1NMTP |
| PV046R1L1T1NUDM |
| PV046R1L1T1NUDR |
| PV046R1L1T1NUPD |
| PV046R1L1T1NUPE |
| PV046R1L1T1NUPF |
| PV046R1L1T1NUPG |
| PV046R1L1T1NUPM |
| PV046R1L1T1NUPR |
| PV046R1L1T1V001 |
| PV046R1L1T1VMFB |
| PV046R1L1T1VMM1 |
| PV046R1L1T1VMMC |
| PV046R1L1T1VMT1 |
| PV046R1L1T1VMTD |
| PV046R1L1T1VMTK |
| PV046R1L1T1VMTK4747 |
| PV046R1L1T1VMTP |
| PV046R1L1T1VMTP4747 |
| PV046R1L1T1VMTZ |
| PV046R1L1T1VMTZ4747 |
| PV046R1L1T1VUPF |
| PV046R2K1T1N001 |
| PV046R4D3T1NUDR |
| PV046R4D3T1NUDR4747 |
| PV046R4K1T1NFDV |
| PV046R4K1T1NFDV4747 |
| PV046R4K1T1NUDF |
| PV046R4K1T1NUDF4747 |
| PV046R4K1T1NUDM |
| PV046R4K1T1NUDM4747 |
| PV046R4K1T1NUDR |
| PV046R4K1T1NUDR4747 |
| PV046R4K1T1VUDR |
| PV046R4K1T1VUDR4747 |
| PV046R4L1T1NUDF |
| PV046R4L1T1NUDF4747 |
| PV046R4L1T1NUDM |
| PV046R4L1T1NUDM4747 |
| PV046R4L1T1NUDR |
| PV046R4L1T1NUDR4747 |
| PV046R4L1T1VFDV |
| PV046R4L1T1VFDV4747 |
| PV046R9D3T1NDLC |
| PV046R9K1AYNHLC |
| PV046R9K1KJNMMC |
| PV046R9K1KJNMRZ |
| PV046R9K1T1NECC |
| PV046R9K1T1NELC |
| PV046R9K1T1NFWS |
| PV046R9K1T1NGCC |
| PV046R9K1T1NGLC |
| PV046R9K1T1NGLW |
| PV046R9K1T1NHCC |
| PV046R9K1T1NHLC |
| PV046R9K1T1NKCC |
| PV046R9K1T1NMCC |
| PV046R9K1T1NMFC |
| PV046R9K1T1NMLC |
| PV046R9K1T1NMMC |
| PV046R9K1T1NMR1 |
| PV046R9K1T1NMTP |
| PV046R9K1T1NSLZ |
| PV046R9L1JHNMRZ |
| PV046R9L1KJNMMC |
| PV046R9L1KJVMLC |
| PV046R9L1T1NMFC |
| PV046R9L1T1NMMC |
| PV046R9L1T1VMLC |
Q1:What is the core operating principle of the Parker PV046 pump?
A1:The core operating principle of the PV046 pump is its variable displacement, swashplate design. The angle of the swashplate is changed to alter the stroke length of the pistons, which in turn varies the pump's displacement and flow output seamlessly to match system demand.
Q2: In what types of applications is the PV046 pump commonly used?
A2:The Parker PV046 pump is commonly found in demanding mobile and industrial applications, such as construction machinery (e.g., excavators, loaders), agricultural vehicles, and material handling equipment, where reliable and responsive hydraulic power is essential.
Q3:How to purchase a PV046 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the PV046 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
