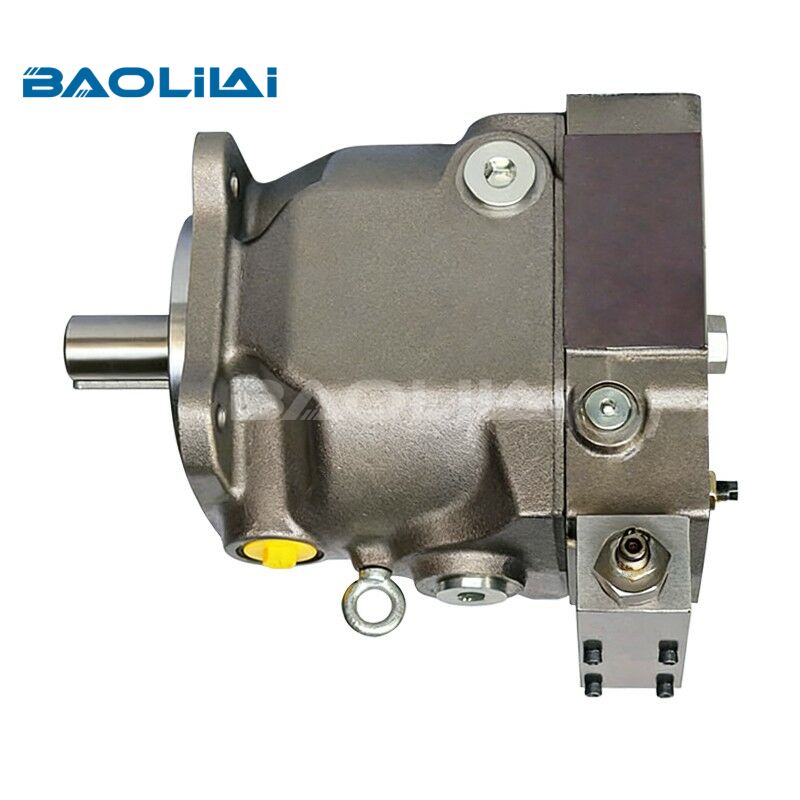

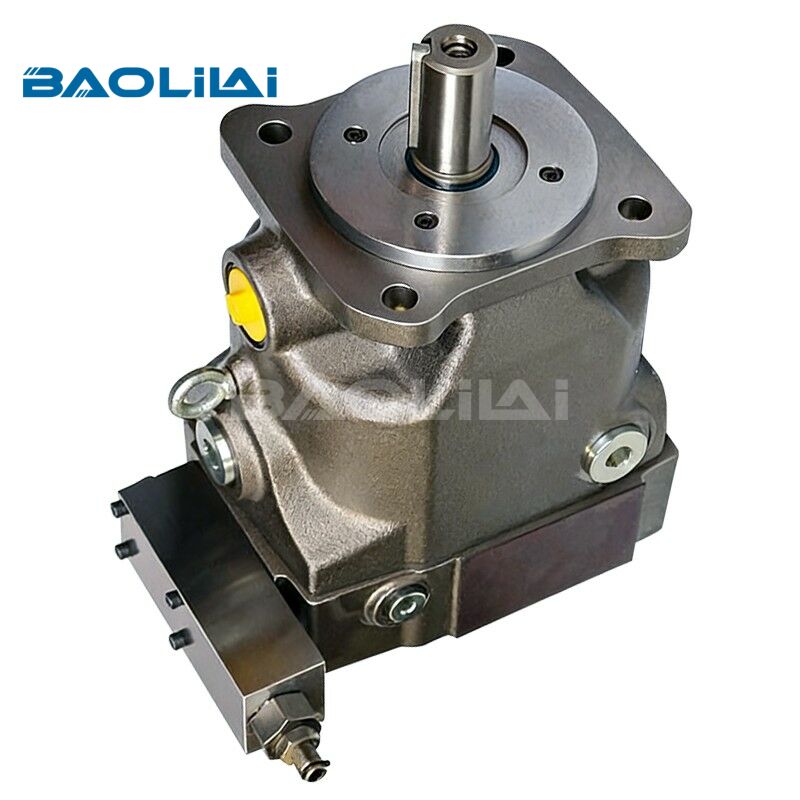

For Parker PV140 high-pressure hydraulic pump
SERIES : PV
BRAND : For Rexroth
Model Size :PV140
Displacement : 140cm3/rev
Speed : 2400rpm
Maximum Pressure : 420bar
Nominal Pressure : 350bar
Download PDF
- Product Details
- Product Model
- FAQ
The Parker PV140 is a high-performance, variable-displacement axial piston pump designed for demanding high-pressure hydraulic applications. It is renowned for its robust construction, efficiency, and reliability.
Key Features and Specifications:
- Operating Pressure: It reliably operates at continuous pressures up to 350-420 bar, with peak capabilities even higher, making it suitable for heavy-duty industrial machinery.
- Displacement: The "140" typically denotes a nominal displacement of 140 cm³/rev. It offers excellent volumetric efficiency across its operating range.
- Control Options: It is commonly equipped with sophisticated control systems, such as pressure compensation (load-sensing) and/or electronic proportional controls (e.g., PV-Plus), enabling precise flow and pressure regulation for optimal system performance and energy savings.
- Design: Its axial piston, swashplate design ensures smooth, quiet operation and long service life. Key components are manufactured from high-strength materials to withstand extreme pressures and shock loads.
- Applications: Primarily used in mobile hydraulics (excavators, cranes), industrial presses, plastic injection molding machines, and test rigs where consistent, high-power density is critical.
Advantages: The PV140 is valued for its power-to-size ratio, responsive control, and durability under tough operating conditions. Its design minimizes internal losses, contributing to lower operating temperatures and improved overall system efficiency.
Specifications
| PV016 | PV020 | PV023 | PV028 | PV032 | PV040 | PV046 | PV063 | PV080 | PV092 | PV140 | PV180 | PV270 | PV360 | ||
| Frame size | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | |
| Max. Displacement | [cm³/rev.] | 16 | 20 | 23 | 28 | 32 | 40 | 46 | 63 | 80 | 92 | 140 | 180 | 270 | 360 |
| Output flow at 1500 rpm | [l/min] | 24 | 30 | 34.5 | 42 | 48 | 60 | 69 | 94.5 | 120 | 138 | 270 | 405 | 405 | 540 |
| Nominal pressure pN | [bar] | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. pressure pmax at 20% working cycle | [bar] | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Case drain pressure, continuous | [bar] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.55 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Case drain pressure, max. peak | [bar] | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Min. Inlet pressure, abs. | [bar] | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. Inlet pressure | [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Input power at 1500 rpm and 350 bar | [kW] | 15.5 | 19.5 | 22.5 | 27.5 | 31 | 39 | 45 | 61.5 | 78 | 89.5 | 136 | 175 | 263 | 350 |
| Max speed at 1 bar, abs, inlet pressure | [rpm] | 3000 | 3000 | 3000 | 3000 | 2800 | 2800 | 2800 | 2800 | 2500 | 2300 | 2400 | 2200 | 1800 | 1750 |
| Moment of inertia | [kgm²] | 0.0017 | 0.0017 | 0.0017 | 0.0017 | 0.0043 | 0.0043 | 0.0043 | 0.018 | 0.018 | 0.018 | 0.030 | 0.030 | 0.098 | 0.103 |
| Weight | [kg] | 19 | 19 | 19 | 19 | 30 | 30 | 30 | 59 | 59 | 59 | 90 | 90 | 172 | 180 |

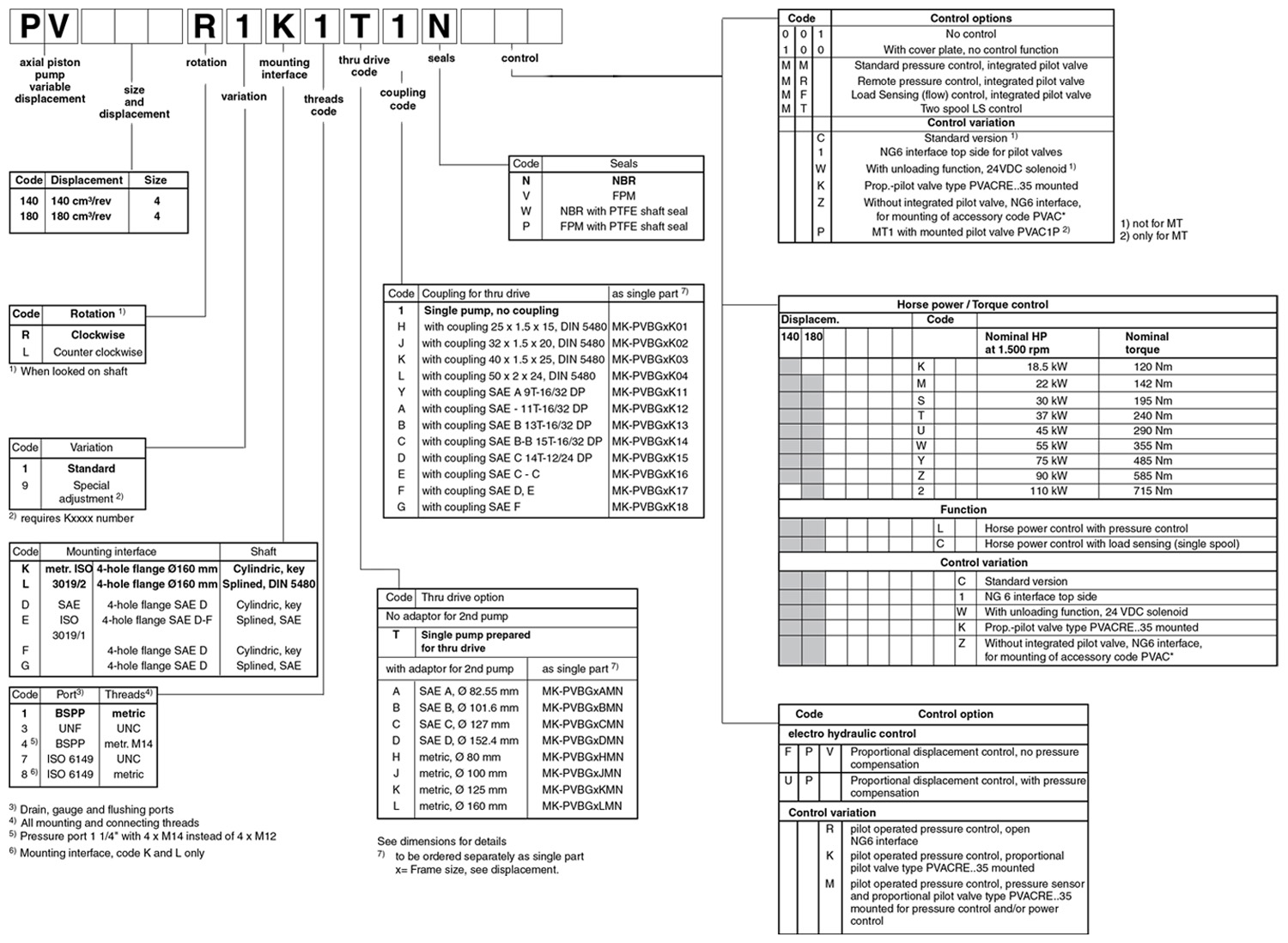

Selection Table
| PV140 axial piston hydraulic pump |
| Model Code |
| PV140L1D1T1NMMC |
| PV140L1D1T1NWLC |
| PV140L1D3T1NMFC |
| PV140L1D3T1NMFC4747 |
| PV140L1D3T1NUPR |
| PV140L1D3T1VULC |
| PV140L1E1C1NZCC |
| PV140L1E1D1NZCC |
| PV140L1E1T1NMFC |
| PV140L1E1T1NMMC |
| PV140L1E1T1NUPG |
| PV140L1E3T1NMFC |
| PV140L1F1T1NMFC |
| PV140L1F3BBNMRC |
| PV140L1F3BBNMRC4747 |
| PV140L1F3T1N001 |
| PV140L1F3T1NMFC |
| PV140L1F3T1NMMC |
| PV140L1F3T1NMMC4747 |
| PV140L1F3T1WMMC |
| PV140L1F3T1WMMC4747 |
| PV140L1F3T1WMRC |
| PV140L1F3T1WMRC4747 |
| PV140L1G1T1NFFP |
| PV140L1G1T1NFT1 |
| PV140L1G1T1NMFC |
| PV140L1G1T1NMFC4747 |
| PV140L1G1T1NMM1 |
| PV140L1G1T1NMM14747 |
| PV140L1G1T1NMMW |
| PV140L1G1T1NMR1 |
| PV140L1G1T1NMT1 |
| PV140L1G1T1NTCC |
| PV140L1G1T1NUPG |
| PV140L1G1T1VMMC |
| PV140L1G3BBNMRC |
| PV140L1G3BBNMRC4747 |
| PV140L1G3C1VUPD |
| PV140L1G3T1NFTP |
| PV140L1G3T1NMFC |
| PV140L1G3T1NMFC4747 |
| PV140L1G3T1NMMC |
| PV140L1G3T1NMMC4747 |
| PV140L1G3T1V001 |
| PV140L1G3T1VUPD |
| PV140L1K1B1NMFC |
| PV140L1K1T1N001 |
| PV140L1K1T1NFFC |
| PV140L1K1T1NFFP |
| PV140L1K1T1NFPV |
| PV140L1K1T1NFT1 |
| PV140L1K1T1NFTP |
| PV140L1K1T1NFWS |
| PV140L1K1T1NMF1 |
| PV140L1K1T1NMF14747 |
| PV140L1K1T1NMFC |
| PV140L1K1T1NMFC4747 |
| PV140L1K1T1NMFW |
| PV140L1K1T1NMFW4747 |
| PV140L1K1T1NMM1 |
| PV140L1K1T1NMM14747 |
| PV140L1K1T1NMMC |
| PV140L1K1T1NMMC4747 |
| PV140L1K1T1NMMK |
| PV140L1K1T1NMMW |
| PV140L1K1T1NMMZ |
| PV140L1K1T1NMR1 |
| PV140L1K1T1NMR14747 |
| PV140L1K1T1NMRC |
| PV140L1K1T1NMRK |
| PV140L1K1T1NSLC |
| PV140L1K1T1NTLC |
| PV140L1K1T1NUL1 |
| PV140L1K1T1NUPG |
| PV140L1K1T1NWCC |
| PV140L1K1T1NWLA |
| PV140L1K1T1NWLW |
| PV140L1K1T1NYCA |
| PV140L1K1T1NYCC |
| PV140L1K1T1NYLA |
| PV140L1K1T1NZCB |
| PV140L1K1T1VMMC |
| PV140L1K4LLNUPR |
| PV140L1K4T1NMMC |
| PV140L1K4T1NWCC |
| PV140L1K8T1NSLC |
| PV140L1L1B1NWCC |
| PV140L1L1B1VWCC |
| PV140L1L1C1NFPR |
| PV140L1L1K1N100 |
| PV140L1L1L1NMRC |
| PV140L1L1LKNFPZ |
| PV140L1L1LLNMFC |
| PV140L1L1LLNMR1 |
| PV140L1L1LLNMTP |
| PV140L1L1T1NFPG |
| PV140L1L1T1NFT1 |
| PV140L1L1T1NFTP |
| PV140L1L1T1NMFC |
| PV140L1L1T1NMFC4747 |
| PV140L1L1T1NMRC |
| PV140L1L1T1NMTP |
| PV140L1L1T1NSLC |
| PV140L1L1T1NUPM |
| PV140L1L1T1NUPR |
| PV140L1L1T1NWCC |
| PV140L1L1T1NYLZ |
| PV140L1L1T1NZCA |
| PV140L1L1T1NZCC |
| PV140L1L4T1NMFC |
| PV140L1L4T1NUPR |
| PV140L4E1T1NUDR |
| PV140L4E1T1NUDR4747 |
| PV140L9E1B3VFT1 |
| PV140L9E3AYNMMC |
| PV140L9E3AYNMMCK |
| PV140L9G1T1NFFP |
| PV140L9G1T1NMFC |
| PV140L9G1T1NMFCK |
| PV140L9G1T1NWLC |
| PV140L9G1T1NYCC |
| PV140L9G3B1NTCC |
| PV140L9G3T1NMM1 |
| PV140L9L1K1N100 |
| PV140L9L1L1NWCC |
| PV140L9L1T1NFTP |
| PV140R1D1T1N001 |
| PV140R1D1T1N2LC |
| PV140R1D1T1NFFC |
| PV140R1D1T1NFPV |
| PV140R1D1T1NMFC |
| PV140R1D1T1NMFC4747 |
| PV140R1D1T1NMMC |
| PV140R1D1T1NMMC4747 |
| PV140R1D1T1NSLC |
| PV140R1D1T1NUCB |
| PV140R1D1T1NWCC |
| PV140R1D1T1NWLC |
| PV140R1D1T1NYCC |
| PV140R1D3BBNMFC |
| PV140R1D3BBNMFC4747 |
| PV140R1D3BBNMMC |
| PV140R1D3BCNMLC |
| PV140R1D3C1NFPR |
| PV140R1D3CDNMFC |
| PV140R1D3CDNMMW |
| PV140R1D3CDNMR1 |
| PV140R1D3DFNMMC |
| PV140R1D3T1N001 |
| PV140R1D3T1NFPD |
| PV140R1D3T1NMF1 |
| PV140R1D3T1NMMC |
| PV140R1D3T1NMMC4747 |
| PV140R1D3T1NMMK |
| PV140R1D3T1NMMW |
| PV140R1D3T1NMRC |
| PV140R1D3T1NMRC4747 |
| PV140R1D3T1NSLC |
| PV140R1D3T1NSLC4747 |
| PV140R1D3T1NULZ |
| PV140R1D3T1NUPG |
| PV140R1D3T1NUPK |
| PV140R1D3T1NUPM |
| PV140R1D3T1VFHS |
| PV140R1D3T1VMRW |
| PV140R1D3T1VMRW4747 |
| PV140R1D3T1VULC |
| PV140R1D3T1WMMC |
| PV140R1D3T1WMMC4747 |
| PV140R1E1T1NMMC |
| PV140R1E1T1NMTP |
| PV140R1E3BBNMMC |
| PV140R1E3BBNMMC4747 |
| PV140R1E3C1NUPK |
| PV140R1E3T1NFPV |
| PV140R1E3T1NMFC |
| PV140R1E3T1NMFC4747 |
| PV140R1E3T1NSLC |
| PV140R1E3T1NUPM |
| PV140R1E3T1WFPV |
| PV140R1F1T1NFHS |
| PV140R1F1T1NMCC |
| PV140R1F1T1NMFC |
| PV140R1F1T1NMMC |
| PV140R1F1T1NMMC4747 |
| PV140R1F1T1NMRC |
| PV140R1F1T1NMRC4747 |
| PV140R1F1T1NMRZ |
| PV140R1F1T1NSLC |
| PV140R1F1T1NYCC |
| PV140R1F3A1NFPR |
| PV140R1F3A1NUPM |
| PV140R1F3DFNMMC |
| PV140R1F3DFNMMC4747 |
| PV140R1F3T1NFFC |
| PV140R1F3T1NFPG |
| PV140R1F3T1NFRP |
| PV140R1F3T1NMFC |
| PV140R1F3T1NMMC |
| PV140R1F3T1NMMZ |
| PV140R1F3T1NMMZ4747 |
| PV140R1F3T1NMRC |
| PV140R1F3T1NMRC4747 |
| PV140R1F3T1NSCC |
| PV140R1F3T1NSLC |
| PV140R1F3T1NTCC |
| PV140R1F3T1NTLC |
| PV140R1F3T1NUCC |
| PV140R1F3T1NUPM |
| PV140R1F3T1NWLC |
| PV140R1F3T1NWLC4747 |
| PV140R1F3T1VMR1 |
| PV140R1F3T1WMRC |
| PV140R1F3T1WMRC4747 |
| PV140R1G1BBNMR1 |
| PV140R1G1T1EFTP |
| PV140R1G1T1NFPV |
| PV140R1G1T1NFT1 |
| PV140R1G1T1NMFC |
| PV140R1G1T1NMFC4747 |
| PV140R1G1T1NMM1 |
| PV140R1G1T1NMM14747 |
| PV140R1G1T1NMMC |
| PV140R1G1T1NMMC4747 |
| PV140R1G1T1NSLC |
| PV140R1G1T1NSLC4747 |
| PV140R1G1T1NUPD |
| PV140R1G1T1NUPG |
| PV140R1G1T1NYCC |
| PV140R1G1T1NYLC |
| PV140R1G1T1VFFC |
| PV140R1G3AAVSLC |
| PV140R1G3AYVSLC |
| PV140R1G3B1NTLC |
| PV140R1G3B1VMRC |
| PV140R1G3B7NTLC |
| PV140R1G3BBNMRC |
| PV140R1G3BBNMRC4747 |
| PV140R1G3CDNMFC |
| PV140R1G3CDNMRC |
| PV140R1G3CDNMRC4747 |
| PV140R1G3D1NTLC |
| PV140R1G3D1NUPK |
| PV140R1G3D3NTLC |
| PV140R1G3DFNFPV |
| PV140R1G3DFNUPK |
| PV140R1G3DFNUPM |
| PV140R1G3T1NFPV |
| PV140R1G3T1NFTP |
| PV140R1G3T1NMFC |
| PV140R1G3T1NMFC4747 |
| PV140R1G3T1NMMC |
| PV140R1G3T1NMMC4747 |
| PV140R1G3T1NMRC |
| PV140R1G3T1NUPR |
| PV140R1G3T1NWCC |
| PV140R1G3T1VFPS |
| PV140R1G3T1VUPS |
| PV140R1G4C1NFT1 |
| PV140R1G4C1NUPR |
| PV140R1G4T1NMFC |
| PV140R1G4T1NYCC |
| PV140R1G4T1NYCC4747 |
| PV140R1G8T1NYLC |
| PV140R1K111NSLC |
| PV140R1K1A1NMR1 |
| PV140R1K1A1NSCC |
| PV140R1K1A1NSLC |
| PV140R1K1A1NUCC |
| PV140R1K1A4NUPM |
| PV140R1K1AYNMMC |
| PV140R1K1AYNMRZ |
| PV140R1K1AYNUCC |
| PV140R1K1AYNUPM |
| PV140R1K1B1NFPG |
| PV140R1K1B1NFWS |
| PV140R1K1B1NMRC |
| PV140R1K1B1NSCC |
| PV140R1K1B1NSLZ |
| PV140R1K1B1NTCC |
| PV140R1K1B1NTLC |
| PV140R1K1B1NUPG |
| PV140R1K1B1NUPM |
| PV140R1K1B1NWCA |
| PV140R1K1B1NWCC |
| PV140R1K1B1NWPD |
| PV140R1K1B1NZLC |
| PV140R1K1B4NFTP |
| PV140R1K1BBN100 |
| PV140R1K1BBNKLC |
| PV140R1K1BBNMF1 |
| PV140R1K1BBNMFC |
| PV140R1K1BBNMMC |
| PV140R1K1BBNMRC |
| PV140R1K1BBNULC |
| PV140R1K1C1N001 |
| PV140R1K1C1NFPD |
| PV140R1K1C1NFPR |
| PV140R1K1C1NUPR |
| PV140R1K1C1NWCC |
| PV140R1K1H1VFTD |
| PV140R1K1JHNMLC |
| PV140R1K1JKNMMC |
| PV140R1K1KJNSCK |
| PV140R1K1L1NFPR |
| PV140R1K1LKNMFC |
| PV140R1K1LKNMMW |
| PV140R1K1LKNUPR |
| PV140R1K1LLNMMK |
| PV140R1K1LLNMMK4747 |
| PV140R1K1LLNUPM |
| PV140R1K1S1NFWS |
| PV140R1K1T1N000 |
| PV140R1K1T1N001 |
| PV140R1K1T1N0014747 |
| PV140R1K1T1N100 |
| PV140R1K1T1N1004747 |
| PV140R1K1T1N2C1 |
| PV140R1K1T1N2C14747 |
| PV140R1K1T1NFDS |
| PV140R1K1T1NFF1 |
| PV140R1K1T1NFFC |
| PV140R1K1T1NFFD |
| PV140R1K1T1NFFP |
| PV140R1K1T1NFHS |
| PV140R1K1T1NFPD |
| PV140R1K1T1NFPE |
| PV140R1K1T1NFPG |
| PV140R1K1T1NFPR |
| PV140R1K1T1NFPT |
| PV140R1K1T1NFPV |
| PV140R1K1T1NFR1 |
| PV140R1K1T1NFRC |
| PV140R1K1T1NFRD |
| PV140R1K1T1NFRL |
| PV140R1K1T1NFRP |
| PV140R1K1T1NFRZ |
| PV140R1K1T1NFT1 |
| PV140R1K1T1NFTD |
| PV140R1K1T1NFTP |
| PV140R1K1T1NFWS |
| PV140R1K1T1NKC1 |
| PV140R1K1T1NKCB |
| PV140R1K1T1NKCC |
| PV140R1K1T1NKL1 |
| PV140R1K1T1NKLA |
| PV140R1K1T1NKLB |
| PV140R1K1T1NKLB4747 |
| PV140R1K1T1NKLC |
| PV140R1K1T1NKLC4747 |
| PV140R1K1T1NKLZ |
| PV140R1K1T1NKLZ4747 |
| PV140R1K1T1NMC1 |
| PV140R1K1T1NMC14747 |
| PV140R1K1T1NMCB |
| PV140R1K1T1NMCC |
| PV140R1K1T1NMCC4747 |
| PV140R1K1T1NMCD |
| PV140R1K1T1NMCK |
| PV140R1K1T1NMCW |
| PV140R1K1T1NMF1 |
| PV140R1K1T1NMF14747 |
| PV140R1K1T1NMFB |
| PV140R1K1T1NMFC |
| PV140R1K1T1NMFC4747 |
| PV140R1K1T1NMFW |
| PV140R1K1T1NMFW4747 |
| PV140R1K1T1NMFZ |
| PV140R1K1T1NML1 |
| PV140R1K1T1NML14747 |
| PV140R1K1T1NMLA |
| PV140R1K1T1NMLB |
| PV140R1K1T1NMLC |
| PV140R1K1T1NMLC4747 |
| PV140R1K1T1NMLD |
| PV140R1K1T1NMLW |
| PV140R1K1T1NMLZ |
| PV140R1K1T1NMLZ4747 |
| PV140R1K1T1NMM1 |
| PV140R1K1T1NMM14747 |
| PV140R1K1T1NMMC |
| PV140R1K1T1NMMC4747 |
| PV140R1K1T1NMMK |
| PV140R1K1T1NMMK4747 |
| PV140R1K1T1NMMW |
| PV140R1K1T1NMMW4747 |
| PV140R1K1T1NMMZ |
| PV140R1K1T1NMMZ4747 |
| PV140R1K1T1NMR1 |
| PV140R1K1T1NMR14747 |
| PV140R1K1T1NMRC |
| PV140R1K1T1NMRC4747 |
| PV140R1K1T1NMRK |
| PV140R1K1T1NMRK4747 |
| PV140R1K1T1NMRZ |
| PV140R1K1T1NMRZ4747 |
| PV140R1K1T1NMT1 |
| PV140R1K1T1NSC1 |
| PV140R1K1T1NSC14747 |
| PV140R1K1T1NSCA |
| PV140R1K1T1NSCB |
| PV140R1K1T1NSCC |
| PV140R1K1T1NSCC4747 |
| PV140R1K1T1NSCK |
| PV140R1K1T1NSCZ |
| PV140R1K1T1NSL1 |
| PV140R1K1T1NSLA |
| PV140R1K1T1NSLB |
| PV140R1K1T1NSLC |
| PV140R1K1T1NSLC4747 |
| PV140R1K1T1NSLK |
| PV140R1K1T1NSLW |
| PV140R1K1T1NSLW4747 |
| PV140R1K1T1NSLZ |
| PV140R1K1T1NTC1 |
| PV140R1K1T1NTC14747 |
| PV140R1K1T1NTCA |
| PV140R1K1T1NTCB |
| PV140R1K1T1NTCC |
| PV140R1K1T1NTCC4747 |
| PV140R1K1T1NTCD |
| PV140R1K1T1NTCZ |
| PV140R1K1T1NTCZ4747 |
| PV140R1K1T1NTL1 |
| PV140R1K1T1NTLA |
| PV140R1K1T1NTLB |
| PV140R1K1T1NTLC |
| PV140R1K1T1NTLC4747 |
| PV140R1K1T1NTLK |
| PV140R1K1T1NTLK4747 |
| PV140R1K1T1NTLW |
| PV140R1K1T1NTLW4747 |
| PV140R1K1T1NUC1 |
| PV140R1K1T1NUC14747 |
| PV140R1K1T1NUCA |
| PV140R1K1T1NUCC |
| PV140R1K1T1NUCC4747 |
| PV140R1K1T1NUCW |
| PV140R1K1T1NUCW4747 |
| PV140R1K1T1NUL1 |
| PV140R1K1T1NUL14747 |
| PV140R1K1T1NULA |
| PV140R1K1T1NULB |
| PV140R1K1T1NULC |
| PV140R1K1T1NULC4747 |
| PV140R1K1T1NULD |
| PV140R1K1T1NULK |
| PV140R1K1T1NULK4747 |
| PV140R1K1T1NULW |
| PV140R1K1T1NULZ |
| PV140R1K1T1NUPD |
| PV140R1K1T1NUPE |
| PV140R1K1T1NUPF |
| PV140R1K1T1NUPG |
| PV140R1K1T1NUPK |
| PV140R1K1T1NUPM |
| PV140R1K1T1NUPP |
| PV140R1K1T1NUPR |
| PV140R1K1T1NUPS |
| PV140R1K1T1NUPT |
| PV140R1K1T1NWC1 |
| PV140R1K1T1NWCA |
| PV140R1K1T1NWCB |
| PV140R1K1T1NWCC |
| PV140R1K1T1NWCC4747 |
| PV140R1K1T1NWCW |
| PV140R1K1T1NWL1 |
| PV140R1K1T1NWL14747 |
| PV140R1K1T1NWLA |
| PV140R1K1T1NWLB |
| PV140R1K1T1NWLC |
| PV140R1K1T1NWLC4747 |
| PV140R1K1T1NWLK |
| PV140R1K1T1NWLK4747 |
| PV140R1K1T1NWLW |
| PV140R1K1T1NWLZ |
| PV140R1K1T1NWPV |
| PV140R1K1T1NYC1 |
| PV140R1K1T1NYCA |
| PV140R1K1T1NYCB |
| PV140R1K1T1NYCC |
| PV140R1K1T1NYCC4747 |
| PV140R1K1T1NYCZ |
| PV140R1K1T1NYCZ4747 |
| PV140R1K1T1NYL1 |
| PV140R1K1T1NYL14747 |
| PV140R1K1T1NYLA |
| PV140R1K1T1NYLC |
| PV140R1K1T1NYLD |
| PV140R1K1T1NYLW |
| PV140R1K1T1NYLW4747 |
| PV140R1K1T1NYLZ |
| PV140R1K1T1NZCB |
| PV140R1K1T1NZCC |
| PV140R1K1T1NZL1 |
| PV140R1K1T1NZL14747 |
| PV140R1K1T1NZLA |
| PV140R1K1T1NZLC |
| PV140R1K1T1NZLW |
| PV140R1K1T1PFWS |
| PV140R1K1T1PMMC |
| PV140R1K1T1V001 |
| PV140R1K1T1VFDS |
| PV140R1K1T1VFPR |
| PV140R1K1T1VFPV |
| PV140R1K1T1VFTD |
| PV140R1K1T1VMM1 |
| PV140R1K1T1VMMC |
| PV140R1K1T1VMMC4747 |
| PV140R1K1T1VMR1 |
| PV140R1K1T1VMRC |
| PV140R1K1T1VSLC |
| PV140R1K1T1VUPM |
| PV140R1K1T1VUPR |
| PV140R1K1T1WFDS |
| PV140R1K1T1WFHS |
| PV140R1K1T1WFPV |
| PV140R1K1T1WFR1 |
| PV140R1K1T1WFRC |
| PV140R1K1T1WFWS |
| PV140R1K1T1WKLC |
| PV140R1K1T1WMCC |
| PV140R1K1T1WMCZ |
| PV140R1K1T1WMFC |
| PV140R1K1T1WMM1 |
| PV140R1K1T1WMMC |
| PV140R1K1T1WMMC4747 |
| PV140R1K1T1WMMW |
| PV140R1K1T1WMMW4747 |
| PV140R1K1T1WMR1 |
| PV140R1K1T1WMRC |
| PV140R1K1T1WSCA |
| PV140R1K1T1WSCC |
| PV140R1K1T1WSCC4747 |
| PV140R1K1T1WUCC |
| PV140R1K1T1WULC |
| PV140R1K1T1WUPG |
| PV140R1K1T1WUPM |
| PV140R1K1TINFR1 |
| PV140R1K4C1NFPR |
| PV140R1K4C1NUPR |
| PV140R1K4L3NUPP |
| PV140R1K4LKNUL1 |
| PV140R1K4LLNUPM |
| PV140R1K4LLNUPR |
| PV140R1K4T1N001 |
| PV140R1K4T1N0014747 |
| PV140R1K4T1N2L1 |
| PV140R1K4T1NFHS |
| PV140R1K4T1NFPD |
| PV140R1K4T1NFPP |
| PV140R1K4T1NFPV |
| PV140R1K4T1NFR1 |
| PV140R1K4T1NFRC |
| PV140R1K4T1NFT2 |
| PV140R1K4T1NFTP |
| PV140R1K4T1NFWS |
| PV140R1K4T1NKCC |
| PV140R1K4T1NKL1 |
| PV140R1K4T1NKLC |
| PV140R1K4T1NMC1 |
| PV140R1K4T1NMCC |
| PV140R1K4T1NMF1 |
| PV140R1K4T1NMF14747 |
| PV140R1K4T1NMFB |
| PV140R1K4T1NMFB4747 |
| PV140R1K4T1NMFC |
| PV140R1K4T1NMFC4747 |
| PV140R1K4T1NMFZ |
| PV140R1K4T1NMLA |
| PV140R1K4T1NMLW |
| PV140R1K4T1NMLZ |
| PV140R1K4T1NMM1 |
| PV140R1K4T1NMM14747 |
| PV140R1K4T1NMMC |
| PV140R1K4T1NMMC4747 |
| PV140R1K4T1NMMK |
| PV140R1K4T1NMMK4747 |
| PV140R1K4T1NMMW |
| PV140R1K4T1NMMW4747 |
| PV140R1K4T1NMMZ |
| PV140R1K4T1NMMZ4747 |
| PV140R1K4T1NMR1 |
| PV140R1K4T1NMRC |
| PV140R1K4T1NMRC4747 |
| PV140R1K4T1NSCC |
| PV140R1K4T1NSL1 |
| PV140R1K4T1NSLA |
| PV140R1K4T1NSLC |
| PV140R1K4T1NTCA |
| PV140R1K4T1NTCC |
| PV140R1K4T1NTL1 |
| PV140R1K4T1NTL14747 |
| PV140R1K4T1NTLA |
| PV140R1K4T1NTLB |
| PV140R1K4T1NTLC |
| PV140R1K4T1NUC1 |
| PV140R1K4T1NUCA |
| PV140R1K4T1NUCC |
| PV140R1K4T1NUCC4747 |
| PV140R1K4T1NUL1 |
| PV140R1K4T1NULA |
| PV140R1K4T1NUPE |
| PV140R1K4T1NUPG |
| PV140R1K4T1NUPM |
| PV140R1K4T1NUPP |
| PV140R1K4T1NUPR |
| PV140R1K4T1NWC1 |
| PV140R1K4T1NWC14747 |
| PV140R1K4T1NWCA |
| PV140R1K4T1NWCC |
| PV140R1K4T1NWL1 |
| PV140R1K4T1NWLA |
| PV140R1K4T1NWLC |
| PV140R1K4T1NWLZ |
| PV140R1K4T1NYC1 |
| PV140R1K4T1NYCA |
| PV140R1K4T1NYL1 |
| PV140R1K4T1NYLA |
| PV140R1K4T1NYLD |
| PV140R1K4T1NZLD |
| PV140R1K4T1VMF1 |
| PV140R1K4T1VMM1 |
| PV140R1K4T1VMM14747 |
| PV140R1K4T1VMMC |
| PV140R1K4T1VMMW |
| PV140R1K4T1VMMW4747 |
| PV140R1K4T1VMRW |
| PV140R1K4T1VMRZ |
| PV140R1K4T1VULC |
| PV140R1K4T1VWLC |
| PV140R1K4T1WFFC |
| PV140R1K4T1WFPD |
| PV140R1K4T1WFWS |
| PV140R1K4T1WMF1 |
| PV140R1K4T1WMFB |
| PV140R1K4T1WMFC |
| PV140R1K4T1WMFC4747 |
| PV140R1K4T1WMMC |
| PV140R1K4T1WMMC4747 |
| PV140R1K4T1WUPG |
| PV140R1K8B4NFTP |
| PV140R1K8T1N001 |
| PV140R1K8T1NFDS |
| PV140R1K8T1NFFC |
| PV140R1K8T1NFHS |
| PV140R1K8T1NFTP |
| PV140R1K8T1NFWS |
| PV140R1K8T1NMM1 |
| PV140R1K8T1NMMC |
| PV140R1K8T1NMTP |
| PV140R1K8T1NTLC |
| PV140R1K8T1NULC |
| PV140R1K8T1NUPG |
| PV140R1K8T1VFHS |
| PV140R1K8T1VFRP |
| PV140R1K8T1VMMC |
| PV140R1L1A1NFPV |
| PV140R1L1A1NWLC |
| PV140R1L1AYNUPM |
| PV140R1L1AYVMRC |
| PV140R1L1AYVMRC4747 |
| PV140R1L1B1NFFC |
| PV140R1L1B1NFFP |
| PV140R1L1B1NFRD |
| PV140R1L1B1NUPR |
| PV140R1L1B1NWCC |
| PV140R1L1B1NWPD |
| PV140R1L1C1NWLB |
| PV140R1L1KJNMFC |
| PV140R1L1KJNUPK |
| PV140R1L1L1NFPV |
| PV140R1L1LKNUPR |
| PV140R1L1LLNFPV |
| PV140R1L1LLNTLC |
| PV140R1L1LLNUPK |
| PV140R1L1LLNWLC |
| PV140R1L1LLVMRC |
| PV140R1L1LLVMRC4747 |
| PV140R1L1T1N100 |
| PV140R1L1T1N2C1 |
| PV140R1L1T1NFF1 |
| PV140R1L1T1NFFC |
| PV140R1L1T1NFFP |
| PV140R1L1T1NFHS |
| PV140R1L1T1NFPV |
| PV140R1L1T1NFR1 |
| PV140R1L1T1NFRC |
| PV140R1L1T1NFRD |
| PV140R1L1T1NFRP |
| PV140R1L1T1NFT1 |
| PV140R1L1T1NFWS |
| PV140R1L1T1NKLA |
| PV140R1L1T1NMCC |
| PV140R1L1T1NMCW |
| PV140R1L1T1NMCZ |
| PV140R1L1T1NMF1 |
| PV140R1L1T1NMF14747 |
| PV140R1L1T1NMFC |
| PV140R1L1T1NMFC4747 |
| PV140R1L1T1NMLZ |
| PV140R1L1T1NMM1 |
| PV140R1L1T1NMM14747 |
| PV140R1L1T1NMMC |
| PV140R1L1T1NMMC4747 |
| PV140R1L1T1NMMK |
| PV140R1L1T1NMMW |
| PV140R1L1T1NMMW4747 |
| PV140R1L1T1NMMZ |
| PV140R1L1T1NMR1 |
| PV140R1L1T1NMRC |
| PV140R1L1T1NMRW |
| PV140R1L1T1NMRZ |
| PV140R1L1T1NMRZ4747 |
| PV140R1L1T1NSCC |
| PV140R1L1T1NTCC |
| PV140R1L1T1NTLC |
| PV140R1L1T1NULC |
| PV140R1L1T1NUPG |
| PV140R1L1T1NUPK |
| PV140R1L1T1NUPM |
| PV140R1L1T1NUPR |
| PV140R1L1T1NWCC |
| PV140R1L1T1NWLA |
| PV140R1L1T1NWLC |
| PV140R1L1T1NYC1 |
| PV140R1L1T1NYCW |
| PV140R1L1T1NYCW4747 |
| PV140R1L1T1NYLB |
| PV140R1L1T1NYLB4747 |
| PV140R1L1T1NYLC |
| PV140R1L1T1NYLK |
| PV140R1L1T1NYLK4747 |
| PV140R1L1T1NZLC |
| PV140R1L1T1V100 |
| PV140R1L4BBNMTP |
| PV140R1L4T1NFT2 |
| PV140R1L4T1NFTP |
| PV140R1L4T1NMFB |
| PV140R1L4T1NMFC |
| PV140R1L4T1NMMC |
| PV140R1L4T1NMR1 |
| PV140R1L4T1NMT2 |
| PV140R1L4T1NMTP |
| PV140R1L4T1NSCC |
| PV140R1L4T1NTLD |
| PV140R1L4T1NTLK |
| PV140R1L4T1NUPE |
| PV140R1L4T1NUPG |
| PV140R1L4T1NUPK |
| PV140R1L4T1NUPM |
| PV140R1L4T1NUPR |
| PV140R1L4T1VMMC |
| PV140R1L8A1NFRP |
| PV140R1L8T1NTLC |
| PV140R2K1T1N001 |
| PV140R2K1T1NMFB |
| PV140R2L1LLWMMW |
| PV140R2L1T1WMMW |
| PV140R2L4LKWMMW |
| PV140R4D3T1NUDK |
| PV140R4D3T1NUDK4747 |
| PV140R4D3T1VUDM |
| PV140R4D3T1VUDM4747 |
| PV140R4K1T1N001 |
| PV140R4K1T1N0014747 |
| PV140R4K1T1NFDV |
| PV140R4K1T1NFDV4747 |
| PV140R4K1T1NMMK |
| PV140R4K1T1NMMK4747 |
| PV140R4K1T1NUDF |
| PV140R4K1T1NUDF4747 |
| PV140R4K1T1NUDK |
| PV140R4K1T1NUDK4747 |
| PV140R4K1T1NUDM |
| PV140R4K1T1NUDM4747 |
| PV140R4K1T1NUDR |
| PV140R4K1T1NUDR4747 |
| PV140R4K4T1NUDF |
| PV140R4K4T1NUDF4747 |
| PV140R4K4T1NUDM |
| PV140R4K4T1NUDM4747 |
| PV140R4K4T1NUDR |
| PV140R4K4T1NUDR4747 |
| PV140R4L1AYNFDV |
| PV140R4L1AYNFDV4747 |
| PV140R4L1T1NUDM |
| PV140R4L1T1NUDM4747 |
| PV140R4L1T1NUDR |
| PV140R4L1T1NUDR4747 |
| PV140R4L4T1NUDM |
| PV140R4L4T1NUDM4747 |
| PV140R5K1T1NKCB |
| PV140R5K1T1NSCB |
| PV140R9D1T1NMLC |
| PV140R9D1T1NMMC |
| PV140R9D3CDNMMC |
| PV140R9D3CDNMMCK |
| PV140R9E1T1NWCC |
| PV140R9E3AYNSL1 |
| PV140R9E3AYNSL1K |
| PV140R9E3AYNSLC |
| PV140R9E3AYNSLCK |
| PV140R9E3AYNULC |
| PV140R9E3AYNULCK |
| PV140R9F3T1NMMC |
| PV140R9F3T1NMMCK |
| PV140R9G1T1NFFP |
| PV140R9G1T1NMFC |
| PV140R9G1T1NMM1 |
| PV140R9G3AAVTLCK |
| PV140R9G3T1VMFC |
| PV140R9G8T1NMF1 |
| PV140R9K1A1NMFC |
| PV140R9K1A1NSLC |
| PV140R9K1AYNMFC |
| PV140R9K1AYNWLW |
| PV140R9K1B4NMCD |
| PV140R9K1BBNMFC |
| PV140R9K1C1NMR1 |
| PV140R9K1T1NFDS |
| PV140R9K1T1NFFC |
| PV140R9K1T1NFHS |
| PV140R9K1T1NFRC |
| PV140R9K1T1NFWS |
| PV140R9K1T1NKCC |
| PV140R9K1T1NMCB |
| PV140R9K1T1NMFB |
| PV140R9K1T1NMFC |
| PV140R9K1T1NMLC |
| PV140R9K1T1NMMC |
| PV140R9K1T1NMMCK |
| PV140R9K1T1NMMW |
| PV140R9K1T1NMR1 |
| PV140R9K1T1NMRC |
| PV140R9K1T1NMRZ |
| PV140R9K1T1NSLC |
| PV140R9K1T1NSLK |
| PV140R9K1T1NTCB |
| PV140R9K1T1NTCC |
| PV140R9K1T1NTL1 |
| PV140R9K1T1NTLA |
| PV140R9K1T1NTLC |
| PV140R9K1T1NUCC |
| PV140R9K1T1NUPKK |
| PV140R9K1T1NUPR |
| PV140R9K1T1NUPZ |
| PV140R9K1T1NWCC |
| PV140R9K1T1NWLB |
| PV140R9K1T1NWLC |
| PV140R9K1T1NYCC |
| PV140R9K1T1NYLC |
| PV140R9K1T1NYLW |
| PV140R9K1T1VMRC |
| PV140R9K1T1VULZ |
| PV140R9K1T1WMCC |
| PV140R9K1T1WMCCK |
| PV140R9K1T1WMMC |
| PV140R9K1T1WMMW |
| PV140R9K1T1WSCC |
| PV140R9K4B4NWLZ |
| PV140R9K4BBNWLZ |
| PV140R9K4K3WFR2 |
| PV140R9K4KJWMR1 |
| PV140R9K4T1NFFP |
| PV140R9K4T1NMFC |
| PV140R9K4T1NMMC |
| PV140R9K4T1NWCC |
| PV140R9K4T1NZCB |
| PV140R9K4T1VMMW |
| PV140R9K4T1WFRP |
| PV140R9K4T1WMMC |
| PV140R9K4T1WMRC |
| PV140R9K4T1WYLB |
| PV140R9L1C1NYCC |
| PV140R9L1CDVZCC |
| PV140R9L1L1NMFC |
| PV140R9L1LKNWCC |
| PV140R9L1LLVWCC |
| PV140R9L1T1NSLC |
| PV140R9L1T1NUCC |
| PV140R9L1T1NUPR |
| PV140R9L1T1NYCC |
| PV140R9L1T1VWCC |
| PV140R9L4T1NMTP |
| PV140RIK1T1NMMC |
Q1: In what types of machinery is the PV140 pump commonly used?
A1: The robust and high-performance PV140 hydraulic pump is a preferred choice in mobile hydraulics, such as in excavators and cranes, as well as in industrial equipment like plastic injection molding machines, large presses, and test rigs where consistent, high-power density is essential.
Q2: What is a key design advantage of the Parker PV140 axial piston pump?
A2: A key design advantage of the Parker PV140 hydraulic pump is its axial piston, swashplate construction. This design provides a high power-to-size ratio, ensures smooth and quiet operation, and, when built with high-strength materials, offers exceptional durability to withstand extreme pressures and provide a long service life.
Q3:How to purchase a PV140 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the PV140 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
