For Parker PV270 high-pressure variable hydraulic pump
SERIES : PV
BRAND : For Rexroth
Model Size :PV270
Displacement : 270cm3/rev
Speed : 1800rpm
Maximum Pressure : 420bar
Nominal Pressure : 350bar
Download PDF
- Product Details
- Product Model
- FAQ
The Parker PV270 is a high-performance, high-pressure variable displacement piston pump designed for demanding hydraulic applications. It features a robust axial piston design with a swashplate mechanism to enable smooth and precise control of flow output, independent of drive shaft speed. A key characteristic is its ability to operate continuously at pressures up to 420 bar, with peak capabilities even higher, making it suitable for heavy-duty industrial and mobile machinery.
Its variable displacement is typically controlled via an integrated pressure compensator or an optional electro-proportional valve, allowing the pump to automatically adjust its output to match system demand. This enhances efficiency by minimizing energy loss and heat generation. The pump is known for its high volumetric efficiency, low-noise operation, and exceptional durability, thanks to its hardened components and optimized bearing design. Common applications include plastic injection molding machines, presses, and large construction equipment where reliable, high-power density fluid power is essential. The PV270 series exemplifies Parker's focus on delivering robust, efficient hydraulic solutions for critical systems.
Specifications
| PV016 | PV020 | PV023 | PV028 | PV032 | PV040 | PV046 | PV063 | PV080 | PV092 | PV140 | PV180 | PV270 | PV360 | ||
| Frame size | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | |
| Max. Displacement | [cm³/rev.] | 16 | 20 | 23 | 28 | 32 | 40 | 46 | 63 | 80 | 92 | 140 | 180 | 270 | 360 |
| Output flow at 1500 rpm | [l/min] | 24 | 30 | 34.5 | 42 | 48 | 60 | 69 | 94.5 | 120 | 138 | 270 | 405 | 405 | 540 |
| Nominal pressure pN | [bar] | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. pressure pmax at 20% working cycle | [bar] | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Case drain pressure, continuous | [bar] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.55 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Case drain pressure, max. peak | [bar] | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Min. Inlet pressure, abs. | [bar] | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. Inlet pressure | [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Input power at 1500 rpm and 350 bar | [kW] | 15.5 | 19.5 | 22.5 | 27.5 | 31 | 39 | 45 | 61.5 | 78 | 89.5 | 136 | 175 | 263 | 350 |
| Max speed at 1 bar, abs, inlet pressure | [rpm] | 3000 | 3000 | 3000 | 3000 | 2800 | 2800 | 2800 | 2800 | 2500 | 2300 | 2400 | 2200 | 1800 | 1750 |
| Moment of inertia | [kgm²] | 0.0017 | 0.0017 | 0.0017 | 0.0017 | 0.0043 | 0.0043 | 0.0043 | 0.018 | 0.018 | 0.018 | 0.030 | 0.030 | 0.098 | 0.103 |
| Weight | [kg] | 19 | 19 | 19 | 19 | 30 | 30 | 30 | 59 | 59 | 59 | 90 | 90 | 172 | 180 |

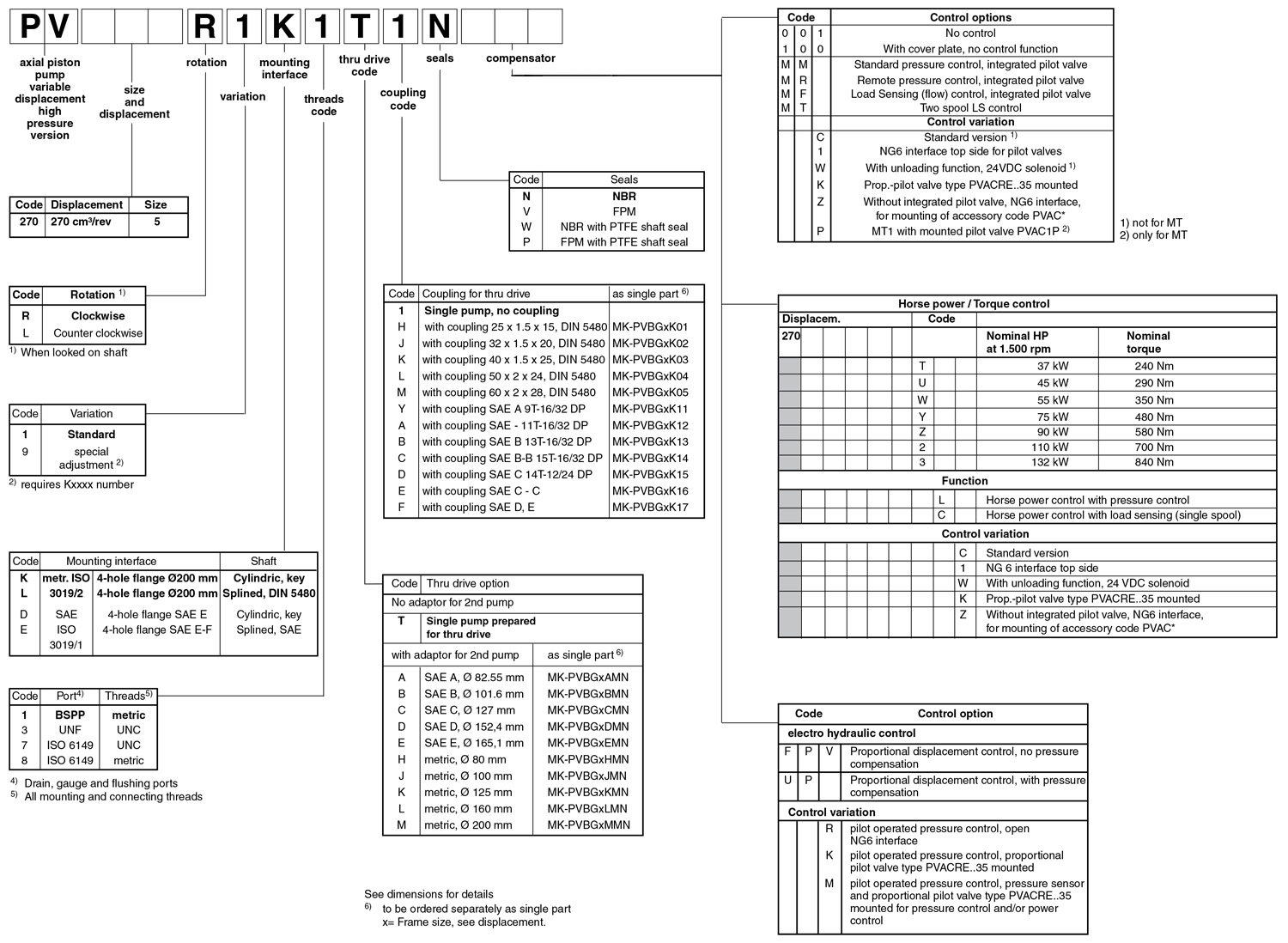

Selection Table
| PV270 axial piston hydraulic pump |
| Model Code |
| PV270L1D1T1NMM1 |
| PV270L1D1T1NMM14747 |
| PV270L1D3EFNMFC |
| PV270L1D3EFNMFC4747 |
| PV270L1D3T1N001 |
| PV270L1D3T1NMFZ |
| PV270L1D3T1NMFZ4747 |
| PV270L1D3T1NMMC |
| PV270L1D3T1NMRC |
| PV270L1D3T1NMRC4747 |
| PV270L1D3T1V001 |
| PV270L1E1T1NMFC |
| PV270L1E1T1NMFC4747 |
| PV270L1E1T1NWLC |
| PV270L1E1T1NYLC |
| PV270L1E3AYN2CC |
| PV270L1E3AYWMMC |
| PV270L1E3AYWMMC4747 |
| PV270L1E3C1N2CC |
| PV270L1E3C1NUPR |
| PV270L1E3CDN2CC |
| PV270L1E3CDNMFC |
| PV270L1E3CDNMFC4747 |
| PV270L1E3DFNMRC |
| PV270L1E3T1N2CC |
| PV270L1E3T1N2CC4747 |
| PV270L1E3T1NMFC |
| PV270L1E3T1NMFC4747 |
| PV270L1E3T1NMMC |
| PV270L1E3T1NMMC4747 |
| PV270L1E3T1NMRC |
| PV270L1E3T1NMRC4747 |
| PV270L1E3T1NMTZ |
| PV270L1E3T1NUPR |
| PV270L1K1C1NZLC |
| PV270L1K1T1N100 |
| PV270L1K1T1N1004747 |
| PV270L1K1T1N2CK |
| PV270L1K1T1N2CK4747 |
| PV270L1K1T1N3CC |
| PV270L1K1T1N3CC4747 |
| PV270L1K1T1N3LC |
| PV270L1K1T1NFHS |
| PV270L1K1T1NFPD |
| PV270L1K1T1NFPV |
| PV270L1K1T1NFRC |
| PV270L1K1T1NFWS |
| PV270L1K1T1NMFC |
| PV270L1K1T1NMFC4747 |
| PV270L1K1T1NMM1 |
| PV270L1K1T1NMM14747 |
| PV270L1K1T1NMMC |
| PV270L1K1T1NMMK |
| PV270L1K1T1NMRC |
| PV270L1K1T1NMRC4747 |
| PV270L1K1T1NULC |
| PV270L1K1T1NULC4747 |
| PV270L1K1T1NUPK |
| PV270L1K1T1NUPM |
| PV270L1K1T1NUPR |
| PV270L1K1T1NWLC |
| PV270L1K1T1NZCC |
| PV270L1K1T1NZCC4747 |
| PV270L1K1T1NZLC |
| PV270L1K1T1V2LC |
| PV270L1K1T1VMRC |
| PV270L1K1T1VMRC4747 |
| PV270L1K1T1VWLC |
| PV270L1L1B1V3CC |
| PV270L1L1D1NMFC |
| PV270L1L1D1NMFC4747 |
| PV270L1L1T1N001 |
| PV270L1L1T1N3LC |
| PV270L1L1T1NFF1 |
| PV270L1L1T1NFPD |
| PV270L1L1T1NFPV |
| PV270L1L1T1NFRC |
| PV270L1L1T1NMF1 |
| PV270L1L1T1NMF14747 |
| PV270L1L1T1NMFC |
| PV270L1L1T1NMFC4747 |
| PV270L1L1T1NMR1 |
| PV270L1L1T1NMR14747 |
| PV270L1L1T1NULC |
| PV270L1L1T1NUPR |
| PV270L1L1T1NZCW |
| PV270L1L1T1NZCZ |
| PV270L1L1T1NZLA |
| PV270L1L8T1V3CC |
| PV270L4K1T1NUDM |
| PV270L4K1T1NUDM4747 |
| PV270L9K1LLVMRW |
| PV270L9K1MMNMMZ |
| PV270L9K1T1NWLC |
| PV270L9L1T1NMMZ |
| PV270R1D1B1N3CC |
| PV270R1D1BBNMRC |
| PV270R1D1T1N2L1 |
| PV270R1D1T1N2L14747 |
| PV270R1D1T1N3LC |
| PV270R1D1T1N3LC4747 |
| PV270R1D1T1NMFC |
| PV270R1D1T1NMFC4747 |
| PV270R1D1T1NMM1 |
| PV270R1D1T1NMM14747 |
| PV270R1D1T1NMMC |
| PV270R1D1T1NMMC4747 |
| PV270R1D1T1NYLC |
| PV270R1D1T1NYLC4747 |
| PV270R1D1T1NZLC |
| PV270R1D1T1VMFC |
| PV270R1D1T1VMFC4747 |
| PV270R1D3AYVTLC |
| PV270R1D3B1NUPR |
| PV270R1D3B1NZLC |
| PV270R1D3BBNYLK |
| PV270R1D3BBNYLK4747 |
| PV270R1D3BCNMRC |
| PV270R1D3C1NYLC |
| PV270R1D3CDN2L1 |
| PV270R1D3CDNMRC |
| PV270R1D3CDNMRC4747 |
| PV270R1D3CDNYLC |
| PV270R1D3CDNYLC4747 |
| PV270R1D3CDNZLZ |
| PV270R1D3D1NUPG |
| PV270R1D3E1NFPR |
| PV270R1D3E1NUCC |
| PV270R1D3T1N001 |
| PV270R1D3T1N2LC |
| PV270R1D3T1N3L1 |
| PV270R1D3T1N3L14747 |
| PV270R1D3T1N3LC |
| PV270R1D3T1N3LZ |
| PV270R1D3T1NFPG |
| PV270R1D3T1NMF1 |
| PV270R1D3T1NMM1 |
| PV270R1D3T1NMM14747 |
| PV270R1D3T1NMMC |
| PV270R1D3T1NMMC4747 |
| PV270R1D3T1NMMW |
| PV270R1D3T1NMRC |
| PV270R1D3T1NMRC4747 |
| PV270R1D3T1NTLA |
| PV270R1D3T1NTLC |
| PV270R1D3T1NULC |
| PV270R1D3T1NULC4747 |
| PV270R1D3T1NUPF |
| PV270R1D3T1NUPG |
| PV270R1D3T1NUPM |
| PV270R1D3T1NUPR |
| PV270R1D3T1NWCB |
| PV270R1D3T1NWLB |
| PV270R1D3T1NWLC |
| PV270R1D3T1NYL1 |
| PV270R1D3T1NYL14747 |
| PV270R1D3T1NZCC |
| PV270R1D3T1NZL1 |
| PV270R1D3T1NZL14747 |
| PV270R1D3T1NZLC |
| PV270R1D3T1NZLC4747 |
| PV270R1D3T1PMMC |
| PV270R1D3T1PMR1 |
| PV270R1D3T1PMR14747 |
| PV270R1D3T1V001 |
| PV270R1D3T1VMRC |
| PV270R1D3T1VMRC4747 |
| PV270R1D3T1WMMC |
| PV270R1D3T1WMMC4747 |
| PV270R1D3T1WMRC |
| PV270R1D3T1WMRC4747 |
| PV270R1D3T1WMRZ |
| PV270R1D3T1WMRZ4747 |
| PV270R1D7T1PMMC |
| PV270R1E1C1NTLB |
| PV270R1E1C1NTLC |
| PV270R1E1C1NULC |
| PV270R1E1C1NWLC |
| PV270R1E1T1N3LC |
| PV270R1E1T1NFPR |
| PV270R1E1T1NMFC |
| PV270R1E1T1NMFC4747 |
| PV270R1E1T1NYLB |
| PV270R1E1T1VMFZ |
| PV270R1E3D1N2CC |
| PV270R1E3DFVMMC |
| PV270R1E3T1N2CC |
| PV270R1E3T1N2CC4747 |
| PV270R1E3T1NFPR |
| PV270R1E3T1NMMC |
| PV270R1E3T1NMMC4747 |
| PV270R1E3T1NMR1 |
| PV270R1E3T1NMR14747 |
| PV270R1E3T1NTLC |
| PV270R1E3T1NUCC |
| PV270R1E3T1NUPD |
| PV270R1E3T1NUPF |
| PV270R1E3T1NUPG |
| PV270R1E3T1NUPK |
| PV270R1E3T1NUPM |
| PV270R1E3T1NUPR |
| PV270R1E3T1NYCC |
| PV270R1E3T1PFPV |
| PV270R1E3T1VMRC |
| PV270R1E3T1VMRC4747 |
| PV270R1E7T1NMFZ |
| PV270R1K1A1NFT1 |
| PV270R1K1A1NTLB |
| PV270R1K1A1NUPG |
| PV270R1K1AYNMFC |
| PV270R1K1AYNUPM |
| PV270R1K1B1N3CC |
| PV270R1K1B1NFFC |
| PV270R1K1B1NFPR |
| PV270R1K1B1NFRC |
| PV270R1K1B1NTCC |
| PV270R1K1B1NTLK |
| PV270R1K1B1NUPM |
| PV270R1K1B1NYLC |
| PV270R1K1B1NZLC |
| PV270R1K1C1N3CC |
| PV270R1K1C1N3LC |
| PV270R1K1C1NFPR |
| PV270R1K1C1NFPS |
| PV270R1K1C1NMR1 |
| PV270R1K1C1NTLB |
| PV270R1K1C1NUPG |
| PV270R1K1C1NUPM |
| PV270R1K1C1NWLC |
| PV270R1K1C1NWLC4747 |
| PV270R1K1C1NYLC |
| PV270R1K1C1NZCC |
| PV270R1K1C1NZLC |
| PV270R1K1CDNMRC |
| PV270R1K1CDNZCC |
| PV270R1K1CDNZLC |
| PV270R1K1CDNZLC4747 |
| PV270R1K1D1N3LB |
| PV270R1K1D1NFPV |
| PV270R1K1D1NFWS |
| PV270R1K1K1NFPE |
| PV270R1K1L1NFPV |
| PV270R1K1L1NTLC |
| PV270R1K1L1NULC |
| PV270R1K1L1NULC4747 |
| PV270R1K1L3VFHS |
| PV270R1K1M1NULC |
| PV270R1K1M1NYLC |
| PV270R1K1M3VYLC |
| PV270R1K1MMN100 |
| PV270R1K1MMNFPV |
| PV270R1K1MMNMM1 |
| PV270R1K1MMNMM14747 |
| PV270R1K1MMNUPM |
| PV270R1K1T1N001 |
| PV270R1K1T1N0014747 |
| PV270R1K1T1N100 |
| PV270R1K1T1N1004747 |
| PV270R1K1T1N2C1 |
| PV270R1K1T1N2CA |
| PV270R1K1T1N2CB |
| PV270R1K1T1N2CC |
| PV270R1K1T1N2CC4747 |
| PV270R1K1T1N2CD |
| PV270R1K1T1N2L1 |
| PV270R1K1T1N2L14747 |
| PV270R1K1T1N2LA |
| PV270R1K1T1N2LB |
| PV270R1K1T1N2LC |
| PV270R1K1T1N2LC4747 |
| PV270R1K1T1N2LD |
| PV270R1K1T1N2LK |
| PV270R1K1T1N2LW |
| PV270R1K1T1N2LZ |
| PV270R1K1T1N2LZ4747 |
| PV270R1K1T1N2Z1 |
| PV270R1K1T1N2Z14747 |
| PV270R1K1T1N3C1 |
| PV270R1K1T1N3C14747 |
| PV270R1K1T1N3CB |
| PV270R1K1T1N3CC |
| PV270R1K1T1N3CC4747 |
| PV270R1K1T1N3L1 |
| PV270R1K1T1N3L14747 |
| PV270R1K1T1N3LA |
| PV270R1K1T1N3LB |
| PV270R1K1T1N3LC |
| PV270R1K1T1N3LC4747 |
| PV270R1K1T1N3Z1 |
| PV270R1K1T1N3Z14747 |
| PV270R1K1T1N4C1 |
| PV270R1K1T1N4C14747 |
| PV270R1K1T1N5L1 |
| PV270R1K1T1N5L14747 |
| PV270R1K1T1N6L1 |
| PV270R1K1T1N6L14747 |
| PV270R1K1T1NFF1 |
| PV270R1K1T1NFFC |
| PV270R1K1T1NFFP |
| PV270R1K1T1NFHS |
| PV270R1K1T1NFPD |
| PV270R1K1T1NFPE |
| PV270R1K1T1NFPG |
| PV270R1K1T1NFPP |
| PV270R1K1T1NFPR |
| PV270R1K1T1NFPV |
| PV270R1K1T1NFPZ |
| PV270R1K1T1NFR1 |
| PV270R1K1T1NFRC |
| PV270R1K1T1NFRD |
| PV270R1K1T1NFRP |
| PV270R1K1T1NFRZ |
| PV270R1K1T1NFSD |
| PV270R1K1T1NFT1 |
| PV270R1K1T1NFT2 |
| PV270R1K1T1NFTP |
| PV270R1K1T1NFWS |
| PV270R1K1T1NKLC |
| PV270R1K1T1NMF1 |
| PV270R1K1T1NMF14747 |
| PV270R1K1T1NMFB |
| PV270R1K1T1NMFB4747 |
| PV270R1K1T1NMFC |
| PV270R1K1T1NMFC4747 |
| PV270R1K1T1NMFW |
| PV270R1K1T1NMFW4747 |
| PV270R1K1T1NMFZ |
| PV270R1K1T1NMFZ4747 |
| PV270R1K1T1NMM1 |
| PV270R1K1T1NMM14747 |
| PV270R1K1T1NMMC |
| PV270R1K1T1NMMC4747 |
| PV270R1K1T1NMMK |
| PV270R1K1T1NMMW |
| PV270R1K1T1NMMW4747 |
| PV270R1K1T1NMMZ |
| PV270R1K1T1NMR1 |
| PV270R1K1T1NMR14747 |
| PV270R1K1T1NMRB |
| PV270R1K1T1NMRB4747 |
| PV270R1K1T1NMRC |
| PV270R1K1T1NMRC4747 |
| PV270R1K1T1NMRW |
| PV270R1K1T1NMRW4747 |
| PV270R1K1T1NMRZ |
| PV270R1K1T1NMRZ4747 |
| PV270R1K1T1NMT1 |
| PV270R1K1T1NTCB |
| PV270R1K1T1NTCC |
| PV270R1K1T1NTL1 |
| PV270R1K1T1NTL14747 |
| PV270R1K1T1NTLA |
| PV270R1K1T1NTLB |
| PV270R1K1T1NTLC |
| PV270R1K1T1NUCC |
| PV270R1K1T1NUL1 |
| PV270R1K1T1NUL14747 |
| PV270R1K1T1NULA |
| PV270R1K1T1NULB |
| PV270R1K1T1NULB4747 |
| PV270R1K1T1NULC |
| PV270R1K1T1NULK |
| PV270R1K1T1NULK4747 |
| PV270R1K1T1NUPD |
| PV270R1K1T1NUPE |
| PV270R1K1T1NUPF |
| PV270R1K1T1NUPG |
| PV270R1K1T1NUPK |
| PV270R1K1T1NUPM |
| PV270R1K1T1NUPP |
| PV270R1K1T1NUPR |
| PV270R1K1T1NUPS |
| PV270R1K1T1NUPZ |
| PV270R1K1T1NWC1 |
| PV270R1K1T1NWCA |
| PV270R1K1T1NWCB |
| PV270R1K1T1NWCC |
| PV270R1K1T1NWCK |
| PV270R1K1T1NWCW |
| PV270R1K1T1NWCW4747 |
| PV270R1K1T1NWL1 |
| PV270R1K1T1NWL14747 |
| PV270R1K1T1NWLA |
| PV270R1K1T1NWLB |
| PV270R1K1T1NWLC |
| PV270R1K1T1NWLC4747 |
| PV270R1K1T1NWLD |
| PV270R1K1T1NWLW |
| PV270R1K1T1NWLW4747 |
| PV270R1K1T1NWLZ |
| PV270R1K1T1NWPV |
| PV270R1K1T1NYC1 |
| PV270R1K1T1NYCA |
| PV270R1K1T1NYCB |
| PV270R1K1T1NYCC |
| PV270R1K1T1NYCC4747 |
| PV270R1K1T1NYL1 |
| PV270R1K1T1NYL14747 |
| PV270R1K1T1NYLA |
| PV270R1K1T1NYLB |
| PV270R1K1T1NYLC |
| PV270R1K1T1NYLC4747 |
| PV270R1K1T1NYLW |
| PV270R1K1T1NYLW4747 |
| PV270R1K1T1NZCA |
| PV270R1K1T1NZCB |
| PV270R1K1T1NZCC |
| PV270R1K1T1NZCC4747 |
| PV270R1K1T1NZCD |
| PV270R1K1T1NZL1 |
| PV270R1K1T1NZL14747 |
| PV270R1K1T1NZLA |
| PV270R1K1T1NZLB |
| PV270R1K1T1NZLC |
| PV270R1K1T1NZLC4747 |
| PV270R1K1T1NZLW |
| PV270R1K1T1NZLW4747 |
| PV270R1K1T1NZLZ |
| PV270R1K1T1NZLZ4747 |
| PV270R1K1T1V001 |
| PV270R1K1T1V2LC |
| PV270R1K1T1V2LC4747 |
| PV270R1K1T1V3L1 |
| PV270R1K1T1V3LC |
| PV270R1K1T1V3LC4747 |
| PV270R1K1T1VFPP |
| PV270R1K1T1VFRZ |
| PV270R1K1T1VMMC |
| PV270R1K1T1VMMC4747 |
| PV270R1K1T1VMMW |
| PV270R1K1T1VMMW4747 |
| PV270R1K1T1VMMZ |
| PV270R1K1T1VMMZ4747 |
| PV270R1K1T1VMR1 |
| PV270R1K1T1VMRC |
| PV270R1K1T1VMRC4747 |
| PV270R1K1T1VMTZ |
| PV270R1K1T1VMTZ4747 |
| PV270R1K1T1VUPE |
| PV270R1K1T1VUPF |
| PV270R1K1T1VUPR |
| PV270R1K1T1VUPZ |
| PV270R1K1T1VYLC |
| PV270R1K1T1VYLC4747 |
| PV270R1K1T1VZLB |
| PV270R1K1T1VZLC |
| PV270R1K1T1VZLD |
| PV270R1K1T1VZLE |
| PV270R1K1T1W2CK |
| PV270R1K1T1W2LA |
| PV270R1K1T1W2LC |
| PV270R1K1T1W3LC |
| PV270R1K1T1WFDS |
| PV270R1K1T1WFHS |
| PV270R1K1T1WFPR |
| PV270R1K1T1WFR1 |
| PV270R1K1T1WFRP |
| PV270R1K1T1WMM1 |
| PV270R1K1T1WMMC |
| PV270R1K1T1WMMC4747 |
| PV270R1K1T1WMMZ |
| PV270R1K1T1WMTK |
| PV270R1K1T1WTLB |
| PV270R1K1T1WULB |
| PV270R1K1T1WUPG |
| PV270R1K1T1WUPK |
| PV270R1K1T1WUPM |
| PV270R1K1T1WUPR |
| PV270R1K1T1WWLB |
| PV270R1K1T1WWLK |
| PV270R1K1T1WYLB |
| PV270R1K1T1WYLC |
| PV270R1K1T1WYLD |
| PV270R1K1T1WYLK |
| PV270R1K8T1N2LC |
| PV270R1K8T1NFDS |
| PV270R1K8T1NFF1 |
| PV270R1K8T1NFHS |
| PV270R1K8T1NFWS |
| PV270R1K8T1NMMC |
| PV270R1K8T1NULC |
| PV270R1K8T1NYLC |
| PV270R1K8T1NZLC |
| PV270R1K8T1VFRP |
| PV270R1K8T1VFWS |
| PV270R1L1A1NFRD |
| PV270R1L1A1NUPR |
| PV270R1L1AYN3CC |
| PV270R1L1B1N3CB |
| PV270R1L1B1NMR1 |
| PV270R1L1B1NMRZ |
| PV270R1L1B1NUPR |
| PV270R1L1B1WMRK |
| PV270R1L1BBN3CC |
| PV270R1L1BBNFRP |
| PV270R1L1BBNMRC |
| PV270R1L1BBNMRZ |
| PV270R1L1BBNUPK |
| PV270R1L1BBNUPR |
| PV270R1L1C1N2LB |
| PV270R1L1C1NFPV |
| PV270R1L1C1NYLC |
| PV270R1L1C1NZCC |
| PV270R1L1CDN2LC |
| PV270R1L1E1NFWS |
| PV270R1L1LKNUPR |
| PV270R1L1LLNMFC |
| PV270R1L1LLNMM1 |
| PV270R1L1LLNMMW |
| PV270R1L1LLNMRW |
| PV270R1L1LLNUPR |
| PV270R1L1M1N3CC |
| PV270R1L1M1NMFC |
| PV270R1L1M1NTLB |
| PV270R1L1M1NUPM |
| PV270R1L1M3NFPV |
| PV270R1L1MMNFFP |
| PV270R1L1MMNFPV |
| PV270R1L1MMNMFB |
| PV270R1L1MMNMFC |
| PV270R1L1MMNMFW |
| PV270R1L1MMNMM1 |
| PV270R1L1MMNMMC |
| PV270R1L1MMNMRZ |
| PV270R1L1MMNTLB |
| PV270R1L1MMNUPM |
| PV270R1L1MMNYLC |
| PV270R1L1MMWUPM |
| PV270R1L1T1N001 |
| PV270R1L1T1N100 |
| PV270R1L1T1N1004747 |
| PV270R1L1T1N2CC |
| PV270R1L1T1N2LA |
| PV270R1L1T1N2LB |
| PV270R1L1T1N2LC |
| PV270R1L1T1N2LC4747 |
| PV270R1L1T1N3CC |
| PV270R1L1T1N3LA |
| PV270R1L1T1N3LC |
| PV270R1L1T1N3LZ |
| PV270R1L1T1NFDS |
| PV270R1L1T1NFF1 |
| PV270R1L1T1NFFC |
| PV270R1L1T1NFFP |
| PV270R1L1T1NFPG |
| PV270R1L1T1NFPV |
| PV270R1L1T1NMF1 |
| PV270R1L1T1NMF14747 |
| PV270R1L1T1NMFC |
| PV270R1L1T1NMFC4747 |
| PV270R1L1T1NMM1 |
| PV270R1L1T1NMM14747 |
| PV270R1L1T1NMMC |
| PV270R1L1T1NMMC4747 |
| PV270R1L1T1NMMW |
| PV270R1L1T1NMMW4747 |
| PV270R1L1T1NMR1 |
| PV270R1L1T1NMR14747 |
| PV270R1L1T1NMRC |
| PV270R1L1T1NMRZ |
| PV270R1L1T1NTLB |
| PV270R1L1T1NTLC |
| PV270R1L1T1NUCC |
| PV270R1L1T1NUCW |
| PV270R1L1T1NULA |
| PV270R1L1T1NULB |
| PV270R1L1T1NULC |
| PV270R1L1T1NUPD |
| PV270R1L1T1NUPG |
| PV270R1L1T1NUPK |
| PV270R1L1T1NUPM |
| PV270R1L1T1NUPP |
| PV270R1L1T1NUPQ |
| PV270R1L1T1NUPR |
| PV270R1L1T1NWCC |
| PV270R1L1T1NWLC |
| PV270R1L1T1NWLC4747 |
| PV270R1L1T1NWPV |
| PV270R1L1T1NYCB |
| PV270R1L1T1NYCC |
| PV270R1L1T1NYCW |
| PV270R1L1T1NYLA |
| PV270R1L1T1NYLB |
| PV270R1L1T1NYLC |
| PV270R1L1T1NYLC4747 |
| PV270R1L1T1NYLW |
| PV270R1L1T1NZLC |
| PV270R1L1T1PUCC |
| PV270R1L1T1VFPV |
| PV270R1L1T1VMM1 |
| PV270R1L1T1VUL1 |
| PV270R1L1T1VYLC |
| PV270R1L1T1WFFC |
| PV270R1L1T1WFPV |
| PV270R1L1T1WMMK |
| PV270R1L1T1WMRK |
| PV270R1L1T1WUCC |
| PV270R1L1T1WUPG |
| PV270R2L1T1WMMW |
| PV270R4D3CDNUDM |
| PV270R4D3CDNUDM4747 |
| PV270R4D3T1NUDF |
| PV270R4D3T1NUDF4747 |
| PV270R4E1T1NUDM |
| PV270R4E1T1NUDM4747 |
| PV270R4K1MMWMRK |
| PV270R4K1MMWMRK4747 |
| PV270R4K1T1N001 |
| PV270R4K1T1N0014747 |
| PV270R4K1T1NFDV |
| PV270R4K1T1NFDV4747 |
| PV270R4K1T1NUDK |
| PV270R4K1T1NUDK4747 |
| PV270R4K1T1NUDM |
| PV270R4K1T1NUDM4747 |
| PV270R4K1T1NUDR |
| PV270R4K1T1NUDR4747 |
| PV270R4K1T1VUDM |
| PV270R4K1T1VUDM4747 |
| PV270R4L1T1NFDV |
| PV270R4L1T1NFDV4747 |
| PV270R4L1T1NUDM |
| PV270R4L1T1NUDM4747 |
| PV270R4L1T1NUDR |
| PV270R4L1T1NUDR4747 |
| PV270R5K1T1NWCB |
| PV270R9D1B1N2LC |
| PV270R9D1B1N3LC |
| PV270R9D3B1NUCC |
| PV270R9D3T1N3L1K |
| PV270R9D3T1N3LZ |
| PV270R9D3T1NYCC |
| PV270R9D3T1NYCCK |
| PV270R9D3T1V3LKK |
| PV270R9D3T1VYCC |
| PV270R9E1A1NYLK |
| PV270R9E1A1NYLKK |
| PV270R9E3C1NYCC |
| PV270R9E3T1V3LKK |
| PV270R9E3T1V3LZK |
| PV270R9K1B1N3LA |
| PV270R9K1B1N3LC |
| PV270R9K1B1NMRZ |
| PV270R9K1B1NTCZ |
| PV270R9K1B1WTCZ |
| PV270R9K1BBN3LA |
| PV270R9K1BBN3LC |
| PV270R9K1BBNMRC |
| PV270R9K1C1NMFC |
| PV270R9K1L1N3CC |
| PV270R9K1L1N3LC |
| PV270R9K1M1NMFC |
| PV270R9K1T1N100 |
| PV270R9K1T1N2CC |
| PV270R9K1T1N3CC |
| PV270R9K1T1N3LC |
| PV270R9K1T1NFPV |
| PV270R9K1T1NFWS |
| PV270R9K1T1NTCB |
| PV270R9K1T1NTCC |
| PV270R9K1T1NTLC |
| PV270R9K1T1NUCC |
| PV270R9K1T1NULC |
| PV270R9K1T1NUPG |
| PV270R9K1T1NUPM |
| PV270R9K1T1NWCC |
| PV270R9K1T1NWLC |
| PV270R9K1T1NYCC |
| PV270R9K1T1NYLC |
| PV270R9K1T1NZLC |
| PV270R9K1T1V2LA |
| PV270R9K1T1V3LC |
| PV270R9K1T1VFS1 |
| PV270R9K1T1VMMC |
| PV270R9K1T1W3LZ |
| PV270R9K1T1WFR1 |
| PV270R9K1T1WFWS |
| PV270R9K1T1WZLC |
| PV270R9K8T1NMMC |
| PV270R9L1C1N3CC |
| PV270R9L1D1N2CC |
| PV270R9L1L1N3CC |
| PV270R9L1L1NWCC |
| PV270R9L1L1NZCC |
| PV270R9L1L3N2CC |
| PV270R9L1LKN2CC |
| PV270R9L1LLN3CC |
| PV270R9L1M1N3CC |
| PV270R9L1MMVMT1 |
| PV270R9L1T1N2CC |
| PV270R9L1T1N3CC |
| PV270R9L1T1N3LC |
| PV270R9L1T1NMFC |
| PV270R9L1T1NYCC |
| PV270R9L1T1VFT1 |
| PV270R9L1T1VMT1 |
| PV270R9L1T1VYCC |
| PV270R9L1T1VZCC |
Q1: For which type of applications is the PV270 pump particularly suited?
A1: The PV270 pump is particularly suited for heavy-duty industrial and mobile applications requiring reliable high-power density. Common examples include plastic injection molding machines, hydraulic presses, and large construction equipment.
Q2: What are some design features that contribute to the PV270's durability?
A2: Design features contributing to the PV270 pump's durability include its robust construction with hardened components and an optimized bearing design. These features ensure reliable performance and long service life in demanding high-pressure environments.
Q3:How to purchase a PV270 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the PV270 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
