For Parker PVP16 axial piston hydraulic pump
SERIES : PVP
BRAND : For Parker
Model Size :PVP16
Displacement : 16cm3/rev
Speed : 1800rpm
Maximum Pressure : 310bar
Nominal Pressure : 248bar
Download PDF
- Product Details
- Product Model
- FAQ
The Parker PVP16 is a fixed-displacement axial piston hydraulic pump designed for open-circuit applications. It belongs to Parker's versatile PVP series, known for reliable performance in mobile and industrial equipment.
Key features include a compact, robust design with a 16 cc/rev displacement. It operates at continuous pressures up to 310 bar and speeds to 3000 rpm, delivering high volumetric efficiency. Its rotating group utilizes a swashplate design with piston shoes riding on a hardened thrust plate, ensuring smooth, quiet operation and long service life.
The pump is designed for easy installation and maintenance, with options for various shaft styles and port configurations. Its primary application is as a flow source for systems requiring fixed fluid delivery, such as in material handling, construction, and agricultural machinery. The PVP16 offers a cost-effective solution for reliable hydraulic power in demanding environments.
Specifications
| Pump Model | Displacement
cc/rev (In³/rev) |
Pump Delivery @ 21 bar (300 PSI) in LPM (GPM) | ↑ Approx. Noise Levels dB(A) @ Full Flow 1800 RPM (1200 RPM) | Input Power At
1800 RPM, Max. Displacement & 248 bar (3600 PSI) |
Operating Speed (RPM) (Maximum) | Pressure
bar (PSI) Continuous (Maximum) |
|||||
| 1200 RPM | 1800 RPM | 34 bar
(500 PSI) |
69 bar
(1000 PSI) |
138 bar
(2000 PSI) |
207 bar
(3000 PSI) |
248 bar
(3600 PSI) |
|||||
| PVP16 | 16 (.98) | 19.7 (5.2) | 29.5 (7.8) | 53 (47) | 55 (50) | 59 (54) | 62 (56) | 65 (59) | 13.1 kw (17.5 hp) | 3000 | 248 (3600) |
| PVP23 | 23 (1.4) | 28.0 (7.4) | 42.0 (11.1) | 61 (57) | 64 (59) | 67 (63) | 69 (65) | 70 (65) | 19.7 kw (26.5 hp) | 3000 | 248 (3600) |
| PVP33 | 33 (2.0) | 39.4 (10.4) | 59.0 (15.6) | 64 (59) | 66 (59) | 68 (62) | 70 (64) | 71 (65) | 27.2 kw (36.5 hp) | 3000 | 248 (3600) |
| PVP41 | 41 (2.5) | 49.2 (13.0) | 73.8 (19.5) | 68 (60) | 70 (61) | 73 (65) | 74 (67) | 75 (69) | 33.2 kw (44.5 hp) | 2800 | 248 (3600) |
| PVP48 | 48 (2.9) | 57.6 (15.2) | 86.4 (22.8) | 69 (60) | 71 (62) | 73 (65) | 75 (68) | 76 (69) | 40.3 kw (54.0 hp) | 2400 | 248 (3600) |

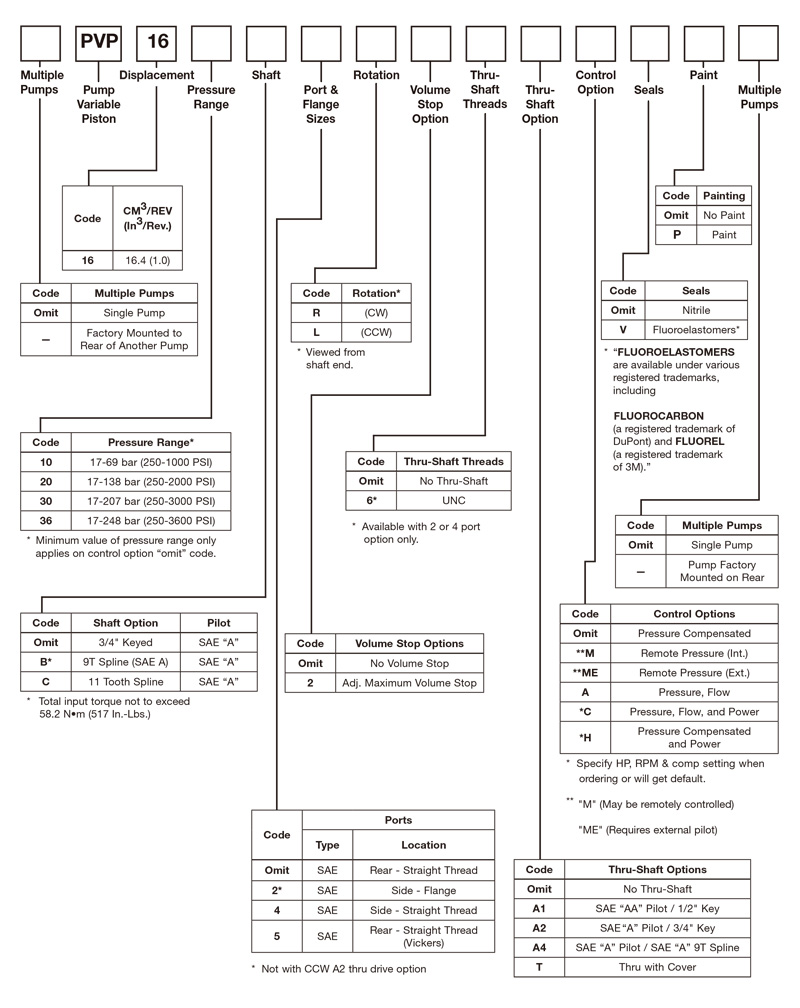

Selection Table
| PVP16 hydraulic pump |
| Model Code |
| PVP1600K9R212 |
| PVP16102L12 |
| PVP16102L212 |
| PVP16102L2VO12 |
| PVP16102L6T12 |
| PVP16102LV12 |
| PVP16102R12 |
| PVP16102R212 |
| PVP16102R26A112 |
| PVP16102R26A212 |
| PVP16102R26A2A12 |
| PVP16102R26A2M12 |
| PVP16102R26A2V12 |
| PVP16102R26A412 |
| PVP16102R26A4V12 |
| PVP16102R26T12 |
| PVP16102R2H12 |
| PVP16102R2M12 |
| PVP16102R6A112 |
| PVP16102R6A212 |
| PVP16102R6A2ME12 |
| PVP16102R6A412 |
| PVP16102RME12 |
| PVP16104L12 |
| PVP16104L212 |
| PVP16104L26A1C12 |
| PVP16104L26A212 |
| PVP16104L2M12 |
| PVP16104L6A212 |
| PVP16104R12 |
| PVP16104R212 |
| PVP16104R26A112 |
| PVP16104R26A1M12 |
| PVP16104R26A1ME1 |
| PVP16104R26A212 |
| PVP16104R26T12 |
| PVP16104R2A12 |
| PVP16104R2M12 |
| PVP16104R2MV12 |
| PVP16104R2V12 |
| PVP16104R6A112 |
| PVP16104R6A412 |
| PVP16104RM12 |
| PVP16105R12 |
| PVP16105R212 |
| PVP16106L212 |
| PVP16107L2VO12 |
| PVP16108R12 |
| PVP16109R212 |
| PVP1610B2L212 |
| PVP1610B2R12 |
| PVP1610B2R26A412 |
| PVP1610B2R2MP12 |
| PVP1610B4L12 |
| PVP1610B4L212 |
| PVP1610B4L26A412 |
| PVP1610B4LH12 |
| PVP1610B4R12 |
| PVP1610B4R212 |
| PVP1610B4R26A112 |
| PVP1610B4R26A212 |
| PVP1610B4R26A2VM |
| PVP1610B4R26A412 |
| PVP1610B4R26T12 |
| PVP1610B4R2A12 |
| PVP1610B4R2M12 |
| PVP1610B4R6A1A12 |
| PVP1610B4R6A4M12 |
| PVP1610B5R212 |
| PVP1610B6L12 |
| PVP1610B6L212 |
| PVP1610B6L2M12 |
| PVP1610B7L212 |
| PVP1610B8R12 |
| PVP1610B9R212 |
| PVP1610B9R2H12 |
| PVP1610BL12 |
| PVP1610BL212 |
| PVP1610BR12 |
| PVP1610BR2A12 |
| PVP1610BR2M12 |
| PVP1610BRAP12 |
| PVP1610BRM12 |
| PVP1610BRP12 |
| PVP1610C4R12 |
| PVP1610C4R26A4M1 |
| PVP1610CL212 |
| PVP1610K8R2VM12 |
| PVP1610K9R12 |
| PVP1610K9R212 |
| PVP1610L12 |
| PVP1610L212 |
| PVP1610L2M12 |
| PVP1610L2V12 |
| PVP1610LM12 |
| PVP1610R211 |
| PVP1610R212 |
| PVP1610R2A12 |
| PVP1610R2C12 |
| PVP1610R2H12 |
| PVP1610R2M12 |
| PVP1610R2ME12 |
| PVP1610R2MP12 |
| PVP1610R2MV12 |
| PVP1610R2V12 |
| PVP1610RA12 |
| PVP1610RM12 |
| PVP1610RME12 |
| PVP1610RV12 |
| PVP16202L212 |
| PVP16202LV12 |
| PVP16202R12 |
| PVP16202R212 |
| PVP16202R26A112 |
| PVP16202R26A1M12 |
| PVP16202R26A212 |
| PVP16202R26A2A12 |
| PVP16202R26A412 |
| PVP16202R26A4AV1 |
| PVP16202R26A4M12 |
| PVP16202R26A4VP1 |
| PVP16202R2A12 |
| PVP16202R2H12 |
| PVP16202R2M12 |
| PVP16202R2V12 |
| PVP16202R6A112 |
| PVP16202R6A412 |
| PVP16202RH12 |
| PVP16202RM12 |
| PVP16204L12 |
| PVP16204L212 |
| PVP16204L26A112 |
| PVP16204L26A1A12 |
| PVP16204L26A2M12 |
| PVP16204L26A2P12 |
| PVP16204L26TP12 |
| PVP16204L2M12 |
| PVP16204L6A112 |
| PVP16204L6A212 |
| PVP16204L6A2M12 |
| PVP16204L6A2V12 |
| PVP16204L6TM12 |
| PVP16204LM12 |
| PVP16204LV12 |
| PVP16204R12 |
| PVP16204R212 |
| PVP16204R26A112 |
| PVP16204R26A1M12 |
| PVP16204R26A1ME1 |
| PVP16204R26A1MP1 |
| PVP16204R26A1V12 |
| PVP16204R26A212 |
| PVP16204R26A2M12 |
| PVP16204R26A2ME1 |
| PVP16204R26A2MP1 |
| PVP16204R26A2MV1 |
| PVP16204R26A2V12 |
| PVP16204R26A2VM1 |
| PVP16204R26A412 |
| PVP16204R26A4M12 |
| PVP16204R26T12 |
| PVP16204R2M12 |
| PVP16204R2P12 |
| PVP16204R2V12 |
| PVP16204R2VM12 |
| PVP16204R6A112 |
| PVP16204R6A2A12 |
| PVP16204R6A2M12 |
| PVP16204R6A2MV12 |
| PVP16204R6A2V12 |
| PVP16204R6A412 |
| PVP16204R6A4MV12 |
| PVP16204R6A4V12 |
| PVP16204RM12 |
| PVP16204RMP12 |
| PVP16204RP12 |
| PVP16204RV12 |
| PVP16205R12 |
| PVP16205R212 |
| PVP16205R2V12 |
| PVP16205RM12 |
| PVP16205RME12 |
| PVP16208R2M12 |
| PVP16208RA12 |
| PVP16209R12 |
| PVP16209RM12 |
| PVP1620B2L212 |
| PVP1620B2R12 |
| PVP1620B2R26A412 |
| PVP1620B2R2A12 |
| PVP1620B2R2M12 |
| PVP1620B2R6A412 |
| PVP1620B4L12 |
| PVP1620B4L212 |
| PVP1620B4L2M12 |
| PVP1620B4L6A412 |
| PVP1620B4R12 |
| PVP1620B4R212 |
| PVP1620B4R26A112 |
| PVP1620B4R26A412 |
| PVP1620B4R26A4C1 |
| PVP1620B4R26A4M1 |
| PVP1620B4R2A12 |
| PVP1620B4R2M12 |
| PVP1620B4R6A412 |
| PVP1620B4R6A4M12 |
| PVP1620B4RA12 |
| PVP1620B4RM12 |
| PVP1620B4RMP12 |
| PVP1620B4RP12 |
| PVP1620B5R12 |
| PVP1620B5R212 |
| PVP1620B5RMP12 |
| PVP1620B7L212 |
| PVP1620B8RVM12 |
| PVP1620B9R2A12 |
| PVP1620BL12 |
| PVP1620BL212 |
| PVP1620BL2A12 |
| PVP1620BLA12 |
| PVP1620BR12 |
| PVP1620BR212 |
| PVP1620BR2A12 |
| PVP1620BR2H12 |
| PVP1620BR2M12 |
| PVP1620BR2MV12 |
| PVP1620BR2V12 |
| PVP1620BRA12 |
| PVP1620BRM12 |
| PVP1620C2R212 |
| PVP1620C2R6A412 |
| PVP1620C4L12 |
| PVP1620C4L26A412 |
| PVP1620C4R12 |
| PVP1620C4R26A4A1 |
| PVP1620C4R2M12 |
| PVP1620C4R6A412 |
| PVP1620C9R12 |
| PVP1620C9R2A12 |
| PVP1620C9RA12 |
| PVP1620CR212 |
| PVP1620CR2V12 |
| PVP1620CRA12 |
| PVP1620K8R12 |
| PVP1620K8R212 |
| PVP1620K8R2M12 |
| PVP1620K8R9A4VM1 |
| PVP1620K9R212 |
| PVP1620K9R29A4M1 |
| PVP1620K9R2M12 |
| PVP1620K9R2MV12 |
| PVP1620K9RV12 |
| PVP1620L12 |
| PVP1620L212 |
| PVP1620L2A12 |
| PVP1620L2MV12 |
| PVP1620LA12 |
| PVP1620LM12 |
| PVP1620LV12 |
| PVP1620R12 |
| PVP1620R212 |
| PVP1620R2A12 |
| PVP1620R2C12 |
| PVP1620R2H12 |
| PVP1620R2M12 |
| PVP1620R2ME12 |
| PVP1620R2MV12 |
| PVP1620R2V12 |
| PVP1620R2VM12 |
| PVP1620R2VO12 |
| PVP1620R2VP12 |
| PVP1620RA12 |
| PVP1620RC12 |
| PVP1620RH12 |
| PVP1620RM12 |
| PVP1620RV12 |
| PVP16302L12 |
| PVP16302L212 |
| PVP16302L2M12 |
| PVP16302R212 |
| PVP16302R26A112 |
| PVP16302R26A1M12 |
| PVP16302R26A1ME1 |
| PVP16302R26A212 |
| PVP16302R26A2A12 |
| PVP16302R26A2M12 |
| PVP16302R26A2V12 |
| PVP16302R26A412 |
| PVP16302R26A4A12 |
| PVP16302R26A4H12 |
| PVP16302R26A4M12 |
| PVP16302R26T12 |
| PVP16302R2A12 |
| PVP16302R2M12 |
| PVP16302R2ME12 |
| PVP16302R2MP12 |
| PVP16302R2MV12 |
| PVP16302R2V12 |
| PVP16302R6A112 |
| PVP16302R6A1C12 |
| PVP16302R6A1M12 |
| PVP16302R6A1MV12 |
| PVP16302R6A1V12 |
| PVP16302R6A212 |
| PVP16302R6A2A12 |
| PVP16302R6A2M12 |
| PVP16302R6A2V12 |
| PVP16302R6A412 |
| PVP16302R6A4M12 |
| PVP16302R6T12 |
| PVP16302RA12 |
| PVP16302RH12 |
| PVP16302RME12 |
| PVP16302RMV12 |
| PVP16302RV12 |
| PVP16302RVO12 |
| PVP16304L12 |
| PVP16304L212 |
| PVP16304L26A1H12 |
| PVP16304L26A1M12 |
| PVP16304L26A212 |
| PVP16304L26A2M12 |
| PVP16304L2H12 |
| PVP16304L2M12 |
| PVP16304L2V12 |
| PVP16304L2VP12 |
| PVP16304L6A212 |
| PVP16304L6A412 |
| PVP16304LA12 |
| PVP16304LP12 |
| PVP16304LV12 |
| PVP16304R12 |
| PVP16304R212 |
| PVP16304R26A112 |
| PVP16304R26A1A12 |
| PVP16304R26A1M12 |
| PVP16304R26A1V12 |
| PVP16304R26A1VH1 |
| PVP16304R26A1VM1 |
| PVP16304R26A212 |
| PVP16304R26A2A12 |
| PVP16304R26A2M12 |
| PVP16304R26A2P12 |
| PVP16304R26A2V12 |
| PVP16304R26A412 |
| PVP16304R26A4A12 |
| PVP16304R26A4H12 |
| PVP16304R26A4M12 |
| PVP16304R26A4V12 |
| PVP16304R26A4VH1 |
| PVP16304R26A4VM1 |
| PVP16304R26TAP12 |
| PVP16304R26TM12 |
| PVP16304R26TV12 |
| PVP16304R2A12 |
| PVP16304R2C12 |
| PVP16304R2H12 |
| PVP16304R2M12 |
| PVP16304R2MV12 |
| PVP16304R2V12 |
| PVP16304R2VM12 |
| PVP16304R6A112 |
| PVP16304R6A1M12 |
| PVP16304R6A1MP12 |
| PVP16304R6A212 |
| PVP16304R6A2A12 |
| PVP16304R6A2H12 |
| PVP16304R6A2M12 |
| PVP16304R6A2MV12 |
| PVP16304R6A2V12 |
| PVP16304R6A412 |
| PVP16304R6A4A12 |
| PVP16304R6A4H12 |
| PVP16304R6A4M12 |
| PVP16304R6A4V12 |
| PVP16304R6TM12 |
| PVP16304RA12 |
| PVP16304RC12 |
| PVP16304RH12 |
| PVP16304RM12 |
| PVP16304RME12 |
| PVP16304RMEV12 |
| PVP16304RV12 |
| PVP16304RVM12 |
| PVP16304RVO12 |
| PVP16305R12 |
| PVP16305R212 |
| PVP16305R2A12 |
| PVP16305R2AV12 |
| PVP16305R2C12 |
| PVP16305R2M12 |
| PVP16305R2ME12 |
| PVP16305R2V12 |
| PVP16305RH12 |
| PVP16305RM12 |
| PVP16305RV12 |
| PVP16306L2M12 |
| PVP16306L2MV12 |
| PVP16306L2VA12 |
| PVP16306L2VH12 |
| PVP16306L2VMV12 |
| PVP16306LVM12 |
| PVP16306LVMV12 |
| PVP16307L12 |
| PVP16309R12 |
| PVP16309R212 |
| PVP16309R29A4M12 |
| PVP16309R2M12 |
| PVP16309R2ME12 |
| PVP1630B2L12 |
| PVP1630B2L212 |
| PVP1630B2L2A12 |
| PVP1630B2L2M12 |
| PVP1630B2LMV12 |
| PVP1630B2R12 |
| PVP1630B2R212 |
| PVP1630B2R26A212 |
| PVP1630B2R26A4M1 |
| PVP1630B2R26T12 |
| PVP1630B2R2A12 |
| PVP1630B2R6A212 |
| PVP1630B2R6A412 |
| PVP1630B2R6A4A12 |
| PVP1630B2RA12 |
| PVP1630B2RM12 |
| PVP1630B4L12 |
| PVP1630B4L212 |
| PVP1630B4L2A12 |
| PVP1630B4L2C12 |
| PVP1630B4L2M12 |
| PVP1630B4L6A412 |
| PVP1630B4L6A4M12 |
| PVP1630B4LA12 |
| PVP1630B4LCP12 |
| PVP1630B4LVP12 |
| PVP1630B4R12 |
| PVP1630B4R26A212 |
| PVP1630B4R26A412 |
| PVP1630B4R26A4M1 |
| PVP1630B4R26TM12 |
| PVP1630B4R2A12 |
| PVP1630B4R2C12 |
| PVP1630B4R2M12 |
| PVP1630B4R6A1A12 |
| PVP1630B4R6A1C12 |
| PVP1630B4R6A212 |
| PVP1630B4R6A412 |
| PVP1630B4R6A4A12 |
| PVP1630B4R6A4AP1 |
| PVP1630B4R6A4C12 |
| PVP1630B4R6A4M12 |
| PVP1630B4RA12 |
| PVP1630B4RH12 |
| PVP1630B4RHV12 |
| PVP1630B4RM12 |
| PVP1630B4RVP12 |
| PVP1630B5R12 |
| PVP1630B5R212 |
| PVP1630B5RV12 |
| PVP1630B6L2VMV12 |
| PVP1630B7L2H12 |
| PVP1630B9L212 |
| PVP1630B9R212 |
| PVP1630B9R2A12 |
| PVP1630B9R2C12 |
| PVP1630BL12 |
| PVP1630BL212 |
| PVP1630BL2A12 |
| PVP1630BL2M12 |
| PVP1630BL2MV12 |
| PVP1630BLA12 |
| PVP1630BLM12 |
| PVP1630BLV12 |
| PVP1630BR12 |
| PVP1630BR212 |
| PVP1630BR2A12 |
| PVP1630BR2C12 |
| PVP1630BR2H12 |
| PVP1630BR2MP12 |
| PVP1630BR2MV12 |
| PVP1630BR2VM12 |
| PVP1630BRA12 |
| PVP1630BRAV12 |
| PVP1630BRC12 |
| PVP1630BRH12 |
| PVP1630BRM12 |
| PVP1630BRME12 |
| PVP1630BRMV12 |
| PVP1630BRV12 |
| PVP1630BRVH12 |
| PVP1630C2L212 |
| PVP1630C2L2M12 |
| PVP1630C2R212 |
| PVP1630C2R26A212 |
| PVP1630C2R26A4M1 |
| PVP1630C2R2M12 |
| PVP1630C2RM12 |
| PVP1630C4L12 |
| PVP1630C4L26A212 |
| PVP1630C4L6A412 |
| PVP1630C4R12 |
| PVP1630C4R212 |
| PVP1630C4R26A212 |
| PVP1630C4R2A12 |
| PVP1630C4R6A1A12 |
| PVP1630C4R6A4A12 |
| PVP1630C4R6A4M12 |
| PVP1630C4R6TH12 |
| PVP1630C4RA12 |
| PVP1630C4RC12 |
| PVP1630C4RH12 |
| PVP1630CL12 |
| PVP1630CL212 |
| PVP1630CL2V12 |
| PVP1630CLMP12 |
| PVP1630CR12 |
| PVP1630CR212 |
| PVP1630CR2A12 |
| PVP1630CR2C12 |
| PVP1630CR2M12 |
| PVP1630CRA12 |
| PVP1630CRC12 |
| PVP1630K8L212 |
| PVP1630K8R12 |
| PVP1630K8R212 |
| PVP1630K8R2M12 |
| PVP1630K9L212 |
| PVP1630K9R12 |
| PVP1630K9R212 |
| PVP1630K9R2M12 |
| PVP1630K9R9A4M12 |
| PVP1630K9RA12 |
| PVP1630K9RM12 |
| PVP1630L12 |
| PVP1630L212 |
| PVP1630L2A12 |
| PVP1630L2AV12 |
| PVP1630L2C12 |
| PVP1630L2H12 |
| PVP1630L2HV12 |
| PVP1630L2M12 |
| PVP1630L2ME12 |
| PVP1630L2MV12 |
| PVP1630L2V12 |
| PVP1630L2VA12 |
| PVP1630L2VH12 |
| PVP1630LA12 |
| PVP1630LAV12 |
| PVP1630LCVP12 |
| PVP1630LH12 |
| PVP1630LM12 |
| PVP1630LME12 |
| PVP1630LV12 |
| PVP1630R12 |
| PVP1630R2A12 |
| PVP1630R2AV12 |
| PVP1630R2C12 |
| PVP1630R2H12 |
| PVP1630R2M12 |
| PVP1630R2ME12 |
| PVP1630R2MEV12 |
| PVP1630R2MV12 |
| PVP1630R2P12 |
| PVP1630R2V12 |
| PVP1630R2VA12 |
| PVP1630R2VH12 |
| PVP1630R2VO12 |
| PVP1630R2VP12 |
| PVP1630RA12 |
| PVP1630RAP12 |
| PVP1630RC12 |
| PVP1630RH12 |
| PVP1630RM12 |
| PVP1630RME12 |
| PVP1630RMEV12 |
| PVP1630RMV12 |
| PVP1630RP12 |
| PVP1630RV12 |
| PVP16362L12 |
| PVP16362L212 |
| PVP16362LH12 |
| PVP16362LP12 |
| PVP16362R12 |
| PVP16362R212 |
| PVP16362R26A112 |
| PVP16362R26A1A12 |
| PVP16362R26A1AP12 |
| PVP16362R26A1H12 |
| PVP16362R26A1M12 |
| PVP16362R26A212 |
| PVP16362R26A2C12 |
| PVP16362R26A2M12 |
| PVP16362R26A412 |
| PVP16362R26A4A12 |
| PVP16362R26A4M12 |
| PVP16362R26A4V12 |
| PVP16362R26T12 |
| PVP16362R2A12 |
| PVP16362R2C12 |
| PVP16362R2CV12 |
| PVP16362R2H12 |
| PVP16362R2M12 |
| PVP16362R2ME12 |
| PVP16362R2MV12 |
| PVP16362R2MVP12 |
| PVP16362R2P12 |
| PVP16362R2V12 |
| PVP16362R2VP12 |
| PVP16362R6A1H12 |
| PVP16362R6A212 |
| PVP16362R6A2M12 |
| PVP16362R6A412 |
| PVP16362R6A4M12 |
| PVP16362R6T12 |
| PVP16362RA12 |
| PVP16362RAP12 |
| PVP16362RC12 |
| PVP16362RH12 |
| PVP16362RM12 |
| PVP16362RMP12 |
| PVP16364L12 |
| PVP16364L212 |
| PVP16364L26A112 |
| PVP16364L26A1A12 |
| PVP16364L26A412 |
| PVP16364L26A4P12 |
| PVP16364L26T12 |
| PVP16364L26TA12 |
| PVP16364L2A12 |
| PVP16364L2C12 |
| PVP16364L6A412 |
| PVP16364L6T12 |
| PVP16364R12 |
| PVP16364R212 |
| PVP16364R26A112 |
| PVP16364R26A1M12 |
| PVP16364R26A1ME1 |
| PVP16364R26A1VM1 |
| PVP16364R26A1VM12 |
| PVP16364R26A1VP1 |
| PVP16364R26A1VP12 |
| PVP16364R26A212 |
| PVP16364R26A2A12 |
| PVP16364R26A2C12 |
| PVP16364R26A2H12 |
| PVP16364R26A2M12 |
| PVP16364R26A2P12 |
| PVP16364R26A412 |
| PVP16364R26A4M12 |
| PVP16364R26A4ME1 |
| PVP16364R26A4ME12 |
| PVP16364R26A4MP12 |
| PVP16364R26A4MV1 |
| PVP16364R26A4MV12 |
| PVP16364R26A4P12 |
| PVP16364R26A4V12 |
| PVP16364R26T12 |
| PVP16364R26TA12 |
| PVP16364R26TAP12 |
| PVP16364R26TC12 |
| PVP16364R26TMP12 |
| PVP16364R2A12 |
| PVP16364R2C12 |
| PVP16364R2H12 |
| PVP16364R2M12 |
| PVP16364R2ME12 |
| PVP16364R2MV12 |
| PVP16364R2P12 |
| PVP16364R2V12 |
| PVP16364R6A112 |
| PVP16364R6A1A12 |
| PVP16364R6A1H12 |
| PVP16364R6A1M12 |
| PVP16364R6A1ME12 |
| PVP16364R6A1V12 |
| PVP16364R6A212 |
| PVP16364R6A2A12 |
| PVP16364R6A2M12 |
| PVP16364R6A412 |
| PVP16364R6A4H12 |
| PVP16364R6A4M12 |
| PVP16364R6TH12 |
| PVP16364R6TM12 |
| PVP16364RA12 |
| PVP16364RH12 |
| PVP16364RM12 |
| PVP16364RV12 |
| PVP16365R12 |
| PVP16365R212 |
| PVP16365R2A12 |
| PVP16365R2H12 |
| PVP16365R2HV12 |
| PVP16365R2M12 |
| PVP16365R2V12 |
| PVP16365RH12 |
| PVP16365RM12 |
| PVP16368R12 |
| PVP16368R212 |
| PVP16368R2A12 |
| PVP16368R2AP12 |
| PVP16368R2P12 |
| PVP16368RV12 |
| PVP16369L212 |
| PVP16369L2A12 |
| PVP16369L2AP12 |
| PVP16369R12 |
| PVP16369R212 |
| PVP16369R29A412 |
| PVP16369R29A4A12 |
| PVP16369R29A4ME1 |
| PVP16369R29A4ME12 |
| PVP16369R2A12 |
| PVP16369R2AP12 |
| PVP16369R2AV12 |
| PVP16369R2H12 |
| PVP16369R2M12 |
| PVP16369R2ME12 |
| PVP16369R2P12 |
| PVP16369R2V12 |
| PVP16369R9A212 |
| PVP16369R9A4A12 |
| PVP16369RA12 |
| PVP16369RH12 |
| PVP1636B2L2A12 |
| PVP1636B2R12 |
| PVP1636B2R26A1M1 |
| PVP1636B2R26A212 |
| PVP1636B2R26A412 |
| PVP1636B2R26A4H1 |
| PVP1636B2R2A12 |
| PVP1636B2R2AV12 |
| PVP1636B2R2M12 |
| PVP1636B2R2V12 |
| PVP1636B2R6A4A12 |
| PVP1636B2RA12 |
| PVP1636B2RM12 |
| PVP1636B2RP12 |
| PVP1636B4L12 |
| PVP1636B4L212 |
| PVP1636B4L26A412 |
| PVP1636B4L2A12 |
| PVP1636B4L6A2A12 |
| PVP1636B4LA12 |
| PVP1636B4LP12 |
| PVP1636B4LVP12 |
| PVP1636B4R12 |
| PVP1636B4R212 |
| PVP1636B4R26A412 |
| PVP1636B4R26A4M1 |
| PVP1636B4R26A4M12 |
| PVP1636B4R2A12 |
| PVP1636B4R2H12 |
| PVP1636B4R2M12 |
| PVP1636B4R2ME12 |
| PVP1636B4R2V12 |
| PVP1636B4R6A412 |
| PVP1636B4R6A4A12 |
| PVP1636B4R6TM12 |
| PVP1636B4RA12 |
| PVP1636B4RAP12 |
| PVP1636B4RH12 |
| PVP1636B4RM12 |
| PVP1636B4RP12 |
| PVP1636B4RV12 |
| PVP1636B5R212 |
| PVP1636B8R212 |
| PVP1636B9L212 |
| PVP1636B9L2H12 |
| PVP1636B9LA12 |
| PVP1636B9R12 |
| PVP1636B9R212 |
| PVP1636B9R29A412 |
| PVP1636B9R29A4A1 |
| PVP1636B9R29A4AV |
| PVP1636B9R2AV12 |
| PVP1636B9R9A4A12 |
| PVP1636B9RA12 |
| PVP1636B9RC12 |
| PVP1636B9RM12 |
| PVP1636BL12 |
| PVP1636BL212 |
| PVP1636BL2A12 |
| PVP1636BL2M12 |
| PVP1636BLA12 |
| PVP1636BLMV12 |
| PVP1636BLV12 |
| PVP1636BR12 |
| PVP1636BR212 |
| PVP1636BR2A12 |
| PVP1636BR2C12 |
| PVP1636BR2H12 |
| PVP1636BR2M12 |
| PVP1636BR2V12 |
| PVP1636BRA12 |
| PVP1636BRAV12 |
| PVP1636BRH12 |
| PVP1636BRM12 |
| PVP1636BRV12 |
| PVP1636C2L6T12 |
| PVP1636C2R12 |
| PVP1636C2R212 |
| PVP1636C2R2A12 |
| PVP1636C2R6A2AV1 |
| PVP1636C2R6T12 |
| PVP1636C2RA12 |
| PVP1636C2RCP12 |
| PVP1636C2RH12 |
| PVP1636C2RM12 |
| PVP1636C2RP12 |
| PVP1636C2RV12 |
| PVP1636C4L12 |
| PVP1636C4L212 |
| PVP1636C4L26A412 |
| PVP1636C4L2AP12 |
| PVP1636C4L2C12 |
| PVP1636C4L2M12 |
| PVP1636C4L6A2A12 |
| PVP1636C4R212 |
| PVP1636C4R26A112 |
| PVP1636C4R26A2A1 |
| PVP1636C4R26A2A12 |
| PVP1636C4R26A412 |
| PVP1636C4R26A4M1 |
| PVP1636C4R26A4M12 |
| PVP1636C4R2AP12 |
| PVP1636C4R2M12 |
| PVP1636C4R6A412 |
| PVP1636C4R6A4A12 |
| PVP1636C4R6A4AV1 |
| PVP1636C4R6A4AV12 |
| PVP1636C5L212 |
| PVP1636C5RAP12 |
| PVP1636C8R29A4M1 |
| PVP1636C8R29A4M12 |
| PVP1636C9L212 |
| PVP1636C9L29A4A12 |
| PVP1636C9L2A12 |
| PVP1636C9L2A12X3667 |
| PVP1636C9L9A4A12 |
| PVP1636C9R12 |
| PVP1636C9R212 |
| PVP1636C9R29A412 |
| PVP1636C9R29A4M1 |
| PVP1636C9R2A12 |
| PVP1636C9R2AV12 |
| PVP1636C9R2ME12 |
| PVP1636C9RA12 |
| PVP1636C9RC12 |
| PVP1636CL12 |
| PVP1636CL212 |
| PVP1636CL2C12 |
| PVP1636CLA12 |
| PVP1636CLH12 |
| PVP1636CR12 |
| PVP1636CR212 |
| PVP1636CR2A12 |
| PVP1636CR2AP12 |
| PVP1636CR2CV12 |
| PVP1636CR2HP12 |
| PVP1636CR2M12 |
| PVP1636CR2MP12 |
| PVP1636CRA12 |
| PVP1636CRC12 |
| PVP1636CRP12 |
| PVP1636CRV12 |
| PVP1636CRV12X3932 |
| PVP1636DL2M12 |
| PVP1636K8L212 |
| PVP1636K8R12 |
| PVP1636K8R212 |
| PVP1636K8R29A4M1 |
| PVP1636K8R2A12 |
| PVP1636K8R2M12 |
| PVP1636K8R9A4M12 |
| PVP1636K8RA12 |
| PVP1636K8RM12 |
| PVP1636K8RMV12 |
| PVP1636K8RVM12 |
| PVP1636K9L212 |
| PVP1636K9R12 |
| PVP1636K9R212 |
| PVP1636K9R29A412 |
| PVP1636K9R29A4A1 |
| PVP1636K9R29A4A12 |
| PVP1636K9R29A4M12 |
| PVP1636K9R29T12 |
| PVP1636K9R2A12 |
| PVP1636K9R2H12 |
| PVP1636K9R2M12 |
| PVP1636K9R2ME12 |
| PVP1636K9R2MEV12 |
| PVP1636K9R2MV12 |
| PVP1636K9R2P12 |
| PVP1636K9R2V12 |
| PVP1636K9R9A2A12 |
| PVP1636K9R9A412 |
| PVP1636K9R9A4A12 |
| PVP1636K9R9A4M12 |
| PVP1636K9R9A4V12 |
| PVP1636K9RA12 |
| PVP1636K9RC12 |
| PVP1636K9RM12 |
| PVP1636K9RP12 |
| PVP1636L12 |
| PVP1636L212 |
| PVP1636L2A12 |
| PVP1636L2C12 |
| PVP1636L2M12 |
| PVP1636L2MV12 |
| PVP1636L2V12 |
| PVP1636L2VH12 |
| PVP1636LA12 |
| PVP1636LH12 |
| PVP1636R12 |
| PVP1636R212 |
| PVP1636R2A12 |
| PVP1636R2AV12 |
| PVP1636R2C12 |
| PVP1636R2CV12 |
| PVP1636R2H12 |
| PVP1636R2HP12 |
| PVP1636R2M12 |
| PVP1636R2ME12 |
| PVP1636R2MP12 |
| PVP1636R2MV12 |
| PVP1636R2V12 |
| PVP1636R2VO12 |
| PVP1636RA12 |
| PVP1636RC12 |
| PVP1636RH12 |
| PVP1636RM12 |
| PVP1636RME12 |
| PVP1636RV12 |
Q1: What is the Parker PVP16 hydraulic pump primarily used for?
A1:The PVP16 hydraulic pump is primarily used as a fixed flow source in open-circuit hydraulic systems for mobile and industrial machinery, such as material handling, construction, and agricultural equipment.
Q2: What is a key design feature that contributes to the PVP16 pump's smooth operation?
A2: A key design feature of the PVP16 pump is its axial piston rotating group with a swashplate design, where piston shoes ride on a hardened thrust plate to ensure smooth and quiet operation.
Q3: What is the price and delivery time of the PVP16 hydraulic pump?
A3: The specific price and delivery time will be provided based on the specific model you provide.
Q4:How to purchase a PVP16 hydraulic pump?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
