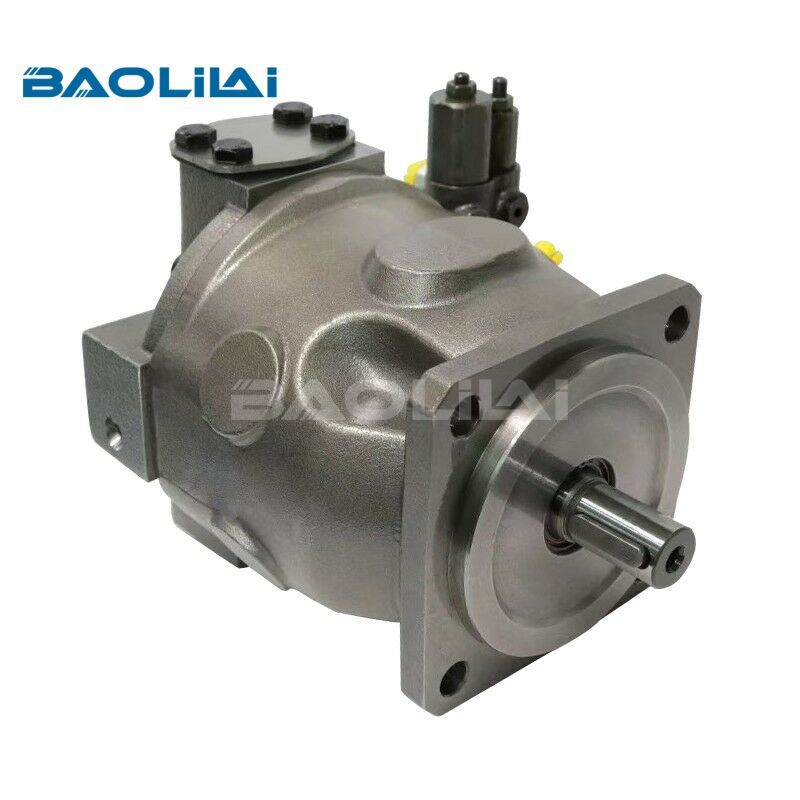

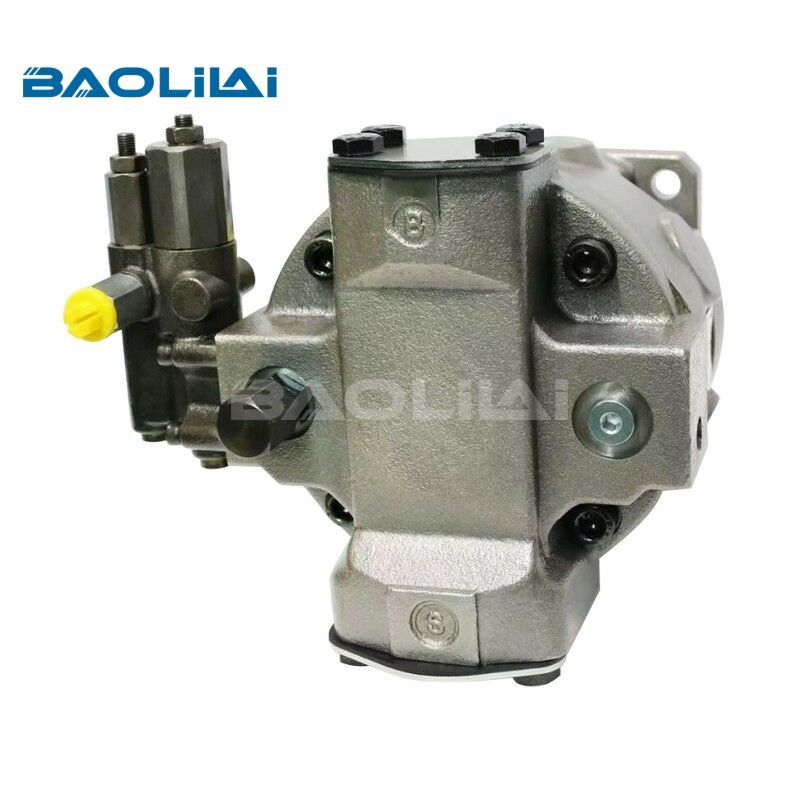

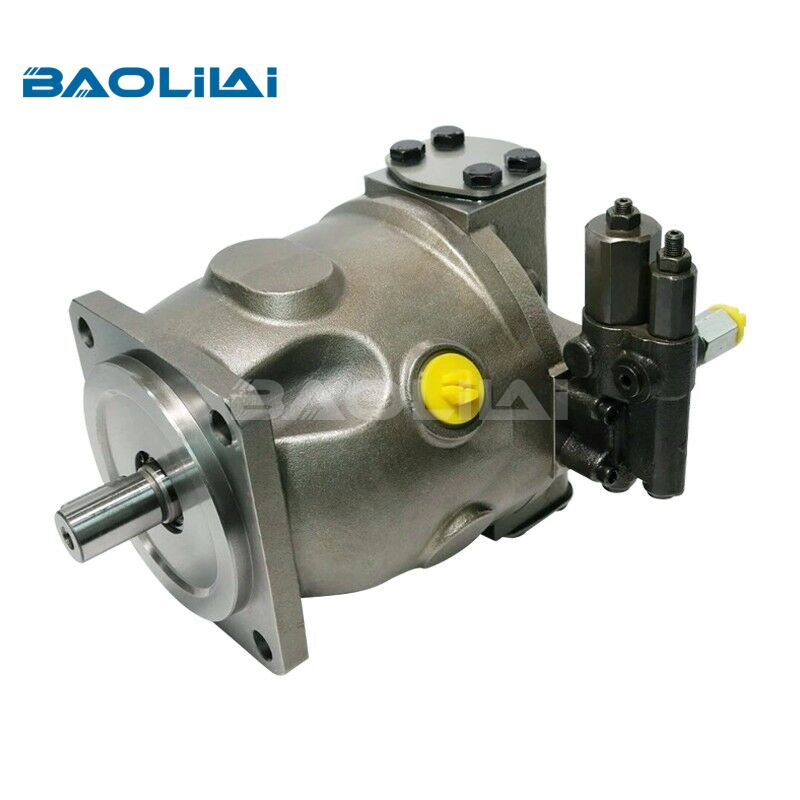

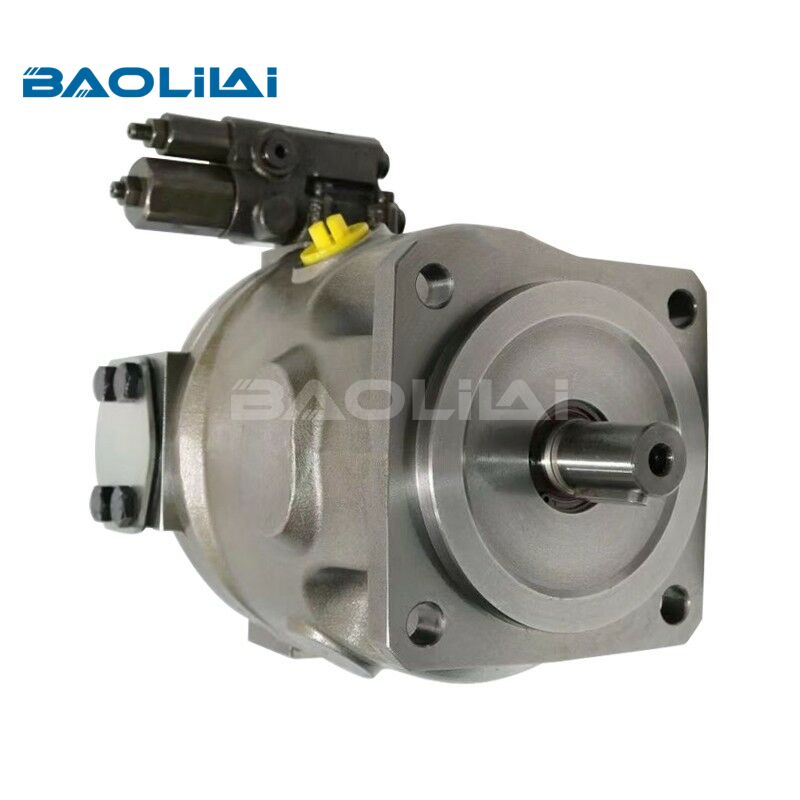

For Rexroth 32 series A10VO140 variable hydraulic pump
SERIES : A10VO 32 series
BRAND : For Rexroth
Model Size :A10VO140
Displacement : 140cm3/rev
Speed : 1800rpm
Maximum Pressure : 350bar
Nominal Pressure : 280bar
Download PDF
- Product Details
- Product Model
- FAQ
The Rexroth 32 series A10VO140 is a variable displacement axial piston pump designed for open circuit applications. This swashplate design pump features a through drive capability, allowing multiple pump arrangements. Key specifications include a nominal displacement of 140 cm³/rev and a maximum operating pressure of 350 bar, with a peak of 400 bar. The A10VO140 is engineered for mobile and industrial hydraulics, offering high power density and efficiency. Its variable displacement is controlled via a pressure compensator (LR), a load-sensing controller (LRDS), or a constant power regulator (LROB), enabling precise flow adjustment to match system demand, reducing energy consumption and heat generation. The pump is known for its robust construction, reliable performance, and long service life, making it suitable for demanding applications in construction machinery, material handling, and industrial presses.
Specifications
| Size | NG | 45 | 71 | 100 | 140 | 180 | ||
| Displacement, geometric, per revolution | Vg max | cm3 | 45 | 71 | 100 | 140 | 180 | |
| Rotational speed maximum | at Vg max | nnom | rpm | 3000 | 2550 | 2300 | 2200 | 1800 |
| Flow | at nnom and Vg max | qv | l/min | 135 | 181 | 230 | 308 | 324 |
| at nE=1500 rpm | qvE | l/min | 67.5 | 106.7 | 150 | 210 | 270 | |
| Power at Δp=280 bar | at nnom, Vg max and Δp=280 bar | P | kW | 62.8 | 85 | 107 | 144 | 151 |
| at nE=1500 rpm | PE | kW | 31 | 50 | 70 | 98 | 98 | |
| Torque | at nnom, Vg max and Δp=280 bar | T | Nm | 200 | 317 | 446 | 624 | 802 |
| at nnom, Vg max and Δp=100 bar | T | Nm | 72 | 113 | 159 | 223 | 286 | |
| Rotary stiffness of drive shaft | P | c | Nm/rad | 34587 | 80627 | 132335 | 188406 | 213022 |
| S | c | Nm/rad | 29497 | 71884 | 121142 | 169537 | 171107 | |
| R | c | Nm/rad | 41025 | 76545 | - | - | - | |
| Moment of inertia for rotary group | JTW | kgm2 | 0.0035 | 0.0087 | 0.0185 | 0.0276 | 0.033 | |
| Maximum angular acceleration | α | rad/s2 | 2000 | 2900 | 2400 | 2400 | 2000 | |
| Case volume | V | l | 1.0 | 1.6 | 2.2 | 3.0 | 2.7 | |
| Weight (approx.) | m | kg | 30 | 47 | 69 | 73 | 78 | |
Selection Table
| A10VO140 axial piston hydraulic pump | |
| Model No. | Model Code |
| R902485320 | AA10VO140LA7D/32R-VSD62K07-SO108 |
| R902489614 | AA10VO140DRS/32L-VSD32U04-S2383 |
| R902563876 | ALA10VO140ER72/32L-VSD62K07P |
| R902488206 | ALA10VO140DRS/32L-VSD62K07 |
| R902541837 | ALA10VO140DRS/32R-VSD12N00-S4509 |
| R902574617 | ALA10VO140DRS/32L-VSD32U04-S2383 |
| R902513426 | ALA10VO140DRS/32L-VSD12K68-SO413 |
| R902537600 | AA10VO140DRS/32R-VSD11N00-SO511 |
| R902539581 | AA10VO140DRS/32R-VSD12K07 |
| R902536048 | AA10VO140LA7D/32R-VSD12N00 |
| R902485319 | ALA10VO140LA7D/32R-VSD62K07-SO108 |
| R902482059 | AA10VO140DRS/32R-VSD12N00-S2971 |
| R902493993 | AA10VO140LA5D/32R-VSD62K68-SO108 |
| R902465141 | ALA10VO140DRS/32R-VSD61N00-SO413 |
| R902478436 | ALA10VO140DRS/32L-VSD11N00-S2891 |
| R902452778 | AA10VO140DRS/32R-VWD73N00-S2265 |
| R902539641 | AA10VO140DRS/32L-VQC12N00 |
| R902481164 | ALA10VO140DRS/32L-VSD12K04-SO52 |
| R902575101 | ALA10VO140DRSC/32L-VSD32U68-S5883 |
| R902563197 | ALA10VO140DRS/32R-VSD12K68-SO200 |
| R902501986 | ALA10VO140LA7DS/32R-VSD62K68-SO108 |
| R902485321 | ALA10VO140LA7D/32R-VSD62K17-SO108 |
| R902482057 | AA10VO140DRS/32L-VSD12N00-S2971 |
| R902536265 | AA10VO140DRF/32R-VSD62K15E |
| R902484921 | AA10VO140ED72/32R-VSD62K68P |
| R902519962 | AA10VO140DRS/32R-VQD12K68-SO413 |
| R902481139 | ALA10VO140ED72/32L-VSC11N00P |
| R902515588 | ALA10VO140LA6D/32R-VSD22U24H-S3814 |
| R902573912 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902485456 | AA10VO140ER2/32R-VSD62K68P |
| R902485906 | AA10VO140LA7D/32R-VSD62K24-SO108 |
| R902517505 | AA10VO140LA6D/32R-VSD22U68H-S3814 |
| R902534971 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902513457 | AA10VO140DRS/32L-VSD12K68-SO413 |
| R902530517 | ALA10VO140FHD/32R-VSD22U17-S4040 |
| R902487682 | AA10VO140DRS/32L-VSD12K17-S3239 |
| R902514654 | AA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902487683 | ALA10VO140DRS/32L-VSD12K17-S3239 |
| R902517504 | ALA10VO140LA6D/32R-VSD22U68H-S3814 |
| R902484179 | AA10VO140DR/32R-VSD12N00ESO275 |
| R902485322 | AA10VO140LA7D/32R-VSD62K17-SO108 |
| R902559284 | ALA10VO140DR/32R-VSD12N00 |
| R902495206 | AA10VO140LA8D/32R-VSD62K07-SO108 |
| R902491313 | AA10VO140DRS/32R-VQC12N00-S3370 |
| R902544813 | ALA10VO140LA7D/32R-VSD22U04H-S3814 |
| R902497362 | AA10VO140DRS/32L-VSD12K04-SO52 |
| R902534973 | ALA10VO140LA7D/32R-VSD22U68H-S3814 |
| R902488207 | AA10VO140DRS/32L-VSD62K07 |
| R902555088 | ALA10VO140LA5D/32R-VSD22U68H-S3814 |
| R902553544 | ALA10VO140ED7X/32L-VSD12K17P-S4915 |
| R902466848 | AA10VO140DRS/32L-VSD12K04 |
| R902534972 | ALA10VO140LA7D/32R-VSD22U68H-S3814 |
| R902565888 | ALA10VO140LA5D/32R-VSD22U68H-S3814 |
| R902483168 | AA10VO140LA7D/32R-VSD62K68-SO108 |
| R902485477 | AA10VO140ED73/32L-VSD12K17P-SO200 |
| R902489613 | ALA10VO140DRS/32L-VSD32U04-S2383 |
| R902483169 | ALA10VO140LA7D/32R-VSD62K68-SO108 |
| R902574555 | ALA10VO140DR/32R-VSD11N00 |
| R902485754 | ALA10VO140DRS/32L-VSD12K04 |
| R902515589 | AA10VO140LA6D/32R-VSD22U24H-S3814 |
| R902520535 | ALA10VO140DRS/32R-VQD12K68-SO413 |
| R902463355 | ALA10VO140DRS/32L-VSD12N00-SO413 |
| R902447747 | AA10VO140DRS/32L-VQD11N0*UNGUEL*** |
| R902463330 | AA10VO140DRS/32R-VSD12N00-SO413 |
| R902575968 | AA10VO140DG/32R-VSD12N00 |
| R902572759 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902497239 | ALA10VO140LA6D/32R-VSD62K17-SO108 |
| R902487805 | ALA10VO140LA6D/32R-VSD62K68-SO108 |
| R902530515 | ALA10VO140FHD/32R-VSD22U24-S4040 |
| R902501989 | AA10VO140LA7DS/32R-VSD62K68-SO108 |
| R902517164 | AA10VO140DRS/32R-VSD11N00ESO52 |
| R902520957 | ALA10VO140LA8DS/32R-VUC11N00-S5244 |
| R902465142 | AA10VO140DRS/32R-VSD61N00-SO413 |
| R902568108 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902485272 | ALA10VO140LA8D/32R-VSD62K68-SO108 |
| R902481218 | ALA10VO140LA8DS/32R-VUD11N00-S4691 |
| R902568044 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902544812 | ALA10VO140LA7D/32R-VSD22U04H-S3814 |
| R902521099 | ALA10VO140DR/32R-VSD12N00 |
| R902551818 | ALA10VO140DRS/32R-VSD32U00E-S4866 |
| R902487440 | AA10VO140ED73/32L-VSD12K17P |
| R902559700 | AA10VO140DRS/32L-VSC11N00 |
| R902546896 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902485903 | ALA10VO140LA7D/32R-VSD62K04-SO108 |
| R902495596 | AA10VO140ED72/32L-VSC11N00P |
| R902531720 | ALA10VO140LA8D/32R-VSD22U24H-S3814 |
| R902562903 | AA10VO140DRF/32L-VSD12K04 |
| R902553588 | ALA10VO140ED73/32L-VSD12K17P-S4948 |
| R902485905 | ALA10VO140LA7D/32R-VSD62K24-SO108 |
| R902533809 | ALA10VO140ED73/32L-VSD12K17P-S4078 |
| R902536015 | AA10VO140DR/32L-VSD62N00 |
| R902546512 | ALA10VO140DRF/32L-VSC12K07-S4669 |
| R902544807 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902478029 | AA10VO140DRS/32R-VSD12N00-S2850 |
| R902530513 | ALA10VO140FHD/32R-VSD22U68-S4040 |
| R902481628 | AA10VO140DRS/32R-VQC12N00 |
| R902515592 | ALA10VO140DRS/32L-VSD22U04-S2383 |
| R902482058 | ALA10VO140DRS/32R-VSD12N00-S2971 |
| R902485273 | AA10VO140LA8D/32R-VSD62K68-SO108 |
| R902539590 | ALA10VO140LA8D/32R-VSD22U07H-S3814 |
| R902574492 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902544307 | ALA10VO140LA8D/32R-VSD22U17H-S3814 |
| R902521329 | ALA10VO140LA8DS/32R-VSD12K24-S2709 |
| R902517506 | ALA10VO140LA7D/32R-VSD22U07H-S3814 |
| R902514653 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902482056 | ALA10VO140DRS/32L-VSD12N00-S2971 |
| R902452782 | AA10VO140DRS/32R-VWD73N00-S2264 |
| R902487810 | AA10VO140LA6D/32R-VSD62K68-SO108 |
| R902495227 | AA10VO140LA8DS/32R-VUD11N00-S3518 |
| R902539749 | ALA10VO140LA8D/32R-VSD22U52H-S3814 |
| R902520567 | ALA10VO140DRS/32R-VQC12K68-SO413 |
| R902549621 | ALA10VO140DRS/32R-VSD12K68-SO511 |
| R902520469 | AA10VO140DRS/32R-VQC12K68-SO413 |
| R902515544 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902517507 | AA10VO140LA7D/32R-VSD22U07H-S3814 |
| R902533810 | AA10VO140ED73/32L-VSD12K17P-S4078 |
| R902565135 | AA10VO140DRS/32L-VSD11N00-SO511 |
| R902514655 | ALA10VO140LA7D/32R-VSD22U68H-S3814 |
| R902460623 | AA10VO140DRS/32L-VSD12N00-SO413 |
| R902452780 | AA10VO140DRS/32R-VWD73N00-S2263 |
| R902487113 | ALA10VO140DRS/32L-VSD12K04-S2383 |
| R902564623 | ALA10VO140DRG/32R-VSD62K07 |
| R902485475 | ALA10VO140ED73/32L-VSD12K17P-SO200 |
| R902488222 | AA10VO140DRS/32R-VSD12N00ES3255 |
| R902552493 | ALA10VO140LA8D/32R-VSD22U04H-S3814 |
| R902514656 | AA10VO140LA7D/32R-VSD22U68H-S3814 |
| R902487439 | ALA10VO140ED73/32L-VSD12K17P |
| R902469349 | AA10VO140DRS/32R-VSD12N00-S2594 |
| R902540770 | ALA10VO140LA7D/32R-VSD22U52H-S3814 |
| R902573055 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902572701 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902570440 | ALA10VO140LA5D/32R-VSD22U68H-S3814 |
| R902487566 | AA10VO140DRS/32R-VSD12N00-S3255 |
| R902545287 | ALA10VO140LA7D/32R-VSD22U04H-S3814 |
| R992001422 | ALA10VO140DRS/32L-VSD12K17-S3239 |
| R902515545 | AA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902575960 | AA10VO140DG/32R-VSD12K24 |
| R902566612 | ALA10VO140LA7DS/32R-VSD12N00 |
| R902530516 | AA10VO140FHD/32R-VSD22U24-S4040 |
| R902543641 | ALA10VO140LA7D/32R-VSD22U17H-S3814 |
| R902566019 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902544806 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902515161 | AA10VO140ED72/32R-VSC11N00P |
| R902562009 | AA10VO140DRS/32R-VSD11N00-SO511 |
| R902559281 | ALA10VO140ED72/32R-VSD12K17P |
| R902563208 | ALA10VO140LA7D/32R-VSD62K07-SO108 |
| R902537741 | AA10VO140DRS/32R-VSD62K17 |
| R902497240 | AA10VO140LA6D/32R-VSD62K17-SO108 |
| R902573177 | ALA10VO140LA9D/32R-VSD22U68H-S3814 |
| R902530518 | AA10VO140FHD/32R-VSD22U17-S4040 |
| R902463756 | ALA10VO140DRS/32R-VSD12N00-SO413 |
| R992001840 | ALA10VO140DRS/32R-VSD12N00-SO413 |
| R902570789 | ALA10VO140LA7D/32R-VSD22U00H-S3814 |
| R902552406 | ALA10VO140DRS/32R-VQC61N00P-S4885 |
| R902575967 | AA10VO140DG/32R-VSD12K17 |
| R902537743 | AA10VO140DRS/32R-VSD62N00 |
| R902574024 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R992002091 | ALA10VO140DRS/32L-VSD12K68-S3239 |
| R902494751 | AA10VO140LA7DS/32R-VQD11N00-SO413 |
| R902530514 | AA10VO140FHD/32R-VSD22U68-S4040 |
| R902487112 | AA10VO140DRS/32L-VSD12K04-S2383 |
| R902478974 | AA10VO140DRS/32L-VSD11N00-S2891 |
| R902563207 | ALA10VO140LA7D/32R-VSD62K07-SO108 |
| R902481254 | ALA10VO140ED72/32R-VSC11N00P |
| R902531721 | AA10VO140LA8D/32R-VSD22U24H-S3814 |
| R902534700 | AA10VO140LA8D/32R-VSD12N00 |
| R902495205 | ALA10VO140LA8D/32R-VSD62K07-SO108 |
| R902548149 | ALA10VO140DRS/32L-VSC11N00-SO413 |
| R902569448 | ALA10VO140LA8D/32R-VSD22U68H-S3814 |
| R902513855 | AA10VO140DR/32R-VSD12N00E |
| R992002047 | ALA10VO140DRS/32L-VSD12K04-S2383 |
| R902544808 | ALA10VO140LA7D/32R-VSD22U24H-S3814 |
| R902543314 | ALA10VO140DRS/32L-VSD12K68-S3239 |
| R902520956 | ALA10VO140DRS/32R-VSC12N00 |
| R902521098 | ALA10VO140ED72/32R-VSD12K17P |
| R902485902 | AA10VO140LA7D/32R-VSD62K04-SO108 |
| R902515593 | AA10VO140DRS/32L-VSD22U04-S2383 |
| R902576029 | AA10VO140DRS/32R-VSD12K68 |
Q1: In which industries or machinery types is the A10VO140 pump commonly used?
A1: The robust and efficient A10VO140 hydraulic pump is commonly found in demanding applications within industries like construction, notably in machinery such as excavators and mobile equipment.
Q2:What is the nominal displacement and a key pressure rating of the A10VO140 pump?
A2:The A10VO140 hydraulic pump has a nominal displacement of 140 cm³/rev and a maximum operating pressure of 350 bar.
Q3:How to purchase an A10VO140 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the A10VO140 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
