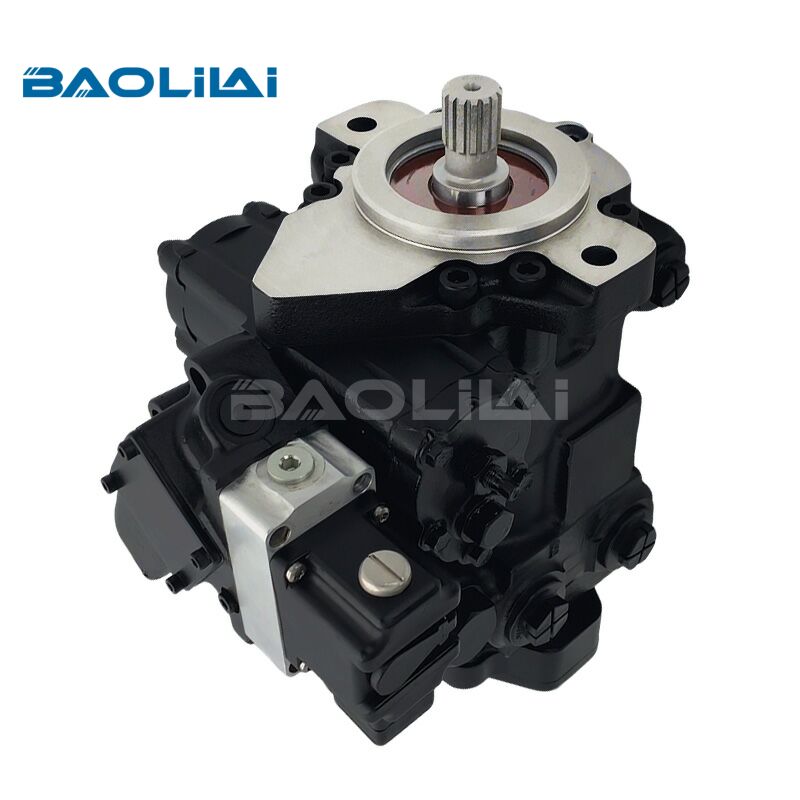

For Sauer danfoss 40 series MPV044 variable hydraulic pump
- Product Details
- Product Model
- FAQ
The Sauer Danfoss 40 Series MPV044 is a variable displacement piston pump designed for open-circuit hydraulic systems. It utilizes a swashplate design to deliver precise, efficient flow control, with a maximum operating pressure of 4500 psi (310 bar) and a maximum speed of 2800 rpm. The displacement is variable up to 44 cc/rev. Key features include its two-position, pressure compensator control, which allows for automatic flow adjustment based on system demand, optimizing power usage and reducing heat generation. The pump is compact, robust, and engineered for demanding mobile applications such as construction, agricultural, and material handling equipment. Its reliability, high efficiency, and excellent controllability make it a versatile choice for systems requiring responsive and intelligent hydraulic power.
Specifications
| Model | Unit | M25 PV | M35 PV | M44 PV | M46 PV |
| Pump configuration |
Single variable pump | ||||
| Displacement | cm3/rev [in3/rev] |
24.6 [1.50] |
35.0 [2.14] |
43.5 [2.65] |
46.0 [2.81] |
| Weight | kg[lb] | 19[41.5] | 25[55] | 25[55] | 33[73] |
| Mass moment of inertia | kg·m2[slug.ft2] | 0.0018[0.0014] | 0.0033[0.0024] | 0.0032[0.0023] | 0.0050[0.0037] |
| Case pressure | |||||
| Continuous | bar[psi] | 1.7[25] | |||
| Maximum | bar[psi] | 5.2[75] | |||
| Speed limits | |||||
| Rated@ max angle | min-1(rpm) | 4000 | 3600 | 3300 | 4000 |
| Maximim@ max angle |
min-1(rpm) | 5000 | 4500 | 4100 | 4100 |
| Minimum | min-1(rpm) | 500 | 500 | 500 | 500 |
| System pressure | |||||
| Continuous | bar[psi] | 210[3000] | |||
| Maximum | bar[psi] | 345[5000] | |||
| Theoretical max flow at rated speed(per pump) | I/min [US gal/min] |
100 [26.0] |
126 [33.4] |
145 [38.3] |
184 [48.6] |
| Inlet pressure | |||||
| Continuous | bar absolute [in Hg vacuum] |
0.8[6.3] | |||
| Maximum | bar absolute [in Hg vacuum] |
0.7[9.2] | |||
Selection Table
| MPV044 axial piston hydraulic pump | ||
| Model No. | Model Code | Model Code |
| 80003930 | MPV-044-D-B-A-A-R-S-E-AA-A-A-BGG-DR-A-FF-A-NNN-*** | MPV044DBAARSEAAAABGGDRAFFANNN*** |
| 83024412 | MPV-044-D-B-A-A-R-S-G-AA-A-A-BFF-DR-A-FF-A-NNN-*** | MPV044DBAARSGAAAABFFDRAFFANNN*** |
| 83034500 | MPV-044-D-B-A-A-R-S-G-AA-A-A-BFF-DR-A-FF-C-NNN-*** | MPV044DBAARSGAAAABFFDRAFFCNNN*** |
| 80001626 | MPV-044-D-B-A-A-R-S-G-AA-A-A-BJJ-DL-A-FF-B-NNN-*** | MPV044DBAARSGAAAABJJDLAFFBNNN*** |
| 83005048 | MPV-044-D-B-A-A-R-S-G-AA-A-A-BJJ-DL-A-FF-C-NNN-*** | MPV044DBAARSGAAAABJJDLAFFCNNN*** |
| 4442088 | MPV-044-D-B-A-A-R-S-G-BA-A-A-BGG-DR-A-FF-C-NNN-*** | MPV044DBAARSGBAAABGGDRAFFCNNN*** |
| 4442056 | MPV-044-D-B-A-A-W-S-E-BA-A-A-BFF-DR-A-FF-A-NNN-*** | MPV044DBAAWSEBAAABFFDRAFFANNN*** |
| 4442061 | MPV-044-D-B-A-A-W-S-G-BA-A-A-BFF-DR-A-FF-A-NNN-*** | MPV044DBAAWSGBAAABFFDRAFFANNN*** |
| 83012448 | MPV-044-D-B-A-A-Y-S-E-AA-A-A-BJJ-DL-A-FF-A-NNN-*** | MPV044DBAAYSEAAAABJJDLAFFANNN*** |
| 83067707 | MPV-044-D-B-A-A-Y-S-F-BA-A-A-BBB-DR-A-FF-A-NNN-*** | MPV044DBAAYSFBAAABBBDRAFFANNN*** |
| 83008643 | MPV-044-D-B-A-A-Y-S-G-AA-A-A-BEE-DL-A-FF-C-NNN-*** | MPV044DBAAYSGAAAABEEDLAFFCNNN*** |
| 83047662 | MPV-044-D-B-A-G-R-A-G-NN-A-A-BJJ-DR-A-FF-A-NNN-*** | MPV044DBAGRAGNNAABJJDRAFFANNN*** |
| 83010850 | MPV-044-D-B-A-G-R-A-H-NN-A-A-BJJ-DR-A-FF-D-NNN-*** | MPV044DBAGRAHNNAABJJDRAFFDNNN*** |
| 83033410 | MPV-044-D-B-A-G-R-S-E-AA-A-A-BJJ-DL-A-FF-A-NNN-*** | MPV044DBAGRSEAAAABJJDLAFFANNN*** |
| 83053123 | MPV-044-D-B-A-G-R-S-F-AA-A-A-BFF-DL-A-FF-A-NNN-*** | MPV044DBAGRSFAAAABFFDLAFFANNN*** |
| 83040021 | MPV-044-D-B-A-G-R-S-G-AA-A-A-BBB-DR-A-FF-C-NNN-*** | MPV044DBAGRSGAAAABBBDRAFFCNNN*** |
| 83006084 | MPV-044-D-B-A-G-R-S-G-BA-A-A-BEE-DL-A-FF-C-NNN-*** | MPV044DBAGRSGBAAABEEDLAFFCNNN*** |
| 4442054 | MPV-044-D-B-A-G-W-A-G-NN-A-A-BDD-DL-A-FF-A-NNN-*** | MPV044DBAGWAGNNAABDDDLAFFANNN*** |
| 4442050 | MPV-044-D-B-A-G-W-A-G-NN-A-A-BJJ-DR-A-FF-A-NNN-*** | MPV044DBAGWAGNNAABJJDRAFFANNN*** |
| 83001119 | MPV-044-D-B-A-G-W-S-C-AA-A-A-BFF-DR-A-FF-A-NNN-*** | MPV044DBAGWSCAAAABFFDRAFFANNN*** |
| 4442087 | MPV-044-D-B-A-G-W-S-C-AA-A-A-BHH-DR-A-FF-A-NNN-*** | MPV044DBAGWSCAAAABHHDRAFFANNN*** |
| 83018634 | MPV-044-D-B-A-G-W-S-E-AA-A-A-BEE-DR-A-FF-A-NNN-*** | MPV044DBAGWSEAAAABEEDRAFFANNN*** |
| 4442069 | MPV-044-D-B-A-G-W-S-E-AA-A-A-BFF-DL-A-FF-D-NNN-*** | MPV044DBAGWSEAAAABFFDLAFFDNNN*** |
| 4442063 | MPV-044-D-B-A-G-W-S-E-AA-A-A-BFF-DR-A-FF-D-NNN-*** | MPV044DBAGWSEAAAABFFDRAFFDNNN*** |
| 4442058 | MPV-044-D-B-A-G-W-S-E-AA-A-A-BJJ-DR-A-FF-B-NNN-*** | MPV044DBAGWSEAAAABJJDRAFFBNNN*** |
| 4442075 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BDD-DL-A-FF-A-NNN-*** | MPV044DBAGWSGAAAABDDDLAFFANNN*** |
| 4442082 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BDD-DL-A-FF-D-NNN-*** | MPV044DBAGWSGAAAABDDDLAFFDNNN*** |
| 83013032 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BDD-DR-A-FF-A-NNN-*** | MPV044DBAGWSGAAAABDDDRAFFANNN*** |
| 4442062 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BEE-DR-A-FF-B-NNN-*** | MPV044DBAGWSGAAAABEEDRAFFBNNN*** |
| 4442053 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BEE-DR-A-FF-D-NNN-*** | MPV044DBAGWSGAAAABEEDRAFFDNNN*** |
| 4442051 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BJJ-DL-A-FF-D-NNN-*** | MPV044DBAGWSGAAAABJJDLAFFDNNN*** |
| 4442055 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BJJ-DR-A-FF-A-NNN-*** | MPV044DBAGWSGAAAABJJDRAFFANNN*** |
| 4442064 | MPV-044-D-B-A-G-W-S-G-AA-A-A-BJJ-DR-A-FF-C-NNN-*** | MPV044DBAGWSGAAAABJJDRAFFCNNN*** |
| 4442083 | MPV-044-D-B-A-G-W-S-G-BA-A-A-BBB-DL-A-FF-A-NNN-*** | MPV044DBAGWSGBAAABBBDLAFFANNN*** |
| 83009205 | MPV-044-D-B-A-G-Y-S-E-AA-A-A-BEE-DR-A-FF-A-NNN-*** | MPV044DBAGYSEAAAABEEDRAFFANNN*** |
| 4442089 | MPV-044-D-B-A-G-Y-S-G-AA-A-A-BEE-DR-A-FF-B-NNN-*** | MPV044DBAGYSGAAAABEEDRAFFBNNN*** |
| 83058077 | MPV-044-D-B-A-G-Y-S-G-AA-A-A-BGG-DL-A-FF-C-NNN-*** | MPV044DBAGYSGAAAABGGDLAFFCNNN*** |
| 4442090 | MPV-044-D-B-A-G-Y-S-G-AA-A-A-BJJ-DR-A-FF-C-NNN-*** | MPV044DBAGYSGAAAABJJDRAFFCNNN*** |
| 83003980 | MPV-044-D-B-A-G-Y-S-G-BA-A-A-BGG-DL-A-FF-C-NNN-*** | MPV044DBAGYSGBAAABGGDLAFFCNNN*** |
| 4442059 | MPV-044-D-B-A-N-W-S-E-AA-A-A-BJJ-DR-A-FF-C-NNN-*** | MPV044DBANWSEAAAABJJDRAFFCNNN*** |
| 83057267 | MPV-044-D-B-A-Y-R-S-E-AA-A-A-BFF-DL-A-FF-B-NNN-*** | MPV044DBAYRSEAAAABFFDLAFFBNNN*** |
| 4442085 | MPV-044-D-B-A-Y-R-S-G-AA-A-A-BBB-DR-A-FF-A-NNN-*** | MPV044DBAYRSGAAAABBBDRAFFANNN*** |
| 80003966 | MPV-044-D-B-A-Y-W-S-E-AA-A-A-BGG-DL-A-FF-C-NNN-*** | MPV044DBAYWSEAAAABGGDLAFFCNNN*** |
| 4442092 | MPV-044-D-B-A-Y-Y-S-C-AA-A-A-BBB-DR-A-FF-A-NNN-*** | MPV044DBAYYSCAAAABBBDRAFFANNN*** |
| 83006117 | MPV-044-D-B-A-Y-Y-S-C-BA-A-A-BBB-DR-A-FF-A-NNN-*** | MPV044DBAYYSCBAAABBBDRAFFANNN*** |
| 83006821 | MPV-044-D-B-A-Y-Y-S-C-BA-A-A-BEE-DR-A-FF-A-NNN-*** | MPV044DBAYYSCBAAABEEDRAFFANNN*** |
| 80003971 | MPV-044-D-B-A-Y-Y-S-E-AA-A-A-BGG-DL-A-FF-C-NNN-*** | MPV044DBAYYSEAAAABGGDLAFFCNNN*** |
Q1:In what type of applications is the MPV044 pump commonly used?
A1: The MPV044 pump is commonly used in demanding mobile applications such as construction equipment, agricultural machinery, and material handling vehicles.
Q2:What are the primary performance advantages of the MPV044?
A2:The primary performance advantages of the MPV044 are its high efficiency, responsive controllability, reliability, and its ability to reduce system heat generation through intelligent flow control.
Q3:How to purchase a MPV044 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the MPV044 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
