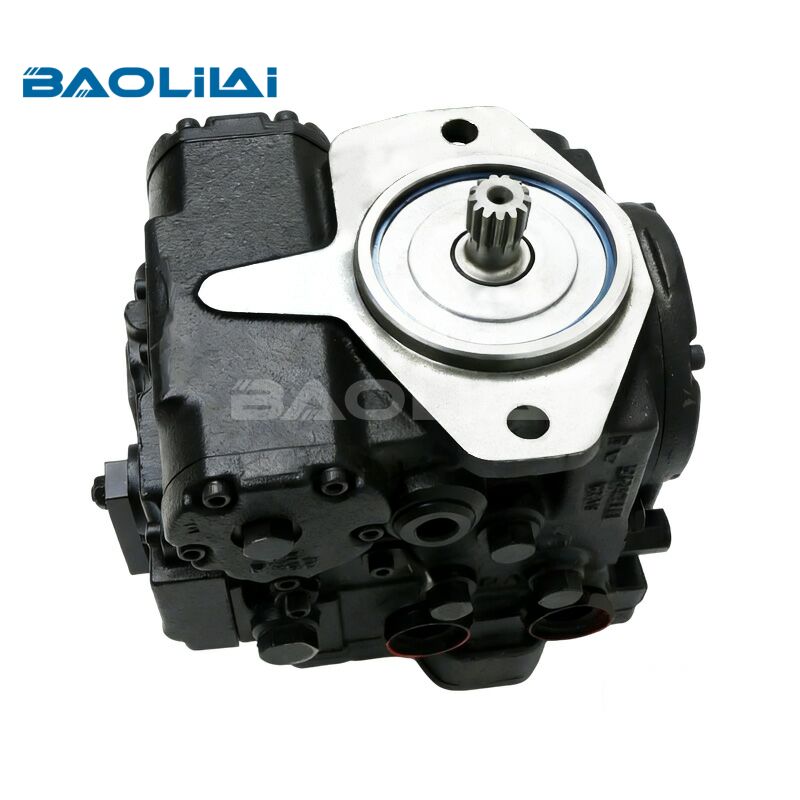

For Sauer danfoss 42L41 variable plunger hydraulic Pump
SERIES : 42 series
BRAND : For Sauer Danfoss
Model Size :42L41
Displacement : 41cm3/rev
Speed : 500-3450rpm
Maximum Pressure : 450bar
Nominal Pressure : 400bar
Download PDF
- Product Details
- Product Model
- FAQ
The Sauer-Danfoss Series 42 variable displacement axial piston pump is a high-performance hydraulic component designed for demanding closed-circuit mobile applications. The 42L41 model features a swashplate design with electronically controlled displacement. Its key characteristic is the variable delivery achieved by adjusting the angle of the swashplate, which changes the stroke length of the plungers (pistons).
This pump is engineered for reliability and efficiency in tough conditions, commonly used in equipment like excavators, wheel loaders, and forestry machinery. It offers precise flow and pressure control, contributing to fine machine controllability and fuel savings. The 42 series typically includes integrated auxiliary circuits and charge pump options. Constructed with robust materials, it ensures long service life and stable performance under high continuous pressure. Its compact design facilitates installation in space-constrained environments.
Specifications
| Pump configuration | Single variable pump | ||||
| Frame size | cm3 | 28 | 32 | 41 | 51 |
| Displacement | [in3] | 28 [1.71] |
31.8 [1.94] |
40.9 [2.50] |
51 [3.11] |
| Weight | kgf [lbf] |
34.5 [76] |
34.5 [76] |
42 [92] |
42 [92] |
| Mass moment of inertia | kg·m2 [lbf·ft2] |
0.0018 [0.0013] |
0.0019 [0.0013] |
0.0036 [0.0027] |
0.0038 [0.0028] |
| Type of front mounting flange (SAE flange size per SAE J744) |
SAE B | ||||
| Port connections | SAE-twin ports,radial | ||||
| System pressure regulation | bar[psi] | 140-415 [2030-6017] |
140-345 [2030-5003] |
140-415 [2030-6017] |
140-345 [2030-5003] |
| Displacement limiters | Option | ||||
| Input shaft options | Splined, Round Straight Key | ||||
| Auxiliary mounting pad (SAE pad per SAE J744) |
SAE A(9 tooth and 11 tooth) SAE B(13 tooth and 15 tooth) |
||||
| Control options | MDC,FNR,NFPH,NFPE,HC-EDC,EDC | ||||
| Filtration configuration | Suction or charge pressure filtration | ||||
| Loop flushing | Option | ||||
| Maximum working pressure | bar[psi] | 400[5800] | 350[5075] | 400[5800] | 350[5075] |
| Maximum pressure | bar[psi] | 450[6525] | 400[5800] | 450[6525] | 400[5800] |
| Minimum speed | min-1（rpm) | 500 | 500 | 500 | 500 |
| Rated speed at maximum displacement | min-1（rpm) | 3400 | 3000 | 3200 | 2900 |
| Maximum speed at maximum displacement | min-1（rpm) | 3750 | 3400 | 3450 | 3400 |
Selection Table
| 42L41 axial piston hydraulic pump | ||
| Model No. | Model Code | Model Code |
| 83020543 | 42-L-41-C-A7J5-03-A-N-A-3-F-N-N-21-21-N-N-N-NNN-NNN | 42L41CA7J503ANA3FNN2121NNNNNNNNN |
| 83017946 | 42-L-41-C-A7J5-03-A-N-A-3-F-N-N-NN-NN-N-N-N-NNN-NNN | 42L41CA7J503ANA3FNNNNNNNNNNNNNNN |
| 4412047 | 42-L-41-C-ANA3-03-A-N-A-2-F-N-N-21-21-N-N-N-NNN-NNN | 42L41CANA303ANA2FNN2121NNNNNNNNN |
| 4412050 | 42-L-41-C-ANA3-03-A-N-A-2-F-N-N-NN-NN-N-N-N-NNN-NNN | 42L41CANA303ANA2FNNNNNNNNNNNNNNN |
| 4412068 | 42-L-41-C-ANA3-03-A-N-A-3-F-N-N-21-21-N-N-N-NNN-NNN | 42L41CANA303ANA3FNN2121NNNNNNNNN |
| 4412114 | 42-L-41-C-ANA3-03-B-2-C-2-F-N-N-28-28-N-N-N-NNN-NNN | 42L41CANA303B2C2FNN2828NNNNNNNNN |
| 4412088 | 42-L-41-C-ANAB-03-A-N-A-3-F-N-N-NN-NN-N-N-N-NNN-NNN | 42L41CANAB03ANA3FNNNNNNNNNNNNNNN |
| 4412034 | 42-L-41-C-ANAB-03-B-D-B-2-F-N-B-21-21-N-N-N-NNN-NNN | 42L41CANAB03BDB2FNB2121NNNNNNNNN |
| 4412028 | 42-L-41-C-ANN3-02-B-3-X-N-F-N-A-34-34-B-N-N-NNN-NNN | 42L41CANN302B3XNFNA3434BNNNNNNNN |
| 4412107 | 42-L-41-C-ANN3-03-B-3-G-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L41CANN303B3G2FNB3434NNNNNNNNN |
| 4412108 | 42-L-41-C-ANN3-03-B-3-G-2-F-N-N-34-34-N-N-N-NNN-NNN | 42L41CANN303B3G2FNN3434NNNNNNNNN |
| 83035047 | 42-L-41-C-ANN3-03-D-N-F-2-F-N-N-23-23-N-N-N-NNN-NNN | 42L41CANN303DNF2FNN2323NNNNNNNNN |
| 80003247 | 42-L-41-C-ANN3-03-D-N-F-2-F-N-N-23-23-N-N-N-NNN-NNN | 42L41CANN303DNF2FNN2323NNNNNNNNN |
| 4412173 | 42-L-41-C-ANN3-03-D-N-F-2-F-N-N-30-30-N-N-N-NNN-NNN | 42L41CANN303DNF2FNN3030NNNNNNNNN |
| 83029499 | 42-L-41-C-ANN5-03-C-3-A-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L41CANN503C3A2FNB3434NNNNNNNNN |
| 4412183 | 42-L-41-C-ANN5-03-C-3-A-2-F-N-B-34-34-N-N-N-NNN-NNN | 42L41CANN503C3A2FNB3434NNNNNNNNN |
| 4412042 | 42-L-41-C-ANNB-02-A-N-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L41CANNB02ANA2FNN2525BNNNNNNNN |
| 4412019 | 42-L-41-C-ANNB-02-B-3-G-2-F-N-A-34-34-N-A-A-NNN-NNN | 42L41CANNB02B3G2FNA3434NAANNNNNN |
| 4412039 | 42-L-41-C-ANNB-03-A-N-A-2-F-N-N-25-25-B-N-N-NNN-NNN | 42L41CANNB03ANA2FNN2525BNNNNNNNN |
| 4412122 | 42-L-41-C-ANNB-03-B-3-G-3-F-N-B-34-34-N-A-A-NNN-NNN | 42L41CANNB03B3G3FNB3434NAANNNNNN |
| 4412121 | 42-L-41-C-ANNB-03-B-3-G-3-F-N-N-34-34-N-A-A-NNN-NNN | 42L41CANNB03B3G3FNN3434NAANNNNNN |
| 4412160 | 42-L-41-C-E1A3-00-B-2-B-3-F-N-A-25-25-B-N-N-NNN-NNN | 42L41CE1A300B2B3FNA2525BNNNNNNNN |
| 83003924 | 42-L-41-C-E1A3-00-B-D-B-2-F-N-N-14-14-N-N-N-NNN-NNN | 42L41CE1A300BDB2FNN1414NNNNNNNNN |
| 4412149 | 42-L-41-C-E1A3-00-B-D-B-2-F-N-N-14-14-N-N-N-NNN-NNN | 42L41CE1A300BDB2FNN1414NNNNNNNNN |
| 4412162 | 42-L-41-C-E1A3-00-D-N-F-2-F-N-A-25-25-B-N-N-NNN-NNN | 42L41CE1A300DNF2FNA2525BNNNNNNNN |
| 80003210 | 42-L-41-C-E1A3-03-A-N-A-2-G-N-N-30-30-B-N-N-NNN-NNN | 42L41CE1A303ANA2GNN3030BNNNNNNNN |
| 4412198 | 42-L-41-C-E1A3-03-B-3-B-2-F-N-N-NN-NN-N-N-N-NNN-NNN | 42L41CE1A303B3B2FNNNNNNNNNNNNNNN |
| 83003905 | 42-L-41-C-E1A3-03-B-D-B-2-F-N-A-23-23-N-N-N-NNN-NNN | 42L41CE1A303BDB2FNA2323NNNNNNNNN |
| 11034655 | 42-L-41-C-E1A3-03-B-D-B-2-F-N-A-23-23-N-N-N-NNN-NNN | 42L41CE1A303BDB2FNA2323NNNNNNNNN |
| 83003908 | 42-L-41-C-E1A3-03-B-D-B-2-F-N-B-23-23-N-N-N-NNN-NNN | 42L41CE1A303BDB2FNB2323NNNNNNNNN |
| 11033301 | 42-L-41-C-E1A3-03-B-D-B-2-F-N-B-23-23-N-N-N-NNN-NNN | 42L41CE1A303BDB2FNB2323NNNNNNNNN |
| 83004068 | 42-L-41-C-E1A3-03-B-D-G-2-G-N-B-30-30-N-N-N-NNN-NNN | 42L41CE1A303BDG2GNB3030NNNNNNNNN |
| 83003876 | 42-L-41-C-E1A3-03-B-D-G-2-G-N-N-30-30-B-N-N-NNN-NNN | 42L41CE1A303BDG2GNN3030BNNNNNNNN |
| 83016173 | 42-L-41-C-E1A3-03-D-N-F-2-F-N-A-23-23-N-N-N-NNN-NNN | 42L41CE1A303DNF2FNA2323NNNNNNNNN |
| 83016174 | 42-L-41-C-E1A3-03-D-N-F-2-F-N-B-23-23-N-N-N-NNN-NNN | 42L41CE1A303DNF2FNB2323NNNNNNNNN |
| 4412095 | 42-L-41-C-E1A5-01-A-N-A-3-G-N-B-34-34-N-N-N-NNN-NNN | 42L41CE1A501ANA3GNB3434NNNNNNNNN |
| 4412072 | 42-L-41-C-E1A5-01-B-3-B-2-F-N-N-28-28-N-N-N-NNN-NNN | 42L41CE1A501B3B2FNN2828NNNNNNNNN |
| 4412056 | 42-L-41-C-E1A5-01-B-3-G-2-F-N-A-34-34-N-D-D-NNN-NNN | 42L41CE1A501B3G2FNA3434NDDNNNNNN |
| 4412058 | 42-L-41-C-E1A5-01-B-D-B-2-G-N-T-34-34-N-N-N-NNN-NNN | 42L41CE1A501BDB2GNT3434NNNNNNNNN |
| 4412011 | 42-L-41-C-E1A5-02-A-N-A-2-F-N-A-21-21-N-N-N-NNN-NNN | 42L41CE1A502ANA2FNA2121NNNNNNNNN |
| 11031387 | 42-L-41-C-E1A5-02-B-D-B-2-H-N-N-34-34-N-N-N-NNN-NNN | 42L41CE1A502BDB2HNN3434NNNNNNNNN |
| 83003779 | 42-L-41-C-E1A5-02-B-D-B-2-H-N-N-34-34-N-N-N-NNN-NNN | 42L41CE1A502BDB2HNN3434NNNNNNNNN |
| 4412202 | 42-L-41-C-E1A5-02-D-N-F-2-H-N-N-34-34-N-N-N-NNN-NNN | 42L41CE1A502DNF2HNN3434NNNNNNNNN |
| 4412170 | 42-L-41-C-E1A5-03-A-N-A-3-F-N-N-21-21-N-N-N-NNN-NNN | 42L41CE1A503ANA3FNN2121NNNNNNNNN |
| 4412106 | 42-L-41-C-E1A5-03-A-N-A-3-F-N-N-34-34-N-N-N-NNN-NNN | 42L41CE1A503ANA3FNN3434NNNNNNNNN |
| 83020848 | 42-L-41-C-E1A5-03-B-2-G-2-F-N-N-28-28-N-N-N-NNN-NNN | 42L41CE1A503B2G2FNN2828NNNNNNNNN |
| 4412131 | 42-L-41-C-E1A5-03-B-2-G-2-F-N-N-28-28-N-N-N-NNN-NNN | 42L41CE1A503B2G2FNN2828NNNNNNNNN |
| 83003844 | 42-L-41-C-E1A5-03-B-3-B-3-H-N-A-21-21-N-N-N-NNN-NNN | 42L41CE1A503B3B3HNA2121NNNNNNNNN |
| 80003355 | 42-L-41-C-E1A5-03-B-3-B-3-H-N-A-21-21-N-N-N-NNN-NNN | 42L41CE1A503B3B3HNA2121NNNNNNNNN |
| 83019274 | 42-L-41-C-E1A5-03-D-N-F-2-H-N-N-25-25-N-N-N-NNN-NNN | 42L41CE1A503DNF2HNN2525NNNNNNNNN |
| 4412111 | 42-L-41-C-E1A5-11-B-D-B-2-F-N-N-34-34-N-A-A-NNN-NNN | 42L41CE1A511BDB2FNN3434NAANNNNNN |
| 4412109 | 42-L-41-C-E1A5-11-B-D-B-2-F-N-N-34-34-N-A-N-NNN-NNN | 42L41CE1A511BDB2FNN3434NANNNNNNN |
| 4412071 | 42-L-41-C-E1A6-02-A-N-A-2-F-N-N-34-34-N-N-N-NNN-NNN | 42L41CE1A602ANA2FNN3434NNNNNNNNN |
| 11001188 | 42-L-41-C-E1A6-02-B-2-B-2-F-N-A-30-30-N-N-N-NNN-NNN | 42L41CE1A602B2B2FNA3030NNNNNNNNN |
| 83004003 | 42-L-41-C-E1A6-02-B-2-B-2-H-N-B-25-25-B-N-N-NNN-NNN | 42L41CE1A602B2B2HNB2525BNNNNNNNN |
| 4412099 | 42-L-41-C-E1A6-02-B-2-B-2-H-N-B-25-25-B-N-N-NNN-NNN | 42L41CE1A602B2B2HNB2525BNNNNNNNN |
| 4412085 | 42-L-41-C-E1A6-02-B-3-G-2-F-N-A-21-21-N-N-N-NNN-NNN | 42L41CE1A602B3G2FNA2121NNNNNNNNN |
| 83049126 | 42-L-41-C-E1A6-02-B-D-G-2-F-N-N-34-34-N-N-N-NNN-NBN | 42L41CE1A602BDG2FNN3434NNNNNNNBN |
| 83044472 | 42-L-41-C-E1A6-02-B-D-G-3-F-N-A-28-28-N-A-A-NNN-NNN | 42L41CE1A602BDG3FNA2828NAANNNNNN |
| 4412027 | 42-L-41-C-E1A6-03-B-2-G-2-F-N-N-34-34-B-N-N-NNN-NNN | 42L41CE1A603B2G2FNN3434BNNNNNNNN |
| 83003938 | 42-L-41-C-E1A7-03-B-D-C-3-H-N-N-30-30-N-N-N-NNN-NNN | 42L41CE1A703BDC3HNN3030NNNNNNNNN |
| 80002055 | 42-L-41-C-E1A7-03-D-N-F-3-H-N-N-30-30-N-N-N-NNN-NNN | 42L41CE1A703DNF3HNN3030NNNNNNNNN |
| 83049321 | 42-L-41-C-E2C8-03-A-N-A-2-H-N-N-23-23-N-N-N-NNN-NNN | 42L41CE2C803ANA2HNN2323NNNNNNNNN |
| 83045714 | 42-L-41-C-E2D8-02-A-N-A-2-G-N-N-25-25-B-A-A-NNN-NNN | 42L41CE2D802ANA2GNN2525BAANNNNNN |
| 83040009 | 42-L-41-C-E2D8-03-B-D-G-2-H-N-N-30-30-B-N-N-NNN-NNN | 42L41CE2D803BDG2HNN3030BNNNNNNNN |
| 4412044 | 42-L-41-C-F2NN-73-J-D-C-2-F-N-N-34-34-N-A-A-NNN-NNN | 42L41CF2NN73JDC2FNN3434NAANNNNNN |
| 80001929 | 42-L-41-C-F4NN-73-J-D-B-2-F-5-N-21-21-N-1-1-NNN-NNN | 42L41CF4NN73JDB2F5N2121N11NNNNNN |
| 4412197 | 42-L-41-C-F4NN-73-J-D-B-2-F-N-N-21-21-N-A-A-NNN-NNN | 42L41CF4NN73JDB2FNN2121NAANNNNNN |
| 4412096 | 42-L-41-C-F4NN-73-J-D-C-2-F-N-N-34-34-N-A-A-NNN-NNN | 42L41CF4NN73JDC2FNN3434NAANNNNNN |
| 4412093 | 42-L-41-C-G1A1-70-J-D-G-3-H-1-A-30-30-N-1-1-NNN-NNN | 42L41CG1A170JDG3H1A3030N11NNNNNN |
| 83054536 | 42-L-41-C-G3AN-53-P-2-B-3-G-5-N-28-28-B-0-0-NNN-NNN | 42L41CG3AN53P2B3G5N2828B00NNNNNN |
| 4412000 | 42-L-41-D-A1NB-02-A-N-A-3-G-N-N-21-21-N-A-A-NNN-NNN | 42L41DA1NB02ANA3GNN2121NAANNNNNN |
| 83021134 | 42-L-41-D-A7J5-03-A-N-A-3-F-N-B-21-21-N-N-N-NNN-NNN | 42L41DA7J503ANA3FNB2121NNNNNNNNN |
| 4412061 | 42-L-41-D-A7NB-02-B-3-G-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L41DA7NB02B3G2FNA2828NNNNNNNNN |
| 4412051 | 42-L-41-D-ANA3-03-A-N-A-2-F-N-B-NN-NN-N-N-N-NNN-NNN | 42L41DANA303ANA2FNBNNNNNNNNNNNNN |
| 4412067 | 42-L-41-D-ANA3-03-A-N-A-3-F-N-B-NN-NN-N-N-N-NNN-NNN | 42L41DANA303ANA3FNBNNNNNNNNNNNNN |
| 4412113 | 42-L-41-D-ANA3-03-B-2-C-2-F-N-B-28-28-N-N-N-NNN-NNN | 42L41DANA303B2C2FNB2828NNNNNNNNN |
| 4412124 | 42-L-41-D-ANA3-03-B-2-C-2-F-N-N-28-14-N-N-N-NNN-NNN | 42L41DANA303B2C2FNN2814NNNNNNNNN |
| 83066784 | 42-L-41-D-ANA3-03-B-2-C-2-F-N-N-28-14-N-N-N-NNN-NNN | 42L41DANA303B2C2FNN2814NNNNNNNNN |
| 83005384 | 42-L-41-D-ANA3-03-B-3-B-3-F-N-V-28-28-N-N-N-NNN-NNN | 42L41DANA303B3B3FNV2828NNNNNNNNN |
| 4412158 | 42-L-41-D-ANA3-11-B-3-B-3-F-N-N-28-28-N-N-N-NNN-NNN | 42L41DANA311B3B3FNN2828NNNNNNNNN |
| 4412087 | 42-L-41-D-ANAB-03-A-N-A-3-F-N-B-NN-NN-N-N-N-NNN-NNN | 42L41DANAB03ANA3FNBNNNNNNNNNNNNN |
| 4412105 | 42-L-41-D-ANAB-03-B-D-C-3-F-N-N-28-28-N-N-N-NNN-NNN | 42L41DANAB03BDC3FNN2828NNNNNNNNN |
| 4412063 | 42-L-41-D-ANN3-02-A-N-A-3-H-N-A-41-41-N-N-N-NNN-NNN | 42L41DANN302ANA3HNA4141NNNNNNNNN |
| 83017677 | 42-L-41-D-ANN3-02-B-2-G-2-F-N-A-34-34-B-N-N-NNN-NNN | 42L41DANN302B2G2FNA3434BNNNNNNNN |
| 4412043 | 42-L-41-D-ANNB-02-A-N-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L41DANNB02ANA2FNB2525BNNNNNNNN |
| 4412023 | 42-L-41-D-ANNB-02-B-2-G-2-F-N-A-25-25-B-N-N-NNN-NNN | 42L41DANNB02B2G2FNA2525BNNNNNNNN |
| 4412022 | 42-L-41-D-ANNB-02-B-2-X-N-F-N-A-25-25-B-N-N-NNN-NNN | 42L41DANNB02B2XNFNA2525BNNNNNNNN |
| 4412187 | 42-L-41-D-ANNB-02-B-3-B-3-F-N-B-23-23-B-N-N-NNN-NNN | 42L41DANNB02B3B3FNB2323BNNNNNNNN |
| 700014 | 42-L-41-D-ANNB-02-B-3-G-2-H-N-N-25-25-B-N-N-NNN-NNN | 42L41DANNB02B3G2HNN2525BNNNNNNNN |
| 4412040 | 42-L-41-D-ANNB-03-A-N-A-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L41DANNB03ANA2FNB2525BNNNNNNNN |
| 4412120 | 42-L-41-D-ANNB-03-B-3-G-3-F-N-B-34-34-N-A-A-NNN-NNN | 42L41DANNB03B3G3FNB3434NAANNNNNN |
| 4412155 | 42-L-41-D-E1A3-00-A-N-N-N-G-N-B-23-23-B-N-N-NNN-NNN | 42L41DE1A300ANNNGNB2323BNNNNNNNN |
| 4412156 | 42-L-41-D-E1A3-00-A-N-N-N-G-N-B-25-25-B-N-N-NNN-NNN | 42L41DE1A300ANNNGNB2525BNNNNNNNN |
| 4412159 | 42-L-41-D-E1A3-00-B-2-B-3-F-N-B-25-25-B-N-N-NNN-NNN | 42L41DE1A300B2B3FNB2525BNNNNNNNN |
| 83003830 | 42-L-41-D-E1A3-00-B-D-B-2-F-N-B-14-14-N-N-N-NNN-NNN | 42L41DE1A300BDB2FNB1414NNNNNNNNN |
| 4412148 | 42-L-41-D-E1A3-00-B-D-B-2-F-N-B-14-14-N-N-N-NNN-NNN | 42L41DE1A300BDB2FNB1414NNNNNNNNN |
| 4412161 | 42-L-41-D-E1A3-00-D-N-F-2-F-N-B-25-25-B-N-N-NNN-NNN | 42L41DE1A300DNF2FNB2525BNNNNNNNN |
| 4412045 | 42-L-41-D-E1A3-03-A-N-A-2-F-N-N-34-34-N-N-N-NNN-NNN | 42L41DE1A303ANA2FNN3434NNNNNNNNN |
| 83007456 | 42-L-41-D-E1A3-03-A-N-A-2-G-N-B-23-23-B-N-N-NNN-NNN | 42L41DE1A303ANA2GNB2323BNNNNNNNN |
| 83010841 | 42-L-41-D-E1A3-03-B-D-B-2-H-N-B-30-30-N-N-N-NNN-NNN | 42L41DE1A303BDB2HNB3030NNNNNNNNN |
| 83010713 | 42-L-41-D-E1A3-03-B-D-B-2-H-N-T-30-30-N-N-N-NNN-NNN | 42L41DE1A303BDB2HNT3030NNNNNNNNN |
| 4412094 | 42-L-41-D-E1A5-01-A-N-A-3-G-N-B-34-34-N-N-N-NNN-NNN | 42L41DE1A501ANA3GNB3434NNNNNNNNN |
| 4412055 | 42-L-41-D-E1A5-01-B-3-G-2-F-N-B-34-34-N-D-D-NNN-NNN | 42L41DE1A501B3G2FNB3434NDDNNNNNN |
| 4412032 | 42-L-41-D-E1A5-02-A-N-A-2-F-N-B-14-14-N-N-N-NNN-NNN | 42L41DE1A502ANA2FNB1414NNNNNNNNN |
| 4412007 | 42-L-41-D-E1A5-02-A-N-A-2-F-N-B-19-19-N-N-N-NNN-NNN | 42L41DE1A502ANA2FNB1919NNNNNNNNN |
| 4412112 | 42-L-41-D-E1A5-02-A-N-A-2-H-N-N-34-34-N-N-N-NNN-NNN | 42L41DE1A502ANA2HNN3434NNNNNNNNN |
| 4412018 | 42-L-41-D-E1A5-02-B-D-C-2-F-N-B-38-38-N-N-N-NNN-NNN | 42L41DE1A502BDC2FNB3838NNNNNNNNN |
| 83003947 | 42-L-41-D-E1A5-02-B-D-C-2-F-N-V-28-28-N-N-N-NNN-NNN | 42L41DE1A502BDC2FNV2828NNNNNNNNN |
| 83003936 | 42-L-41-D-E1A5-02-B-D-C-2-F-N-V-34-34-N-N-N-NNN-NNN | 42L41DE1A502BDC2FNV3434NNNNNNNNN |
| 4412209 | 42-L-41-D-E1A5-02-D-N-F-2-F-N-B-38-38-N-N-N-NNN-NNN | 42L41DE1A502DNF2FNB3838NNNNNNNNN |
| 4412211 | 42-L-41-D-E1A5-02-D-N-F-2-F-N-V-28-28-N-N-N-NNN-NNN | 42L41DE1A502DNF2FNV2828NNNNNNNNN |
| 4412213 | 42-L-41-D-E1A5-02-D-N-F-2-F-N-V-34-34-N-N-N-NNN-NNN | 42L41DE1A502DNF2FNV3434NNNNNNNNN |
| 83070894 | 42-L-41-D-E1A5-02-D-N-F-2-F-N-V-34-34-N-N-N-NNN-NNN | 42L41DE1A502DNF2FNV3434NNNNNNNNN |
| 83036801 | 42-L-41-D-E1A5-02-D-N-F-2-G-N-B-38-38-N-N-N-NNN-NNN | 42L41DE1A502DNF2GNB3838NNNNNNNNN |
| 4412210 | 42-L-41-D-E1A5-02-D-N-F-2-G-N-B-38-38-N-N-N-NNN-NNN | 42L41DE1A502DNF2GNB3838NNNNNNNNN |
| 83059961 | 42-L-41-D-E1A5-03-A-N-A-3-F-N-B-21-21-N-N-N-NNN-NNN | 42L41DE1A503ANA3FNB2121NNNNNNNNN |
| 4412077 | 42-L-41-D-E1A5-03-A-N-A-3-F-N-B-34-34-N-N-N-NNN-NNN | 42L41DE1A503ANA3FNB3434NNNNNNNNN |
| 4412169 | 42-L-41-D-E1A5-03-A-N-A-3-F-N-B-NN-NN-N-N-N-NNN-NNN | 42L41DE1A503ANA3FNBNNNNNNNNNNNNN |
| 4412078 | 42-L-41-D-E1A5-03-A-N-A-3-F-N-N-34-34-N-N-N-NNN-NNN | 42L41DE1A503ANA3FNN3434NNNNNNNNN |
| 83003923 | 42-L-41-D-E1A5-03-B-2-B-3-F-N-N-34-34-N-N-N-NNN-NNN | 42L41DE1A503B2B3FNN3434NNNNNNNNN |
| 4412176 | 42-L-41-D-E1A5-03-B-2-B-3-F-N-N-34-34-N-N-N-NNN-NNN | 42L41DE1A503B2B3FNN3434NNNNNNNNN |
| 4412060 | 42-L-41-D-E1A5-03-B-2-X-A-H-N-Z-34-34-N-N-N-NNN-NNN | 42L41DE1A503B2XAHNZ3434NNNNNNNNN |
| 4412133 | 42-L-41-D-E1A5-03-B-3-G-2-F-N-N-25-25-N-N-N-NNN-NNN | 42L41DE1A503B3G2FNN2525NNNNNNNNN |
| 4412134 | 42-L-41-D-E1A5-03-B-3-G-2-H-N-A-25-25-N-N-N-NNN-NNN | 42L41DE1A503B3G2HNA2525NNNNNNNNN |
| 83003922 | 42-L-41-D-E1A5-03-B-3-G-3-G-N-N-21-21-N-N-N-NNN-NNN | 42L41DE1A503B3G3GNN2121NNNNNNNNN |
| 4412201 | 42-L-41-D-E1A5-03-B-3-G-3-G-N-N-21-21-N-N-N-NNN-NNN | 42L41DE1A503B3G3GNN2121NNNNNNNNN |
| 83003921 | 42-L-41-D-E1A5-03-B-3-G-3-G-N-V-21-21-N-N-N-NNN-NNN | 42L41DE1A503B3G3GNV2121NNNNNNNNN |
| 4412207 | 42-L-41-D-E1A5-03-B-3-G-3-G-N-V-21-21-N-N-N-NNN-NNN | 42L41DE1A503B3G3GNV2121NNNNNNNNN |
| 4412172 | 42-L-41-D-E1A5-03-C-3-A-3-G-N-B-21-21-N-N-N-NNN-NNN | 42L41DE1A503C3A3GNB2121NNNNNNNNN |
| 4412171 | 42-L-41-D-E1A5-03-C-3-A-3-G-N-N-21-21-N-N-N-NNN-NNN | 42L41DE1A503C3A3GNN2121NNNNNNNNN |
| 4412181 | 42-L-41-D-E1A5-03-C-3-A-3-G-N-V-21-21-N-N-N-NNN-NNN | 42L41DE1A503C3A3GNV2121NNNNNNNNN |
| 4412196 | 42-L-41-D-E1A6-00-C-2-A-3-F-N-B-28-28-B-A-A-NNN-NNN | 42L41DE1A600C2A3FNB2828BAANNNNNN |
| 4412070 | 42-L-41-D-E1A6-01-A-N-A-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L41DE1A601ANA2FNA2828NNNNNNNNN |
| 83003931 | 42-L-41-D-E1A6-01-B-D-G-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L41DE1A601BDG2FNA2828NNNNNNNNN |
| 83015144 | 42-L-41-D-E1A6-02-A-N-A-3-F-N-A-32-32-B-N-N-NNN-NNN | 42L41DE1A602ANA3FNA3232BNNNNNNNN |
| 83053462 | 42-L-41-D-E1A6-02-B-2-B-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L41DE1A602B2B2FNA3434NNNNNNNNN |
| 83003846 | 42-L-41-D-E1A6-02-B-2-G-2-F-N-B-34-34-N-A-A-NNN-NNN | 42L41DE1A602B2G2FNB3434NAANNNNNN |
| 80004333 | 42-L-41-D-E1A6-02-B-2-G-2-F-N-B-34-34-N-A-A-NNN-NNN | 42L41DE1A602B2G2FNB3434NAANNNNNN |
| 4412128 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-A-28-28-N-N-N-NNN-NNN | 42L41DE1A602B3B2HNA2828NNNNNNNNN |
| 4412153 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-B-17-17-B-N-N-NNN-NNN | 42L41DE1A602B3B2HNB1717BNNNNNNNN |
| 83003929 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-B-25-25-B-N-N-NNN-NNN | 42L41DE1A602B3B2HNB2525BNNNNNNNN |
| 4412100 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-B-25-25-B-N-N-NNN-NNN | 42L41DE1A602B3B2HNB2525BNNNNNNNN |
| 83003999 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-N-21-21-N-N-N-NNN-NNN | 42L41DE1A602B3B2HNN2121NNNNNNNNN |
| 4412212 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-N-21-21-N-N-N-NNN-NNN | 42L41DE1A602B3B2HNN2121NNNNNNNNN |
| 83004002 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-N-25-25-B-N-N-NNN-NNN | 42L41DE1A602B3B2HNN2525BNNNNNNNN |
| 4412101 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-N-25-25-B-N-N-NNN-NNN | 42L41DE1A602B3B2HNN2525BNNNNNNNN |
| 4412147 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-N-28-28-N-N-N-NNN-NNN | 42L41DE1A602B3B2HNN2828NNNNNNNNN |
| 4412652 | 42-L-41-D-E1A6-02-B-3-B-2-H-N-N-34-34-N-N-N-NNN-NNN | 42L41DE1A602B3B2HNN3434NNNNNNNNN |
| 83003895 | 42-L-41-D-E1A6-02-B-3-G-2-F-N-A-28-28-B-A-A-NNN-NNN | 42L41DE1A602B3G2FNA2828BAANNNNNN |
| 11044237 | 42-L-41-D-E1A6-02-B-3-G-2-F-N-A-28-28-B-A-A-NNN-NNN | 42L41DE1A602B3G2FNA2828BAANNNNNN |
| 83003982 | 42-L-41-D-E1A6-02-B-3-G-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L41DE1A602B3G2FNA3434NNNNNNNNN |
| 80004090 | 42-L-41-D-E1A6-02-B-3-G-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L41DE1A602B3G2FNA3434NNNNNNNNN |
| 83004017 | 42-L-41-D-E1A6-02-B-3-G-2-F-N-A-41-41-N-N-N-NNN-NNN | 42L41DE1A602B3G2FNA4141NNNNNNNNN |
| 80003918 | 42-L-41-D-E1A6-02-B-3-G-2-F-N-A-41-41-N-N-N-NNN-NNN | 42L41DE1A602B3G2FNA4141NNNNNNNNN |
| 700026 | 42-L-41-D-E1A6-02-B-3-G-2-F-N-V-30-30-B-A-A-NNN-NNN | 42L41DE1A602B3G2FNV3030BAANNNNNN |
| 700664 | 42-L-41-D-E1A6-02-B-3-G-2-H-N-N-25-25-B-A-A-NNN-NNN | 42L41DE1A602B3G2HNN2525BAANNNNNN |
| 83015098 | 42-L-41-D-E1A6-02-B-3-G-3-F-N-A-32-32-N-N-N-NNN-NNN | 42L41DE1A602B3G3FNA3232NNNNNNNNN |
| 83015312 | 42-L-41-D-E1A6-03-A-N-A-2-F-N-A-28-28-N-N-N-NNN-NNN | 42L41DE1A603ANA2FNA2828NNNNNNNNN |
| 4412145 | 42-L-41-D-E1A6-03-A-N-A-3-F-N-N-17-17-N-N-N-NNN-NNN | 42L41DE1A603ANA3FNN1717NNNNNNNNN |
| 4412031 | 42-L-41-D-E1A6-03-B-2-G-2-F-N-B-34-34-B-N-N-NNN-NNN | 42L41DE1A603B2G2FNB3434BNNNNNNNN |
| 701855 | 42-L-41-D-E1A6-03-B-3-G-2-F-N-A-34-34-B-N-N-NNN-NNN | 42L41DE1A603B3G2FNA3434BNNNNNNNN |
| 83003827 | 42-L-41-D-E1A6-03-B-D-B-2-F-N-A-21-21-N-N-N-NNN-NNN | 42L41DE1A603BDB2FNA2121NNNNNNNNN |
| 4412116 | 42-L-41-D-E1A6-03-B-D-B-2-F-N-A-21-21-N-N-N-NNN-NNN | 42L41DE1A603BDB2FNA2121NNNNNNNNN |
| 83003824 | 42-L-41-D-E1A6-03-B-D-B-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L41DE1A603BDB2FNA3434NNNNNNNNN |
| 4412069 | 42-L-41-D-E1A6-03-B-D-B-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L41DE1A603BDB2FNA3434NNNNNNNNN |
| 83003826 | 42-L-41-D-E1A6-03-B-D-B-2-F-N-V-30-14-N-N-N-NNN-NNN | 42L41DE1A603BDB2FNV3014NNNNNNNNN |
| 4412115 | 42-L-41-D-E1A6-03-B-D-B-2-F-N-V-30-14-N-N-N-NNN-NNN | 42L41DE1A603BDB2FNV3014NNNNNNNNN |
| 83004031 | 42-L-41-D-E1B6-01-B-D-G-2-F-N-A-17-17-N-N-N-NNN-NNN | 42L41DE1B601BDG2FNA1717NNNNNNNNN |
| 11029191 | 42-L-41-D-E1B6-01-B-D-G-2-F-N-A-17-17-N-N-N-NNN-NNN | 42L41DE1B601BDG2FNA1717NNNNNNNNN |
| 83040051 | 42-L-41-D-E2C8-03-D-N-F-2-H-N-N-41-41-N-N-N-NNN-NNN | 42L41DE2C803DNF2HNN4141NNNNNNNNN |
| 83013457 | 42-L-41-D-E2D8-02-D-N-F-2-H-N-A-32-32-B-N-N-NNN-NNN | 42L41DE2D802DNF2HNA3232BNNNNNNNN |
| 83013447 | 42-L-41-D-E2D8-02-D-N-F-2-H-N-B-32-32-B-N-N-NNN-NNN | 42L41DE2D802DNF2HNB3232BNNNNNNNN |
| 83016740 | 42-L-41-D-E2D8-03-B-3-B-3-H-N-A-21-21-N-N-N-NNN-NNN | 42L41DE2D803B3B3HNA2121NNNNNNNNN |
| 83064006 | 42-L-41-D-E2D8-03-D-N-F-3-F-N-N-21-21-N-N-N-NNN-NNN | 42L41DE2D803DNF3FNN2121NNNNNNNNN |
| 4412175 | 42-L-41-D-F2NN-72-J-D-G-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L41DF2NN72JDG2FNA3434NNNNNNNNN |
| 701179 | 42-L-41-D-F2NN-72-J-D-G-2-F-N-A-34-34-N-N-N-NNN-NNN | 42L41DF2NN72JDG2FNA3434NNNNNNNNN |
| 4412033 | 42-L-41-D-F2NN-72-J-D-G-2-F-N-B-23-23-N-N-N-NNN-NNN | 42L41DF2NN72JDG2FNB2323NNNNNNNNN |
| 83016474 | 42-L-41-D-F4NN-72-J-D-B-2-H-N-B-25-25-N-N-N-NNN-NNN | 42L41DF4NN72JDB2HNB2525NNNNNNNNN |
| 4412089 | 42-L-41-D-G1A1-70-J-D-G-2-H-5-B-30-30-N-0-0-NNN-NNN | 42L41DG1A170JDG2H5B3030N00NNNNNN |
| 4412092 | 42-L-41-D-G1A1-70-J-D-G-3-H-1-B-30-30-N-1-1-NNN-NNN | 42L41DG1A170JDG3H1B3030N11NNNNNN |
| PVM41-711 | 42-L-41-D-G3AN-53-P-3-G-3-H-5-A-34-34-B-0-0-NNN-NNN | 42L41DG3AN53P3G3H5A3434B00NNNNNN |
| 4412144 | 42-L-41-D-G3AN-53-P-3-G-3-H-5-A-34-34-B-0-0-NNN-NNN | 42L41DG3AN53P3G3H5A3434B00NNNNNN |
| 83009943 | 42-L-41-E-E1A3-03-A-N-A-2-G-N-B-30-30-B-N-N-NNN-NNN | 42L41EE1A303ANA2GNB3030BNNNNNNNN |
| 4412178 | 42-L-41-E-E1A3-03-A-N-A-2-G-N-B-30-30-B-N-N-NNN-NNN | 42L41EE1A303ANA2GNB3030BNNNNNNNN |
| 4412179 | 42-L-41-E-E1A3-03-A-N-A-2-G-N-B-34-34-B-N-N-NNN-NNN | 42L41EE1A303ANA2GNB3434BNNNNNNNN |
| 80003175 | 42-L-41-E-E1A3-03-A-N-A-2-H-N-B-30-30-B-N-N-NNN-NNN | 42L41EE1A303ANA2HNB3030BNNNNNNNN |
| 4412053 | 42-L-41-E-E1A3-03-A-N-A-3-G-N-A-34-34-N-N-N-NNN-NNN | 42L41EE1A303ANA3GNA3434NNNNNNNNN |
| 83003832 | 42-L-41-E-E1A3-03-B-D-G-2-G-N-B-30-30-B-N-N-NNN-NNN | 42L41EE1A303BDG2GNB3030BNNNNNNNN |
| 11050670 | 42-L-41-E-E1A3-03-B-D-G-2-G-N-B-30-30-B-N-N-NNN-NNN | 42L41EE1A303BDG2GNB3030BNNNNNNNN |
| 83004023 | 42-L-41-E-E1A3-03-B-D-G-2-G-N-B-30-30-N-N-N-NNN-NNN | 42L41EE1A303BDG2GNB3030NNNNNNNNN |
| 11049350 | 42-L-41-E-E1A3-03-B-D-G-2-G-N-B-30-30-N-N-N-NNN-NNN | 42L41EE1A303BDG2GNB3030NNNNNNNNN |
| 83003833 | 42-L-41-E-E1A3-03-B-D-G-2-G-N-B-34-34-B-N-N-NNN-NNN | 42L41EE1A303BDG2GNB3434BNNNNNNNN |
| 83003877 | 42-L-41-E-E1A3-03-B-D-G-2-H-N-B-30-30-B-N-N-NNN-NNN | 42L41EE1A303BDG2HNB3030BNNNNNNNN |
| 83003805 | 42-L-41-E-E1A5-02-B-D-B-2-H-N-B-34-34-N-N-N-NNN-NNN | 42L41EE1A502BDB2HNB3434NNNNNNNNN |
| 11031476 | 42-L-41-E-E1A5-02-B-D-B-2-H-N-B-34-34-N-N-N-NNN-NNN | 42L41EE1A502BDB2HNB3434NNNNNNNNN |
| 83010714 | 42-L-41-E-E1A5-02-B-D-B-2-H-N-V-34-34-N-N-N-NNN-NNN | 42L41EE1A502BDB2HNV3434NNNNNNNNN |
| 4412180 | 42-L-41-E-E1A5-02-D-N-F-2-H-N-B-34-34-B-N-N-NNN-NNN | 42L41EE1A502DNF2HNB3434BNNNNNNNN |
| 83021536 | 42-L-41-E-E1A5-03-A-N-A-2-F-N-B-14-14-N-N-N-NNN-NNN | 42L41EE1A503ANA2FNB1414NNNNNNNNN |
| 4412064 | 42-L-41-E-E1A5-03-A-N-A-2-F-N-B-14-14-N-N-N-NNN-NNN | 42L41EE1A503ANA2FNB1414NNNNNNNNN |
| 83024337 | 42-L-41-E-E1A5-03-A-N-A-2-F-N-B-28-28-N-N-N-NNN-NNN | 42L41EE1A503ANA2FNB2828NNNNNNNNN |
| 4412026 | 42-L-41-E-E1A5-03-A-N-A-2-F-N-B-28-28-N-N-N-NNN-NNN | 42L41EE1A503ANA2FNB2828NNNNNNNNN |
| 4412059 | 42-L-41-E-E1A5-03-B-2-X-N-H-N-V-34-34-N-N-N-NNN-NNN | 42L41EE1A503B2XNHNV3434NNNNNNNNN |
| 4412200 | 42-L-41-E-E1A5-03-B-3-G-3-G-N-V-21-21-N-N-N-NNN-NNN | 42L41EE1A503B3G3GNV2121NNNNNNNNN |
| 83013448 | 42-L-41-E-E2D8-02-D-N-F-2-H-N-V-32-32-B-N-N-NNN-NNN | 42L41EE2D802DNF2HNV3232BNNNNNNNN |
| 83009866 | 42-L-41-E-E2D8-03-A-N-A-2-G-N-B-30-30-B-N-N-NNN-NNN | 42L41EE2D803ANA2GNB3030BNNNNNNNN |
| 83016300 | 42-L-41-E-E2D8-03-A-N-A-2-G-N-B-34-34-B-N-N-NNN-NNN | 42L41EE2D803ANA2GNB3434BNNNNNNNN |
| 83012520 | 42-L-41-E-E2D8-03-B-D-B-3-H-N-A-32-32-B-N-N-NNN-NNN | 42L41EE2D803BDB3HNA3232BNNNNNNNN |
| 83028338 | 42-L-41-E-E2D8-03-B-D-B-3-H-N-T-32-32-B-N-N-NNN-NNN | 42L41EE2D803BDB3HNT3232BNNNNNNNN |
| 83053203 | 42-L-4A-D-E1A4-02-B-3-G-3-F-N-A-30-30-B-N-N-NNN-NNN | 42L4ADE1A402B3G3FNA3030BNNNNNNNN |
| 4412057 | 42-L-4A-D-E1A5-01-B-D-B-2-G-N-B-34-34-N-N-N-AAA-NNN | 42L4ADE1A501BDB2GNB3434NNNAAANNN |
| 4412081 | 42-L-4A-D-E1A5-03-B-D-C-3-F-N-N-30-30-N-A-A-NNN-NNN | 42L4ADE1A503BDC3FNN3030NAANNNNNN |
Q1:What is the primary function of the Sauer-Danfoss 42L41 hydraulic pump?
A1: The primary function of the 42L41 hydraulic pump is to provide variable fluid flow and pressure in a closed-circuit hydraulic system. It acts as the main power source, converting mechanical energy from an engine or motor into adjustable hydraulic power to drive motors and cylinders in mobile machinery.
Q2:In what type of applications is the 42L41 hydraulic pump commonly used?
A2:The 42L41 pump is commonly used in demanding closed-circuit mobile hydraulic applications. Typical machinery includes excavators, wheel loaders, telehandlers, and forestry equipment, where reliable, efficient, and controllable hydraulic power is essential for operation.
Q3:How to purchase a 42L41 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the 42L41 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
