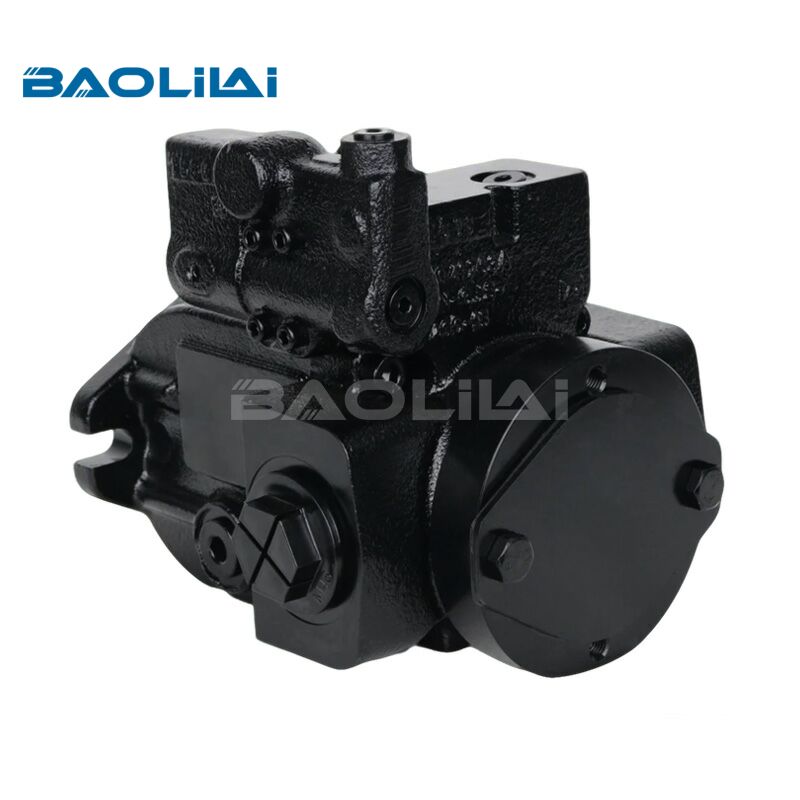

For Sauer danfoss 45 series LRR030 hydraulic pump
SERIES : 45 seriers LR
BRAND : For Sauer Danfoss
Model Size :LRR030
Displacement : 30cm3/rev
Speed : 3200rpm
Maximum Pressure : 300bar
Nominal Pressure : 210bar
Download PDF
- Product Details
- Product Model
- FAQ
The Sauer Danfoss 45 Series LRR030 is a robust, variable-displacement axial piston pump designed for open-circuit mobile hydraulic systems. It features a highly efficient swashplate design that delivers precise and responsive flow control. The pump's compact construction ensures easy integration into various machinery, such as agricultural, construction, and material handling equipment.
Key specifications typically include a maximum continuous pressure rating of 420 bar (approx. 6,100 psi) and a nominal displacement of 30 cm³/rev. Its design prioritizes durability and reliable performance in demanding environments. The LRR030 model often incorporates advanced control options, including pressure compensator, load sensing, and proportional electro-hydraulic controls, allowing for optimized system efficiency and productivity.
The pump is engineered for quiet operation and long service life, with a design that facilitates efficient heat dissipation. It is a core component in systems requiring precise hydraulic power management.
Specifications
| L frame | K frame | |||||
| Unit | L25C | L30D | K38C | K45D | ||
| Maximum Displacement | cm3 [in3] | 25 [1.53] | 30 [1.83] | 38 [2.32] | 45 [2.75] | |
| Working Input speed | Minimum | min−1 [rpm] | 500 | 500 | 500 | 500 |
| Continuous | 3200 | 3200 | 2650 | 2650 | ||
| Maximum | 3600 | 3600 | 2800 | 2800 | ||
| Working Pressure | Continuous | bar [psi] | 260 [3770] | 210 [3045] | 260 [3770] | 210 [3045] |
| Maximum | 350 [5075] | 300 [4350] | 350 [5075] | 300 [4350] | ||
| Flow at rated speed (theoretical) | l/min | 80 | 96 | 100.7 | 119.3 | |
| US gal/min | 21 | 25.4 | 26.6 | 31.5 | ||
| Input torque at maximum displacement (theoretical) at 49∘C (120∘F) | Nm/bar | 0.398 | 0.477 | 0.605 | 0.716 | |
| lbf·in/1000 psi | 243 | 291 | 369 | 438 | ||
| Mass moment of inertia of internal rotating components | kg·m2 | 0.00169 | 0.00161 | 0.00184 | 0.00203 | |
| slug·ft2 | 0.00125 | 0.00119 | 0.00135 | 0.00150 | ||
| Weight | Axial ports | kg [lb] | 19 [42] | |||
| Radial ports | 24 [53] | |||||
| External Shaft Loads | External moment (Me) | N·m [lbf·in] | 61 [540] | 61 [540] | 76 [673] | 76 [673] |
| Thrust in (Tin), out (Tout) | N [lbf] | 1000 [225] | 1000 [225] | 1200 [270] | 1200 [270] | |
| Mounting flange load moments | Vibratory (continuous) | N·m [lbf·in] | 1005 [8895] | |||
| Shock (maximum) | 3550 [31420] | |||||
Selection Table
| LRR030 axial piston hydraulic pump | ||
| Model No. | Model Code | Model Code |
| 83085059 | LR-R-030D-EA-17-15-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DEA1715NNN3C2NGA6NKNBNNNNNN |
| 83019387 | LR-R-030D-EA-21-12-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DEA2112NNN3C2AGA6NPLBNNNNNN |
| 83012066 | LR-R-030D-EA-21-20-NN-N-3-C3RG-A6N-AAA-NNN-NNN | LRR030DEA2120NNN3C3RGA6NAAANNNNNN |
| 83022933 | LR-R-030D-EB-10-12-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DEB1012NNN3C2AGA6NAAANNNNNN |
| 83020697 | LR-R-030D-EB-10-15-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DEB1015NNN3C2RGA6NAAANNNNNN |
| 83052438 | LR-R-030D-EB-15-24-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DEB1524NNN3C2NFA6NPLBNNNNNN |
| 83058311 | LR-R-030D-EB-20-10-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DEB2010NNN3C2AGA6NPLBNNNNNN |
| 83057467 | LR-R-030D-EB-21-20-NN-N-3-C3NR-A6N-AAA-NNN-NNN | LRR030DEB2120NNN3C3NRA6NAAANNNNNN |
| 83018319 | LR-R-030D-EB-21-24-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DEB2124NNN3K1NFA6NAAANNNNNN |
| 83009574 | LR-R-030D-ED-12-10-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DED1210NNN3C3NFA6NPLBNNNNNN |
| 7005159 | LR-R-030D-ED-14-NN-NN-N-3-K2NF-A6N-PLB-NNN-NNN | LRR030DED14NNNNN3K2NFA6NPLBNNNNNN |
| 7005159S | LR-R-030D-ED-14-NN-NN-N-3-K2NF-A6N-PLB-NNN-NNN | LRR030DED14NNNNN3K2NFA6NPLBNNNNNN |
| 83053486 | LR-R-030D-EE-20-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DEE2020NNN3C2NGA6NKNBNNNNNN |
| 83029898 | LR-R-030D-EG-17-10-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DEG1710NNN3K1NFA6NPLBNNNNNN |
| 83042150 | LR-R-030D-EG-18-10-NN-N-3-C2AR-A6N-PLB-NNN-NNN | LRR030DEG1810NNN3C2ARA6NPLBNNNNNN |
| 83067165 | LR-R-030D-EG-21-20-NN-K-3-C2BG-A6N-PLB-NNN-NNN | LRR030DEG2120NNK3C2BGA6NPLBNNNNNN |
| 83067192 | LR-R-030D-EG-21-20-NN-K-3-K2BG-A6N-PLB-NNN-NNN | LRR030DEG2120NNK3K2BGA6NPLBNNNNNN |
| 83007825 | LR-R-030D-EH-21-13-NN-A-3-C2NF-A6N-PLB-NNN-NNN | LRR030DEH2113NNA3C2NFA6NPLBNNNNNN |
| 80004018 | LR-R-030D-EJ-18-10-NN-A-3-C2NG-A6N-KNB-NNN-NNN | LRR030DEJ1810NNA3C2NGA6NKNBNNNNNN |
| 80003007 | LR-R-030D-EJ-21-10-NN-A-3-C2BG-A6N-PLB-NNN-NNN | LRR030DEJ2110NNA3C2BGA6NPLBNNNNNN |
| 83048944 | LR-R-030D-EK-21-20-NN-E-3-C2NG-A6N-KNB-NNN-NNN | LRR030DEK2120NNE3C2NGA6NKNBNNNNNN |
| 11153391 | LR-R-030D-EL-26-12-NN-F-3-C2NR-A6N-PLB-NNN-NNN | LRR030DEL2612NNF3C2NRA6NPLBNNNNNN |
| 83048989 | LR-R-030D-EM-19-20-NN-E-3-C3TG-A6N-AAA-NNN-NNN | LRR030DEM1920NNE3C3TGA6NAAANNNNNN |
| 83039452 | LR-R-030D-EM-21-20-NN-E-3-C2NG-A6N-KNB-NNN-NNN | LRR030DEM2120NNE3C2NGA6NKNBNNNNNN |
| 83058375 | LR-R-030D-EN-16-15-NN-E-3-C2NG-A6N-KNB-NNN-NNN | LRR030DEN1615NNE3C2NGA6NKNBNNNNNN |
| 83036400 | LR-R-030D-EN-20-10-NN-E-3-C2BG-A6N-PLB-NNN-NNN | LRR030DEN2010NNE3C2BGA6NPLBNNNNNN |
| 83041257 | LR-R-030D-EN-20-10-NN-E-3-C2NG-A6N-KNB-NNN-NNN | LRR030DEN2010NNE3C2NGA6NKNBNNNNNN |
| 7005184 | LR-R-030D-EP-19-10-NN-A-3-C2AG-A6N-AAA-NNN-NNN | LRR030DEP1910NNA3C2AGA6NAAANNNNNN |
| 7005184S | LR-R-030D-EP-19-10-NN-A-3-C2AG-A6N-AAA-NNN-NNN | LRR030DEP1910NNA3C2AGA6NAAANNNNNN |
| 1701362 | LR-R-030D-EP-21-10-NN-A-3-C2BG-A6N-PLB-NNN-NNN | LRR030DEP2110NNA3C2BGA6NPLBNNNNNN |
| 83008544 | LR-R-030D-LB-10-15-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB1015NNN3C2NFA6NPLBNNNNNN |
| 7005043 | LR-R-030D-LB-10-20-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DLB1020NNN3C2AGA6NPLBNNNNNN |
| 7005154 | LR-R-030D-LB-10-20-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB1020NNN3C2BGA6NPLBNNNNNN |
| 7005154S | LR-R-030D-LB-10-20-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB1020NNN3C2BGA6NPLBNNNNNN |
| 7005051 | LR-R-030D-LB-10-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB1020NNN3C2NFA6NPLBNNNNNN |
| 7005051S | LR-R-030D-LB-10-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB1020NNN3C2NFA6NPLBNNNNNN |
| 7005044 | LR-R-030D-LB-10-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLB1020NNN3C2NGA6NKNBNNNNNN |
| 7005162 | LR-R-030D-LB-10-25-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB1025NNN3C2BGA6NPLBNNNNNN |
| 7005162S | LR-R-030D-LB-10-25-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB1025NNN3C2BGA6NPLBNNNNNN |
| 7005147 | LR-R-030D-LB-14-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB1420NNN3C2NFA6NPLBNNNNNN |
| 7005147S | LR-R-030D-LB-14-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB1420NNN3C2NFA6NPLBNNNNNN |
| 83001656 | LR-R-030D-LB-14-28-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB1428NNN3C2NFA6NPLBNNNNNN |
| 80003340 | LR-R-030D-LB-16-20-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB1620NNN3C2BGA6NPLBNNNNNN |
| 7005250 | LR-R-030D-LB-18-14-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLB1814NNN3C2NFA6NAAANNNNNN |
| 7005250S | LR-R-030D-LB-18-14-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLB1814NNN3C2NFA6NAAANNNNNN |
| 7005211 | LR-R-030D-LB-19-17-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DLB1917NNN3C2BGA6NAAANNNNNN |
| 7005211S | LR-R-030D-LB-19-17-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DLB1917NNN3C2BGA6NAAANNNNNN |
| 83030210 | LR-R-030D-LB-19-17-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB1917NNN3C2BGA6NPLBNNNNNN |
| 7005212 | LR-R-030D-LB-19-17-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLB1917NNN3C2RGA6NAAANNNNNN |
| 7005212S | LR-R-030D-LB-19-17-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLB1917NNN3C2RGA6NAAANNNNNN |
| 83031783 | LR-R-030D-LB-19-24-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB1924NNN3C2BGA6NPLBNNNNNN |
| 83030209 | LR-R-030D-LB-20-17-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB2017NNN3C2NFA6NPLBNNNNNN |
| 83001700 | LR-R-030D-LB-20-18-NN-N-3-C2AK-A6N-KNB-NNN-NNN | LRR030DLB2018NNN3C2AKA6NKNBNNNNNN |
| 7005222 | LR-R-030D-LB-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB2020NNN3C2NFA6NPLBNNNNNN |
| 7005222S | LR-R-030D-LB-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB2020NNN3C2NFA6NPLBNNNNNN |
| 83007689 | LR-R-030D-LB-20-20-NN-N-3-C2NK-A6N-KNB-NNN-NNN | LRR030DLB2020NNN3C2NKA6NKNBNNNNNN |
| 83032063 | LR-R-030D-LB-20-24-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB2024NNN3C2NFA6NPLBNNNNNN |
| 83031782 | LR-R-030D-LB-20-28-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB2028NNN3C2NFA6NPLBNNNNNN |
| 7005080 | LR-R-030D-LB-21-12-NN-N-3-C2AG-A6N-PLA-NNN-NNN | LRR030DLB2112NNN3C2AGA6NPLANNNNNN |
| 83001854 | LR-R-030D-LB-21-14-NN-N-3-C2RG-A6N-A95-NNN-NNN | LRR030DLB2114NNN3C2RGA6NA95NNNNNN |
| 7005085 | LR-R-030D-LB-21-20-NN-N-3-K1NG-A6N-KNB-NNN-NNN | LRR030DLB2120NNN3K1NGA6NKNBNNNNNN |
| 7005085S | LR-R-030D-LB-21-20-NN-N-3-K1NG-A6N-KNB-NNN-NNN | LRR030DLB2120NNN3K1NGA6NKNBNNNNNN |
| 83014074 | LR-R-030D-LB-21-24-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLB2124NNN3C2BGA6NPLBNNNNNN |
| 83014075 | LR-R-030D-LB-21-24-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLB2124NNN3C2NFA6NAAANNNNNN |
| 83058207 | LR-R-030D-LB-21-25-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLB2125NNN3C2NFA6NAAANNNNNN |
| 83020747 | LR-R-030D-LB-21-28-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLB2128NNN3C2NFA6NPLBNNNNNN |
| 7005183 | LR-R-030D-LJ-21-20-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DLJ2120NNN3C3NFA6NPLBNNNNNN |
| 7005183S | LR-R-030D-LJ-21-20-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DLJ2120NNN3C3NFA6NPLBNNNNNN |
| 701804 | LR-R-030D-LS-10-15-NN-N-3-K2NG-A6N-KNB-NNN-NNN | LRR030DLS1015NNN3K2NGA6NKNBNNNNNN |
| 7005208 | LR-R-030D-LS-10-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DLS1020NNN3C2AGA6NAAANNNNNN |
| 7005208S | LR-R-030D-LS-10-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DLS1020NNN3C2AGA6NAAANNNNNN |
| 7005151 | LR-R-030D-LS-10-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1020NNN3C2NFA6NPLBNNNNNN |
| 7005151S | LR-R-030D-LS-10-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1020NNN3C2NFA6NPLBNNNNNN |
| 83009950 | LR-R-030D-LS-10-20-NN-N-3-K1NK-A6N-KNB-NNN-NNN | LRR030DLS1020NNN3K1NKA6NKNBNNNNNN |
| 83036527 | LR-R-030D-LS-11-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1120NNN3C2NGA6NKNBNNNNNN |
| 83005032 | LR-R-030D-LS-12-14-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1214NNN3C2NFA6NPLBNNNNNN |
| 80003531 | LR-R-030D-LS-12-20-NN-N-3-K1AG-A6N-PLB-NNN-NNN | LRR030DLS1220NNN3K1AGA6NPLBNNNNNN |
| 80004401 | LR-R-030D-LS-12-20-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS1220NNN3K1NFA6NPLBNNNNNN |
| 700992 | LR-R-030D-LS-13-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1320NNN3C2NFA6NPLBNNNNNN |
| 83088938 | LR-R-030D-LS-13-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1320NNN3C2NGA6NKNBNNNNNN |
| 83029063 | LR-R-030D-LS-14-15-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DLS1415NNN3C2BGA6NAAANNNNNN |
| 83054446 | LR-R-030D-LS-14-20-NN-J-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1420NNJ3C2NFA6NPLBNNNNNN |
| 7005093 | LR-R-030D-LS-14-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1420NNN3C2NFA6NPLBNNNNNN |
| 7005093S | LR-R-030D-LS-14-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1420NNN3C2NFA6NPLBNNNNNN |
| 83008976 | LR-R-030D-LS-14-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1420NNN3C2NGA6NKNBNNNNNN |
| 83022322 | LR-R-030D-LS-14-25-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DLS1425NNN3C2AGA6NPLBNNNNNN |
| 83075447 | LR-R-030D-LS-14-30-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DLS1430NNN3C2AGA6NPLBNNNNNN |
| 83060605 | LR-R-030D-LS-14-30-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1430NNN3C2NFA6NPLBNNNNNN |
| 83050594 | LR-R-030D-LS-14-30-NN-N-3-C3AG-A6N-PLB-NNN-NNN | LRR030DLS1430NNN3C3AGA6NPLBNNNNNN |
| 83017991 | LR-R-030D-LS-15-14-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DLS1514NNN3C2RGA6NPLBNNNNNN |
| 83068502 | LR-R-030D-LS-15-14-NN-N-3-K2RG-A6N-PLB-NNN-NNN | LRR030DLS1514NNN3K2RGA6NPLBNNNNNN |
| 7005084 | LR-R-030D-LS-15-15-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1515NNN3C2NFA6NPLBNNNNNN |
| 7005084S | LR-R-030D-LS-15-15-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1515NNN3C2NFA6NPLBNNNNNN |
| 83001745 | LR-R-030D-LS-15-15-NN-N-3-K2NF-A6N-AAA-NNN-NNN | LRR030DLS1515NNN3K2NFA6NAAANNNNNN |
| 7005229 | LR-R-030D-LS-15-17-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1517NNN3C2NGA6NKNBNNNNNN |
| 7005229S | LR-R-030D-LS-15-17-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1517NNN3C2NGA6NKNBNNNNNN |
| 7005179 | LR-R-030D-LS-15-20-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS1520NNN3C2RGA6NAAANNNNNN |
| 7005179S | LR-R-030D-LS-15-20-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS1520NNN3C2RGA6NAAANNNNNN |
| 83008168 | LR-R-030D-LS-15-20-NN-N-3-K1RG-A6N-AAA-NNN-NNN | LRR030DLS1520NNN3K1RGA6NAAANNNNNN |
| 83040181 | LR-R-030D-LS-15-24-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1524NNN3C2NFA6NPLBNNNNNN |
| 83009438 | LR-R-030D-LS-16-15-NN-N-3-C2AR-A6N-PLB-NNN-NNN | LRR030DLS1615NNN3C2ARA6NPLBNNNNNN |
| 7005171 | LR-R-030D-LS-16-18-NN-N-3-K1NF-A6N-PLC-NNN-P00 | LRR030DLS1618NNN3K1NFA6NPLCNNNP00 |
| 7005171S | LR-R-030D-LS-16-18-NN-N-3-K1NF-A6N-PLC-NNN-P00 | LRR030DLS1618NNN3K1NFA6NPLCNNNP00 |
| 83021476 | LR-R-030D-LS-16-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1620NNN3C2NFA6NPLBNNNNNN |
| 7005156 | LR-R-030D-LS-17-14-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1714NNN3C2NFA6NPLBNNNNNN |
| 7005156S | LR-R-030D-LS-17-14-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1714NNN3C2NFA6NPLBNNNNNN |
| 7005041 | LR-R-030D-LS-17-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1720NNN3C2NFA6NPLBNNNNNN |
| 7005169 | LR-R-030D-LS-17-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1720NNN3C2NGA6NKNBNNNNNN |
| 7005169S | LR-R-030D-LS-17-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1720NNN3C2NGA6NKNBNNNNNN |
| 701152 | LR-R-030D-LS-17-20-NN-N-3-C3RG-A6N-PLB-NNN-NNN | LRR030DLS1720NNN3C3RGA6NPLBNNNNNN |
| 7005193 | LR-R-030D-LS-17-20-NN-N-3-K1AG-A6N-AAA-NNN-NNN | LRR030DLS1720NNN3K1AGA6NAAANNNNNN |
| 7005193S | LR-R-030D-LS-17-20-NN-N-3-K1AG-A6N-AAA-NNN-NNN | LRR030DLS1720NNN3K1AGA6NAAANNNNNN |
| 83039541 | LR-R-030D-LS-17-20-NN-N-3-K2BG-A6N-PLB-NNN-NNN | LRR030DLS1720NNN3K2BGA6NPLBNNNNNN |
| 7005181 | LR-R-030D-LS-17-21-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DLS1721NNN3C2AGA6NAAANNNNNN |
| 7005181S | LR-R-030D-LS-17-21-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DLS1721NNN3C2AGA6NAAANNNNNN |
| 83029450 | LR-R-030D-LS-18-14-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS1814NNN3C2RGA6NAAANNNNNN |
| 7005190 | LR-R-030D-LS-18-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1820NNN3C2NFA6NPLBNNNNNN |
| 7005190S | LR-R-030D-LS-18-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS1820NNN3C2NFA6NPLBNNNNNN |
| 7005224 | LR-R-030D-LS-18-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1820NNN3C2NGA6NKNBNNNNNN |
| 7005224S | LR-R-030D-LS-18-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS1820NNN3C2NGA6NKNBNNNNNN |
| 7005225 | LR-R-030D-LS-18-20-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS1820NNN3K1NFA6NPLBNNNNNN |
| 7005225S | LR-R-030D-LS-18-20-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS1820NNN3K1NFA6NPLBNNNNNN |
| 80004454 | LR-R-030D-LS-19-25-NN-N-3-C2AG-A6N-PLA-NNN-NNN | LRR030DLS1925NNN3C2AGA6NPLANNNNNN |
| 80004453 | LR-R-030D-LS-19-25-NN-N-3-C2BG-A6N-PLA-NNN-NNN | LRR030DLS1925NNN3C2BGA6NPLANNNNNN |
| 80004451 | LR-R-030D-LS-19-25-NN-N-3-C2NG-A6N-KNA-NNN-NNN | LRR030DLS1925NNN3C2NGA6NKNANNNNNN |
| 80004523 | LR-R-030D-LS-19-30-NN-N-3-C2NG-A6N-KNC-NNN-NNN | LRR030DLS1930NNN3C2NGA6NKNCNNNNNN |
| 83021556 | LR-R-030D-LS-20-14-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DLS2014NNN3C2BGA6NAAANNNNNN |
| 83015810 | LR-R-030D-LS-20-14-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLS2014NNN3C2NFA6NAAANNNNNN |
| 7005230 | LR-R-030D-LS-20-14-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS2014NNN3C2RGA6NAAANNNNNN |
| 7005230S | LR-R-030D-LS-20-14-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS2014NNN3C2RGA6NAAANNNNNN |
| 83009371 | LR-R-030D-LS-20-14-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DLS2014NNN3K1NFA6NAAANNNNNN |
| 7005067 | LR-R-030D-LS-20-16-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2016NNN3C2NFA6NPLBNNNNNN |
| 80003814 | LR-R-030D-LS-20-18-NN-N-3-C2AK-A6N-KNB-NNN-NNN | LRR030DLS2018NNN3C2AKA6NKNBNNNNNN |
| 83001603 | LR-R-030D-LS-20-18-NN-N-3-C2BK-A6N-KNB-NNN-NNN | LRR030DLS2018NNN3C2BKA6NKNBNNNNNN |
| 83001552 | LR-R-030D-LS-20-18-NN-N-3-C2RK-A6N-KNB-NNN-NNN | LRR030DLS2018NNN3C2RKA6NKNBNNNNNN |
| 83044456 | LR-R-030D-LS-20-20-NN-J-3-C2RG-A6N-PLB-NNN-NNN | LRR030DLS2020NNJ3C2RGA6NPLBNNNNNN |
| 702200 | LR-R-030D-LS-20-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3C2AGA6NAAANNNNNN |
| 83055707 | LR-R-030D-LS-20-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3C2AGA6NAAANNNNNN |
| 7005112 | LR-R-030D-LS-20-20-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2AGA6NPLBNNNNNN |
| 7005112S | LR-R-030D-LS-20-20-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2AGA6NPLBNNNNNN |
| 80006598 | LR-R-030D-LS-20-20-NN-N-3-C2AK-A6N-KNB-NNN-NNN | LRR030DLS2020NNN3C2AKA6NKNBNNNNNN |
| 701310 | LR-R-030D-LS-20-20-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2BGA6NPLBNNNNNN |
| 701390 | LR-R-030D-LS-20-20-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2BGA6NPLBNNNNNN |
| 7005201 | LR-R-030D-LS-20-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3C2NFA6NAAANNNNNN |
| 7005201S | LR-R-030D-LS-20-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3C2NFA6NAAANNNNNN |
| 7005022 | LR-R-030D-LS-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2NFA6NPLBNNNNNN |
| 7005022S | LR-R-030D-LS-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2NFA6NPLBNNNNNN |
| 83011288 | LR-R-030D-LS-20-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS2020NNN3C2NGA6NKNBNNNNNN |
| 83047372 | LR-R-030D-LS-20-20-NN-N-3-C2NK-A6N-KNB-NNN-NNN | LRR030DLS2020NNN3C2NKA6NKNBNNNNNN |
| 80003162 | LR-R-030D-LS-20-20-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3C2RGA6NAAANNNNNN |
| 7005032 | LR-R-030D-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2RGA6NPLBNNNNNN |
| 7005032S | LR-R-030D-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C2RGA6NPLBNNNNNN |
| 83014860 | LR-R-030D-LS-20-20-NN-N-3-C3AG-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3C3AGA6NAAANNNNNN |
| 83052901 | LR-R-030D-LS-20-20-NN-N-3-C3BG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C3BGA6NPLBNNNNNN |
| 7005026 | LR-R-030D-LS-20-20-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C3NFA6NPLBNNNNNN |
| 7005030 | LR-R-030D-LS-20-20-NN-N-3-C3RG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3C3RGA6NPLBNNNNNN |
| 7005213 | LR-R-030D-LS-20-20-NN-N-3-K1AG-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3K1AGA6NAAANNNNNN |
| 7005213S | LR-R-030D-LS-20-20-NN-N-3-K1AG-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3K1AGA6NAAANNNNNN |
| 7005139 | LR-R-030D-LS-20-20-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3K1NFA6NAAANNNNNN |
| 7005139S | LR-R-030D-LS-20-20-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3K1NFA6NAAANNNNNN |
| 701119 | LR-R-030D-LS-20-20-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3K1NFA6NPLBNNNNNN |
| 83009517 | LR-R-030D-LS-20-20-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3K1NFA6NPLBNNNNNN |
| 83011519 | LR-R-030D-LS-20-20-NN-N-3-K1NG-A6N-KNB-NNN-NNN | LRR030DLS2020NNN3K1NGA6NKNBNNNNNN |
| 83008625 | LR-R-030D-LS-20-20-NN-N-3-K1RG-A6N-AAA-NNN-NNN | LRR030DLS2020NNN3K1RGA6NAAANNNNNN |
| 83053007 | LR-R-030D-LS-20-20-NN-N-3-K1RG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3K1RGA6NPLBNNNNNN |
| 83028629 | LR-R-030D-LS-20-20-NN-N-3-K2BG-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3K2BGA6NPLBNNNNNN |
| 701126 | LR-R-030D-LS-20-20-NN-N-3-K2NF-A6N-PLB-NNN-NNN | LRR030DLS2020NNN3K2NFA6NPLBNNNNNN |
| 7005100 | LR-R-030D-LS-20-28-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2028NNN3C2NFA6NPLBNNNNNN |
| 7005100S | LR-R-030D-LS-20-28-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2028NNN3C2NFA6NPLBNNNNNN |
| 7005110 | LR-R-030D-LS-21-12-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2112NNN3C2NFA6NPLBNNNNNN |
| 7005110S | LR-R-030D-LS-21-12-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2112NNN3C2NFA6NPLBNNNNNN |
| 80005361 | LR-R-030D-LS-21-14-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS2114NNN3C2NGA6NKNBNNNNNN |
| 7005180 | LR-R-030D-LS-21-14-NN-N-3-C2RG-A6N-A95-NNN-NNN | LRR030DLS2114NNN3C2RGA6NA95NNNNNN |
| 7005180S | LR-R-030D-LS-21-14-NN-N-3-C2RG-A6N-A95-NNN-NNN | LRR030DLS2114NNN3C2RGA6NA95NNNNNN |
| 83012123 | LR-R-030D-LS-21-14-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS2114NNN3C2RGA6NAAANNNNNN |
| 83048262 | LR-R-030D-LS-21-14-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DLS2114NNN3C2RGA6NPLBNNNNNN |
| 83039103 | LR-R-030D-LS-21-15-NN-N-3-C2NR-A6N-PLB-NNN-NNN | LRR030DLS2115NNN3C2NRA6NPLBNNNNNN |
| 83057506 | LR-R-030D-LS-21-17-NN-N-3-C3NG-A6N-KNB-NNN-NNN | LRR030DLS2117NNN3C3NGA6NKNBNNNNNN |
| 83025198 | LR-R-030D-LS-21-20-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C2AGA6NPLBNNNNNN |
| 83010820 | LR-R-030D-LS-21-20-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C2BGA6NPLBNNNNNN |
| 7005199 | LR-R-030D-LS-21-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3C2NFA6NAAANNNNNN |
| 7005199S | LR-R-030D-LS-21-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3C2NFA6NAAANNNNNN |
| 7005114 | LR-R-030D-LS-21-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C2NFA6NPLBNNNNNN |
| 7005114S | LR-R-030D-LS-21-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C2NFA6NPLBNNNNNN |
| 7005206 | LR-R-030D-LS-21-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS2120NNN3C2NGA6NKNBNNNNNN |
| 7005206S | LR-R-030D-LS-21-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DLS2120NNN3C2NGA6NKNBNNNNNN |
| 80002926 | LR-R-030D-LS-21-20-NN-N-3-C2NJ-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3C2NJA6NAAANNNNNN |
| 83019133 | LR-R-030D-LS-21-20-NN-N-3-C2NK-A6N-KNB-NNN-NNN | LRR030DLS2120NNN3C2NKA6NKNBNNNNNN |
| 83018972 | LR-R-030D-LS-21-20-NN-N-3-C2NP-A6N-KNB-NNN-NNN | LRR030DLS2120NNN3C2NPA6NKNBNNNNNN |
| 83031465 | LR-R-030D-LS-21-20-NN-N-3-C2NR-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3C2NRA6NAAANNNNNN |
| 83029458 | LR-R-030D-LS-21-20-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3C2RGA6NAAANNNNNN |
| 7005120 | LR-R-030D-LS-21-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C2RGA6NPLBNNNNNN |
| 7005120S | LR-R-030D-LS-21-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C2RGA6NPLBNNNNNN |
| 83075775 | LR-R-030D-LS-21-20-NN-N-3-C3AG-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3C3AGA6NAAANNNNNN |
| 83010488 | LR-R-030D-LS-21-20-NN-N-3-C3AG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C3AGA6NPLBNNNNNN |
| 83011438 | LR-R-030D-LS-21-20-NN-N-3-C3AK-A6N-KNB-NNN-NNN | LRR030DLS2120NNN3C3AKA6NKNBNNNNNN |
| 7005116 | LR-R-030D-LS-21-20-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C3NFA6NPLBNNNNNN |
| 7005116S | LR-R-030D-LS-21-20-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C3NFA6NPLBNNNNNN |
| 7005056 | LR-R-030D-LS-21-20-NN-N-3-C3NG-A6N-KNB-NNN-NNN | LRR030DLS2120NNN3C3NGA6NKNBNNNNNN |
| 7005056S | LR-R-030D-LS-21-20-NN-N-3-C3NG-A6N-KNB-NNN-NNN | LRR030DLS2120NNN3C3NGA6NKNBNNNNNN |
| 83039598 | LR-R-030D-LS-21-20-NN-N-3-C3RG-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3C3RGA6NAAANNNNNN |
| 7005122 | LR-R-030D-LS-21-20-NN-N-3-C3RG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C3RGA6NPLBNNNNNN |
| 7005122S | LR-R-030D-LS-21-20-NN-N-3-C3RG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3C3RGA6NPLBNNNNNN |
| 83011723 | LR-R-030D-LS-21-20-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3K1NFA6NAAANNNNNN |
| 7005115 | LR-R-030D-LS-21-20-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3K1NFA6NPLBNNNNNN |
| 7005115S | LR-R-030D-LS-21-20-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3K1NFA6NPLBNNNNNN |
| 83055482 | LR-R-030D-LS-21-20-NN-N-3-K1RG-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3K1RGA6NAAANNNNNN |
| 7005121 | LR-R-030D-LS-21-20-NN-N-3-K1RG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3K1RGA6NPLBNNNNNN |
| 7005121S | LR-R-030D-LS-21-20-NN-N-3-K1RG-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3K1RGA6NPLBNNNNNN |
| 83010830 | LR-R-030D-LS-21-20-NN-N-3-K2BG-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3K2BGA6NAAANNNNNN |
| 83012294 | LR-R-030D-LS-21-20-NN-N-3-K2NF-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3K2NFA6NAAANNNNNN |
| 7005170 | LR-R-030D-LS-21-20-NN-N-3-K2NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3K2NFA6NPLBNNNNNN |
| 7005170S | LR-R-030D-LS-21-20-NN-N-3-K2NF-A6N-PLB-NNN-NNN | LRR030DLS2120NNN3K2NFA6NPLBNNNNNN |
| 7005246 | LR-R-030D-LS-21-20-NN-N-3-T1NF-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3T1NFA6NAAANNNNNN |
| 7005246S | LR-R-030D-LS-21-20-NN-N-3-T1NF-A6N-AAA-NNN-NNN | LRR030DLS2120NNN3T1NFA6NAAANNNNNN |
| 83070376 | LR-R-030D-LS-21-25-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DLS2125NNN3C2NFA6NAAANNNNNN |
| 7005077 | LR-R-030D-LS-21-28-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DLS2128NNN3K1NFA6NPLBNNNNNN |
| 83056349 | LR-R-030D-LS-21-33-NN-N-3-C2NJ-A6N-PLB-NNN-NNN | LRR030DLS2133NNN3C2NJA6NPLBNNNNNN |
| 83012627 | LR-R-030D-LS-21-36-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DLS2136NNN3C2NFA6NPLBNNNNNN |
| 7005248 | LR-R-030D-PC-10-NN-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DPC10NNNNN3C2AGA6NAAANNNNNN |
| 7005248S | LR-R-030D-PC-10-NN-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DPC10NNNNN3C2AGA6NAAANNNNNN |
| 80004125 | LR-R-030D-PC-10-NN-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DPC10NNNNN3C2BGA6NAAANNNNNN |
| 7005058 | LR-R-030D-PC-10-NN-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DPC10NNNNN3C2BGA6NPLBNNNNNN |
| 7005058S | LR-R-030D-PC-10-NN-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DPC10NNNNN3C2BGA6NPLBNNNNNN |
| 80004126 | LR-R-030D-PC-10-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC10NNNNN3C2NFA6NAAANNNNNN |
| 7005059 | LR-R-030D-PC-10-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC10NNNNN3C2NGA6NKNBNNNNNN |
| 7005059S | LR-R-030D-PC-10-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC10NNNNN3C2NGA6NKNBNNNNNN |
| 83021929 | LR-R-030D-PC-10-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC10NNNNN3C2RGA6NAAANNNNNN |
| 83020193 | LR-R-030D-PC-10-NN-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DPC10NNNNN3K1NFA6NAAANNNNNN |
| 7005145 | LR-R-030D-PC-10-NN-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DPC10NNNNN3K1NFA6NPLBNNNNNN |
| 7005145S | LR-R-030D-PC-10-NN-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DPC10NNNNN3K1NFA6NPLBNNNNNN |
| 7005259 | LR-R-030D-PC-10-NN-NN-N-3-K1NG-A6N-KNB-NNN-NNN | LRR030DPC10NNNNN3K1NGA6NKNBNNNNNN |
| 7005259S | LR-R-030D-PC-10-NN-NN-N-3-K1NG-A6N-KNB-NNN-NNN | LRR030DPC10NNNNN3K1NGA6NKNBNNNNNN |
| 83016899 | LR-R-030D-PC-11-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC11NNNNN3C2NFA6NAAANNNNNN |
| 83038486 | LR-R-030D-PC-13-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC13NNNNN3C2RGA6NAAANNNNNN |
| 83016268 | LR-R-030D-PC-13-NN-NN-N-3-K2NR-A6N-AAA-NNN-NNN | LRR030DPC13NNNNN3K2NRA6NAAANNNNNN |
| 83066713 | LR-R-030D-PC-14-NN-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DPC14NNNNN3C2AGA6NAAANNNNNN |
| 83024843 | LR-R-030D-PC-14-NN-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DPC14NNNNN3C2BGA6NAAANNNNNN |
| 83032679 | LR-R-030D-PC-14-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC14NNNNN3C2NFA6NAAANNNNNN |
| 83024842 | LR-R-030D-PC-14-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC14NNNNN3C2RGA6NAAANNNNNN |
| 83008202 | LR-R-030D-PC-14-NN-NN-N-3-K2BG-A6N-AAA-NNN-NNN | LRR030DPC14NNNNN3K2BGA6NAAANNNNNN |
| 83008229 | LR-R-030D-PC-14-NN-NN-N-3-K2BG-A6N-AAA-NNN-P00 | LRR030DPC14NNNNN3K2BGA6NAAANNNP00 |
| 83092199 | LR-R-030D-PC-15-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC15NNNNN3C2NFA6NAAANNNNNN |
| 83014922 | LR-R-030D-PC-15-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DPC15NNNNN3C2NFA6NPLBNNNNNN |
| 83013844 | LR-R-030D-PC-15-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC15NNNNN3C2NGA6NKNBNNNNNN |
| 702174 | LR-R-030D-PC-16-NN-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DPC16NNNNN3C2AGA6NPLBNNNNNN |
| 83020474 | LR-R-030D-PC-16-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC16NNNNN3C2RGA6NAAANNNNNN |
| 80002815 | LR-R-030D-PC-16-NN-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DPC16NNNNN3C3NFA6NPLBNNNNNN |
| 83040933 | LR-R-030D-PC-16-NN-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DPC16NNNNN3K1NFA6NAAANNNNNN |
| 83025054 | LR-R-030D-PC-17-NN-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DPC17NNNNN3C2AGA6NPLBNNNNNN |
| 83029798 | LR-R-030D-PC-17-NN-NN-N-3-C2AR-A6N-AAA-NNN-NNN | LRR030DPC17NNNNN3C2ARA6NAAANNNNNN |
| 83053199 | LR-R-030D-PC-17-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC17NNNNN3C2NFA6NAAANNNNNN |
| 7005037 | LR-R-030D-PC-17-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DPC17NNNNN3C2NFA6NPLBNNNNNN |
| 7005039 | LR-R-030D-PC-17-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC17NNNNN3C2NGA6NKNBNNNNNN |
| 7005039S | LR-R-030D-PC-17-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC17NNNNN3C2NGA6NKNBNNNNNN |
| 7005231 | LR-R-030D-PC-17-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC17NNNNN3C2RGA6NAAANNNNNN |
| 7005231S | LR-R-030D-PC-17-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC17NNNNN3C2RGA6NAAANNNNNN |
| 83030224 | LR-R-030D-PC-17-NN-NN-N-3-C2TR-A6N-AAA-NNN-NNN | LRR030DPC17NNNNN3C2TRA6NAAANNNNNN |
| 83049008 | LR-R-030D-PC-17-NN-NN-N-3-K2RG-A6N-AAA-NNN-NNN | LRR030DPC17NNNNN3K2RGA6NAAANNNNNN |
| 83005493 | LR-R-030D-PC-18-NN-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DPC18NNNNN3C2AGA6NPLBNNNNNN |
| 83001614 | LR-R-030D-PC-18-NN-NN-N-3-C2NG-A6N-KNB-NNN-GWC | LRR030DPC18NNNNN3C2NGA6NKNBNNNGWC |
| 1701558 | LR-R-030D-PC-18-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC18NNNNN3C2NGA6NKNBNNNNNN |
| 83046135 | LR-R-030D-PC-19-NN-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DPC19NNNNN3C2BGA6NPLBNNNNNN |
| 83045731 | LR-R-030D-PC-19-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC19NNNNN3C2NGA6NKNBNNNNNN |
| 83043025 | LR-R-030D-PC-19-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC19NNNNN3C2RGA6NAAANNNNNN |
| 7005240 | LR-R-030D-PC-20-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC20NNNNN3C2NFA6NAAANNNNNN |
| 7005240S | LR-R-030D-PC-20-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC20NNNNN3C2NFA6NAAANNNNNN |
| 7005028 | LR-R-030D-PC-20-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DPC20NNNNN3C2NFA6NPLBNNNNNN |
| 7005028S | LR-R-030D-PC-20-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DPC20NNNNN3C2NFA6NPLBNNNNNN |
| 7005140 | LR-R-030D-PC-20-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC20NNNNN3C2NGA6NKNBNNNNNN |
| 7005140S | LR-R-030D-PC-20-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC20NNNNN3C2NGA6NKNBNNNNNN |
| 83076266 | LR-R-030D-PC-20-NN-NN-N-3-C2NP-A6N-KNB-NNN-NNN | LRR030DPC20NNNNN3C2NPA6NKNBNNNNNN |
| 80003286 | LR-R-030D-PC-20-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC20NNNNN3C2RGA6NAAANNNNNN |
| 7005178 | LR-R-030D-PC-20-NN-NN-N-3-K1AG-A6N-AAA-NNN-NNN | LRR030DPC20NNNNN3K1AGA6NAAANNNNNN |
| 7005178S | LR-R-030D-PC-20-NN-NN-N-3-K1AG-A6N-AAA-NNN-NNN | LRR030DPC20NNNNN3K1AGA6NAAANNNNNN |
| 7005258 | LR-R-030D-PC-20-NN-NN-N-3-K2NF-A6N-PLB-NNN-NNN | LRR030DPC20NNNNN3K2NFA6NPLBNNNNNN |
| 7005258S | LR-R-030D-PC-20-NN-NN-N-3-K2NF-A6N-PLB-NNN-NNN | LRR030DPC20NNNNN3K2NFA6NPLBNNNNNN |
| 83010094 | LR-R-030D-PC-21-NN-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DPC21NNNNN3C2AGA6NAAANNNNNN |
| 7005172 | LR-R-030D-PC-21-NN-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2AGA6NPLBNNNNNN |
| 7005172S | LR-R-030D-PC-21-NN-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2AGA6NPLBNNNNNN |
| 83037299 | LR-R-030D-PC-21-NN-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2BGA6NPLBNNNNNN |
| 83009522 | LR-R-030D-PC-21-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DPC21NNNNN3C2NFA6NAAANNNNNN |
| 7005104 | LR-R-030D-PC-21-NN-NN-N-3-C2NF-A6N-PLA-NNN-NNN | LRR030DPC21NNNNN3C2NFA6NPLANNNNNN |
| 7005104S | LR-R-030D-PC-21-NN-NN-N-3-C2NF-A6N-PLA-NNN-NNN | LRR030DPC21NNNNN3C2NFA6NPLANNNNNN |
| 7005046 | LR-R-030D-PC-21-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2NFA6NPLBNNNNNN |
| 7005046S | LR-R-030D-PC-21-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2NFA6NPLBNNNNNN |
| 7005065 | LR-R-030D-PC-21-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC21NNNNN3C2NGA6NKNBNNNNNN |
| 7005065S | LR-R-030D-PC-21-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DPC21NNNNN3C2NGA6NKNBNNNNNN |
| 83020029 | LR-R-030D-PC-21-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DPC21NNNNN3C2RGA6NAAANNNNNN |
| 7005130 | LR-R-030D-PC-21-NN-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2RGA6NPLBNNNNNN |
| 7005130S | LR-R-030D-PC-21-NN-NN-N-3-C2RG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2RGA6NPLBNNNNNN |
| 83046043 | LR-R-030D-PC-21-NN-NN-N-3-C2TG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C2TGA6NPLBNNNNNN |
| 80002693 | LR-R-030D-PC-21-NN-NN-N-3-C3AG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C3AGA6NPLBNNNNNN |
| 7005126 | LR-R-030D-PC-21-NN-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C3NFA6NPLBNNNNNN |
| 7005126S | LR-R-030D-PC-21-NN-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C3NFA6NPLBNNNNNN |
| 7005132 | LR-R-030D-PC-21-NN-NN-N-3-C3RG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C3RGA6NPLBNNNNNN |
| 7005132S | LR-R-030D-PC-21-NN-NN-N-3-C3RG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3C3RGA6NPLBNNNNNN |
| 7005136 | LR-R-030D-PC-21-NN-NN-N-3-K1AG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3K1AGA6NPLBNNNNNN |
| 7005136S | LR-R-030D-PC-21-NN-NN-N-3-K1AG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3K1AGA6NPLBNNNNNN |
| 80004332 | LR-R-030D-PC-21-NN-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DPC21NNNNN3K1NFA6NAAANNNNNN |
| 7005054 | LR-R-030D-PC-21-NN-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3K1NFA6NPLBNNNNNN |
| 7005054S | LR-R-030D-PC-21-NN-NN-N-3-K1NF-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3K1NFA6NPLBNNNNNN |
| 83008633 | LR-R-030D-PC-21-NN-NN-N-3-K1RG-A6N-AAA-NNN-NNN | LRR030DPC21NNNNN3K1RGA6NAAANNNNNN |
| 7005131 | LR-R-030D-PC-21-NN-NN-N-3-K1RG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3K1RGA6NPLBNNNNNN |
| 7005131S | LR-R-030D-PC-21-NN-NN-N-3-K1RG-A6N-PLB-NNN-NNN | LRR030DPC21NNNNN3K1RGA6NPLBNNNNNN |
| 83081051 | LR-R-030D-PC-21-NN-NN-N-3-K2AG-A6N-AAA-NNN-NNN | LRR030DPC21NNNNN3K2AGA6NAAANNNNNN |
| 83037298 | LR-R-030D-PC-21-NN-NN-N-3-K2NF-A6N-AAA-NNN-NNN | LRR030DPC21NNNNN3K2NFA6NAAANNNNNN |
| 7005262 | LR-R-030D-RP-10-15-NN-N-3-C2RG-A6N-AAA-NNN-NNN | LRR030DRP1015NNN3C2RGA6NAAANNNNNN |
| 80006593 | LR-R-030D-RP-10-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DRP1020NNN3C2AGA6NAAANNNNNN |
| 80003199 | LR-R-030D-RP-10-20-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DRP1020NNN3C2BGA6NAAANNNNNN |
| 80002657 | LR-R-030D-RP-10-20-NN-N-3-C2NJ-A6N-AAA-NNN-NNN | LRR030DRP1020NNN3C2NJA6NAAANNNNNN |
| 7005186 | LR-R-030D-RP-10-NN-NN-N-3-C2TG-A6N-AAA-NNN-NNN | LRR030DRP10NNNNN3C2TGA6NAAANNNNNN |
| 7005186S | LR-R-030D-RP-10-NN-NN-N-3-C2TG-A6N-AAA-NNN-NNN | LRR030DRP10NNNNN3C2TGA6NAAANNNNNN |
| 83034791 | LR-R-030D-RP-14-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DRP1420NNN3C2NFA6NAAANNNNNN |
| 7005174 | LR-R-030D-RP-14-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DRP1420NNN3C2NGA6NKNBNNNNNN |
| 7005174S | LR-R-030D-RP-14-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN | LRR030DRP1420NNN3C2NGA6NKNBNNNNNN |
| 83046198 | LR-R-030D-RP-16-10-NN-N-3-K1NF-A6N-AAA-NNN-NNN | LRR030DRP1610NNN3K1NFA6NAAANNNNNN |
| 80004812 | LR-R-030D-RP-16-20-NN-N-3-K1NF-A6N-AAA-NNN-P00 | LRR030DRP1620NNN3K1NFA6NAAANNNP00 |
| 80003530 | LR-R-030D-RP-20-20-NN-N-3-C2AG-A6N-PLB-NNN-NNN | LRR030DRP2020NNN3C2AGA6NPLBNNNNNN |
| 83010198 | LR-R-030D-RP-20-20-NN-N-3-C2BG-A6N-PLB-NNN-NNN | LRR030DRP2020NNN3C2BGA6NPLBNNNNNN |
| 83011820 | LR-R-030D-RP-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DRP2020NNN3C2NFA6NPLBNNNNNN |
| 83062848 | LR-R-030D-RP-20-20-NN-N-3-K1NK-A6N-KNB-NNN-NNN | LRR030DRP2020NNN3K1NKA6NKNBNNNNNN |
| 7005253 | LR-R-030D-RP-21-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DRP2120NNN3C2AGA6NAAANNNNNN |
| 7005253S | LR-R-030D-RP-21-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN | LRR030DRP2120NNN3C2AGA6NAAANNNNNN |
| 80002403 | LR-R-030D-RP-21-20-NN-N-3-C2BG-A6N-AAA-NNN-NNN | LRR030DRP2120NNN3C2BGA6NAAANNNNNN |
| 80005898 | LR-R-030D-RP-21-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DRP2120NNN3C2NFA6NAAANNNNNN |
| 83021962 | LR-R-030D-RP-21-21-NN-N-3-C2NF-A6N-AAA-NNN-NNN | LRR030DRP2121NNN3C2NFA6NAAANNNNNN |
| 83054304 | LR-R-030D-RP-21-21-NN-N-3-K2NF-A6N-AAA-NNN-NNN | LRR030DRP2121NNN3K2NFA6NAAANNNNNN |
| 7005106 | LR-R-030D-RP-21-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DRP21NNNNN3C2NFA6NPLBNNNNNN |
| 7005106S | LR-R-030D-RP-21-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN | LRR030DRP21NNNNN3C2NFA6NPLBNNNNNN |
| 7005166 | LR-R-030D-RP-21-NN-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DRP21NNNNN3C3NFA6NPLBNNNNNN |
| 7005166S | LR-R-030D-RP-21-NN-NN-N-3-C3NF-A6N-PLB-NNN-NNN | LRR030DRP21NNNNN3C3NFA6NPLBNNNNNN |
| 11029686 | LR-R-030D-XX-XX-XX-NN-NX-K1RG-A6N-PLB-NNN-P00 | LRR030DXXXXXXNNNXK1RGA6NPLBNNNP00 |
Q1:What is the primary application of the Sauer Danfoss 45 Series LRR030 pump?
A1:It is primarily designed for open-circuit mobile hydraulic systems in machinery like agricultural, construction, and material handling equipment.
Q2:What advanced control options does the LRR030 hydraulic pump commonly offer?
A2: It often incorporates advanced controls such as pressure compensation, load sensing, and proportional electro-hydraulic controls to optimize system efficiency and functionality.
Q3:How to purchase a LRR030 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the LRR030 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
