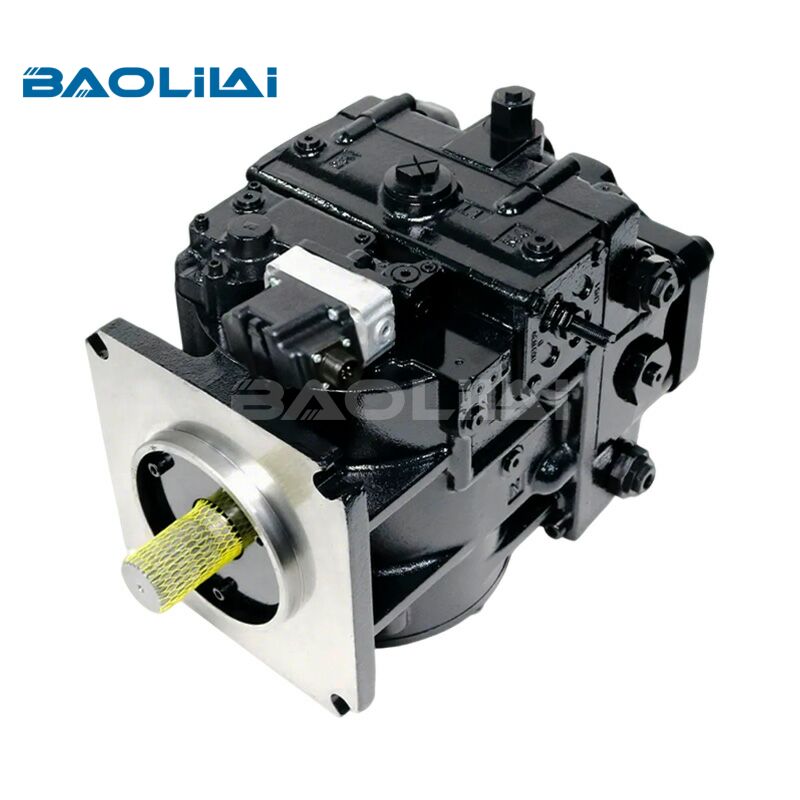

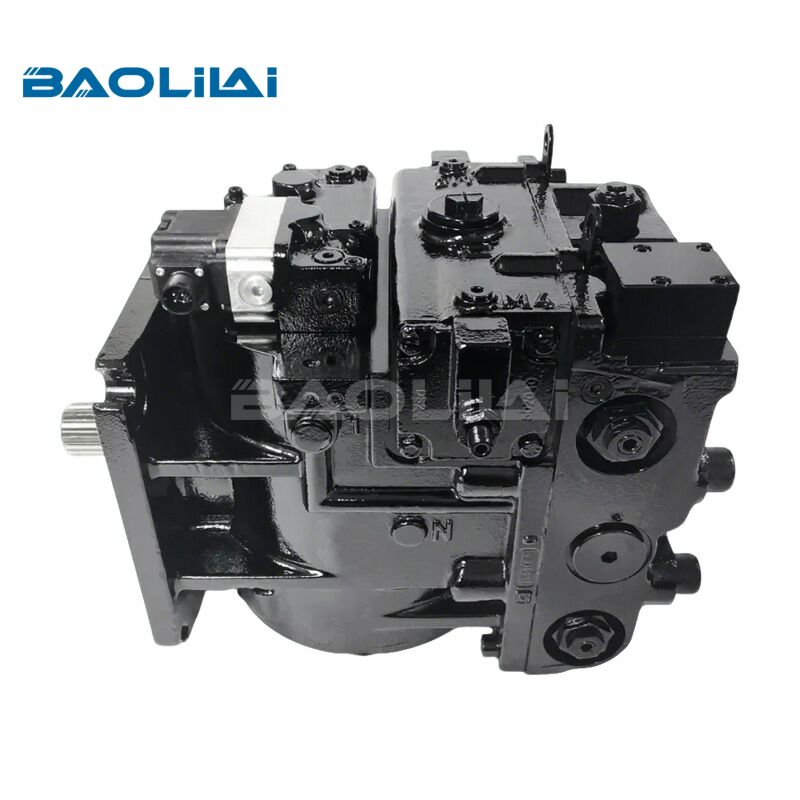

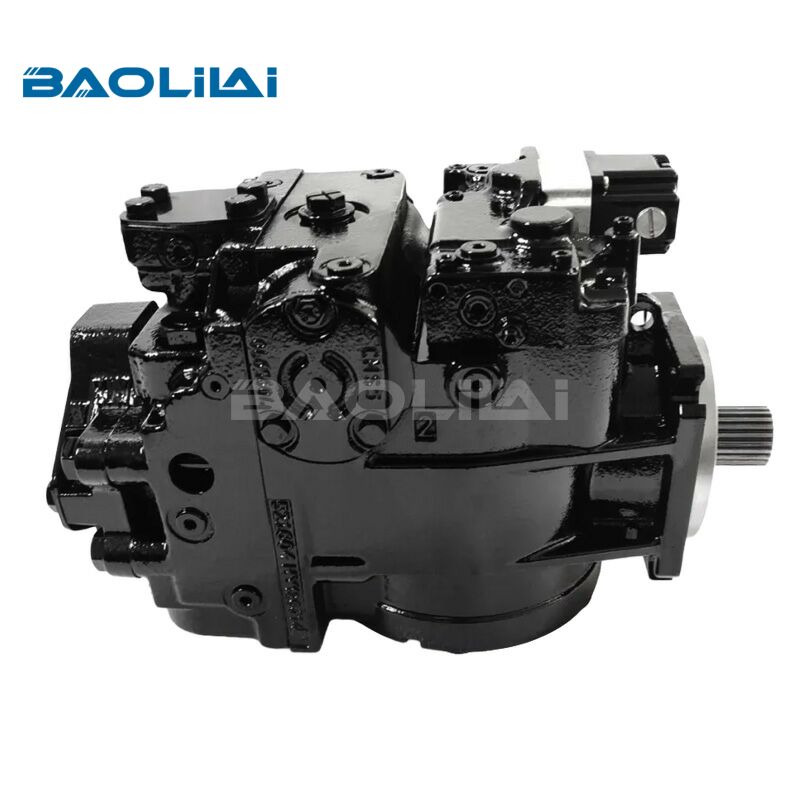

For Sauer danfoss 90L250 variable displacement Hydraulic Pump
SERIES : 90
BRAND : For Sauer Danfoss
Model Size :90L250
Displacement : 250cm3/rev
Speed : 2300rpm
Maximum Pressure : 480bar
Nominal Pressure : 450bar
Download PDF
- Product Details
- Product Model
- FAQ
The Sauer Danfoss 90L250 is a variable displacement axial piston pump designed specifically for heavy-duty mobile equipment applications. Its robust swashplate design provides a reliable and efficient power source for closed-loop hydraulic systems. Key features include high power density, exceptional pressure capability, and smooth, continuous control over flow and pressure output. The pump's variable displacement is typically achieved through a hydraulic or electro-hydraulic control system, allowing for precise matching of output to load demands. This contributes to improved overall machine efficiency, reduced fuel consumption, and minimized heat generation. The 90L250 series is renowned for its durability and is widely used in demanding machinery such as excavators, wheel loaders, and material handling equipment. Its unique construction ensures reliable operation even in harsh working environments.
Specifications
| Feature | Unit | Frame | ||||||
| 042 | 055 | 075 | 100 | 130 | 180 | 250 | ||
| Displacement | cm3/rev. [in3]/rev. |
42 [2.56] |
55 [3.35] |
75 [4.59] |
100 [6.10] |
130 [7.93] |
180 [10.98] |
250 [15.25] |
| Flow at rated speed(theoretical) | l/min. [US gal/min.] |
176 [46] |
215 [57] |
270 [71] |
330 [87] |
403 [106] |
468 [124] |
575 [160] |
| Torque at maximum displacement (theoretical) |
N·m/bar [lbf·in/1000 psi] |
0.67 [410] |
0.88 [530] |
1.19 [730] |
1.59 [970] |
2.07 [1260] |
2.87 [1750] |
3.97 [2433] |
| Mass moment of inertia of rotating components |
kg·m2 [slug·ft2] |
0.0023 [0.0017] |
0.0060 [0.0044] |
0.0096 [0.0071] |
0.0150 [0.0111] |
0.023 [0.0170] |
0.0380 [0.0280] |
0.0650 [0.0479] |
| Minimum Input speed | Min-1(rpm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Rated Input speed | 4200 | 3900 | 3600 | 3300 | 3100 | 2600 | 2300 | |
| Maximum Input speed | 4600 | 4250 | 3950 | 3650 | 3400 | 2850 | 2500 | |
| Weight(with control opt.MA) | kg[lb] | 34[75] | 40[88] | 49[108] | 68[150] | 88[195] | 136[300] | 154[340] |
| Mounting(per ISO 3019-1) | Flange 102-2(SAE B) |
Flange 127-4(SAE C) |
Flange 152-4(SAE D) |
Flange 165-4(SAE E) |
||||
| Rotation | Right hand or Left hand rotation | |||||||
| Main ports: 4-bolt split-flange (per SAE J518 code 62) |
mm [in] |
19.05 [0.75] |
25.4 [1.0] |
25.4 [1.0] |
25.4 [1.0] |
31.75 [1.25] |
31.75 [1.25] |
38.1 [1.5] |
| Main port configuration | Twin port | Twin or side port | Twin port | |||||
| Case drain ports(SAE O-ring boss) | UNF thread (in.) |
0.875-14 | 1.0625-12 | 1.0625-12 | 1.0625-12 | 1.3125-12 | 1.625-12 | 1.625-12 |
| Other ports | SAE O-ring boss | |||||||
| Shafts | Splined, and tapered shafts available | |||||||
| Auxiliary mounting | SAE-A,B,C | SAE-A,B,C,D | SAE-A,B,C,D,E | |||||
| System pressure | Maximum working pressure | bar | [psi] | 450 | [6525] |
| Maximum pressure | 480 | [6960] | |||
| Maximum low loop | 45 | [650] | |||
| Minimum low loop pressure | 10 | [145] | |||
| Charge pressure | Minimum | bar | [psi] | 18 | [261] |
| Maximum | 34 | [493] | |||
| Control pressure | Minimum (at corner power for EDC and FNR) | bar | [psi] | 14 | [203] |
| Minimum (at corner power for NFPE) | 22 | [319] | |||
| Maximum | 40 | [580] | |||
| Charge pump inlet pressure | Rated | bar (absolute) | [in Hg vacuum] | 0.7 | [9] |
| Minimum (cold start) | 0.2 | [24] | |||
| Maximum | bar | [psi] | 4.0 | [58] | |
| Case pressure | Rated | bar | [psi] | 3.0 | [44] |
| Maximum | 5.0 | [73] | |||
| Lip seal external pressure | Maximum | bar | [psi] | 0.4 | [5.8] |

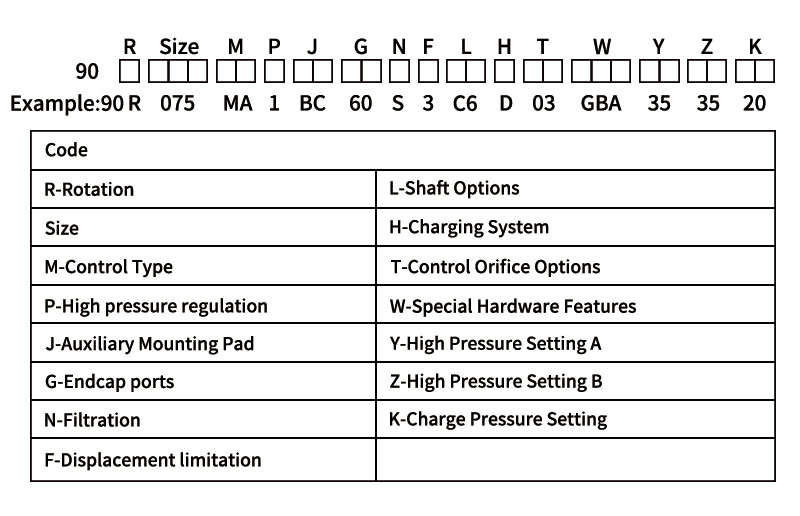

Selection Table
| 90L250 Closed Axial Piston Hydraulic Pump | ||
| Model No. | Model Code | Model Code |
| 508359 | 90L250-CB-5-NN-80-S-3-C8-K-00-NNN-42-42-24-G005 | 90L250CB5NN80S3C8K00NNN424224G005 |
| 83067709 | 90L250-DD-5-NN-80-T-4-C8-J-GB-NNN-26-26-24 | 90L250DD5NN80T4C8JGBNNN262624 |
| 83013792 | 90L250-DD-5-NN-80-T-4-C8-K-G8-NNN-30-30-24 | 90L250DD5NN80T4C8KG8NNN303024 |
| 83033453 | 90L250-HF-1-BC-80-D-4-F1-L-03-NNN-38-38-28 | 90L250HF1BC80D4F1L03NNN383828 |
| 83025053 | 90L250-HF-1-CD-80-D-4-F1-J-03-NNN-38-38-24 | 90L250HF1CD80D4F1J03NNN383824 |
| 83090199 | 90L250-HF-1-CD-80-T-3-F1-K-00-NNN-35-35-24 | 90L250HF1CD80T3F1K00NNN353524 |
| 83081180 | 90L250-HF-1-CD-80-T-4-F1-J-03-NNN-38-38-24 | 90L250HF1CD80T4F1J03NNN383824 |
| 9920120 | 90-L-250-HF-1-DE-80-S-3-C8-K-03-NNN-35-35-24 | 90L250HF1DE80S3C8K03NNN353524 |
| 83069181 | 90L250-HF-1-NN-80-T-3-C8-K-03-NNN-26-26-24 | 90L250HF1NN80T3C8K03NNN262624 |
| 9920118 | 90-L-250-HF-1-NN-80-T-3-F1-K-03-NNN-32-32-24 | 90L250HF1NN80T3F1K03NNN323224 |
| 83048908 | 90-L-250-HF-1-NN-80-T-4-C8-J-03-NNN-17-26-20 | 90L250HF1NN80T4C8J03NNN172620 |
| 83048856 | 90L250-HF-1-NN-80-T-4-C8-J-03-NNN-17-26-20-F045 | 90L250HF1NN80T4C8J03NNN172620F045 |
| 9920132 | 90L250-HF-1-NN-80-T-4-C8-K-03-NNN-20-20-24 | 90L250HF1NN80T4C8K03NNN202024 |
| 83036342 | 90L250-HF-1-NN-80-T-4-F1-J-03-NNN-42-42-24 | 90L250HF1NN80T4F1J03NNN424224 |
| 83013845 | 90L250-HF-1-NN-80-T-4-F1-K-00-NNN-42-42-24 | 90L250HF1NN80T4F1K00NNN424224 |
| 83020461 | 90L250-HF-1-NN-80-T-4-F1-K-03-NNN-42-42-24 | 90L250HF1NN80T4F1K03NNN424224 |
| 83009276 | 90L250-HF-2-NN-80-S-3-C8-K-00-NNN-38-38-28 | 90L250HF2NN80S3C8K00NNN383828 |
| 80001111 | 90L250-HF-5-AB-80-S-4-C8-K-03-NNN-42-42-24 | 90L250HF5AB80S4C8K03NNN424224 |
| 83058085 | 90L250-HF-5-AB-80-S-4-F1-J-03-GLA-32-32-30 | 90L250HF5AB80S4F1J03GLA323230 |
| 83049282 | 90L250-HF-5-AB-80-S-4-F1-J-03-NNN-35-35-30 | 90L250HF5AB80S4F1J03NNN353530 |
| 83045015 | 90L250-HF-5-AB-80-S-4-F1-J-03-NNN-38-38-30 | 90L250HF5AB80S4F1J03NNN383830 |
| 83083273 | 90L250-HF-5-AB-80-T-4-F1-K-03-NNN-35-35-24 | 90L250HF5AB80T4F1K03NNN353524 |
| 83070305 | 90L250-HF-5-BB-80-T-3-C8-J-03-NNN-35-35-24 | 90L250HF5BB80T3C8J03NNN353524 |
| 83024222 | 90L250-HF-5-BC-80-D-4-F1-L-03-NNN-35-35-30 | 90L250HF5BC80D4F1L03NNN353530 |
| 83027833 | 90L250-HF-5-BC-80-S-4-C8-J-03-NNN-42-42-24 | 90L250HF5BC80S4C8J03NNN424224 |
| 701642 | 90L250-HF-5-BC-80-T-4-C8-K-03-NNN-35-35-24 | 90L250HF5BC80T4C8K03NNN353524 |
| 83023392 | 90L250-HF-5-BC-80-T-4-F1-J-00-NNN-26-26-24 | 90L250HF5BC80T4F1J00NNN262624 |
| 80000672 | 90L250-HF-5-BC-80-T-4-F1-K-03-NNN-14-42-20 | 90L250HF5BC80T4F1K03NNN144220 |
| 80000722 | 90-L-250-HF-5-BC-80-T-4-F1-K-03-NNN-14-42-20-F056 | 90L250HF5BC80T4F1K03NNN144220F056 |
| 83002968 | 90L250-HF-5-BC-80-T-4-F1-K-04-NNN-42-42-24 | 90L250HF5BC80T4F1K04NNN424224 |
| 80003507 | 90L250-HF-5-CD-80-S-3-F1-J-03-NNN-23-23-24 | 90L250HF5CD80S3F1J03NNN232324 |
| 83043113 | 90L250-HF-5-CD-80-T-3-C8-K-03-NNN-35-35-24 | 90L250HF5CD80T3C8K03NNN353524 |
| 80003440 | 90L250-HF-5-EF-80-S-4-C8-J-03-NNN-23-23-24 | 90L250HF5EF80S4C8J03NNN232324 |
| 83016928 | 90L250-HF-5-EG-80-T-4-C8-K-03-NNN-38-38-28 | 90L250HF5EG80T4C8K03NNN383828 |
| 80000985 | 90L250-HF-5-NN-80-S-3-C8-K-03-NNN-35-35-24 | 90L250HF5NN80S3C8K03NNN353524 |
| 702343 | 90L250-HF-5-NN-80-S-4-C8-K-03-NNN-35-35-24 | 90L250HF5NN80S4C8K03NNN353524 |
| 83033738 | 90L250-HF-5-NN-80-T-3-F1-J-03-NNN-42-42-24 | 90L250HF5NN80T3F1J03NNN424224 |
| 83017146 | 90L250-HF-5-NN-80-T-3-F1-K-03-NNN-35-35-20 | 90L250HF5NN80T3F1K03NNN353520 |
| 80000588 | 90L250-HF-5-NN-80-T-4-F1-K-03-NNN-14-42-20 | 90L250HF5NN80T4F1K03NNN144220 |
| 83017649 | 90L250-HF-5-NN-80-T-4-F1-K-03-NNN-21-21-24 | 90L250HF5NN80T4F1K03NNN212124 |
| 83016578 | 90L250-HF-5-NN-80-T-4-F1-K-03-NNN-35-35-24 | 90L250HF5NN80T4F1K03NNN353524 |
| 83053529 | 90L250-HF-5-NN-80-T-4-F1-K-03-NNN-35-35-28 | 90L250HF5NN80T4F1K03NNN353528 |
| 83003800 | 90L250-HF-5-NN-80-T-4-F1-K-03-NNN-42-42-24 | 90L250HF5NN80T4F1K03NNN424224 |
| 83019110 | 90L250-HS-1-AB-80-T-4-C8-K-03-NNN-35-16-30 | 90L250HS1AB80T4C8K03NNN351630 |
| 83045261 | 90L250-HS-1-BB-80-S-4-C8-K-03-NNN-35-16-30 | 90L250HS1BB80S4C8K03NNN351630 |
| 83048841 | 90L250-HS-1-BC-80-T-4-C8-K-03-NNN-23-23-26 | 90L250HS1BC80T4C8K03NNN232326 |
| 11064284 | 90-L-250-HS-1-CD-80-S-3-F1-J-03-NNN-35-35-28 | 90L250HS1CD80S3F1J03NNN353528 |
| 504484 | 90-L-250-HS-1-CD-80-T-4-F1-J-05-NNN-42-42-24-F001 | 90L250HS1CD80T4F1J05NNN424224F001 |
| 83094108 | 90L250-HS-1-EF-80-T-4-C8-J-03-NNN-26-26-24 | 90L250HS1EF80T4C8J03NNN262624 |
| 83073563 | 90L250-HS-5-AB-80-T-3-C8-K-03-NNN-38-38-28 | 90L250HS5AB80T3C8K03NNN383828 |
| 83006593 | 90L250-HS-5-AB-80-T-4-F1-J-03-NNN-45-42-24 | 90L250HS5AB80T4F1J03NNN454224 |
| 11118056 | 90-L-250-HS-5-BC-80-S-4-F1-K-03-NNN-42-42-24 | 90L250HS5BC80S4F1K03NNN424224 |
| 83052963 | 90-L-250-HS-5-BC-80-S-4-F1-K-03-NNN-42-42-24 | 90L250HS5BC80S4F1K03NNN424224 |
| 83018101 | 90L250-HS-5-CD-80-T-3-C8-K-03-NNN-42-42-28 | 90L250HS5CD80T3C8K03NNN424228 |
| 83018112 | 90L250-HS-5-EF-80-T-3-C8-K-03-NNN-42-42-28 | 90L250HS5EF80T3C8K03NNN424228 |
| 83073287 | 90L250-HS-5-EG-80-T-3-C8-K-03-NNN-29-29-28 | 90L250HS5EG80T3C8K03NNN292928 |
| 83077817 | 90L250-HS-5-EG-80-T-3-C8-K-03-NNN-35-35-28 | 90L250HS5EG80T3C8K03NNN353528 |
| 83017454 | 90L250-HS-5-EG-80-T-4-C8-J-03-NNN-23-23-24 | 90L250HS5EG80T4C8J03NNN232324 |
| 83006592 | 90L250-HS-5-NN-80-T-4-F1-J-03-NNN-42-42-24 | 90L250HS5NN80T4F1J03NNN424224 |
| 83059328 | 90L250-K7-1-NN-80-S-4-C8-J-00-NNN-26-26-24 | 90L250K71NN80S4C8J00NNN262624 |
| 517865 | 90L250-KA-1-AB-80-S-3-C8-J-04-EEB-38-38-28 | 90L250KA1AB80S3C8J04EEB383828 |
| 83073381 | 90L250-KA-1-AB-80-T-3-F1-J-03-NNN-35-35-24 | 90L250KA1AB80T3F1J03NNN353524 |
| 83011597 | 90L250-KA-1-AB-80-T-4-F1-K-03-NNN-20-20-24 | 90L250KA1AB80T4F1K03NNN202024 |
| 83034766 | 90L250-KA-1-BC-80-D-4-F1-L-03-NNN-38-38-28 | 90L250KA1BC80D4F1L03NNN383828 |
| 83076142 | 90L250-KA-1-BC-80-T-3-C8-K-03-NNN-38-38-28 | 90L250KA1BC80T3C8K03NNN383828 |
| 9920129 | 90L250-KA-1-BC-80-T-4-C8-K-03-NNN-26-26-24 | 90L250KA1BC80T4C8K03NNN262624 |
| 83016280 | 90L250-KA-1-BC-80-T-4-C8-K-03-NNN-35-35-30 | 90L250KA1BC80T4C8K03NNN353530 |
| 9920100 | 90L250-KA-1-BC-80-T-4-C8-K-03-NNN-42-42-24 | 90L250KA1BC80T4C8K03NNN424224 |
| 9920111 | 90L250-KA-1-BC-80-T-4-F1-K-03-NNN-23-23-24 | 90L250KA1BC80T4F1K03NNN232324 |
| 9920112 | 90L250-KA-1-BC-80-T-4-F1-K-03-NNN-26-26-24 | 90L250KA1BC80T4F1K03NNN262624 |
| 83024932 | 90L250-KA-1-CD-80-D-4-C8-L-03-NNN-35-35-30 | 90L250KA1CD80D4C8L03NNN353530 |
| 83020789 | 90L250-KA-1-CD-80-D-4-C8-L-03-NNN-42-16-30 | 90L250KA1CD80D4C8L03NNN421630 |
| 83015380 | 90L250-KA-1-CD-80-S-3-C8-J-04-NNN-38-38-28 | 90L250KA1CD80S3C8J04NNN383828 |
| 510914 | 90-L-250-KA-1-CD-80-S-3-C8-J-04-NNN-38-38-28 | 90L250KA1CD80S3C8J04NNN383828 |
| 511807 | 90-L-250-KA-1-CD-80-S-3-C8-K-00-NNN-42-42-24 | 90L250KA1CD80S3C8K00NNN424224 |
| 83018859 | 90L250-KA-1-CD-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KA1CD80T3C8K03NNN353524 |
| 83093181 | 90L250-KA-1-CD-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KA1CD80T3C8K03NNN353524 |
| 83016888 | 90L250-KA-1-CD-80-T-4-C8-K-03-NNN-35-16-30 | 90L250KA1CD80T4C8K03NNN351630 |
| 83056017 | 90L250-KA-1-CD-80-T-4-C8-K-03-NNN-35-35-24 | 90L250KA1CD80T4C8K03NNN353524 |
| 83018154 | 90L250-KA-1-CD-80-T-4-C8-K-03-NNN-35-35-30 | 90L250KA1CD80T4C8K03NNN353530 |
| 9920116 | 90-L-250-KA-1-CD-80-T-4-F1-J-03-NNN-42-42-24 | 90L250KA1CD80T4F1J03NNN424224 |
| 508993 | 90-L-250-KA-1-DE-80-T-3-C8-K-03-NNN-32-32-24 | 90L250KA1DE80T3C8K03NNN323224 |
| 83016887 | 90L250-KA-1-DE-80-T-4-C8-K-03-NNN-35-16-30 | 90L250KA1DE80T4C8K03NNN351630 |
| 83037930 | 90L250-KA-1-EF-80-D-4-C8-L-03-NNN-42-16-30 | 90L250KA1EF80D4C8L03NNN421630 |
| 83032138 | 90L250-KA-1-EG-80-T-3-C8-K-03-NNN-35-35-20 | 90L250KA1EG80T3C8K03NNN353520 |
| 83016841 | 90L250-KA-1-EG-80-T-4-C8-J-02-NNN-35-35-24 | 90L250KA1EG80T4C8J02NNN353524 |
| 83016886 | 90L250-KA-1-EG-80-T-4-C8-K-03-NNN-35-35-30 | 90L250KA1EG80T4C8K03NNN353530 |
| 507495 | 90L250-KA-1-NN-80-S-3-C8-K-03-GCP-32-32-28-E059 | 90L250KA1NN80S3C8K03GCP323228E059 |
| 509988 | 90L250-KA-1-NN-80-S-3-C8-K-03-NNN-23-23-28 | 90L250KA1NN80S3C8K03NNN232328 |
| 83035636 | 90L250-KA-1-NN-80-S-3-C8-K-04-NNN-35-35-24 | 90L250KA1NN80S3C8K04NNN353524 |
| 11064283 | 90-L-250-KA-1-NN-80-S-3-F1-J-03-NNN-35-35-28 | 90L250KA1NN80S3F1J03NNN353528 |
| 9920110 | 90L250-KA-1-NN-80-S-4-F1-J-03-NNN-32-32-24 | 90L250KA1NN80S4F1J03NNN323224 |
| 83032139 | 90L250-KA-1-NN-80-T-3-C8-K-03-NNN-35-35-20 | 90L250KA1NN80T3C8K03NNN353520 |
| 9920121 | 90-L-250-KA-1-NN-80-T-3-F1-K-03-NNN-29-29-24 | 90L250KA1NN80T3F1K03NNN292924 |
| 83009196 | 90L250-KA-1-NN-80-T-4-F1-K-03-NNN-20-20-24 | 90L250KA1NN80T4F1K03NNN202024 |
| 83004072 | 90L250-KA-2-BC-80-T-3-C8-K-00-NNN-35-35-24 | 90L250KA2BC80T3C8K00NNN353524 |
| 80000456 | 90L250-KA-2-CD-80-S-3-C8-K-K3-NNN-26-26-24 | 90L250KA2CD80S3C8KK3NNN262624 |
| 83051476 | 90L250-KA-2-CD-80-S-3-C8-K-K3-NNN-30-30-24 | 90L250KA2CD80S3C8KK3NNN303024 |
| 80001238 | 90L250-KA-2-NN-80-S-3-C8-K-00-NNN-38-38-28 | 90L250KA2NN80S3C8K00NNN383828 |
| 83020638 | 90L250-KA-2-NN-80-S-3-F1-J-00-NNN-45-45-28 | 90L250KA2NN80S3F1J00NNN454528 |
| 80000751 | 90L250-KA-2-NN-80-T-3-F1-J-03-NNN-42-42-24 | 90L250KA2NN80T3F1J03NNN424224 |
| 700498 | 90-L-250-KA-5-AB-80-S-3-C8-K-02-NNN-26-26-28 | 90L250KA5AB80S3C8K02NNN262628 |
| 83023913 | 90L250-KA-5-AB-80-S-3-C8-K-03-EFI-42-42-24 | 90L250KA5AB80S3C8K03EFI424224 |
| 702072 | 90L250-KA-5-AB-80-T-3-C8-J-04-NNN-42-42-24 | 90L250KA5AB80T3C8J04NNN424224 |
| 515719 | 90L250-KA-5-AB-80-T-3-F1-K-03-NNN-35-35-28 | 90L250KA5AB80T3F1K03NNN353528 |
| 80000608 | 90L250-KA-5-AB-80-T-3-F1-K-03-NNN-42-42-24 | 90L250KA5AB80T3F1K03NNN424224 |
| 83002277 | 90-L-250-KA-5-AB-80-T-4-C8-J-03-NNN-23-23-24 | 90L250KA5AB80T4C8J03NNN232324 |
| 83020753 | 90L250-KA-5-AB-80-T-4-C8-J-03-NNN-32-32-24 | 90L250KA5AB80T4C8J03NNN323224 |
| 83091890 | 90L250-KA-5-AB-80-T-4-C8-J-03-NNN-32-32-24 | 90L250KA5AB80T4C8J03NNN323224 |
| 83002278 | 90L250-KA-5-AB-80-T-4-C8-J-05-NNN-23-23-24 | 90L250KA5AB80T4C8J05NNN232324 |
| 83001564 | 90-L-250-KA-5-AB-80-T-4-F1-K-03-NNN-20-20-22 | 90L250KA5AB80T4F1K03NNN202022 |
| 80006033 | 90L250-KA-5-AB-80-T-4-F1-K-03-NNN-21-21-28 | 90L250KA5AB80T4F1K03NNN212128 |
| 701462 | 90L250-KA-5-BB-80-S-3-C8-J-03-NNN-26-26-24 | 90L250KA5BB80S3C8J03NNN262624 |
| 83005290 | 90L250-KA-5-BC-80-D-3-C8-L-03-NNN-35-35-24 | 90L250KA5BC80D3C8L03NNN353524 |
| 83004587 | 90L250-KA-5-BC-80-D-3-F1-L-03-NNN-42-42-20 | 90L250KA5BC80D3F1L03NNN424220 |
| 83022155 | 90L250-KA-5-BC-80-S-3-C8-J-05-NNN-42-42-24 | 90L250KA5BC80S3C8J05NNN424224 |
| 83006100 | 90L250-KA-5-BC-80-S-3-C8-K-00-NNN-35-14-30-G005 | 90L250KA5BC80S3C8K00NNN351430G005 |
| 83068825 | 90L250-KA-5-BC-80-S-3-C8-K-03-NNN-29-29-30 | 90L250KA5BC80S3C8K03NNN292930 |
| 701721 | 90L250-KA-5-BC-80-S-3-C8-K-03-NNN-32-32-28 | 90L250KA5BC80S3C8K03NNN323228 |
| 80001855 | 90L250-KA-5-BC-80-S-3-C8-K-03-NNN-42-42-24 | 90L250KA5BC80S3C8K03NNN424224 |
| 83008133 | 90-L-250-KA-5-BC-80-S-3-F1-J-03-NNN-20-20-24 | 90L250KA5BC80S3F1J03NNN202024 |
| 80000479 | 90L250-KA-5-BC-80-S-3-F1-K-00-NNN-35-14-30 | 90L250KA5BC80S3F1K00NNN351430 |
| 83041655 | 90L250-KA-5-BC-80-S-4-C8-J-05-NNN-42-42-24 | 90L250KA5BC80S4C8J05NNN424224 |
| 80006019 | 90-L-250-KA-5-BC-80-S-4-F1-J-03-NNN-35-35-24 | 90L250KA5BC80S4F1J03NNN353524 |
| 83002269 | 90-L-250-KA-5-BC-80-S-4-F1-J-03-NNN-42-42-24 | 90L250KA5BC80S4F1J03NNN424224 |
| 83085276 | 90L250-KA-5-BC-80-T-3-C8-J-03-NNN-38-38-26 | 90L250KA5BC80T3C8J03NNN383826 |
| 80001450 | 90L250-KA-5-BC-80-T-3-C8-K-03-NNN-38-38-24 | 90L250KA5BC80T3C8K03NNN383824 |
| 80001184 | 90L250-KA-5-BC-80-T-3-F1-K-03-NNN-38-38-24 | 90L250KA5BC80T3F1K03NNN383824 |
| 83021093 | 90L250-KA-5-BC-80-T-3-F1-K-06-NNN-38-38-24 | 90L250KA5BC80T3F1K06NNN383824 |
| 83055166 | 90L250-KA-5-BC-80-T-4-C8-K-03-NNN-32-32-30 | 90L250KA5BC80T4C8K03NNN323230 |
| 83006528 | 90L250-KA-5-BC-80-T-4-C8-K-03-NNN-35-35-30 | 90L250KA5BC80T4C8K03NNN353530 |
| 80002580 | 90L250-KA-5-BC-80-T-4-F1-K-03-NNN-26-26-24 | 90L250KA5BC80T4F1K03NNN262624 |
| 83054714 | 90L250-KA-5-CD-80-S-3-C8-J-03-NNN-42-42-24 | 90L250KA5CD80S3C8J03NNN424224 |
| 700862 | 90-L-250-KA-5-CD-80-S-3-C8-K-00-NNN-35-35-24 | 90L250KA5CD80S3C8K00NNN353524 |
| 83005304 | 90L250-KA-5-CD-80-S-3-C8-K-02-NNN-32-32-24 | 90L250KA5CD80S3C8K02NNN323224 |
| 83014097 | 90L250-KA-5-CD-80-S-3-C8-K-03-EFI-42-42-24 | 90L250KA5CD80S3C8K03EFI424224 |
| 83062160 | 90L250-KA-5-CD-80-S-3-C8-K-05-NNN-26-26-24 | 90L250KA5CD80S3C8K05NNN262624 |
| 701007 | 90L250-KA-5-CD-80-S-3-F1-K-00-NNN-35-14-30 | 90L250KA5CD80S3F1K00NNN351430 |
| 701006 | 90L250-KA-5-CD-80-S-3-F1-K-00-NNN-35-35-24 | 90L250KA5CD80S3F1K00NNN353524 |
| 80002672 | 90L250-KA-5-CD-80-S-4-C8-K-03-NNN-35-35-24 | 90L250KA5CD80S4C8K03NNN353524 |
| 83011617 | 90L250-KA-5-CD-80-S-4-C8-K-04-NNN-42-42-24 | 90L250KA5CD80S4C8K04NNN424224 |
| 80001281 | 90L250-KA-5-CD-80-S-4-C8-L-03-NNN-42-16-30 | 90L250KA5CD80S4C8L03NNN421630 |
| 83085275 | 90L250-KA-5-CD-80-T-3-C8-J-03-NNN-38-38-26 | 90L250KA5CD80T3C8J03NNN383826 |
| 83054764 | 90L250-KA-5-CD-80-T-3-C8-J-03-NNN-42-42-24 | 90L250KA5CD80T3C8J03NNN424224 |
| 83001132 | 90L250-KA-5-CD-80-T-3-C8-K-03-EHA-35-35-24 | 90L250KA5CD80T3C8K03EHA353524 |
| 80003827 | 90L250-KA-5-CD-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KA5CD80T3C8K03NNN353524 |
| 601954 | 90L250-KA-5-CD-80-T-3-C8-K-03-NNN-42-42-24 | 90L250KA5CD80T3C8K03NNN424224 |
| 9920142 | 90-L-250-KA-5-CD-80-T-3-C8-K-03-NNN-42-42-24 | 90L250KA5CD80T3C8K03NNN424224 |
| 83021081 | 90L250-KA-5-CD-80-T-3-C8-K-06-NNN-35-35-24 | 90L250KA5CD80T3C8K06NNN353524 |
| 80000995 | 90L250-KA-5-CD-80-T-3-F1-K-03-NNN-35-35-24 | 90L250KA5CD80T3F1K03NNN353524 |
| 83053774 | 90L250-KA-5-CD-80-T-3-F1-K-03-NNN-42-42-24 | 90L250KA5CD80T3F1K03NNN424224 |
| 9920137 | 90L250-KA-5-CD-80-T-4-F1-J-05-NNN-38-38-24 | 90L250KA5CD80T4F1J05NNN383824 |
| 516533 | 90L250-KA-5-CD-XX-S-3-C8-J-03-GCX-38-38-28 | 90L250KA5CDXXS3C8J03GCX383828 |
| 700499 | 90-L-250-KA-5-DE-80-S-3-C8-K-02-NNN-26-26-28 | 90L250KA5DE80S3C8K02NNN262628 |
| 83018014 | 90L250-KA-5-DE-80-S-3-C8-K-03-NNN-42-42-24 | 90L250KA5DE80S3C8K03NNN424224 |
| 80004085 | 90L250-KA-5-DE-80-T-3-C8-K-03-NNN-32-32-24 | 90L250KA5DE80T3C8K03NNN323224 |
| 80001441 | 90L250-KA-5-EF-80-S-3-C8-K-00-NNN-35-14-30 | 90L250KA5EF80S3C8K00NNN351430 |
| 80002323 | 90L250-KA-5-EF-80-S-4-C8-L-03-NNN-42-16-30 | 90L250KA5EF80S4C8L03NNN421630 |
| 83073857 | 90L250-KA-5-EF-80-T-4-F1-K-03-NNN-20-20-24 | 90L250KA5EF80T4F1K03NNN202024 |
| 80000235 | 90L250-KA-5-EG-80-S-3-C8-K-00-EFI-42-42-28 | 90L250KA5EG80S3C8K00EFI424228 |
| 83006099 | 90L250-KA-5-EG-80-S-3-C8-K-00-NNN-35-14-30-G005 | 90L250KA5EG80S3C8K00NNN351430G005 |
| 83001134 | 90L250-KA-5-EG-80-S-3-C8-K-03-NNN-35-35-24 | 90L250KA5EG80S3C8K03NNN353524 |
| 80001160 | 90L250-KA-5-EG-80-S-3-C8-K-03-NNN-42-42-24 | 90L250KA5EG80S3C8K03NNN424224 |
| 83024742 | 90L250-KA-5-EG-80-S-4-C8-J-03-NNN-30-30-24 | 90L250KA5EG80S4C8J03NNN303024 |
| 700683 | 90-L-250-KA-5-EG-80-T-3-C8-J-03-NNN-35-35-24 | 90L250KA5EG80T3C8J03NNN353524 |
| 83036258 | 90L250-KA-5-EG-80-T-3-C8-K-03-NNN-26-26-24 | 90L250KA5EG80T3C8K03NNN262624 |
| 83053581 | 90L250-KA-5-EG-80-T-4-C8-J-03-NNN-26-26-24 | 90L250KA5EG80T4C8J03NNN262624 |
| 80001316 | 90L250-KA-5-NN-80-S-3-C8-K-03-GLA-35-35-36 | 90L250KA5NN80S3C8K03GLA353536 |
| 701362 | 90L250-KA-5-NN-80-S-3-C8-K-03-NNN-30-30-24 | 90L250KA5NN80S3C8K03NNN303024 |
| 80004920 | 90L250-KA-5-NN-80-S-3-C8-K-03-NNN-32-32-24 | 90L250KA5NN80S3C8K03NNN323224 |
| 701723 | 90L250-KA-5-NN-80-S-3-C8-K-03-NNN-32-32-28 | 90L250KA5NN80S3C8K03NNN323228 |
| 700655 | 90L250-KA-5-NN-80-S-3-C8-K-03-NNN-35-35-24 | 90L250KA5NN80S3C8K03NNN353524 |
| 700848 | 90L250-KA-5-NN-80-S-3-C8-K-03-NNN-42-42-24 | 90L250KA5NN80S3C8K03NNN424224 |
| 83038013 | 90L250-KA-5-NN-80-S-3-F1-J-00-NNN-42-42-24 | 90L250KA5NN80S3F1J00NNN424224 |
| 83053522 | 90L250-KA-5-NN-80-S-3-F1-J-03-NNN-35-35-24 | 90L250KA5NN80S3F1J03NNN353524 |
| 83030335 | 90L250-KA-5-NN-80-S-3-F1-J-03-NNN-42-42-24 | 90L250KA5NN80S3F1J03NNN424224 |
| 83006858 | 90L250-KA-5-NN-80-S-3-F1-K-03-NNN-35-35-24 | 90L250KA5NN80S3F1K03NNN353524 |
| 80002710 | 90L250-KA-5-NN-80-S-4-C8-J-03-NNN-26-26-24 | 90L250KA5NN80S4C8J03NNN262624 |
| 83024743 | 90L250-KA-5-NN-80-S-4-C8-J-03-NNN-30-30-24 | 90L250KA5NN80S4C8J03NNN303024 |
| 83008281 | 90L250-KA-5-NN-80-S-4-C8-K-00-NNN-35-35-20 | 90L250KA5NN80S4C8K00NNN353520 |
| 80005724 | 90L250-KA-5-NN-80-S-4-C8-K-03-GCP-35-35-28 | 90L250KA5NN80S4C8K03GCP353528 |
| 83071762 | 90L250-KA-5-NN-80-S-4-C8-K-03-NNN-40-40-30 | 90L250KA5NN80S4C8K03NNN404030 |
| 702625 | 90L250-KA-5-NN-80-S-4-C8-K-03-NNN-42-42-24 | 90L250KA5NN80S4C8K03NNN424224 |
| 80004001 | 90L250-KA-5-NN-80-S-4-C8-K-03-NNN-42-42-24 | 90L250KA5NN80S4C8K03NNN424224 |
| 83031348 | 90L250-KA-5-NN-80-S-4-F1-J-03-NNN-38-38-24 | 90L250KA5NN80S4F1J03NNN383824 |
| 83044990 | 90L250-KA-5-NN-80-T-3-C8-J-03-NNN-42-42-24 | 90L250KA5NN80T3C8J03NNN424224 |
| 700686 | 90L250-KA-5-NN-80-T-3-C8-J-09-NNN-35-35-24 | 90L250KA5NN80T3C8J09NNN353524 |
| 80000986 | 90L250-KA-5-NN-80-T-3-C8-K-03-NNN-26-26-24 | 90L250KA5NN80T3C8K03NNN262624 |
| 702109 | 90L250-KA-5-NN-80-T-3-C8-K-03-NNN-32-32-24 | 90L250KA5NN80T3C8K03NNN323224 |
| 80001332 | 90L250-KA-5-NN-80-T-3-C8-K-03-NNN-35-14-24 | 90L250KA5NN80T3C8K03NNN351424 |
| 83012529 | 90L250-KA-5-NN-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KA5NN80T3C8K03NNN353524 |
| 83004676 | 90L250-KA-5-NN-80-T-3-C8-K-05-NNN-35-35-24 | 90L250KA5NN80T3C8K05NNN353524 |
| 9920144 | 90L250-KA-5-NN-80-T-3-F1-J-03-NNN-32-32-24 | 90L250KA5NN80T3F1J03NNN323224 |
| 515622 | 90L250-KA-5-NN-80-T-3-F1-J-03-NNN-38-38-24 | 90L250KA5NN80T3F1J03NNN383824 |
| 80002140 | 90L250-KA-5-NN-80-T-3-F1-K-03-NNN-35-35-24 | 90L250KA5NN80T3F1K03NNN353524 |
| 83053612 | 90L250-KA-5-NN-80-T-4-C8-J-03-NNN-26-26-24 | 90L250KA5NN80T4C8J03NNN262624 |
| 80002835 | 90L250-KA-5-NN-80-T-4-C8-J-05-NNN-29-29-24 | 90L250KA5NN80T4C8J05NNN292924 |
| 83012806 | 90L250-KA-5-NN-80-T-4-C8-K-03-NNN-42-42-24 | 90L250KA5NN80T4C8K03NNN424224 |
| 83006033 | 90L250-KA-5-NN-80-T-4-F1-J-00-NNN-17-17-24 | 90L250KA5NN80T4F1J00NNN171724 |
| 83015620 | 90L250-KA-5-NN-80-T-4-F1-J-03-NNN-35-35-24 | 90L250KA5NN80T4F1J03NNN353524 |
| 80001535 | 90L250-KA-5-NN-80-T-4-F1-J-04-NNN-23-23-24 | 90L250KA5NN80T4F1J04NNN232324 |
| 83027712 | 90L250-KN-1-BC-80-S-4-F1-K-03-NNN-35-35-24 | 90L250KN1BC80S4F1K03NNN353524 |
| 83090121 | 90L250-KN-1-CD-80-T-3-F1-K-00-NNN-35-35-24 | 90L250KN1CD80T3F1K00NNN353524 |
| 83093319 | 90L250-KN-1-CD-80-T-3-F1-K-05-NNN-42-42-24 | 90L250KN1CD80T3F1K05NNN424224 |
| 9920113 | 90-L-250-KN-1-NN-80-T-3-F1-J-03-NNN-42-42-24 | 90L250KN1NN80T3F1J03NNN424224 |
| 83053245 | 90L250-KN-1-NN-80-T-4-F1-J-00-NNN-35-35-24 | 90L250KN1NN80T4F1J00NNN353524 |
| 83017941 | 90L250-KN-1-NN-80-T-4-F1-J-03-NNN-44-44-30 | 90L250KN1NN80T4F1J03NNN444430 |
| 83025637 | 90L250-KN-1-NN-80-T-4-F1-K-03-NNN-38-38-24 | 90L250KN1NN80T4F1K03NNN383824 |
| 80000901 | 90L250-KN-5-AB-80-T-4-F1-J-03-NNN-32-32-24 | 90L250KN5AB80T4F1J03NNN323224 |
| 83007374 | 90L250-KN-5-BC-80-S-3-F1-J-03-NNN-29-29-24 | 90L250KN5BC80S3F1J03NNN292924 |
| 80000824 | 90L250-KN-5-BC-80-S-3-F1-K-03-NNN-32-32-24 | 90L250KN5BC80S3F1K03NNN323224 |
| 80002133 | 90L250-KN-5-BC-80-T-4-F1-J-03-NNN-35-35-24 | 90L250KN5BC80T4F1J03NNN353524 |
| 83010276 | 90L250-KN-5-BC-80-T-4-F1-J-03-NNN-42-14-24 | 90L250KN5BC80T4F1J03NNN421424 |
| 80002488 | 90L250-KN-5-CD-80-D-4-F1-L-03-NNN-35-35-28 | 90L250KN5CD80D4F1L03NNN353528 |
| 80002132 | 90L250-KN-5-CD-80-T-4-F1-J-03-NNN-35-35-24 | 90L250KN5CD80T4F1J03NNN353524 |
| 83007373 | 90L250-KN-5-EF-80-S-3-C8-J-03-NNN-29-29-24 | 90L250KN5EF80S3C8J03NNN292924 |
| 83021781 | 90L250-KN-5-EF-80-S-3-C8-J-06-NNN-35-35-30 | 90L250KN5EF80S3C8J06NNN353530 |
| 80000833 | 90L250-KN-5-EF-80-S-3-C8-K-03-NNN-32-32-24 | 90L250KN5EF80S3C8K03NNN323224 |
| 83019013 | 90L250-KN-5-EF-80-S-3-C8-K-05-NNN-40-40-24 | 90L250KN5EF80S3C8K05NNN404024 |
| 83028191 | 90L250-KN-5-EG-80-T-3-C8-J-03-NNN-32-32-24 | 90L250KN5EG80T3C8J03NNN323224 |
| 83001102 | 90-L-250-KN-5-NN-80-S-3-C8-K-03-NNN-26-26-24 | 90L250KN5NN80S3C8K03NNN262624 |
| 83013998 | 90L250-KN-5-NN-80-S-4-C8-J-02-NNN-36-36-24 | 90L250KN5NN80S4C8J02NNN363624 |
| 83017544 | 90L250-KN-5-NN-80-S-4-C8-K-03-NNN-40-40-26 | 90L250KN5NN80S4C8K03NNN404026 |
| 83051932 | 90L250-KN-5-NN-80-S-4-F1-J-03-NNN-32-32-28 | 90L250KN5NN80S4F1J03NNN323228 |
| 80004138 | 90L250-KN-5-NN-80-S-4-F1-K-03-NNN-42-42-24 | 90L250KN5NN80S4F1K03NNN424224 |
| 83067630 | 90L250-KN-5-NN-80-T-4-C8-J-03-NNN-37-37-24 | 90L250KN5NN80T4C8J03NNN373724 |
| 83058008 | 90L250-KN-5-NN-80-T-4-F1-K-03-NNN-35-35-24 | 90L250KN5NN80T4F1K03NNN353524 |
| 80004296 | 90L250-KN-5-NN-80-T-4-F1-K-03-NNN-42-42-24 | 90L250KN5NN80T4F1K03NNN424224 |
| 83014313 | 90L250-KN-5-NN-80-TP-F1-K-03-NNN-32-32-26-F056 | 90L250KN5NN80TPF1K03NNN323226F056 |
| 9920131 | 90-L-250-KP-1-BB-80-T-4-C8-K-03-NNN-32-32-28 | 90L250KP1BB80T4C8K03NNN323228 |
| 9920128 | 90-L-250-KP-1-BC-80-T-4-C8-K-03-NNN-32-32-28 | 90L250KP1BC80T4C8K03NNN323228 |
| 83060962 | 90L250-KP-1-BC-80-T-4-F1-K-05-NNN-35-35-24 | 90L250KP1BC80T4F1K05NNN353524 |
| 83064208 | 90L250-KP-1-BC-80-T-4-F1-K-05-NNN-35-35-30 | 90L250KP1BC80T4F1K05NNN353530 |
| 9920119 | 90L250-KP-1-CD-80-T-3-F1-K-03-NNN-35-35-24 | 90L250KP1CD80T3F1K03NNN353524 |
| 83046259 | 90L250-KP-1-CD-80-T-4-F1-J-03-NNN-32-32-24 | 90L250KP1CD80T4F1J03NNN323224 |
| 9920124 | 90-L-250-KP-2-CD-80-T-3-C8-K-02-NNN-32-32-24 | 90L250KP2CD80T3C8K02NNN323224 |
| 9920123 | 90-L-250-KP-2-CD-80-T-3-C8-K-03-NNN-32-32-24 | 90L250KP2CD80T3C8K03NNN323224 |
| 9920127 | 90L250-KP-2-CD-80-T-3-C8-K-04-NNN-32-32-24 | 90L250KP2CD80T3C8K04NNN323224 |
| 9920122 | 90-L-250-KP-2-EG-80-T-3-C8-K-03-NNN-32-32-24 | 90L250KP2EG80T3C8K03NNN323224 |
| 9920126 | 90-L-250-KP-2-EG-80-T-3-C8-K-04-NNN-32-32-24 | 90L250KP2EG80T3C8K04NNN323224 |
| 83006041 | 90L250-KP-2-EG-80-T-4-C8-K-00-NNN-32-32-24 | 90L250KP2EG80T4C8K00NNN323224 |
| 83003073 | 90-L-250-KP-2-NN-80-D-4-C8-L-05-NNN-35-35-30 | 90L250KP2NN80D4C8L05NNN353530 |
| 83010389 | 90L250-KP-5-AB-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KP5AB80T3C8K03NNN353524 |
| 83005968 | 90L250-KP-5-AB-80-T-3-F1-J-00-NNN-35-35-20 | 90L250KP5AB80T3F1J00NNN353520 |
| 80003878 | 90L250-KP-5-AB-80-T-3-F1-K-03-NNN-32-32-24 | 90L250KP5AB80T3F1K03NNN323224 |
| 83069892 | 90L250-KP-5-AB-80-T-4-F1-K-03-NNN-29-29-24 | 90L250KP5AB80T4F1K03NNN292924 |
| 80002667 | 90L250-KP-5-BC-80-S-3-F1-K-03-NNN-38-38-24 | 90L250KP5BC80S3F1K03NNN383824 |
| 83001633 | 90L250-KP-5-BC-80-S-4-F1-J-03-NNN-42-42-24 | 90L250KP5BC80S4F1J03NNN424224 |
| 83050522 | 90L250-KP-5-BC-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KP5BC80T3C8K03NNN353524 |
| 9920148 | 90L250-KP-5-BC-80-T-3-F1-J-03-NNN-38-38-24 | 90L250KP5BC80T3F1J03NNN383824 |
| 80002002 | 90L250-KP-5-BC-80-T-3-F1-J-03-NNN-42-42-24 | 90L250KP5BC80T3F1J03NNN424224 |
| 9920147 | 90L250-KP-5-BC-80-T-3-F1-K-03-NNN-35-14-24 | 90L250KP5BC80T3F1K03NNN351424 |
| 83012725 | 90L250-KP-5-BC-80-T-4-F1-J-03-NNN-35-35-24 | 90L250KP5BC80T4F1J03NNN353524 |
| 83017436 | 90L250-KP-5-BC-80-T-4-F1-K-03-NNN-35-14-24 | 90L250KP5BC80T4F1K03NNN351424 |
| 80003904 | 90L250-KP-5-C1-80-T-4-C8-K-03-NNN-32-32-24 | 90L250KP5C180T4C8K03NNN323224 |
| 83016033 | 90L250-KP-5-CD-80-S-3-C8-K-03-NNN-35-35-24 | 90L250KP5CD80S3C8K03NNN353524 |
| 83020126 | 90L250-KP-5-CD-80-S-3-C8-K-09-NNN-35-35-24 | 90L250KP5CD80S3C8K09NNN353524 |
| 83021779 | 90L250-KP-5-CD-80-T-3-C8-J-03-NNN-35-35-24 | 90L250KP5CD80T3C8J03NNN353524 |
| 83010673 | 90L250-KP-5-CD-80-T-4-C8-K-03-NNN-29-29-24 | 90L250KP5CD80T4C8K03NNN292924 |
| 80001467 | 90L250-KP-5-CD-80-T-4-F1-J-03-NNN-32-32-24 | 90L250KP5CD80T4F1J03NNN323224 |
| 83069893 | 90L250-KP-5-CD-80-T-4-F1-K-03-NNN-29-29-24 | 90L250KP5CD80T4F1K03NNN292924 |
| 83002694 | 90L250-KP-5-CD-80-T-4-F1-K-03-NNN-38-38-24 | 90L250KP5CD80T4F1K03NNN383824 |
| 83015107 | 90L250-KP-5-EF-80-S-4-F1-J-03-NNN-20-20-24 | 90L250KP5EF80S4F1J03NNN202024 |
| 9920149 | 90L250-KP-5-EF-80-T-3-C8-J-03-NNN-38-38-24 | 90L250KP5EF80T3C8J03NNN383824 |
| 83001359 | 90L250-KP-5-NN-80-S-4-F1-K-03-NNN-26-26-24 | 90L250KP5NN80S4F1K03NNN262624 |
| 83009129 | 90L250-KP-5-NN-80-T-3-C8-K-03-NNN-29-29-24 | 90L250KP5NN80T3C8K03NNN292924 |
| 80003886 | 90L250-KP-5-NN-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KP5NN80T3C8K03NNN353524 |
| 83001120 | 90L250-KP-5-NN-80-T-3-F1-J-03-NNN-35-35-24 | 90L250KP5NN80T3F1J03NNN353524 |
| 9920139 | 90-L-250-KP-5-NN-80-T-3-F1-K-03-NNN-42-42-24 | 90L250KP5NN80T3F1K03NNN424224 |
| 83017175 | 90L250-KP-5-NN-80-T-4-C8-J-04-NNN-26-26-24 | 90L250KP5NN80T4C8J04NNN262624 |
| 83006397 | 90L250-KP-5-NN-80-T-4-C8-K-03-NNN-26-26-28 | 90L250KP5NN80T4C8K03NNN262628 |
| 702730 | 90L250-KP-5-NN-80-T-4-C8-K-03-NNN-32-32-28 | 90L250KP5NN80T4C8K03NNN323228 |
| 80001958 | 90L250-KP-5-NN-80-T-4-F1-J-03-NNN-35-14-24 | 90L250KP5NN80T4F1J03NNN351424 |
| 83029301 | 90L250-KP-5-NN-80-T-4-F1-J-03-NNN-35-35-24 | 90L250KP5NN80T4F1J03NNN353524 |
| 9920125 | 90L250-KP-5-NN-80-T-4-F1-K-03-NNN-29-29-24 | 90L250KP5NN80T4F1K03NNN292924 |
| 83001868 | 90L250-KP-5-NN-80-T-4-F1-K-03-NNN-42-42-24 | 90L250KP5NN80T4F1K03NNN424224 |
| 80004595 | 90-L-250-KP-5-NN-80-T-4-F1-K-05-NNN-32-32-24 | 90L250KP5NN80T4F1K05NNN323224 |
| 80000535 | 90L250-KP-5-NN-80-T-4-F1-K-05-NNN-35-35-24 | 90L250KP5NN80T4F1K05NNN353524 |
| 83056498 | 90L250-KT-2-BC-80-T-3-C8-K-00-NNN-35-35-26 | 90L250KT2BC80T3C8K00NNN353526 |
| 83035498 | 90L250-KT-5-AB-80-T-4-F1-J-03-NNN-32-32-24 | 90L250KT5AB80T4F1J03NNN323224 |
| 83018068 | 90L250-KT-5-BC-80-D-4-F1-L-03-NNN-35-35-30 | 90L250KT5BC80D4F1L03NNN353530 |
| 83059622 | 90L250-KT-5-BC-80-T-4-C8-J-03-NNN-29-29-24 | 90L250KT5BC80T4C8J03NNN292924 |
| 83032005 | 90L250-KT-5-BC-80-T-4-F1-J-03-NNN-32-32-24 | 90L250KT5BC80T4F1J03NNN323224 |
| 83035145 | 90L250-KT-5-BC-80-T-4-F1-K-03-NNN-38-14-24 | 90L250KT5BC80T4F1K03NNN381424 |
| 83075798 | 90L250-KT-5-CD-80-T-3-C8-K-03-NNN-35-35-24 | 90L250KT5CD80T3C8K03NNN353524 |
| 83042611 | 90L250-KT-5-CD-80-T-4-C8-K-03-NNN-29-29-24 | 90L250KT5CD80T4C8K03NNN292924 |
| 507754 | 90-L-250-MA-1-BC-80-S-3-C8-K-03-NNN-42-42-24 | 90L250MA1BC80S3C8K03NNN424224 |
| 9920102 | 90L250-MA-1-NN-80-S-4-C8-K-03-NNN-42-42-24-F001 | 90L250MA1NN80S4C8K03NNN424224F001 |
| 702727 | 90-L-250-MA-5-BC-80-S-4-C8-K-C3-NNN-38-38-24 | 90L250MA5BC80S4C8KC3NNN383824 |
| 83006154 | 90L250-MA-5-CD-80-S-3-C8-K-C6-NNN-42-42-24 | 90L250MA5CD80S3C8KC6NNN424224 |
| 702726 | 90L250-MA-5-EG-80-S-4-C8-K-C3-NNN-38-38-24 | 90L250MA5EG80S4C8KC3NNN383824 |
| 83069706 | 90L250-MA-5-NN-80-S-3-F1-K-C4-NNN-32-32-24 | 90L250MA5NN80S3F1KC4NNN323224 |
| 83007411 | 90L250-MA-5-NN-80-S-4-F1-J-C5-NNN-42-42-24 | 90L250MA5NN80S4F1JC5NNN424224 |
| 702287 | 90L250-MA-5-NN-80-T-3-C8-K-C5-NNN-23-23-24 | 90L250MA5NN80T3C8KC5NNN232324 |
| 83009392 | 90L250-MA-5-NN-80-T-3-C8-K-C5-NNN-32-32-24 | 90L250MA5NN80T3C8KC5NNN323224 |
| 80002703 | 90L250-MA-5-NN-80-T-3-F1-K-C7-NNN-32-32-24 | 90L250MA5NN80T3F1KC7NNN323224 |
| 83010337 | 90L250-MB-5-BC-80-T-3-F1-K-C5-NNN-35-35-24 | 90L250MB5BC80T3F1KC5NNN353524 |
| 83010752 | 90L250-MB-5-NN-80-T-3-F1-J-C5-NNN-42-42-24 | 90L250MB5NN80T3F1JC5NNN424224 |
| 83019128 | 90L250-PB-5-NN-80-T-4-F1-J-03-NNN-42-42-24 | 90L250PB5NN80T4F1J03NNN424224 |
| 83071739 | 90L250-SA-2-BC-80-S-3-C8-K-33-PEA-40-40-24 | 90L250SA2BC80S3C8K33PEA404024 |
| 83073140 | 90L250-SA-2-EF-80-S-3-C8-K-33-PEA-40-40-24 | 90L250SA2EF80S3C8K33PEA404024 |
| 83061473 | 90L250-SB-2-BC-80-T-3-C8-K-33-PEA-38-38-30 | 90L250SB2BC80T3C8K33PEA383830 |
| 83020091 | 90L250-SB-2-NN-80-T-3-C8-K-33-PGA-42-42-26 | 90L250SB2NN80T3C8K33PGA424226 |
Q1: What is the Sauer Danfoss 90L250 hydraulic pump, and what is its primary application?
A1:The Sauer Danfoss 90L250 is a variable displacement axial piston pump specifically designed for heavy-duty mobile equipment applications, such as excavators, wheel loaders, and material handling equipment.
Q2:How does the Sauer Danfoss 90L250 hydraulic pump contribute to system efficiency?
A2:The Sauer Danfoss 90L250 hydraulic pump contributes to improved overall machine efficiency by providing smooth, continuous control over flow and pressure, precisely matching output to load demands, thereby reducing fuel consumption and heat generation.
Q3:How to purchase a 90L250 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the 90L250 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
