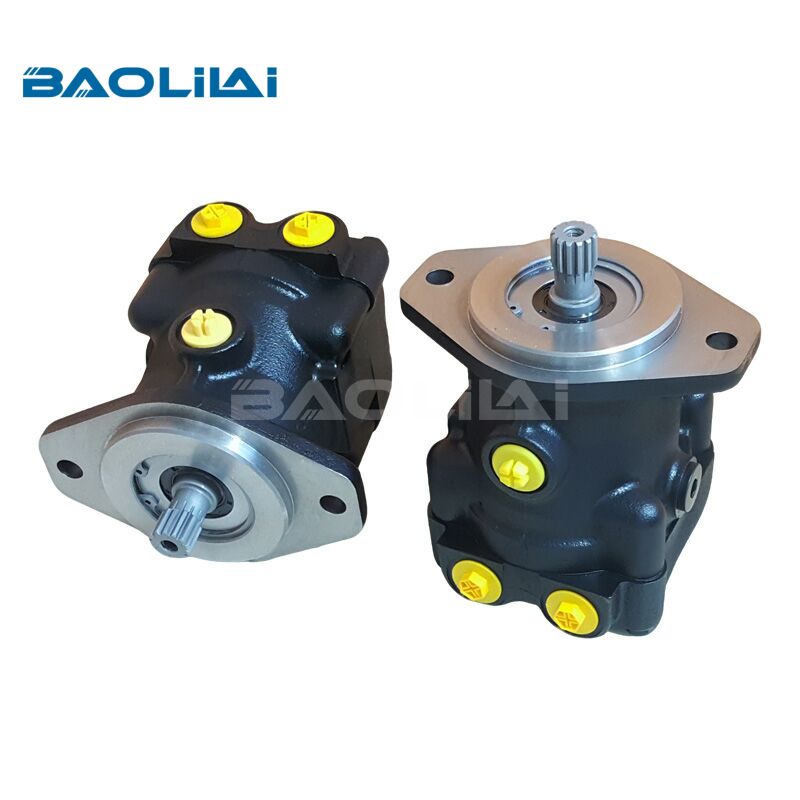

For Sauer danfoss MMF035 axial piston hydraulic motor
- Product Details
- Product Model
- FAQ
The Sauer Danfoss MMF035 is a high-torque, low-speed (HTLS) axial piston hydraulic motor designed for heavy-duty mobile and industrial applications. It belongs to the MMF family, known for its compact design, robust construction, and excellent power density. The motor utilizes a bent-axis design where the cylinder block is set at an angle to the drive shaft, enabling efficient conversion of hydraulic energy into smooth rotational torque. It is available in fixed or variable displacement configurations, providing flexibility for various speed and torque requirements. Key features include high starting torque, excellent low-speed stability, and high overall efficiency. The MMF035 is commonly used in demanding systems such as wheel drives, winches, conveyors, and mixing drums. It is built to withstand harsh environments, offering reliable performance with long service life.
Specifications
| Model | Unit | M25MF | M35MF | M44MF | M35MV | M44MV | M46 MV |
| Model configuration | Fixed | Fixed | Fixed | Variable | Variable | Variable | |
| Type of mounting | SAE B | SAE B | SAE B | SAE B | SAE B | SAE B | |
| Displacement | cm3/rev [in3/rev] |
25[1.50] | 35[2.14] | 44[2.65] | 35[2.14] | 44[2.65] | 46[2.80] |
| Weight | kg[lbf] | 11[26] | 11[26] | 11[26] | 21[47] | 21[47] | 23[51] |
| Mass moment of inertia | kg·m2[slug·ft2] | 0.0018[0.0013] | 0.0033[0.0024] | 0.0032[0.0023] | 0.0033[0.0024] | 0.0032[0.0023] | 0.0050[0.0037] |
| Case pressure | |||||||
| Continuous | bar[psi] | 1.7[25] | |||||
| Maximum | 5.2[75] | ||||||
| Speed limits | |||||||
| Rated@ max disp. | min-1[rpm] | 4000 | 3600 | 3300 | 3600 | 3300 | 4000 |
| Maximum@ max.disp. | 5000 | 4500 | 4100 | 4500 | 4100 | 4100 | |
| Rated@ min.disp. | - | - | - | 4200 | 3900 | 4500 | |
| Maximum@ min.disp. | - | - | - | 5300 | 4850 | 5000 | |
| System pressure | |||||||
| Continuous | bar[psi] | 210[3000] | |||||
| Maximum | 345[5000] | ||||||
Selection Table
| MMF035 axial piston hydraulic motor | ||
| Model No. | Model Code | Model Code |
| 83038083 | MMF-035-D-A-6-G-A-B-NNN-*** | MMF035DA6GABNNN*** |
| 83035105 | MMF-035-D-A-6-G-A-B-NNR-*** | MMF035DA6GABNNR*** |
| 83016978 | MMF-035-D-A-6-H-C-G-NNN-*** | MMF035DA6HCGNNN*** |
| 83064015 | MMF-035-D-A-6-Y-A-B-NNR-*** | MMF035DA6YABNNR*** |
| 4353059 | MMF-035-D-A-A-1-A-B-NNN-*** | MMF035DAA1ABNNN*** |
| 4353088 | MMF-035-D-A-A-1-C-D-NNN-*** | MMF035DAA1CDNNN*** |
| 83014272 | MMF-035-D-A-A-1-C-F-NNN-*** | MMF035DAA1CFNNN*** |
| 4353036 | MMF-035-D-A-A-E-A-B-NNN-*** | MMF035DAAEABNNN*** |
| 4353043 | MMF-035-D-A-A-E-A-B-NNR-*** | MMF035DAAEABNNR*** |
| 83022510 | MMF-035-D-A-A-E-A-U-NNN-*** | MMF035DAAEAUNNN*** |
| 4353092 | MMF-035-D-A-A-E-C-G-NNN-*** | MMF035DAAECGNNN*** |
| 4353044 | MMF-035-D-A-A-G-A-B-NNN-*** | MMF035DAAGABNNN*** |
| 4353025 | MMF-035-D-A-A-G-A-B-NNR-*** | MMF035DAAGABNNR*** |
| 4353096 | MMF-035-D-A-A-G-A-S-NNN-*** | MMF035DAAGASNNN*** |
| 4353107 | MMF-035-D-A-A-G-A-S-NNR-*** | MMF035DAAGASNNR*** |
| 80003237 | MMF-035-D-A-A-G-C-D-NNN-*** | MMF035DAAGCDNNN*** |
| 83064750 | MMF-035-D-A-A-G-C-D-NNR-*** | MMF035DAAGCDNNR*** |
| 83022663 | MMF-035-D-A-A-G-C-G-NNR-*** | MMF035DAAGCGNNR*** |
| 80005082 | MMF-035-D-A-A-G-C-P-NNN-*** | MMF035DAAGCPNNN*** |
| 83065641 | MMF-035-D-A-A-G-C-T-NNN-*** | MMF035DAAGCTNNN*** |
| 4353056 | MMF-035-D-A-A-H-A-B-NNN-*** | MMF035DAAHABNNN*** |
| 83001072 | MMF-035-D-A-A-H-A-S-NNN-*** | MMF035DAAHASNNN*** |
| 83019087 | MMF-035-D-A-A-H-A-S-NNR-*** | MMF035DAAHASNNR*** |
| 4353071 | MMF-035-D-A-A-H-C-D-NNN-*** | MMF035DAAHCDNNN*** |
| 4353102 | MMF-035-D-A-A-H-C-G-NNN-*** | MMF035DAAHCGNNN*** |
| 4353067 | MMF-035-D-A-A-H-C-K-NNN-*** | MMF035DAAHCKNNN*** |
| 83019698 | MMF-035-D-A-A-H-C-T-NNN-*** | MMF035DAAHCTNNN*** |
| 83050877 | MMF-035-D-A-A-H-C-V-NNN-*** | MMF035DAAHCVNNN*** |
| 4353045 | MMF-035-D-A-A-M-A-B-NNN-*** | MMF035DAAMABNNN*** |
| 4353053 | MMF-035-D-A-A-M-A-B-NNR-*** | MMF035DAAMABNNR*** |
| 83063439 | MMF-035-D-A-A-M-C-D-NNN-*** | MMF035DAAMCDNNN*** |
| 83049128 | MMF-035-D-A-A-M-C-F-NNN-*** | MMF035DAAMCFNNN*** |
| 83040008 | MMF-035-D-A-A-M-C-F-NNR-*** | MMF035DAAMCFNNR*** |
| 4353093 | MMF-035-D-A-A-M-C-P-NNN-*** | MMF035DAAMCPNNN*** |
| 4353038 | MMF-035-D-A-A-U-A-B-NNN-*** | MMF035DAAUABNNN*** |
| 80001663 | MMF-035-D-A-A-U-A-B-NNN-*** | MMF035DAAUABNNN*** |
| 83043124 | MMF-035-D-A-A-U-A-G-NNN-*** | MMF035DAAUAGNNN*** |
| 83002224 | MMF-035-D-A-A-U-A-S-NNN-*** | MMF035DAAUASNNN*** |
| 83046568 | MMF-035-D-A-A-U-C-D-NNN-*** | MMF035DAAUCDNNN*** |
| 83064751 | MMF-035-D-A-D-G-C-P-NNR-*** | MMF035DADGCPNNR*** |
| 83039094 | MMF-035-D-A-D-K-A-B-NCJ-*** | MMF035DADKABNCJ*** |
| 83069545 | MMF-035-D-A-D-K-A-B-NCK-*** | MMF035DADKABNCK*** |
| 83033811 | MMF-035-D-A-D-K-A-S-NCH-*** | MMF035DADKASNCH*** |
| 4353101 | MMF-035-D-A-F-1-A-B-NNN-*** | MMF035DAF1ABNNN*** |
| 83036278 | MMF-035-D-A-F-1-C-D-NNN-*** | MMF035DAF1CDNNN*** |
| 80003138 | MMF-035-D-A-F-1-C-G-NNN-*** | MMF035DAF1CGNNN*** |
| 4353035 | MMF-035-D-A-F-E-A-B-NNN-*** | MMF035DAFEABNNN*** |
| 83048432 | MMF-035-D-A-F-E-C-D-NNN-*** | MMF035DAFECDNNN*** |
| 4353086 | MMF-035-D-A-F-E-C-G-NNN-*** | MMF035DAFECGNNN*** |
| 4353054 | MMF-035-D-A-F-G-A-B-NNN-*** | MMF035DAFGABNNN*** |
| 83015694 | MMF-035-D-A-F-G-A-B-NNR-*** | MMF035DAFGABNNR*** |
| 4353106 | MMF-035-D-A-F-G-A-S-NNN-*** | MMF035DAFGASNNN*** |
| 4353064 | MMF-035-D-A-F-G-C-D-NNN-*** | MMF035DAFGCDNNN*** |
| 83045862 | MMF-035-D-A-F-G-C-G-NNN-*** | MMF035DAFGCGNNN*** |
| 83047581 | MMF-035-D-A-F-G-C-S-NNN-*** | MMF035DAFGCSNNN*** |
| 83052733 | MMF-035-D-A-F-G-C-T-NNN-*** | MMF035DAFGCTNNN*** |
| 4353072 | MMF-035-D-A-F-H-A-B-NNN-*** | MMF035DAFHABNNN*** |
| 4353082 | MMF-035-D-A-F-H-C-D-NNN-*** | MMF035DAFHCDNNN*** |
| 4353073 | MMF-035-D-A-F-H-C-K-NNN-*** | MMF035DAFHCKNNN*** |
| 83007475 | MMF-035-D-A-F-H-C-V-NNR-*** | MMF035DAFHCVNNR*** |
| 4353046 | MMF-035-D-A-F-M-A-B-NNN-*** | MMF035DAFMABNNN*** |
| 83050998 | MMF-035-D-A-F-M-A-B-NNR-*** | MMF035DAFMABNNR*** |
| 83055562 | MMF-035-D-A-F-M-C-D-NNN-*** | MMF035DAFMCDNNN*** |
| 4353037 | MMF-035-D-A-F-U-A-B-NNN-*** | MMF035DAFUABNNN*** |
| 4353090 | MMF-035-D-A-F-U-A-G-NNN-*** | MMF035DAFUAGNNN*** |
| 83064946 | MMF-035-D-A-F-U-A-S-NNN-*** | MMF035DAFUASNNN*** |
| 4353083 | MMF-035-D-A-F-U-C-D-NNN-*** | MMF035DAFUCDNNN*** |
| 4353065 | MMF-035-D-A-F-U-C-G-NNN-*** | MMF035DAFUCGNNN*** |
| 83061378 | MMF-035-D-A-F-U-C-T-NNN-*** | MMF035DAFUCTNNN*** |
| 4353058 | MMF-035-D-A-F-Y-A-B-NNN-*** | MMF035DAFYABNNN*** |
| 83069657 | MMF-035-D-A-F-Y-A-B-NNR-*** | MMF035DAFYABNNR*** |
| 4353063 | MMF-035-D-A-L-G-C-F-NNR-*** | MMF035DALGCFNNR*** |
| 4353074 | MMF-035-D-A-N-1-C-G-NNN-*** | MMF035DAN1CGNNN*** |
| 4353094 | MMF-035-D-A-N-G-A-B-NNN-*** | MMF035DANGABNNN*** |
| 4353103 | MMF-035-D-A-N-H-A-B-NNN-*** | MMF035DANHABNNN*** |
| 83036081 | MMF-035-D-A-N-H-C-D-NNN-*** | MMF035DANHCDNNN*** |
| 83006606 | MMF-035-D-A-N-M-A-B-NNR-*** | MMF035DANMABNNR*** |
| 4353091 | MMF-035-D-A-N-U-A-B-NNN-*** | MMF035DANUABNNN*** |
| 4353081 | MMF-035-D-A-N-U-C-D-NNN-*** | MMF035DANUCDNNN*** |
| 4353080 | MMF-035-D-A-N-U-C-P-NNN-*** | MMF035DANUCPNNN*** |
| 4353099 | MMF-035-D-A-S-1-A-B-NNR-*** | MMF035DAS1ABNNR*** |
| 83008419 | MMF-035-D-A-S-1-C-D-NNN-*** | MMF035DAS1CDNNN*** |
| 4353039 | MMF-035-D-A-S-E-A-B-NNN-*** | MMF035DASEABNNN*** |
| 83066728 | MMF-035-D-A-S-E-C-D-NNN-*** | MMF035DASECDNNN*** |
| 4353095 | MMF-035-D-A-S-G-A-B-NNN-*** | MMF035DASGABNNN*** |
| 80004783 | MMF-035-D-A-S-G-A-S-NNR-*** | MMF035DASGASNNR*** |
| 83017400 | MMF-035-D-A-S-G-C-D-NNN-*** | MMF035DASGCDNNN*** |
| 83005016 | MMF-035-D-A-S-G-C-G-NNN-*** | MMF035DASGCGNNN*** |
| 4353087 | MMF-035-D-A-S-H-A-B-NNN-*** | MMF035DASHABNNN*** |
| 4353075 | MMF-035-D-A-S-H-C-G-NNN-*** | MMF035DASHCGNNN*** |
| 83054087 | MMF-035-D-A-S-K-C-P-NCH-*** | MMF035DASKCPNCH*** |
| 83054794 | MMF-035-D-A-S-K-C-P-NCH-*** | MMF035DASKCPNCH*** |
| 4353098 | MMF-035-D-A-S-M-A-B-NNN-*** | MMF035DASMABNNN*** |
| 4353049 | MMF-035-D-A-S-M-A-B-NNR-*** | MMF035DASMABNNR*** |
| 4353069 | MMF-035-D-A-S-M-C-F-NNR-*** | MMF035DASMCFNNR*** |
| 4353041 | MMF-035-D-A-S-U-A-B-NNN-*** | MMF035DASUABNNN*** |
| 4353042 | MMF-035-D-A-S-U-A-B-NNR-*** | MMF035DASUABNNR*** |
| 83018531 | MMF-035-D-A-S-U-C-D-NNN-*** | MMF035DASUCDNNN*** |
| 4353040 | MMF-035-D-B-C-F-A-B-NNN-*** | MMF035DBCFABNNN*** |
Q1:What is the primary function and design type of the Sauer Danfoss MMF035?
A1:The Sauer Danfoss MMF035 is an axial piston hydraulic motor. Its primary function is to efficiently convert hydraulic energy into high rotational torque at low speeds for heavy-duty mobile and industrial machinery.
Q2:In what kind of applications is the MMF035 hydraulic motor typically used?
A2: The MMF035 hydraulic motor is commonly used in demanding applications such as wheel drives for compactors or excavators, winches, conveyors, and mixing drums, where reliable high torque at low rpm is required.
Q3:How to purchase a MMF035 hydraulic motor?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the MMF035 hydraulic motor?
A4:The specific price and delivery time will be provided based on the specific model you provide.
