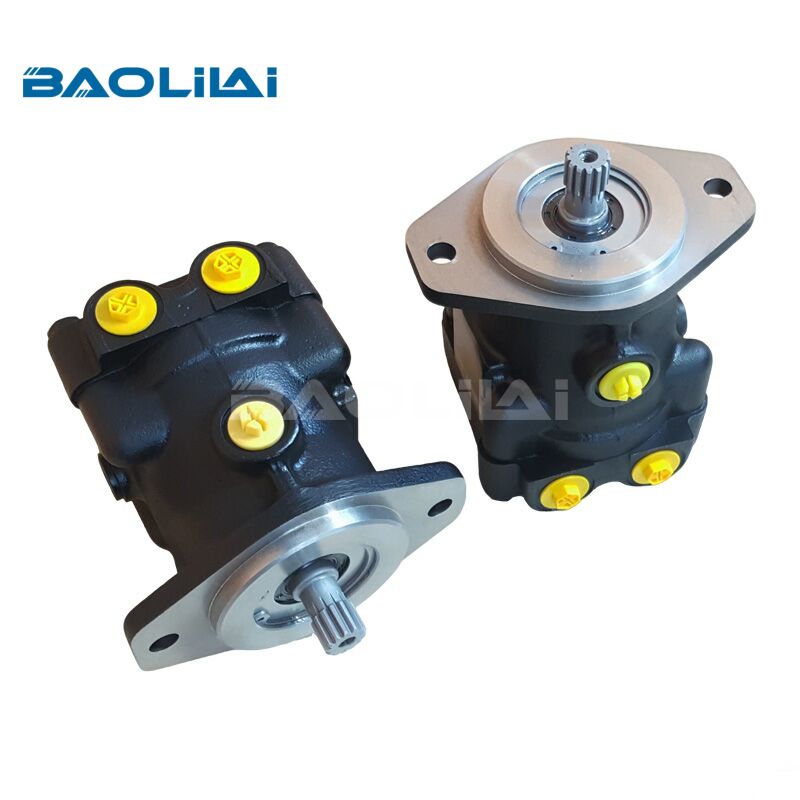

For Sauer danfoss series 40 MMF025 hydraulic motor
- Product Details
- Product Model
- FAQ
The Sauer-Danfoss Series 40 MMF025 is a high-torque, low-speed radial piston hydraulic motor designed for demanding mobile equipment applications. Part of the renowned 40 Series, it features a robust five-cylinder radial piston design that delivers excellent starting torque, high volumetric efficiency, and smooth operation at very low speeds. The MMF025 is known for its exceptional power density, providing substantial torque output from a compact package, making it ideal for space-constrained installations in machinery like wheel drives, winches, and conveyors. It offers multiple displacement options, flexible porting configurations, and is built for durability in tough environments with high load capacity and reliable performance. This motor is a cornerstone solution for applications requiring precise control, high mechanical strength, and long service life.
Specifications
| Model | Unit | M25MF | M35MF | M44MF | M35MV | M44MV | M46 MV |
| Model configuration | Fixed | Fixed | Fixed | Variable | Variable | Variable | |
| Type of mounting | SAE B | SAE B | SAE B | SAE B | SAE B | SAE B | |
| Displacement | cm3/rev [in3/rev] |
25[1.50] | 35[2.14] | 44[2.65] | 35[2.14] | 44[2.65] | 46[2.80] |
| Weight | kg[lbf] | 11[26] | 11[26] | 11[26] | 21[47] | 21[47] | 23[51] |
| Mass moment of inertia | kg·m2[slug·ft2] | 0.0018[0.0013] | 0.0033[0.0024] | 0.0032[0.0023] | 0.0033[0.0024] | 0.0032[0.0023] | 0.0050[0.0037] |
| Case pressure | |||||||
| Continuous | bar[psi] | 1.7[25] | |||||
| Maximum | 5.2[75] | ||||||
| Speed limits | |||||||
| Rated@ max disp. | min-1[rpm] | 4000 | 3600 | 3300 | 3600 | 3300 | 4000 |
| Maximum@ max.disp. | 5000 | 4500 | 4100 | 4500 | 4100 | 4100 | |
| Rated@ min.disp. | - | - | - | 4200 | 3900 | 4500 | |
| Maximum@ min.disp. | - | - | - | 5300 | 4850 | 5000 | |
| System pressure | |||||||
| Continuous | bar[psi] | 210[3000] | |||||
| Maximum | 345[5000] | ||||||
Selection Table
| MMF025 axial piston hydraulic motor | ||
| Model No. | Model Code | Model Code |
| 4253027 | MMF-025-C-A-2-G-A-B-NNN-*** | MMF025CA2GABNNN*** |
| 83037681 | MMF-025-C-A-4-B-E-C-NNN-*** | MMF025CA4BECNNN*** |
| 83039430 | MMF-025-C-A-4-G-E-N-NNN-*** | MMF025CA4GENNNN*** |
| 4253043 | MMF-025-C-A-4-G-F-B-NNN-*** | MMF025CA4GFBNNN*** |
| 83063850 | MMF-025-C-A-4-K-F-B-NCE-*** | MMF025CA4KFBNCE*** |
| 83059762 | MMF-025-C-A-4-K-F-B-NCF-*** | MMF025CA4KFBNCF*** |
| 83034462 | MMF-025-C-A-4-M-F-B-NNN-*** | MMF025CA4MFBNNN*** |
| 83059255 | MMF-025-C-A-4-R-F-C-NNN-*** | MMF025CA4RFCNNN*** |
| 83032278 | MMF-025-C-A-5-B-E-D-NNN-*** | MMF025CA5BEDNNN*** |
| 83045235 | MMF-025-C-A-5-G-E-D-NNN-*** | MMF025CA5GEDNNN*** |
| 4253036 | MMF-025-C-A-5-G-F-B-NNN-*** | MMF025CA5GFBNNN*** |
| 83063254 | MMF-025-C-A-5-K-F-B-NCF-*** | MMF025CA5KFBNCF*** |
| 83027638 | MMF-025-C-A-5-R-E-D-NNN-*** | MMF025CA5REDNNN*** |
| 83054739 | MMF-025-C-A-D-G-C-F-NNN-*** | MMF025CADGCFNNN*** |
| 4253033 | MMF-025-C-A-E-5-C-D-NNN-*** | MMF025CAE5CDNNN*** |
| 4253010 | MMF-025-C-A-E-B-A-B-NNN-*** | MMF025CAEBABNNN*** |
| 4253018 | MMF-025-C-A-E-B-A-C-NNN-*** | MMF025CAEBACNNN*** |
| 4253021 | MMF-025-C-A-E-B-C-B-NNN-*** | MMF025CAEBCBNNN*** |
| 83004209 | MMF-025-C-A-E-B-C-C-NNN-*** | MMF025CAEBCCNNN*** |
| 4253032 | MMF-025-C-A-E-B-C-D-NNN-*** | MMF025CAEBCDNNN*** |
| 83010015 | MMF-025-C-A-E-B-C-J-NNN-*** | MMF025CAEBCJNNN*** |
| 4253000 | MMF-025-C-A-E-G-A-B-NNN-*** | MMF025CAEGABNNN*** |
| 4253001 | MMF-025-C-A-E-G-A-C-NNN-*** | MMF025CAEGACNNN*** |
| 4253022 | MMF-025-C-A-E-G-C-B-NNN-*** | MMF025CAEGCBNNN*** |
| 4253019 | MMF-025-C-A-E-G-C-C-NNN-*** | MMF025CAEGCCNNN*** |
| 4253024 | MMF-025-C-A-E-G-C-D-NNN-*** | MMF025CAEGCDNNN*** |
| 83014161 | MMF-025-C-A-E-G-C-D-NNN-*** | MMF025CAEGCDNNN*** |
| 4253016 | MMF-025-C-A-E-G-C-F-NNN-*** | MMF025CAEGCFNNN*** |
| 4253017 | MMF-025-C-A-E-G-C-J-NNN-*** | MMF025CAEGCJNNN*** |
| 4253023 | MMF-025-C-A-E-G-C-N-NNN-*** | MMF025CAEGCNNNN*** |
| 80005640 | MMF-025-C-A-E-G-C-W-NNN-*** | MMF025CAEGCWNNN*** |
| 4253040 | MMF-025-C-A-E-M-A-C-NNN-*** | MMF025CAEMACNNN*** |
| 4253042 | MMF-025-C-A-E-M-C-F-NNN-*** | MMF025CAEMCFNNN*** |
| 4253028 | MMF-025-C-A-E-M-C-J-NNN-*** | MMF025CAEMCJNNN*** |
| 4253002 | MMF-025-C-A-E-R-A-B-NNN-*** | MMF025CAERABNNN*** |
| 4253015 | MMF-025-C-A-E-R-A-C-NNN-*** | MMF025CAERACNNN*** |
| 4253026 | MMF-025-C-A-E-R-C-B-NNN-*** | MMF025CAERCBNNN*** |
| 80003654 | MMF-025-C-A-E-R-C-C-NNN-*** | MMF025CAERCCNNN*** |
| 4253007 | MMF-025-C-A-E-R-C-D-NNN-*** | MMF025CAERCDNNN*** |
| 4253030 | MMF-025-C-A-E-R-C-F-NNN-*** | MMF025CAERCFNNN*** |
| 83020491 | MMF-025-C-A-E-R-C-T-NNN-*** | MMF025CAERCTNNN*** |
| 4253020 | MMF-025-C-A-N-5-A-B-NNN-*** | MMF025CAN5ABNNN*** |
| 4253031 | MMF-025-C-A-N-B-A-B-NNN-*** | MMF025CANBABNNN*** |
| 4253025 | MMF-025-C-A-N-G-A-B-NNN-*** | MMF025CANGABNNN*** |
| 4253011 | MMF-025-C-A-N-G-A-C-NNN-*** | MMF025CANGACNNN*** |
| 4253012 | MMF-025-C-A-N-R-A-B-NNN-*** | MMF025CANRABNNN*** |
| 83010140 | MMF-025-C-A-N-R-A-C-NNN-*** | MMF025CANRACNNN*** |
| 83007192 | MMF-025-C-A-N-R-C-D-NNN-*** | MMF025CANRCDNNN*** |
| 83002283 | MMF-025-C-A-N-R-C-J-NNN-*** | MMF025CANRCJNNN*** |
| 83059068 | MMF-025-C-A-S-5-A-B-NNN-*** | MMF025CAS5ABNNN*** |
| 83047651 | MMF-025-C-A-S-5-C-D-NNN-*** | MMF025CAS5CDNNN*** |
| 4253037 | MMF-025-C-A-S-B-A-B-NNN-*** | MMF025CASBABNNN*** |
| 83009247 | MMF-025-C-A-S-B-C-B-NNN-*** | MMF025CASBCBNNN*** |
| 4253039 | MMF-025-C-A-S-G-A-B-NNN-*** | MMF025CASGABNNN*** |
| 83021739 | MMF-025-C-A-S-G-A-C-NNN-*** | MMF025CASGACNNN*** |
| 83002330 | MMF-025-C-A-S-G-C-F-NNN-*** | MMF025CASGCFNNN*** |
| 4253041 | MMF-025-C-A-S-R-A-B-NNN-*** | MMF025CASRABNNN*** |
| 83006155 | MMF-025-C-A-S-R-C-B-NNN-*** | MMF025CASRCBNNN*** |
| 83001515 | MMF-025-C-A-T-B-A-B-NNN-*** | MMF025CATBABNNN*** |
| 83002325 | MMF-025-C-A-T-B-A-C-NNN-*** | MMF025CATBACNNN*** |
| 83058188 | MMF-025-C-A-T-B-C-D-NNN-*** | MMF025CATBCDNNN*** |
| 83056419 | MMF-025-C-A-T-G-C-B-NNN-*** | MMF025CATGCBNNN*** |
| 83050109 | MMF-025-C-A-T-R-C-D-NNN-*** | MMF025CATRCDNNN*** |
| 83004232 | MMF-025-C-A-U-B-A-B-NNN-*** | MMF025CAUBABNNN*** |
| 83058878 | MMF-025-C-A-U-B-A-C-NNN-*** | MMF025CAUBACNNN*** |
Q1:What are the key performance advantages of the MMF025 hydraulic motor?
A1:The MMF025 hydraulic motor is known for its excellent starting torque, high volumetric efficiency, and smooth operation at very low speeds, offering exceptional power density.
Q2:In which types of applications is the MMF025 hydraulic motor commonly found?
A2: The MMF025 hydraulic motor is ideally suited for demanding mobile equipment such as wheel drives, winches, and conveyors, especially where space is limited.
Q3:How to purchase a MMF025 hydraulic motor?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the MMF025 hydraulic motor?
A4:The specific price and delivery time will be provided based on the specific model you provide.
