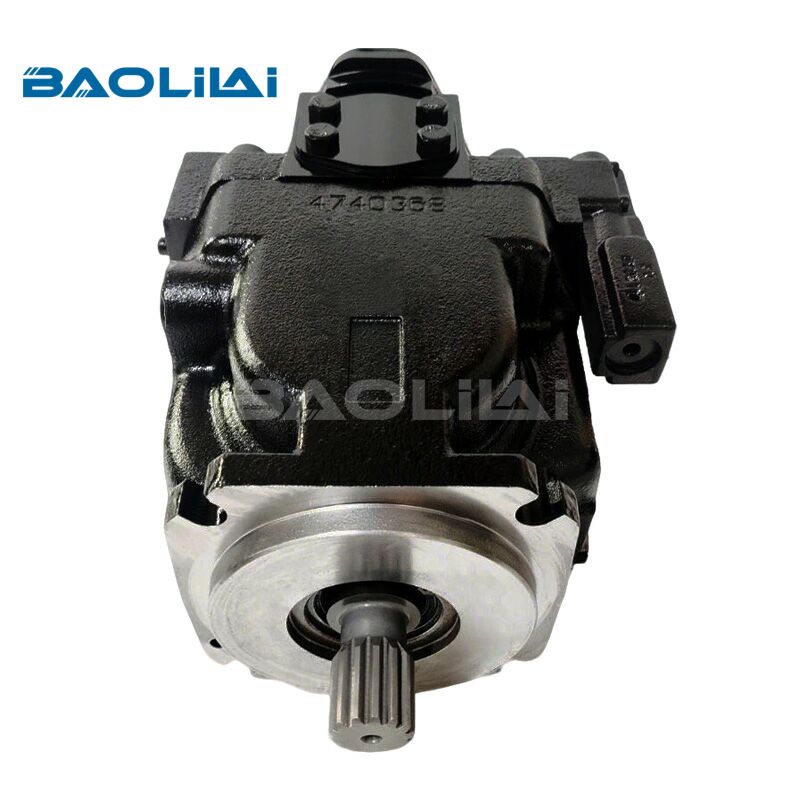

FRL074 axial piston pump hydraulic pump
SERIES : FRL074
BRAND : For Sauer Danfoss
Model Size :FRL074
Displacement : 74cm3/rev
Speed : 500-2800rpm
Maximum Pressure : 400bar
Nominal Pressure : 310bar
Download PDF
- Product Details
- Product Model
- FAQ
The FRL074 is a high-performance variable piston pump belonging to the Sauer Danfoss Series 45, designed primarily for open-circuit hydraulic systems. As a key component in hydraulic power transmission, it is widely recognized for its stability, durability, and adaptability across multiple industries.
Typical applications of the FRL074 include construction machinery (such as cranes, wheel loaders, and mini-excavators), agricultural and forestry equipment, forklift trucks, paving machines, and mining equipment. Its stable pressure output and reliable performance contribute significantly to the smooth operation of these machines, reducing downtime and maintenance costs.
Specification
| Unit | F frame | |||
| 074B | 090C | |||
| Maximum Displacement | cm3 [in3] | 74 [4.52] | 90 [5.49] | |
| Working Input speed | Minimum | min−1 [rpm] | 500 | 500 |
| Continuous | 2400 | 2200 | ||
| Maximum | 2800 | 2600 | ||
| Working Pressure | Continuous | bar [psi] | 310 [4500] | 260 [3770] |
| Maximum | 400 [5800] | 350 [5075] | ||
| Flow at rated speed (theoretical) | l/min | 178 | 198 | |
| US gal/min | 46.9 | 52.3 | ||
| Input torque at maximum displacement (theoretical) at 49∘C (120∘F) | Nm/bar | 1.178 | 1.433 | |
| lbf·in/1000 psi | 719.3 | 874.8 | ||
| Mass moment of inertia of internal rotating components | kg·m2 | 0.0063 | 0.0065 | |
| slug·ft2 | -0.00465 | -0.00479 | ||
| Weight | Axial ports | kg [lb] | 29.5 [65.0] | |
| Radial ports | 32.6 [71.9] | |||
| External Shaft Loads | External moment (Me) | N·m [lbf·in] | 300 [2655] | 300 [2655] |
| Thrust in (Tin), out (Tout) | N [lbf] | 2900 [652] | 2900 [652] | |
| Mounting flange load moments | Vibratory (continuous) | N·m [lbf·in] | 3730 [33 100] | |
| Shock (maximum) | 13220 [117 100] | |||
Selection Table
| FRL074 Series Some Models | ||
| Model No. | Model Code | Model Code |
| 83036773 | FR-L-074B-AG-20-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BAG2020NNN3S1N4A1NAAANNNNNN |
| 83023341 | FR-L-074B-AK-28-20-NN-E-3-S1B2-A1N-NNN-NNN-NNN | FRL074BAK2820NNE3S1B2A1NNNNNNNNNN |
| 83028922 | FR-L-074B-AK-28-20-NN-F-3-S1B2-A1N-NNN-NNN-NNN | FRL074BAK2820NNF3S1B2A1NNNNNNNNNN |
| 83035749 | FR-L-074B-AW-25-10-NN-F-3-K4N2-A1N-NNN-NNN-NNN | FRL074BAW2510NNF3K4N2A1NNNNNNNNNN |
| 83059561 | FR-L-074B-AY-20-20-NN-F-3-S1N4-A1N-AAA-NNN-NNN | FRL074BAY2020NNF3S1N4A1NAAANNNNNN |
| 83023187 | FR-L-074B-BB-29-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL074BBB2920NNN3S1V2A1NNNNNNNNNN |
| 83061620 | FR-L-074B-BB-31-14-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBB3114NNN3S1N2A1NNNNNNNNNN |
| 80004023 | FR-L-074B-BC-31-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BBC31NNNNN3S1N2A1NAAANNNNNN |
| 83032915 | FR-L-074B-BC-31-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BBC31NNNNN3S1N2A1NAAANNNNNN |
| 83008456 | FR-L-074B-BC-31-NN-NN-N-3-S2A2-A1N-NNN-NNN-NNN | FRL074BBC31NNNNN3S2A2A1NNNNNNNNNN |
| 83029028 | FR-L-074B-BK-31-20-NN-F-3-S1B2-A1N-NNN-NNN-NNN | FRL074BBK3120NNF3S1B2A1NNNNNNNNNN |
| 83048773 | FR-L-074B-BK-31-25-NN-E-3-S1C2-A1N-NNN-NNN-NNN | FRL074BBK3125NNE3S1C2A1NNNNNNNNNN |
| 83008045 | FR-L-074B-BP-30-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BBP3020NNN3S1N4A1NAAANNNNNN |
| 83015041 | FR-L-074B-BP-31-11-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BBP3111NNN3S1N2A1NAAANNNNNN |
| 80004492 | FR-L-074B-BS-29-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL074BBS2920NNN3K4N2A1NNNNNNNNNN |
| 83041976 | FR-L-074B-BS-29-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BBS2920NNN3S1B2A1NAAANNNNNN |
| 83002970 | FR-L-074B-BS-29-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BBS2920NNN3S1C2A1NAAANNNNNN |
| 83039967 | FR-L-074B-BS-29-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBS2920NNN3S1N2A1NNNNNNNNNN |
| 83010660 | FR-L-074B-BS-29-20-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRL074BBS2920NNN3S2B2A1NNNNNNNNNN |
| 83032962 | FR-L-074B-BS-29-20-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRL074BBS2920NNN3S2B2A1NNNNNNNNNN |
| 83022732 | FR-L-074B-BS-29-21-NN-N-3-S1N4-A3N-NNN-NNN-NNN | FRL074BBS2921NNN3S1N4A3NNNNNNNNNN |
| 83017223 | FR-L-074B-BS-30-10-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BBS3010NNN3S1N4A1NNNNNNNNNN |
| 83062752 | FR-L-074B-BS-30-14-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BBS3014NNN3S1C2A1NNNNNNNNNN |
| 83021242 | FR-L-074B-BS-30-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BBS3020NNN3S1B2A1NNNNNNNNNN |
| 83039778 | FR-L-074B-BS-30-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BBS3020NNN3S1B2A1NNNNNNNNNN |
| 83053603 | FR-L-074B-BS-30-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBS3020NNN3S1N2A1NNNNNNNNNN |
| 83053745 | FR-L-074B-BS-30-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL074BBS3020NNN3S2N2A1NNNNNNNNNN |
| 83064047 | FR-L-074B-BS-30-30-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BBS3030NNN3S1C2A1NAAANNNNNN |
| 83047392 | FR-L-074B-BS-30-30-NN-N-3-S1N5-A1N-NNN-NNN-NNN | FRL074BBS3030NNN3S1N5A1NNNNNNNNNN |
| 83056442 | FR-L-074B-BS-31-14-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBS3114NNN3S1N2A1NNNNNNNNNN |
| 83033190 | FR-L-074B-BS-31-15-NN-E-3-S1V2-A1N-NNN-NNN-NNN | FRL074BBS3115NNE3S1V2A1NNNNNNNNNN |
| 83009596 | FR-L-074B-BS-31-15-NN-N-3-S1N5-A1N-NNN-NNN-NNN | FRL074BBS3115NNN3S1N5A1NNNNNNNNNN |
| 83033003 | FR-L-074B-BS-31-15-NN-N-3-S1N5-A1N-NNN-NNN-NNN | FRL074BBS3115NNN3S1N5A1NNNNNNNNNN |
| 83068951 | FR-L-074B-BS-31-20-NN-E-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBS3120NNE3S1N2A1NNNNNNNNNN |
| 83017323 | FR-L-074B-BS-31-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3K4N2A1NAAANNNNNN |
| 83060928 | FR-L-074B-BS-31-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3K4N2A1NAAANNNNNN |
| 83001658 | FR-L-074B-BS-31-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3K4N2A1NNNNNNNNNN |
| 83012957 | FR-L-074B-BS-31-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3K4R2A1NAAANNNNNN |
| 83005270 | FR-L-074B-BS-31-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1A2A1NNNNNNNNNN |
| 83032942 | FR-L-074B-BS-31-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1A2A1NNNNNNNNNN |
| 83073298 | FR-L-074B-BS-31-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1B2A1NNNNNNNNNN |
| 83050060 | FR-L-074B-BS-31-20-NN-N-3-S1B2-A3N-NNN-NNN-NNN | FRL074BBS3120NNN3S1B2A3NNNNNNNNNN |
| 80004411 | FR-L-074B-BS-31-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1C2A1NNNNNNNNNN |
| 83032916 | FR-L-074B-BS-31-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1C2A1NNNNNNNNNN |
| 83002824 | FR-L-074B-BS-31-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3S1N2A1NAAANNNNNN |
| 83032932 | FR-L-074B-BS-31-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3S1N2A1NAAANNNNNN |
| 80001900 | FR-L-074B-BS-31-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1N2A1NNNNNNNNNN |
| 83032892 | FR-L-074B-BS-31-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1N2A1NNNNNNNNNN |
| 80002601 | FR-L-074B-BS-31-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1N4A1NNNNNNNNNN |
| 83032899 | FR-L-074B-BS-31-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1N4A1NNNNNNNNNN |
| 11062265 | FR-L-074B-BS-31-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3S1R2A1NAAANNNNNN |
| 83017456 | FR-L-074B-BS-31-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3S1R2A1NAAANNNNNN |
| 83033005 | FR-L-074B-BS-31-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BBS3120NNN3S1R2A1NAAANNNNNN |
| 80005809 | FR-L-074B-BS-31-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1R2A1NNNNNNNNNN |
| 83015739 | FR-L-074B-BS-31-20-NN-N-3-S1T2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1T2A1NNNNNNNNNN |
| 83032970 | FR-L-074B-BS-31-20-NN-N-3-S1T2-A1N-NNN-NNN-NNN | FRL074BBS3120NNN3S1T2A1NNNNNNNNNN |
| 80003746 | FR-L-074B-BS-31-26-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BBS3126NNN3S1N2A1NNNNNNNNNN |
| 80003745 | FR-L-074B-BS-31-26-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BBS3126NNN3S1N4A1NNNNNNNNNN |
| 83063914 | FR-L-074B-BS-31-28-NN-N-3-S2A2-A1N-NNN-NNN-NNN | FRL074BBS3128NNN3S2A2A1NNNNNNNNNN |
| 83062030 | FR-L-074B-BS-31-28-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRL074BBS3128NNN3S2B2A1NNNNNNNNNN |
| 83038389 | FR-L-074B-BS-31-30-NN-E-3-T0N4-A1N-NNN-NNN-NNN | FRL074BBS3130NNE3T0N4A1NNNNNNNNNN |
| 80005488 | FR-L-074B-BS-31-30-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BBS3130NNN3S1C2A1NNNNNNNNNN |
| 83032923 | FR-L-074B-BS-31-30-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BBS3130NNN3S1C2A1NNNNNNNNNN |
| 80005221 | FR-L-074B-BS-31-30-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL074BBS3130NNN3S1V2A1NNNNNNNNNN |
| 83051677 | FR-L-074B-BS-31-30-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL074BBS3130NNN3S2N2A1NNNNNNNNNN |
| 83017809 | FR-L-074B-BS-32-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL074BBS3220NNN3S1R2A1NNNNNNNNNN |
| 83065639 | FR-L-074B-DK-31-20-NN-E-3-S1B2-A1N-NNN-NNN-NNN | FRL074BDK3120NNE3S1B2A1NNNNNNNNNN |
| 83012527 | FR-L-074B-LB-10-10-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLB1010NNN3S1B2A1NAAANNNNNN |
| 83016932 | FR-L-074B-LB-16-20-NN-N-3-K4C2-A1N-AAA-NNN-NNN | FRL074BLB1620NNN3K4C2A1NAAANNNNNN |
| 83036377 | FR-L-074B-LB-16-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL074BLB1620NNN3K4C2A1NNNNNNNNNN |
| 83039519 | FR-L-074B-LB-20-20-NN-E-3-S2V2-A1N-AAA-NNN-NNN | FRL074BLB2020NNE3S2V2A1NAAANNNNNN |
| 83056783 | FR-L-074B-LB-26-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BLB2620NNN3S1N4A1NNNNNNNNNN |
| 83001503 | FR-L-074B-LB-28-14-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLB2814NNN3S1B2A1NAAANNNNNN |
| 83010156 | FR-L-074B-LB-28-14-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLB2814NNN3S1N2A1NNNNNNNNNN |
| 83019724 | FR-L-074B-LB-28-14-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL074BLB2814NNN3S1R2A1NNNNNNNNNN |
| 83041219 | FR-L-074B-LB-28-30-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLB2830NNN3S1B2A1NAAANNNNNN |
| 83041220 | FR-L-074B-LB-28-30-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLB2830NNN3S1C2A1NAAANNNNNN |
| 80005489 | FR-L-074B-LS-10-10-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BLS1010NNN3S1N4A1NNNNNNNNNN |
| 83010679 | FR-L-074B-LS-12-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS1220NNN3S1R2A1NAAANNNNNN |
| 83033019 | FR-L-074B-LS-12-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS1220NNN3S1R2A1NAAANNNNNN |
| 80004896 | FR-L-074B-LS-12-25-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BLS1225NNN3S1A2A1NNNNNNNNNN |
| 80004893 | FR-L-074B-LS-13-25-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS1325NNN3S1B2A1NNNNNNNNNN |
| 80004894 | FR-L-074B-LS-13-25-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BLS1325NNN3S1C2A1NNNNNNNNNN |
| 80004895 | FR-L-074B-LS-13-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS1325NNN3S1N2A1NNNNNNNNNN |
| 83006007 | FR-L-074B-LS-15-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS1520NNN3S1B2A1NNNNNNNNNN |
| 83077132 | FR-L-074B-LS-15-28-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS1528NNN3S1N2A1NNNNNNNNNN |
| 83010555 | FR-L-074B-LS-16-27-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL074BLS1627NNN3K4N2A1NNNNNNNNNN |
| 83067768 | FR-L-074B-LS-18-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BLS1820NNN3S1N2A1NAAANNNNNN |
| 83020394 | FR-L-074B-LS-18-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS1820NNN3S1R2A1NAAANNNNNN |
| 83020393 | FR-L-074B-LS-18-20-NN-N-3-S2C2-A1N-AAA-NNN-NNN | FRL074BLS1820NNN3S2C2A1NAAANNNNNN |
| 83067451 | FR-L-074B-LS-20-11-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL074BLS2011NNN3S1A2A1NAAANNNNNN |
| 83005019 | FR-L-074B-LS-20-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLS2020NNN3S1B2A1NAAANNNNNN |
| 80005730 | FR-L-074B-LS-20-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS2020NNN3S1B2A1NNNNNNNNNN |
| 83008433 | FR-L-074B-LS-20-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2020NNN3S1C2A1NAAANNNNNN |
| 80006700 | FR-L-074B-LS-20-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2020NNN3S1N2A1NNNNNNNNNN |
| 80002255 | FR-L-074B-LS-20-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BLS2020NNN3S1N4A1NAAANNNNNN |
| 83057253 | FR-L-074B-LS-20-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BLS2020NNN3S1N4A1NNNNNNNNNN |
| 83063596 | FR-L-074B-LS-20-20-NN-N-3-S1T2-A1N-NNN-NNN-NNN | FRL074BLS2020NNN3S1T2A1NNNNNNNNNN |
| 83008666 | FR-L-074B-LS-20-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL074BLS2020NNN3S1V2A1NNNNNNNNNN |
| 83018995 | FR-L-074B-LS-20-31-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL074BLS2031NNN3K4N2A1NNNNNNNNNN |
| 80002035 | FR-L-074B-LS-21-14-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL074BLS2114NNN3K4A2A1NAAANNNNNN |
| 83004999 | FR-L-074B-LS-21-14-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL074BLS2114NNN3K4N2A1NAAANNNNNN |
| 83010625 | FR-L-074B-LS-21-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS2120NNN3S1B2A1NNNNNNNNNN |
| 83068376 | FR-L-074B-LS-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2120NNN3S1N2A1NNNNNNNNNN |
| 80004004 | FR-L-074B-LS-21-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BLS2120NNN3S1N4A1NAAANNNNNN |
| 83013747 | FR-L-074B-LS-21-20-NN-N-3-S1N4-A1N-NNN-NNN-NNJ | FRL074BLS2120NNN3S1N4A1NNNNNNNNNJ |
| 83013247 | FR-L-074B-LS-21-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BLS2120NNN3S1N4A1NNNNNNNNNN |
| 83063912 | FR-L-074B-LS-21-20-NN-N-3-S1R2-A1R-AAA-ANS-NNN | FRL074BLS2120NNN3S1R2A1RAAAANSNNN |
| 11091109 | FR-L-074B-LS-21-24-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2124NNN3S1C2A1NAAANNNNNN |
| 83033033 | FR-L-074B-LS-21-24-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2124NNN3S1C2A1NAAANNNNNN |
| 11106187 | FR-L-074B-LS-21-24-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS2124NNN3S1R2A1NAAANNNNNN |
| 83033036 | FR-L-074B-LS-21-24-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS2124NNN3S1R2A1NAAANNNNNN |
| 83046956 | FR-L-074B-LS-21-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2130NNN3S1N2A1NNNNNNNNNN |
| 83050380 | FR-L-074B-LS-22-27-NN-E-3-S1A2-A1N-NNN-NNN-NNN | FRL074BLS2227NNE3S1A2A1NNNNNNNNNN |
| 83003130 | FR-L-074B-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2320NNN3S1N2A1NNNNNNNNNN |
| 83033012 | FR-L-074B-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2320NNN3S1N2A1NNNNNNNNNN |
| 80004422 | FR-L-074B-LS-24-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2420NNN3S1N2A1NNNNNNNNNN |
| 83014011 | FR-L-074B-LS-24-28-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS2428NNN3S1B2A1NNNNNNNNNN |
| 83032968 | FR-L-074B-LS-24-28-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS2428NNN3S1B2A1NNNNNNNNNN |
| 80002568 | FR-L-074B-LS-25-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3K4A2A1NAAANNNNNN |
| 83006461 | FR-L-074B-LS-25-20-NN-N-3-K4A2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3K4A2A1NNNNNNNNNN |
| 83025033 | FR-L-074B-LS-25-20-NN-N-3-K4C2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3K4C2A1NAAANNNNNN |
| 80006353 | FR-L-074B-LS-25-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3K4N2A1NNNNNNNNNN |
| 83052435 | FR-L-074B-LS-25-20-NN-N-3-K4N2-A3N-NNN-NNN-NNN | FRL074BLS2520NNN3K4N2A3NNNNNNNNNN |
| 80003923 | FR-L-074B-LS-25-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3K4N4A1NAAANNNNNN |
| 83017211 | FR-L-074B-LS-25-20-NN-N-3-K4N4-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3K4N4A1NNNNNNNNNN |
| 11077675 | FR-L-074B-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3K4R2A1NAAANNNNNN |
| 83017315 | FR-L-074B-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3K4R2A1NAAANNNNNN |
| 83033007 | FR-L-074B-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3K4R2A1NAAANNNNNN |
| 83005029 | FR-L-074B-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1A2A1NAAANNNNNN |
| 80005566 | FR-L-074B-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1B2A1NAAANNNNNN |
| 83032924 | FR-L-074B-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1B2A1NAAANNNNNN |
| 80003799 | FR-L-074B-LS-25-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1B2A1NNNNNNNNNN |
| 83047097 | FR-L-074B-LS-25-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1B2A1NNNNNNNNNN |
| 83007951 | FR-L-074B-LS-25-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1C2A1NAAANNNNNN |
| 80001753 | FR-L-074B-LS-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1C2A1NNNNNNNNNN |
| 83032891 | FR-L-074B-LS-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1C2A1NNNNNNNNNN |
| 83010113 | FR-L-074B-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1N2A1NAAANNNNNN |
| 83042894 | FR-L-074B-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1N2A1NAAANNNNNN |
| 80001756 | FR-L-074B-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1N2A1NNNNNNNNNN |
| 83032329 | FR-L-074B-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1N2A1NNNNNNNNNN |
| 80006491 | FR-L-074B-LS-25-20-NN-N-3-S1N2-A3N-AAA-NNN-NNN | FRL074BLS2520NNN3S1N2A3NAAANNNNNN |
| 7002004 | FR-L-074B-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1N4A1NAAANNNNNN |
| 83032583 | FR-L-074B-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1N4A1NAAANNNNNN |
| 80003490 | FR-L-074B-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1N4A1NNNNNNNNNN |
| 83005978 | FR-L-074B-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-P00 | FRL074BLS2520NNN3S1N4A1NNNNNNNP00 |
| 7002002 | FR-L-074B-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1R2A1NAAANNNNNN |
| 83033008 | FR-L-074B-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1R2A1NAAANNNNNN |
| 83007724 | FR-L-074B-LS-25-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S1V2A1NAAANNNNNN |
| 83005248 | FR-L-074B-LS-25-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S1V2A1NNNNNNNNNN |
| 83017766 | FR-L-074B-LS-25-20-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S2B2A1NNNNNNNNNN |
| 83001098 | FR-L-074B-LS-25-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S2C2A1NNNNNNNNNN |
| 83047096 | FR-L-074B-LS-25-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S2C2A1NNNNNNNNNN |
| 83012864 | FR-L-074B-LS-25-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S2N2A1NNNNNNNNNN |
| 7002005 | FR-L-074B-LS-25-20-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S2N4A1NAAANNNNNN |
| 7002003 | FR-L-074B-LS-25-20-NN-N-3-S2R2-A1N-AAA-NNN-NNN | FRL074BLS2520NNN3S2R2A1NAAANNNNNN |
| 83017830 | FR-L-074B-LS-25-20-NN-N-3-S2T2-A1N-NNN-NNN-NNN | FRL074BLS2520NNN3S2T2A1NNNNNNNNNN |
| 83055444 | FR-L-074B-LS-25-25-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BLS2525NNN3S1B2A1NNNNNNNNNN |
| 83013988 | FR-L-074B-LS-25-25-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BLS2525NNN3S1N2A1NAAANNNNNN |
| 83038511 | FR-L-074B-LS-25-25-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BLS2525NNN3S1N2A1NAAANNNNNN |
| 83017997 | FR-L-074B-LS-25-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2530NNN3S1N2A1NNNNNNNNNN |
| 83051676 | FR-L-074B-LS-25-30-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL074BLS2530NNN3S2C2A1NNNNNNNNNN |
| 83027992 | FR-L-074B-LS-26-17-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2617NNN3S1N2A1NNNNNNNNNN |
| 83032980 | FR-L-074B-LS-26-17-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2617NNN3S1N2A1NNNNNNNNNN |
| 83037090 | FR-L-074B-LS-26-20-NN-F-3-S2A2-A1N-NNN-NNN-NNN | FRL074BLS2620NNF3S2A2A1NNNNNNNNNN |
| 83034550 | FR-L-074B-LS-26-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL074BLS2620NNN3K4C2A1NNNNNNNNNN |
| 83038299 | FR-L-074B-LS-26-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BLS2620NNN3S1A2A1NNNNNNNNNN |
| 80001834 | FR-L-074B-LS-26-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2620NNN3S1N2A1NNNNNNNNNN |
| 83053773 | FR-L-074B-LS-26-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BLS2620NNN3S1N4A1NAAANNNNNN |
| 83002786 | FR-L-074B-LS-26-20-NN-N-3-S2B2-A1N-AAA-NNN-NNN | FRL074BLS2620NNN3S2B2A1NAAANNNNNN |
| 83032931 | FR-L-074B-LS-26-20-NN-N-3-S2B2-A1N-AAA-NNN-NNN | FRL074BLS2620NNN3S2B2A1NAAANNNNNN |
| 83091648 | FR-L-074B-LS-26-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL074BLS2620NNN3S2N2A1NNNNNNNNNN |
| 83030500 | FR-L-074B-LS-27-22-NN-E-3-S1C2-A1N-NNN-NNN-NNN | FRL074BLS2722NNE3S1C2A1NNNNNNNNNN |
| 83032985 | FR-L-074B-LS-27-22-NN-E-3-S1C2-A1N-NNN-NNN-NNN | FRL074BLS2722NNE3S1C2A1NNNNNNNNNN |
| 83005957 | FR-L-074B-LS-27-27-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2727NNN3S1N2A1NNNNNNNNNN |
| 83033006 | FR-L-074B-LS-28-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLS2820NNN3S1B2A1NAAANNNNNN |
| 83057254 | FR-L-074B-LS-28-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLS2820NNN3S1B2A1NAAANNNNNN |
| 83016066 | FR-L-074B-LS-28-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2820NNN3S1C2A1NAAANNNNNN |
| 83034497 | FR-L-074B-LS-28-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2820NNN3S1C2A1NAAANNNNNN |
| 80004939 | FR-L-074B-LS-28-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2820NNN3S1N2A1NNNNNNNNNN |
| 83047095 | FR-L-074B-LS-28-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2820NNN3S1N2A1NNNNNNNNNN |
| 83010245 | FR-L-074B-LS-28-20-NN-N-3-S1N2-A3N-NNN-NNN-NNN | FRL074BLS2820NNN3S1N2A3NNNNNNNNNN |
| 83003151 | FR-L-074B-LS-28-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS2820NNN3S1R2A1NAAANNNNNN |
| 83033013 | FR-L-074B-LS-28-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS2820NNN3S1R2A1NAAANNNNNN |
| 83015615 | FR-L-074B-LS-28-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL074BLS2820NNN3S1V2A1NNNNNNNNNN |
| 83032969 | FR-L-074B-LS-28-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL074BLS2820NNN3S1V2A1NNNNNNNNNN |
| 83002150 | FR-L-074B-LS-28-20-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRL074BLS2820NNN3S2N4A1NAAANNNNNN |
| 83020874 | FR-L-074B-LS-28-20-NN-N-3-S2T2-A1N-NNN-NNN-NNN | FRL074BLS2820NNN3S2T2A1NNNNNNNNNN |
| 83032974 | FR-L-074B-LS-28-20-NN-N-3-S2T2-A1N-NNN-NNN-NNN | FRL074BLS2820NNN3S2T2A1NNNNNNNNNN |
| 83016597 | FR-L-074B-LS-28-23-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL074BLS2823NNN3S1A2A1NAAANNNNNN |
| 83032995 | FR-L-074B-LS-28-23-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL074BLS2823NNN3S1A2A1NAAANNNNNN |
| 83003341 | FR-L-074B-LS-28-23-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BLS2823NNN3S1N2A1NNNNNNNNNN |
| 83001937 | FR-L-074B-LS-28-25-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BLS2825NNN3S1A2A1NNNNNNNNNN |
| 83031037 | FR-L-074B-LS-28-25-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2825NNN3S1C2A1NAAANNNNNN |
| 83035529 | FR-L-074B-LS-28-25-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2825NNN3S1C2A1NAAANNNNNN |
| 80002021 | FR-L-074B-LS-28-25-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BLS2825NNN3S1N2A1NAAANNNNNN |
| 83032894 | FR-L-074B-LS-28-25-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BLS2825NNN3S1N2A1NAAANNNNNN |
| 83005312 | FR-L-074B-LS-28-25-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BLS2825NNN3S1N4A1NAAANNNNNN |
| 83035460 | FR-L-074B-LS-28-30-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BLS2830NNN3S1B2A1NAAANNNNNN |
| 83032599 | FR-L-074B-LS-28-30-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL074BLS2830NNN3S1C2A1NAAANNNNNN |
| 774-100002 | FR-L-074B-LS-31-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BLS3120NNN3S1R2A1NAAANNNNNN |
| 83043988 | FR-L-074B-NN-NN-NN-NN-N-N-S1N2-A1N-NNN-NNN-P00 | FRL074BNNNNNNNNNNS1N2A1NNNNNNNP00 |
| 83041474 | FR-L-074B-NN-NN-NN-NN-N-N-S1N4-A1N-NNN-NNN-P00 | FRL074BNNNNNNNNNNS1N4A1NNNNNNNP00 |
| 83041475 | FR-L-074B-NN-NN-NN-NN-N-N-S1R2-A1N-NNN-NNN-P00 | FRL074BNNNNNNNNNNS1R2A1NNNNNNNP00 |
| 83041476 | FR-L-074B-NN-NN-NN-NN-N-N-S1R2-A1R-NNN-ANS-P00 | FRL074BNNNNNNNNNNS1R2A1RNNNANSP00 |
| 80005490 | FR-L-074B-PC-10-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BPC10NNNNN3S1C2A1NNNNNNNNNN |
| 83056625 | FR-L-074B-PC-13-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BPC13NNNNN3S1B2A1NAAANNNNNN |
| 80001669 | FR-L-074B-PC-13-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BPC13NNNNN3S1N4A1NNNNNNNNNN |
| 83028801 | FR-L-074B-PC-15-NN-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL074BPC15NNNNN3K4N2A1NNNNNNNNNN |
| 83032072 | FR-L-074B-PC-15-NN-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BPC15NNNNN3S1N2A1NNNNNNNNNN |
| 83010315 | FR-L-074B-PC-20-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BPC20NNNNN3S1N4A1NNNNNNNNNN |
| 83010316 | FR-L-074B-PC-20-NN-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL074BPC20NNNNN3S1R2A1NNNNNNNNNN |
| 80006426 | FR-L-074B-PC-21-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BPC21NNNNN3S1N4A1NNNNNNNNNN |
| 83013252 | FR-L-074B-PC-22-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL074BPC22NNNNN3S1N4A1NNNNNNNNNN |
| 83048436 | FR-L-074B-PC-23-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BPC23NNNNN3S1A2A1NNNNNNNNNN |
| 83065954 | FR-L-074B-PC-23-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BPC23NNNNN3S1B2A1NNNNNNNNNN |
| 83018104 | FR-L-074B-PC-25-NN-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3K4A2A1NAAANNNNNN |
| 83038575 | FR-L-074B-PC-25-NN-NN-N-3-K4B2-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3K4B2A1NAAANNNNNN |
| 83029907 | FR-L-074B-PC-25-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3K4N2A1NAAANNNNNN |
| 80002991 | FR-L-074B-PC-25-NN-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3K4N4A1NAAANNNNNN |
| 83029908 | FR-L-074B-PC-25-NN-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3K4R2A1NAAANNNNNN |
| 80001587 | FR-L-074B-PC-25-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3S1B2A1NAAANNNNNN |
| 83054842 | FR-L-074B-PC-25-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BPC25NNNNN3S1B2A1NNNNNNNNNN |
| 83010304 | FR-L-074B-PC-25-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3S1N2A1NAAANNNNNN |
| 7002001 | FR-L-074B-PC-25-NN-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3S1N4A1NAAANNNNNN |
| 83055516 | FR-L-074B-PC-25-NN-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL074BPC25NNNNN3S1R2A1NAAANNNNNN |
| 83027691 | FR-L-074B-PC-25-NN-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRL074BPC25NNNNN3S2B2A1NNNNNNNNNN |
| 80003292 | FR-L-074B-PC-28-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BPC28NNNNN3S1N2A1NAAANNNNNN |
| 83032908 | FR-L-074B-PC-28-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BPC28NNNNN3S1N2A1NAAANNNNNN |
| 83016346 | FR-L-074B-RP-14-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL074BRP1420NNN3S1B2A1NNNNNNNNNN |
| 83031263 | FR-L-074B-RP-14-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL074BRP1420NNN3S1C2A1NNNNNNNNNN |
| 83053116 | FR-L-074B-RP-14-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BRP1420NNN3S1N2A1NNNNNNNNNN |
| 80004897 | FR-L-074B-RP-14-20-NN-N-3-S1T2-A1N-NNN-NNN-NNN | FRL074BRP1420NNN3S1T2A1NNNNNNNNNN |
| 83067462 | FR-L-074B-RP-20-12-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL074BRP2012NNN3S1A2A1NAAANNNNNN |
| 83004242 | FR-L-074B-RP-21-20-NN-N-3-K4R2-A1N-NNN-NNN-NNN | FRL074BRP2120NNN3K4R2A1NNNNNNNNNN |
| 83003276 | FR-L-074B-RP-21-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BRP2120NNN3S1A2A1NNNNNNNNNN |
| 83032934 | FR-L-074B-RP-21-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BRP2120NNN3S1A2A1NNNNNNNNNN |
| 80002167 | FR-L-074B-RP-21-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL074BRP2120NNN3S1B2A1NAAANNNNNN |
| 83018129 | FR-L-074B-RP-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL074BRP2120NNN3S1N2A1NNNNNNNNNN |
| 80006063 | FR-L-074B-RP-25-20-NN-N-3-K4N4-A1N-NNN-NNN-NNN | FRL074BRP2520NNN3K4N4A1NNNNNNNNNN |
| 83070804 | FR-L-074B-RP-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL074BRP2520NNN3S1N2A1NAAANNNNNN |
| 83065295 | FR-L-074B-RP-26-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL074BRP2620NNN3S1A2A1NAAANNNNNN |
| 83053070 | FR-L-074B-RP-26-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL074BRP2620NNN3S1A2A1NNNNNNNNNN |
| 83052265 | FR-L-074B-RP-26-20-NN-N-3-S1A2-A3N-NNN-NNN-NNN | FRL074BRP2620NNN3S1A2A3NNNNNNNNNN |
| 11077433 | FR-L-074B-RP-28-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL074BRP2820NNN3K4A2A1NAAANNNNNN |
| 83007812 | FR-L-074B-RP-28-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL074BRP2820NNN3K4A2A1NAAANNNNNN |
| 83033015 | FR-L-074B-RP-28-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL074BRP2820NNN3K4A2A1NAAANNNNNN |
| 83001367 | FR-L-074B-RP-28-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL074BRP2820NNN3S1N4A1NAAANNNNNN |
Q1:Which series does the FRL074 hydraulic pump belong to, and what type of hydraulic system is it mainly designed for?
A1:It belongs to the Sauer Danfoss Series 45 and is mainly designed for open-circuit hydraulic systems.
Q2:What is the nominal displacement of the FRL074 hydraulic pump, and what is its maximum operating pressure?
A2:Its nominal displacement is 74 cm³/rev, and its maximum operating pressure is 400 bar (5801 psi).
Q3:What key characteristics make the FRL074 hydraulic pump suitable for the rigorous demands of modern industrial and agricultural machinery operations?
A3:Its key characteristics are stability, durability, adaptability, efficient fluid delivery under high-load conditions, flexible installation, stable pressure output, and reliable performance.
Q4:How to purchase an FRL074 hydraulic pump
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
