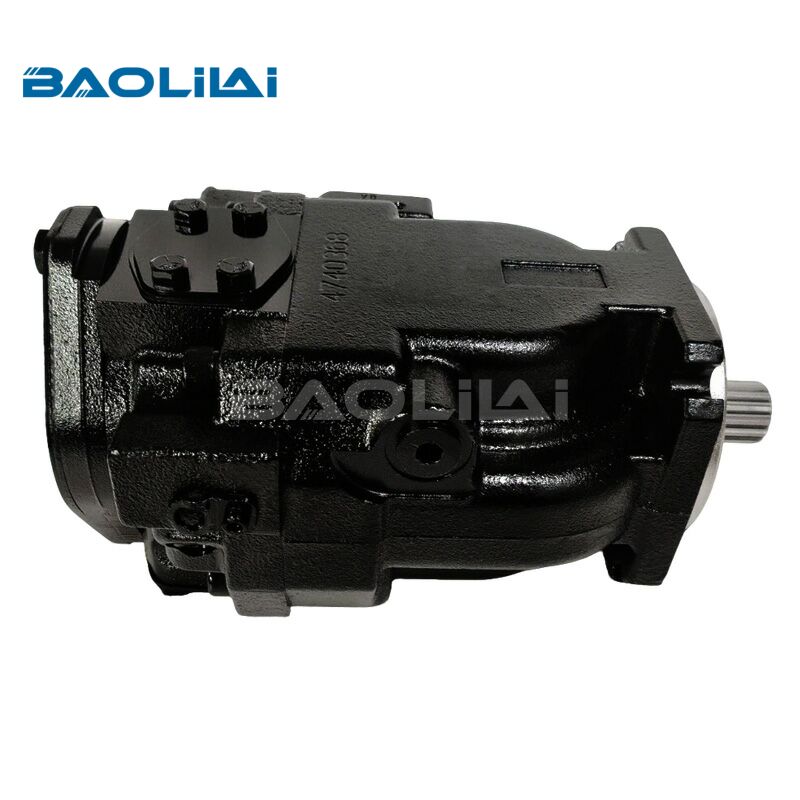

FRL090 axial piston hydraulic pump
SERIES : 45 series FR
BRAND : For Sauer Danfoss
Model Size :FRL090
Displacement : 90cm3/rev
Speed : 500-2600rpm
Maximum Pressure : 350bar
Nominal Pressure : 260bar
Download PDF
- Product Details
- Product Model
- FAQ
The FRL090 hydraulic pump stands as a robust and reliable component within industrial hydraulic systems, engineered to deliver consistent performance in demanding applications. As part of a broader series, it is designed to strike an optimal balance between power, efficiency, and compactness.
This pump typically features a fixed or variable displacement configuration, allowing for integration into diverse circuits. Its design prioritizes durability, often incorporating high-strength materials and precision machining to withstand continuous operation and high pressure loads. The compact footprint of the FRL090 makes it particularly suitable for mobile machinery and installations where space is at a premium, without compromising on output.
The FRL090 excels in providing a steady and reliable flow of hydraulic fluid, which is essential for powering cylinders, motors, and other actuators. It is commonly found in material handling equipment, agricultural machinery, construction vehicles, and certain industrial automation systems. Its efficiency contributes to lower energy consumption and reduced heat generation, enhancing the overall sustainability and reliability of the hydraulic system.
Specifications
| Unit | F frame | |||
| 074B | 090C | |||
| Maximum Displacement | cm3 [in3] | 74 [4.52] | 90 [5.49] | |
| Working Input speed | Minimum | min−1 [rpm] | 500 | 500 |
| Continuous | 2400 | 2200 | ||
| Maximum | 2800 | 2600 | ||
| Working Pressure | Continuous | bar [psi] | 310 [4500] | 260 [3770] |
| Maximum | 400 [5800] | 350 [5075] | ||
| Flow at rated speed (theoretical) | l/min | 178 | 198 | |
| US gal/min | 46.9 | 52.3 | ||
| Input torque at maximum displacement (theoretical) at 49∘C (120∘F) | Nm/bar | 1.178 | 1.433 | |
| lbf·in/1000 psi | 719.3 | 874.8 | ||
| Mass moment of inertia of internal rotating components | kg·m2 | 0.0063 | 0.0065 | |
| slug·ft2 | -0.00465 | -0.00479 | ||
| Weight | Axial ports | kg [lb] | 29.5 [65.0] | |
| Radial ports | 32.6 [71.9] | |||
| External Shaft Loads | External moment (Me) | N·m [lbf·in] | 300 [2655] | 300 [2655] |
| Thrust in (Tin), out (Tout) | N [lbf] | 2900 [652] | 2900 [652] | |
| Mounting flange load moments | Vibratory (continuous) | N·m [lbf·in] | 3730 [33 100] | |
| Shock (maximum) | 13220 [117 100] | |||
Selection Table
| FRL090 Series Some Models | ||
| Model No. | Model Code | Model Code |
| 83032471 | FR-L-090C-AF-13-15-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CAF1315NNN3K4N2A1NNNNNNNNNN |
| 83010048 | FR-L-090C-AG-19-10-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CAG1910NNN3S1A2A1NNNNNNNNNN |
| 83004617 | FR-L-090C-AG-20-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CAG2020NNN3S1B2A1NNNNNNNNNN |
| 83059451 | FR-L-090C-AK-21-20-NN-E-3-S1C2-A1N-AAA-NNN-NNN | FRL090CAK2120NNE3S1C2A1NAAANNNNNN |
| 83095258 | FR-L-090C-AK-23-20-NN-F-3-K4N2-A1N-AAA-NNN-NNN | FRL090CAK2320NNF3K4N2A1NAAANNNNNN |
| 83041070 | FR-L-090C-AK-23-20-NN-F-3-S1B2-A1N-AAA-NNN-NNN | FRL090CAK2320NNF3S1B2A1NAAANNNNNN |
| 83048828 | FR-L-090C-AK-23-20-NN-F-3-S6B2-A1N-NNN-NNN-NNN | FRL090CAK2320NNF3S6B2A1NNNNNNNNNN |
| 83045009 | FR-L-090C-AT-17-10-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CAT1710NNN3S1C2A1NNNNNNNNNN |
| 83045156 | FR-L-090C-AT-17-10-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CAT1710NNN3S1N2A1NAAANNNNNN |
| 83045006 | FR-L-090C-AT-17-10-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CAT1710NNN3S1N2A1NNNNNNNNNN |
| 83065049 | FR-L-090C-AY-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CAY2520NNN3S1C2A1NNNNNNNNNN |
| 83019790 | FR-L-090C-AY-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CAY2520NNN3S1N2A1NNNNNNNNNN |
| 83024524 | FR-L-090C-AY-26-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CAY2620NNN3S1R2A1NAAANNNNNN |
| 83039677 | FR-L-090C-BS-29-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRL090CBS2920NNN3K4N4A1NAAANNNNNN |
| 83023576 | FR-L-090C-LB-10-26-NN-N-3-S1B2-A3N-AAA-NNN-NNN | FRL090CLB1026NNN3S1B2A3NAAANNNNNN |
| 83010793 | FR-L-090C-LB-15-17-NN-N-3-C3N4-A3N-NNN-NNN-NNN | FRL090CLB1517NNN3C3N4A3NNNNNNNNNN |
| 80005735 | FR-L-090C-LB-19-25-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLB1925NNN3S1N4A1NNNNNNNNNN |
| 83008084 | FR-L-090C-LB-20-15-NN-N-3-S1N4-A3N-NNN-NNN-NNN | FRL090CLB2015NNN3S1N4A3NNNNNNNNNN |
| 80004116 | FR-L-090C-LB-20-16-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLB2016NNN3S1N2A1NNNNNNNNNN |
| 83009211 | FR-L-090C-LB-24-16-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLB2416NNN3S1C2A1NNNNNNNNNN |
| 83009813 | FR-L-090C-LB-25-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S1B2A1NNNNNNNNNN |
| 83022926 | FR-L-090C-LB-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S1C2A1NNNNNNNNNN |
| 83006712 | FR-L-090C-LB-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S1N2A1NNNNNNNNNN |
| 83006713 | FR-L-090C-LB-25-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S2C2A1NNNNNNNNNN |
| 83054378 | FR-L-090C-LB-25-20-NN-N-3-S2N2-A1N-AAA-NNN-NNN | FRL090CLB2520NNN3S2N2A1NAAANNNNNN |
| 80002768 | FR-L-090C-LB-26-21-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLB2621NNN3S1C2A1NNNNNNNNNN |
| 80002769 | FR-L-090C-LB-26-21-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLB2621NNN3S1N2A1NNNNNNNNNN |
| 83018059 | FR-L-090C-LB-26-21-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLB2621NNN3S1N4A1NAAANNNNNN |
| 7002010 | FR-L-090C-LS-10-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL090CLS1020NNN3S2N2A1NNNNNNNNNN |
| 83007727 | FR-L-090C-LS-14-24-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS1424NNN3K4N2A1NNNNNNNNNN |
| 83043703 | FR-L-090C-LS-15-10-NN-F-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS1510NNF3S1A2A1NAAANNNNNN |
| 83035638 | FR-L-090C-LS-15-21-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS1521NNN3S1N4A1NAAANNNNNN |
| 83011042 | FR-L-090C-LS-15-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS1525NNN3S1N2A1NNNNNNNNNN |
| 83015015 | FR-L-090C-LS-15-25-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL090CLS1525NNN3S1V2A1NNNNNNNNNN |
| 83006824 | FR-L-090C-LS-16-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS1620NNN3S1N4A1NNNNNNNNNN |
| 83015326 | FR-L-090C-LS-17-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS1720NNN3S1N4A1NNNNNNNNNN |
| 83005763 | FR-L-090C-LS-18-20-NN-N-3-S1N2-A3N-AAA-NNN-NNN | FRL090CLS1820NNN3S1N2A3NAAANNNNNN |
| 83057701 | FR-L-090C-LS-20-19-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2019NNN3S1N2A1NNNNNNNNNN |
| 83010593 | FR-L-090C-LS-20-20-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3K4B2A1NNNNNNNNNN |
| 83005692 | FR-L-090C-LS-20-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1B2A1NNNNNNNNNN |
| 83064350 | FR-L-090C-LS-20-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1N2A1NNNNNNNNNN |
| 83006736 | FR-L-090C-LS-20-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1N4A1NNNNNNNNNN |
| 83032948 | FR-L-090C-LS-20-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1N4A1NNNNNNNNNN |
| 83051420 | FR-L-090C-LS-20-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CLS2020NNN3S1R2A1NAAANNNNNN |
| 83037989 | FR-L-090C-LS-20-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1R2A1NNNNNNNNNN |
| 83003695 | FR-L-090C-LS-20-24-NN-N-3-S1C2-A1N-NNN-NNN-CCP | FRL090CLS2024NNN3S1C2A1NNNNNNNCCP |
| 83003697 | FR-L-090C-LS-20-24-NN-N-3-S1N2-A1N-NNN-NNN-CCP | FRL090CLS2024NNN3S1N2A1NNNNNNNCCP |
| 80004481 | FR-L-090C-LS-20-30-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRL090CLS2030NNN3K4N4A1NAAANNNNNN |
| 83035497 | FR-L-090C-LS-21-17-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2117NNN3S1N2A1NAAANNNNNN |
| 83033241 | FR-L-090C-LS-21-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2120NNN3S1B2A1NNNNNNNNNN |
| 83028483 | FR-L-090C-LS-21-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2120NNN3S1N2A1NAAANNNNNN |
| 80002971 | FR-L-090C-LS-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2120NNN3S1N2A1NNNNNNNNNN |
| 83039743 | FR-L-090C-LS-21-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL090CLS2120NNN3S1V2A1NNNNNNNNNN |
| 83038535 | FR-L-090C-LS-21-21-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CLS2121NNN3S1R2A1NAAANNNNNN |
| 83015540 | FR-L-090C-LS-21-28-NN-N-3-C3N4-A3N-NNN-NNN-NNN | FRL090CLS2128NNN3C3N4A3NNNNNNNNNN |
| 80003585 | FR-L-090C-LS-21-30-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS2130NNN3K4N2A1NNNNNNNNNN |
| 83039520 | FR-L-090C-LS-21-30-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL090CLS2130NNN3S1C2A1NAAANNNNNN |
| 80002171 | FR-L-090C-LS-21-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2130NNN3S1N2A1NNNNNNNNNN |
| 80002334 | FR-L-090C-LS-21-30-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2130NNN3S1N4A1NNNNNNNNNN |
| 83039521 | FR-L-090C-LS-21-30-NN-N-3-S2N2-A1N-AAA-NNN-NNN | FRL090CLS2130NNN3S2N2A1NAAANNNNNN |
| 83078951 | FR-L-090C-LS-22-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1A2A1NNNNNNNNNN |
| 83034840 | FR-L-090C-LS-22-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1B2A1NNNNNNNNNN |
| 83020472 | FR-L-090C-LS-22-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1C2A1NNNNNNNNNN |
| 83033192 | FR-L-090C-LS-22-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2220NNN3S1N4A1NAAANNNNNN |
| 83033677 | FR-L-090C-LS-22-20-NN-N-3-S1N5-A1N-AAA-NNN-NNN | FRL090CLS2220NNN3S1N5A1NAAANNNNNN |
| 83021312 | FR-L-090C-LS-22-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1R2A1NNNNNNNNNN |
| 83062772 | FR-L-090C-LS-23-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1A2A1NNNNNNNNNN |
| 83004506 | FR-L-090C-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1N2A1NNNNNNNNNN |
| 83032940 | FR-L-090C-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1N2A1NNNNNNNNNN |
| 83028889 | FR-L-090C-LS-23-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2320NNN3S1N4A1NAAANNNNNN |
| 80003483 | FR-L-090C-LS-23-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1N4A1NNNNNNNNNN |
| 83004505 | FR-L-090C-LS-23-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S2C2A1NNNNNNNNNN |
| 83032939 | FR-L-090C-LS-23-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S2C2A1NNNNNNNNNN |
| 83038186 | FR-L-090C-LS-23-24-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2324NNN3S1N2A1NNNNNNNNNN |
| 83061338 | FR-L-090C-LS-23-24-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2324NNN3S1N4A1NNNNNNNNNN |
| 80003230 | FR-L-090C-LS-24-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2420NNN3S1N4A1NNNNNNNNNN |
| 83017113 | FR-L-090C-LS-24-24-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2424NNN3S1N4A1NAAANNNNNN |
| 83075961 | FR-L-090C-LS-24-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2425NNN3S1N2A1NNNNNNNNNN |
| 80002842 | FR-L-090C-LS-25-15-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2515NNN3S1C2A1NNNNNNNNNN |
| 83033000 | FR-L-090C-LS-25-15-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2515NNN3S1C2A1NNNNNNNNNN |
| 83068231 | FR-L-090C-LS-25-20-NN-E-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNE3S1C2A1NNNNNNNNNN |
| 83070029 | FR-L-090C-LS-25-20-NN-E-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNE3S1N2A1NNNNNNNNNN |
| 83059452 | FR-L-090C-LS-25-20-NN-E-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNE3S1N4A1NAAANNNNNN |
| 83067093 | FR-L-090C-LS-25-20-NN-F-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNF3S1N2A1NNNNNNNNNN |
| 83008788 | FR-L-090C-LS-25-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3K4A2A1NAAANNNNNN |
| 83002590 | FR-L-090C-LS-25-20-NN-N-3-K4A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4A2A1NNNNNNNNNN |
| 80002492 | FR-L-090C-LS-25-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4C2A1NNNNNNNNNN |
| 83010655 | FR-L-090C-LS-25-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3K4N2A1NAAANNNNNN |
| 80004990 | FR-L-090C-LS-25-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4N2A1NNNNNNNNNN |
| 83032919 | FR-L-090C-LS-25-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4N2A1NNNNNNNNNN |
| 83012617 | FR-L-090C-LS-25-20-NN-N-3-K4R2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4R2A1NNNNNNNNNN |
| 83009045 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1A2A1NAAANNNNNN |
| 83046662 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1A2A1NAAANNNNNN |
| 80005264 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1A2A1NNNNNNNNNN |
| 83040738 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1A2A1NNNNNNNNNN |
| 80002617 | FR-L-090C-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1B2A1NAAANNNNNN |
| 83032900 | FR-L-090C-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1B2A1NAAANNNNNN |
| 83002937 | FR-L-090C-LS-25-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1C2A1NAAANNNNNN |
| 80002760 | FR-L-090C-LS-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1C2A1NNNNNNNNNN |
| 83032903 | FR-L-090C-LS-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1C2A1NNNNNNNNNN |
| 80001904 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N2A1NAAANNNNNN |
| 83032893 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N2A1NAAANNNNNN |
| 80002491 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N2A1NNNNNNNNNN |
| 83032897 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N2A1NNNNNNNNNN |
| 7002008 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N4A1NAAANNNNNN |
| 83032882 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N4A1NAAANNNNNN |
| 80003502 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N4A1NNNNNNNNNN |
| 83032327 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N4A1NNNNNNNNNN |
| 83005979 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-P00 | FRL090CLS2520NNN3S1N4A1NNNNNNNP00 |
| 7002006 | FR-L-090C-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1R2A1NAAANNNNNN |
| 83047117 | FR-L-090C-LS-25-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1R2A1NNNNNNNNNN |
| 80003737 | FR-L-090C-LS-25-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1V2A1NAAANNNNNN |
| 80004592 | FR-L-090C-LS-25-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1V2A1NAAANNNNNN |
| 80004604 | FR-L-090C-LS-25-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1V2A1NAAANNNNNN |
| 80003269 | FR-L-090C-LS-25-20-NN-N-3-S2A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2A2A1NNNNNNNNNN |
| 83038406 | FR-L-090C-LS-25-20-NN-N-3-S2A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2A2A1NNNNNNNNNN |
| 83027698 | FR-L-090C-LS-25-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2N2A1NNNNNNNNNN |
| 7002009 | FR-L-090C-LS-25-20-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S2N4A1NAAANNNNNN |
| 7002007 | FR-L-090C-LS-25-20-NN-N-3-S2R2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S2R2A1NAAANNNNNN |
| 83028810 | FR-L-090C-LS-25-20-NN-N-3-S2V2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2V2A1NNNNNNNNNN |
| 83005542 | FR-L-090C-LS-25-24-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2524NNN3S1B2A1NAAANNNNNN |
| 83056950 | FR-L-090C-LS-25-25-NN-F-3-S1C2-A3N-AAA-NNN-NNN | FRL090CLS2525NNF3S1C2A3NAAANNNNNN |
| 83056951 | FR-L-090C-LS-25-25-NN-F-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2525NNF3S1N2A1NAAANNNNNN |
| 83029863 | FR-L-090C-LS-25-25-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2525NNN3S1N4A1NNNNNNNNNN |
| 83048259 | FR-L-090C-LS-25-27-NN-E-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2527NNE3S1N4A1NNNNNNNNNN |
| 83059450 | FR-L-090C-LS-25-30-NN-E-3-S1C2-A1N-AAA-NNN-NNN | FRL090CLS2530NNE3S1C2A1NAAANNNNNN |
| 83059453 | FR-L-090C-LS-25-30-NN-E-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2530NNE3S1N4A1NAAANNNNNN |
| 83007203 | FR-L-090C-LS-26-14-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2614NNN3S1B2A1NAAANNNNNN |
| 83033001 | FR-L-090C-LS-26-14-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2614NNN3S1B2A1NAAANNNNNN |
| 83033097 | FR-L-090C-LS-26-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3K4C2A1NNNNNNNNNN |
| 83038297 | FR-L-090C-LS-26-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1A2A1NAAANNNNNN |
| 80004544 | FR-L-090C-LS-26-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1A2A1NNNNNNNNNN |
| 83054342 | FR-L-090C-LS-26-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1B2A1NAAANNNNNN |
| 80002705 | FR-L-090C-LS-26-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1B2A1NNNNNNNNNN |
| 83033011 | FR-L-090C-LS-26-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1B2A1NNNNNNNNNN |
| 80003504 | FR-L-090C-LS-26-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1N2A1NAAANNNNNN |
| 83014680 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1N4A1NAAANNNNNN |
| 83024795 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1N4A1NNNNNNNNNN |
| 83033624 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A3N-AAA-NNN-NNN | FRL090CLS2620NNN3S1N4A3NAAANNNNNN |
| 83047937 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A3N-NNN-NNN-NNN | FRL090CLS2620NNN3S1N4A3NNNNNNNNNN |
| 83036406 | FR-L-090C-LS-26-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S2C2A1NNNNNNNNNN |
| 80004890 | FR-L-090C-LS-26-25-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2625NNN3S1N4A1NNNNNNNNNN |
| 83025641 | FR-L-090C-LS-26-28-NN-N-3-S1B2-A3N-AAA-NNN-CCP | FRL090CLS2628NNN3S1B2A3NAAANNNCCP |
| 83025640 | FR-L-090C-LS-26-28-NN-N-3-S1N2-A3N-AAA-NNN-CCP | FRL090CLS2628NNN3S1N2A3NAAANNNCCP |
| 7002000 | FR-L-090C-LS-D8-28-NN-N-3-S1NS-A3N-C93-NNN-CCP | FRL090CLSD828NNN3S1NSA3NC93NNNCCP |
| 83043989 | FR-L-090C-NN-NN-NN-NN-N-N-S1N2-A1N-NNN-NNN-P00 | FRL090CNNNNNNNNNNS1N2A1NNNNNNNP00 |
| 83041458 | FR-L-090C-NN-NN-NN-NN-N-N-S1N4-A1N-NNN-NNN-P00 | FRL090CNNNNNNNNNNS1N4A1NNNNNNNP00 |
| 83041459 | FR-L-090C-NN-NN-NN-NN-N-N-S1R2-A1N-NNN-NNN-P00 | FRL090CNNNNNNNNNNS1R2A1NNNNNNNP00 |
| 83041460 | FR-L-090C-NN-NN-NN-NN-N-N-S1R2-A1R-NNN-ANS-P00 | FRL090CNNNNNNNNNNS1R2A1RNNNANSP00 |
| 83003556 | FR-L-090C-PC-10-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CPC10NNNNN3K4N2A1NAAANNNNNN |
| 83048490 | FR-L-090C-PC-10-NN-NN-N-3-K4N4-A3N-NNN-NNN-NNN | FRL090CPC10NNNNN3K4N4A3NNNNNNNNNN |
| 83009548 | FR-L-090C-PC-10-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC10NNNNN3S1B2A1NNNNNNNNNN |
| 83002297 | FR-L-090C-PC-13-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC13NNNNN3S1N4A1NNNNNNNNNN |
| 83009580 | FR-L-090C-PC-15-NN-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CPC15NNNNN3S1N4A1NAAANNNNNN |
| 83051110 | FR-L-090C-PC-16-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CPC16NNNNN3S1A2A1NNNNNNNNNN |
| 83009204 | FR-L-090C-PC-18-NN-NN-N-3-K4V2-A1N-AAA-NNN-NNN | FRL090CPC18NNNNN3K4V2A1NAAANNNNNN |
| 80003583 | FR-L-090C-PC-19-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CPC19NNNNN3S1A2A1NNNNNNNNNN |
| 83024928 | FR-L-090C-PC-20-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CPC20NNNNN3S1C2A1NNNNNNNNNN |
| 83036277 | FR-L-090C-PC-20-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC20NNNNN3S1N4A1NNNNNNNNNN |
| 83024648 | FR-L-090C-PC-20-NN-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CPC20NNNNN3S1R2A1NAAANNNNNN |
| 83036279 | FR-L-090C-PC-20-NN-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CPC20NNNNN3S1R2A1NNNNNNNNNN |
| 83016935 | FR-L-090C-PC-21-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CPC21NNNNN3S1B2A1NAAANNNNNN |
| 83012903 | FR-L-090C-PC-21-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC21NNNNN3S1B2A1NNNNNNNNNN |
| 83047094 | FR-L-090C-PC-21-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC21NNNNN3S1B2A1NNNNNNNNNN |
| 80004926 | FR-L-090C-PC-21-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC21NNNNN3S1N4A1NNNNNNNNNN |
| 83002349 | FR-L-090C-PC-24-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CPC24NNNNN3S1N2A1NAAANNNNNN |
| 83009314 | FR-L-090C-PC-24-NN-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CPC24NNNNN3S1N2A1NNNNNNNNNN |
| 83038594 | FR-L-090C-PC-25-NN-NN-N-3-K4B2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3K4B2A1NAAANNNNNN |
| 83011273 | FR-L-090C-PC-25-NN-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3K4B2A1NNNNNNNNNN |
| 83012359 | FR-L-090C-PC-25-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3K4N2A1NAAANNNNNN |
| 83013349 | FR-L-090C-PC-25-NN-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3S1A2A1NAAANNNNNN |
| 83005053 | FR-L-090C-PC-25-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1A2A1NNNNNNNNNN |
| 83010453 | FR-L-090C-PC-25-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3S1B2A1NAAANNNNNN |
| 83021420 | FR-L-090C-PC-25-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1B2A1NNNNNNNNNN |
| 83009725 | FR-L-090C-PC-25-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1N4A1NNNNNNNNNN |
| 83059798 | FR-L-090C-PC-25-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1N4A1NNNNNNNNNN |
| 83009796 | FR-L-090C-PC-26-NN-NN-N-3-K4N4-A1N-NNN-NNN-NNN | FRL090CPC26NNNNN3K4N4A1NNNNNNNNNN |
| 80006244 | FR-L-090C-PC-26-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CPC26NNNNN3S1N2A1NAAANNNNNN |
| 80003284 | FR-L-090C-RP-10-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CRP1020NNN3S1N4A1NAAANNNNNN |
| 83017967 | FR-L-090C-RP-10-26-NN-N-3-K4B2-A1N-AAA-NNN-NNN | FRL090CRP1026NNN3K4B2A1NAAANNNNNN |
| 83041742 | FR-L-090C-RP-14-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CRP1420NNN3S1C2A1NNNNNNNNNN |
| 80004898 | FR-L-090C-RP-14-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CRP1420NNN3S1N2A1NNNNNNNNNN |
| 83017331 | FR-L-090C-RP-15-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP1520NNN3S1B2A1NNNNNNNNNN |
| 83017330 | FR-L-090C-RP-15-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CRP1520NNN3S1C2A1NNNNNNNNNN |
| 83005970 | FR-L-090C-RP-18-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL090CRP1820NNN3K4C2A1NNNNNNNNNN |
| 83006716 | FR-L-090C-RP-18-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CRP1820NNN3K4N2A1NNNNNNNNNN |
| 83029864 | FR-L-090C-RP-19-21-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CRP1921NNN3S1V2A1NAAANNNNNN |
| 83035016 | FR-L-090C-RP-19-24-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CRP1924NNN3S1V2A1NAAANNNNNN |
| 83021816 | FR-L-090C-RP-21-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CRP2120NNN3K4N2A1NAAANNNNNN |
| 83016448 | FR-L-090C-RP-21-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP2120NNN3S1B2A1NNNNNNNNNN |
| 83034858 | FR-L-090C-RP-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CRP2120NNN3S1N2A1NNNNNNNNNN |
| 80006555 | FR-L-090C-RP-23-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP2320NNN3S1B2A1NNNNNNNNNN |
| 83032928 | FR-L-090C-RP-23-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP2320NNN3S1B2A1NNNNNNNNNN |
| 83005154 | FR-L-090C-RP-25-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL090CRP2520NNN3S1C2A1NAAANNNNNN |
| 83002971 | FR-L-090C-RP-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CRP2520NNN3S1C2A1NNNNNNNNNN |
| 83022815 | FR-L-090C-RP-26-20-NN-N-3-K4N4-A3N-AAA-NNN-NNN | FRL090CRP2620NNN3K4N4A3NAAANNNNNN |
| 83030517 | FR-L-090C-RP-26-20-NN-N-3-K4N4-A3N-AAA-NNN-P00 | FRL090CRP2620NNN3K4N4A3NAAANNNP00 |
| 83064814 | FR-L-090C-SH-22-NN-NN-R-E-S1B2-A1N-AAA-NNN-NNN | FRL090CSH22NNNNRES1B2A1NAAANNNNNN |
| 83038843 | FR-L-090C-TE-25-24-NN-E-C-S1B2-A1R-AAA-ANS-NNN | FRL090CTE2524NNECS1B2A1RAAAANSNNN |
| 83038841 | FR-L-090C-TE-25-24-NN-N-C-S1B2-A1R-AAA-ANS-NNN | FRL090CTE2524NNNCS1B2A1RAAAANSNNN |
Q1:How does the design of the FRL090 hydraulic pump balance power and physical size?
A1:The FRL090's design achieves this balance by offering a compact footprint that makes it suitable for space-constrained installations like mobile machinery, without compromising on its power output or performance.
Q2:In what types of equipment or applications is the FRL090 hydraulic pump commonly found?
A2:It is commonly found in material handling equipment, agricultural machinery, construction vehicles, and industrial automation systems.
Q3:What specific benefits does the efficiency of the FRL090 contribute to?
A3:Its efficiency contributes to lower energy consumption and reduced heat generation, which enhances the overall sustainability and reliability of the hydraulic system.
Q4:How to purchase an FRL090 hydraulic pump?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
