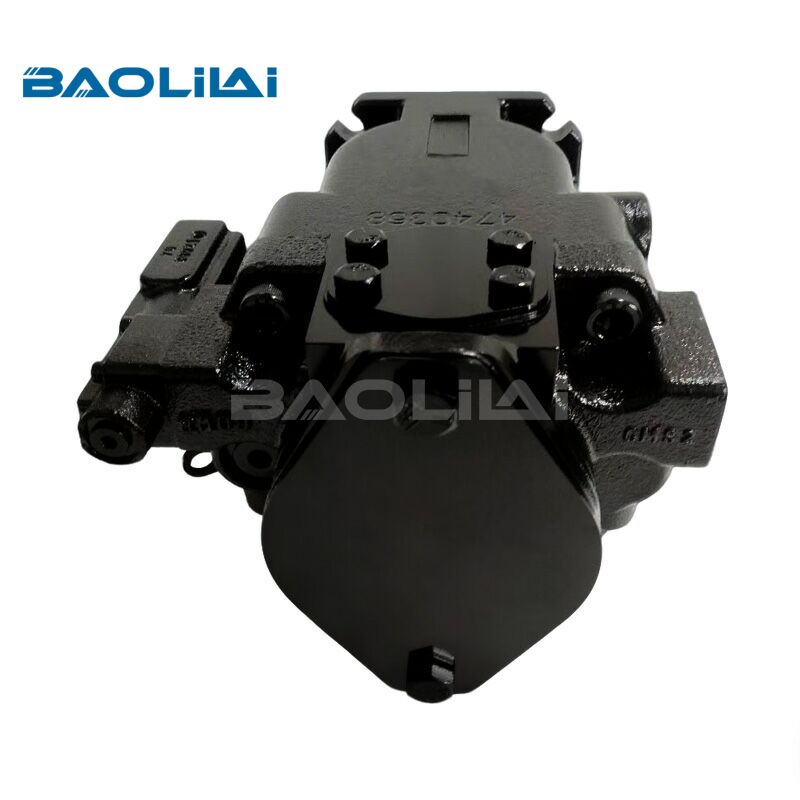

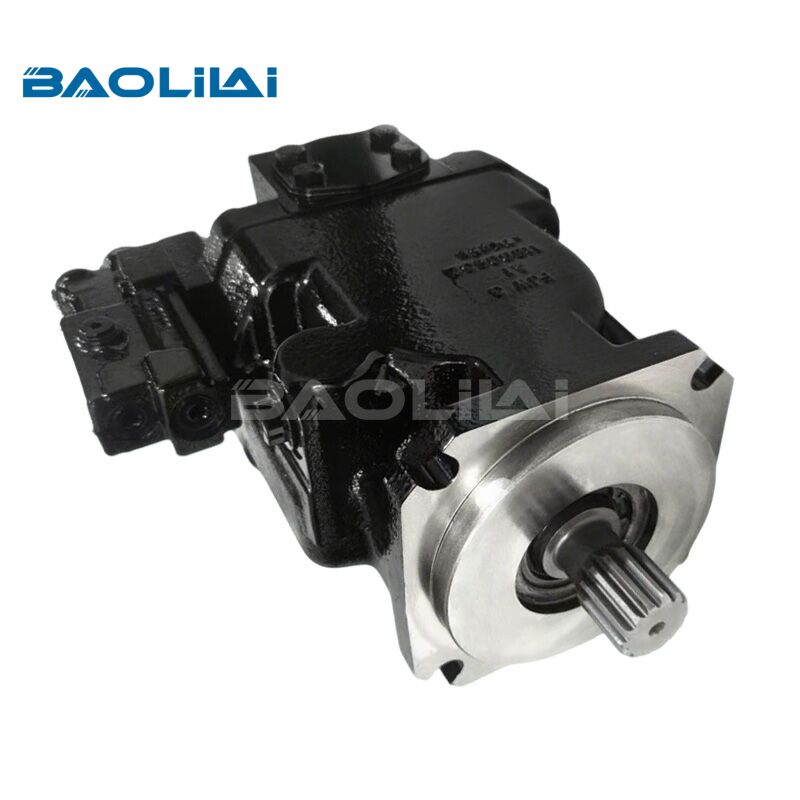

FRR090 axial piston hydraulic pump
SERIES : 45 series FR
BRAND : For Sauer Danfoss
Model Size :FRR090
Displacement : 90cm3/rev
Speed : 500-2600rpm
Maximum Pressure : 350bar
Nominal Pressure : 260bar
Download PDF
- Product Details
- Product Model
- FAQ
The FRR090 is a variable displacement axial piston pump designed for open circuit applications, belonging to the Danfoss Series 45 family of hydraulic pumps. It offers a displacement of 90 cm³/rev (5.49 in³/rev) and is engineered for high performance, handling continuous working pressures up to 260 bar (3770 psi) and peak pressures up to 350 bar (5075 psi). The pump supports a maximum input speed of 3600 rpm, with a recommended continuous operating speed of 2200 rpm, delivering a theoretical flow of 198 l/min (52.3 US gal/min) at rated speed. Its design allows it to be tailored to the specific flow and pressure requirements of various applications, supported by a variety of connecting flanges, shaft types, and porting options for flexible installation .
This pump model is built for durability and reliability in demanding mobile equipment. Key features include heavy-duty tapered roller bearings for long service life, a single-piece rigid housing that reduces leak paths and operational noise, and robust input shaft bearings capable of handling significant external loads. The FRR090 is commonly used in a wide range of machinery such as cranes, telescopic handlers, wheel loaders, and forestry equipment. Its design incorporates various control options like load sensing and pressure compensation, contributing to optimized performance and energy efficiency in complex hydraulic systems .
Specifications
| Unit | F frame | |||
| 074B | 090C | |||
| Maximum Displacement | cm3 [in3] | 74 [4.52] | 90 [5.49] | |
| Working Input speed | Minimum | min−1 [rpm] | 500 | 500 |
| Continuous | 2400 | 2200 | ||
| Maximum | 2800 | 2600 | ||
| Working Pressure | Continuous | bar [psi] | 310 [4500] | 260 [3770] |
| Maximum | 400 [5800] | 350 [5075] | ||
| Flow at rated speed (theoretical) | l/min | 178 | 198 | |
| US gal/min | 46.9 | 52.3 | ||
| Input torque at maximum displacement (theoretical) at 49∘C (120∘F) | Nm/bar | 1.178 | 1.433 | |
| lbf·in/1000 psi | 719.3 | 874.8 | ||
| Mass moment of inertia of internal rotating components | kg·m2 | 0.0063 | 0.0065 | |
| slug·ft2 | -0.00465 | -0.00479 | ||
| Weight | Axial ports | kg [lb] | 29.5 [65.0] | |
| Radial ports | 32.6 [71.9] | |||
| External Shaft Loads | External moment (Me) | N·m [lbf·in] | 300 [2655] | 300 [2655] |
| Thrust in (Tin), out (Tout) | N [lbf] | 2900 [652] | 2900 [652] | |
| Mounting flange load moments | Vibratory (continuous) | N·m [lbf·in] | 3730 [33 100] | |
| Shock (maximum) | 13220 [117 100] | |||
Selection Table
| FRR090 Series Some Models | ||
| Model No. | Model Code | Model Code |
| 83034848 | FR-R-090C-AH-18-10-NN-E-3-S1A2-A1N-AAA-NNN-NNN | FRR090CAH1810NNE3S1A2A1NAAANNNNNN |
| 83047983 | FR-R-090C-AL-23-20-NN-F-3-S1B2-A1N-AAA-NNN-NNN | FRR090CAL2320NNF3S1B2A1NAAANNNNNN |
| 83048829 | FR-R-090C-AL-23-20-NN-F-3-S6B2-A1N-NNN-NNN-NNN | FRR090CAL2320NNF3S6B2A1NNNNNNNNNN |
| 83009268 | FR-R-090C-AN-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CAN2520NNN3S1N4A1NNNNNNNNNN |
| 83050243 | FR-R-090C-AR-15-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CAR1520NNN3S1N2A1NNNNNNNNNN |
| 83019656 | FR-R-090C-AR-17-10-NN-N-3-S1B2-A1N-NNN-NNN-NNC | FRR090CAR1710NNN3S1B2A1NNNNNNNNNC |
| 80002136 | FR-R-090C-AR-18-15-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CAR1815NNN3S1N4A1NNNNNNNNNN |
| 83024630 | FR-R-090C-AR-24-15-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CAR2415NNN3S1N2A1NAAANNNNNN |
| 83034273 | FR-R-090C-BS-29-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRR090CBS2920NNN3K4N4A1NAAANNNNNN |
| 83056999 | FR-R-090C-CN-12-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CCN1220NNN3S1B2A1NAAANNNNNN |
| 83059248 | FR-R-090C-CN-12-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CCN1220NNN3S1B2A1NAAANNNNNN |
| 83065415 | FR-R-090C-CN-14-20-NN-E-3-K4N2-A1N-AAA-NNN-NNN | FRR090CCN1420NNE3K4N2A1NAAANNNNNN |
| 83060477 | FR-R-090C-CN-20-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CCN2020NNN3K4N2A1NAAANNNNNN |
| 83049494 | FR-R-090C-FB-21-24-NN-E-3-S1N4-A1N-NNN-NNN-NNN | FRR090CFB2124NNE3S1N4A1NNNNNNNNNN |
| 83076424 | FR-R-090C-FE-26-33-NN-N-3-S1T3-A1N-NNN-NNN-NNN | FRR090CFE2633NNN3S1T3A1NNNNNNNNNN |
| 83032678 | FR-R-090C-FE-28-33-NN-N-3-S1T3-A1N-NNN-NNN-NNC | FRR090CFE2833NNN3S1T3A1NNNNNNNNNC |
| 83050750 | FR-R-090C-FM-26-30-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CFM2630NNN3S1C2A1NAAANNNNNN |
| 83058171 | FR-R-090C-FM-26-30-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CFM2630NNN3S1C2A1NAAANNNNNN |
| 83010299 | FR-R-090C-LB-10-10-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLB1010NNN3S1N2A1NAAANNNNNN |
| 83004777 | FR-R-090C-LB-14-12-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLB1412NNN3S1C2A1NNNNNNNNNN |
| 83011309 | FR-R-090C-LB-15-17-NN-N-3-C3N4-A3N-NNN-NNN-NNN | FRR090CLB1517NNN3C3N4A3NNNNNNNNNN |
| 83003142 | FR-R-090C-LB-15-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLB1520NNN3S1N4A1NNNNNNNNNN |
| 83032394 | FR-R-090C-LB-17-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLB1720NNN3S1N2A1NNNNNNNNNN |
| 83005785 | FR-R-090C-LB-17-20-NN-N-3-S1N2-A3N-NNN-NNN-NNN | FRR090CLB1720NNN3S1N2A3NNNNNNNNNN |
| 83010587 | FR-R-090C-LB-20-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRR090CLB2020NNN3K4N2A1NNNNNNNNNN |
| 83001520 | FR-R-090C-LB-20-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CLB2020NNN3S1A2A1NAAANNNNNN |
| 83069378 | FR-R-090C-LB-20-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLB2020NNN3S1N4A1NNNNNNNNNN |
| 83003116 | FR-R-090C-LB-20-20-NN-N-3-S1T2-A1N-AAA-NNN-NNN | FRR090CLB2020NNN3S1T2A1NAAANNNNNN |
| 83037241 | FR-R-090C-LB-20-29-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLB2029NNN3S1C2A1NNNNNNNNNN |
| 83001969 | FR-R-090C-LB-21-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLB2120NNN3S1B2A1NNNNNNNNNN |
| 83016540 | FR-R-090C-LB-22-28-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLB2228NNN3S1B2A1NNNNNNNNNN |
| 83014999 | FR-R-090C-LB-22-28-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLB2228NNN3S1N4A1NNNNNNNNNN |
| 83043826 | FR-R-090C-LB-22-31-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLB2231NNN3S1N4A1NNNNNNNNNN |
| 83025351 | FR-R-090C-LB-25-20-NN-N-3-K4A2-A1N-NNN-NNN-NNN | FRR090CLB2520NNN3K4A2A1NNNNNNNNNN |
| 83012537 | FR-R-090C-LB-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLB2520NNN3S1N4A1NNNNNNNNNN |
| 83089431 | FR-R-090C-LB-26-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CLB2620NNN3K4N2A1NAAANNNNNN |
| 80002706 | FR-R-090C-LB-26-21-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLB2621NNN3S1C2A1NNNNNNNNNN |
| 80002707 | FR-R-090C-LB-26-21-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLB2621NNN3S1N2A1NNNNNNNNNN |
| 83017372 | FR-R-090C-LB-26-21-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLB2621NNN3S1N4A1NNNNNNNNNN |
| 83044200 | FR-R-090C-LB-26-25-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRR090CLB2625NNN3S2B2A1NNNNNNNNNN |
| 83020086 | FR-R-090C-LB-26-30-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLB2630NNN3S1C2A1NNNNNNNNNN |
| 83053517 | FR-R-090C-LJ-21-30-NN-N-3-S1NB-ACN-NNN-NNN-NNC | FRR090CLJ2130NNN3S1NBACNNNNNNNNNC |
| 83019693 | FR-R-090C-LS-10-11-NN-N-3-K4C2-A3N-NNN-NNN-NNN | FRR090CLS1011NNN3K4C2A3NNNNNNNNNN |
| 83018213 | FR-R-090C-LS-10-26-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS1026NNN3S1C2A1NAAANNNNNN |
| 83032998 | FR-R-090C-LS-10-26-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS1026NNN3S1C2A1NAAANNNNNN |
| 83018214 | FR-R-090C-LS-10-26-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CLS1026NNN3S1N4A1NAAANNNNNN |
| 83032973 | FR-R-090C-LS-10-26-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CLS1026NNN3S1N4A1NAAANNNNNN |
| 83009036 | FR-R-090C-LS-12-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS1220NNN3S1C2A1NNNNNNNNNN |
| 83004324 | FR-R-090C-LS-12-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS1220NNN3S1N2A1NAAANNNNNN |
| 83040709 | FR-R-090C-LS-13-14-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS1314NNN3S1C2A1NAAANNNNNN |
| 83048665 | FR-R-090C-LS-13-14-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRR090CLS1314NNN3S1R2A1NAAANNNNNN |
| 83034274 | FR-R-090C-LS-13-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS1320NNN3S1B2A1NNNNNNNNNN |
| 83019333 | FR-R-090C-LS-14-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS1420NNN3S1N2A1NAAANNNNNN |
| 83036640 | FR-R-090C-LS-14-21-NN-N-3-S1A2-A3N-AAA-NNN-NNN | FRR090CLS1421NNN3S1A2A3NAAANNNNNN |
| 83002473 | FR-R-090C-LS-14-24-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRR090CLS1424NNN3K4N2A1NNNNNNNNNN |
| 83010147 | FR-R-090C-LS-14-24-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS1424NNN3S1N4A1NNNNNNNNNN |
| 83010721 | FR-R-090C-LS-14-25-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CLS1425NNN3K4N2A1NAAANNNNNN |
| 83016893 | FR-R-090C-LS-15-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS1520NNN3S1C2A1NAAANNNNNN |
| 83025334 | FR-R-090C-LS-15-24-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CLS1524NNN3S1N4A1NAAANNNNNN |
| 80005225 | FR-R-090C-LS-16-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS1620NNN3S1N4A1NNNNNNNNNN |
| 83029421 | FR-R-090C-LS-17-10-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS1710NNN3S1N4A1NNNNNNNNNN |
| 83006082 | FR-R-090C-LS-17-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS1720NNN3S1C2A1NNNNNNNNNN |
| 83006083 | FR-R-090C-LS-17-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS1720NNN3S1N2A1NNNNNNNNNN |
| 80002576 | FR-R-090C-LS-18-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRR090CLS1820NNN3K4A2A1NAAANNNNNN |
| 83033038 | FR-R-090C-LS-18-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRR090CLS1820NNN3K4A2A1NAAANNNNNN |
| 80002996 | FR-R-090C-LS-18-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS1820NNN3S1A2A1NNNNNNNNNN |
| 83090356 | FR-R-090C-LS-18-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS1820NNN3S1N2A1NAAANNNNNN |
| 83013825 | FR-R-090C-LS-18-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS1820NNN3S1N2A1NNNNNNNNNN |
| 83032967 | FR-R-090C-LS-18-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS1820NNN3S1N2A1NNNNNNNNNN |
| 83059785 | FR-R-090C-LS-18-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRR090CLS1820NNN3S1R2A1NAAANNNNNN |
| 83064171 | FR-R-090C-LS-18-24-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CLS1824NNN3S1B2A1NAAANNNNNN |
| 83016394 | FR-R-090C-LS-19-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CLS1920NNN3S1A2A1NAAANNNNNN |
| 80002399 | FR-R-090C-LS-19-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS1920NNN3S1N2A1NAAANNNNNN |
| 80006208 | FR-R-090C-LS-19-30-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRR090CLS1930NNN3K4A2A1NAAANNNNNN |
| 80004748 | FR-R-090C-LS-20-20-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3K4B2A1NNNNNNNNNN |
| 80006524 | FR-R-090C-LS-20-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CLS2020NNN3K4N2A1NAAANNNNNN |
| 80004702 | FR-R-090C-LS-20-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S1A2A1NNNNNNNNNN |
| 83032917 | FR-R-090C-LS-20-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S1A2A1NNNNNNNNNN |
| 83056376 | FR-R-090C-LS-20-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CLS2020NNN3S1B2A1NAAANNNNNN |
| 83015802 | FR-R-090C-LS-20-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S1C2A1NNNNNNNNNN |
| 80006185 | FR-R-090C-LS-20-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S1N2A1NNNNNNNNNN |
| 83032927 | FR-R-090C-LS-20-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S1N2A1NNNNNNNNNN |
| 83002745 | FR-R-090C-LS-20-20-NN-N-3-S1N2-A3N-AAA-NNN-NNN | FRR090CLS2020NNN3S1N2A3NAAANNNNNN |
| 80002242 | FR-R-090C-LS-20-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S1N4A1NNNNNNNNNN |
| 83037988 | FR-R-090C-LS-20-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S1R2A1NNNNNNNNNN |
| 83055343 | FR-R-090C-LS-20-20-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S2B2A1NNNNNNNNNN |
| 83014092 | FR-R-090C-LS-20-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S2C2A1NNNNNNNNNN |
| 83015652 | FR-R-090C-LS-20-20-NN-N-3-S2T2-A1N-NNN-NNN-NNN | FRR090CLS2020NNN3S2T2A1NNNNNNNNNN |
| 83055648 | FR-R-090C-LS-20-26-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2026NNN3S1N2A1NNNNNNNNNN |
| 83005164 | FR-R-090C-LS-21-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3K4N2A1NNNNNNNNNN |
| 83010678 | FR-R-090C-LS-21-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRR090CLS2120NNN3K4N4A1NAAANNNNNN |
| 83033018 | FR-R-090C-LS-21-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRR090CLS2120NNN3K4N4A1NAAANNNNNN |
| 83070439 | FR-R-090C-LS-21-20-NN-N-3-K4N4-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3K4N4A1NNNNNNNNNN |
| 83006404 | FR-R-090C-LS-21-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S1A2A1NNNNNNNNNN |
| 83047092 | FR-R-090C-LS-21-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S1A2A1NNNNNNNNNN |
| 83077047 | FR-R-090C-LS-21-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S1B2A1NNNNNNNNNN |
| 80001928 | FR-R-090C-LS-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S1N2A1NNNNNNNNNN |
| 83033010 | FR-R-090C-LS-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S1N2A1NNNNNNNNNN |
| 7002506 | FR-R-090C-LS-21-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S1N4A1NNNNNNNNNN |
| 83032885 | FR-R-090C-LS-21-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S1N4A1NNNNNNNNNN |
| 80003652 | FR-R-090C-LS-21-20-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S2B2A1NNNNNNNNNN |
| 83032913 | FR-R-090C-LS-21-20-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S2B2A1NNNNNNNNNN |
| 83050280 | FR-R-090C-LS-21-20-NN-N-3-S2V2-A1N-NNN-NNN-NNN | FRR090CLS2120NNN3S2V2A1NNNNNNNNNN |
| 83005450 | FR-R-090C-LS-21-21-NN-N-3-C3N2-A3N-NNN-NNN-NNN | FRR090CLS2121NNN3C3N2A3NNNNNNNNNN |
| 83032943 | FR-R-090C-LS-21-21-NN-N-3-C3N2-A3N-NNN-NNN-NNN | FRR090CLS2121NNN3C3N2A3NNNNNNNNNN |
| 83021447 | FR-R-090C-LS-21-21-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CLS2121NNN3K4N2A1NAAANNNNNN |
| 83007204 | FR-R-090C-LS-21-21-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS2121NNN3S1C2A1NAAANNNNNN |
| 83032952 | FR-R-090C-LS-21-21-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS2121NNN3S1C2A1NAAANNNNNN |
| 83007205 | FR-R-090C-LS-21-21-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2121NNN3S1N2A1NAAANNNNNN |
| 83003972 | FR-R-090C-LS-21-21-NN-N-3-S1N2-A3N-NNN-NNN-NNN | FRR090CLS2121NNN3S1N2A3NNNNNNNNNN |
| 83015625 | FR-R-090C-LS-21-22-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2122NNN3S1N2A1NNNNNNNNNN |
| 80004352 | FR-R-090C-LS-21-22-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRR090CLS2122NNN3S1V2A1NNNNNNNNNN |
| 83068093 | FR-R-090C-LS-21-24-NN-N-3-S1N2-A3N-NNN-NNN-NNN | FRR090CLS2124NNN3S1N2A3NNNNNNNNNN |
| 83015513 | FR-R-090C-LS-21-28-NN-N-3-C3N4-A3N-NNN-NNN-NNN | FRR090CLS2128NNN3C3N4A3NNNNNNNNNN |
| 83071754 | FR-R-090C-LS-21-28-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRR090CLS2128NNN3K4B2A1NNNNNNNNNN |
| 83055734 | FR-R-090C-LS-21-28-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRR090CLS2128NNN3S2N2A1NNNNNNNNNN |
| 7002516 | FR-R-090C-LS-21-30-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2130NNN3S1A2A1NNNNNNNNNN |
| 80002638 | FR-R-090C-LS-21-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2130NNN3S1N2A1NNNNNNNNNN |
| 80002655 | FR-R-090C-LS-21-30-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2130NNN3S1N4A1NNNNNNNNNN |
| 83041150 | FR-R-090C-LS-22-18-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2218NNN3S1A2A1NNNNNNNNNN |
| 83041149 | FR-R-090C-LS-22-18-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2218NNN3S1C2A1NNNNNNNNNN |
| 83017622 | FR-R-090C-LS-22-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CLS2220NNN3S1B2A1NAAANNNNNN |
| 83032355 | FR-R-090C-LS-22-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2220NNN3S1B2A1NNNNNNNNNN |
| 83035524 | FR-R-090C-LS-22-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2220NNN3S1B2A1NNNNNNNNNN |
| 83017694 | FR-R-090C-LS-22-20-NN-N-3-S1B2-A3N-AAA-NNN-NNN | FRR090CLS2220NNN3S1B2A3NAAANNNNNN |
| 83032972 | FR-R-090C-LS-22-20-NN-N-3-S1B2-A3N-AAA-NNN-NNN | FRR090CLS2220NNN3S1B2A3NAAANNNNNN |
| 83010297 | FR-R-090C-LS-22-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2220NNN3S1C2A1NNNNNNNNNN |
| 83061897 | FR-R-090C-LS-22-20-NN-N-3-S1NB-A1N-NNN-NNN-NNN | FRR090CLS2220NNN3S1NBA1NNNNNNNNNN |
| 83058843 | FR-R-090C-LS-22-24-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2224NNN3S1N2A1NNNNNNNNNN |
| 83002934 | FR-R-090C-LS-23-14-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CLS2314NNN3S1B2A1NAAANNNNNN |
| 83053160 | FR-R-090C-LS-23-15-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2315NNN3S1N2A1NNNNNNNNNN |
| 83035659 | FR-R-090C-LS-23-17-NN-E-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2317NNE3S1N4A1NNNNNNNNNN |
| 83059190 | FR-R-090C-LS-23-20-NN-F-3-K4N4-A1N-NNN-NNN-NNN | FRR090CLS2320NNF3K4N4A1NNNNNNNNNN |
| 83055790 | FR-R-090C-LS-23-20-NN-F-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2320NNF3S1N2A1NNNNNNNNNN |
| 83021369 | FR-R-090C-LS-23-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3K4C2A1NNNNNNNNNN |
| 83032999 | FR-R-090C-LS-23-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3K4C2A1NNNNNNNNNN |
| 80004108 | FR-R-090C-LS-23-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3S1C2A1NNNNNNNNNN |
| 83032987 | FR-R-090C-LS-23-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3S1C2A1NNNNNNNNNN |
| 83035589 | FR-R-090C-LS-23-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2320NNN3S1N2A1NAAANNNNNN |
| 80004109 | FR-R-090C-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3S1N2A1NNNNNNNNNN |
| 83032988 | FR-R-090C-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3S1N2A1NNNNNNNNNN |
| 83053648 | FR-R-090C-LS-23-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CLS2320NNN3S1N4A1NAAANNNNNN |
| 83042395 | FR-R-090C-LS-23-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3S1V2A1NNNNNNNNNN |
| 83028884 | FR-R-090C-LS-23-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3S2C2A1NNNNNNNNNN |
| 83039945 | FR-R-090C-LS-23-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CLS2320NNN3S2C2A1NNNNNNNNNN |
| 83006600 | FR-R-090C-LS-23-20-NN-N-3-S2N2-A1N-AAA-NNN-NNN | FRR090CLS2320NNN3S2N2A1NAAANNNNNN |
| 83032947 | FR-R-090C-LS-23-20-NN-N-3-S2N2-A1N-AAA-NNN-NNN | FRR090CLS2320NNN3S2N2A1NAAANNNNNN |
| 83046524 | FR-R-090C-LS-23-25-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2325NNN3S1C2A1NNNNNNNNNN |
| 83046525 | FR-R-090C-LS-23-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2325NNN3S1N2A1NNNNNNNNNN |
| 83066528 | FR-R-090C-LS-23-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2330NNN3S1N2A1NNNNNNNNNN |
| 83013151 | FR-R-090C-LS-24-10-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2410NNN3S1N2A1NAAANNNNNN |
| 83013202 | FR-R-090C-LS-24-10-NN-N-3-S2C2-A1N-AAA-NNN-NNN | FRR090CLS2410NNN3S2C2A1NAAANNNNNN |
| 83030344 | FR-R-090C-LS-24-15-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2415NNN3S1N2A1NAAANNNNNN |
| 83010523 | FR-R-090C-LS-24-18-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2418NNN3S1N4A1NNNNNNNNNN |
| 80002843 | FR-R-090C-LS-24-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2420NNN3S1B2A1NNNNNNNNNN |
| 83032904 | FR-R-090C-LS-24-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2420NNN3S1B2A1NNNNNNNNNN |
| 83025304 | FR-R-090C-LS-24-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2420NNN3S1N2A1NAAANNNNNN |
| 83032965 | FR-R-090C-LS-24-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2420NNN3S1N2A1NAAANNNNNN |
| 83083344 | FR-R-090C-LS-24-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2420NNN3S1N2A1NNNNNNNNNN |
| 83003326 | FR-R-090C-LS-24-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2420NNN3S1N4A1NNNNNNNNNN |
| 83032966 | FR-R-090C-LS-24-20-NN-N-3-S2C2-A1N-AAA-NNN-NNN | FRR090CLS2420NNN3S2C2A1NAAANNNNNN |
| 83039093 | FR-R-090C-LS-24-24-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2424NNN3S1N2A1NAAANNNNNN |
| 83069412 | FR-R-090C-LS-24-25-NN-E-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2425NNE3S1N2A1NNNNNNNNNN |
| 83024129 | FR-R-090C-LS-25-20-NN-N-3-C3N2-A3N-NNN-NNN-NNN | FRR090CLS2520NNN3C3N2A3NNNNNNNNNN |
| 83016667 | FR-R-090C-LS-25-20-NN-N-3-K4C2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3K4C2A1NAAANNNNNN |
| 83002577 | FR-R-090C-LS-25-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3K4N2A1NAAANNNNNN |
| 83004538 | FR-R-090C-LS-25-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3K4N4A1NAAANNNNNN |
| 83010080 | FR-R-090C-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3K4R2A1NAAANNNNNN |
| 83033016 | FR-R-090C-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3K4R2A1NAAANNNNNN |
| 83030931 | FR-R-090C-LS-25-20-NN-N-3-K4R2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3K4R2A1NNNNNNNNNN |
| 83009044 | FR-R-090C-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1A2A1NAAANNNNNN |
| 83032957 | FR-R-090C-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1A2A1NAAANNNNNN |
| 83065331 | FR-R-090C-LS-25-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1A2A1NNNNNNNNNN |
| 83008232 | FR-R-090C-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1B2A1NAAANNNNNN |
| 83033002 | FR-R-090C-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1B2A1NAAANNNNNN |
| 83014296 | FR-R-090C-LS-25-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1B2A1NNNNNNNNNN |
| 83047081 | FR-R-090C-LS-25-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1B2A1NNNNNNNNNN |
| 83042312 | FR-R-090C-LS-25-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1C2A1NAAANNNNNN |
| 83051181 | FR-R-090C-LS-25-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1C2A1NAAANNNNNN |
| 83024949 | FR-R-090C-LS-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1C2A1NNNNNNNNNN |
| 83009008 | FR-R-090C-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1N2A1NAAANNNNNN |
| 83050855 | FR-R-090C-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1N2A1NAAANNNNNN |
| 80006052 | FR-R-090C-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1N2A1NNNNNNNNNN |
| 83036931 | FR-R-090C-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1N2A1NNNNNNNNNN |
| 7002513 | FR-R-090C-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1N4A1NAAANNNNNN |
| 83032887 | FR-R-090C-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1N4A1NAAANNNNNN |
| 83010905 | FR-R-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1N4A1NNNNNNNNNN |
| 83032963 | FR-R-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1N4A1NNNNNNNNNN |
| 83039843 | FR-R-090C-LS-25-20-NN-N-3-S1N4-A3N-NNN-NNN-NNN | FRR090CLS2520NNN3S1N4A3NNNNNNNNNN |
| 83059520 | FR-R-090C-LS-25-20-NN-N-3-S1NB-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1NBA1NAAANNNNNN |
| 7002511 | FR-R-090C-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S1R2A1NAAANNNNNN |
| 83012597 | FR-R-090C-LS-25-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1R2A1NNNNNNNNNN |
| 83016741 | FR-R-090C-LS-25-20-NN-N-3-S1T2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1T2A1NNNNNNNNNN |
| 83032996 | FR-R-090C-LS-25-20-NN-N-3-S1T2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S1T2A1NNNNNNNNNN |
| 83010028 | FR-R-090C-LS-25-20-NN-N-3-S2A2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S2A2A1NAAANNNNNN |
| 83055213 | FR-R-090C-LS-25-20-NN-N-3-S2B2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S2B2A1NAAANNNNNN |
| 83055214 | FR-R-090C-LS-25-20-NN-N-3-S2C2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S2C2A1NAAANNNNNN |
| 83001097 | FR-R-090C-LS-25-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S2C2A1NNNNNNNNNN |
| 83032929 | FR-R-090C-LS-25-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S2C2A1NNNNNNNNNN |
| 80004424 | FR-R-090C-LS-25-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S2N2A1NNNNNNNNNN |
| 83043238 | FR-R-090C-LS-25-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRR090CLS2520NNN3S2N2A1NNNNNNNNNN |
| 7002514 | FR-R-090C-LS-25-20-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S2N4A1NAAANNNNNN |
| 83047080 | FR-R-090C-LS-25-20-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S2N4A1NAAANNNNNN |
| 7002512 | FR-R-090C-LS-25-20-NN-N-3-S2R2-A1N-AAA-NNN-NNN | FRR090CLS2520NNN3S2R2A1NAAANNNNNN |
| 83038031 | FR-R-090C-LS-25-22-NN-N-3-S1N2-A3N-NNN-NNN-NNN | FRR090CLS2522NNN3S1N2A3NNNNNNNNNN |
| 83012680 | FR-R-090C-LS-25-23-NN-N-3-S1V2-A3N-NNN-NNN-NNN | FRR090CLS2523NNN3S1V2A3NNNNNNNNNN |
| 83033039 | FR-R-090C-LS-25-23-NN-N-3-S1V2-A3N-NNN-NNN-NNN | FRR090CLS2523NNN3S1V2A3NNNNNNNNNN |
| 83055588 | FR-R-090C-LS-25-24-NN-E-3-S2C2-A1N-NNN-NNN-NNN | FRR090CLS2524NNE3S2C2A1NNNNNNNNNN |
| 83047691 | FR-R-090C-LS-25-25-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2525NNN3S1A2A1NNNNNNNNNN |
| 80006070 | FR-R-090C-LS-25-25-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2525NNN3S1B2A1NNNNNNNNNN |
| 83032871 | FR-R-090C-LS-25-25-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2525NNN3S1B2A1NNNNNNNNNN |
| 80003469 | FR-R-090C-LS-25-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2525NNN3S1N2A1NNNNNNNNNN |
| 83032910 | FR-R-090C-LS-25-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2525NNN3S1N2A1NNNNNNNNNN |
| 83094155 | FR-R-090C-LS-26-10-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRR090CLS2610NNN3K4B2A1NNNNNNNNNN |
| 80005113 | FR-R-090C-LS-26-15-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2615NNN3S1N2A1NNNNNNNNNN |
| 83019804 | FR-R-090C-LS-26-19-NN-N-3-S1N2-A1N-NNN-NNN-NNC | FRR090CLS2619NNN3S1N2A1NNNNNNNNNC |
| 83034181 | FR-R-090C-LS-26-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3K4N4A1NAAANNNNNN |
| 83025606 | FR-R-090C-LS-26-20-NN-N-3-K4R2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3K4R2A1NNNNNNNNNN |
| 83033023 | FR-R-090C-LS-26-20-NN-N-3-K4R2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3K4R2A1NNNNNNNNNN |
| 83038298 | FR-R-090C-LS-26-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S1A2A1NAAANNNNNN |
| 83044477 | FR-R-090C-LS-26-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S1A2A1NAAANNNNNN |
| 83040468 | FR-R-090C-LS-26-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S1B2A1NAAANNNNNN |
| 83006877 | FR-R-090C-LS-26-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S1B2A1NNNNNNNNNN |
| 80005339 | FR-R-090C-LS-26-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S1C2A1NNNNNNNNNN |
| 83032922 | FR-R-090C-LS-26-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S1C2A1NNNNNNNNNN |
| 80003569 | FR-R-090C-LS-26-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S1N2A1NAAANNNNNN |
| 83032911 | FR-R-090C-LS-26-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S1N2A1NAAANNNNNN |
| 83031693 | FR-R-090C-LS-26-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S1N2A1NNNNNNNNNN |
| 80006514 | FR-R-090C-LS-26-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S1N4A1NNNNNNNNNN |
| 83047740 | FR-R-090C-LS-26-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S1R2A1NAAANNNNNN |
| 83057483 | FR-R-090C-LS-26-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S1R2A1NAAANNNNNN |
| 83042964 | FR-R-090C-LS-26-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S1R2A1NNNNNNNNNN |
| 83067209 | FR-R-090C-LS-26-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S1V2A1NNNNNNNNNN |
| 83007804 | FR-R-090C-LS-26-20-NN-N-3-S2B2-A1N-NNN-NNN-NNN | FRR090CLS2620NNN3S2B2A1NNNNNNNNNN |
| 83014742 | FR-R-090C-LS-26-20-NN-N-3-S2C2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S2C2A1NAAANNNNNN |
| 83091283 | FR-R-090C-LS-26-20-NN-N-3-S2N2-A1N-AAA-NNN-NNN | FRR090CLS2620NNN3S2N2A1NAAANNNNNN |
| 83065953 | FR-R-090C-LS-26-21-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CLS2621NNN3S1N4A1NAAANNNNNN |
| 83092207 | FR-R-090C-LS-26-24-NN-N-3-S1N2-A3N-AAA-NNN-NNN | FRR090CLS2624NNN3S1N2A3NAAANNNNNN |
| 83059568 | FR-R-090C-LS-26-25-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2625NNN3S1C2A1NNNNNNNNNN |
| 83059567 | FR-R-090C-LS-26-25-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CLS2625NNN3S2C2A1NNNNNNNNNN |
| 83002808 | FR-R-090C-LS-26-28-NN-N-3-S2B2-A1N-NNN-NNN-CCP | FRR090CLS2628NNN3S2B2A1NNNNNNNCCP |
| 83062335 | FR-R-090C-LS-26-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2630NNN3S1N2A1NNNNNNNNNN |
| 83062660 | FR-R-090C-LS-26-30-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CLS2630NNN3S1N4A1NNNNNNNNNN |
| 83042510 | FR-R-090C-LS-26-34-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CLS2634NNN3S1A2A1NNNNNNNNNN |
| 83071122 | FR-R-090C-LS-26-34-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CLS2634NNN3S1C2A1NNNNNNNNNN |
| 80004148 | FR-R-090C-LS-27-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CLS2730NNN3S1N2A1NNNNNNNNNN |
| 83036578 | FR-R-090C-LS-28-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRR090CLS2820NNN3S1V2A1NNNNNNNNNN |
| 83004831 | FR-R-090C-LS-28-30-NN-N-3-S1N4-A1N-NNN-NNN-NNC | FRR090CLS2830NNN3S1N4A1NNNNNNNNNC |
| 83007683 | FR-R-090C-LS-28-34-NN-N-3-S1A2-A1N-NNN-NNN-NNC | FRR090CLS2834NNN3S1A2A1NNNNNNNNNC |
| 83022217 | FR-R-090C-LS-28-34-NN-N-3-S1C2-A1N-NNN-NNN-NNC | FRR090CLS2834NNN3S1C2A1NNNNNNNNNC |
| 83043992 | FR-R-090C-NN-NN-NN-NN-N-N-S1N2-A1N-NNN-NNN-P00 | FRR090CNNNNNNNNNNS1N2A1NNNNNNNP00 |
| 83041461 | FR-R-090C-NN-NN-NN-NN-N-N-S1N4-A1N-NNN-NNN-P00 | FRR090CNNNNNNNNNNS1N4A1NNNNNNNP00 |
| 83041472 | FR-R-090C-NN-NN-NN-NN-N-N-S1R2-A1N-NNN-NNN-P00 | FRR090CNNNNNNNNNNS1R2A1NNNNNNNP00 |
| 83041473 | FR-R-090C-NN-NN-NN-NN-N-N-S1R2-A1R-NNN-ANS-P00 | FRR090CNNNNNNNNNNS1R2A1RNNNANSP00 |
| 83019500 | FR-R-090C-PC-10-NN-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRR090CPC10NNNNN3K4A2A1NAAANNNNNN |
| 83016951 | FR-R-090C-PC-10-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CPC10NNNNN3K4N2A1NAAANNNNNN |
| 83002893 | FR-R-090C-PC-14-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CPC14NNNNN3K4N2A1NAAANNNNNN |
| 83032933 | FR-R-090C-PC-14-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CPC14NNNNN3K4N2A1NAAANNNNNN |
| 83043024 | FR-R-090C-PC-14-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CPC14NNNNN3S1B2A1NAAANNNNNN |
| 83012357 | FR-R-090C-PC-14-NN-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CPC14NNNNN3S1N2A1NNNNNNNNNN |
| 83039074 | FR-R-090C-PC-14-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CPC14NNNNN3S1N4A1NNNNNNNNNN |
| 83025083 | FR-R-090C-PC-16-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CPC16NNNNN3S1A2A1NNNNNNNNNN |
| 83032977 | FR-R-090C-PC-16-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CPC16NNNNN3S1A2A1NNNNNNNNNN |
| 83027985 | FR-R-090C-PC-16-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CPC16NNNNN3S1C2A1NNNNNNNNNN |
| 83032979 | FR-R-090C-PC-16-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CPC16NNNNN3S1C2A1NNNNNNNNNN |
| 83022160 | FR-R-090C-PC-17-NN-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRR090CPC17NNNNN3K4B2A1NNNNNNNNNN |
| 83006163 | FR-R-090C-PC-17-NN-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRR090CPC17NNNNN3S2N4A1NAAANNNNNN |
| 83032945 | FR-R-090C-PC-17-NN-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRR090CPC17NNNNN3S2N4A1NAAANNNNNN |
| 83028859 | FR-R-090C-PC-17-NN-NN-N-3-S2N4-A1N-NNN-NNN-NNN | FRR090CPC17NNNNN3S2N4A1NNNNNNNNNN |
| 83032981 | FR-R-090C-PC-17-NN-NN-N-3-S2N4-A1N-NNN-NNN-NNN | FRR090CPC17NNNNN3S2N4A1NNNNNNNNNN |
| 83018633 | FR-R-090C-PC-18-NN-NN-N-3-K4V2-A1N-AAA-NNN-NNN | FRR090CPC18NNNNN3K4V2A1NAAANNNNNN |
| 83061875 | FR-R-090C-PC-18-NN-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CPC18NNNNN3S1A2A1NAAANNNNNN |
| 83051070 | FR-R-090C-PC-18-NN-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRR090CPC18NNNNN3S1R2A1NAAANNNNNN |
| 83039233 | FR-R-090C-PC-20-NN-NN-N-3-S1N2-A3N-AAA-NNN-NNN | FRR090CPC20NNNNN3S1N2A3NAAANNNNNN |
| 83036275 | FR-R-090C-PC-20-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CPC20NNNNN3S1N4A1NNNNNNNNNN |
| 83040061 | FR-R-090C-PC-20-NN-NN-N-3-S1N4-A3N-AAA-NNN-NNN | FRR090CPC20NNNNN3S1N4A3NAAANNNNNN |
| 83024649 | FR-R-090C-PC-20-NN-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRR090CPC20NNNNN3S1R2A1NAAANNNNNN |
| 83036276 | FR-R-090C-PC-20-NN-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRR090CPC20NNNNN3S1R2A1NNNNNNNNNN |
| 83001574 | FR-R-090C-PC-21-NN-NN-N-3-K4B2-A1N-AAA-NNN-NNN | FRR090CPC21NNNNN3K4B2A1NAAANNNNNN |
| 83030437 | FR-R-090C-PC-21-NN-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CPC21NNNNN3S1A2A1NAAANNNNNN |
| 83009947 | FR-R-090C-PC-21-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CPC21NNNNN3S1B2A1NNNNNNNNNN |
| 83032961 | FR-R-090C-PC-21-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CPC21NNNNN3S1B2A1NNNNNNNNNN |
| 83010588 | FR-R-090C-PC-21-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CPC21NNNNN3S1N4A1NNNNNNNNNN |
| 83031652 | FR-R-090C-PC-22-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CPC22NNNNN3S1A2A1NNNNNNNNNN |
| 83034169 | FR-R-090C-PC-22-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CPC22NNNNN3S1A2A1NNNNNNNNNN |
| 83031651 | FR-R-090C-PC-22-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CPC22NNNNN3S1C2A1NNNNNNNNNN |
| 83036404 | FR-R-090C-PC-22-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CPC22NNNNN3S1C2A1NNNNNNNNNN |
| 83009630 | FR-R-090C-PC-24-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CPC24NNNNN3K4N2A1NAAANNNNNN |
| 83004292 | FR-R-090C-PC-25-NN-NN-N-3-K4B2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3K4B2A1NAAANNNNNN |
| 83004764 | FR-R-090C-PC-25-NN-NN-N-3-K4C2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3K4C2A1NAAANNNNNN |
| 80003033 | FR-R-090C-PC-25-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3K4N2A1NAAANNNNNN |
| 83003158 | FR-R-090C-PC-25-NN-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRR090CPC25NNNNN3K4N2A1NNNNNNNNNN |
| 83005054 | FR-R-090C-PC-25-NN-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3K4N4A1NAAANNNNNN |
| 83033014 | FR-R-090C-PC-25-NN-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3K4N4A1NAAANNNNNN |
| 83019027 | FR-R-090C-PC-25-NN-NN-N-3-K4R2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3K4R2A1NAAANNNNNN |
| 83017943 | FR-R-090C-PC-25-NN-NN-N-3-K4R2-A1N-NNN-NNN-NNN | FRR090CPC25NNNNN3K4R2A1NNNNNNNNNN |
| 83013350 | FR-R-090C-PC-25-NN-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3S1A2A1NAAANNNNNN |
| 83003033 | FR-R-090C-PC-25-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRR090CPC25NNNNN3S1A2A1NNNNNNNNNN |
| 83003616 | FR-R-090C-PC-25-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3S1B2A1NAAANNNNNN |
| 83052857 | FR-R-090C-PC-25-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3S1B2A1NAAANNNNNN |
| 83034332 | FR-R-090C-PC-25-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRR090CPC25NNNNN3S1B2A1NNNNNNNNNN |
| 83003034 | FR-R-090C-PC-25-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CPC25NNNNN3S1C2A1NNNNNNNNNN |
| 7002504 | FR-R-090C-PC-25-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3S1N2A1NAAANNNNNN |
| 80003503 | FR-R-090C-PC-25-NN-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CPC25NNNNN3S1N2A1NNNNNNNNNN |
| 83005981 | FR-R-090C-PC-25-NN-NN-N-3-S1N2-A1N-NNN-NNN-P00 | FRR090CPC25NNNNN3S1N2A1NNNNNNNP00 |
| 83072648 | FR-R-090C-PC-25-NN-NN-N-3-S1N2-A3N-NNN-NNN-NNN | FRR090CPC25NNNNN3S1N2A3NNNNNNNNNN |
| 83004409 | FR-R-090C-PC-25-NN-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3S1N4A1NAAANNNNNN |
| 83032938 | FR-R-090C-PC-25-NN-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRR090CPC25NNNNN3S1N4A1NAAANNNNNN |
| 83038510 | FR-R-090C-RP-10-10-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRR090CRP1010NNN3S1N2A1NNNNNNNNNN |
| 83058267 | FR-R-090C-RP-10-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRR090CRP1020NNN3K4A2A1NAAANNNNNN |
| 83037300 | FR-R-090C-RP-16-10-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRR090CRP1610NNN3S1N4A1NNNNNNNNNN |
| 80002626 | FR-R-090C-RP-18-20-NN-N-3-K4A2-A1N-NNN-NNN-NNN | FRR090CRP1820NNN3K4A2A1NNNNNNNNNN |
| 83005359 | FR-R-090C-RP-18-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRR090CRP1820NNN3K4C2A1NNNNNNNNNN |
| 80003212 | FR-R-090C-RP-18-20-NN-N-3-K4N4-A1N-NNN-NNN-NNN | FRR090CRP1820NNN3K4N4A1NNNNNNNNNN |
| 83046189 | FR-R-090C-RP-20-20-NN-E-3-S1V2-A1N-NNN-NNN-NNN | FRR090CRP2020NNE3S1V2A1NNNNNNNNNN |
| 83003766 | FR-R-090C-RP-20-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRR090CRP2020NNN3S1C2A1NAAANNNNNN |
| 83062459 | FR-R-090C-RP-21-10-NN-N-3-K4NB-A1N-NNN-NNN-NNN | FRR090CRP2110NNN3K4NBA1NNNNNNNNNN |
| 83016548 | FR-R-090C-RP-21-14-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRR090CRP2114NNN3S1B2A1NAAANNNNNN |
| 83046177 | FR-R-090C-RP-21-20-NN-E-3-S1V2-A1N-AAA-NNN-NNN | FRR090CRP2120NNE3S1V2A1NAAANNNNNN |
| 83016084 | FR-R-090C-RP-21-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CRP2120NNN3S1C2A1NNNNNNNNNN |
| 83032971 | FR-R-090C-RP-21-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRR090CRP2120NNN3S1C2A1NNNNNNNNNN |
| 83016083 | FR-R-090C-RP-21-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRR090CRP2120NNN3S1N2A1NAAANNNNNN |
| 83045351 | FR-R-090C-RP-21-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRR090CRP2120NNN3S1V2A1NAAANNNNNN |
| 83045350 | FR-R-090C-RP-21-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRR090CRP2120NNN3S1V2A1NNNNNNNNNN |
| 83007092 | FR-R-090C-RP-21-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CRP2120NNN3S2C2A1NNNNNNNNNN |
| 83032949 | FR-R-090C-RP-21-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRR090CRP2120NNN3S2C2A1NNNNNNNNNN |
| 7002521 | FR-R-090C-RP-22-20-NN-N-3-K4V2-A1N-AAA-NNN-NNN | FRR090CRP2220NNN3K4V2A1NAAANNNNNN |
| 7002519 | FR-R-090C-RP-22-20-NN-N-3-K4V2-A1N-NNN-NNN-NNN | FRR090CRP2220NNN3K4V2A1NNNNNNNNNN |
| 83007040 | FR-R-090C-RP-23-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CRP2320NNN3K4N2A1NAAANNNNNN |
| 83028145 | FR-R-090C-RP-26-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRR090CRP2620NNN3K4N2A1NAAANNNNNN |
| 83058454 | FR-R-090C-TA-22-20-NN-N-C-S1N2-A1R-NNN-ANS-NNN | FRR090CTA2220NNNCS1N2A1RNNNANSNNN |
| 83059492 | FR-R-090C-TA-25-20-NN-N-C-S1N2-A1R-NNN-ANS-NNN | FRR090CTA2520NNNCS1N2A1RNNNANSNNN |
| 83050175 | FR-R-090C-TA-25-24-NN-N-C-S1N2-A1R-AAA-ANS-NNN | FRR090CTA2524NNNCS1N2A1RAAAANSNNN |
| 83042393 | FR-R-090C-TB-23-20-NN-N-C-S1V2-A1R-NNN-ANS-NNN | FRR090CTB2320NNNCS1V2A1RNNNANSNNN |
| 83086919 | FR-R-090C-TB-26-20-NN-N-C-S1A2-A1R-NNN-ANS-NNN | FRR090CTB2620NNNCS1A2A1RNNNANSNNN |
| 83049364 | FR-R-090C-TB-26-20-NN-N-C-S1N2-A1R-NNN-ANS-NNN | FRR090CTB2620NNNCS1N2A1RNNNANSNNN |
| 83044626 | FR-R-090C-TB-28-30-NN-N-C-S1N2-A1R-NNN-ANS-NNC | FRR090CTB2830NNNCS1N2A1RNNNANSNNC |
Q1:What is the FRR090 hydraulic pump and what are its key performance specifications?
A1:The FRR090 is a variable displacement axial piston pump designed for open circuit applications, belonging to the Series 45. Its key specifications include a displacement of 90 cm³/rev, a maximum continuous operating pressure of 260 bar (3770 psi), and a peak pressure of 350 bar (5075 psi). It supports a maximum input speed of 3600 rpm and delivers a theoretical flow of 198 l/min (52.3 US gal/min) at its rated speed .
Q2:In which types of machinery is the FRR090 pump commonly used?
A2:The FRR090 pump is commonly employed in a wide range of heavy-duty mobile machinery. This includes construction and industrial equipment such as cranes, telescopic handlers, wheel loaders, and forestry equipment .
Q3:What control options are available for the FRR090 pump, and what is their benefit?
A3:The pump can be equipped with various control options, including load sensing and pressure compensation. These controls allow the pump's operation to be tailored to the specific flow and pressure requirements of an application, which contributes to optimized performance and improved energy efficiency in complex hydraulic systems .
Q4:How to purchase an FRR090 hydraulic pump?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
