Hagglunds AMX Compact high-speed heavy-duty hydraulic motor

The AMX Compact belongs to Hägglunds' family of radial piston hydraulic motors, a lineage best known for direct-drive machines that eliminate gearboxes. While the classic Hägglunds motors (like the CA and CB series) are famous for very low-speed, extremely high-torque direct drive, the AMX Compact is positioned differently: it's built for applications that need higher rotational speeds alongside strong torque output, in a more compact, lighter housing than a traditional slow-speed direct-drive unit.

How the AMX Compact Works

Radial Piston Mechanics

At the core of the AMX Compact is a radial piston arrangement: a set of pistons arranged around a central shaft, pressed outward against a cam ring by hydraulic pressure. As pressurized oil is sequentially routed to each piston, the resulting force against the cam profile converts hydraulic energy into rotary mechanical torque.

Why "Compact" Matters

Traditional heavy-duty radial piston motors are often large and heavy relative to their output, because their design philosophy prioritizes ultra-low-speed, maximum-torque direct drive (eliminating gearboxes on things like ship winches or mill drives). The AMX Compact reworks that formula: it trims mass and envelope size while retaining the robustness the platform is known for, making it viable for machines where space and weight are real constraints — mobile equipment, retrofit projects, and compact industrial cells.

Key Features and Benefits

1. High Power Density

Because the motor is engineered to run at higher speeds than classic slow-speed Hägglunds motors, it can deliver more power through a smaller frame size — useful anywhere floor space or mounting envelope is limited.

2. Reduced Total Cost of Ownership

Direct hydraulic drive removes the need for reduction gearboxes in many applications. Fewer mechanical components means fewer wear parts, less lubrication maintenance, and reduced risk of gearbox-related downtime.

3. Durability in Harsh Environments

Heavy industrial settings — steel mills, mining operations, marine decks — expose equipment to dust, moisture, vibration, and shock loading. The AMX Compact's sealed radial piston construction is built to shrug off these conditions far better than exposed gear-driven alternatives.

4. Smooth Low-Speed Operation With High-Speed Reach

Radial piston motors are inherently good at smooth torque delivery even at very low RPM — important for precise positioning tasks — while the AMX Compact's design also extends usable performance into higher speed ranges, widening its application envelope.

5. Simplified Maintenance

Fewer external transmission components (couplings, gear reducers, chain drives) mean fewer alignment issues and less scheduled maintenance overhead across the machine's lifecycle.

Typical Applications

The AMX Compact is suited to industries where reliability under continuous, heavy-cycle operation is non-negotiable:

Mining and mineral processing — conveyor drives, crushers, and screens that run around the clock.

Marine and offshore — winches, thrusters, and deck machinery exposed to saltwater and vibration.

Steel and metals processing — mill drives and material handling equipment operating in high-heat, high-dust environments.

Pulp and paper — presses and rollers requiring precise, high-torque rotary motion.

Heavy mobile and industrial equipment — retrofits where a compact hydraulic motor can replace a bulkier electric-motor-plus-gearbox assembly.

For more information on the AMX hydraulic motor, please visit https://www.baolilaihydraulic.com/product/.

Specifications

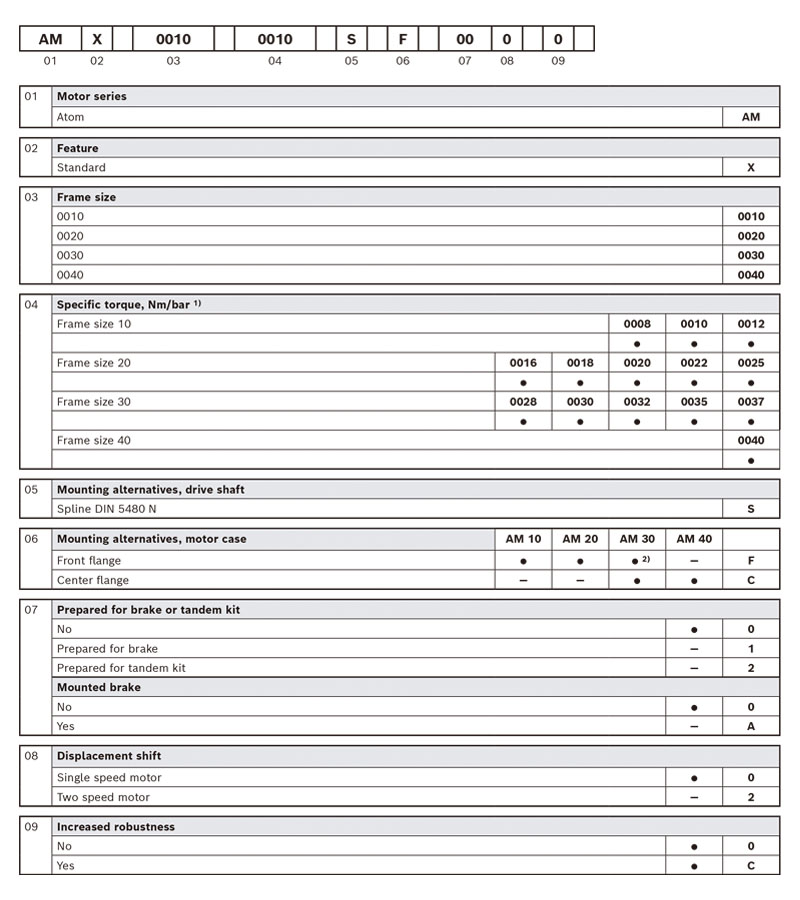

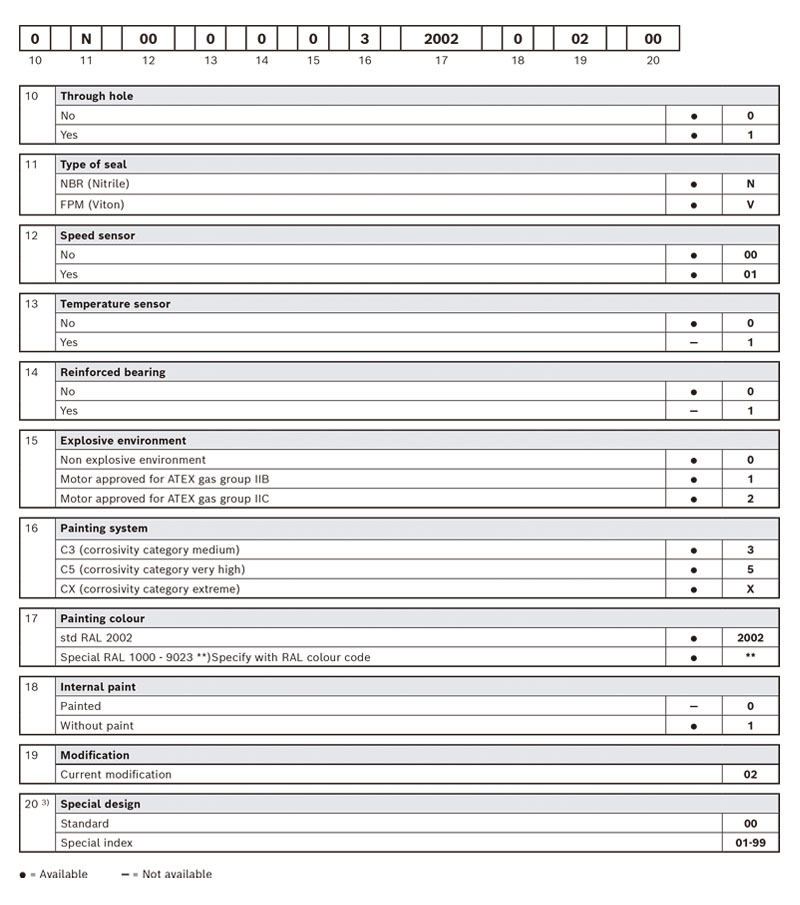

Selection Table

Q1: What industries use the AMX Compact most?

A1: It's designed for a higher speed range and a smaller, lighter footprint than Hägglunds' classic ultra-low-speed, maximum-torque direct-drive motors, while retaining radial piston durability.

Q2: What makes the AMX Compact different from other Hägglunds motors?

A2: The CA series uses radial piston motors, a design known for high torque at low speed, built-in shock-load tolerance, and smooth, low-vibration operation due to internal symmetry.

Q3: What is the price and delivery time of the AMX hydraulic motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.

Q4:How to purchase an AMX hydraulic motor?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
