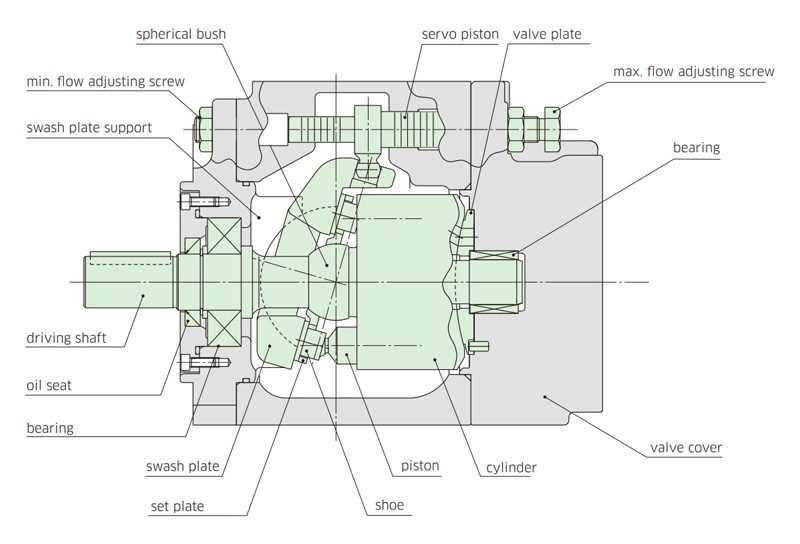

The Kawasaki K3V axial piston hydraulic pump is a high-pressure, variable displacement unit widely used in heavy machinery. Its key components include:
1. Drive Shaft and Cylinder Block: The shaft rotates the block, which contains multiple piston bores arranged axially.
2. Pistons and Slipper Pads: Each piston, fitted with a slipper, reciprocates within its bore. The slippers are held against the swash plate.
3. Swash Plate (Tilting Hinge): A critical control element. Its adjustable angle determines piston stroke and pump displacement. A zero angle results in zero flow.
4. Valve Plate (Port Plate): Stationary, with kidney-shaped ports. It facilitates the intake of low-pressure oil and the outlet of high-pressure oil as the cylinder block rotates.
5. Control System: Includes a servo piston, bias piston, and control valve (such as a pressure compensator or torque limiter). It hydraulically adjusts the swash plate angle based on system feedback.
6. Case (Housing): Encloses and protects internal parts, providing mounting points and oil passages.
7. Bearings and Seals: Support rotating assemblies and prevent internal and external leakage.
This robust design enables precise, efficient power transmission in demanding applications such as excavators and presses.
For more information on the K3V hydraulic pump parts, please visit https://www.baolilaihydraulic.com/.

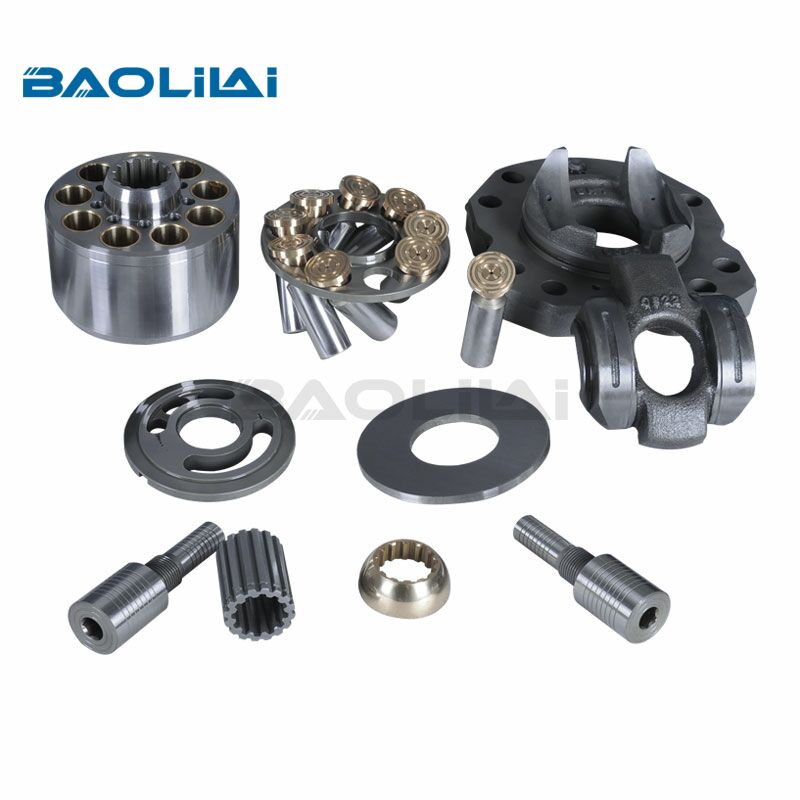

Parts list
| NO. | ACCESSORIES | QUANTITY |

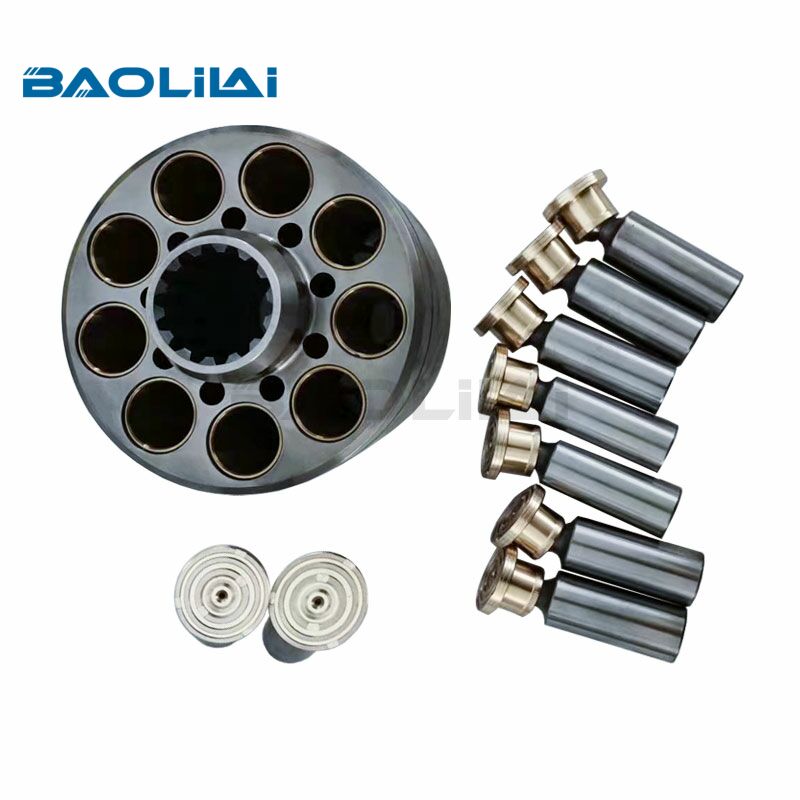

| 01 | PISTON SHOE | 9 |
| 02 | CYLINDER BLOCK | 1 |

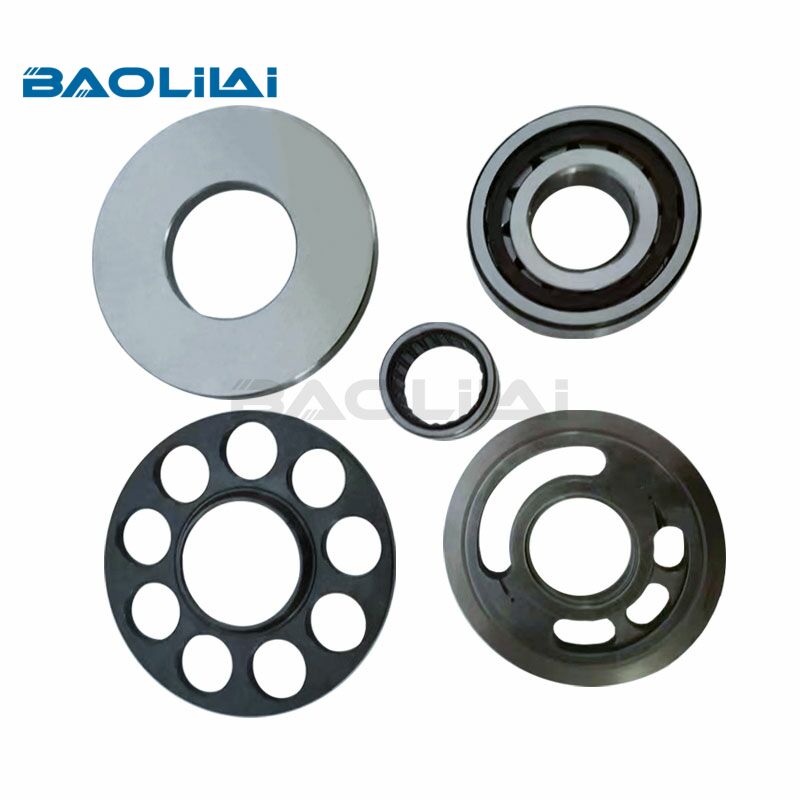

| 03 | VALVE PLATE (L) | 1 |
| 04 | VALVE PLATE (R) | 1 |
| 05 | RETAINER PLATE | 1 |
| 06 | BALL GUIDE | 1 |

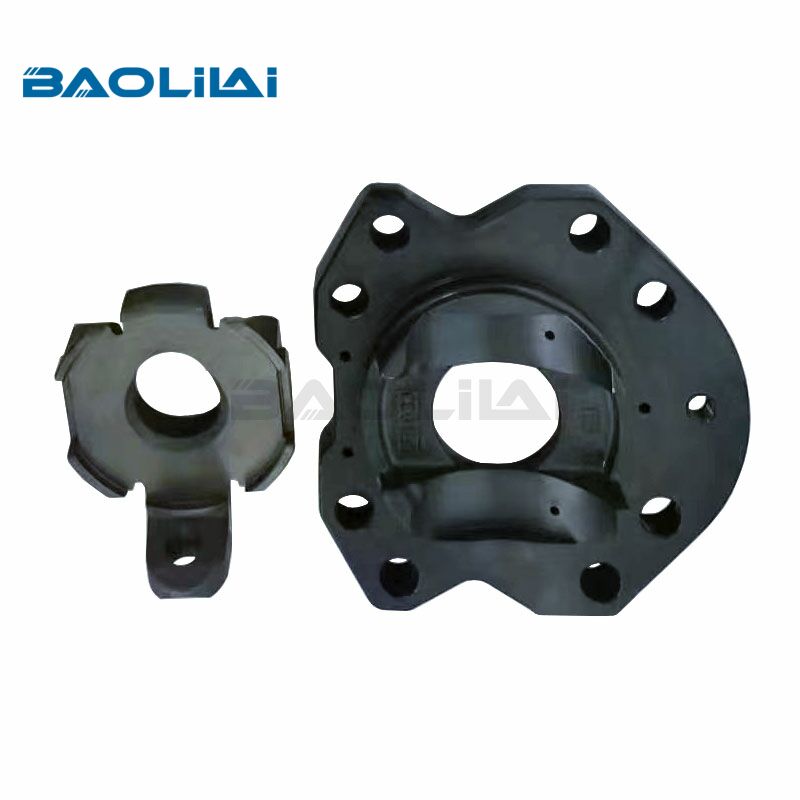

| 07 | SWASH PLATE | 1 |
| 08 | SWING SEAT (BUTTERFLY TYPE) | 1 |
| 09 | DRIVE SHAFT | 1 |
| 10 | SHOE PLATE | 1 |
| 11 | BLOCK SPRING | 9 |
| 12 | LARGE SPRING | 1 |
Q1: What is the role of the slipper pads attached to the pistons in the K3V pump?
A1:The slipper pads in the K3V hydraulic pump are parts connected to each piston. Their primary role is to maintain contact with the angled surface of the swash plate, converting the block's rotary motion into the pistons' reciprocating motion.
Q2:How to purchase the K3V Hydraulic pump Parts?
A2:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
Q3:What is the price and delivery time of the K3V Hydraulic pump Parts?
A3:The specific price and delivery time will be provided based on the specific model you provide.A variety of hydraulic solutions are available at https://www.baolilaihydraulic.com/.
