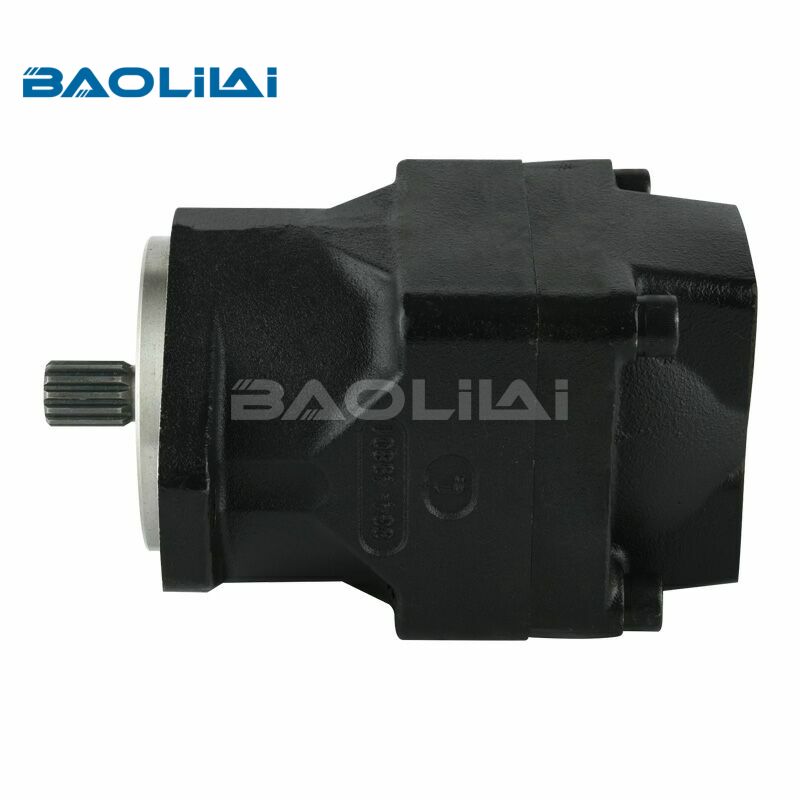

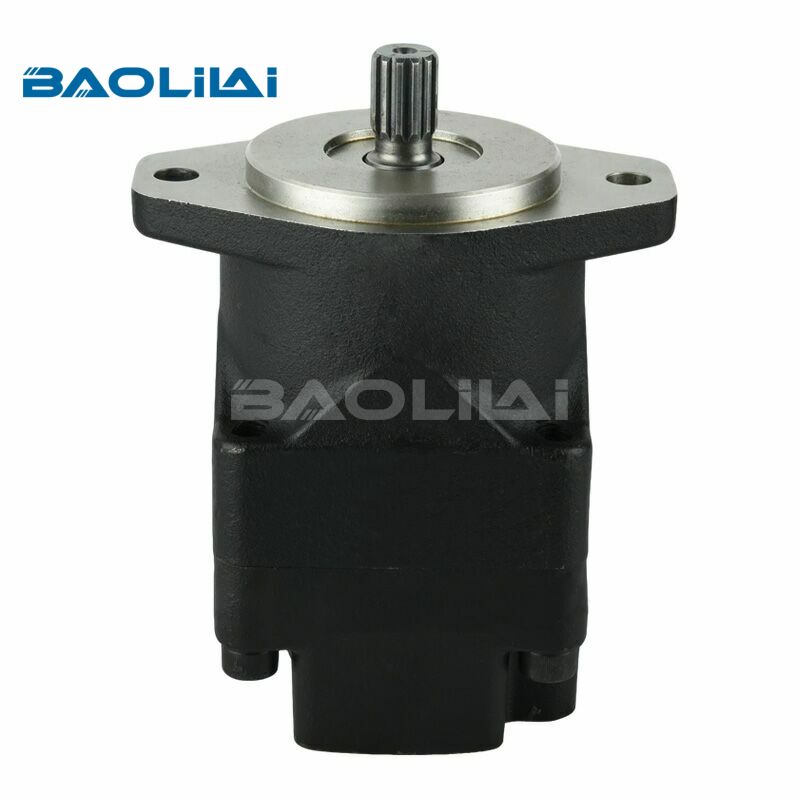

Parker Denison M4C hydraulic vane motor

The M4C is part of Parker Denison’s renowned M4 series of hydraulic vane motors. It is a balanced vane type, fixed displacement motor designed for medium-pressure applications (up to 2500 psi continuous, 3000 psi intermittent). Displacement options range from roughly 2.0 to 8.0 cubic inches per revolution, delivering torque outputs suited for conveyors, winches, fan drives, and mobile steering systems.

Key identifiers:

Model code example: M4C-25, M4C-30, M4C-40 (numbers indicate displacement group).

Shaft options: Straight keyed, splined, or tapered.

Porting: SAE O-ring ports standard.

Why “Balanced Vane” Matters

In a balanced vane motor, hydraulic pressure acts on opposing vanes simultaneously, canceling radial shaft loads. This reduces bearing stress, allowing higher continuous pressures and longer life compared to unbalanced vane motors.

Key Applications

Mobile Equipment

Concrete mixer drum drives – Smooth start/stop prevents concrete slumping.

Agricultural spreader discs – Constant torque at variable PTO speeds.

Skid-steer loader auxiliary circuits – Compact size fits tight chassis.

Industrial Machinery

Palletizer arm rotation – Precise positioning without drift.

Wire winding reels – Constant tension control.

Indexing tables – High starting torque for heavy loads.

Real-world example: A paper mill replaced a gear motor on a core cutter with an M4C-40. The result? 22% lower oil temperature and no more shuddering at low feed rates.

Installation & Best Practices

1.Case Drain Line Is Mandatory

The M4C requires a case drain port (usually the uppermost port when installed). Pressure in the case must remain below 50 psi. Run a dedicated ¾” line back to tank, avoiding common drains with other motors.

2.Filtration Matters More Than You Think

Use at least ISO 18/15/13 (NAS 9) or finer. The M4C’s vane tips rely on a thin hydrodynamic film. Contamination >25 microns will erode the cam ring lobes within weeks.

3.Shaft Alignment

Misalignment kills bearings. Use a flexible coupling (Lovejoy or similar) and keep angular misalignment under 0.5°. For belt drives, ensure pulley runout ≤0.005”.

4.Warm-Up Procedure

At ambient temperatures below 40°F, run the motor unloaded at 500 rpm for 2–3 minutes. Cold, thick oil can starve the vanes, causing chatter and breakage.

For more information on the M4C hydraulic motor, please visit https://www.baolilaihydraulic.com/product/.

Specifications

Q1:How does the M4C compare to a piston motor?

A1: Piston motors handle higher pressures (5000+ psi) but cost 2–3x more. The M4C is quieter, has better low-speed torque (no piston “stiction”), and is more contamination-tolerant. Choose piston for extreme pressure; choose M4C for value and smoothness.

Q2:What’s the typical service life?

A2:With clean oil (ISO 18/15/13) and moderate duty, expect 8,000–12,000 hours before a rebuild. Heavy shock loads reduce this to 5,000 hours.

Q3: What is the price and delivery time of the M4C vane motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.
