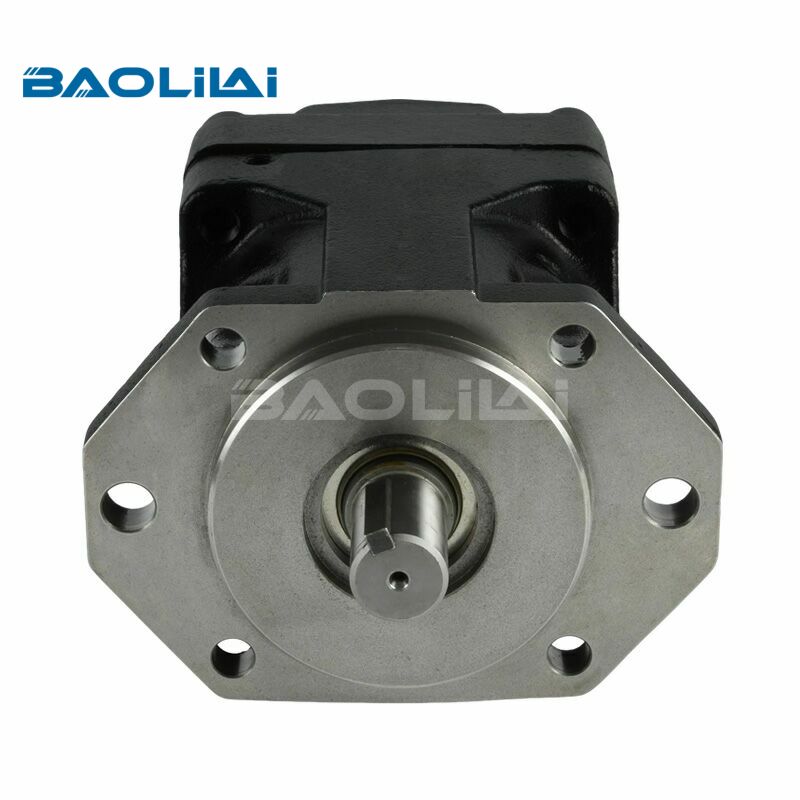

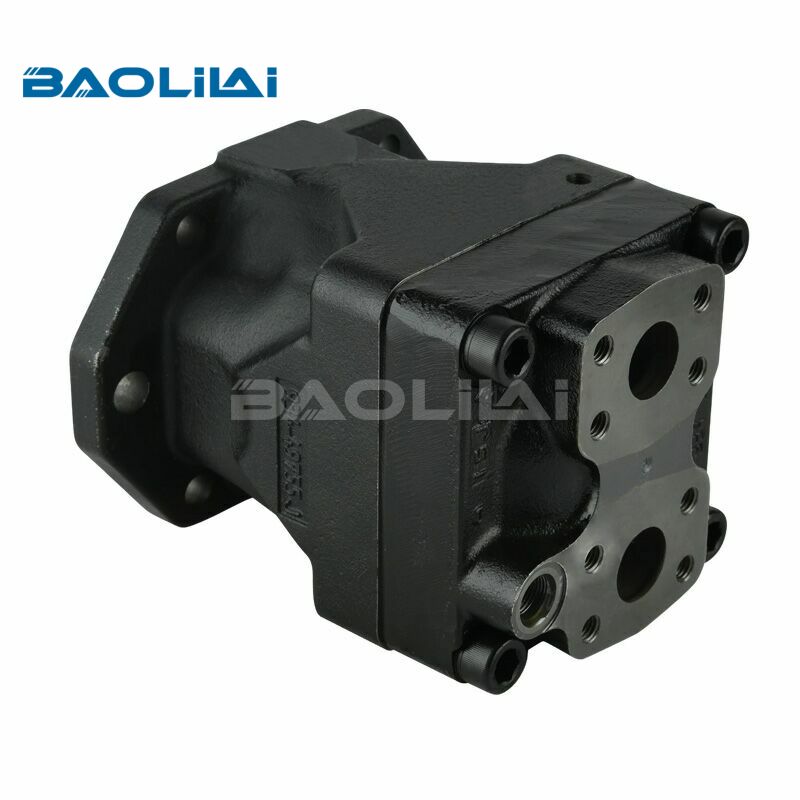

Parker Denison M4D vane hydraulic motor

The M4D utilizes a patented pressure-balanced vane design. This is its cornerstone feature. Hydraulic pressure is used to hydraulically balance and seal the vanes against the cam profile, minimizing internal leakage and maintaining high volumetric efficiency even at low speeds. This design drastically reduces vane tip wear, a common failure point in older vane motor designs.

Displacement & Configuration Options

The M4D series is available in a range of displacements, allowing engineers to match torque output to specific application requirements. Furthermore, it comes in multiple configurations:

Single Motor: For standard unidirectional or bidirectional applications.

Dual Motor: Two independent motors in a single housing, driven by separate hydraulic circuits for innovative machine control (e.g., independent wheel drives).

High-Torque (HT) Option: Features modified porting and components to maximize starting and running torque, ideal for high-load, high-friction start applications.

Key Performance Advantages

Exceptional Low-Speed Performance

The M4D excels where many hydraulic motors struggle: providing smooth, cog-free rotation at very low RPM. Its balanced vane design ensures consistent vane extension, leading to stable operation and high starting torque (typically over 85% of theoretical running torque). This makes it ideal for applications requiring precise, slow movement under load.

Robust Durability & Serviceability

Built with a heavy-duty cartridge ring and bearing package, the M4D is designed for contaminated environments common in mobile equipment. Its modular construction allows for easy servicing and component replacement in the field, minimizing downtime. Key components like the rotor, vanes, and wear plates are readily available as service kits.

Practical Applications

The M4D's performance profile makes it a solution for numerous demanding roles:

Mobile Equipment: Drum drives on asphalt pavers and rollers, auger drives, conveyor drives, and small winches.

Material Handling: The primary drive for heavy-duty conveyor systems in mining or aggregate plants.

Agriculture: Drives for mixer wagons, feeder wagons, and other high-torque auxiliary functions.

Marine: Capstan and windlass drives, where smooth low-speed power is critical.

For more information on the M4D vane motor, please visit https://www.baolilaihydraulic.com/product/.

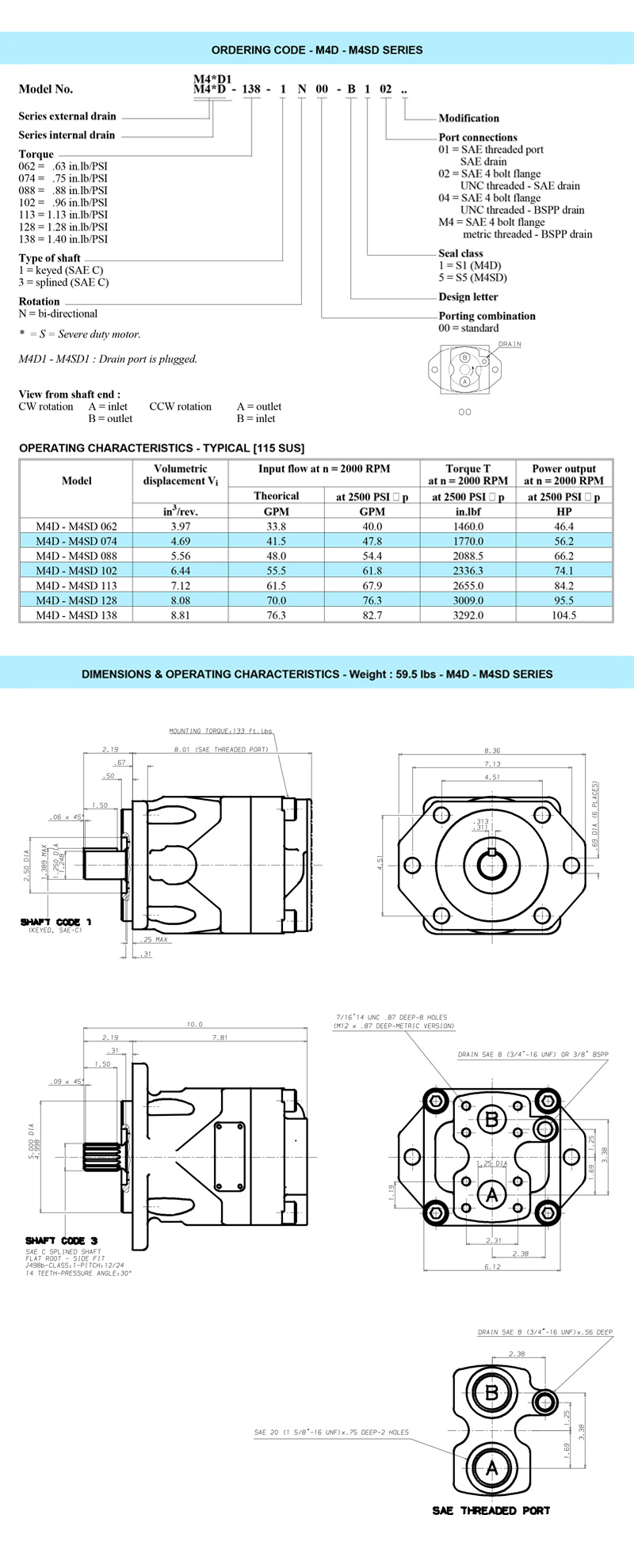

Specifications

Q1:How does the M4D compare to a gear motor in similar applications?

A1: While both are cost-effective, the M4D typically offers superior low-speed smoothness, higher starting torque, and better overall efficiency. Gear motors may have a slight advantage in peak pressure capability and contamination tolerance, but often at the expense of smoother performance.

Q2:What causes a drop in torque or speed over time?

A2:The most common culprits are internal wear leading to increased leakage. This is most frequently seen in the vane tips and wear plates. A drop in system pressure/flow from the pump or increased external mechanical friction should be ruled out first.

Q3: What is the price and delivery time of the M4D vane motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.
