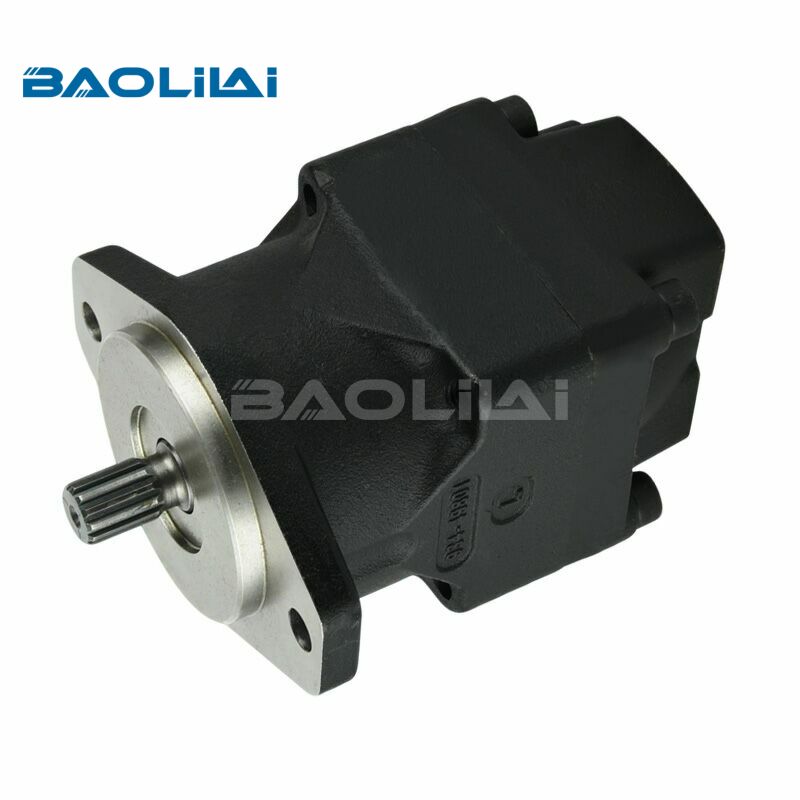

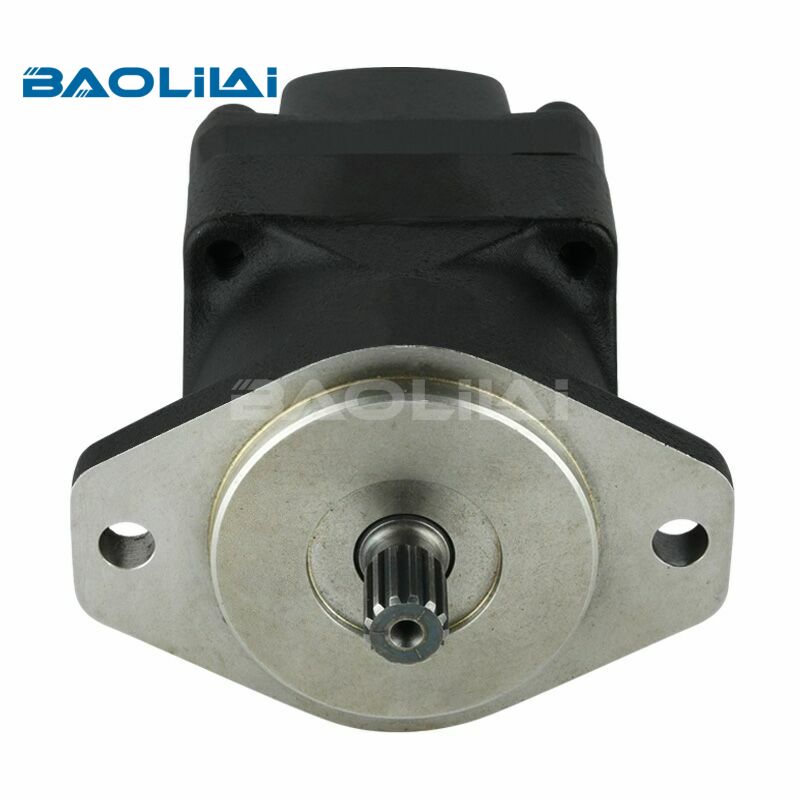

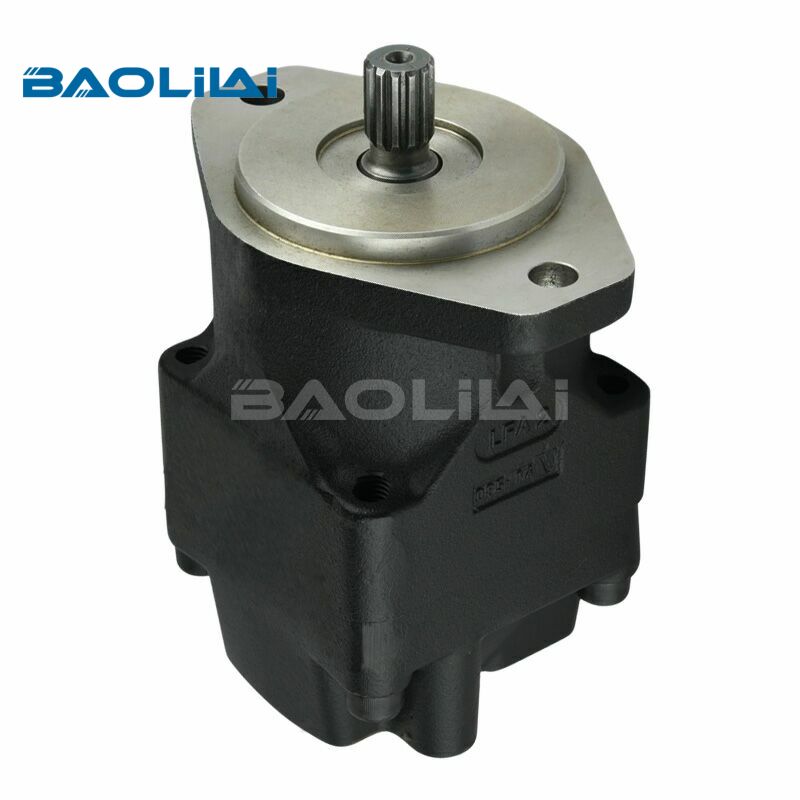

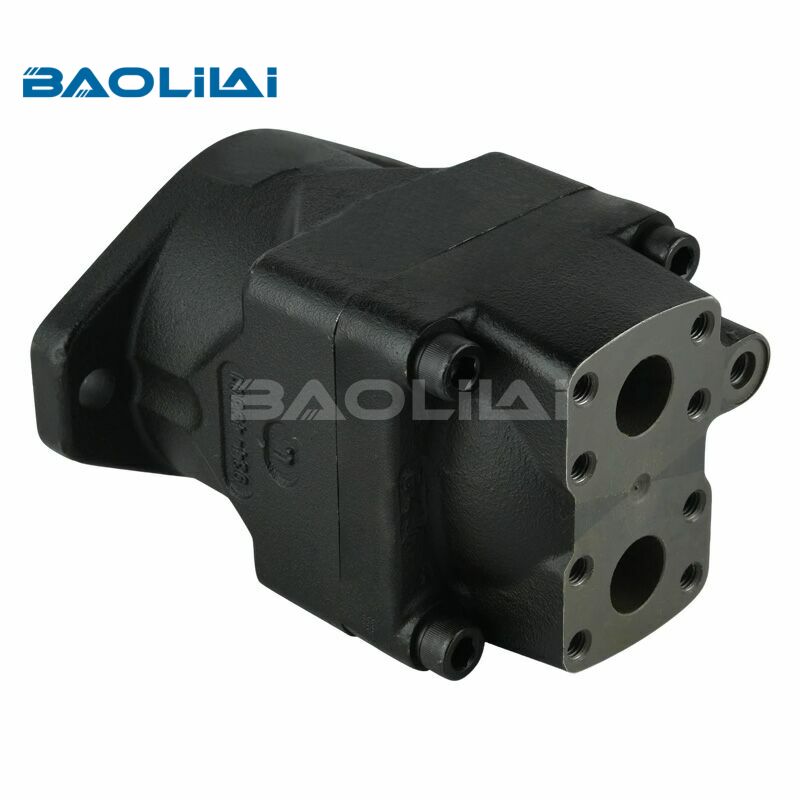

Parker Denison M4SC high pressure hydraulic vane motor

The Parker Denison M4SC is a high-pressure hydraulic vane motor designed to convert hydraulic energy into rotary mechanical motion. Unlike gear motors or piston motors, vane motors use sliding vanes mounted inside a rotor to create hydraulic displacement and generate rotational force.

Key Features of the Parker Denison M4SC Motor

High Pressure Capability

One of the major strengths of the M4SC vane motor is its ability to operate under high hydraulic pressures while maintaining stable performance and long service life.

This allows the motor to support demanding applications such as:

Industrial conveyors

Winches

Injection molding machines

Drilling systems

Heavy-duty mobile equipment

Smooth and Quiet Operation

Compared to traditional gear motors, vane motors generate significantly less noise and vibration. The balanced vane design of the M4SC improves operational smoothness and reduces pressure ripple.

This is especially valuable in:

Indoor manufacturing plants

Precision machinery

Noise-sensitive environments

Compact Design

The M4SC motor offers high power density within a relatively compact housing. Its space-saving design simplifies installation in equipment where mounting space is limited.

High Mechanical Efficiency

The precision-engineered internal vane structure minimizes internal leakage and energy loss, improving:

Torque efficiency

Fuel efficiency

System responsiveness

Overall hydraulic performance

Long Service Life

The Parker Denison vane motor design incorporates durable materials and advanced lubrication characteristics that reduce wear during continuous operation.

Proper maintenance can provide:

Extended operational lifespan

Reduced downtime

Lower maintenance costs

How the M4SC Hydraulic Vane Motor Works

Rotor and Vane Mechanism

Inside the motor, a rotor spins within a cam ring. Several vanes slide outward due to centrifugal force and hydraulic pressure.

As pressurized hydraulic fluid enters the motor:

1.Fluid pushes against the vanes

2.The rotor rotates

3.Torque is generated at the output shaft

4.Mechanical power drives the connected machinery

The balanced hydraulic design helps reduce side loading on bearings and internal components.

Continuous Torque Delivery

Because multiple vanes remain in contact during rotation, the M4SC motor produces smoother torque compared to many other hydraulic motor types.

This contributes to:

Better speed control

Reduced vibration

Improved machine accuracy

Common Applications of the Parker Denison M4SC Motor

Construction Equipment

The M4SC vane motor is commonly installed in:

Excavators

Asphalt machines

Road rollers

Concrete equipment

Its smooth power delivery improves machine control and hydraulic efficiency.

Industrial Manufacturing Systems

In manufacturing environments, the motor supports:

Conveyor drives

Automated machinery

Press systems

Packaging equipment

Its low noise characteristics are particularly beneficial in factory settings.

Marine Hydraulic Systems

Marine operators use vane motors because of their compact size and dependable performance.

Typical marine applications include:

Deck machinery

Winches

Steering systems

Hydraulic cranes

Agricultural Machinery

Agricultural equipment benefits from the motor’s durability and consistent torque output.

Examples include:

Harvesters

Sprayers

Feed systems

Hydraulic augers

For more information on the M4SC vane motor, please visit https://www.baolilaihydraulic.com/product/.

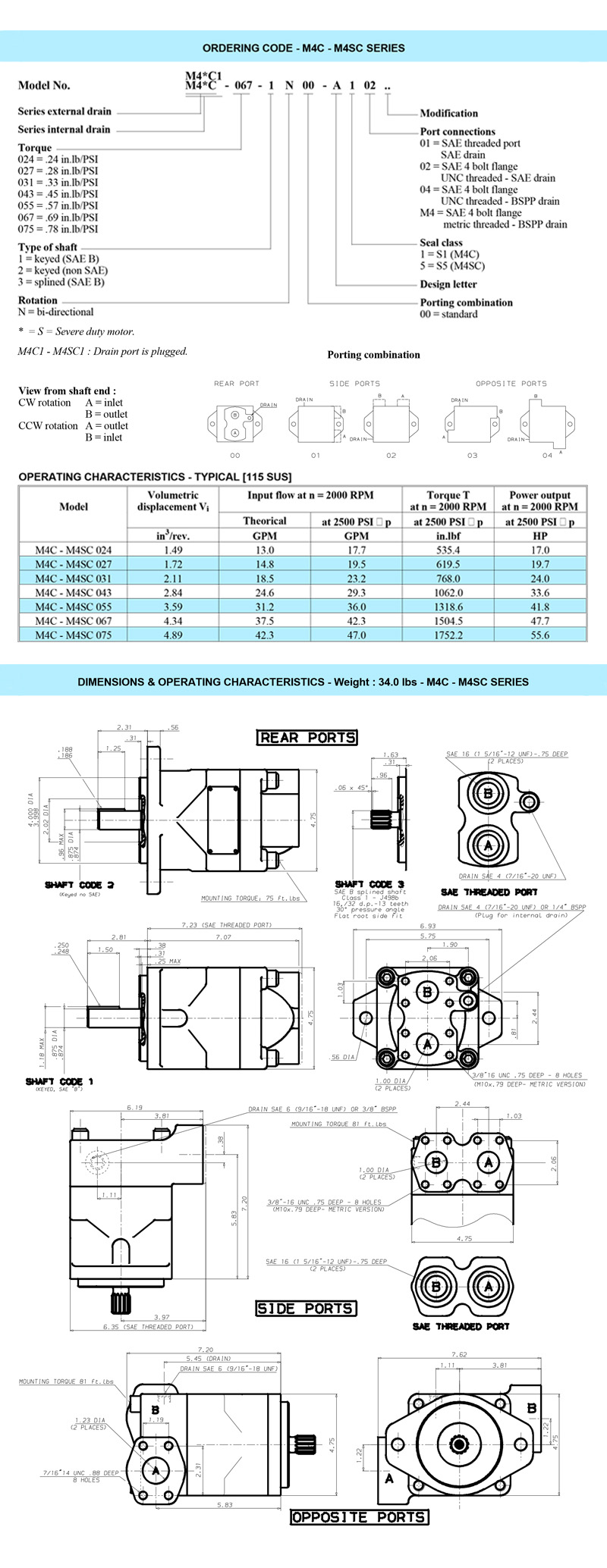

Specifications

Q1:How does the M4C compare to a piston motor?

A1: Piston motors handle higher pressures (5000+ psi) but cost 2–3x more. The M4C is quieter, has better low-speed torque (no piston “stiction”), and is more contamination-tolerant. Choose piston for extreme pressure; choose M4C for value and smoothness.

Q2:What’s the typical service life?

A2:With clean oil (ISO 18/15/13) and moderate duty, expect 8,000–12,000 hours before a rebuild. Heavy shock loads reduce this to 5,000 hours.

Q3: What is the price and delivery time of the M4SC vane motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.

Q4:How to purchase a M4SC vane motor?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
