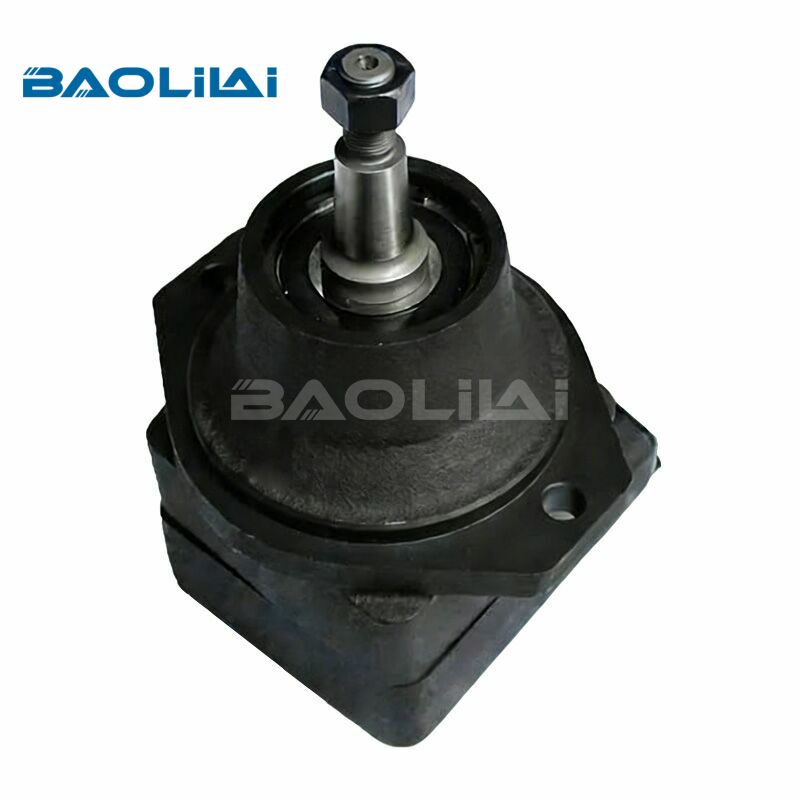

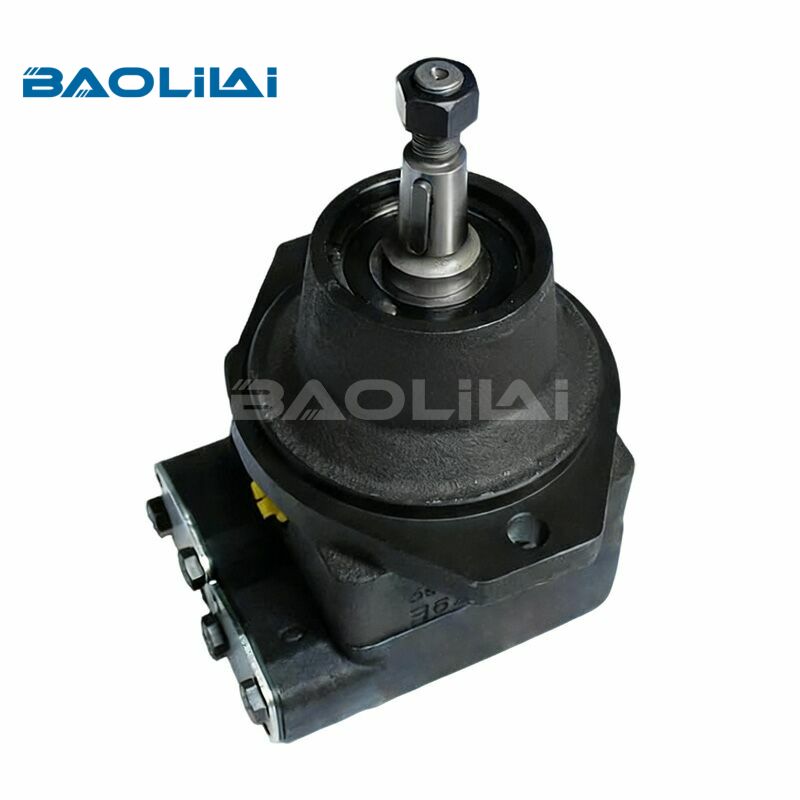

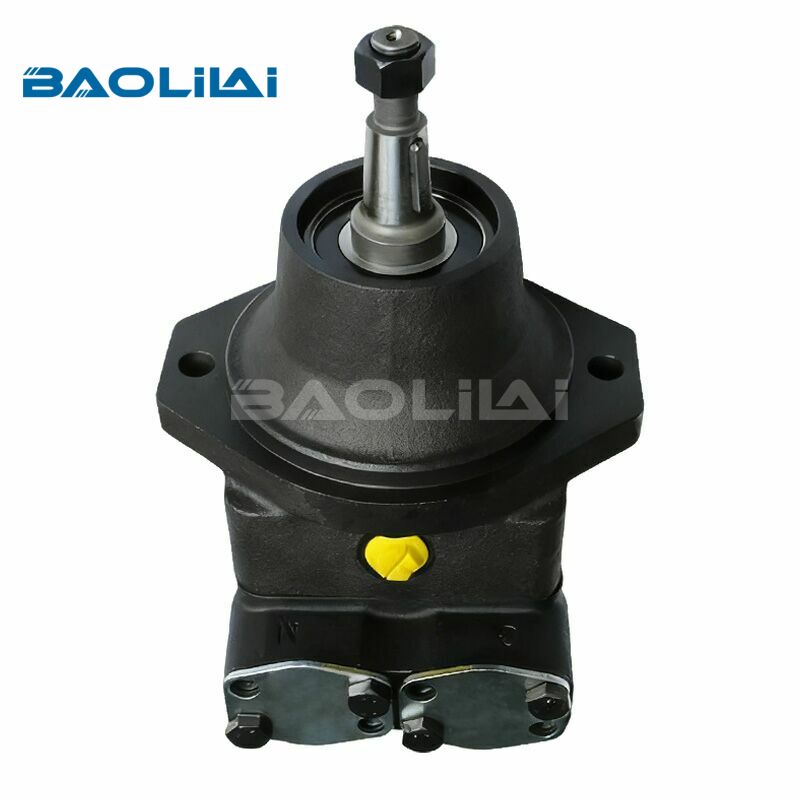

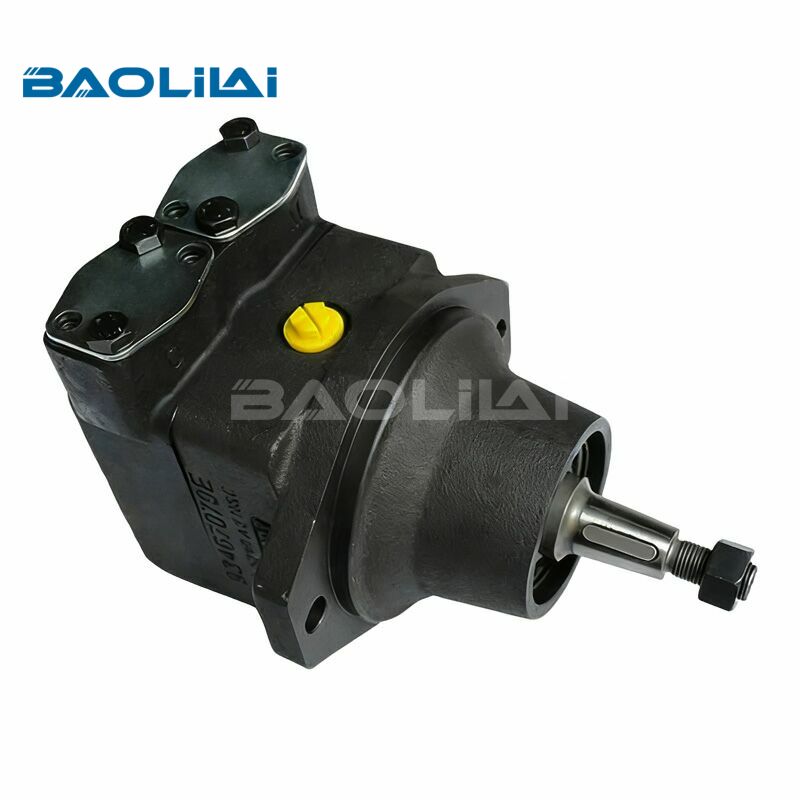

Parker Denison M5BF Fixed Displacement vane motor

At its heart, the M5BF utilizes a balanced vane design. This configuration is critical to its performance and durability.

The Balanced Vane System

The M5BF’s vanes are hydraulically balanced. Pressure is applied to both ends of the vane, ensuring constant contact with the cam ring with minimal friction. This design dramatically reduces internal wear, even at start-up or under low lubrication conditions.

Example: In a conveyor drive application subject to frequent starts and stops, this balanced design prevents the "vane skip" and associated wear common in other motors, ensuring consistent torque delivery from the first revolution.

Fixed Displacement Architecture

As a fixed displacement motor, its geometric displacement per revolution is constant. Output speed is directly and linearly controlled by adjusting the input flow rate, while torque output is a function of the pressure differential across the motor. This simplicity translates to predictable, straightforward control.

Technical Performance Characteristics

The M5BF series is defined by a suite of engineered traits that differentiate it in the marketplace.

High Starting & Running Torque

The motor delivers a high percentage of its theoretical torque at very low speeds. This is due to its efficient vane sealing and the robust design of the cartridge kit, which minimizes internal leakage.

Exceptional Low-Speed Performance

The combination of the balanced vane and precision machining allows for smooth, stable operation at speeds often challenging for other motor types. This makes it ideal for applications requiring direct drive, eliminating the need for additional gear reduction in many cases.

Mechanical Efficiency & Durability

The use of a hardened, precision-ground cam ring and carbon composite vanes within the cartridge assembly minimizes metal-to-metal contact. The resulting high mechanical efficiency extends component life and maintains performance over time.

Primary Industrial & Mobile Applications

The M5BF’s robustness defines its typical use cases.

Mobile Equipment: Drum drives for mixers, fan drives, augers, and winches on construction, agricultural, and forestry machinery.

Industrial Machinery: Conveyor systems, mixer and agitator drives, and small crane hoists where reliable, low-speed power is required.

Marine: Deck machinery such as capstans and small windlasses.

Comparative Advantages: Why Specify the M5BF?

When evaluating hydraulic motor options, the M5BF offers distinct benefits.

Versus Gear Motors: Provides much smoother low-speed operation, higher starting torque, and generally better overall efficiency.

Versus Piston Motors: Offers a more cost-effective solution for medium-pressure applications, with superior contamination tolerance and quieter operation.

Inherent Strengths: Notable for its compact design relative to output torque, straightforward installation, and ease of service via the replaceable cartridge kit.

For more information on the M5BF vane motor, please visit https://www.baolilaihydraulic.com/product/.

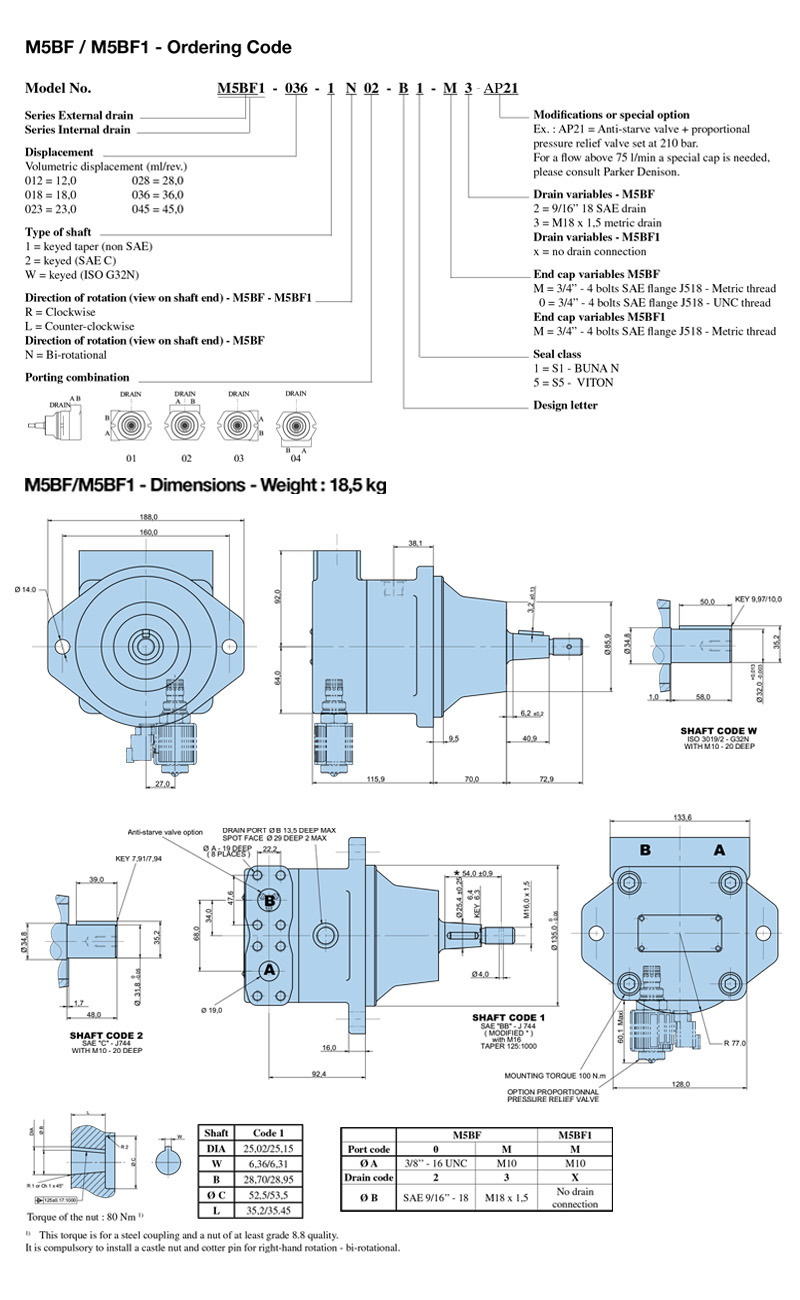

Specifications

Q1:What is the typical operating pressure range for the M5BF series?

A1:The M5BF is designed for medium-pressure applications, with a maximum continuous pressure rating typically in the range of 250-300 bar (≈ 3600-4350 psi), depending on the specific model and configuration.

Q2:What are the key factors for achieving long service life with this motor?

A2:Three factors are paramount: 1) Maintaining fluid cleanliness​ to ISO 18/16/13 or better, 2) Ensuring the use of fluid with adequate lubricity and viscosity​ within the specified range, and 3) Adhering to recommended maximum speed and pressure limits, particularly avoiding cavitation at the inlet port.

Q3: What is the price and delivery time of the M5BF vane motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.

Q4:How to purchase a M5BF vane motor?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
