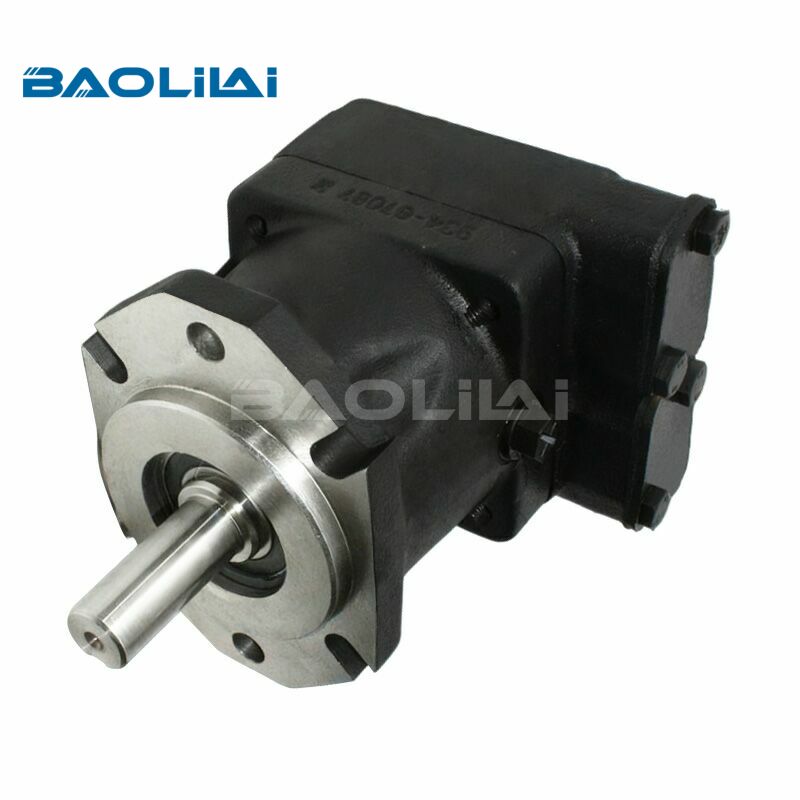

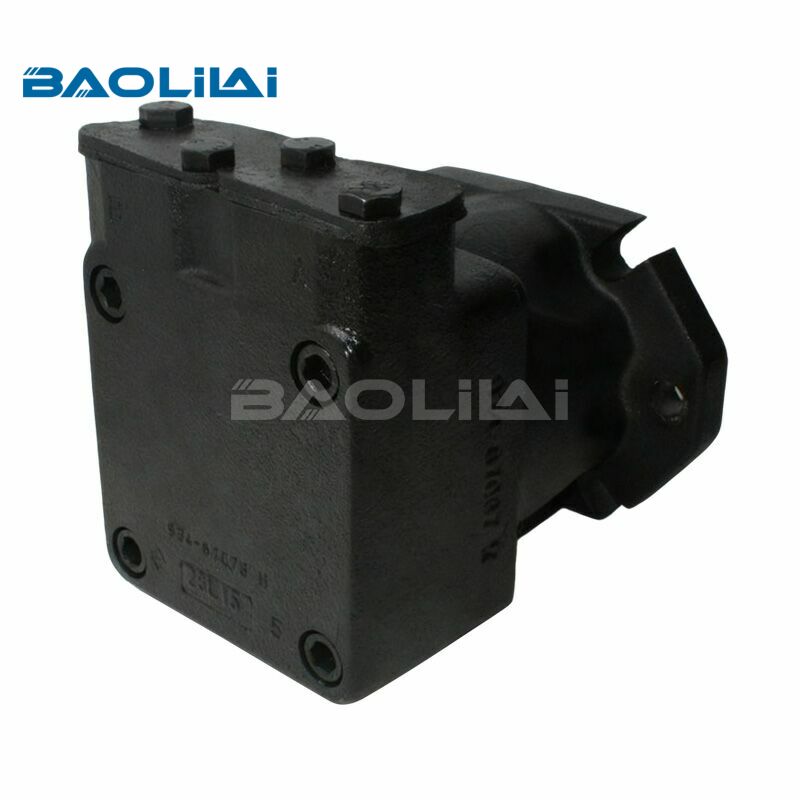

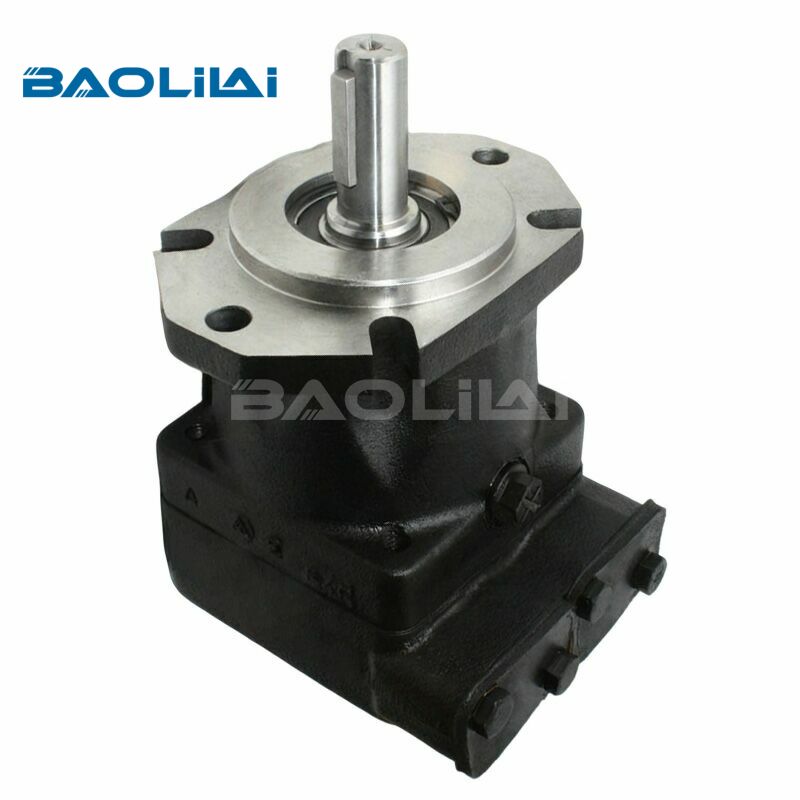

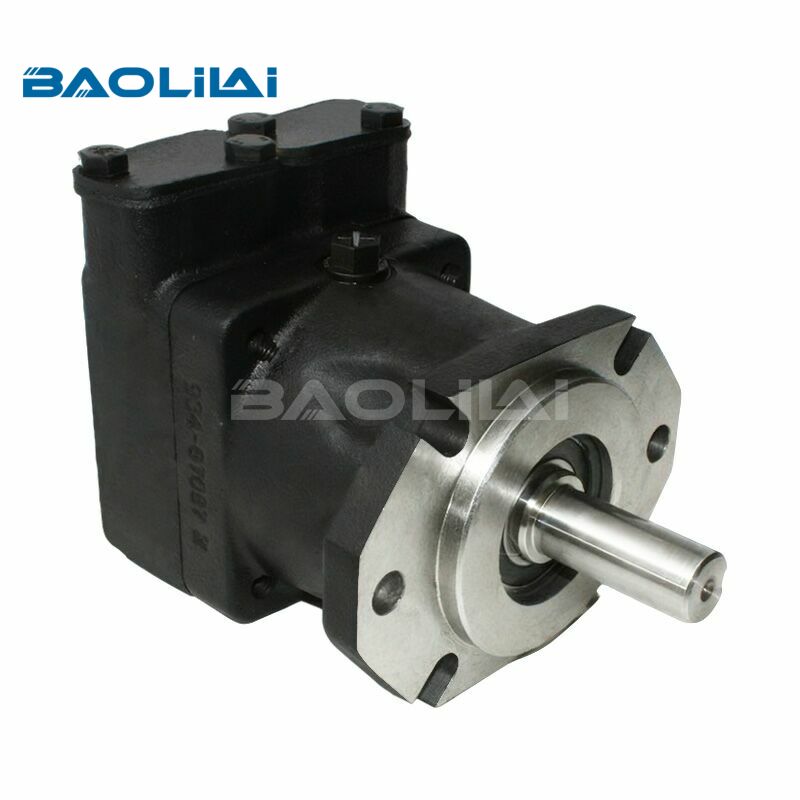

Parker Denison M5BS hydraulic vane motor

The M5BS uses a pressure-balanced cartridge design. Hydraulic pressure acts on both sides of the rotor's vane slots, reducing internal side loads on the rotor and cam ring. This yields:

Higher mechanical efficiency at start-up and low speed

Reduced wear compared to unbalanced vane motors

Longer seal life even under frequent reversals

Primary Applications – Where the M5BS Outperforms Competitors

The M5BS isn't a general-purpose motor. It excels where shock loading, dirty environments, and variable speed are daily realities.

Industrial Machinery & Material Handling

Conveyor drives: Smooth starting torque prevents belt jerking.

Mixers and agitators: Constant torque across speed range maintains batch consistency.

Winch systems: Excellent holding torque without external brakes when using valving.

Mobile Equipment – Under the Hood

While not a primary wheel motor, the M5BS appears in:

Aerial lift rotation drives

Snowplow auger motors

Small crane swing drives

Its low-speed stability (down to 50 rpm) and ability to reverse instantly make it a favorite for OEMs avoiding complex electronic controls.

Installation, Maintenance, and Common Failure Modes

Even a robust motor fails early if the system is neglected. Here's what experienced fluid power technicians check first.

Oil Cleanliness Is Non-Negotiable

Vane motors rely on a thin hydrodynamic film between vanes and cam ring. ISO 16/13/10 (NAS 7) is the practical minimum. Dirt causes:

Rapid vane tip wear → torque drop

Cam ring scoring → noisy operation (distinctive “chattering” sound)

Sticking vanes → erratic speed

Mounting and Shaft Alignment

The M5BS uses a heavy-duty roller bearing on the shaft, but overhung loads kill it quickly. Always:

Use flexible couplings for coaxial drives

Limit radial load to <400 lbs per inch of shaft diameter

Check case drain pressure (should be <50 psi above tank)

For more information on the M5BS vane motor, please visit https://www.baolilaihydraulic.com/product/.

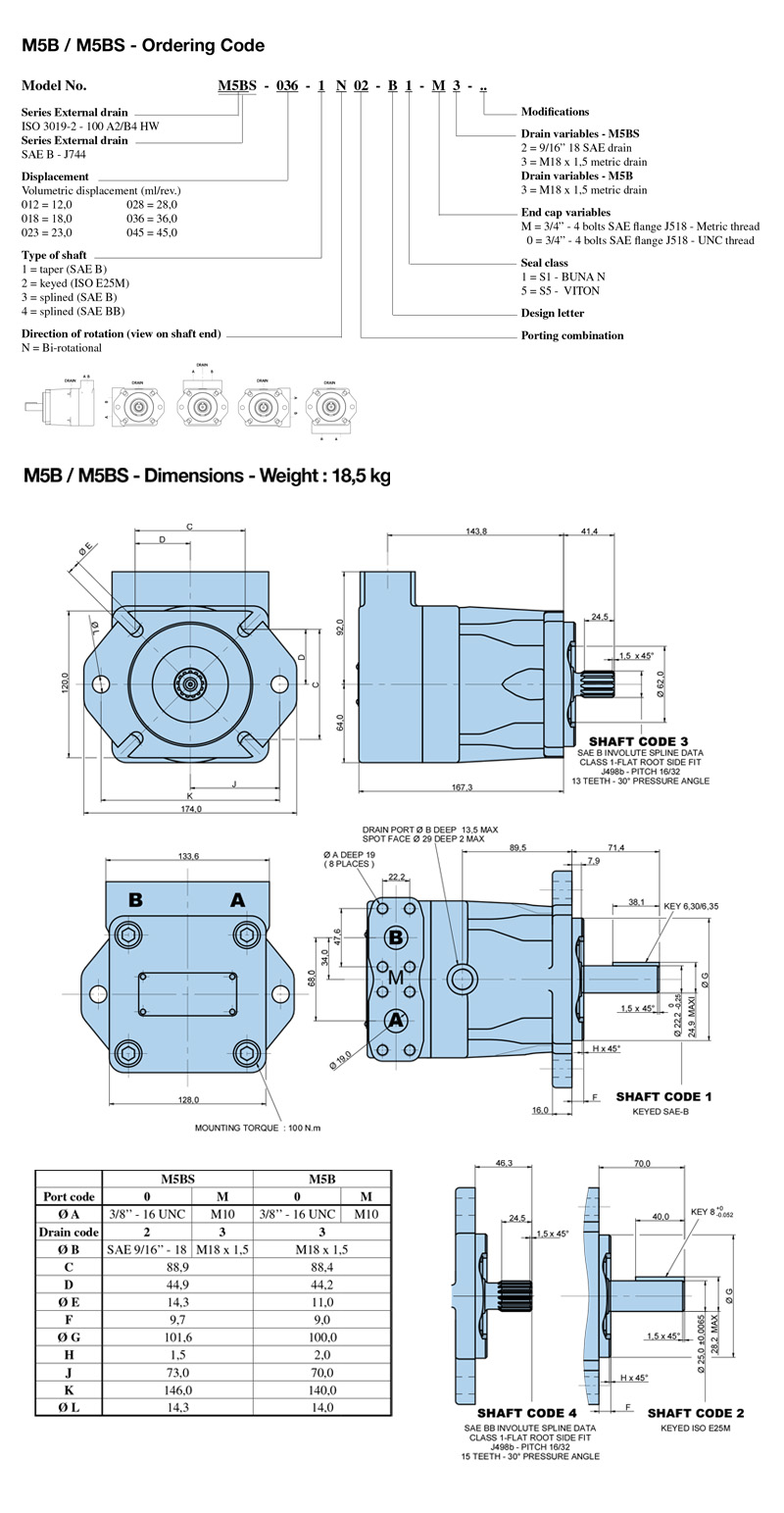

Specifications

Q1:How does it compare to a Denison T6 series pump?

A1:The T6 is a pump; the M5BS is a motor. However, they share cartridge designs – many components interchange, which is a major fleet advantage.

Q2:What’s the typical rebuild interval?

A2:In clean, 2,000 psi intermittent duty: 10,000–15,000 hours. In dirty or continuous high-pressure service: 5,000 hours. Always monitor case drain flow.

Q3: What is the price and delivery time of the M5BS vane motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.

Q4:How to purchase a M5BS vane motor?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
