Parker Denison T67BB T67BBW hydraulic vane pump

Both the T67BB and T67BBW are balanced vane-type pumps, meaning hydraulic forces on the rotor and vanes are hydraulically neutralized. This results in reduced bearing loads and longer life compared to unbalanced designs.

T67BB vs. T67BBW: The Critical Difference

At first glance, the two models look interchangeable. They share cartridge kits, shafts, and porting. However, the “W” suffix signals a major engineering upgrade.

T67BB – The Standard Duty Workhorse

The base T67BB is designed for general industrial applications with:

Standard needle bearings on the drive shaft

Buna-N seals (standard, -20°F to +180°F)

Acceptable for duty cycles under 60% continuous max pressure

Best for: Machine tools, plastic injection molding auxiliaries, and stationary presses where shock loading is rare.

T67BBW – The Heavy-Duty “Wet” Version

The T67BBW introduces three key modifications:

1.Heavy-duty tapered roller bearings on both sides of the rotor – absorbs axial and radial shock loads from mobile equipment.

2.Wide temperature seals (FKM or HNBR) standard – resists degradation in high-water-content fluids or extreme thermal cycling.

3.Reinforced port end cover – eliminates casing deflection under peak intermittent pressures.

Common Failure Modes & Proactive Solutions

Even a robust design fails if ignored. Based on field teardowns, here are the top three issues:

1.Cavitation Damage on the Cam Ring

Symptoms: Pitted internal ring surface, brass transfer from vanes, erratic flow.

Root cause: Inlet restriction (clogged strainer, undersized suction line, cold oil).

Fix for T67BBW: Install a vacuum gauge on the inlet port. Keep below 15 inHg absolute at max speed.

2.Vanes Sticking in Rotor Slots

Symptoms: Slow response, pressure ripple, eventual seizure.

Root cause: Varnish from oxidized oil (often with Group I or III mineral oils running hot >160°F).

Prevention: Use Parker’s approved HVLP or HLP fluids. For high-heat applications, switch to a synthetic ester and shorten oil drain intervals by 30%.

3.Shaft Seal Extrusion (T67BB Only)

Symptoms: Oil weeping from front cover – not a massive leak, but a steady nuisance.

Root cause: Case drain pressure exceeding 2 bar (29 psi). The T67BB’s standard seal cannot tolerate backpressure.

Solution: Upgrade to T67BBW (which has a dynamic high-pressure seal) or externally plumb case drain directly to tank without restrictions.

Installation & Best Practices

Do not just bolt it on. Follow this checklist:

1.Flexible coupling alignment – Misalignment >0.005” will destroy the T67BB’s needle bearings. The T67BBW’s tapered bearings are more forgiving, but don’t push it beyond 0.010”.

2.Inlet velocity – Keep below 1.5 m/s (5 ft/s) for petroleum oil. Use a suction strainer no finer than 149 µm (100 mesh).

3.Startup fill – Manually fill the case before first start. These pumps are not self-priming beyond 1.5m vertical lift.

For more information on the T67BB T67BBW hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

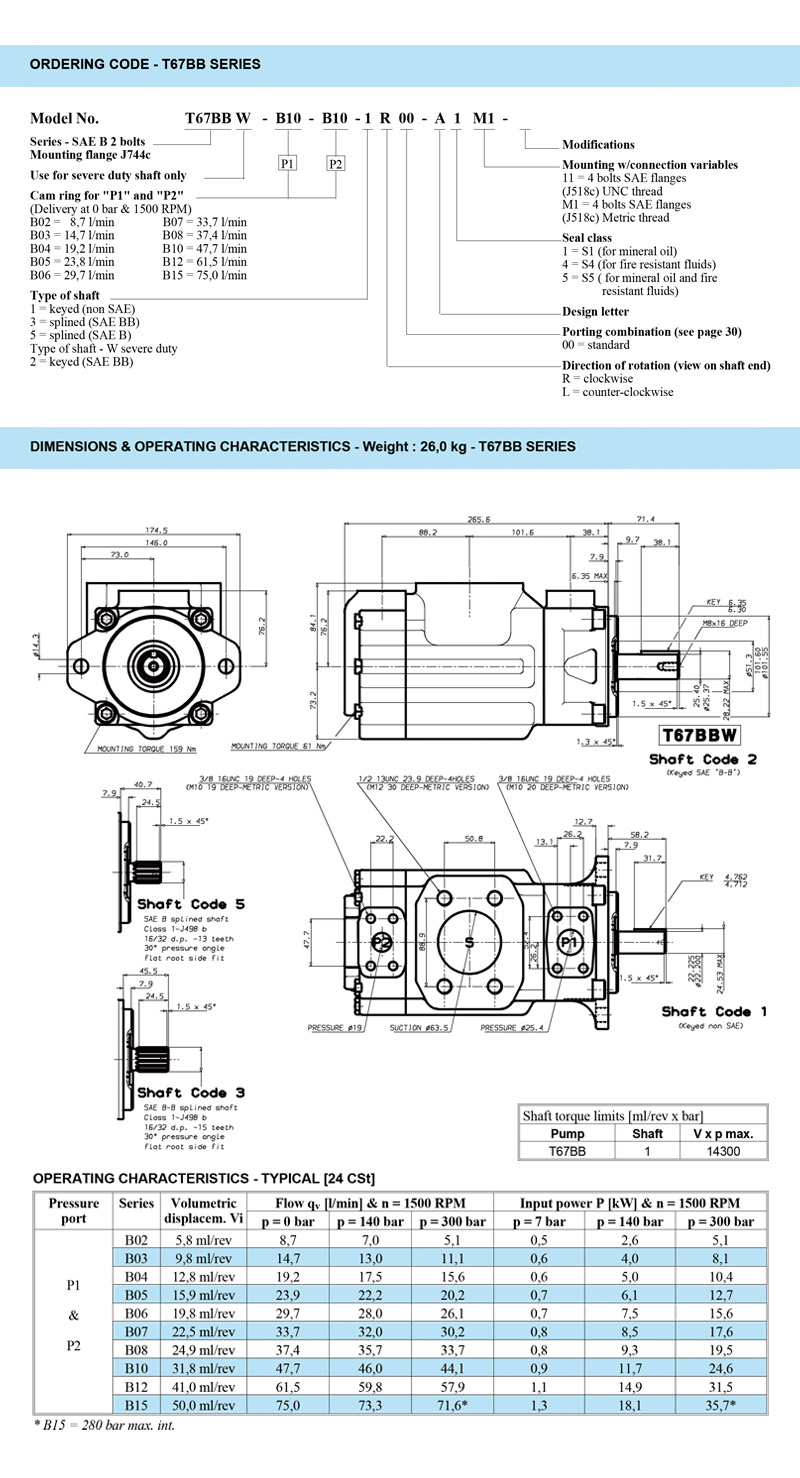

Selection Table

Q1: Can I swap a T67BB cartridge kit into a T67BBW housing?

A1:Yes – the rotating group (rotor, vanes, cam ring, pressure plates) is identical. Only the bearings, seals, and housing differ. However, putting a standard cartridge into a BBW housing does not upgrade the bearing capacity.

Q2:My T67BBW is noisy at idle. Is that normal?

A2: No. A quiet vane pump should produce a smooth “swish” – not a knocking or whining sound. Check for air ingestion on the suction side. A common hidden cause: a cracked O-ring on the inlet elbow.
