Parker Denison T6CCM T6CCP mobile vane hydraulic pump

In the rugged world of mobile hydraulics, simplicity and reliability are often the most critical metrics. The Parker Denison T6CC series, encompassing both the T6CCM and T6CCP, delivers exactly that through a robust, fixed displacement vane pump design. Engineered for construction, agriculture, and materials handling equipment, these pumps are built to provide dependable, continuous hydraulic flow where variable output is not required. Understanding the subtle but important distinction between these two models is key to proper application and system design.

Core Design: The Fixed Displacement Vane Advantage

Both models share the same reliable internal mechanism: a cartridge-type rotating group with vanes, a rotor, and a cam ring. This design is renowned for:

Good Contaminant Tolerance: More forgiving than piston pumps in harsh, dirty environments.

Quieter Operation: Naturally lower noise levels than comparable gear pumps.

Mid-Range Efficiency: Offers a solid balance of performance and durability for continuous-duty applications.

Key Point: As fixed displacement pumps, their output flow is directly and solely proportional to input shaft speed. To control actuator speed or system power, an external device (like a directional control valve or a flow divider) is required.

Model Differentiation: T6CCM vs. T6CCP

The primary difference is not functional, but configurational. It concerns the pump's interface with the rest of the hydraulic system.

Analogy: Think of it as the difference between a garden hose with a screw thread (T6CCM) and one with a bolted, gasketed flange connection (T6CCP). Both deliver water, but the flange is built for more demanding, industrial service.

Application Examples

T6CCM on a Conveyor Drive: A fixed-speed electrical motor drives a T6CCM pump to provide constant flow to a hydraulic motor running a conveyor belt in a screening plant. Its straight-thread ports connect directly to compact valve blocks.

T6CCP on a Log Splitter: A tractor's PTO drives a T6CCP pump. The pump's high-pressure flanged outlets connect via robust hoses to a control valve and cylinder. The cast iron housing and flange ports withstand the shock loads and vibration inherent to the splitting cycle.

For more information on the T6CCM/T6CCP/T6CCMW hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

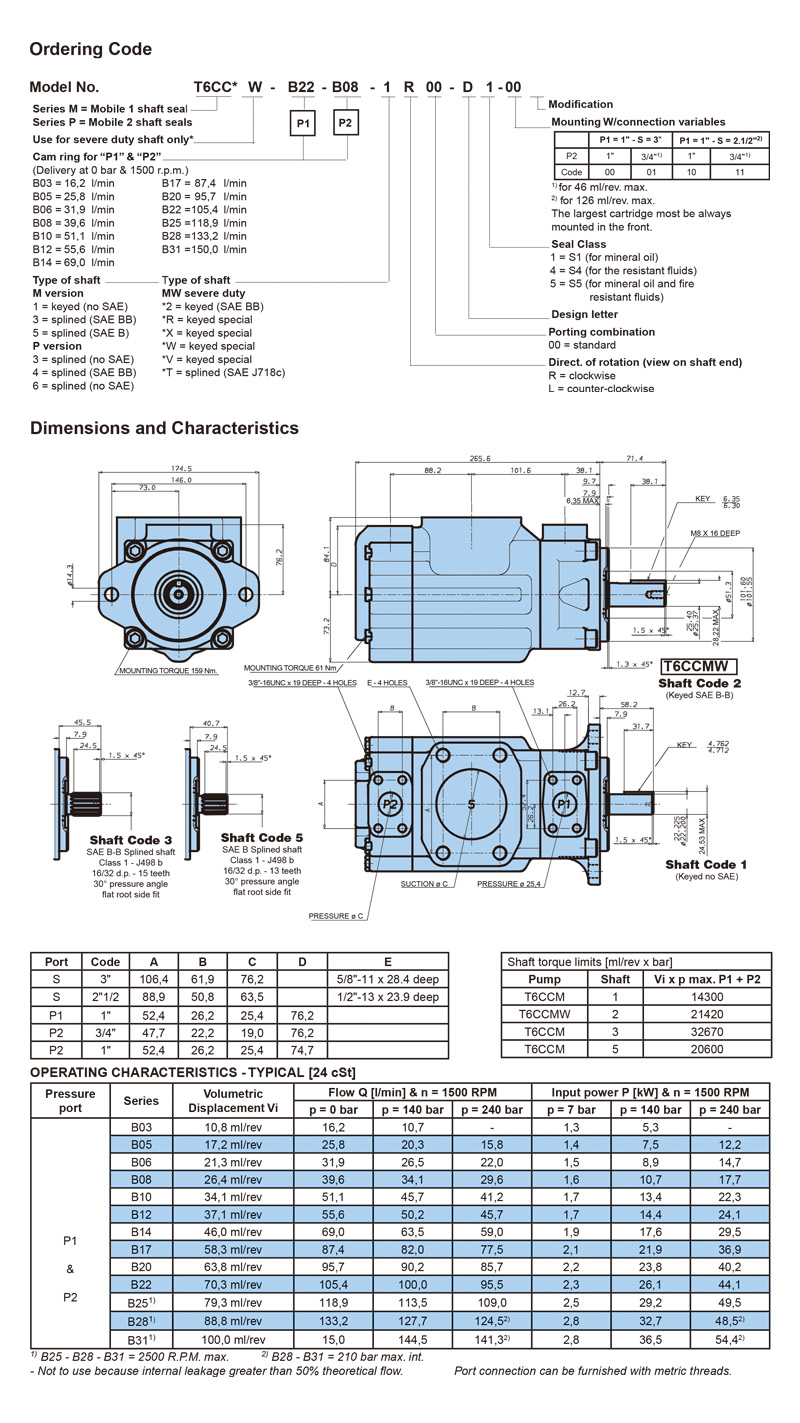

Selection Table

Q1: How do I choose between the T6CCM and T6CCP?

A1:The choice is primarily about system plumbing and the operating environment.

Choose the T6CCM​ for compact, integrated designs where straight-thread ports are suitable and weight is a minor concern.

Choose the T6CCP​ for applications with high vibration, high pressure, or where you require the most reliable, serviceable pipe or hose connection via SAE 4-bolt flanges.

Q2:What controls the system pressure with a fixed pump like this?

A2: System pressure is created by the load​ on the actuator (cylinder or motor). A relief valve​ is absolutely mandatory in the system to limit maximum pressure and protect the pump and components from overpressure.
