Parker Denison T6DCCM mobile hydraulic vane pump

The T6DCCM is a triple vane pump from Parker Hannifin's Denison Vane Pump Division, engineered specifically for mobile hydraulic applications rather than fixed industrial installations. The "T6" designates the series, "DCC" indicates a triple-section (three-pump) configuration built from D-size and C-size cartridges, and the trailing "M" flags it as the mobile variant—meaning it's tuned for the duty cycles, mounting constraints, and vibration environment of vehicle-mounted equipment.

Design and Construction

The Cartridge System

The defining feature of the whole T6 family, and the reason it's stayed in production for decades, is the cartridge design. Instead of machining wear surfaces directly into the pump housing, Parker Denison packages the cam ring, rotor, vanes, pins, and sideplates into a self-contained, replaceable cartridge. When wear eventually catches up with the pump, a technician swaps the cartridge rather than replacing—or re-machining—the entire housing.

For a mobile fleet running long hours on a job site, this matters a lot. It turns a multi-day pump overhaul into a shop job measured in hours, and it means a worn pump doesn't have to become a scrapped pump.

Balanced Pin-Vane Design

Each section uses a balanced pin-vane arrangement, where outlet pressure acts on the pin behind each vane rather than directly forcing the vane against the cam ring. This keeps vane loading consistent and light regardless of pressure fluctuations, which reduces wear on the cam ring and extends service life—especially important on mobile equipment where pressure spikes are common as operators cycle functions quickly.

Triple-Section Layout

Because the T6DCCM stacks three pumping sections on one input shaft, it lets equipment builders consolidate what would otherwise be two or three separate pumps (and two or three separate mounting points, couplings, and drive losses) into a single unit driven off one PTO or engine-mounted drive. Porting is flexible: the cap-end outlet can typically be indexed across multiple positions relative to the inlet, so OEMs can route plumbing to suit the machine's layout rather than redesigning the machine around the pump.

Performance Characteristics

While exact figures vary by the specific displacement code ordered (each section can be specified independently), the T6 mobile series as a family is built around these general parameters:

Operating pressure: continuous ratings up to roughly 275 bar (about 4,000 psi) depending on section size and duty cycle, with higher pressures permitted intermittently under mixed-duty-cycle calculations

Speed range: minimum around 400 RPM up to roughly 2,500 RPM, giving flexibility across engine and PTO speeds

Fluid viscosity tolerance: functions from as thick as roughly 9,240 SUS during cold starts down to about 60 SUS at full operating temperature, which is a wide enough band to cover most climates a mobile machine will actually see

Recommended fluids: petroleum-based antiwear R&O hydraulic fluids meeting Denison's HF-0 or HF-2 specifications; other fluid types are usable but typically require derating

For more information on the T6DCCM hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

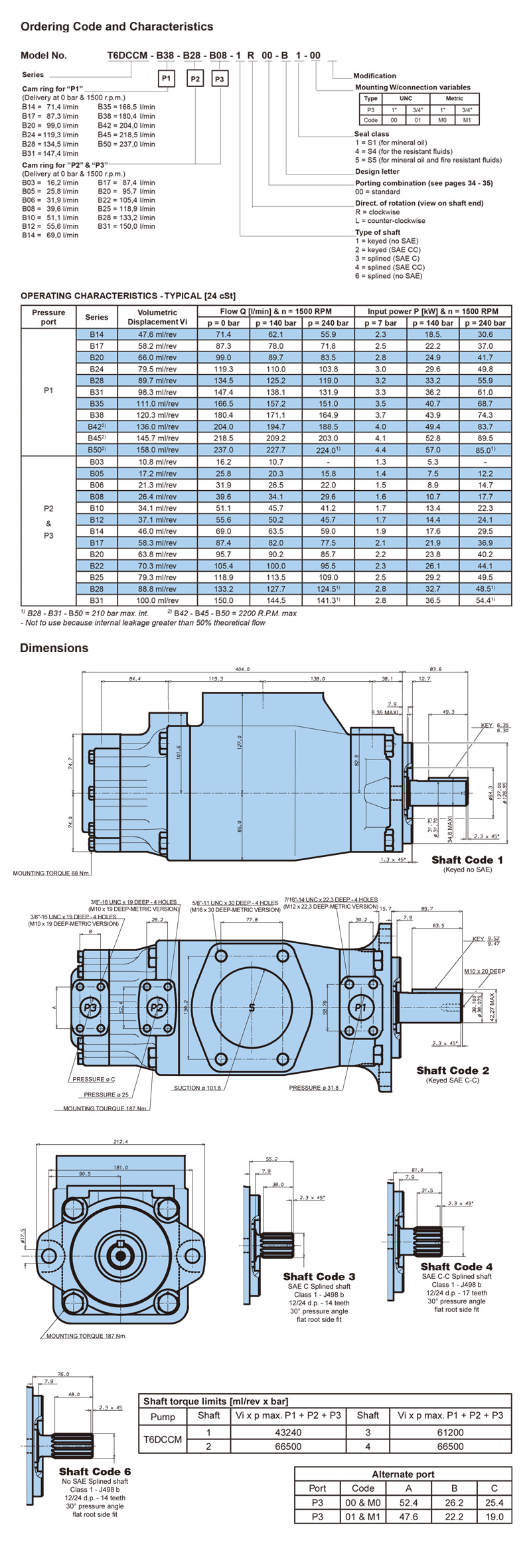

Selection Table

Q1: Why use a triple pump instead of three separate pumps?

A1: Consolidating three pumping sections into one housing on a single drive shaft reduces mounting points, coupling losses, and overall system weight and cost—all valuable on a mobile chassis where space and payload are at a premium.

Q2: Can I rebuild a T6DCCM instead of replacing it?

A2: Yes, and it's usually the more economical route. Because each section uses a self-contained cartridge, a shop can replace only the worn cartridge in the affected section rather than swapping the entire triple-pump assembly.

Q3: How to purchase a T6DCCM hydraulic pump?

A3: You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4: What is the price and delivery time of the T6DCCM hydraulic pump?

A4: The specific price and delivery time will be provided based on the specific model you provide.
