Parker Denison T6DCCR industrial hydraulic vane pump
- Product Details
- Product Model
- FAQ
The “CCR” in T6DCCR vane pump stands for Constant Combination Regulator—a control method that allows two independent vane cartridges within one compact housing. Each cartridge operates at different pressure and flow settings, driven by a common shaft.
Real-world example:
A plastic injection molding machine uses one cartridge (high flow, low pressure) for fast clamp closing, and the second cartridge (low flow, high pressure) for holding the mold closed. The T6DCCR automatically shifts between curves without external switching valves.
How the T6DCCR Reduces System Heat and Noise
Heat kills hydraulics. Fixed-displacement pumps waste energy as heat when flow exceeds demand. The T6DCCR uses a pressure-compensated, load-sensing regulator to match output flow to the actual load.
Example:
A metal baler requires 150 L/min during compression but only 20 L/min during idle retract. A fixed pump would dump excess flow over a relief valve, generating ~12 kW of heat. The T6DCCR reduces flow to 22 L/min at standby, cutting heat generation by over 80%.
Noise is another hidden advantage. Vane pumps typically operate at 65-75 dB(A) at full pressure, compared to 85-95 dB(A) for comparable piston pumps. The T6DCCR’s dual cartridge layout further dampens pressure pulsation.
Common Applications Where the T6DCCR Excels
1.Mobile equipment-Wheel loaders, excavators (auxiliary functions)
2.Industrial presses-Hydraulic forging, stamping, and molding
3.Test rigs-Dual pressure zones in a single pump envelope
4.Marine steering gear-Redundant circuits without dual pumps
For more information on the T6DCCR hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

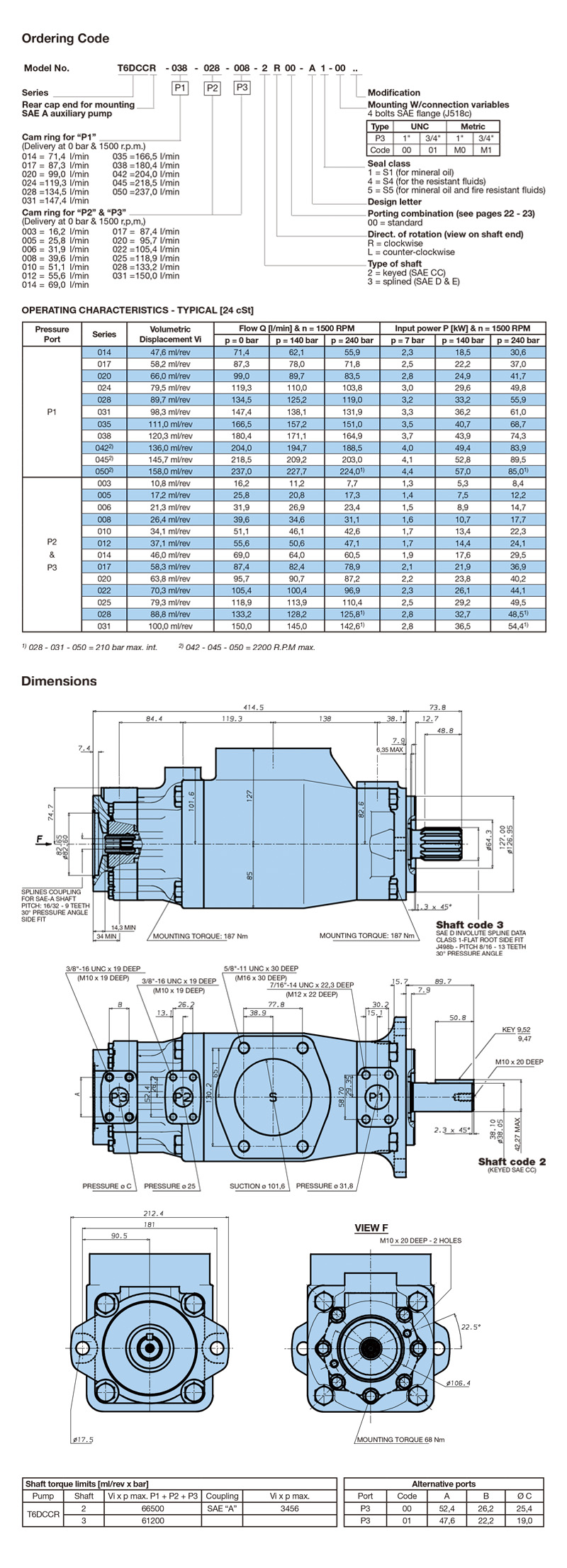

Selection Table
| T6DCCR vane pump | |
| Model No. | Model Code |
| 024-64708-0 | T6DCCR-20-14-14-3L00-A100 |
| 024-63239-0 | T6DCCR-35-14-10-2R00-A100 |
| 054-45500-0 | T6DCCR-50-31-20-2R00-A101 |
| 024-72738-003 | T6DCCRB14-B10-B03-3L03-A100 |
| 054-38824-0 | T6DCCRB24-B25-B22-6L00-A100 |
| 054-38824-001 | T6DCCR-B24-B25-B22-6L01-A100 |
| D-054-38824-0/01RO | T6DCCR-B24-B25-B22-6L01-A100 |
| 024-77154-503 | T6DCCR-B28-B08-B03-3L03-A500 |
| 054-34520-0 | T6DCCR-B28-B10-B03-3L00-A100 |
| 054-34520-003 | T6DCCR-B28-B10-B03-3L03-A100 |
| 024-92211-003 | T6DCCRB28-B10-B03-3L03-A101 |
| 024-63446-0 | T6DCCR-B28-B22-B25-3R00-A100 |
| D-024-63446-0/00RO | T6DCCR-B28-B22-B25-3R00-A100 |
| 024-63446-0 | T6DCC-R-B28-B22-B25-3R00A100 |
| 024-63982-0 | T6DCCR-B28-B28-B22-3R00-A100 |
| 054-36381-003 | T6DCCRB35-B20-B14-2R03-A101 |
| 054-38810-003 | T6DCCR-B35-B20-B14-3L03-A100 |
| D-054-38810-0/03RO | T6DCCR-B35-B20-B14-3L03-A100 |
| 054-34891-003 | T6DCCR-B35-B20-B14-3L03-A101 |
| D-054-34891-0/03RO | T6DCCR-B35-B20-B14-3L03-A101 |
| 054-35802-003 | T6DCCRB35-B20-B14-6L03-A101 |
| 054-36469-003 | T6DCCR-B35-B20-B14-6R03-A101 |
| 024-76005-017 | T6DCCR-B35-B25-B25-3R17-A100 |
| 054-34512-0 | T6DCCR-B38-B28-B08-2R00-A100 |
| 054-46945-0 | T6DCCR-B61-B20-B08-2R00-A100 |
Q1:Can the T6DCCR run dry, even briefly?
A1:No. Like all vane pumps, it requires flooded suction (positive inlet pressure of 0.7–2 bar absolute). Dry running damages the cartridge tips. Always pre-fill the case and verify inlet strainers are clean.
Q2:What is the typical cartridge service interval?
A2:Under ISO 4406 cleanliness class 18/16/13, the T6DCCR cartridges last 8,000–12,000 hours. Dirty oil (< 20/18/15) reduces life to under 2,000 hours. Use a 10 μm beta=200 return filter.
Q3:How to purchase a T6DCCR hydraulic pump?
A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
Q4:What is the price and delivery time of the T6DCCR hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
